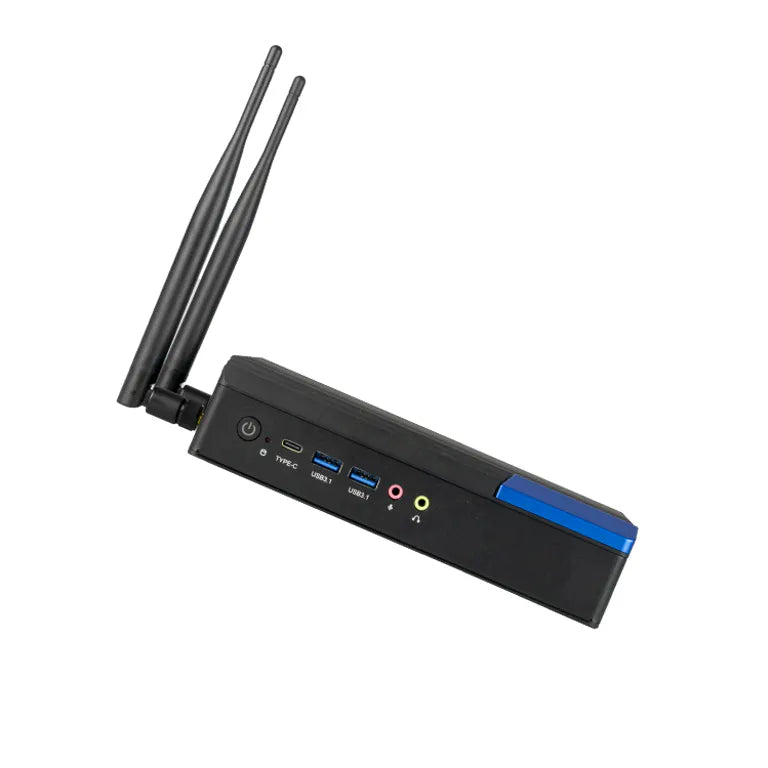

The K105F is a robust, fanless Windows Signage Player designed for optimal performance around the clock. Engineered for 24/7 operation, this powerhouse employs the powerful Iris XE Graphics, providing crystal clear visuals and smooth rendering even in the most demanding scenarios.
Built for 24/7 operation
Powerful Iris XE Graphics
Fanless design for silent operation
4G/5G capable (requires modem)
Supports up to 8K resolution & triple display
Dual LAN
| System | Details |
|---|---|
| Processor | Intel® Core™ i5-1235U - 2P/8E/12T - 4.4GHz boost - 80 graphics EUs |
| Memory | Up to 32GB DDR4 up to 3200MHz |
| Storage | 1x 2280 M.2 NVMe |
| Graphics | Intel® Iris® Xe Graphics |
| Networking | Dual Realtek® 1Gb LAN, M.2 WiFi (optional), M.2 4G/5G (optional) |
| Audio | Realtek® HD Audio |
| Operating System | Windows® 11 - Home / Pro, Windows® 10 IoT Enterprise 2019 - LTSC/CB, Optional No operating system, TPM 2.0 |
| Power Supply | External 90W brick (19V 4.74A, 5.5mm x 2.5mm) |
| Dimensions | 190mm x 148mm x 45mm |
| Weight | 1.4 kg |
| Ports - Front IO | 2x USB 3.1(Type-A), 1x USB 3.1(Type-C), 2x 3.5mm audio (1x Mic, 1x Headphone) |
| Ports - Rear IO | 4x USB 2.0 (Type-A), 2x HDMI 2.0, 1x DisplayPort 1.4, 2x RJ45, 1x D/C in |
| Ports - Side IO | 2x DB-9 RS232 |
| Warranty | Standard 1 year collect and return |
| Optional Upgrades | Up to 5 years total cover, Extended Service Plan |
| In the Box | Standard K105F system, Power supply, VESA mounting bracket |
| Description | Downloads |
|---|---|
| Datasheet | Download |
