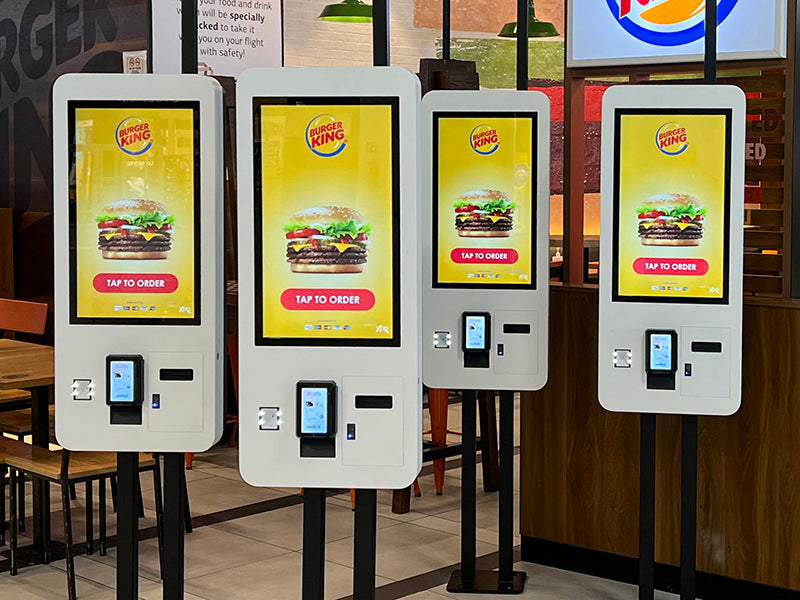

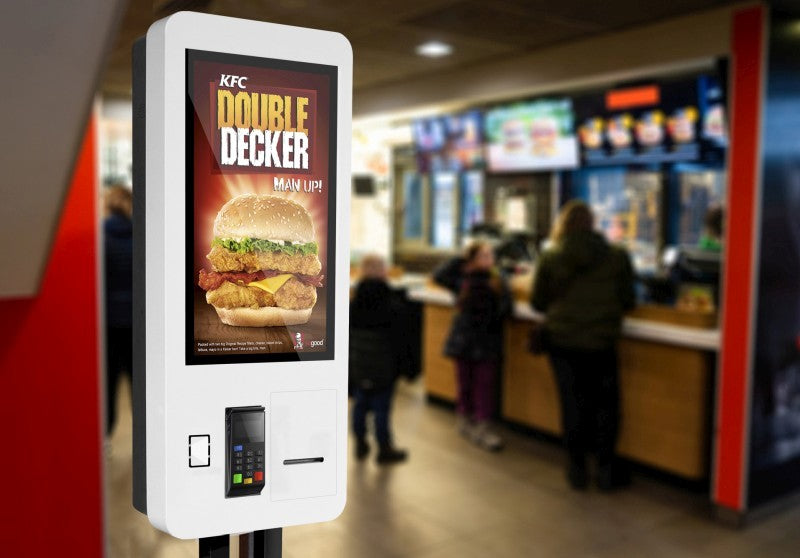

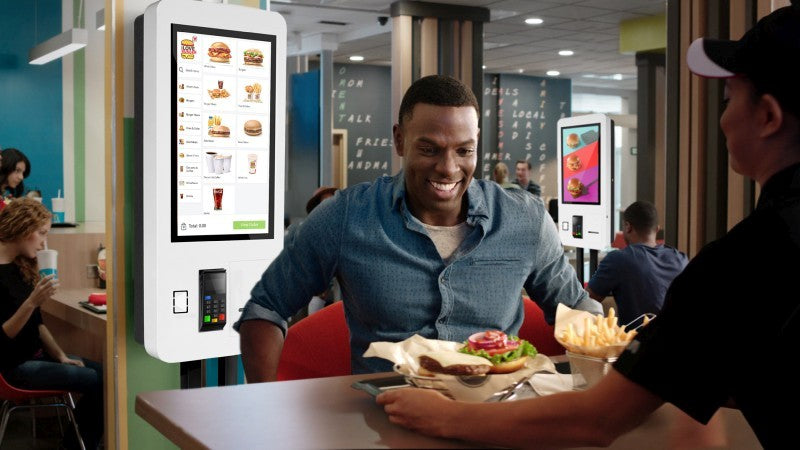

Commercial Self Ordering Touch Screen Solution for Quick Service Restaurants

Self-ordering touch screen solution for quick service restaurants with integrated QR code scanner and receipt printer

Versatile Touch Screen Kiosk

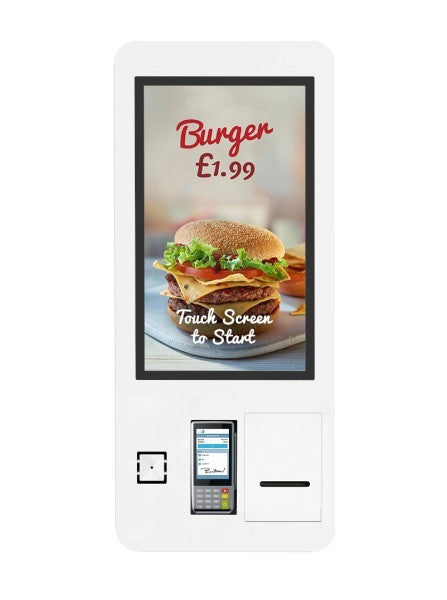

Our 27 Inch PCAP Self Service Kiosk with its robust and familiar design is a market leading solution for businesses. The all-in-one display can increase efficiency for businesses, enhance customer experience and reduce costs while also opening up new revenue streams. With dual mounting options available the 27 Inch PCAP Self Service Kiosk is the gold standard for interactive self service kiosks.

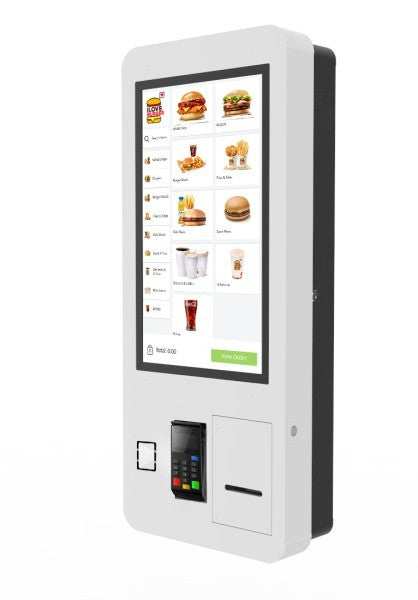

Dual Anti-Theft Mounting Options

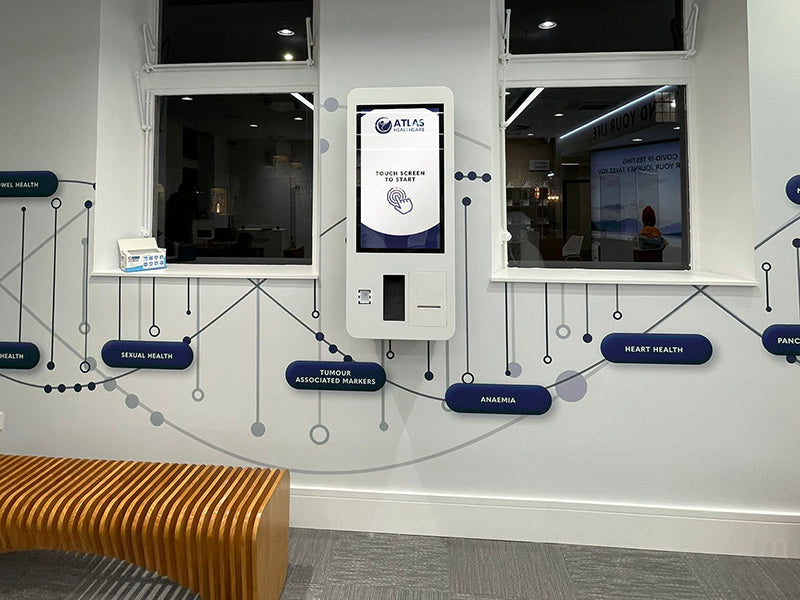

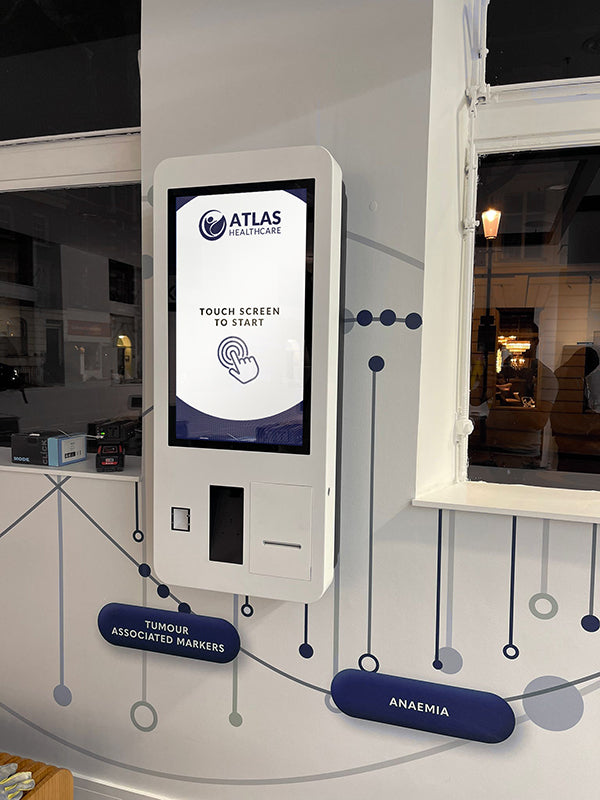

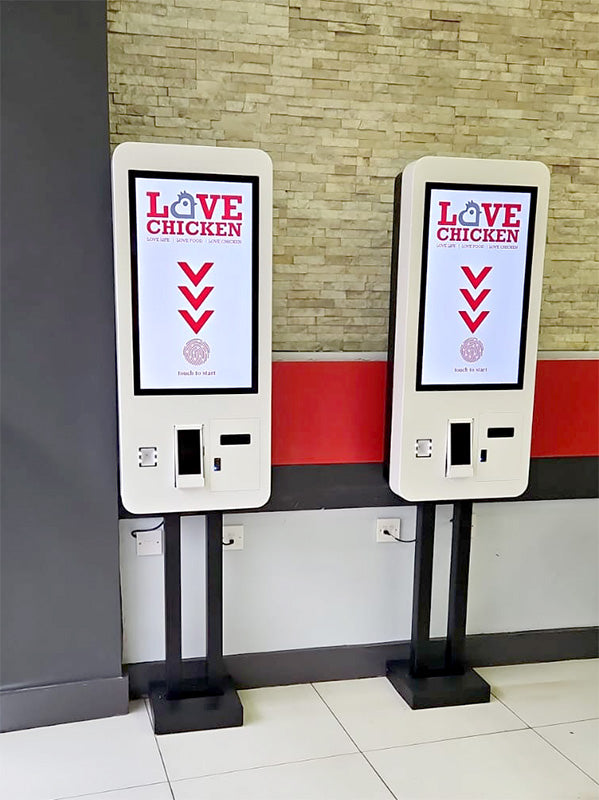

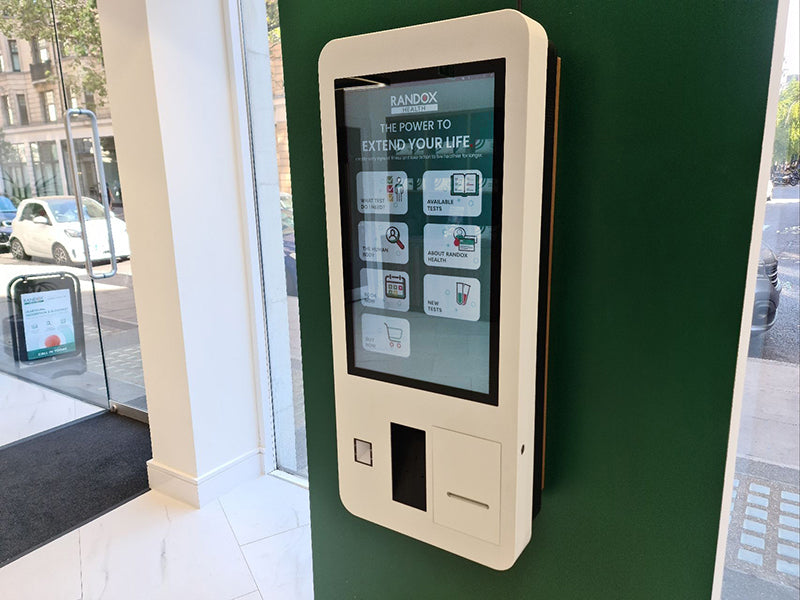

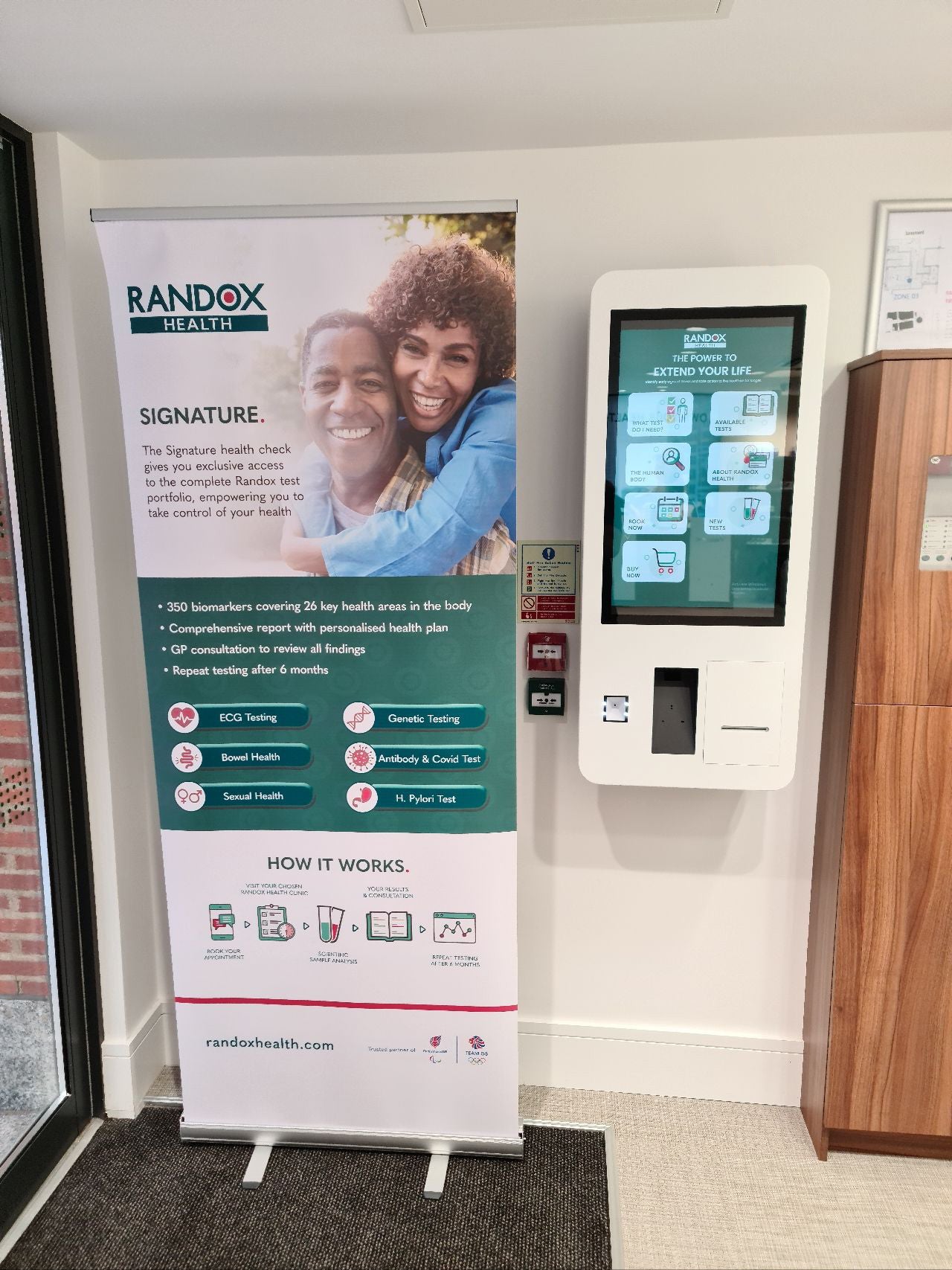

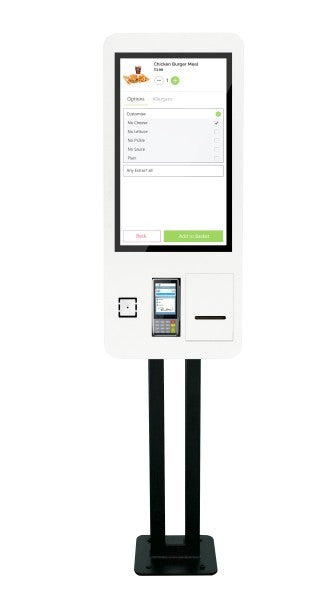

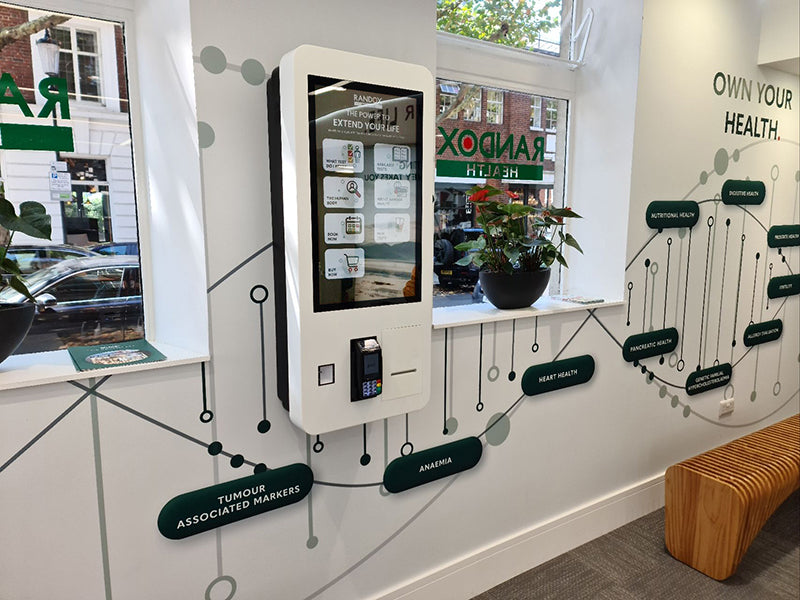

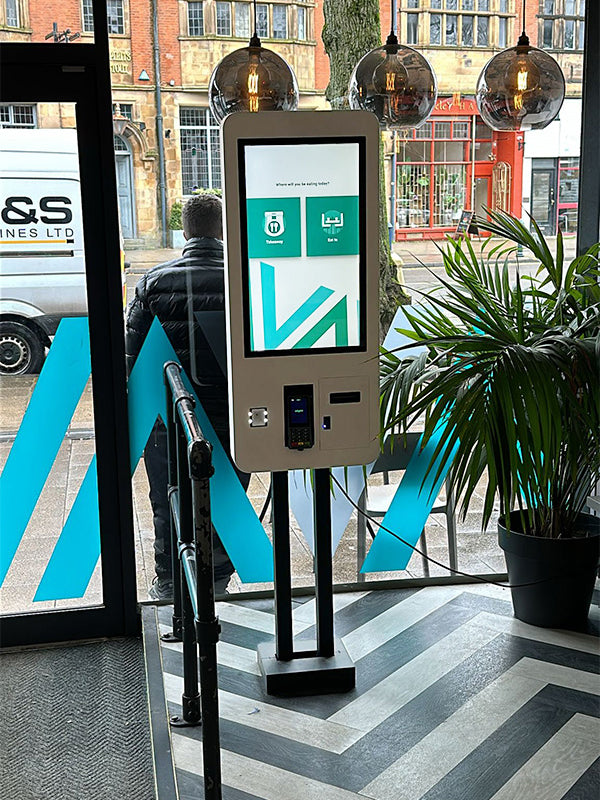

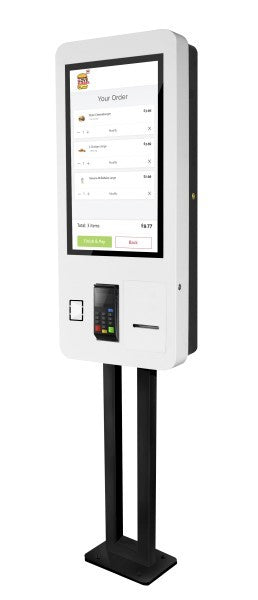

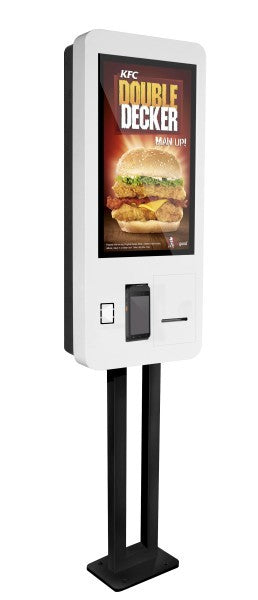

As standard the kiosk can be securely mounted directly to the wall from inside the lockable door – providing an anti-theft flush fit. There is also an optional floor stand available on request when wall mounting is not possible.
Classic Modern Kiosk Design
With it’s robust, powerful and familiar design the self service kiosks can elevate businesses to the next level. The modern, space-saving solution seamlessly blends into any environment. Available in pure white we can also customise the colour of the enclosure to perfectly match your brand too.


All-in-One Automated Self Ordering System

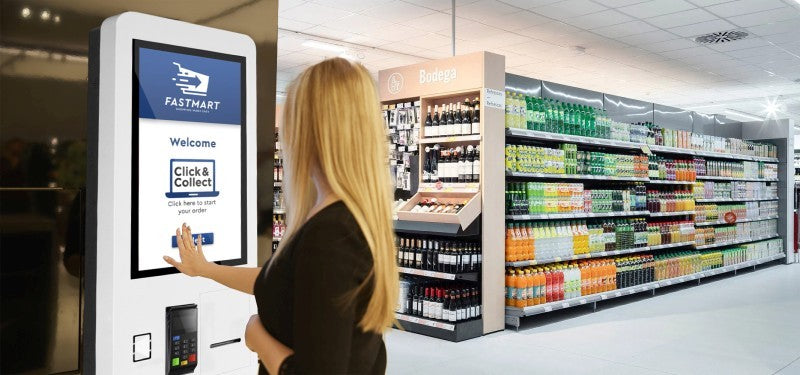

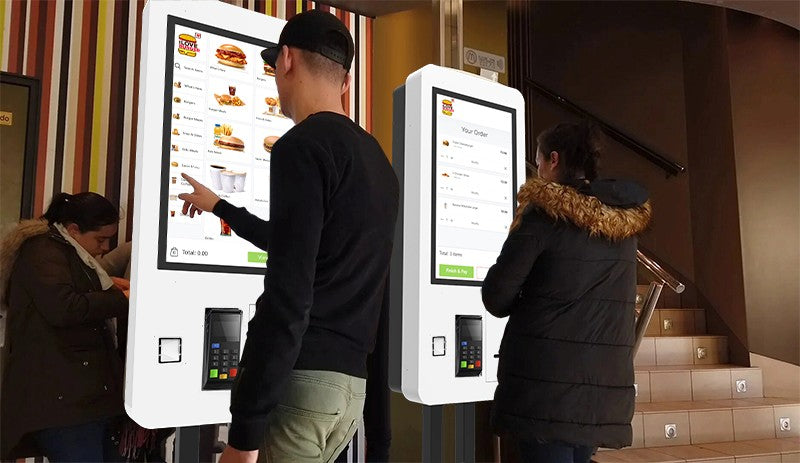

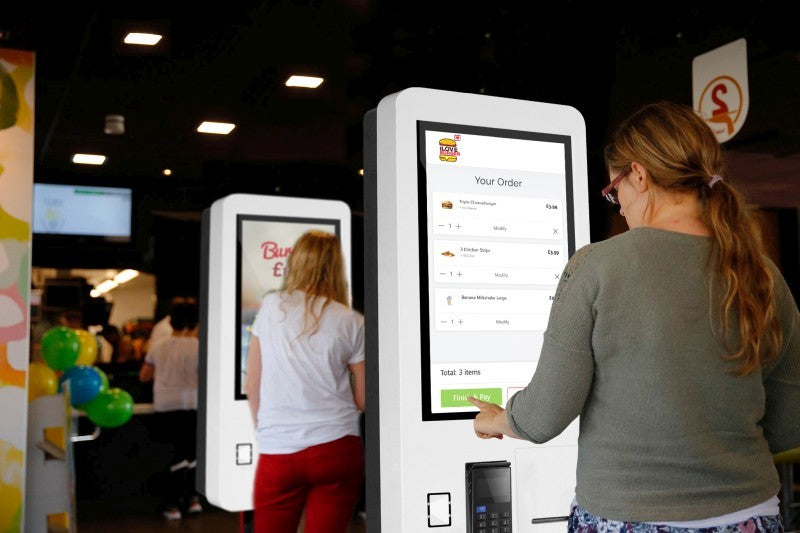

The numerous benefits for self service systems are clear, from allowing staff to focus more on customer service, reducing queues and waiting times as well as improving and optimising the overall customer experience. This all-in-one solution is designed for the fast food sector but can also be used in a range of retail spaces providing a PCAP touch screen, QR Code scanner, printer in one solution. There is also space to integrate a credit card payment reader.

Integrated Epson Printer
The integrated printer provides a fast and reliable printing solution for the kisok and can be used to print receipts and promotional vouchers. The printer is designed to not only be easy to use but also easy to maintain for businesses. With Epsons advanced technology, the inkless thermal printer can print receipts up to 250mm/sec with additional options that can reduce paper usage up to 30%.

Easy Roll Replace
The till roll for the thermal printer is located in a separate compartment so that staff can quickly and conveniently replace the roll without having to open the main access door.
Integrated QR Code Scanner & Thermal Receipt Printer
The scanner features an LED light to improve reading ability and can be used to scan barcodes or QR codes in conjunction with special offers or to place orders.
Easy Maintenance and Cleaning
Tool-free maintenance is possible via the lockable front access door, allowing store staff to swap out and replace components without having to remove from the wall. The touch screen and barcode scanner are also recessed into the enclosure for a wipe clean surface.

Anti-Theft Mounting Options
As standard the kiosk can be securely mounted directly to the wall from inside the lockable door – providing an anti-theft flush fit. There is also an optional floor stand available on request when wall mounting is not possible. The 22 Inch Kiosk can also be securely mounted on countertops.

Super Durable Anti-Glare Glass
The glass front is not only thermally toughened but also has a special anti-scratch 6H hardness coating. There is also a special coating on the panel which reduces annoying reflections created by external light sources.

24/7 Constant Use
As many quick service restaurants and supermarkets are open 24/7 any kiosk solution needs to be up to the task of being in continuous use.

Customisable
Other sizes and colours are available on request. We can also design and manufacture bespoke units with an integrated camera or double-sided versions. For existing models we offer a coloured vinyl wrap service as well as custom logo and graphics.
Built-in High Performance Windows PC
There is a powerful built-in Intel core i5 Windows PC that can deliver impressive performance 24/7. If your application runs on Android or Linux these operating systems are also supported by the hardware.
Optional NFC Card Reader
If required, an NFC card reader can be seamlessly integrated into this solution. This will allow users to make swift, contactless payments via mobile devices.
| Category | Attribute | Value |
|---|---|---|
| Display | Resolution | 1080x1920 (Vertical Full HD) |
| Display Area | 336.2x597.6 mm | |
| Brightness (cd/m²) | 350 | |
| Contrast Ratio | 5000:1 | |
| Aspect Ratio | 16:9 | |
| Viewing Angle | 178° | |
| Colour | 16.7M | |
| Response Time | 5ms | |
| Lifespan | 70,000 hours | |
| Touch | Technology | Projected Capacitive |
| Touch Points | 10 | |
| Glass Hardness | 6H minimum | |
| Dimensions | Unit Size | 462x1075x192.4 mm |
| Package Size | 1155x560x265 mm | |
| VESA Holes | 350x900 | |
| Card Slot Size | 92x193 mm | |
| Weight | Net Weight | 41 kg |
| Gross Weight | 45 kg | |
| Audio | Speaker Type | 5W x2, 8Ω Built-in Stereo |
| Power | Consumption | 43 W |
| Input | AC110 |
|
| Computer | CPU | Intel® Core i5-8259U |
| RAM | 8GB (Up to 32GB, Dual Slot) | |
| Storage | 256GB | |
| LAN | 10/100/1000 Ethernet | |
| Wi-Fi | Intel 3168 | |
| OS | Windows 7/8/10, Linux | |
| Printer | Method | Line Thermal |
| Width | 58mm or 80mm | |
| Speed | Max. 250mm/s | |
| Scanner | Mode | CMOS |
| Light Source | LED 6000K | |
| Angle | Omni-directional | |
| Speed | 30 scans/sec | |
| Resolution | 640x480 pixels | |
| Accuracy | ≥8mil | |
| Contrast | ≥20% | |
| Environmental | Operating Temp | 0°C to 50°C |
| Storage Temp | -30°C to 60°C | |
| Operating Humidity | 10% to 80% | |
| Storage Humidity | 5% to 95% | |
| Accessories | Included | Till Roll Key, Access Key, Manual, Wi-Fi Aerial, Power Cable |
| Optional | Wall/Floor/Countertop Mounts, Software Package |
| Description | Downloads |
|---|---|
| Moove SO27C – 27" PCAP Touch Self-Service Kiosk Spec Sheet | Downloads |
| Moove SO27C – 27" PCAP Touch Self-Service Kiosk Technical Drawing | Downloads |
| Moove SO27C – 27" PCAP Touch Self-Service Kiosk Images | Downloads |
| Moove SO27C – 27" PCAP Touch Self-Service Kiosk Installation Guide | Downloads |
