Enter your screen SKU and we will instantly check whether this mount is suitable for your display based on VESA pattern compatibility.

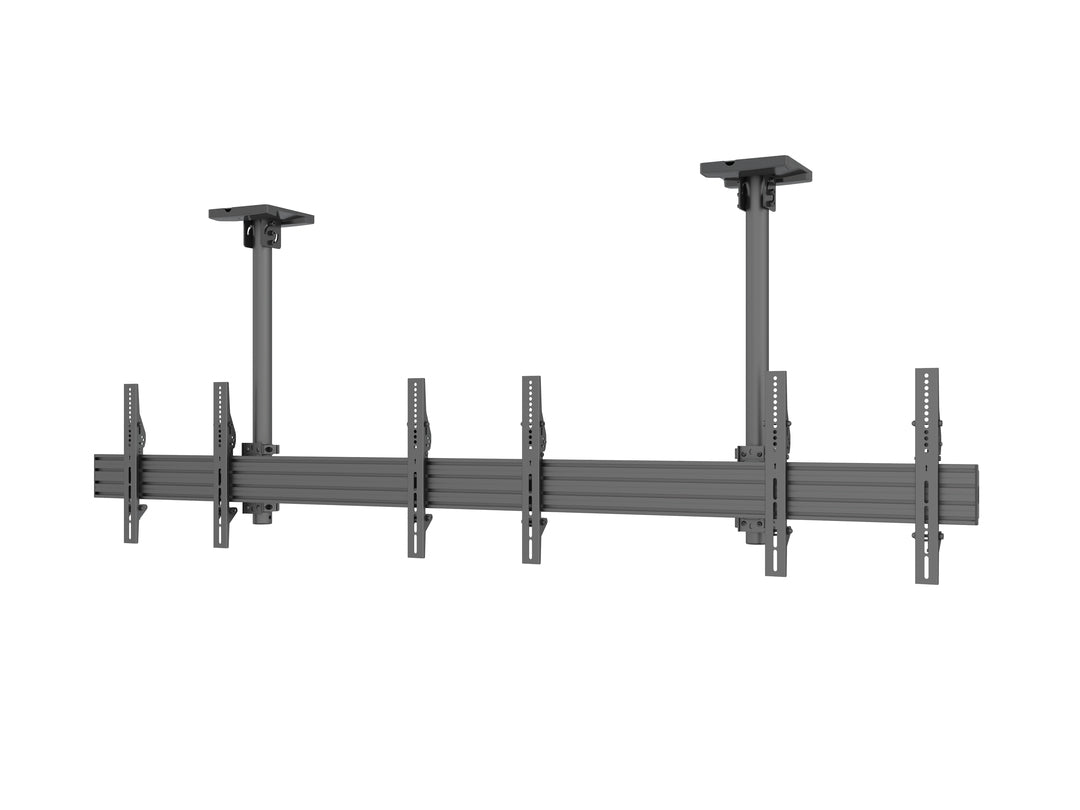

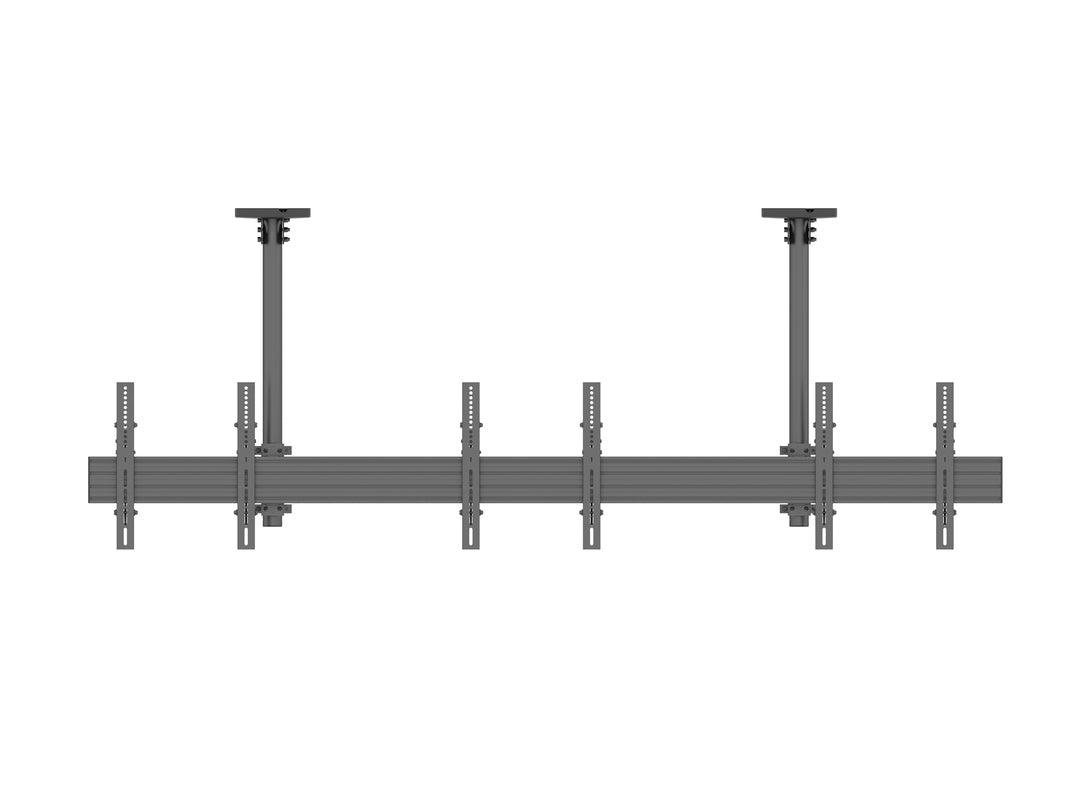

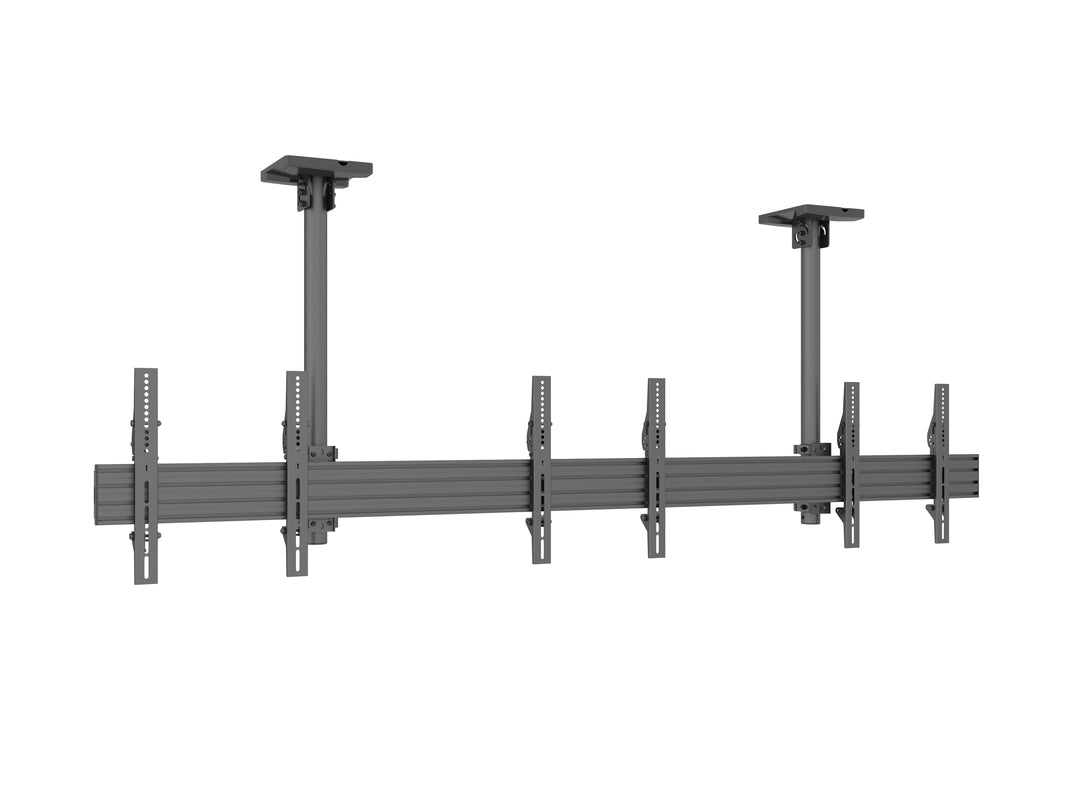

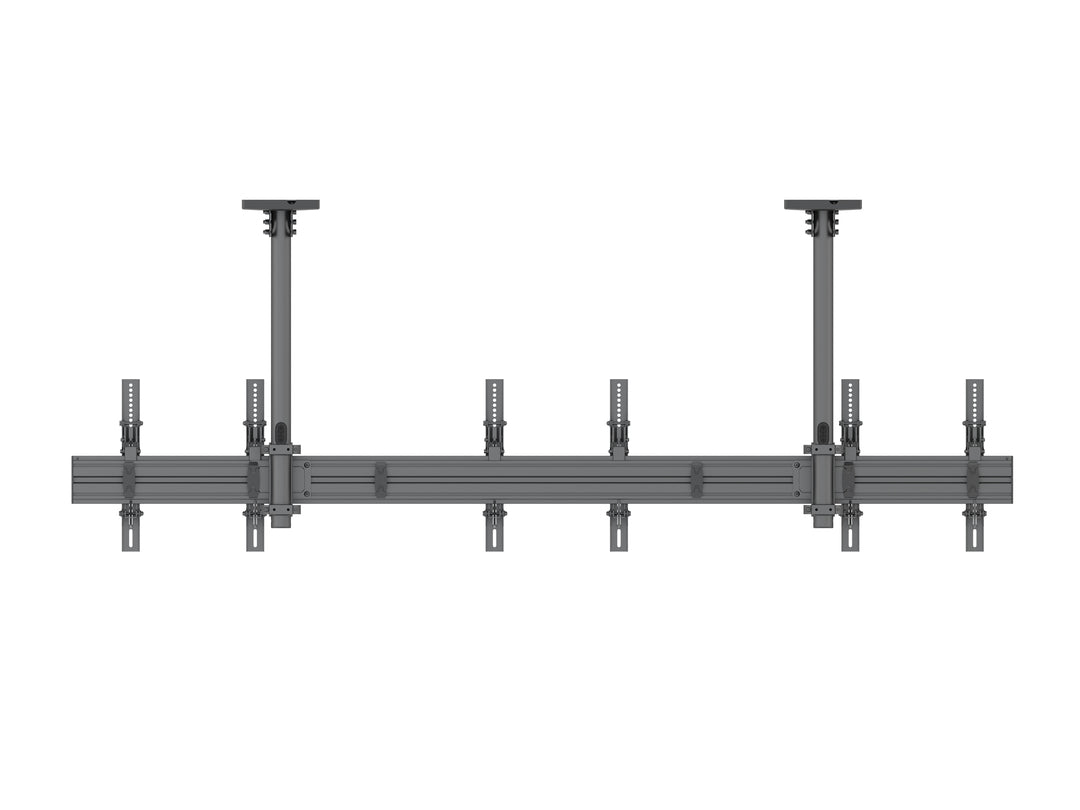

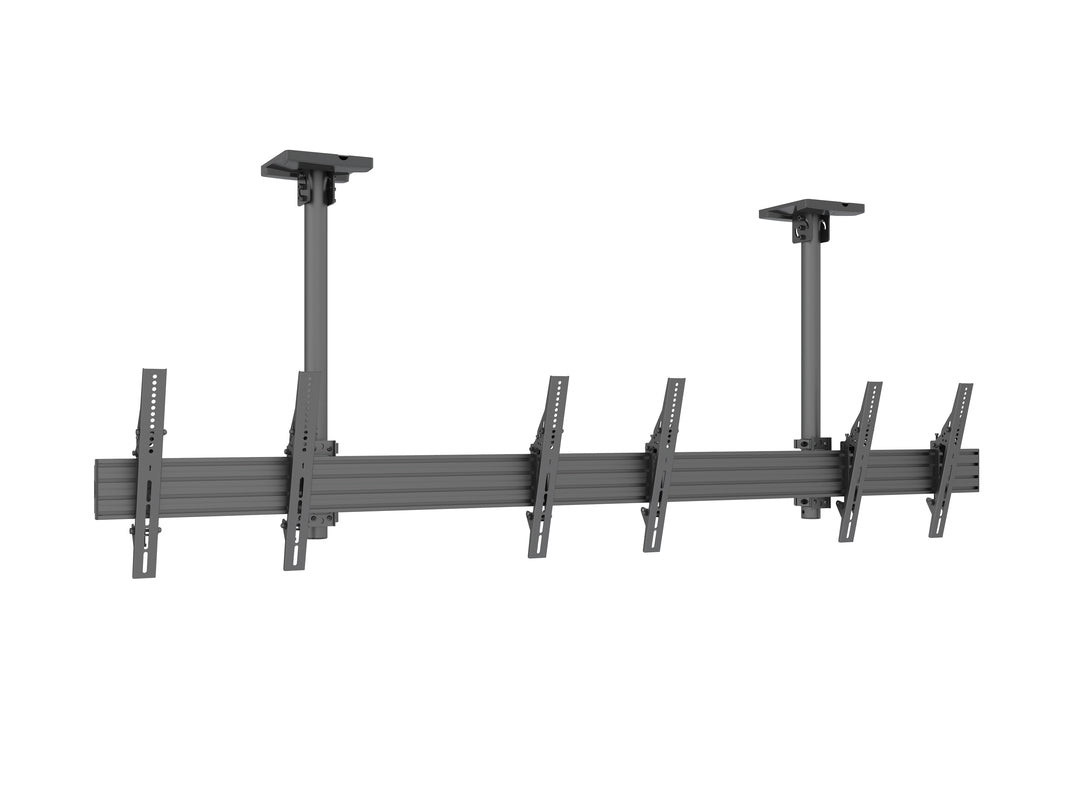

Multibrackets 0.8m MBC3X1U Tilt 40"-65" Pro Series Menu Board Ceiling Mount For 3 Screens
M Menuboard Mount Pro MBC3X1U - Ceiling mount for LCD display, steel, 0.8m length, 3 screens, single side, tilt arms, VESA Max 600x400 - screen size: 40"-65" - black
The M Menuboard Mount Pro MBC3X1U is our 3-screen side-by-side menu board system - ready to be installed.
The professional Pro Series A/V line from Multibrackets was designed with the installer in mind. Modular, easy to configure, quick to install, and simple to maintain. Developed together with installers we added close to unlimited flexibility and versatility. Based on the Pro Series ultra-flexible aluminum rail it is completely modular and has built-in cable management throughout the entire solution to quicken installation and create an esthetic result worth the public eye.
With its modular construction installers can tailor the MBC3X1U with the client's needs in mind. Possibilities to change, update and reconfigure its design and if ideas change over time Pro Series can follow.

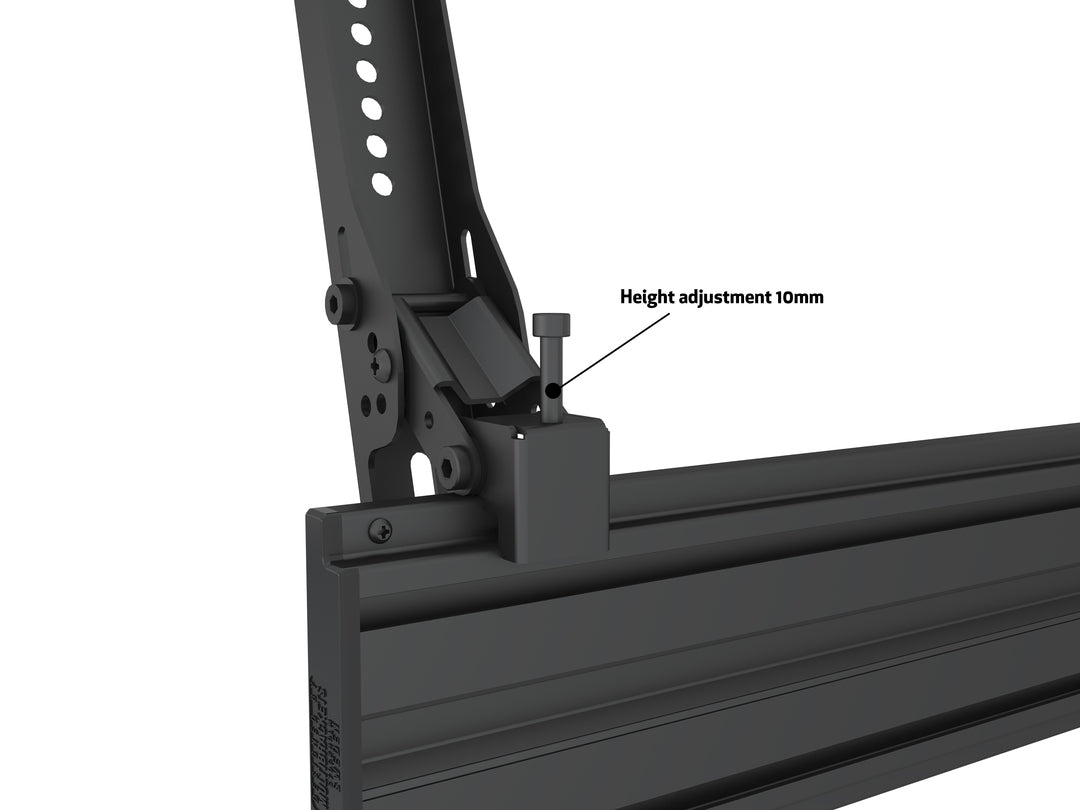

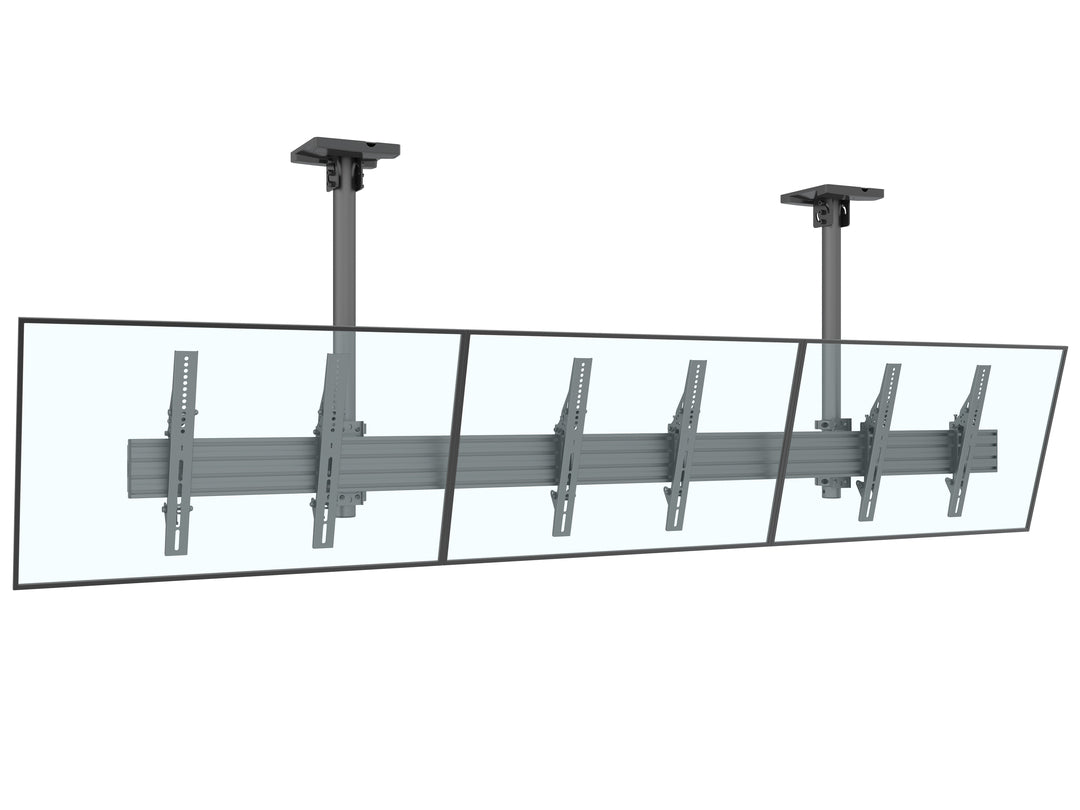

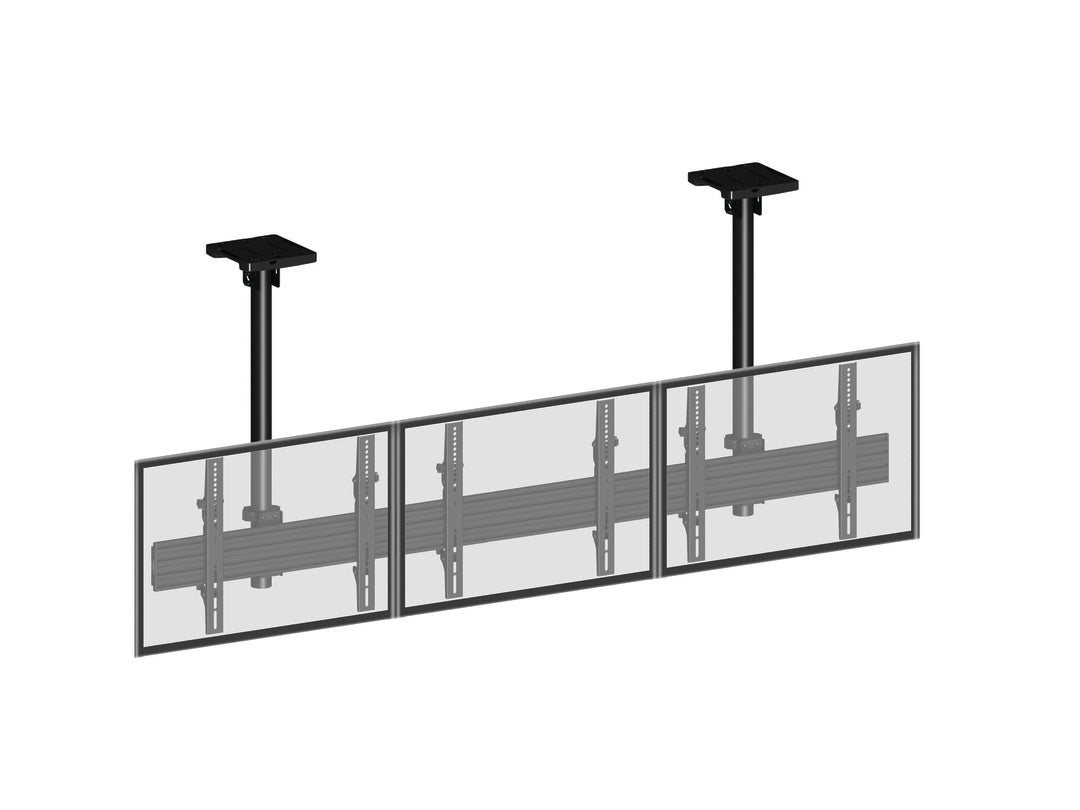

The M Menuboard Mount Pro MBC3X1U creates a seamless mounting surface through the aluminum rail. The tilted mounting of the displays allows all displays to be placed side by side and tilted at the same angle with ease creating alignment and true menuboard perfection.
Designed with our Scandinavian heritage in mind Pro Series provides a clean Nordic look where each part and detail is made as simple as can be and still service its function. Possible to use in a variety of environments our Pro Series Menuboards are truly versatile. The Pro Series possibilities to extend pipes and add details by individual choice are vast so that one can tailor each mount to its location and function. With an included hardware kit a basic installation should not be a hassle.
Multibrackets Pro Series Menuboards is simply ideal for any large-screen digital signage application.
Highlights
A professional, flexible, and modular product
Includes VESA adapters for compatibility up to VESA 600x400

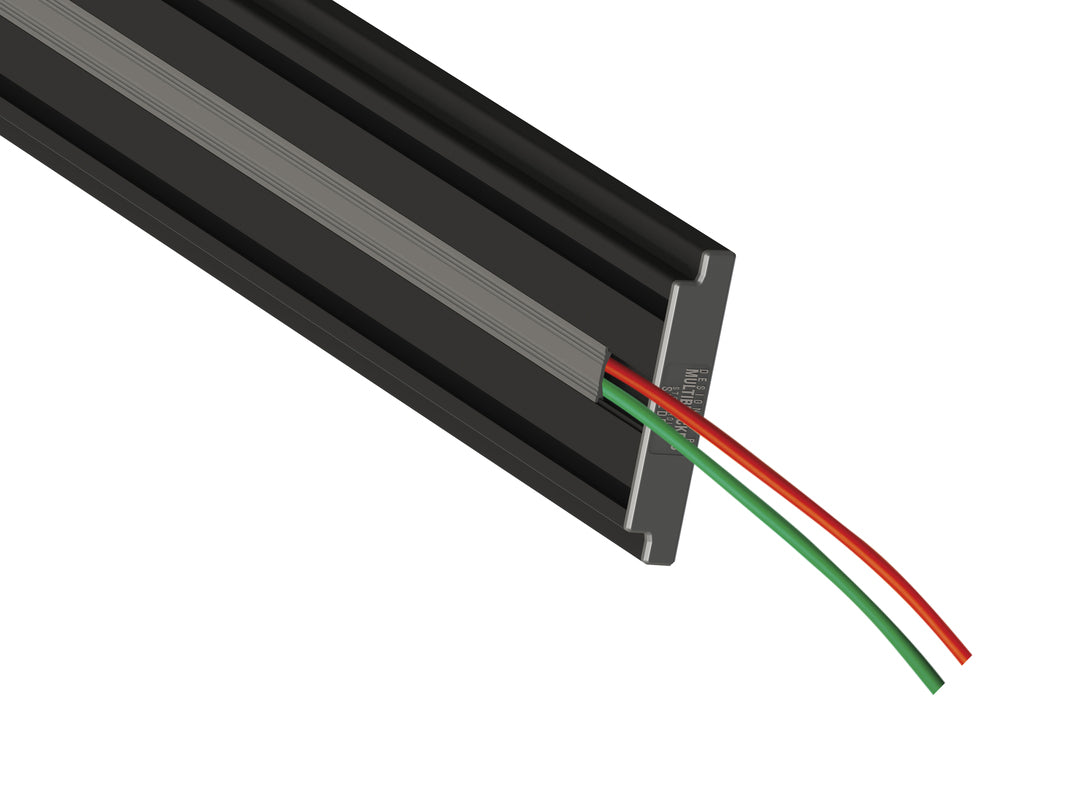

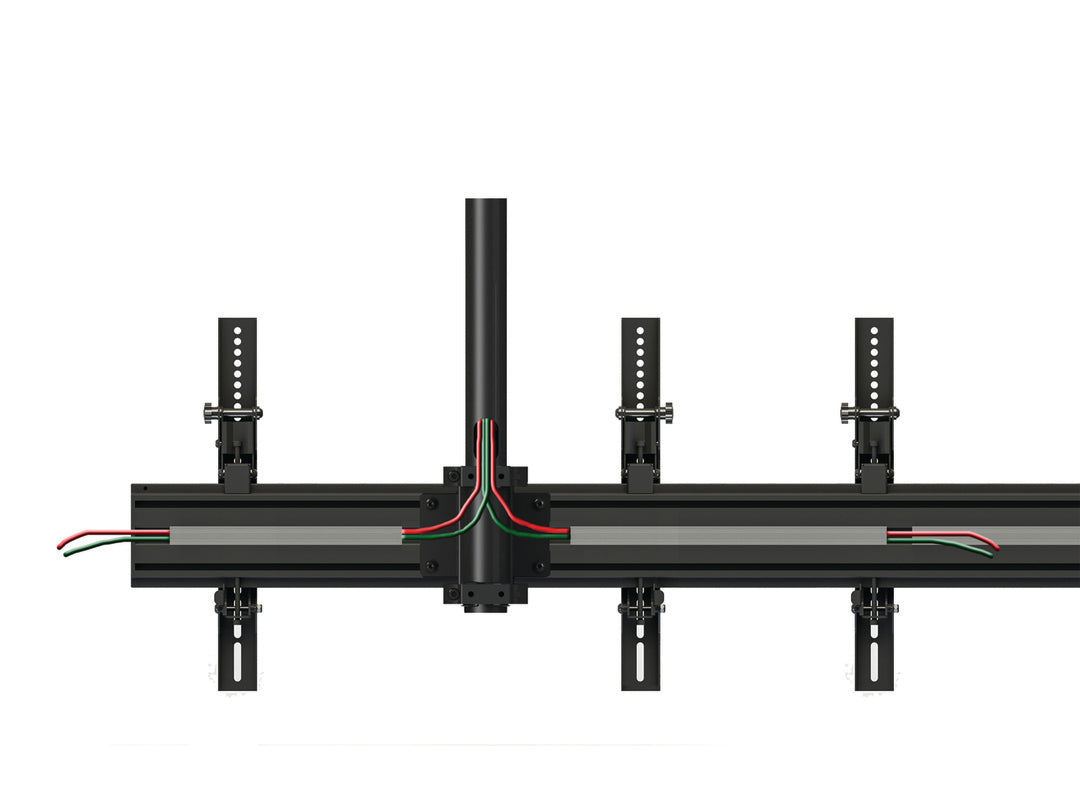

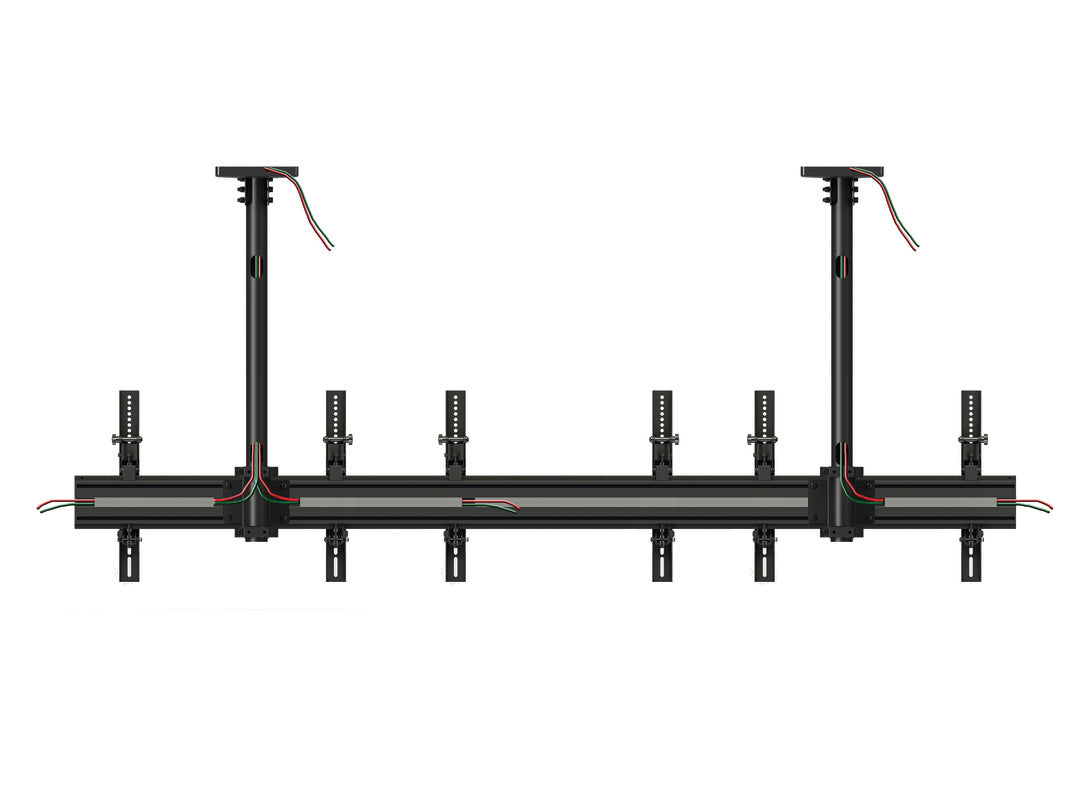

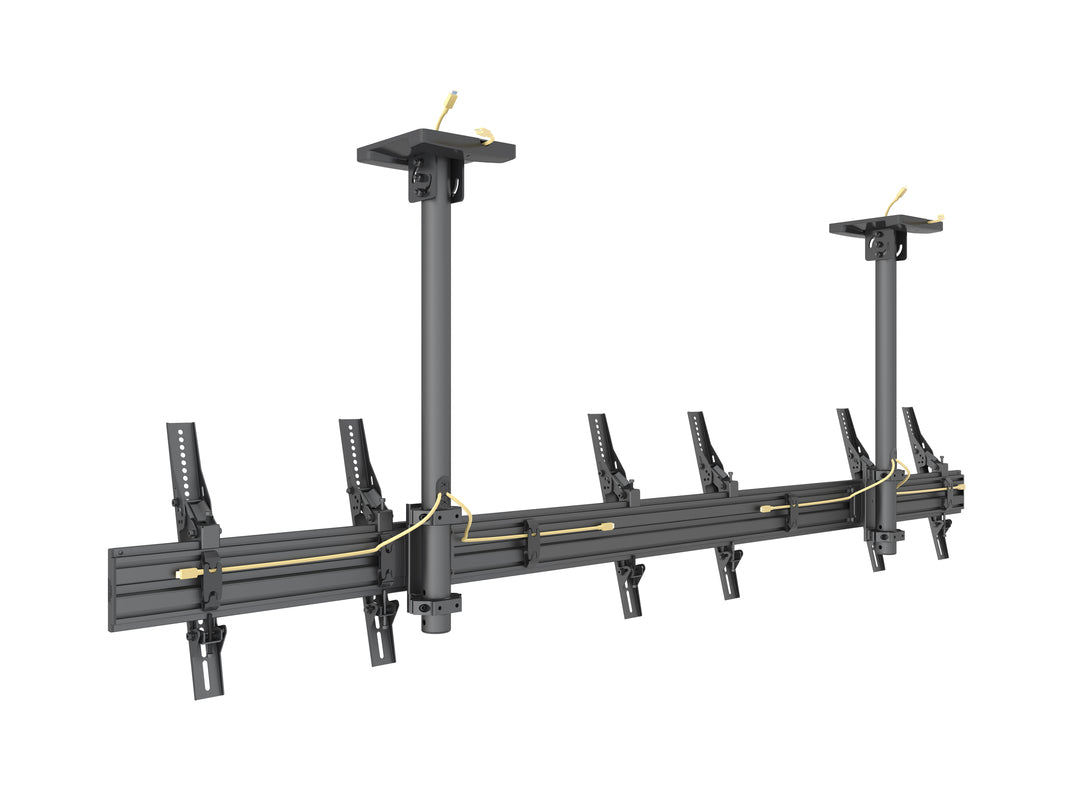

Integrated cable management throughout the entire solution
Power click install for an easy, fast, and safe installation

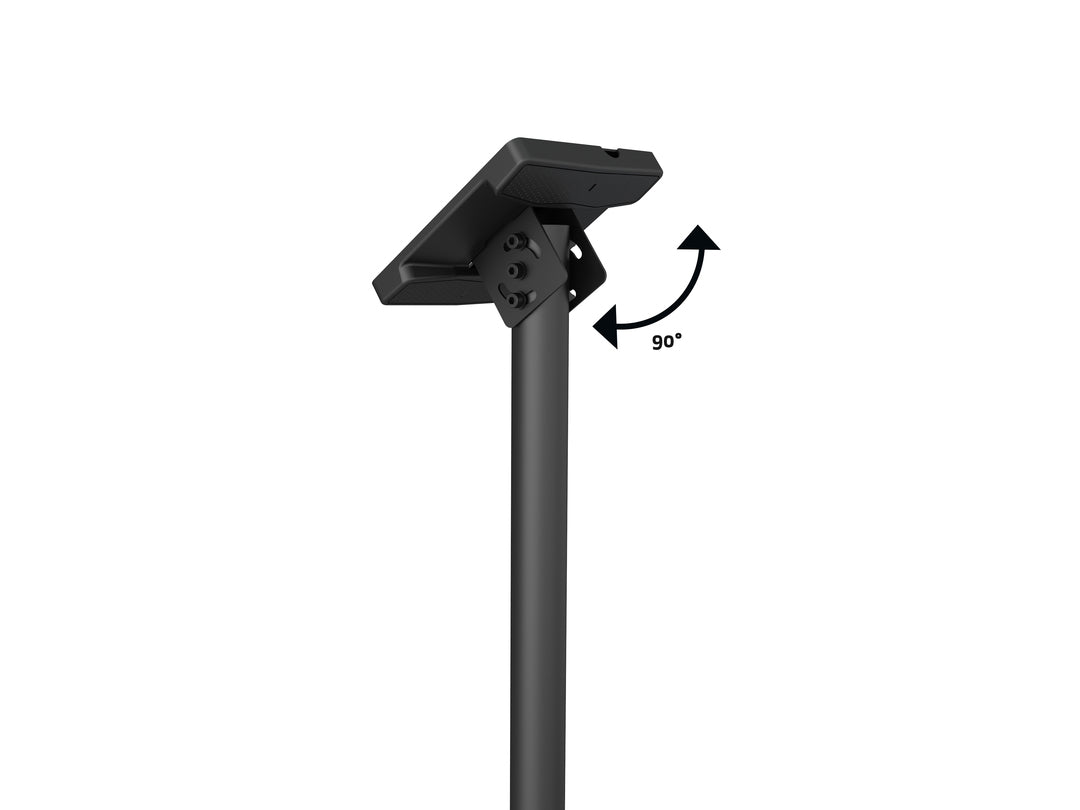

Ceiling plate included
Portrait or landscape position of the screen possible

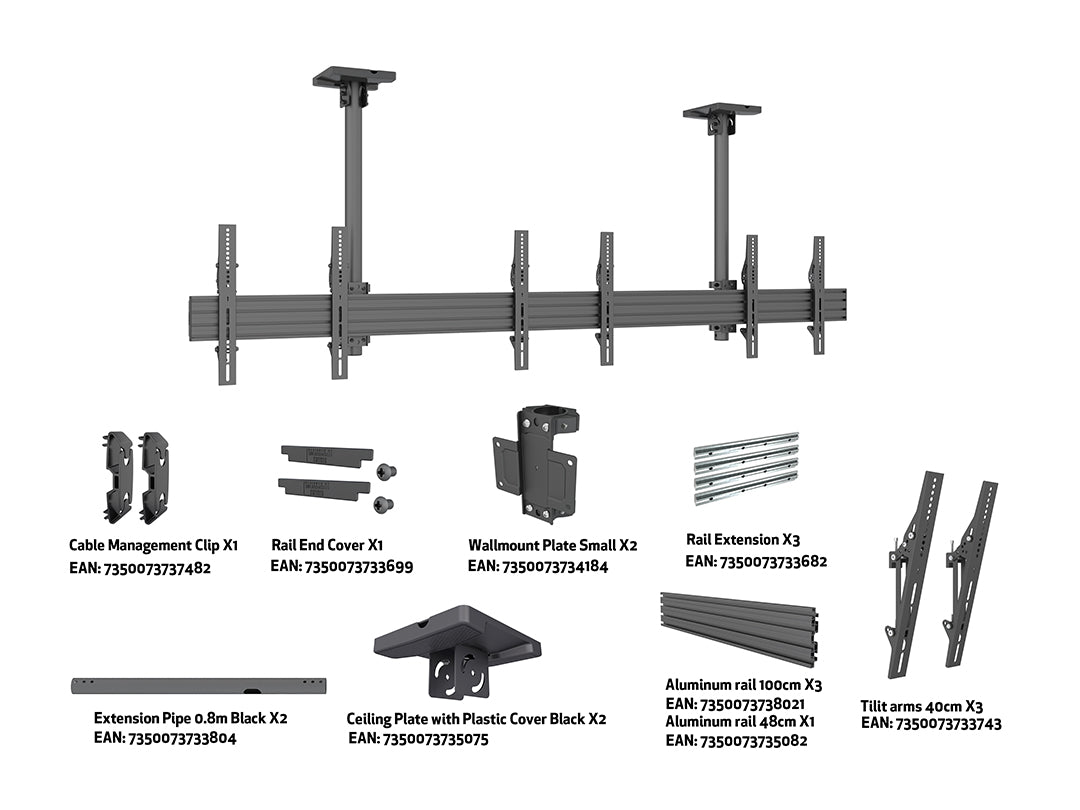

Hardware kit included
| Article No | 7 350 073 733 941 |
|---|---|
| For screen size | 40”-65" |
| Type | Single Side MBC3X1U |
| Universal & VESA standard | Adjustable from 100x100 to 600x400 max |
| Optional VESA | 800x600 |
| Material | Steel, Aluminium |
| Color | Black |
| Surface Finish | Powder coating/Anodic Oxidation |
| Weight | 32.5 kg |

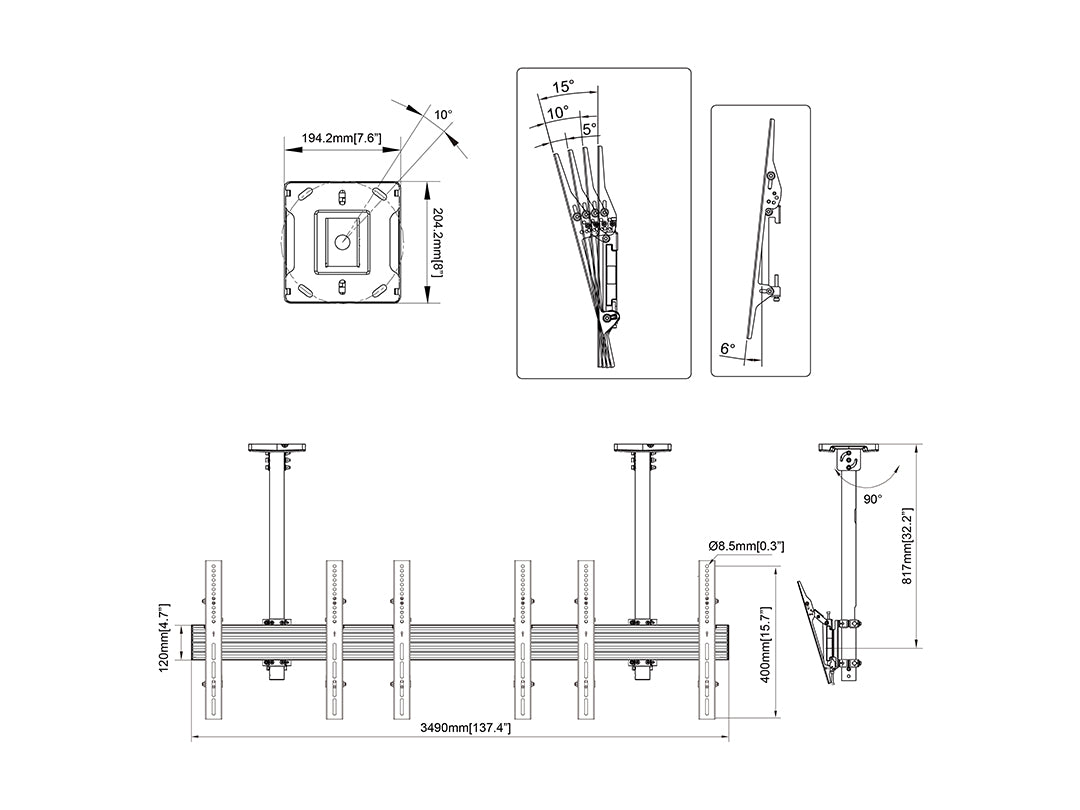

| Measurements | 369x338x20 cm |
| Max Load | 30 kg per screen |
| Pillar length | Min: 580mm to Max: 3150 mm from ceiling to VESA plate center |

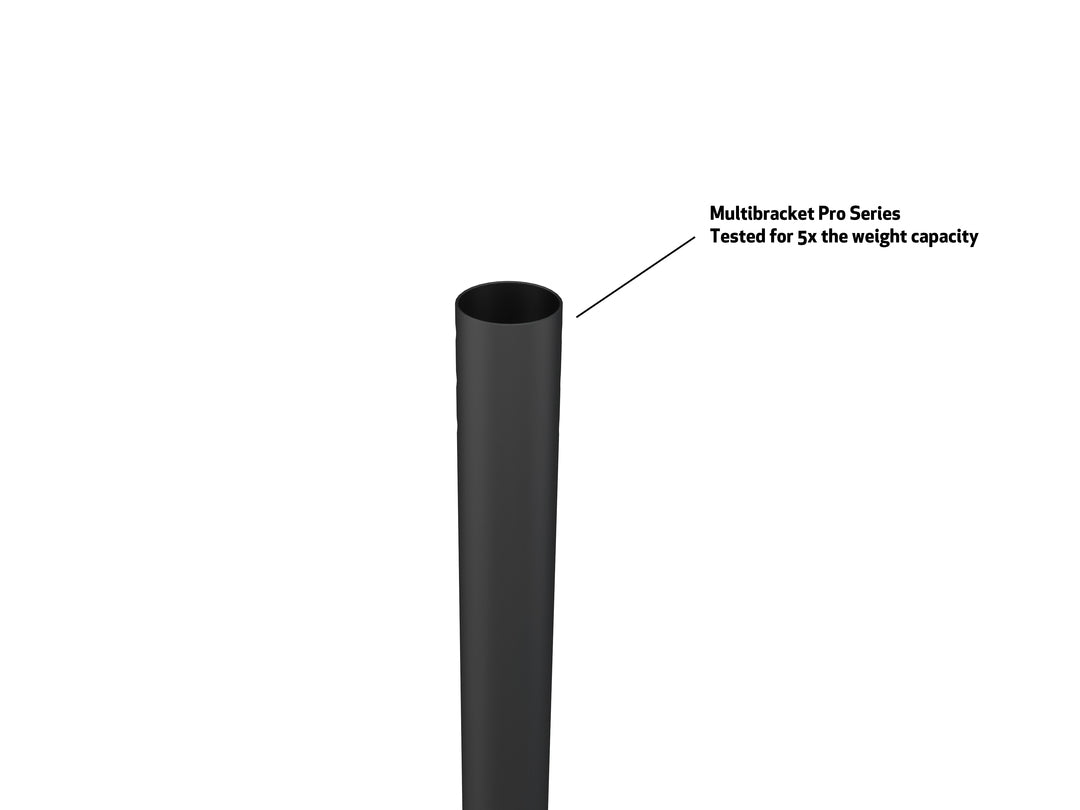

| Extension pipes | Up to 3m (800mm*8pcs) included |

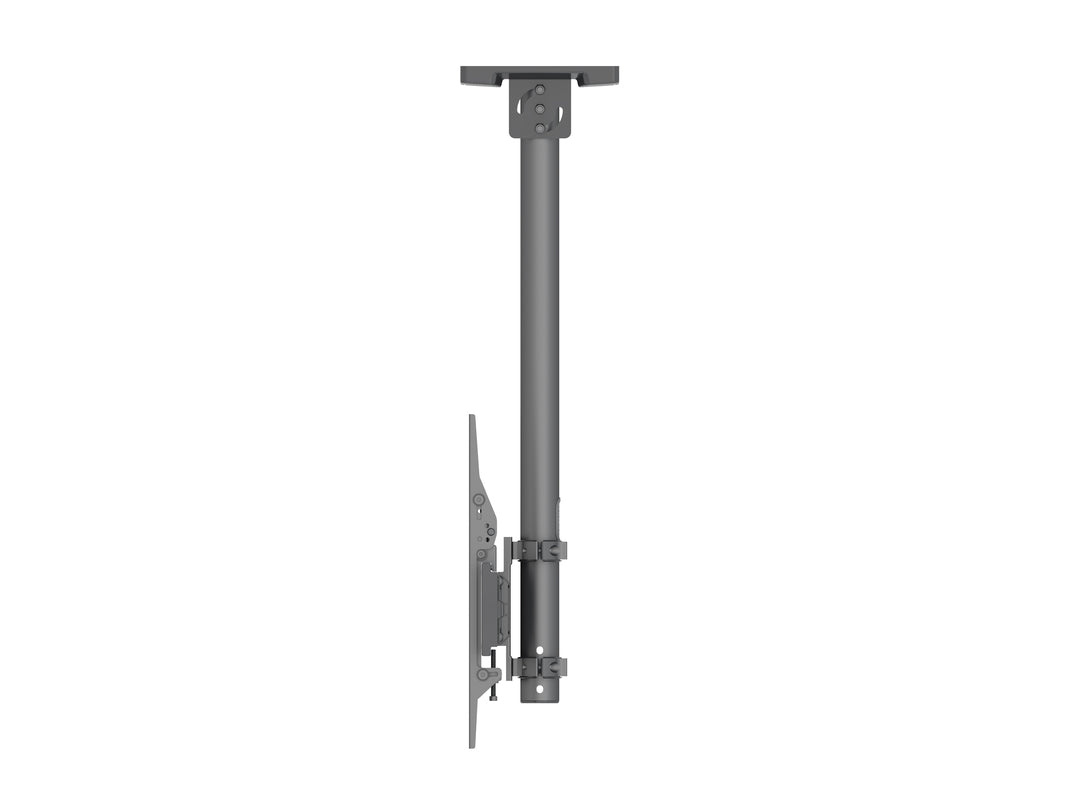

| Tilt | Yes, 0~15° |
| Swivel | Yes, 360° |
| Rotate | Yes, ±4° |
| Cable Management | Yes |
| Options | Extension pipes: 0.8m, 1.5m, 3.0m |
| Certifications | CE |
| Warranty | 5 years |
| Retail Package Specification | |
| Package Parcels | 1 pcs |
| Package Measurements | 103 x 36 x 18 cm |
| Package Weight | 34.50 kg |
| Download Type | Downloads |
|---|---|
| Drawing PDF | Downloads |
| Product Fact Sheet | Downloads |
| Manual |
Downloads |
| PDF Catalogue |
Downloads |
