Enter your screen SKU and we will instantly check whether this mount is suitable for your display based on VESA pattern compatibility.

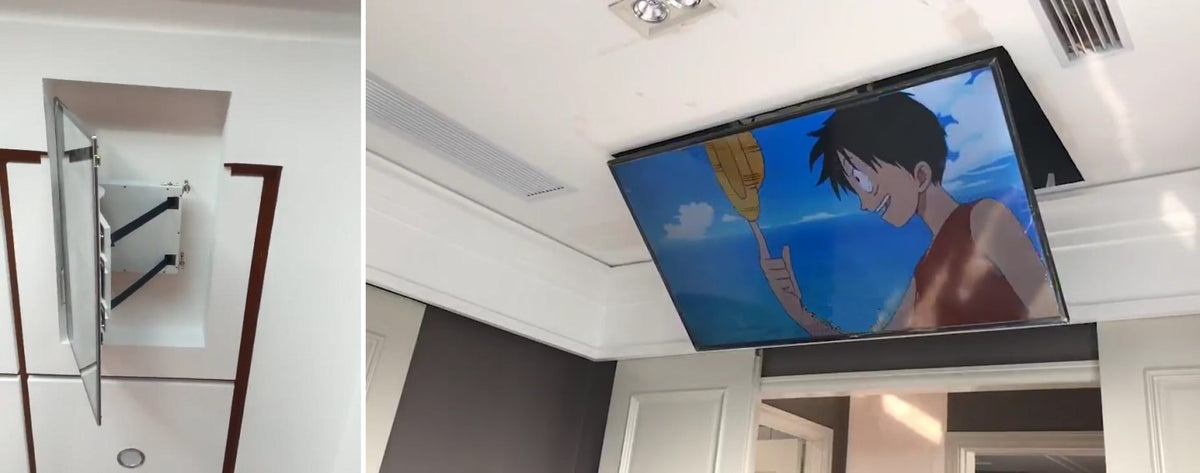

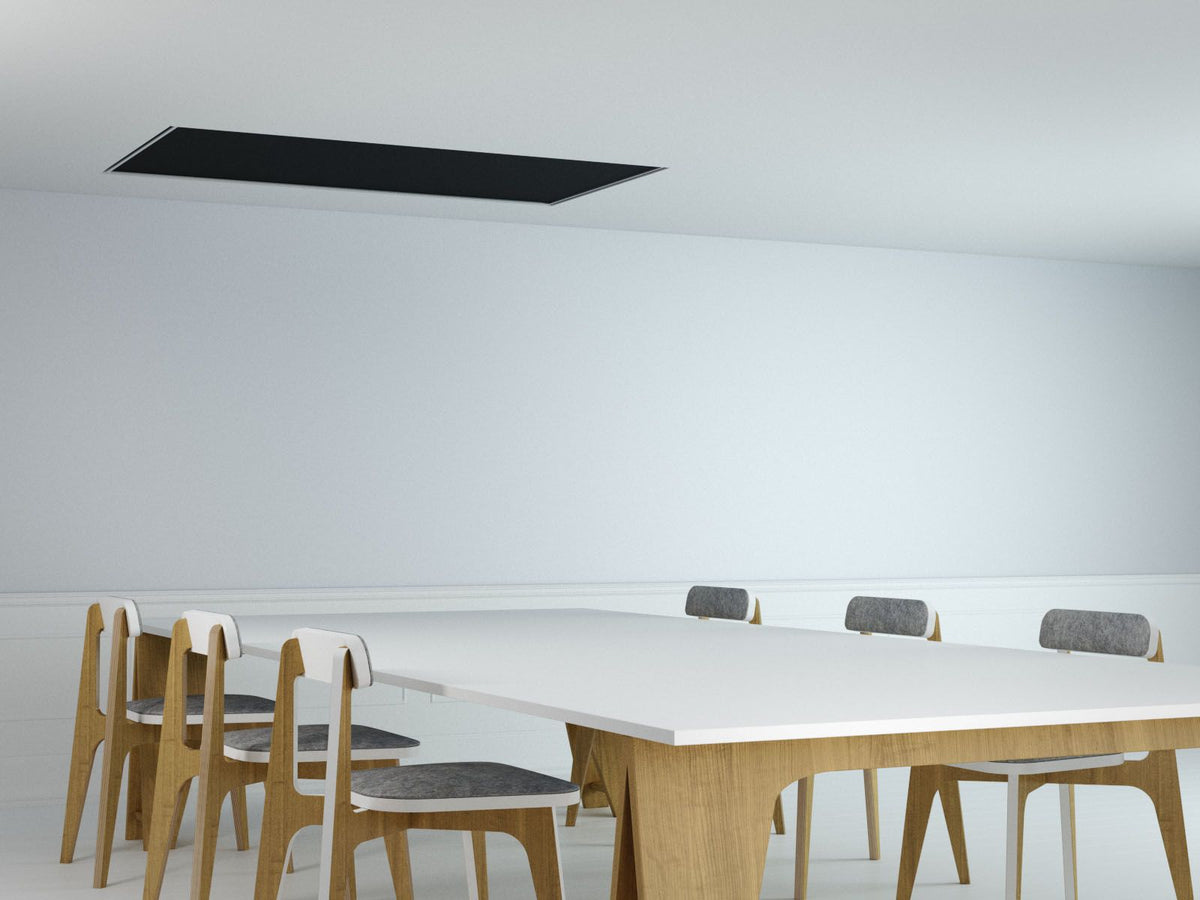

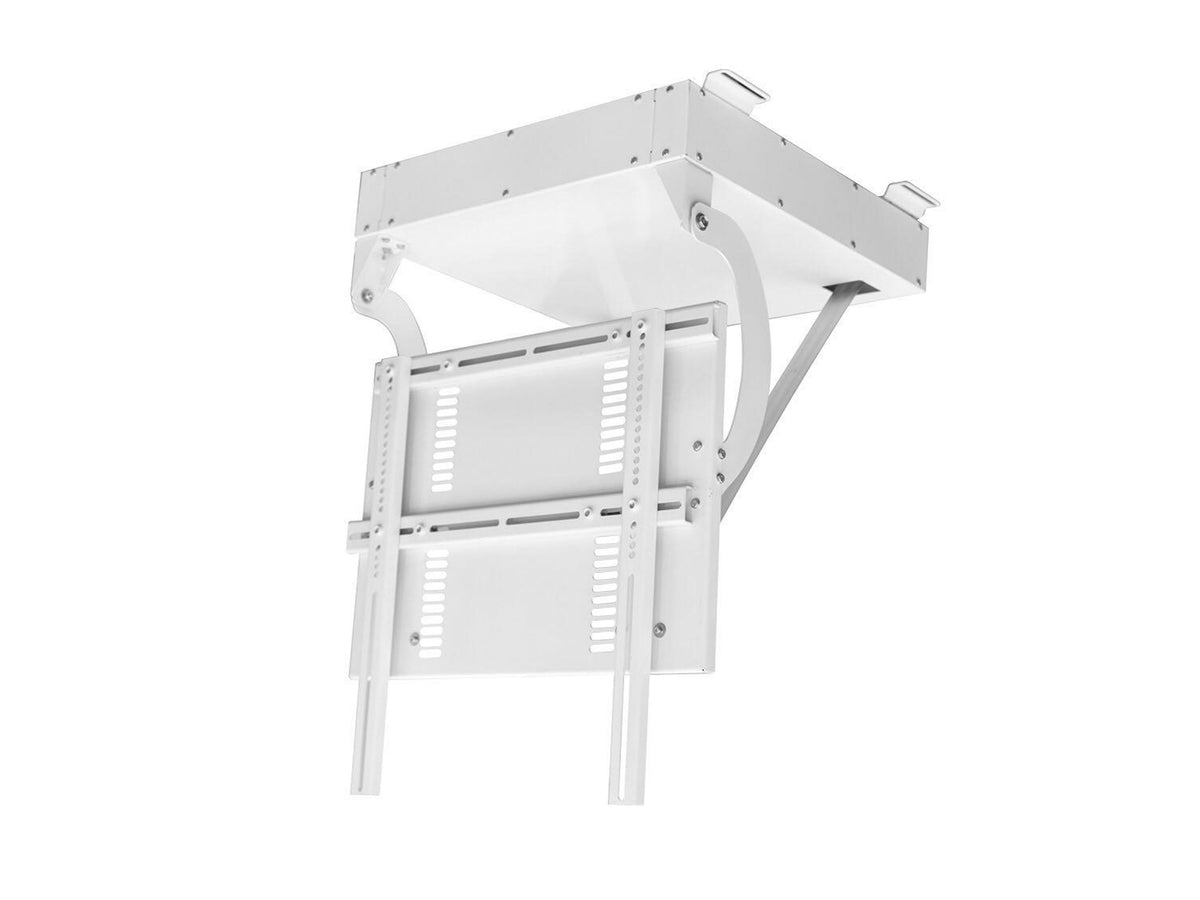

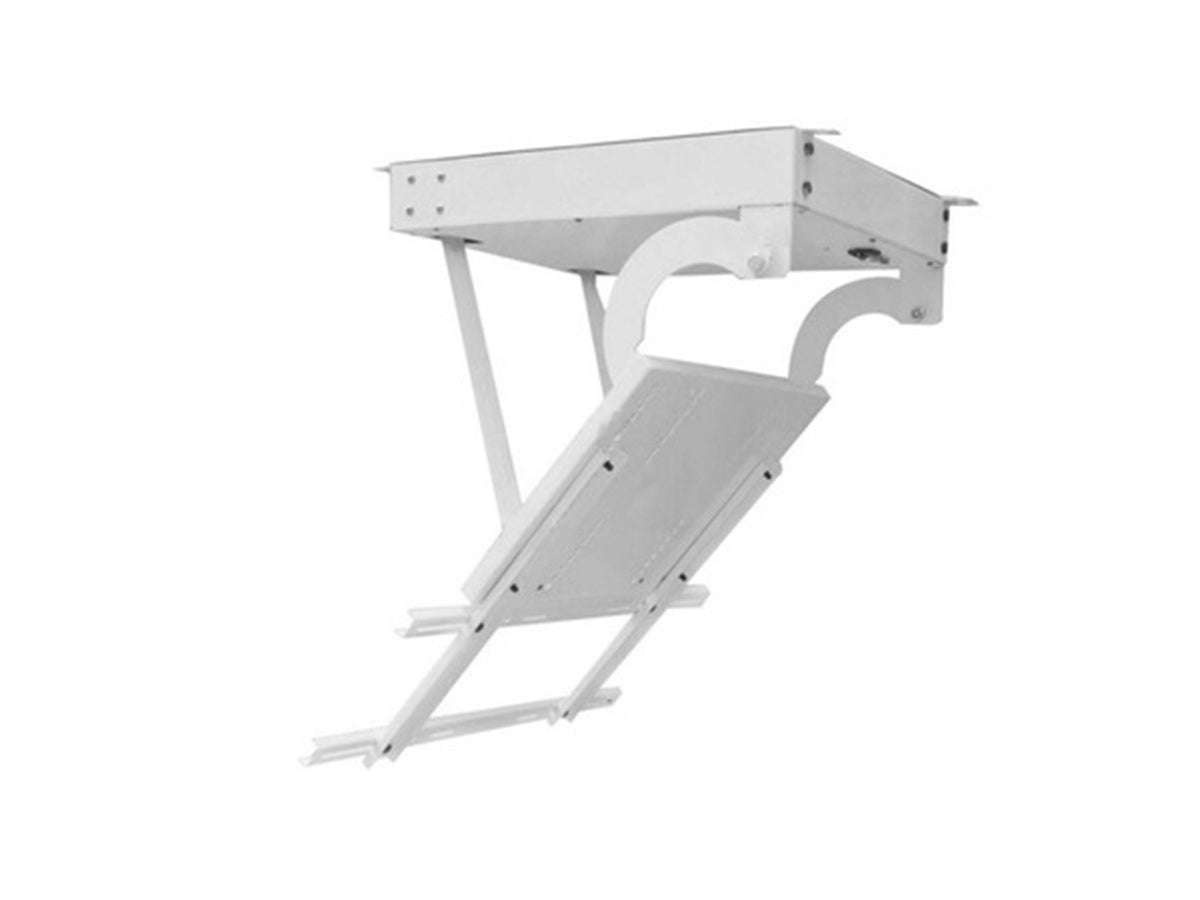

The M Motorized Ceiling Mount Pro SD is an advanced hidden ceiling mount designed for displays from 32" to 100". Ideal for bedrooms, kitchens, offices, schools, and retail spaces, it integrates large screens discreetly into any environment.

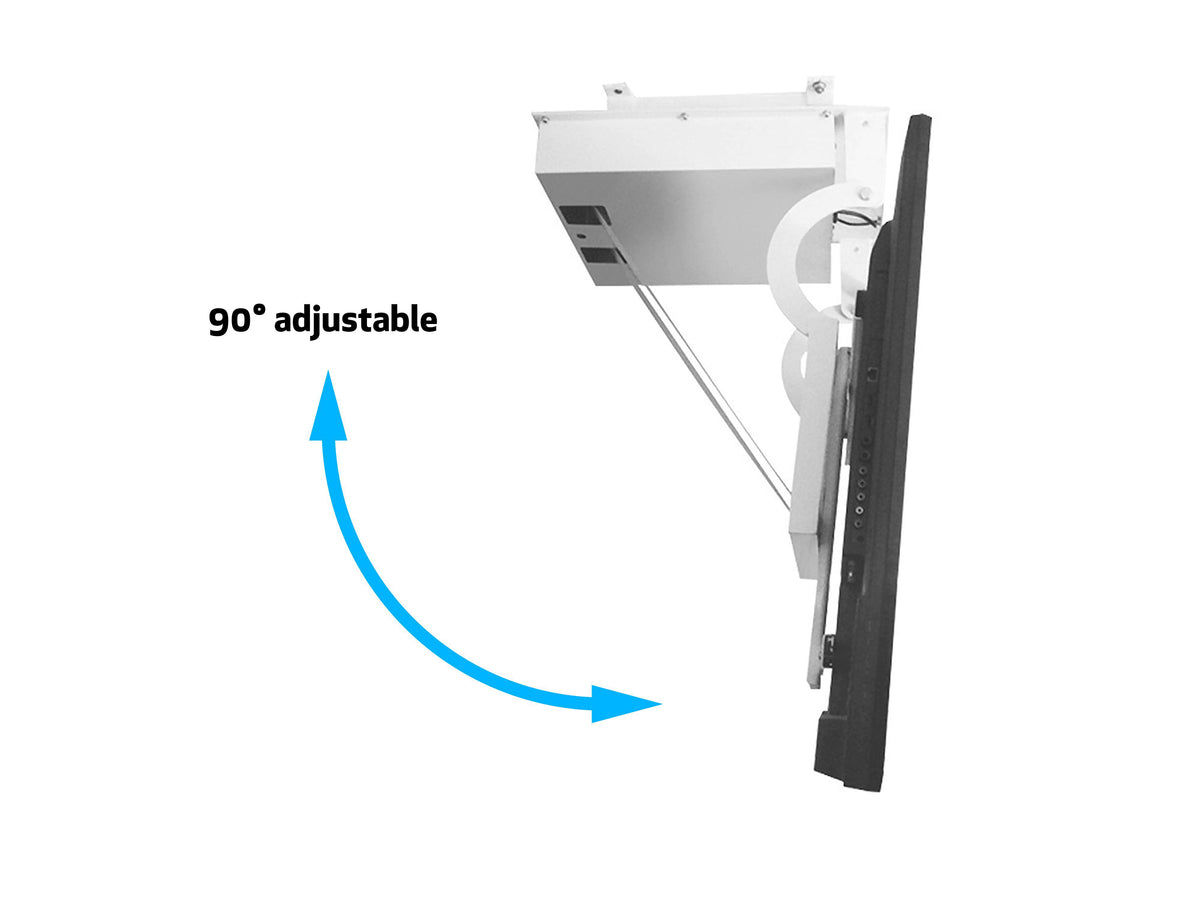

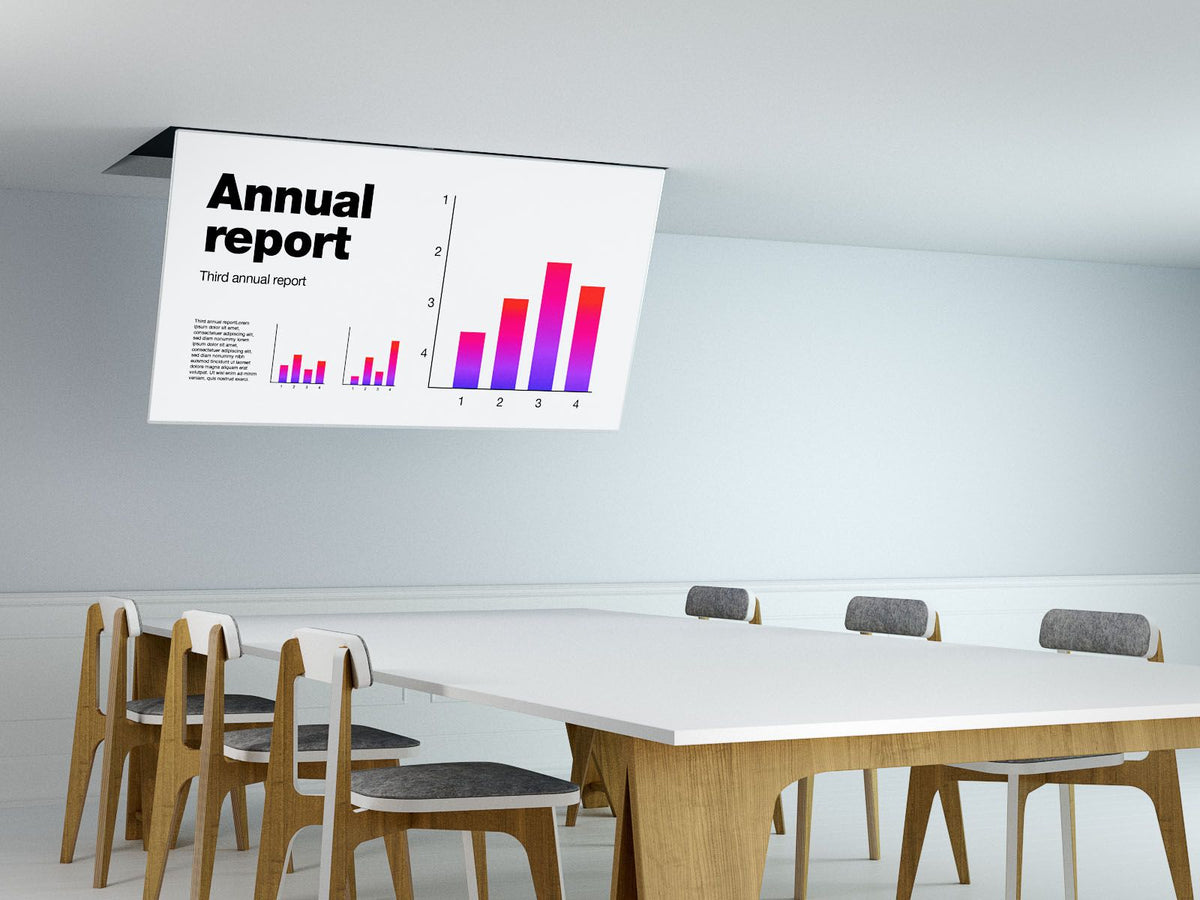

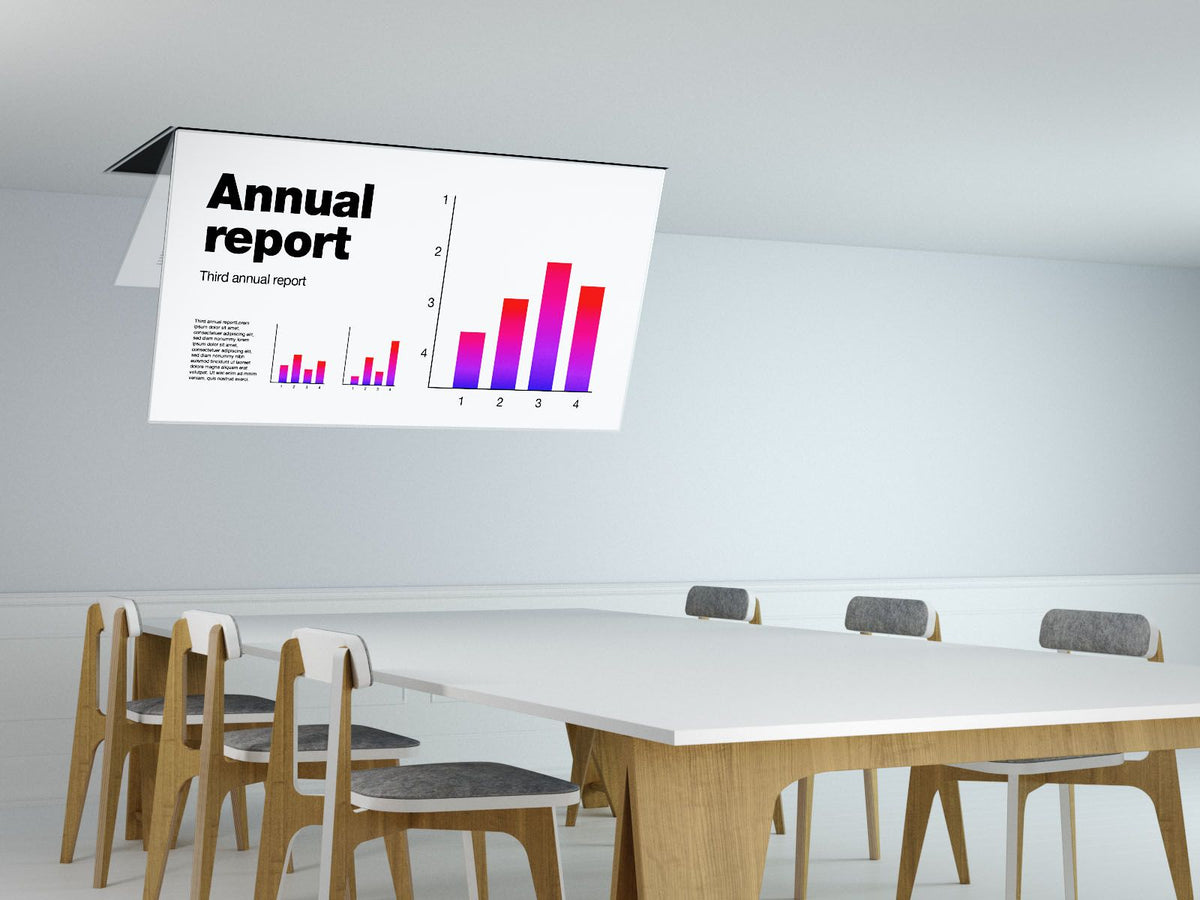

This mount allows smooth motorized folding down or retracting up between -90° and 0°. Its robust locking system keeps the screen securely in place, suitable for a wide range of screen sizes.

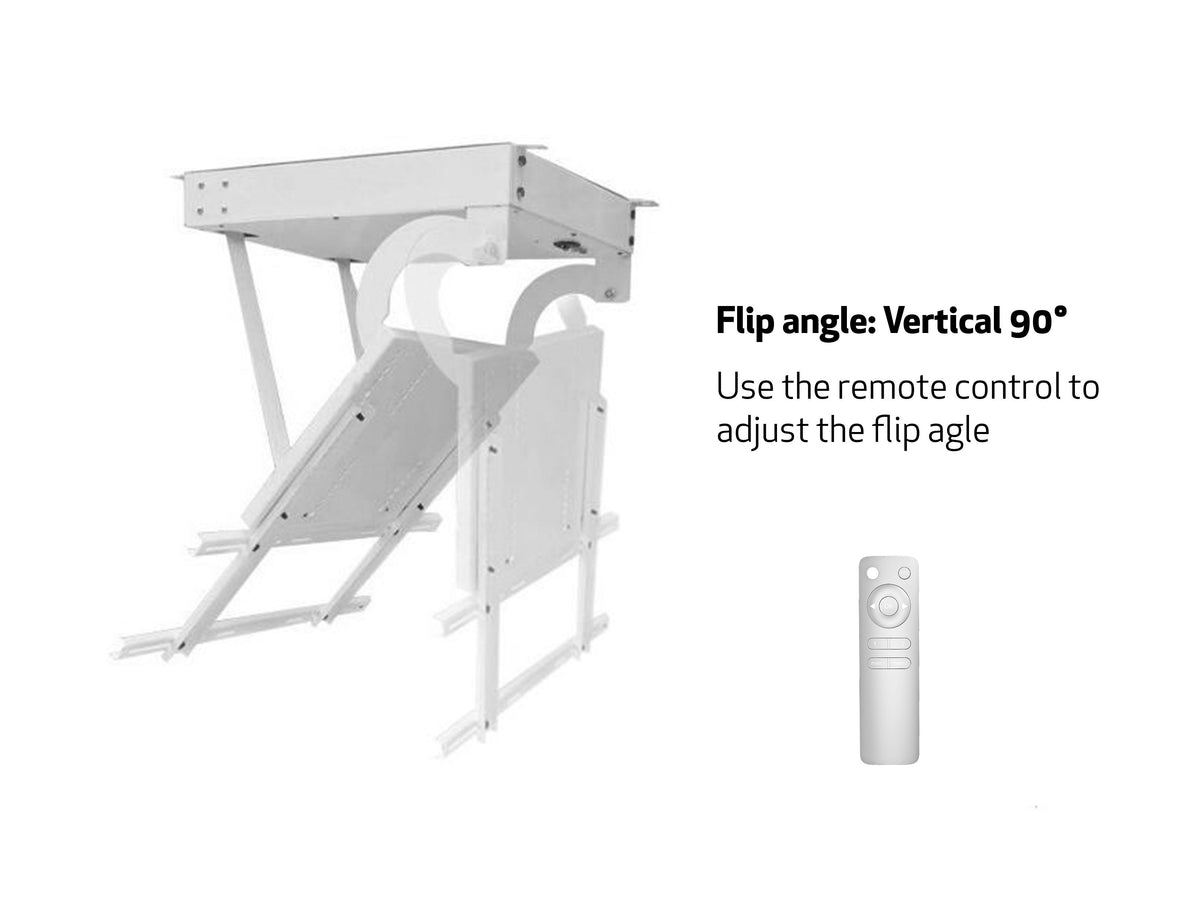

The mount features a quiet, rapid motorized transition. The included remote control allows easy adjustment of the screen position, with the ability to control multiple mounts simultaneously if sensors are nearby.
It supports a maximum screen height of 393mm from the upper VESA hole to the ceiling, adaptable to various setups. For 110V markets, a compatible accessory is available.
Highlights
Versatile ceiling mount for motorized hidden installation of 32" to 100" TVs and displays.
Rapid, silent motorized operation with a transition range of -90° to 0° for precise positioning.

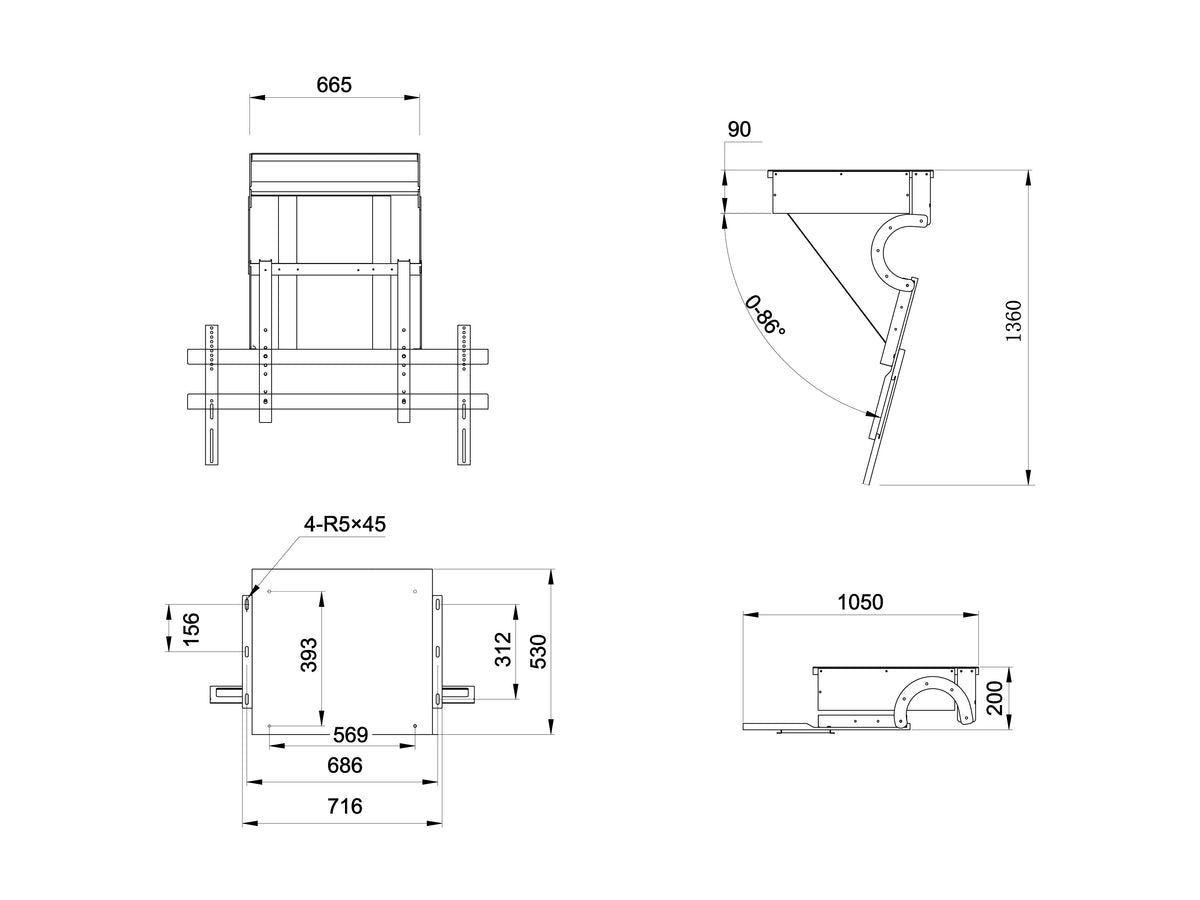

Extends up to 980mm and retracts to 770mm, offering flexible screen placement.

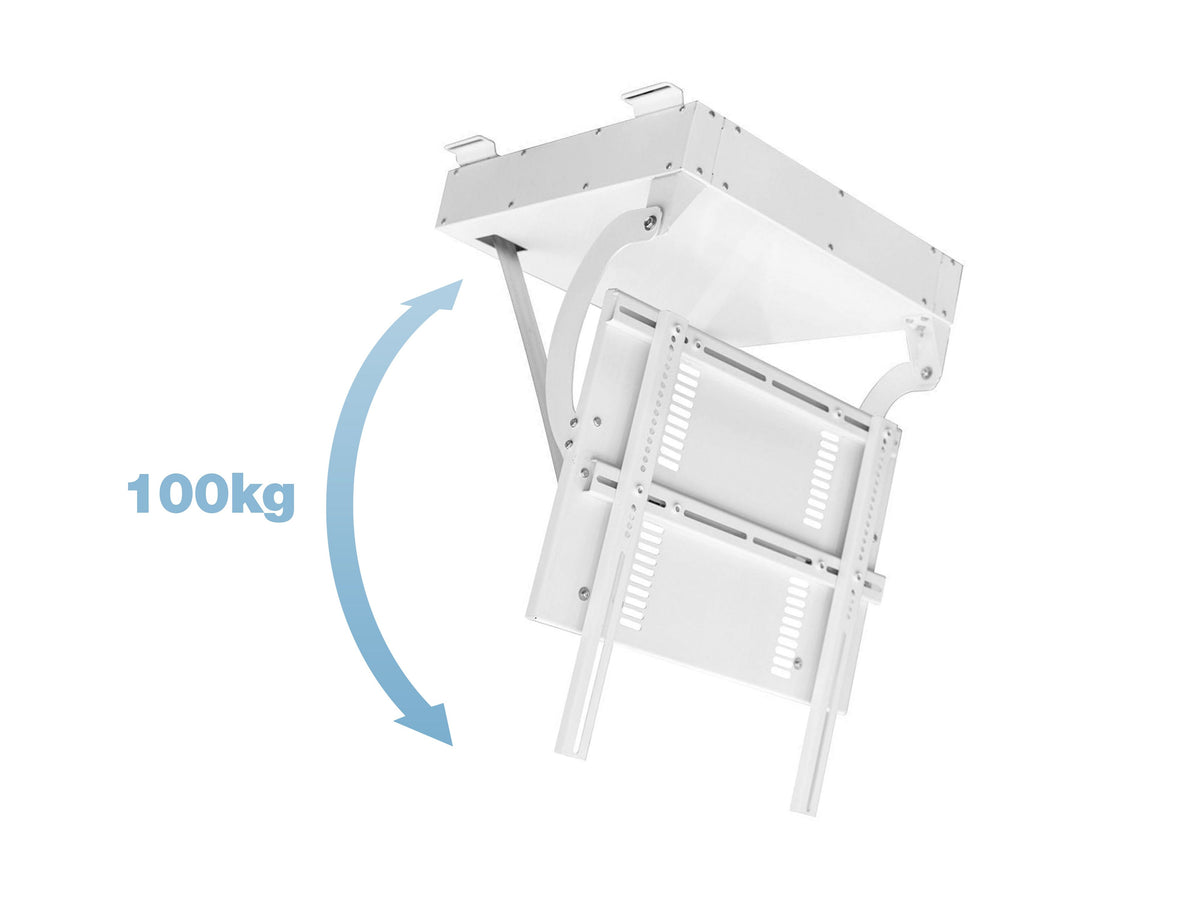

Supports screens up to 100 kg for robust, reliable use.
Remote control included with multiple operation modes: individual, grouped, or central control.

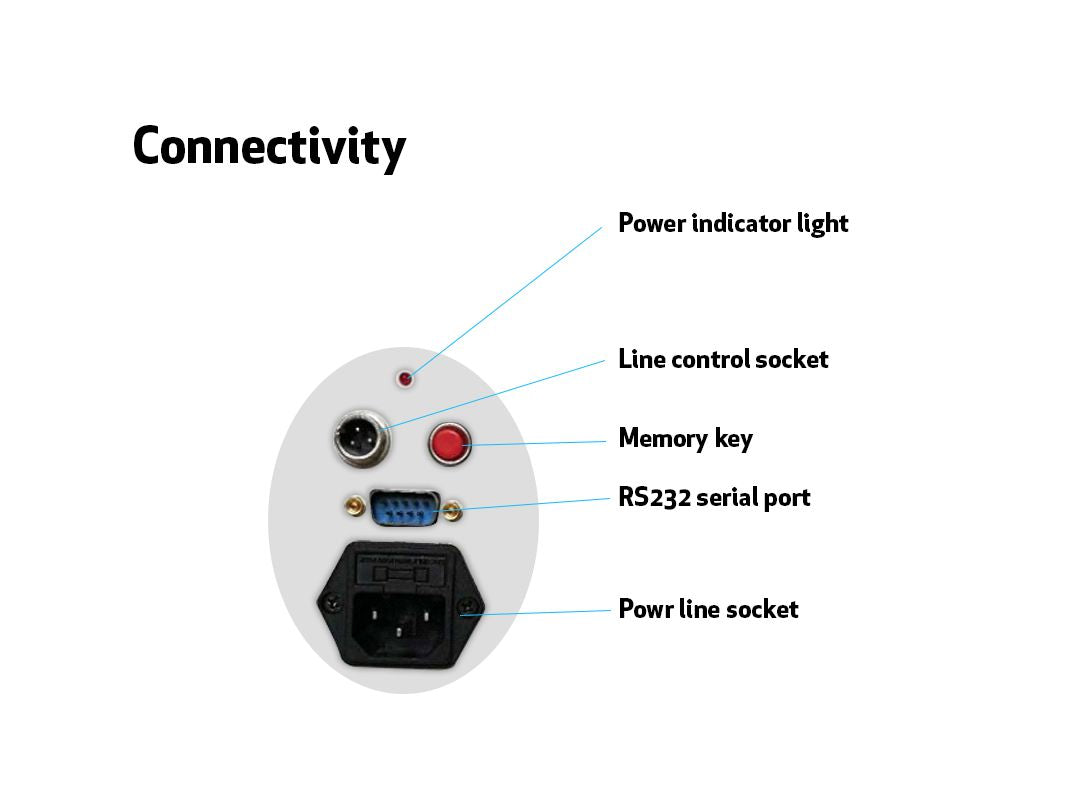

RS232 interface for integration with existing control systems.
Enhanced control options for varied installation and operational needs.
| For screen size: | 32-100" | VESA standard: | 200x200, 300x300, 400x400, 600x600, 900x600mm |
| Article No: | 7 350 073 739 592 | Colour: | White |
| Max load: | 100 kg (with electromagnetic brake) | Tilt angle: | 0-90° |
| Certification: | CE | Power: | 220V 50/60Hz 4.0uF 0.65A 1300/1600r/min (open-close time 70 sec) Cable length: 2m * For 110V usage add: 7350022739468 M Motorized Transformer 110V |
| Remote control: | RF intelligent remote control operation included. Batteries not included RS-232 interface availiable | Weight: | 50 kg |
| Size in mm: | 557x435x108 mm | Warranty: | 1 year |
| Description | Downloads |
|---|---|
| Datasheet | Download |
