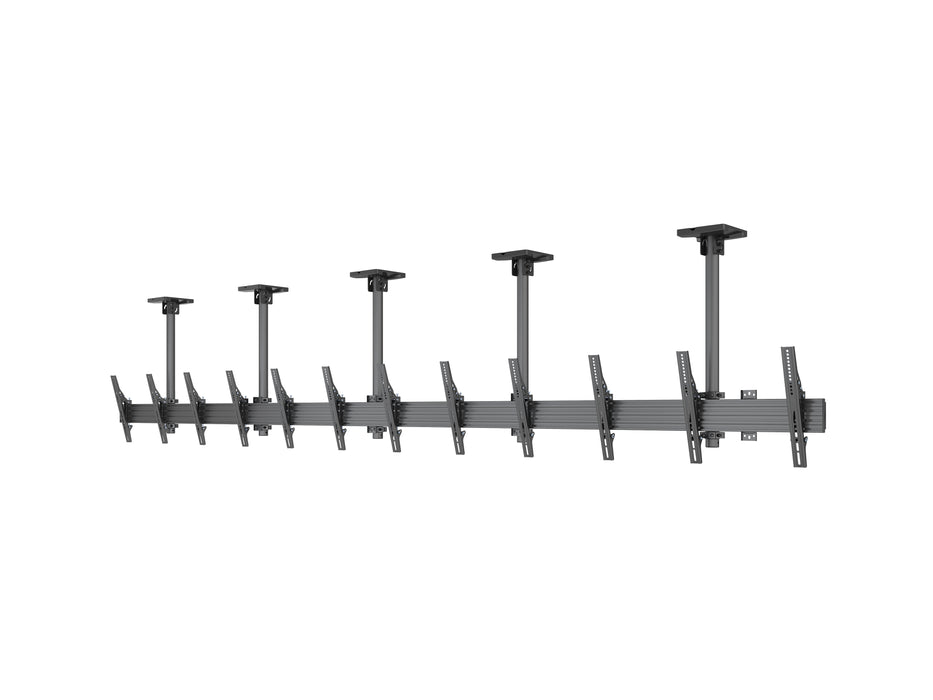

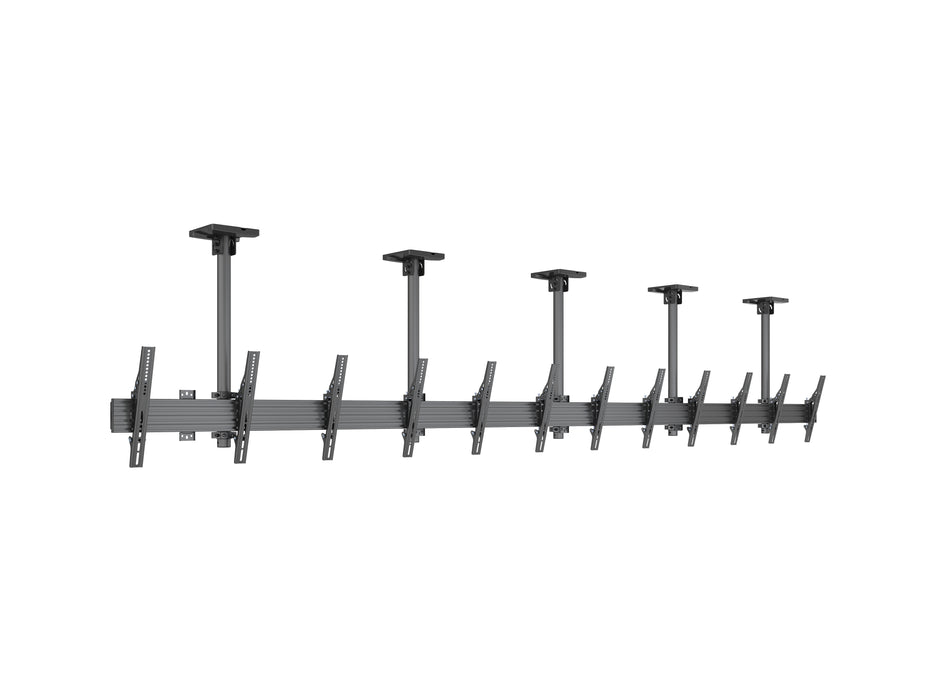

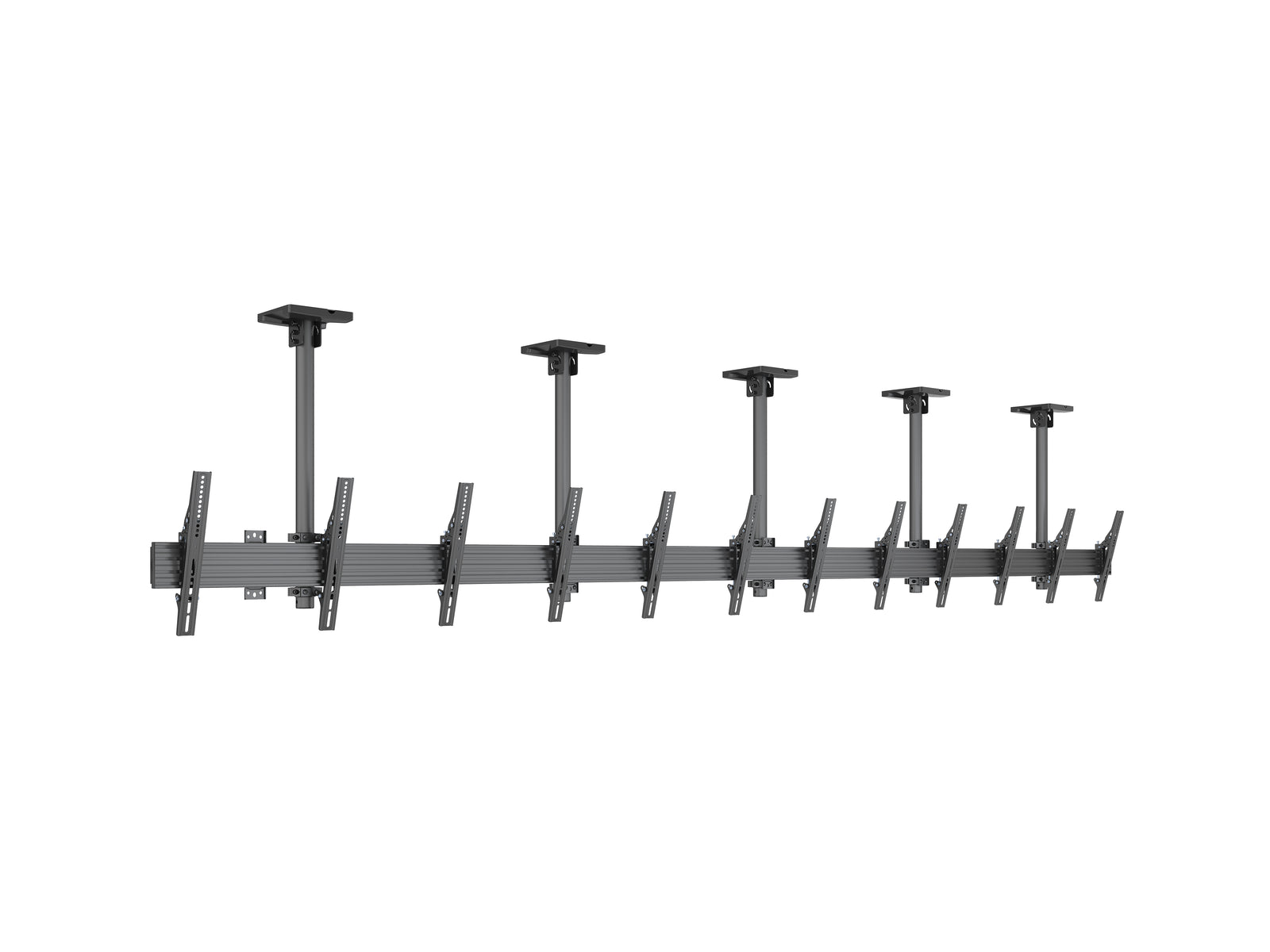

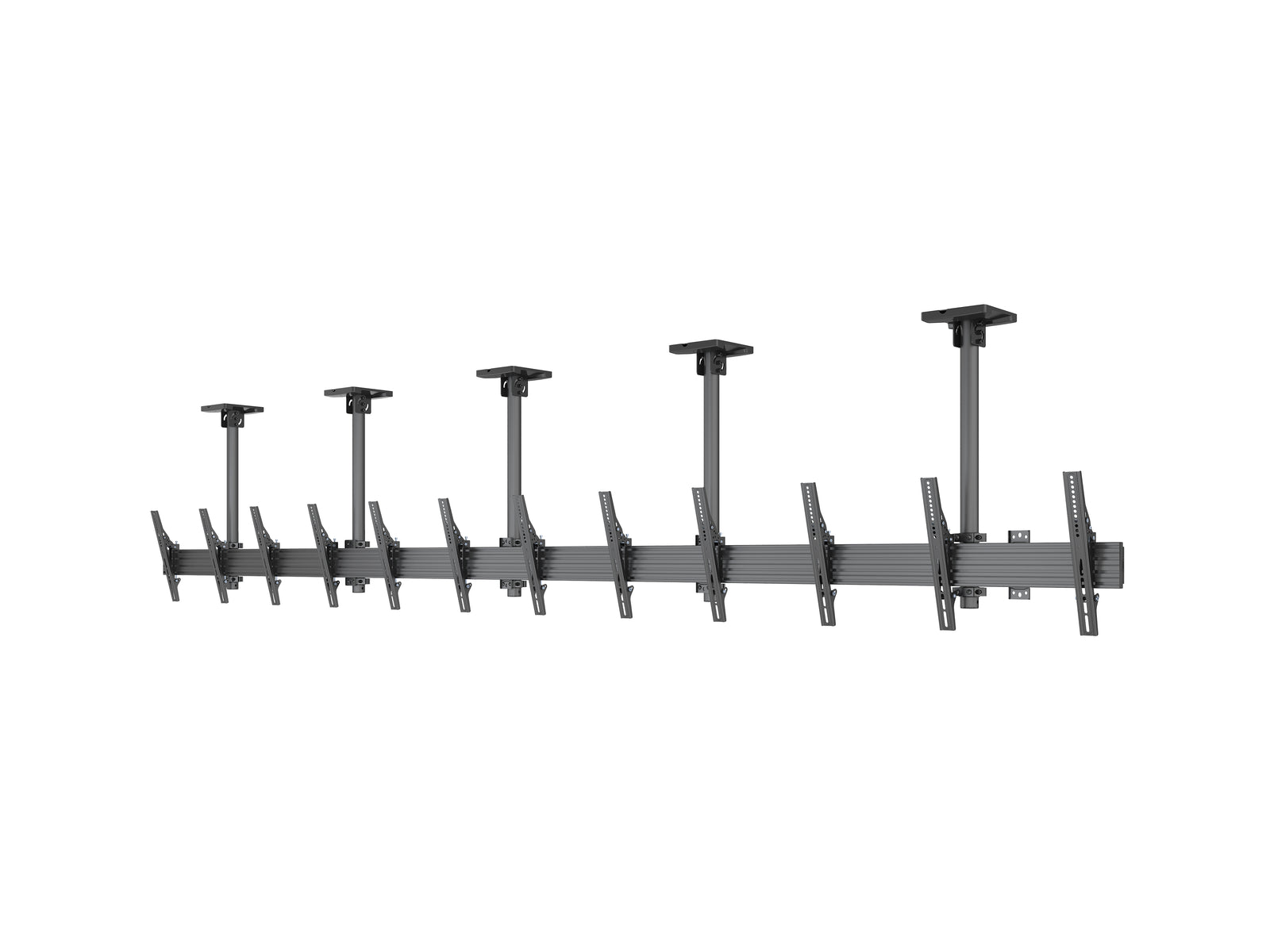

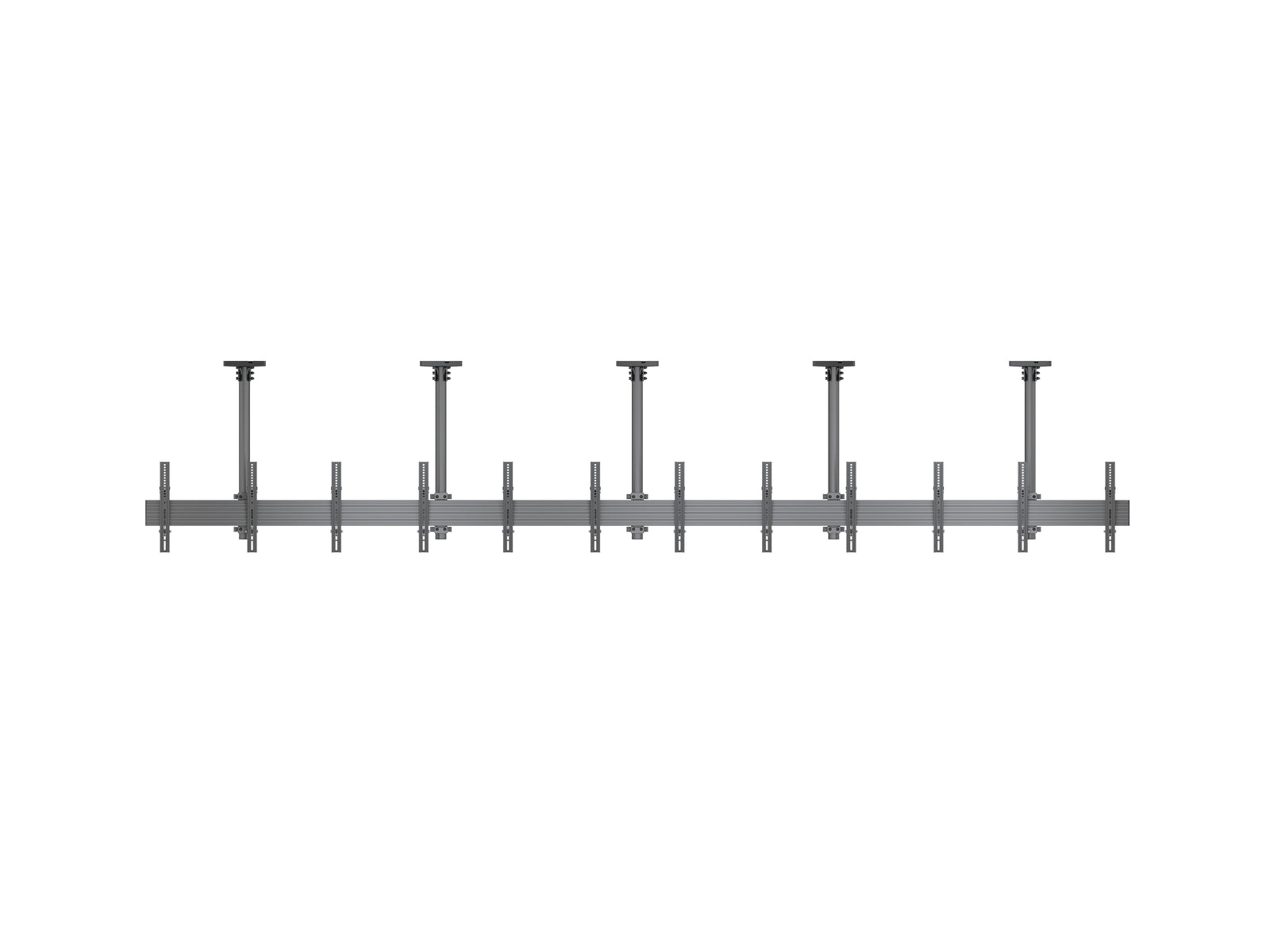

Multibrackets M Menu Board Pro 6-Screen Ceiling Mount For 40"-65" Screen | VESA 400x400
SKU: 7340234814350
£1,050.00 (Excl. VAT)
Check display compatibility before you buy
Enter your screen SKU and we will instantly check whether this mount is suitable for your display based on VESA pattern compatibility.
- Warranty5 Year Warranty
- Mount ConfigurationMax 6 Screen
- Max Load (kg)30 kg per screen
- Mounting TypeCeiling Mounts
- Screen Sizes40" - 65"
- VESA Patterns400x400
- Description
- Specifications
- Downloads
-
Professional Digital Signage Ceiling System for Six Displays

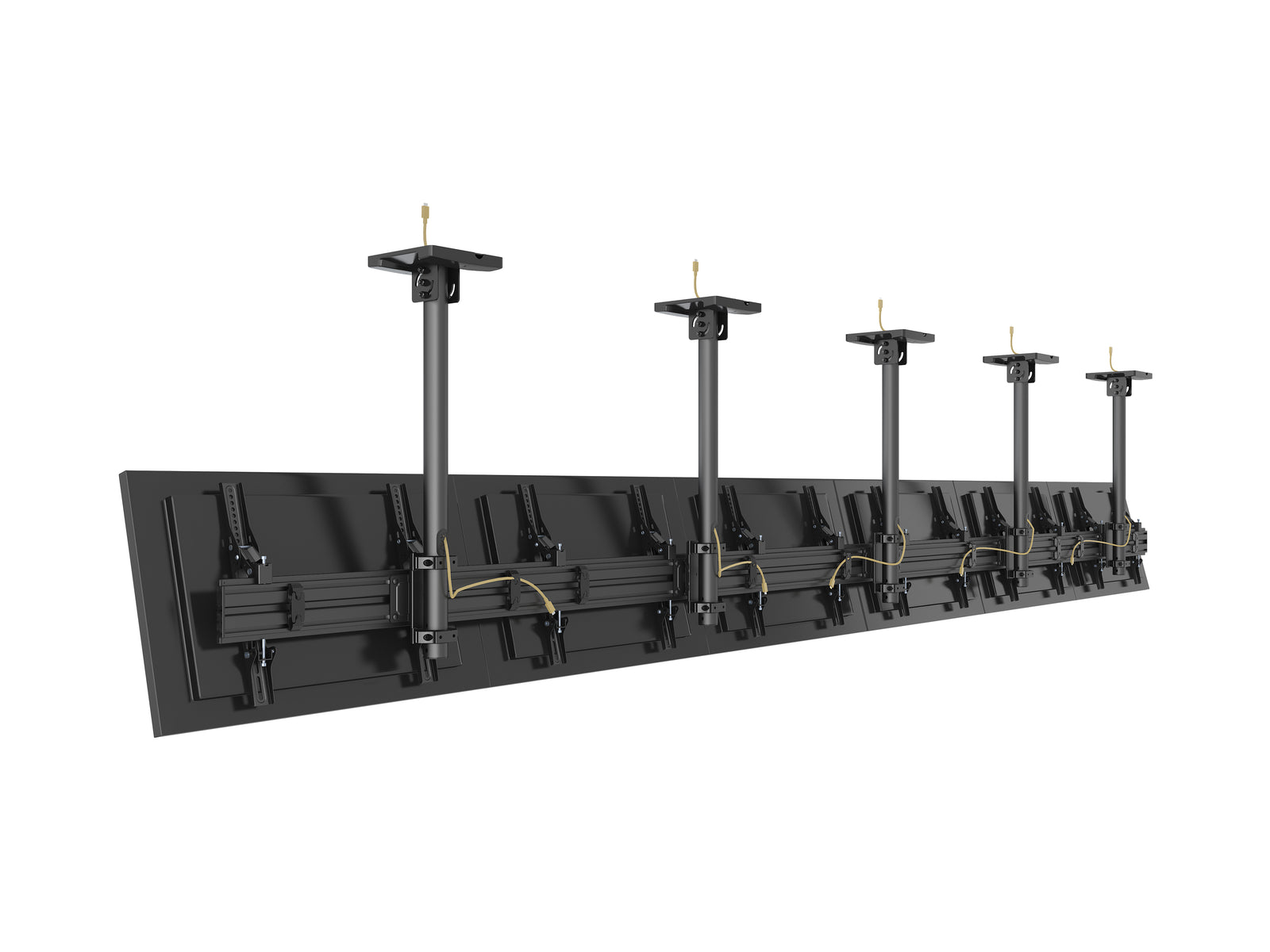

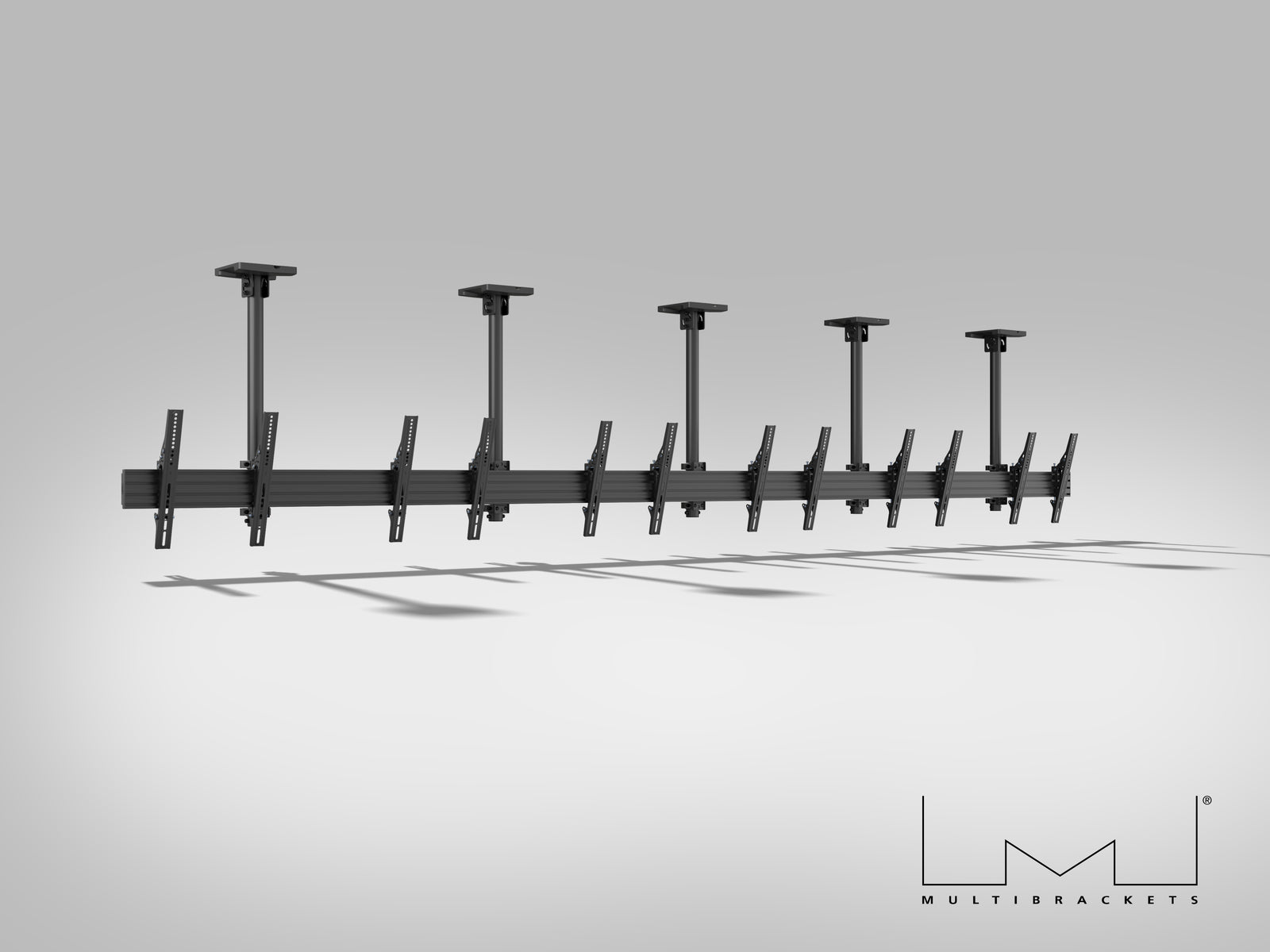

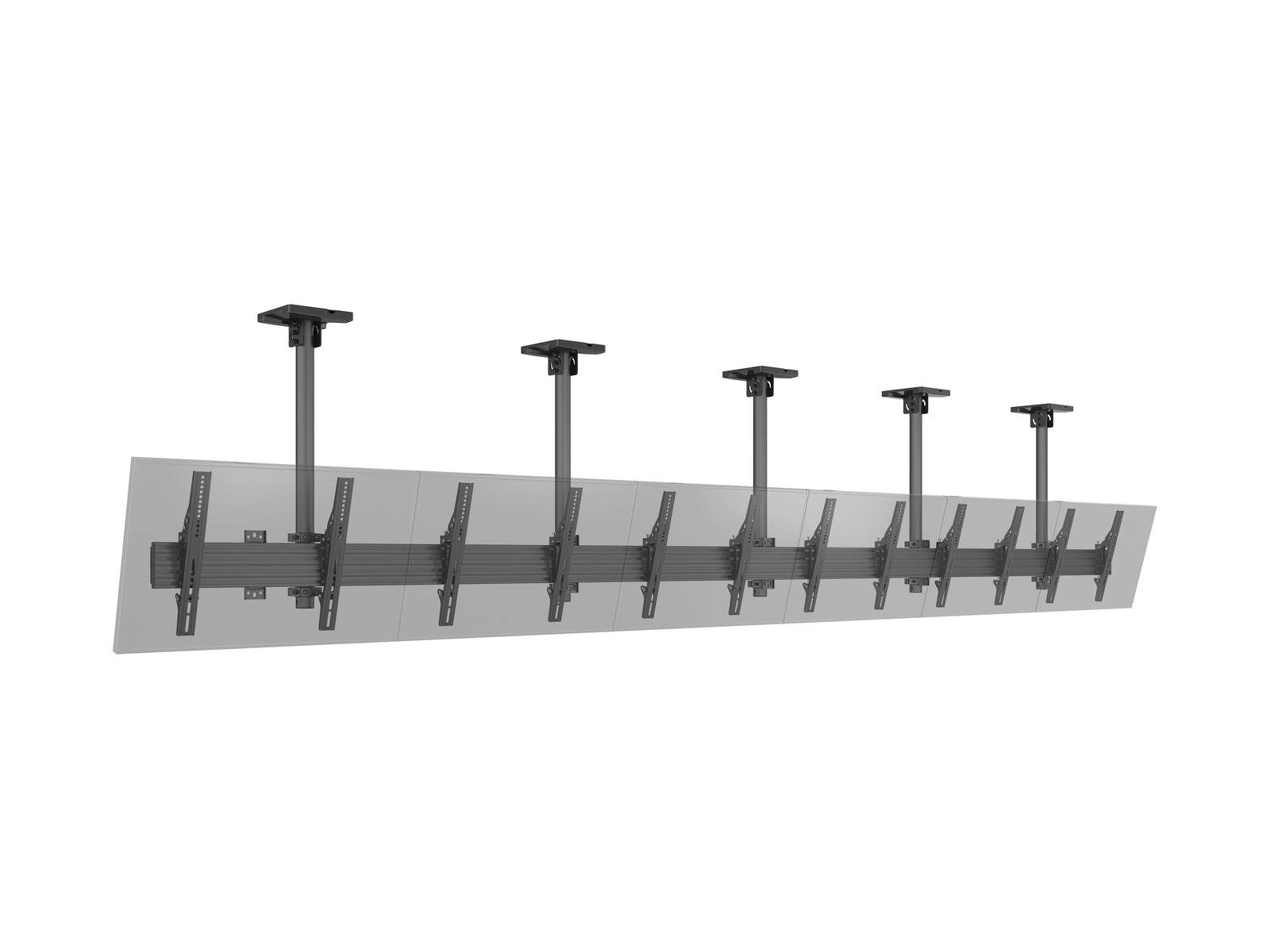

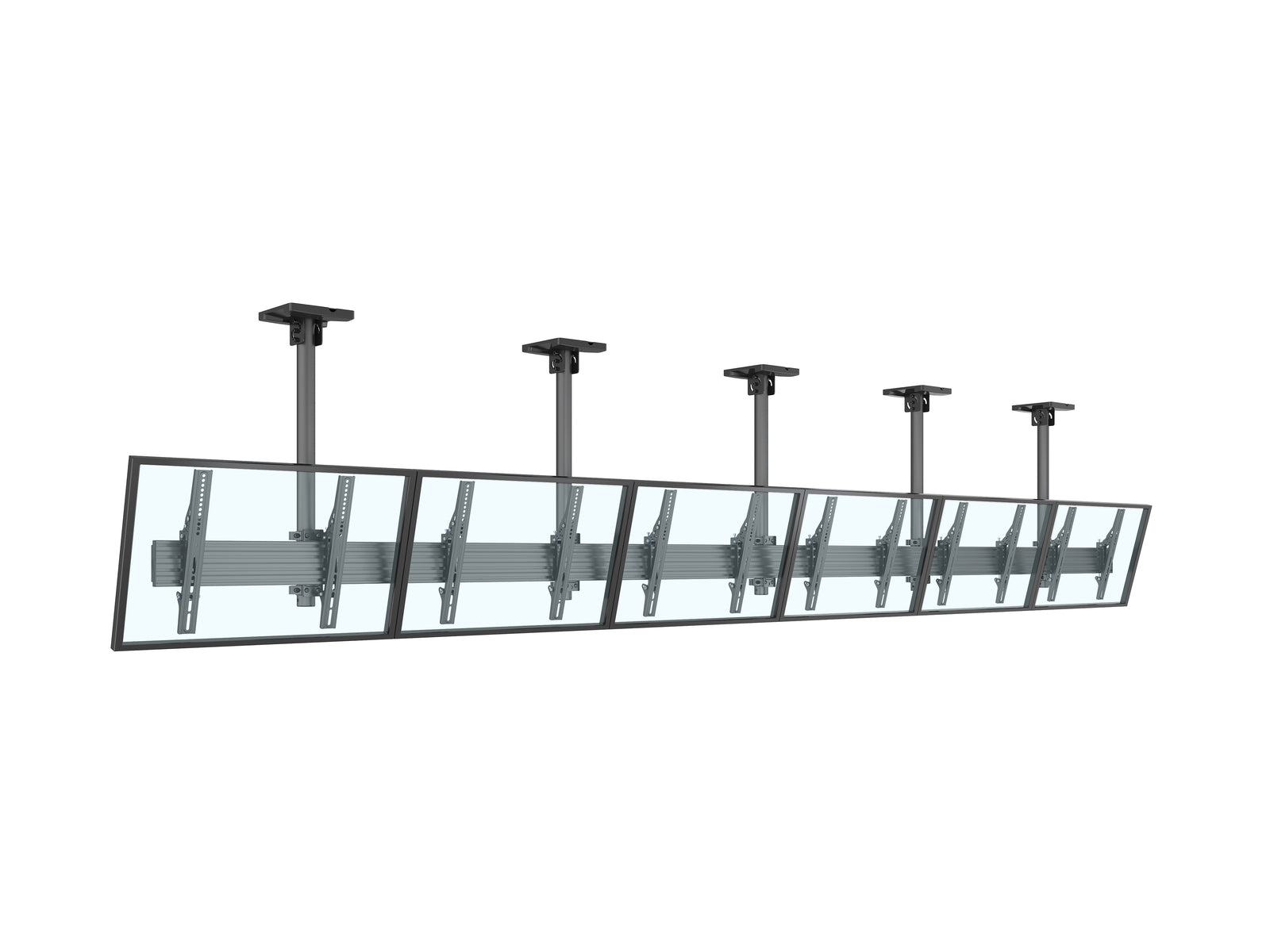

The M Menu Board Mount Pro MBC6X1U is a professional ceiling-mounted solution designed for six LCD displays installed side by side. With support for screen sizes from 40" to 65", this system is ideal for QSR menus, digital signage in retail, corporate communications, and transportation environments where synchronized content and clean design are crucial.
Part of the modular Multibrackets Pro Series, the MBC6X1U features an ultra-flexible aluminum rail, integrated cable management, and precision tilt arms – ensuring both visual alignment and installation ease. The 0.8m pole height makes it suitable for a wide variety of ceiling heights and layout configurations. Designed in Scandinavia, the aesthetic is sleek, minimalist, and functional.
Highlights
Five-screen ceiling mount for 40"-65" displays
Supports VESA 200x200 to 400x400 (adapters included)

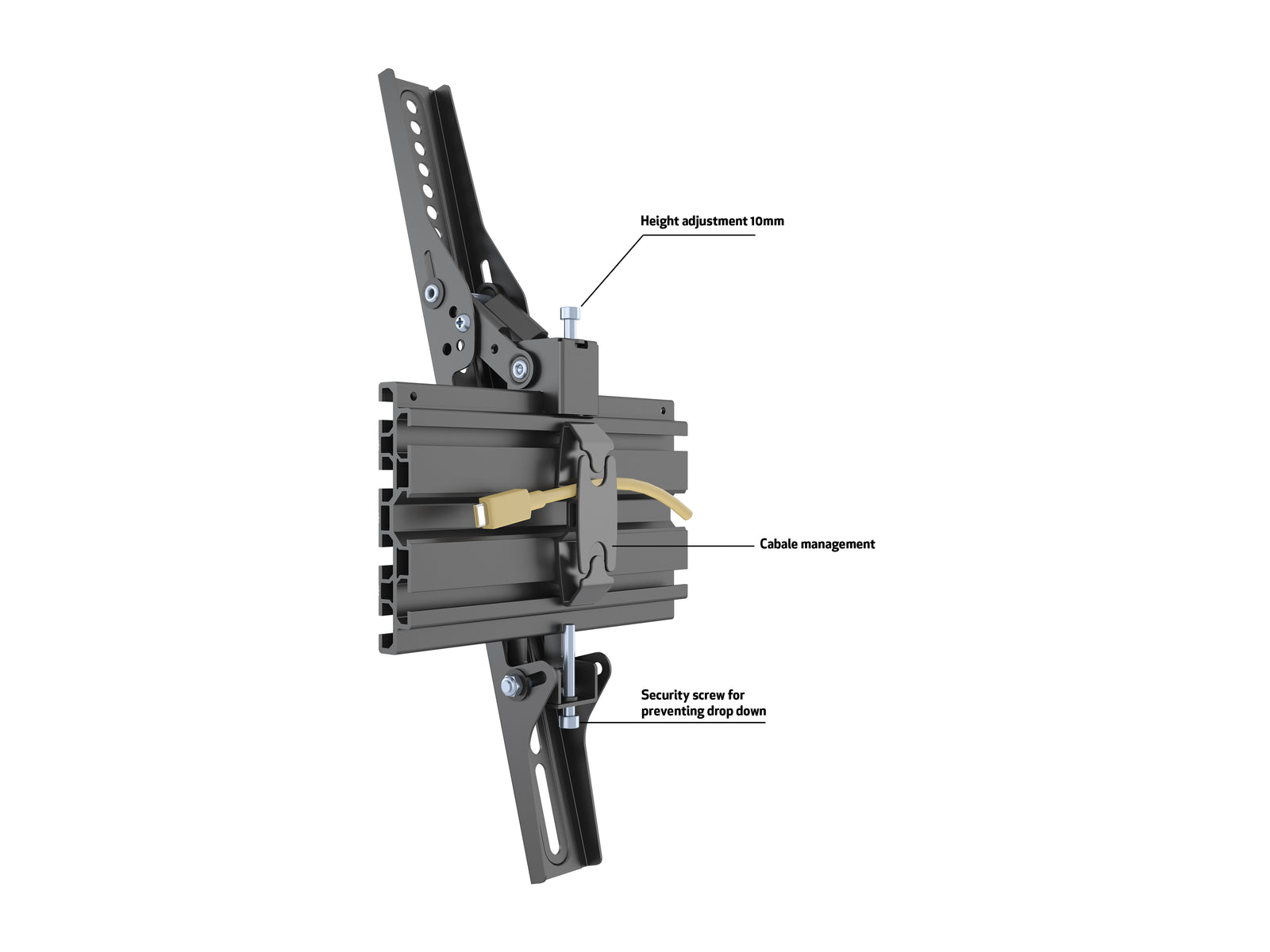

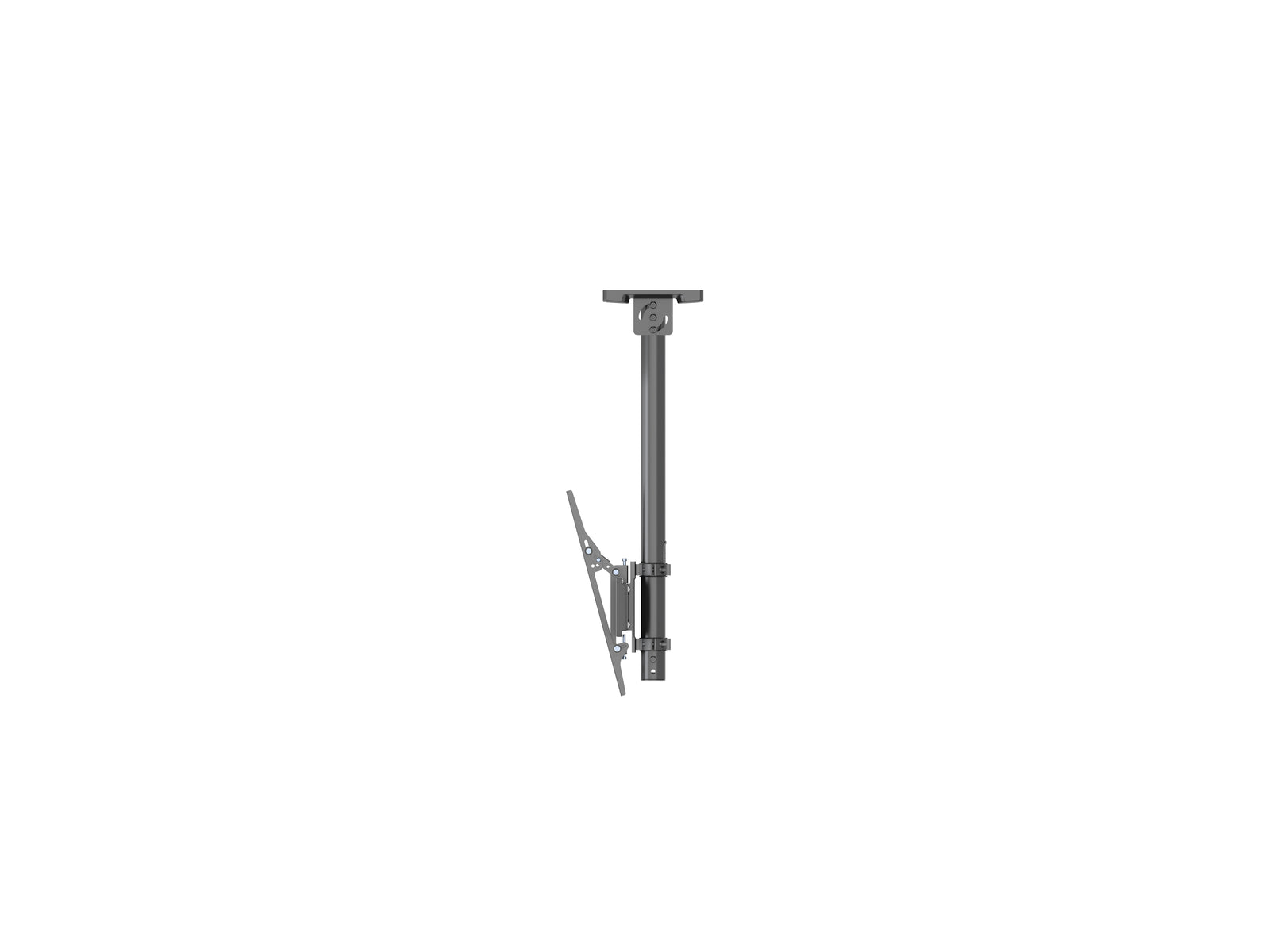

0.8m pole height with tilt-adjustable arms for precise alignment
Integrated cable management for clean, professional installs

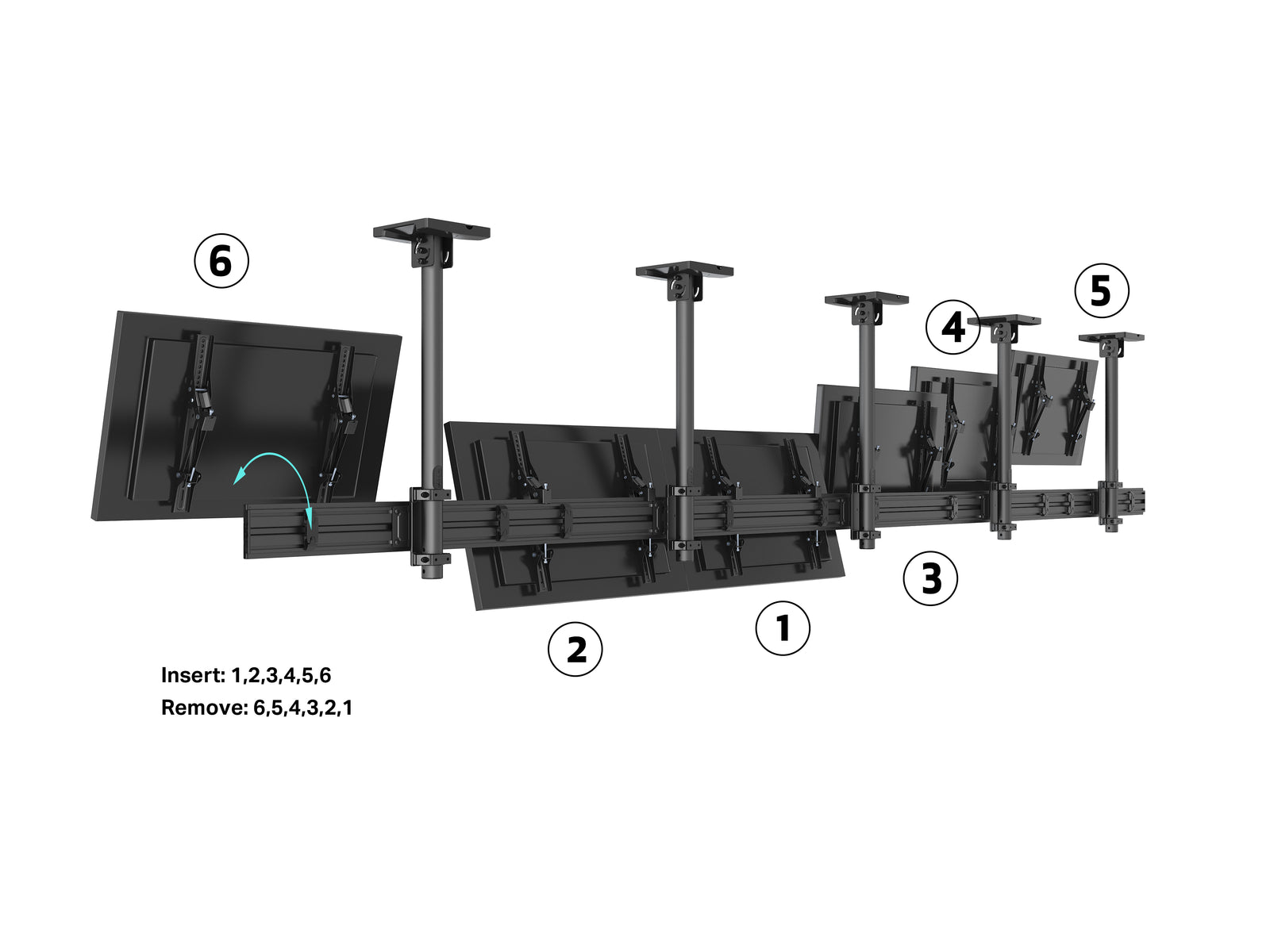

Power Click™ system for fast and secure installation
Portrait or landscape screen orientation supported
Expandable using other Pro Series components

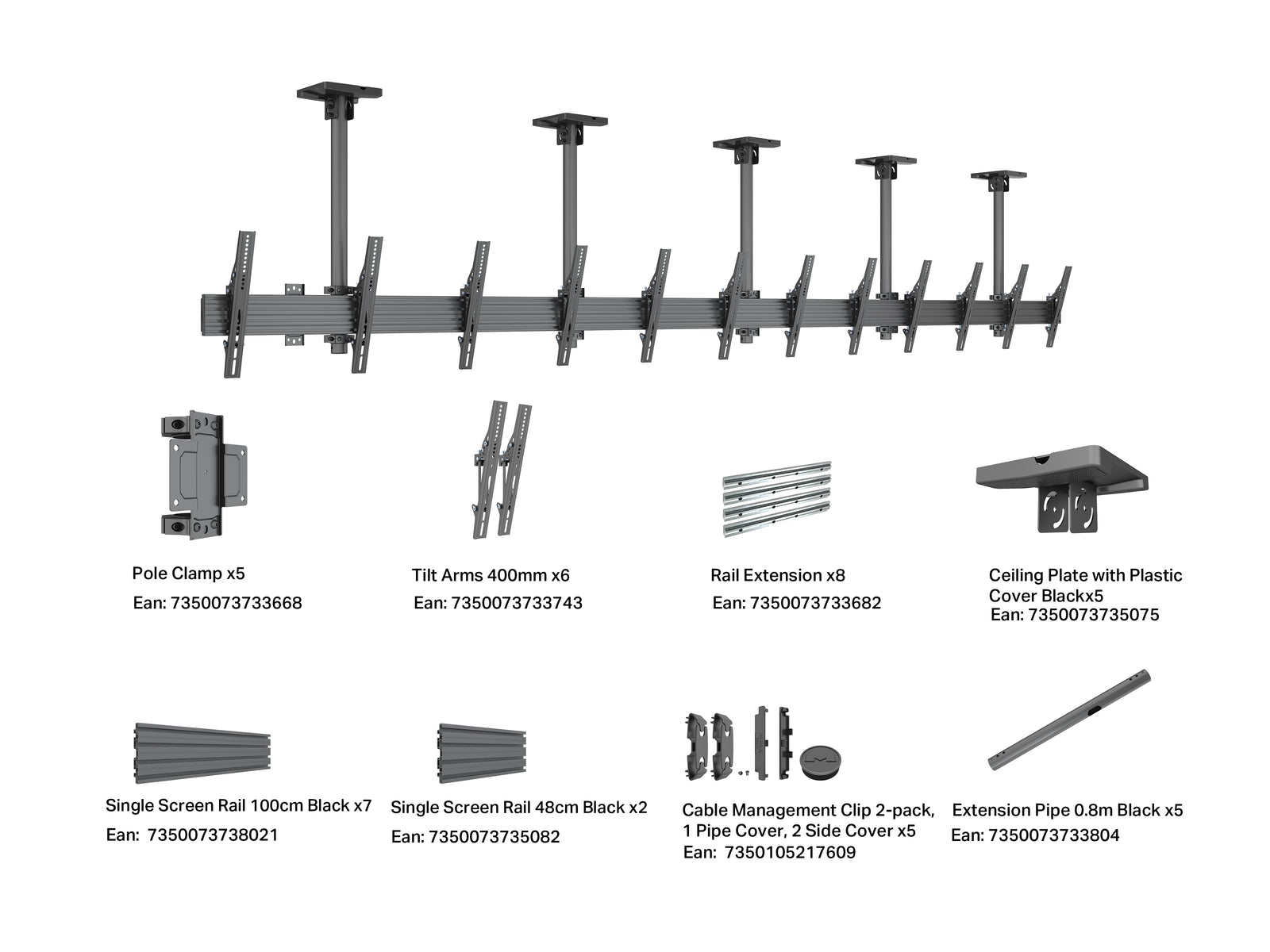

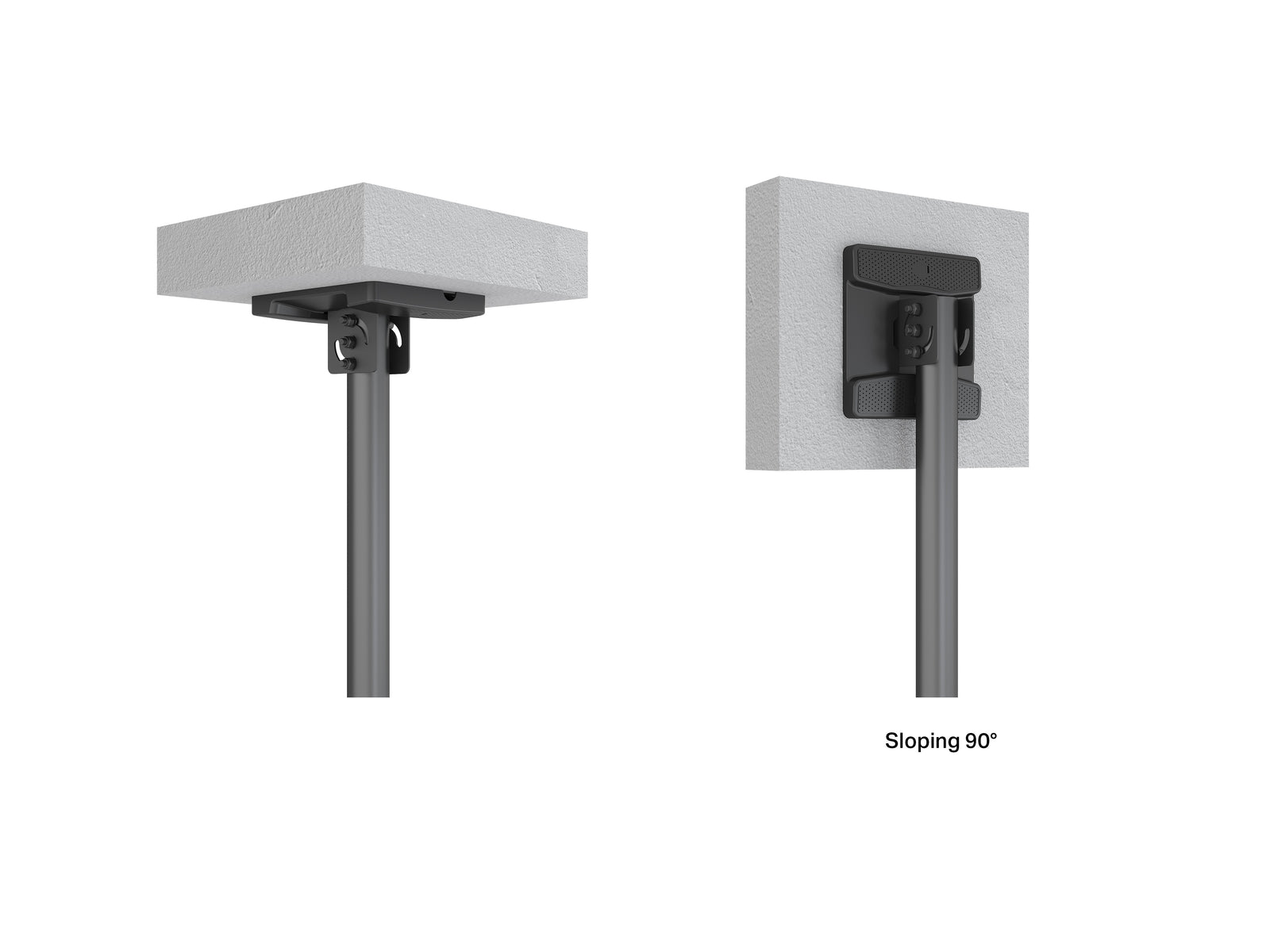

Includes ceiling plate and complete hardware kit -
Article No 7 340 234 814 350 For screen size 40”-65" Type Single Side MBC6X1U Universal & VESA standard Adjustable from 100x100 to 400x400 max

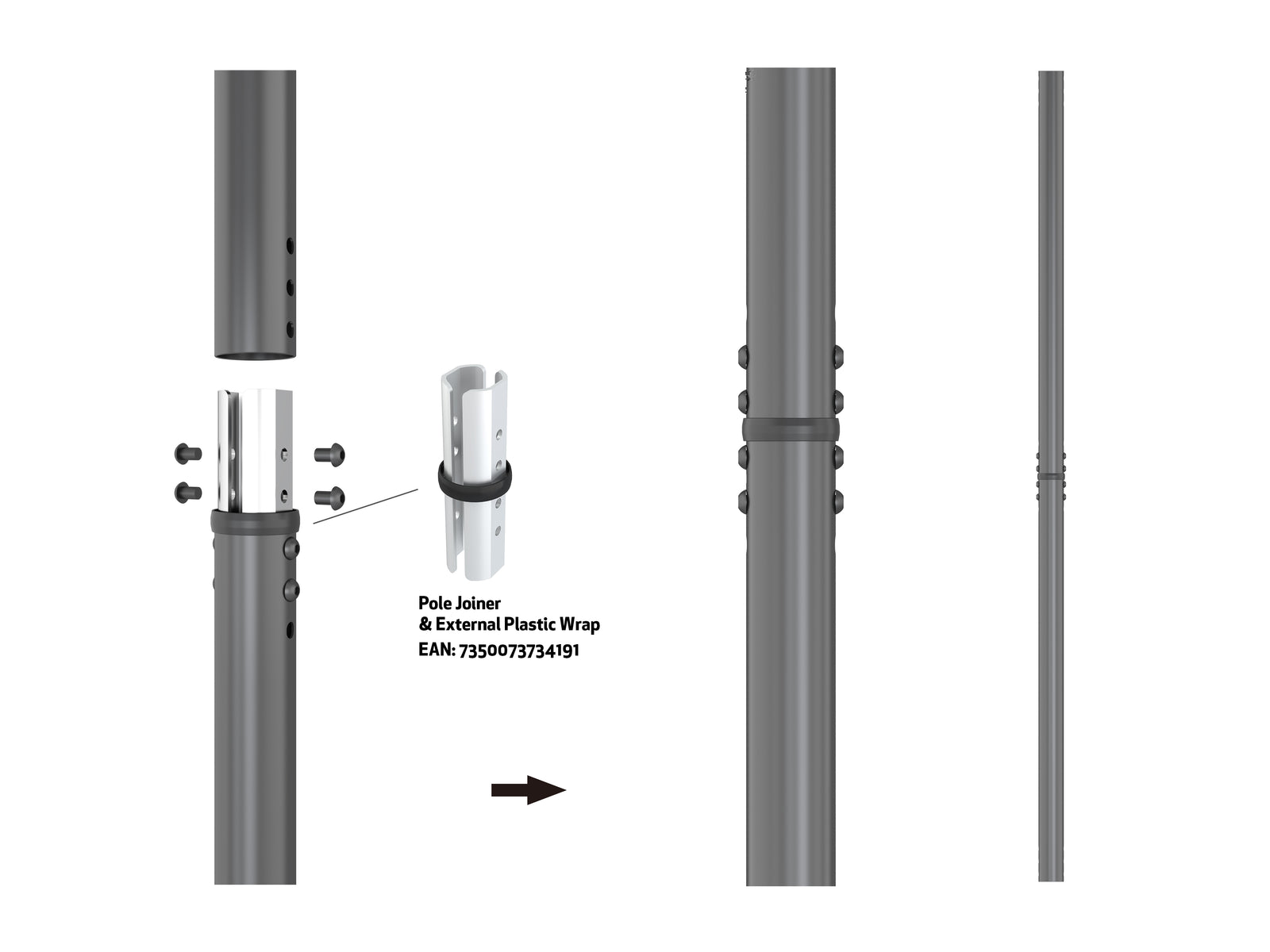

Optional VESA 800x600Material Steel, Aluminium Color Black Surface Finish Powder coating/Anodic Oxidation Weight 29.4kg + 34kg Measurements 84x46.8x24cm + 104x30x28cm Max Load 30 kg per screen Pillar length 0.8m included Tilt Yes, -6~+15° Swivel 0° Rotate 0° Cable Management Yes Options Extension pipes: 0.8m, 1.5m, 3.0m Certifications CE Warranty 5 years Retail Package Specification Included Package Parcels 2 pcs Package Measurements 84x46.8x24cm + 104x30x28cm Package Weight 29.4kg + 34kg -

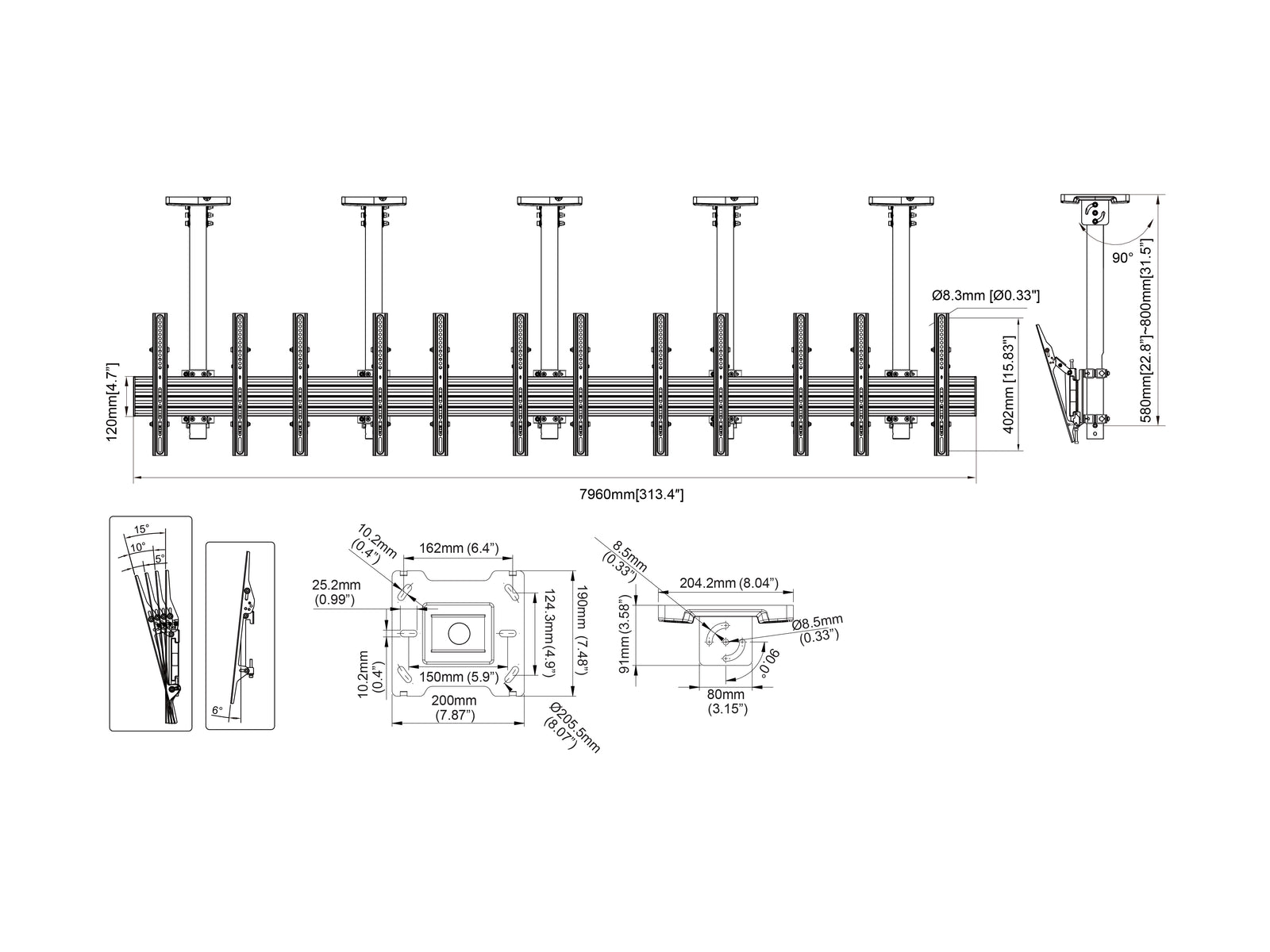

Description Downloads Drawing Download
