Multibrackets M Pro Series 43" - 65" 3x3 Video Wall Stand

• Description
• Specifications
• Downloads

•
  M Pro Series Video Wall Stand 3x2 43-65" Black - Stand for 3x3 displays - aluminum - black - screen size: 43" - 65" - mounting interface: 600 x 400 mm - floor-standing - wheelbase
  This 3x3 screen configuration freestanding video wall cart makes it possible to construct video walls in prominent locations for temporary applications.

  Multiple Screens
  M Pro Series Video Wall Stand screen array configuration can accommodate 3 pcs 43-65" screens wide x 3 screens high.

  Based on a 270cm high pillar made out of durable aluminum, the possibilities for height adjustments are very good and it is possible to provide a perfect viewing angle for both a sitting and a standing audience. There is a power rail built into each pillar, providing 220v power to the screens or peripherals. This makes installation and cable management an ease. This movable video wall solution creates a solution that can be used for presentations, trade shows, and store or office entrances.

  This is a perfect solution for customers who need a mobile presentation system for VTC, digital signage applications, and more.

  Note: All Multibrackets video walls are designed with the critical application in mind.

  With the right combination of durability and serviceability, we provide standardized and cost-efficient solutions or even custom-fabricated steel and aluminum video walls designed to fit most applications or environments.

  The Multibrackets Pro Series Video Wall Stands are suitable if you are after a video in a freestanding environment. As this is the Multibrackets Pro Series it’s all modular and could be rebuilt for any updated purpose over time. This video wall floor stand kit is suitable for screens up to 65” displays with a maximum weight of 30kg per display. The Pro Series modular system is quick and easy to install. Micro-adjustable Fine Tune adjustment VESA brackets and interface plates help you create a perfect video wall. With the fine-tune functionality, you can easily align any screen on the X, Y, and Z axis. Even after installation. All displays remain easily accessible for maintenance purposes.



• Feature	Specification
  Screen Size	43-65" per screen
  Feature	3x3 screen assembly
  VESA Standard	Up to 600x400 mm
  Article No	7 350 105 213 373
  Size in mm (WxDxH)	1465 x 448 x 161 mm + 1465 x 448 x 161 mm + 2771 x 545 x 130 mm
  Adjustable Height/Depth	Yes / Yes
  Weight	114.3 kg
  Colour	Black
  Surface Finish	Powder coating
  Max Load per Screen	30 kg
  Power Rail	No
  Warranty	5 years
  Retail Package Specification
  Package Parcels	0 pcs
  Package Measurements (WxHxD)	0 x 0 x 0 cm
  Package Weight	115 kg

• Download Type	Downloads

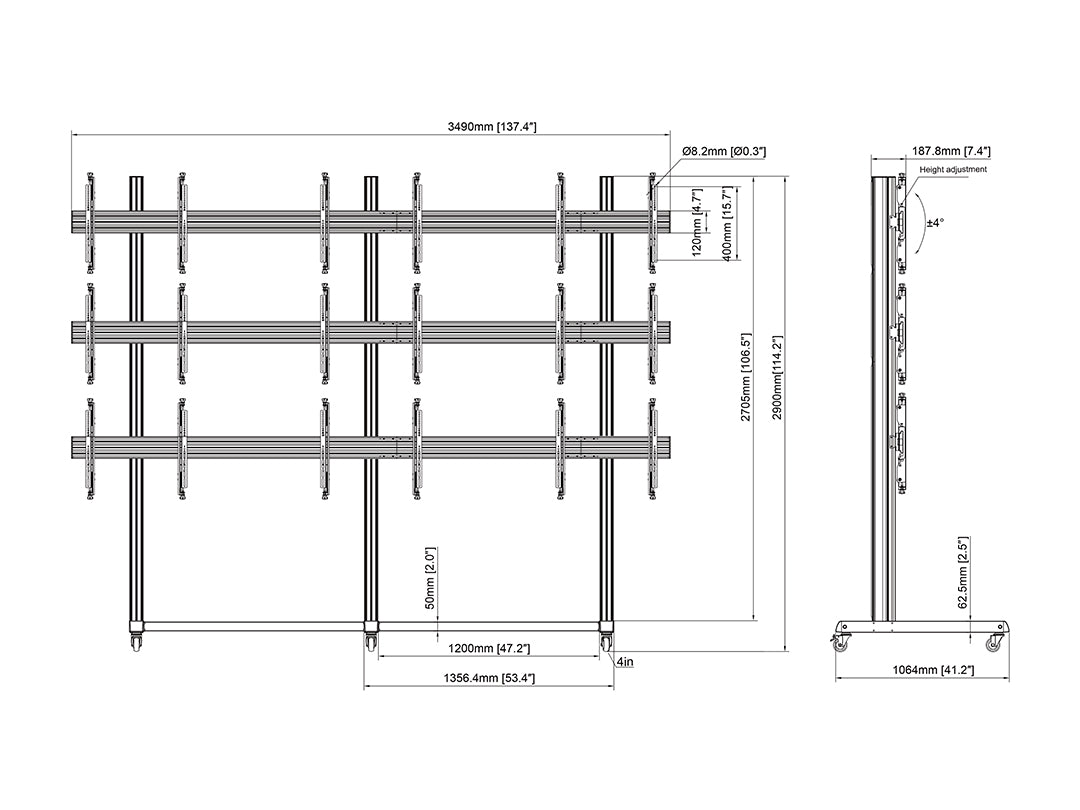

  Drawing PDF	Downloads
