Multibrackets M Pro Series Dual Bracket V-Shape - (46"-65")

• Description
• Specifications
• Downloads

• M Pro Series - Dual bracket V-shape 46"-65" - Pole mount for displays, Modular design, steel, 2 screen, Max load 30kg per screen - screen size: 46"~65" - black

  Get the wide viewing angle with a V-Shaped dual display solution for Pro Series Ceilingmounts. With this V-shaped ceilingmount solution you can create a 270 degree viewing capability, catching the attention of anyone walking by. With its V-shaped dual display-mount systemit supports two displays drop down from a single column drop while maintaining the installer-friendly features of the single screen Multibrackets ceiling mounts.

  Smart for in store presentations

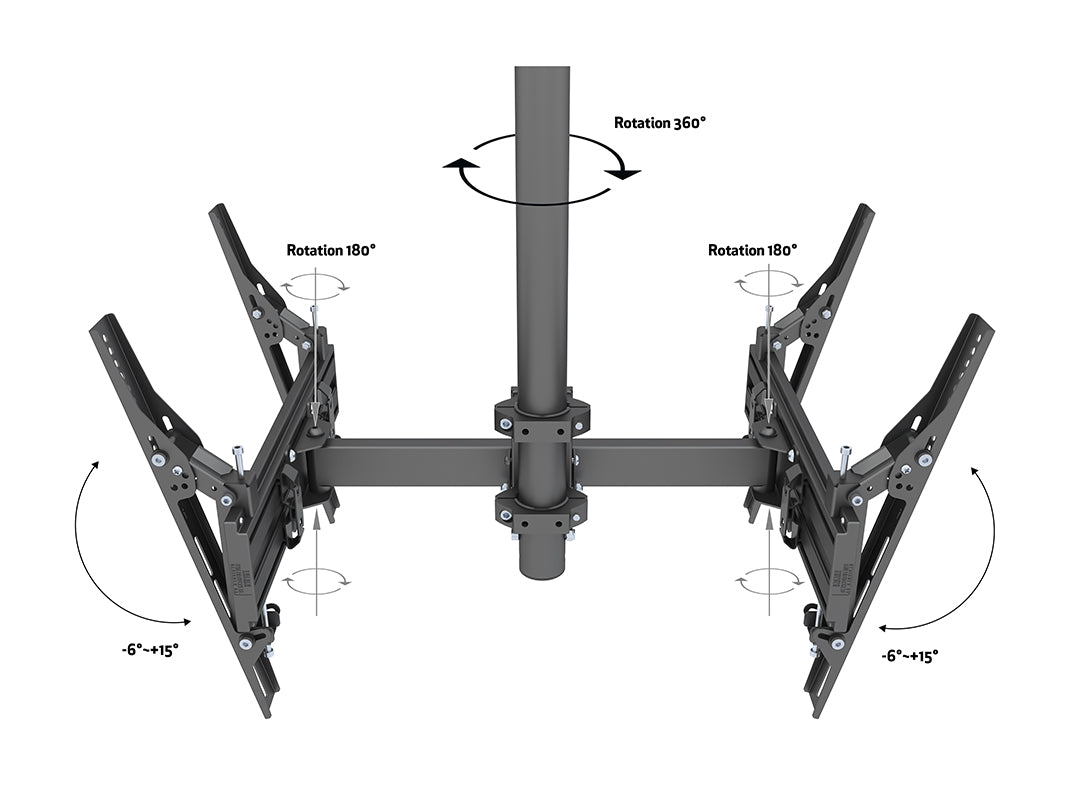

  This Dual bracket Pro Series Part has a V-shaped Display position for its two individual arms that each holds a display facing front, we call it a V-formation. The angle of the displays helps you create the ideal dual-display ceiling mounted solution. Popular in stores, shops or anywhere a message needs to be displayed in a wider angle. Each display has an adjustable depth allows the installer to set the spacing between each display to meet your application needs. This Multibrackets mount was designed with superior aesthetics in mind to match any store design. Still robust and clutter free cable management and provides a bottom cover, resulting in smart and sleek result throughout the entire solution.

  Works with Pro Series Ceilingmounts
  M Pro Series - Dual bracket V-shape 46"-65" is a accessory part in the Pro Series line up. This item works well with close to all Pro Series ceilingmounts. The part can be installed after time using the same ceilingmount pole as the standard Pro Series ceilnigmount and if the installation needs dual screens. This part can also be combined with most Pro Series Ceilingmounts and used instead of the standard ceilingmount bracket.

  Highlights
  Create a dual display wide angle viewing capability
  Compatible with near all Pro Series Ceilingmounts
  Adjustable armlength for universal display fit
  Works with screens up to 65" or 30kg´s per display

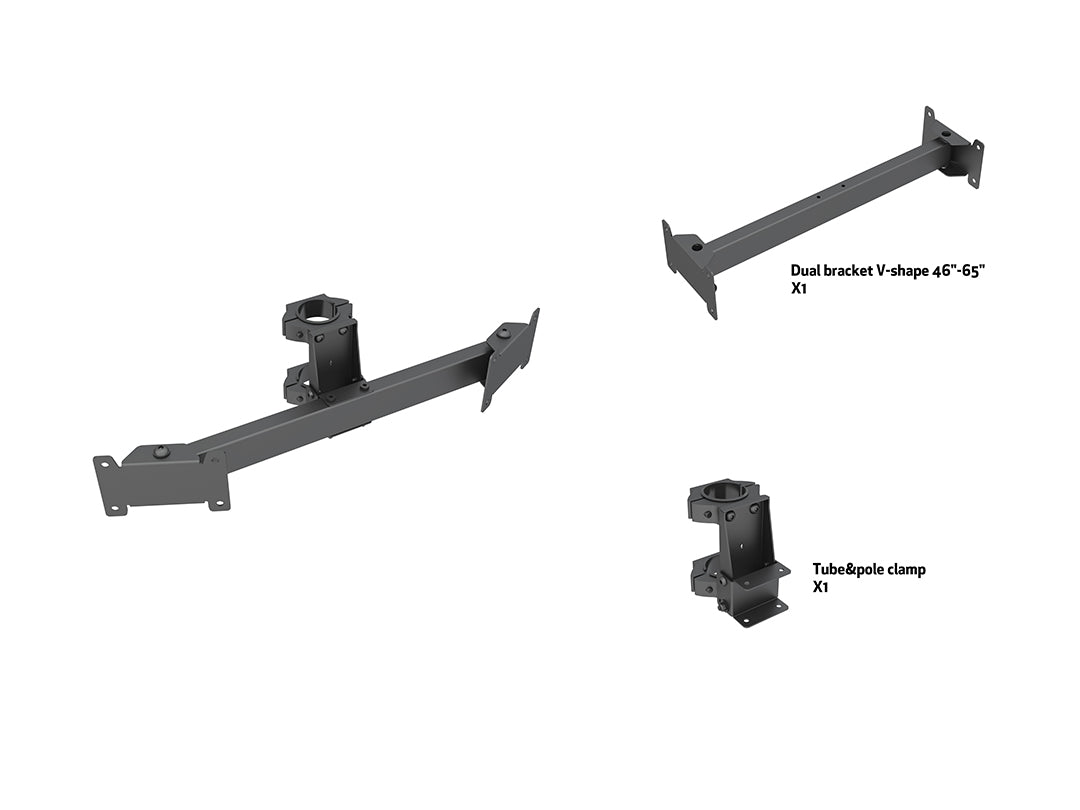

  Complete hardwarekit included



• Attribute	Value
  Article No	7 350 105 212 482
  Color	Black
  For screen size	46"-65"
  Material	Steel, Aluminium, Plastic
  Surface Finish	Powder coating
  Weight	8.8 kg

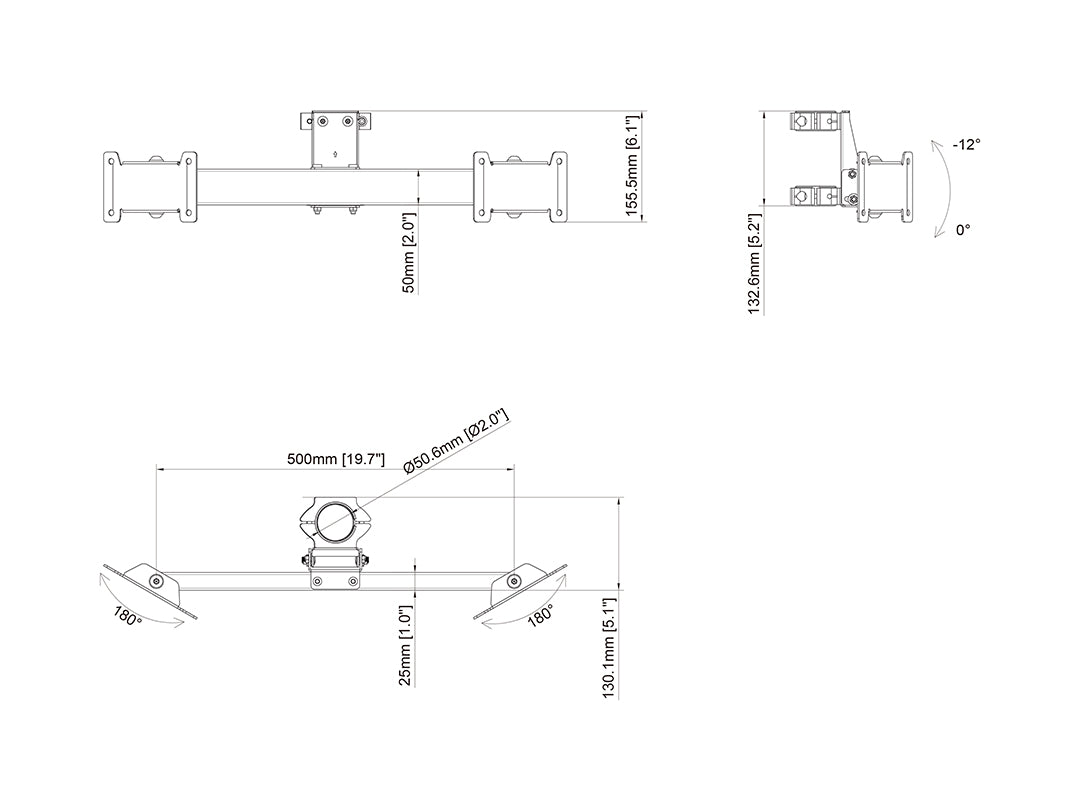

  Measurements	880x208x90 mm
  Max Load	30 kg per screen
  Tilt	-0°~12°
  Swivel	180°
  Installation	M Pro Series
  Cable Management	N/A
  Options	Pro Series Parts - Rails & Arms
  Warranty	5 years
  Retail Package Specification
  Package Parcels	1 pcs
  Package Measurements	0 x 0 x 0 cm
  Package Weight	0.00 kg
