Enter your screen SKU and we will instantly check whether this mount is suitable for your display based on VESA pattern compatibility.

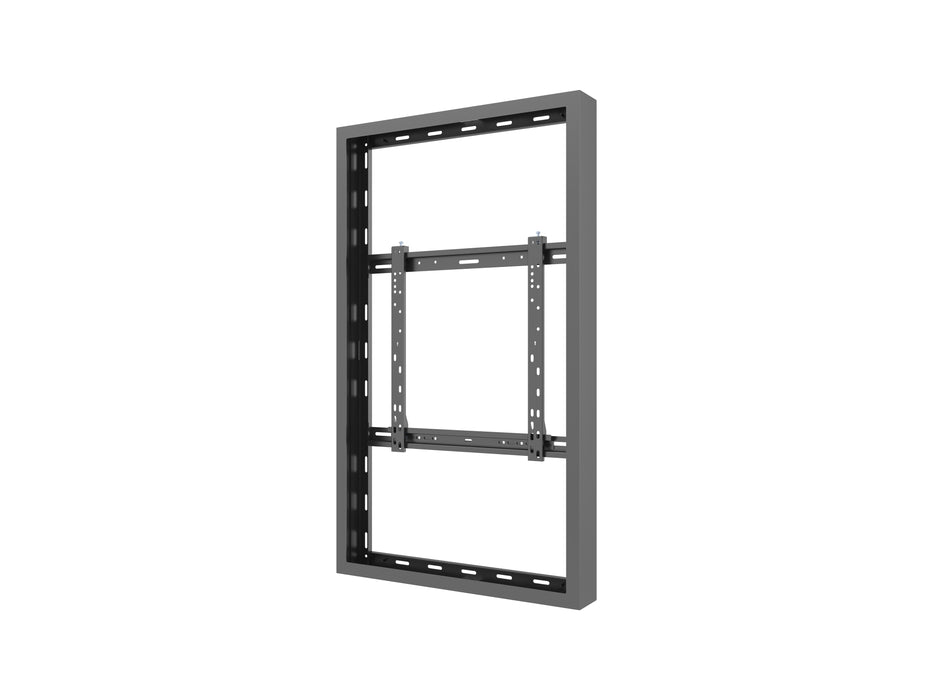

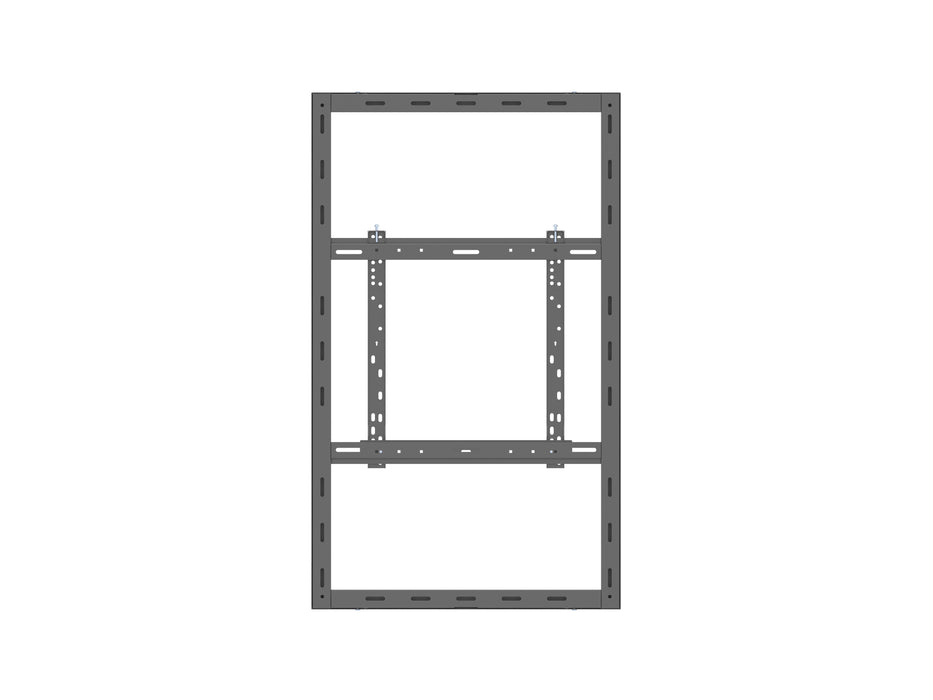

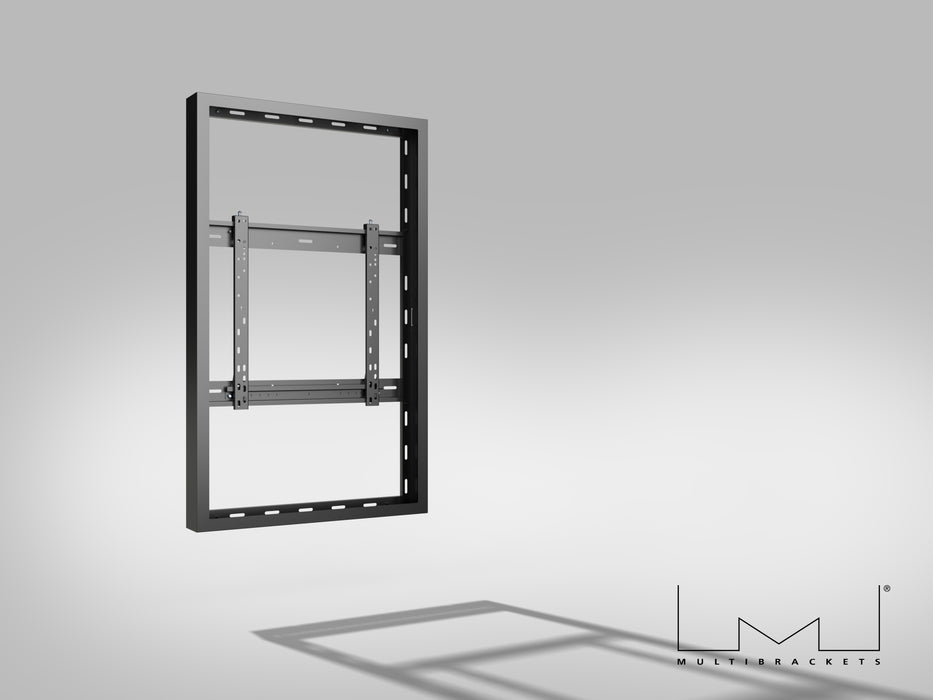

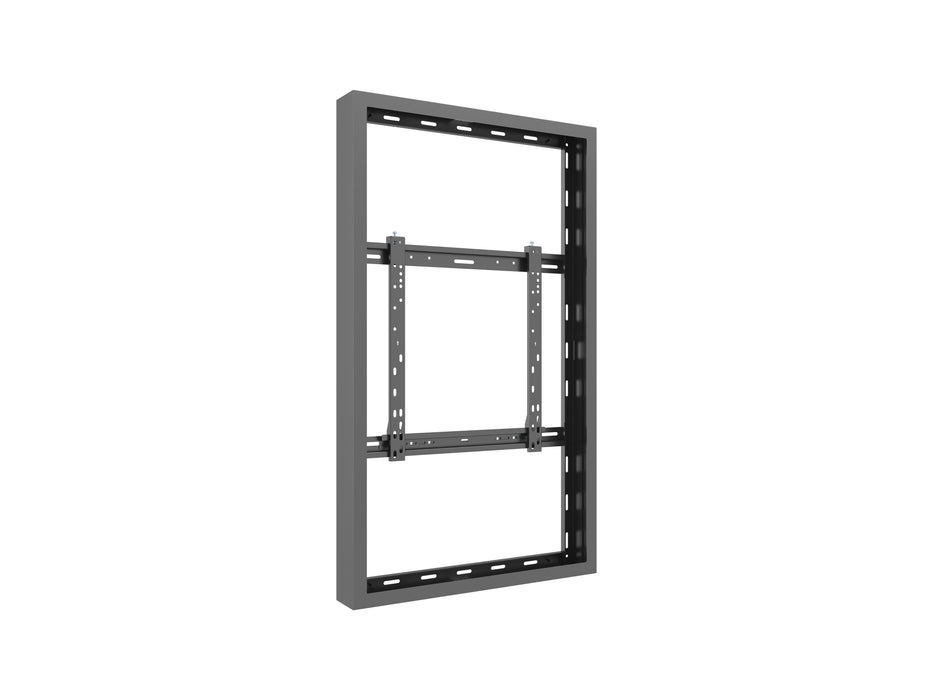

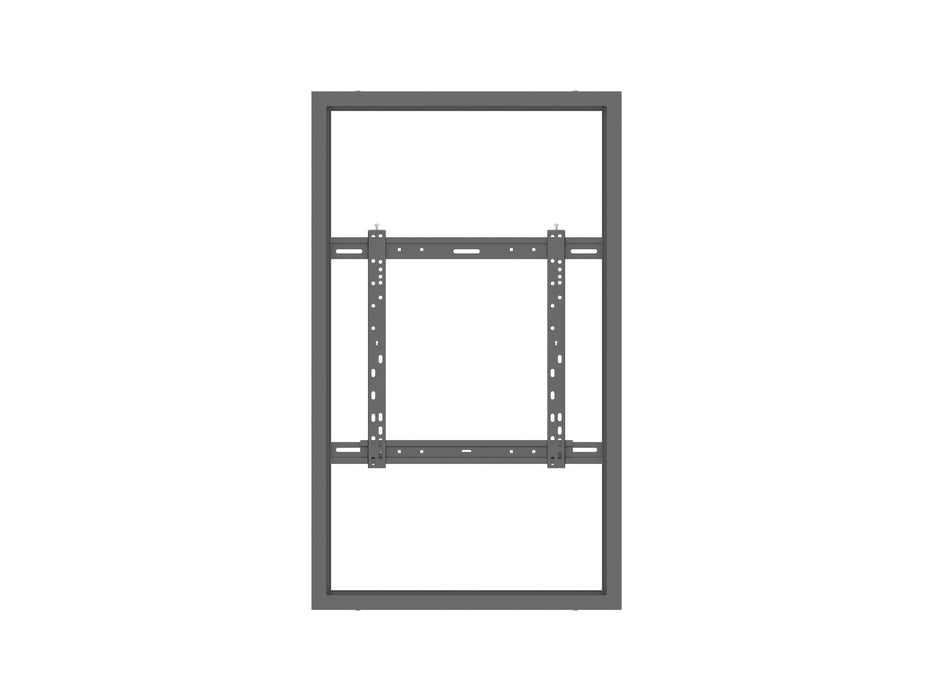

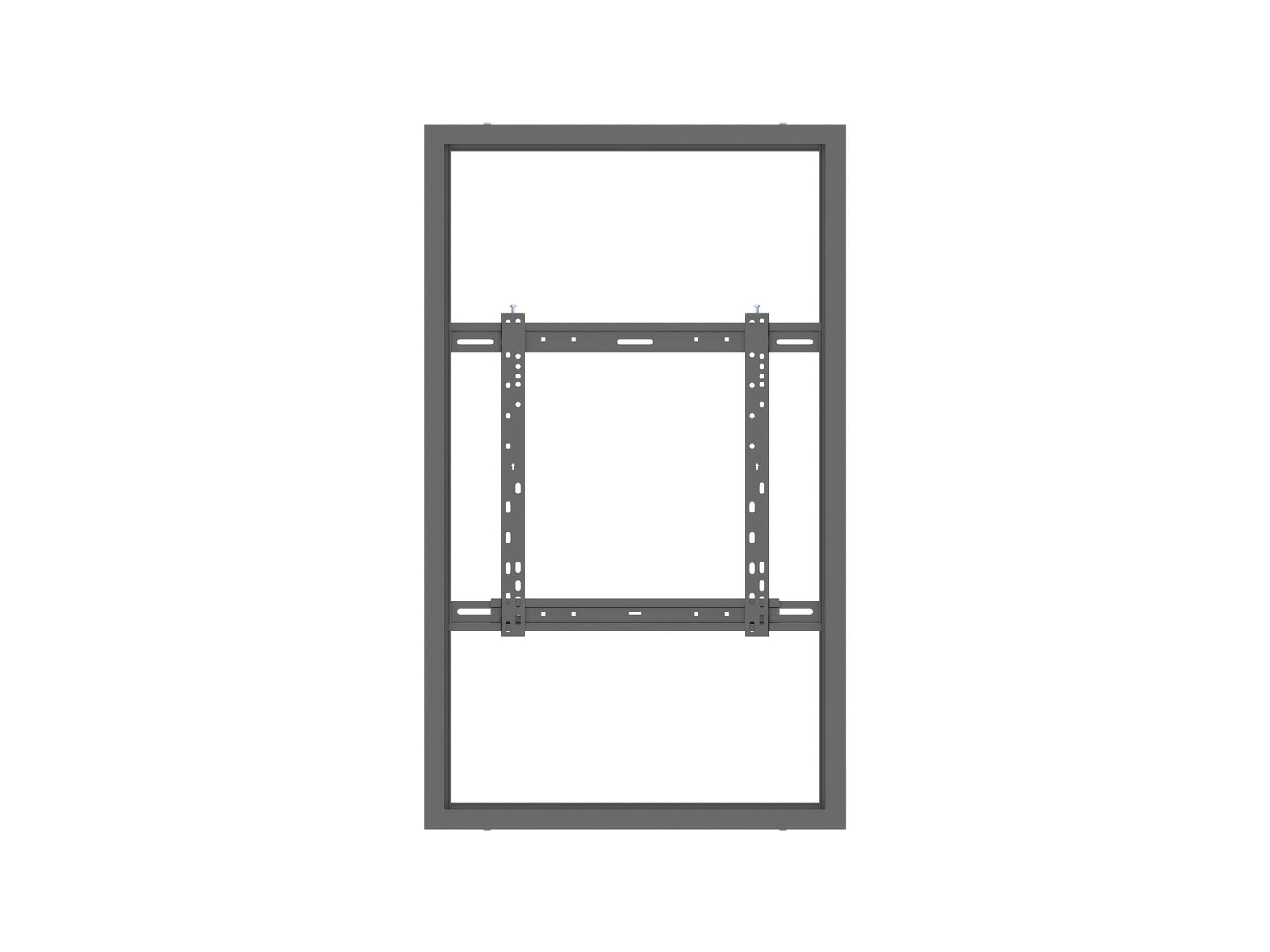

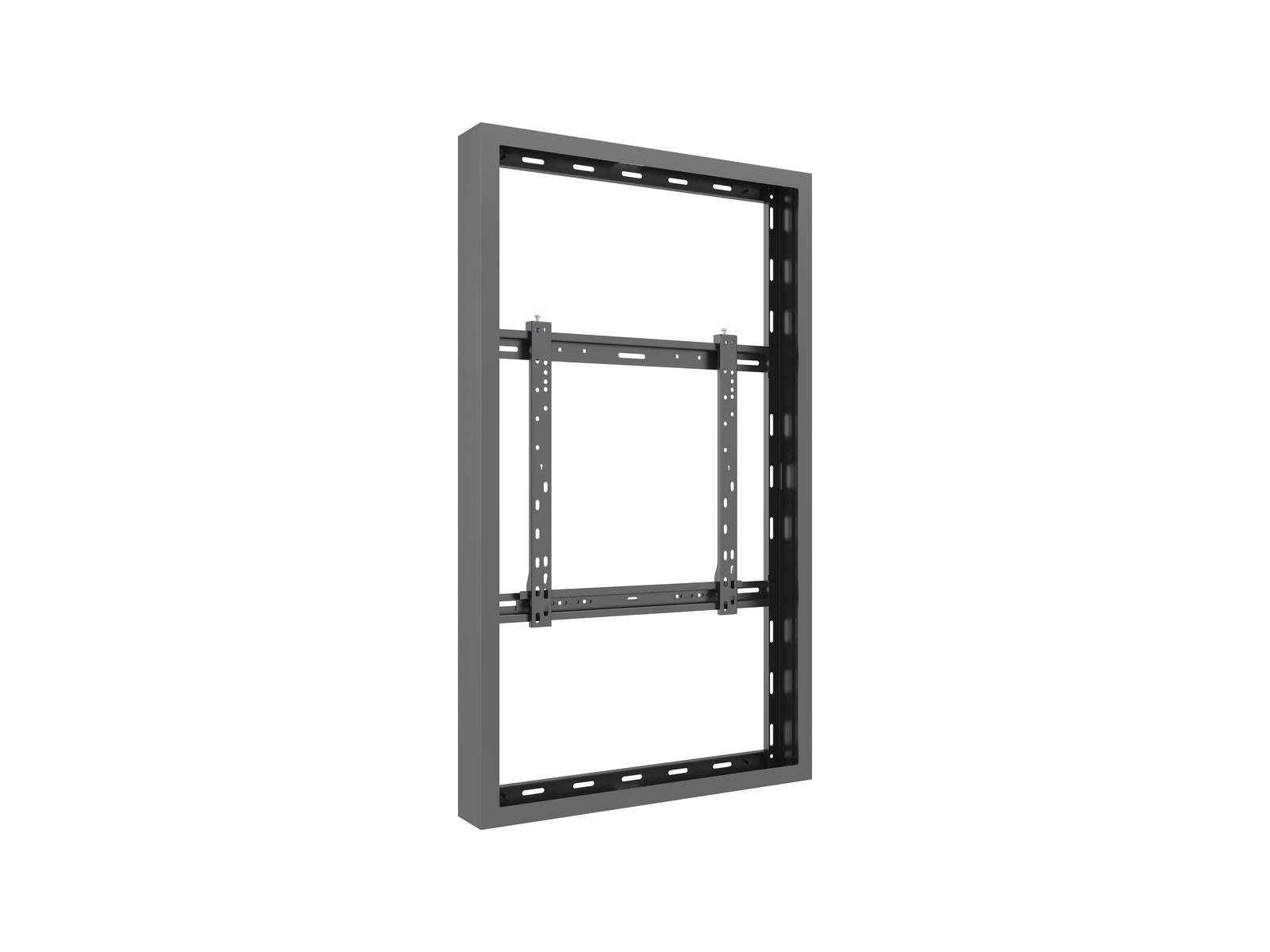

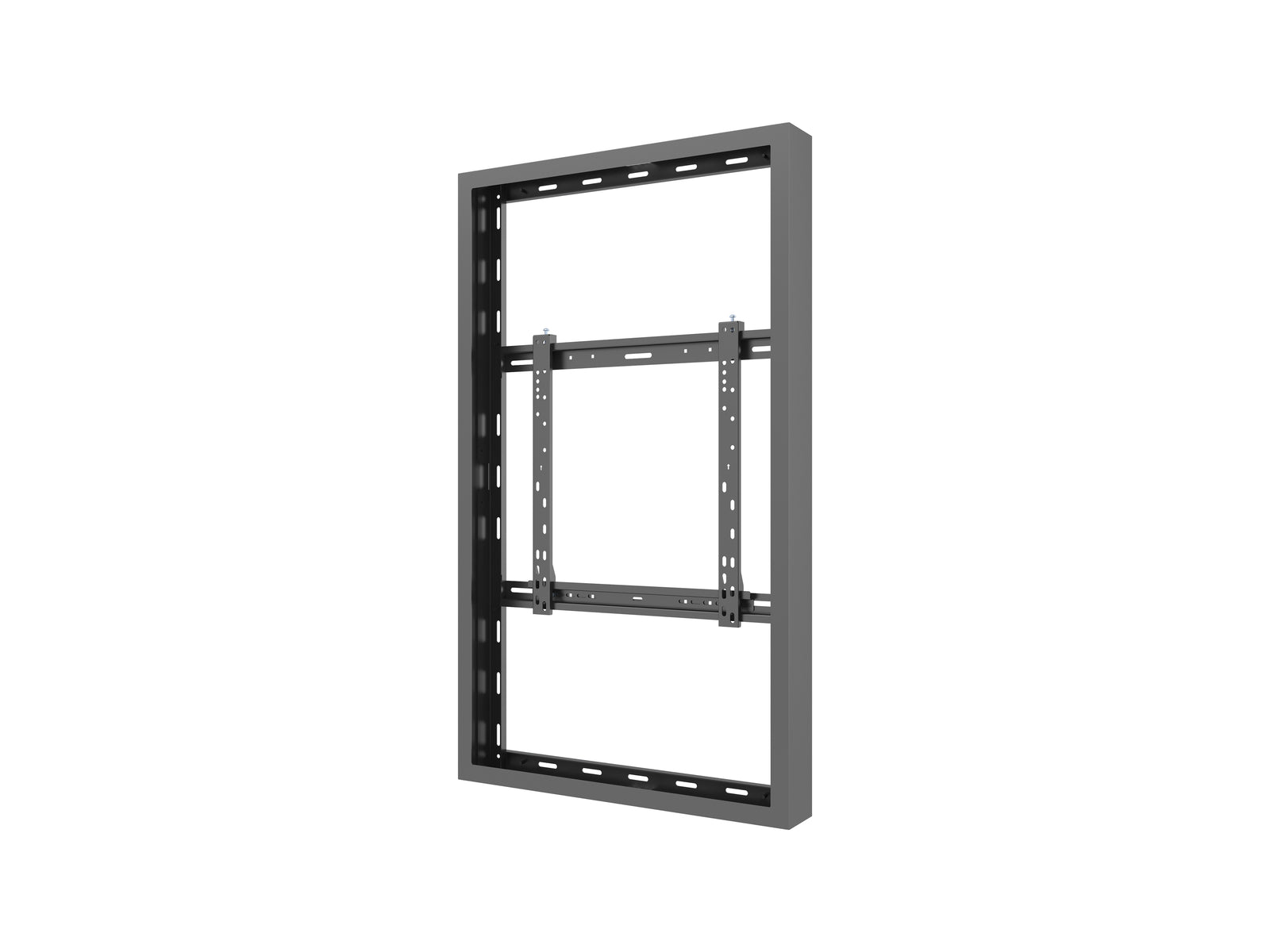

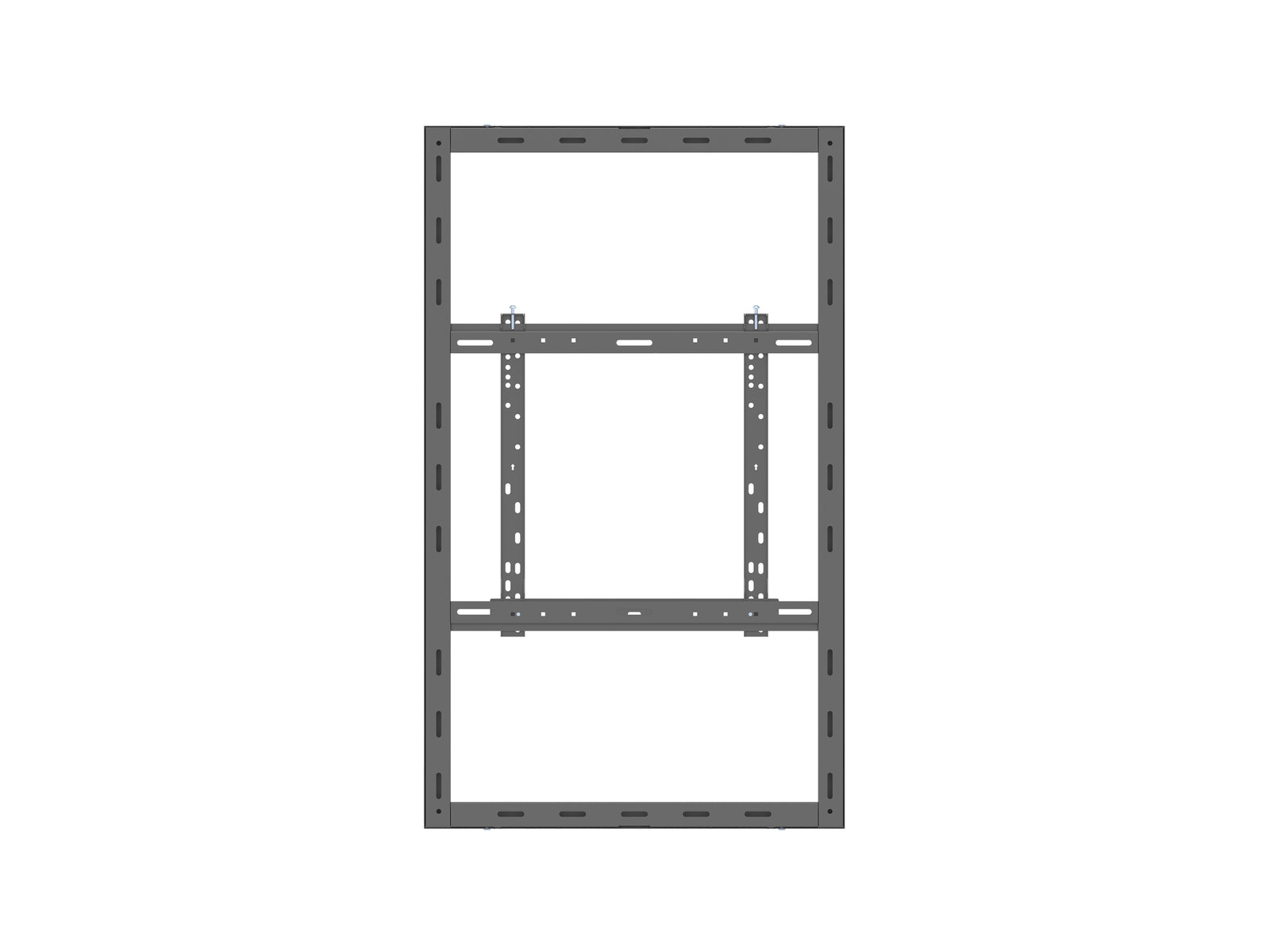

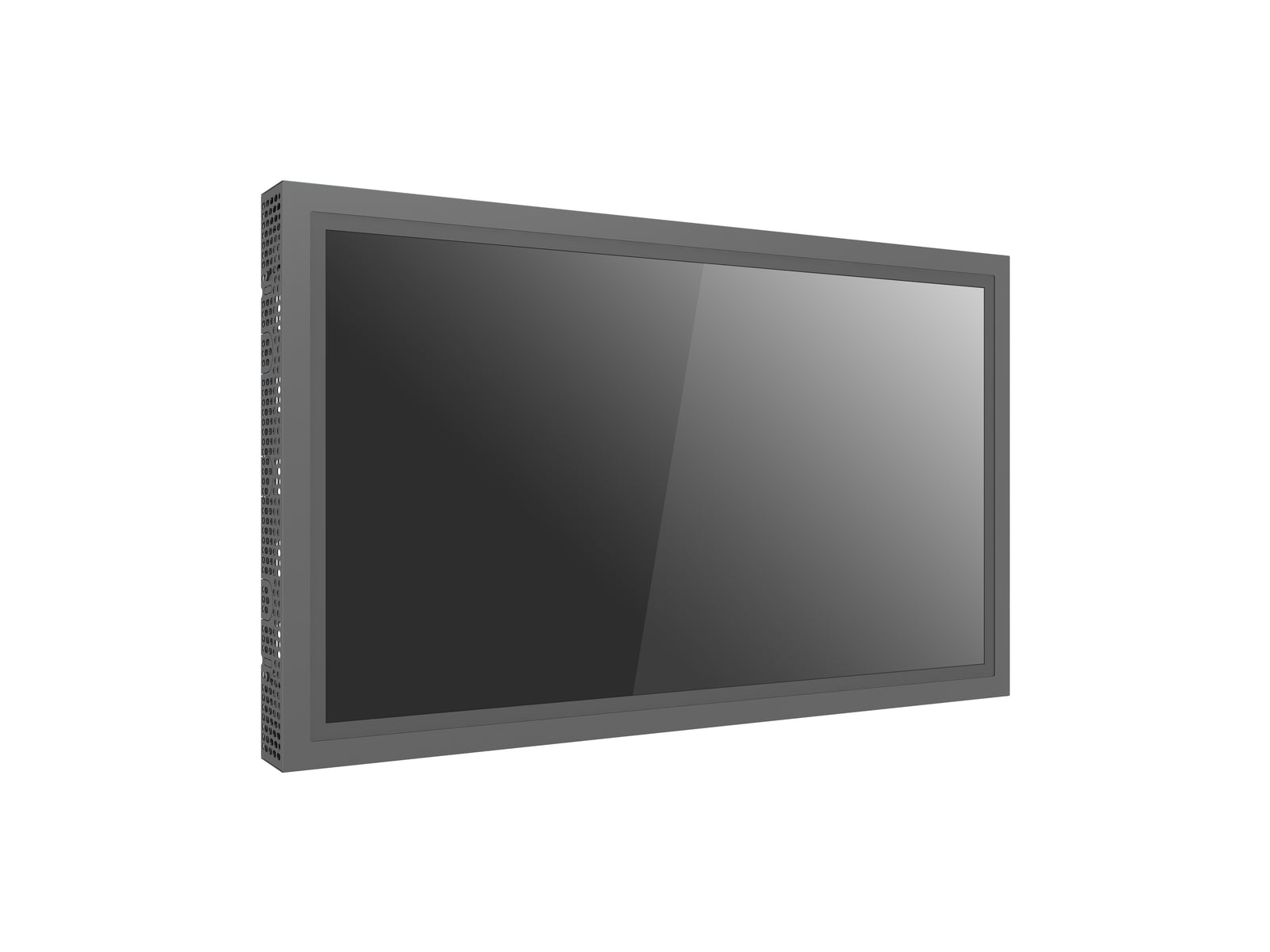

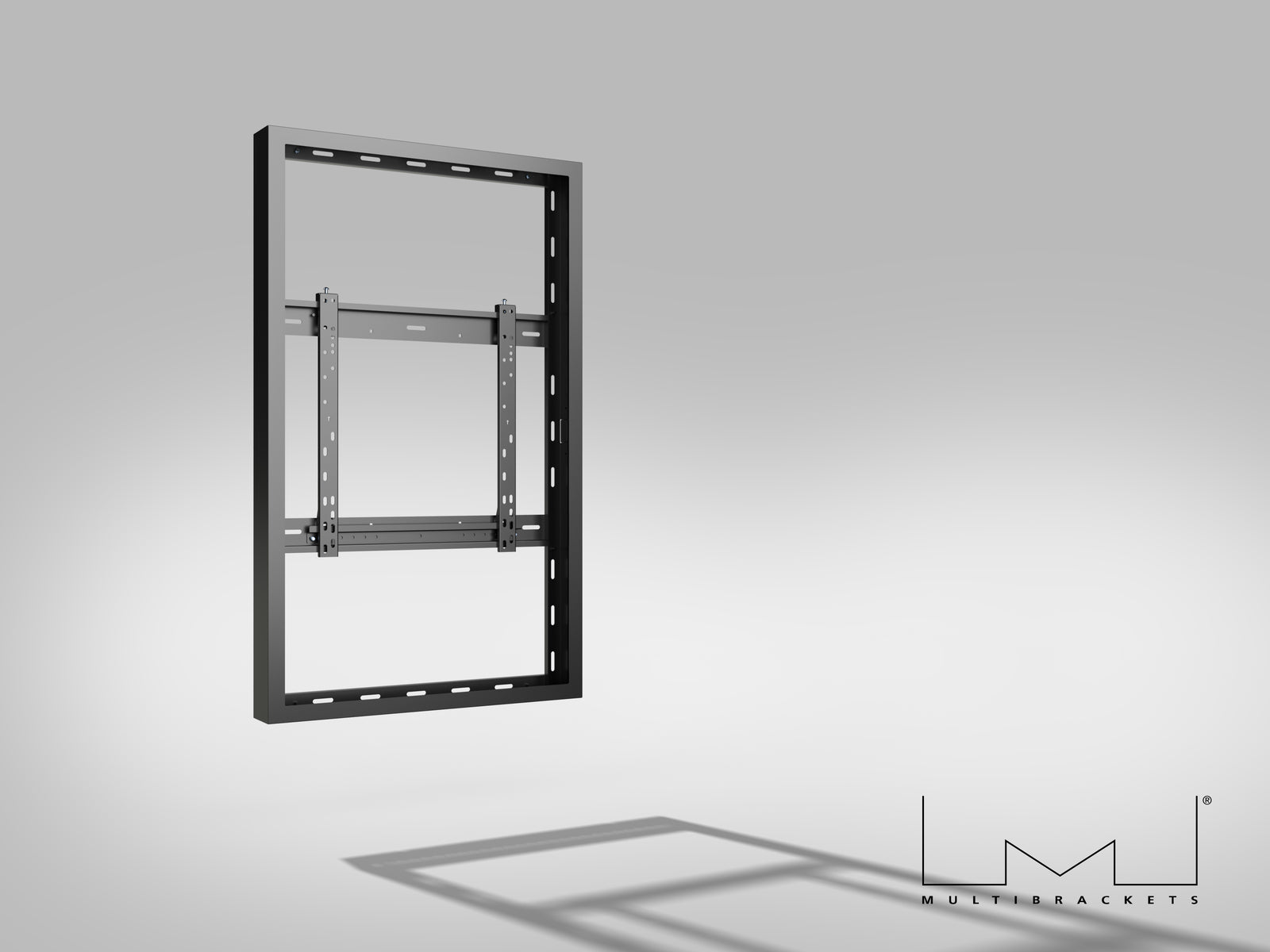

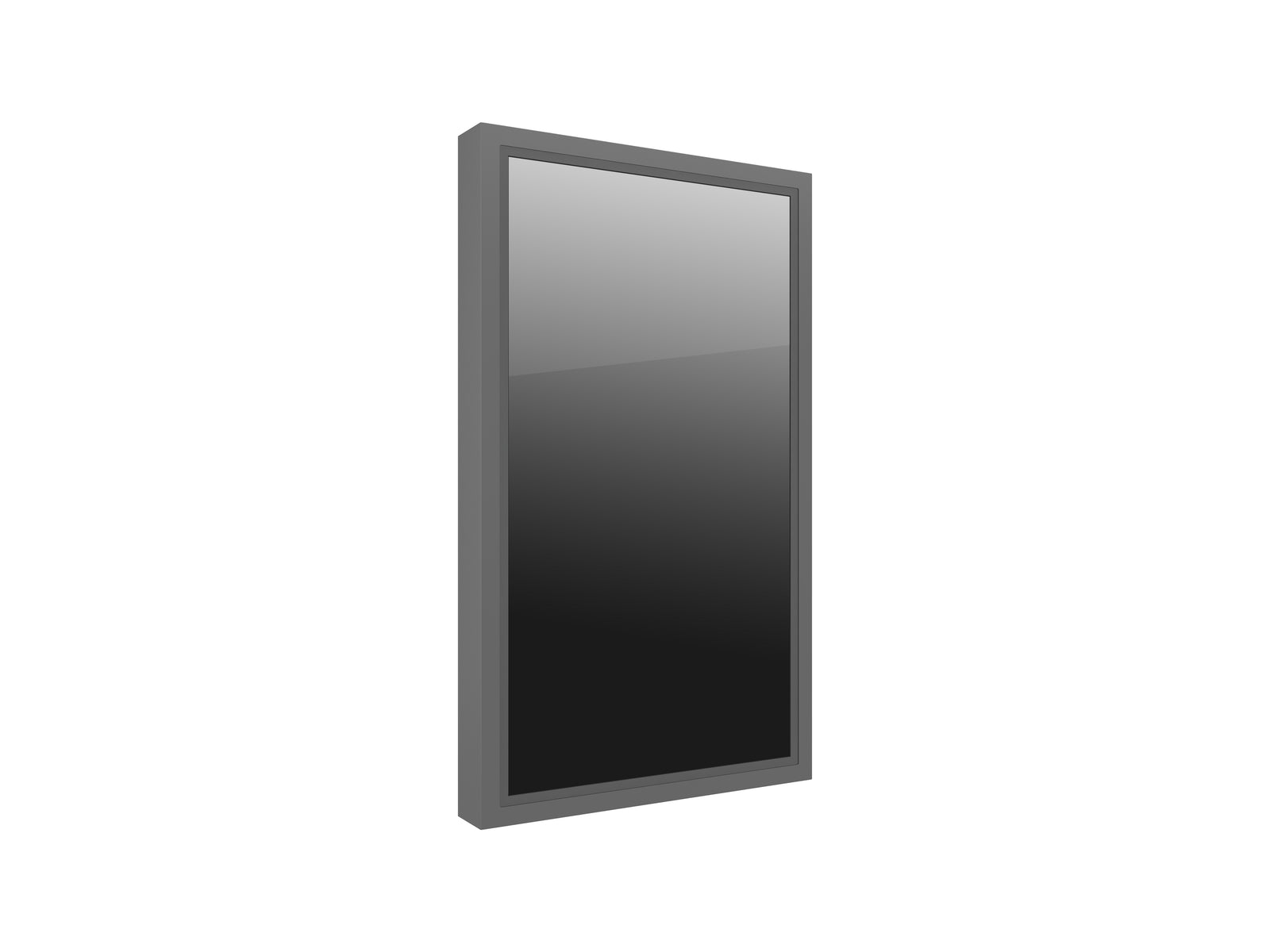

The M Pro Series Enclosure 49" High Brightness Wall Medium Black is a purpose-built casing for 49" high brightness displays, offering secure, minimalistic protection suitable for public and commercial spaces. Designed for both portrait and landscape orientation, it features millimeter-precise adjustment, making it compatible with a wide range of signage displays from leading manufacturers.

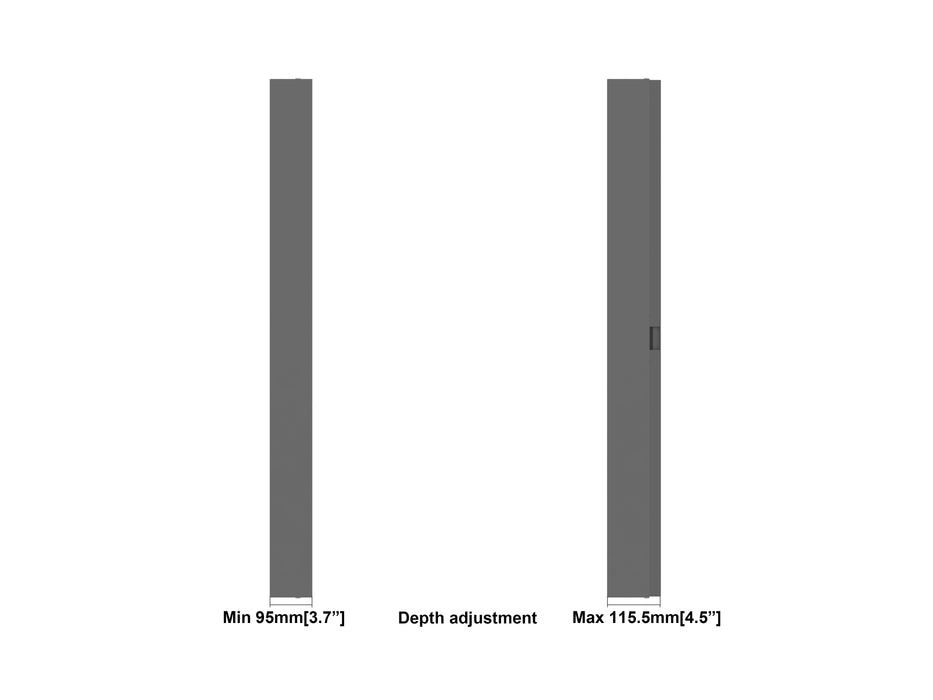

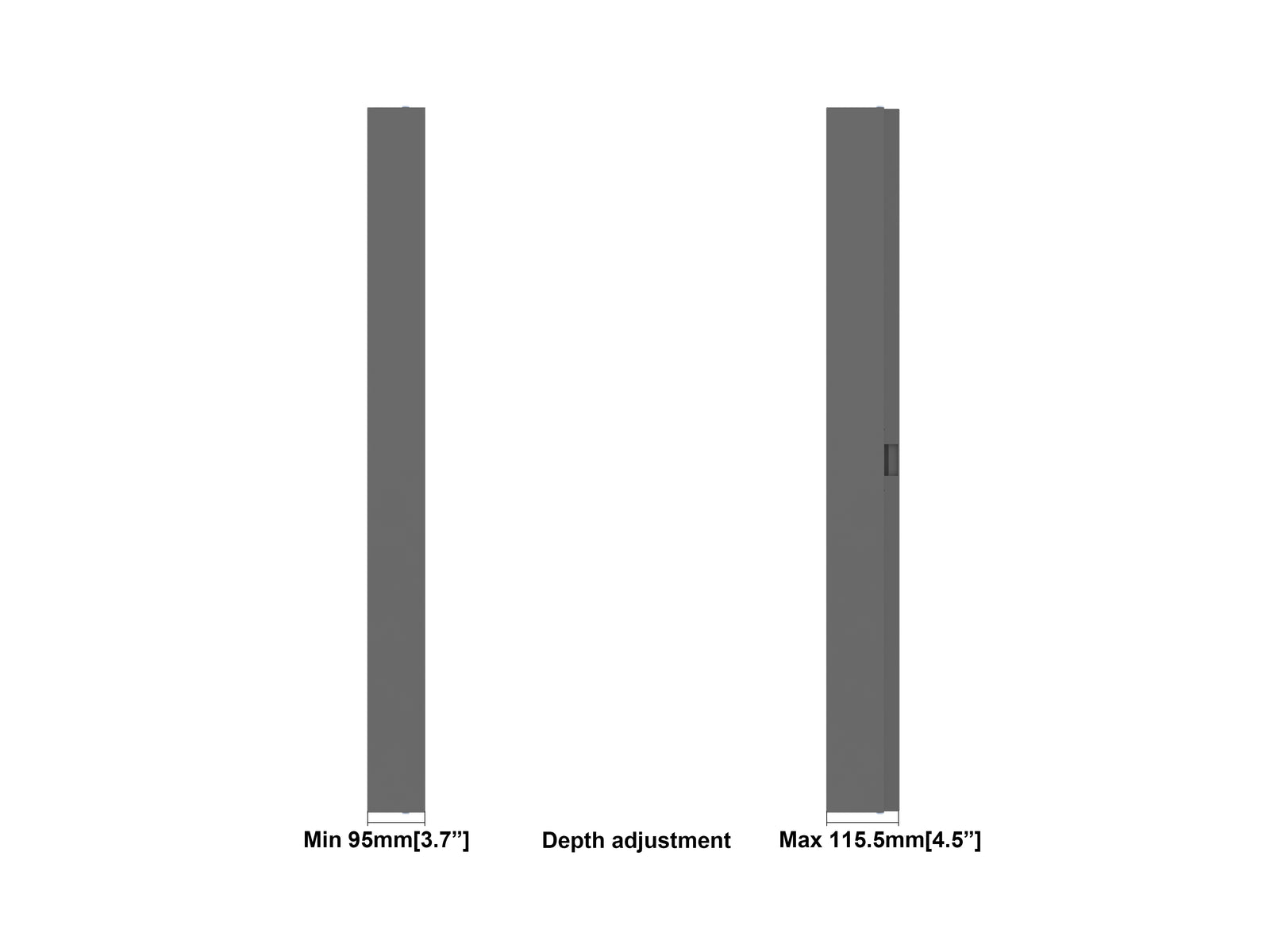

With a smart thermal management system, including passive cooling and optional active airflow, the enclosure supports heat-intensive applications such as high brightness displays. Its matte black finish ensures the unit integrates well into most environments, from retail windows to transportation hubs. The depth-adjustable exterior frame adapts to different screen depths, and reversible hinges simplify installation and maintenance workflows.
The design includes tamperproof hardware and compensates for uneven wall surfaces to maintain a flat front appearance. Multiple mounting solutions are supported, including ceiling, wire, and floor stand configurations, making the unit highly adaptable over time.
Highlights
Smart Scandinavian design
Compatible with many 49" high brightness signage displays

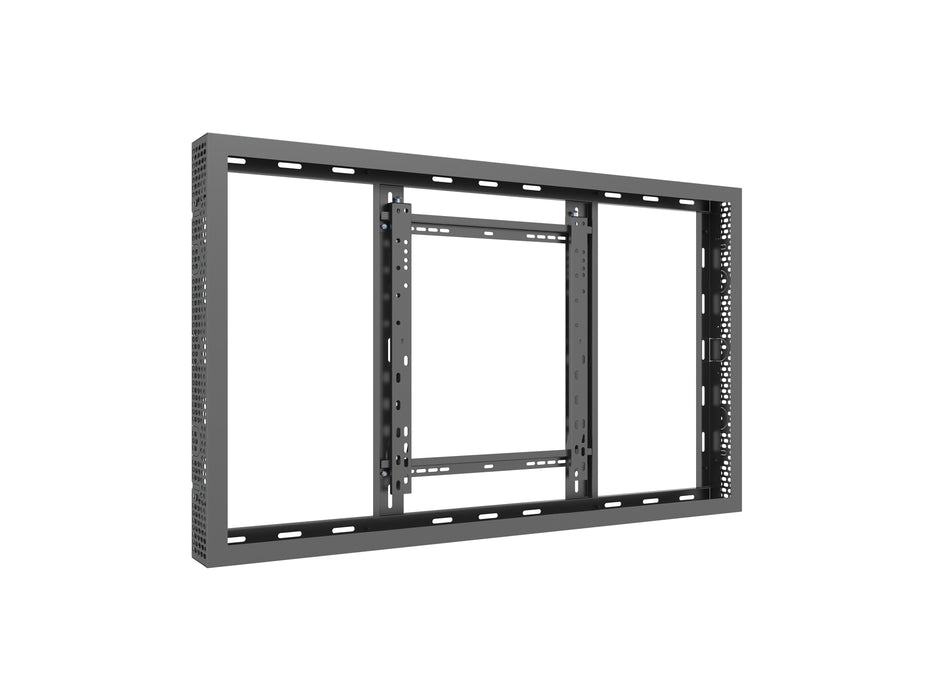

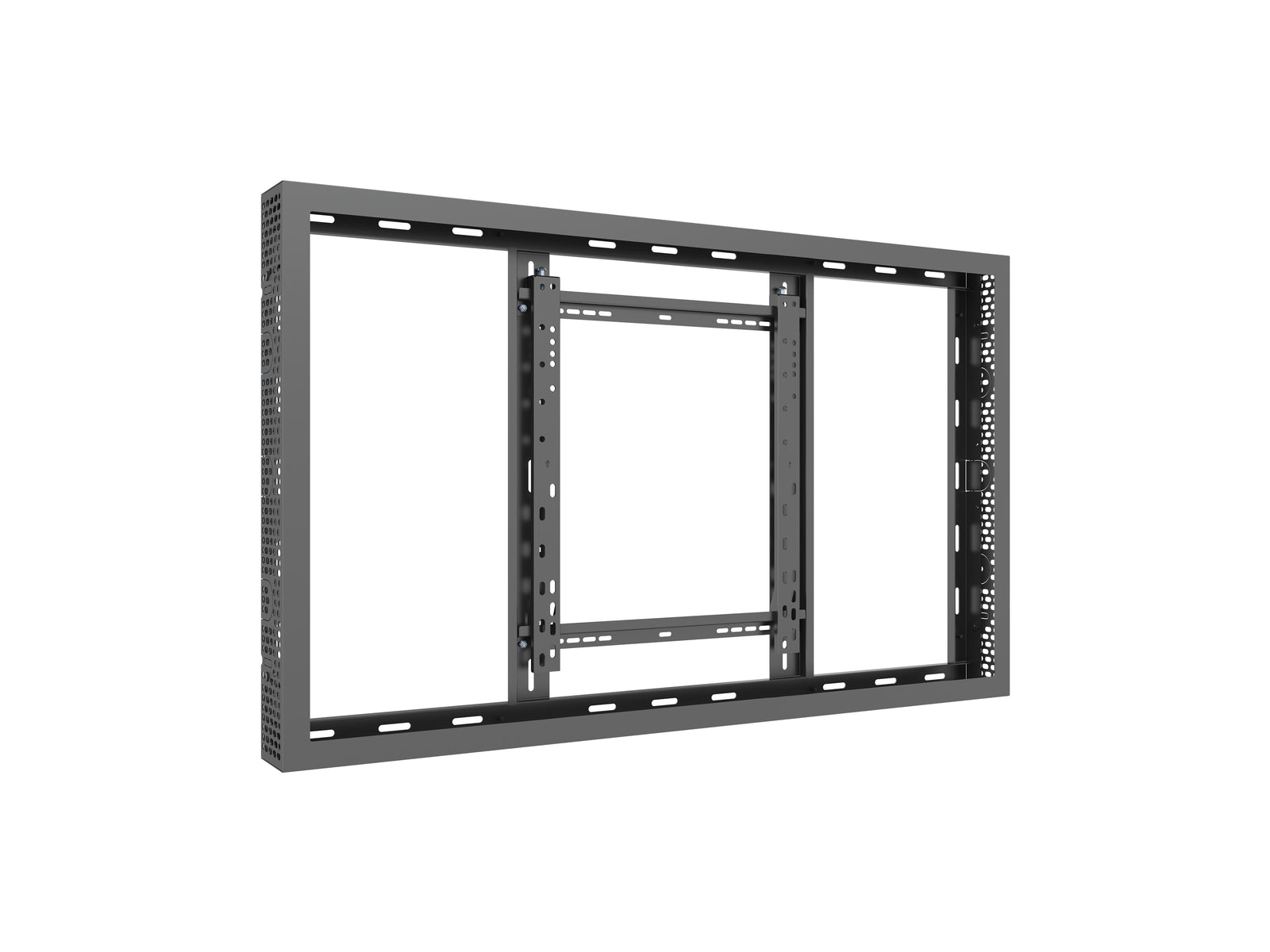

Universal portrait or landscape mounting
Supports VESA from 200 x 200 up to 500 x 400 mm and 400 x 500 mm
Millimeter-precise post-installation adjustment
Hinged top frame offers access to display and internal components

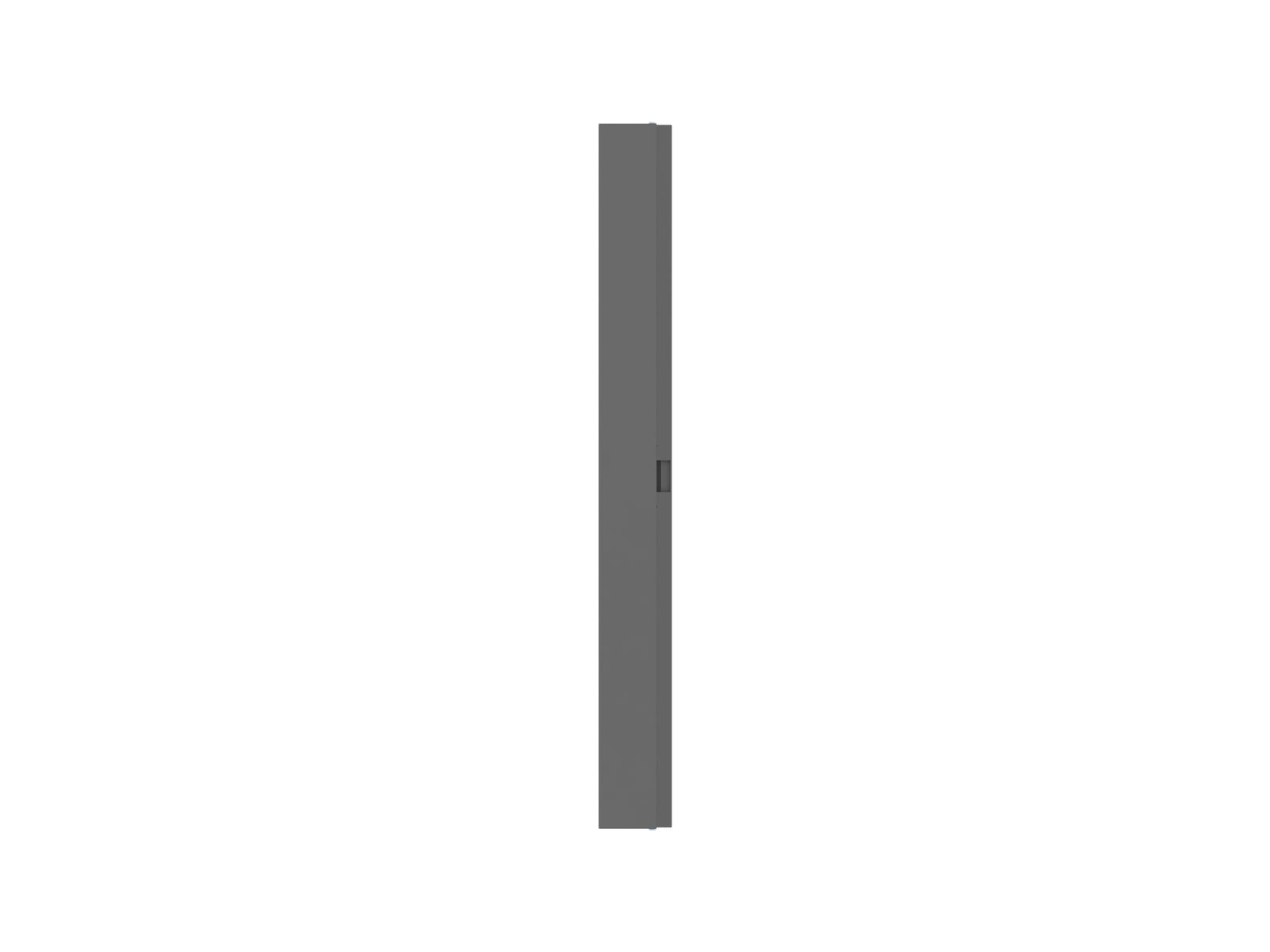

Low-profile design extends minimally from the wall

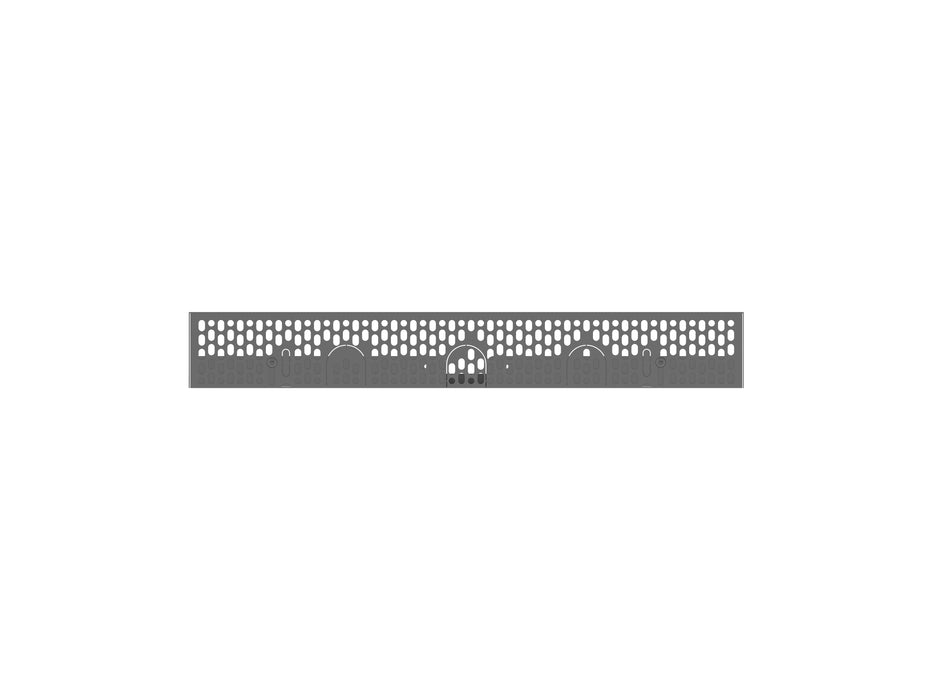

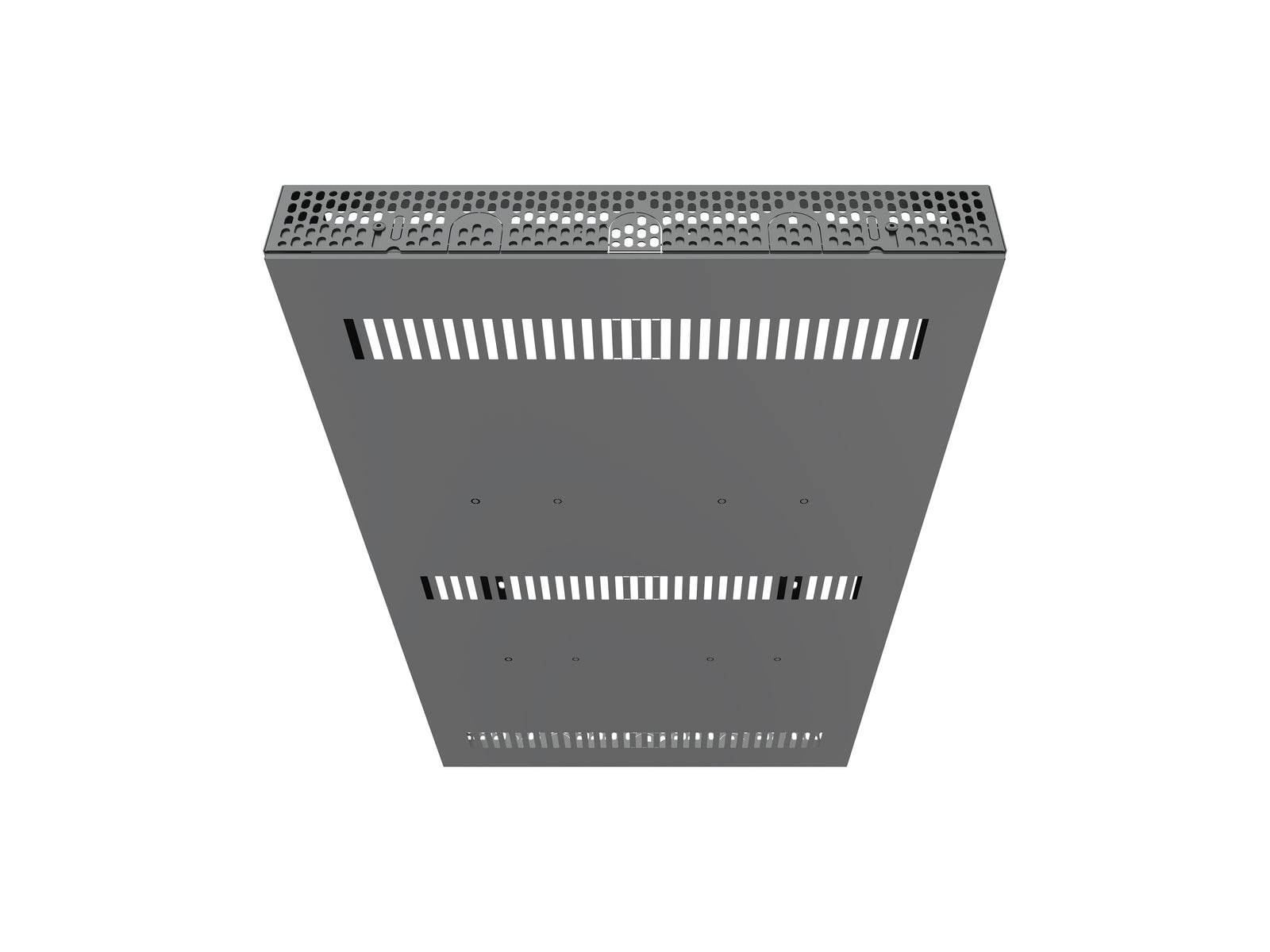

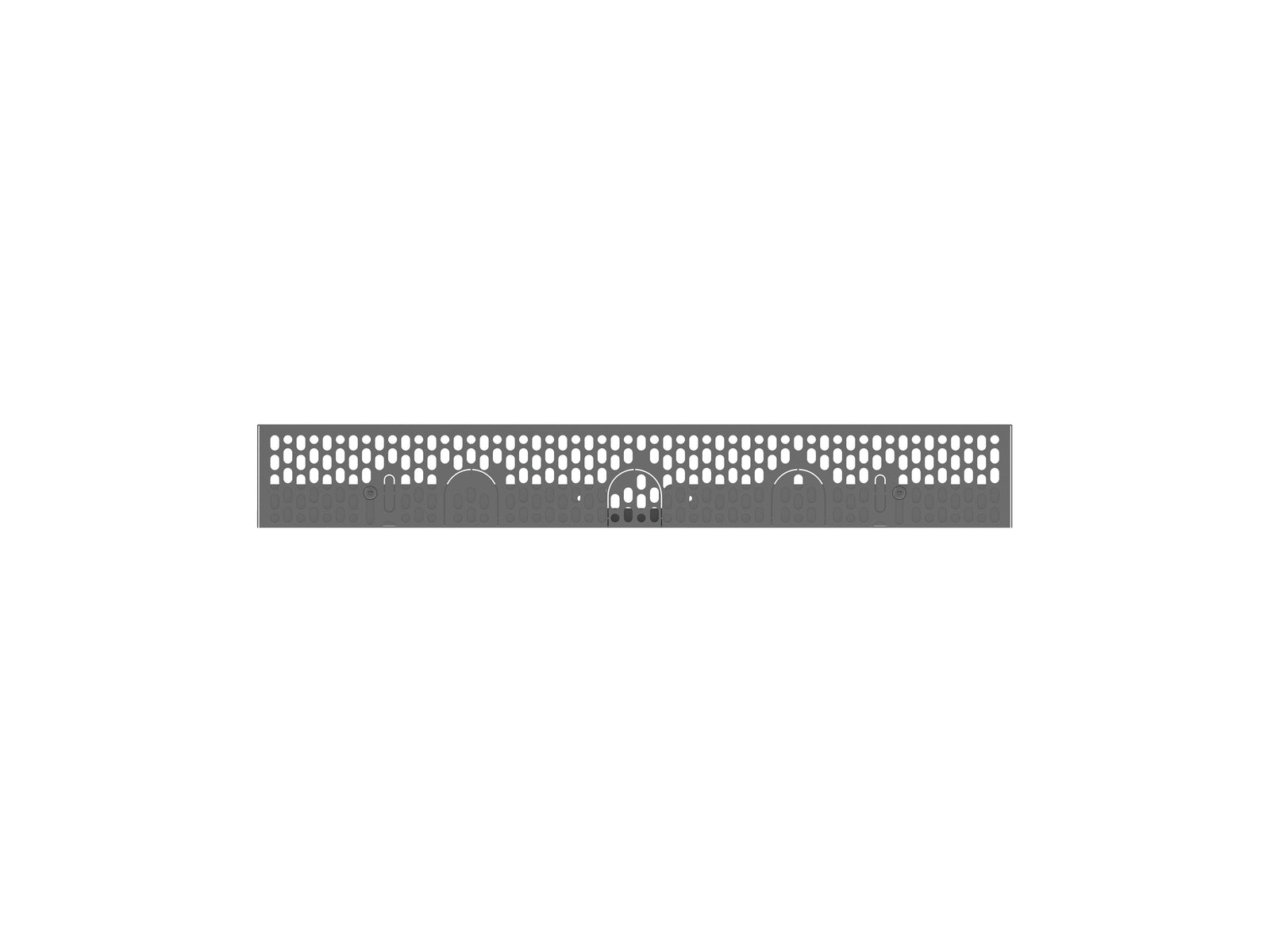

Ventilated sides enhance thermal management
Supports a wide range of mounting and aesthetic options

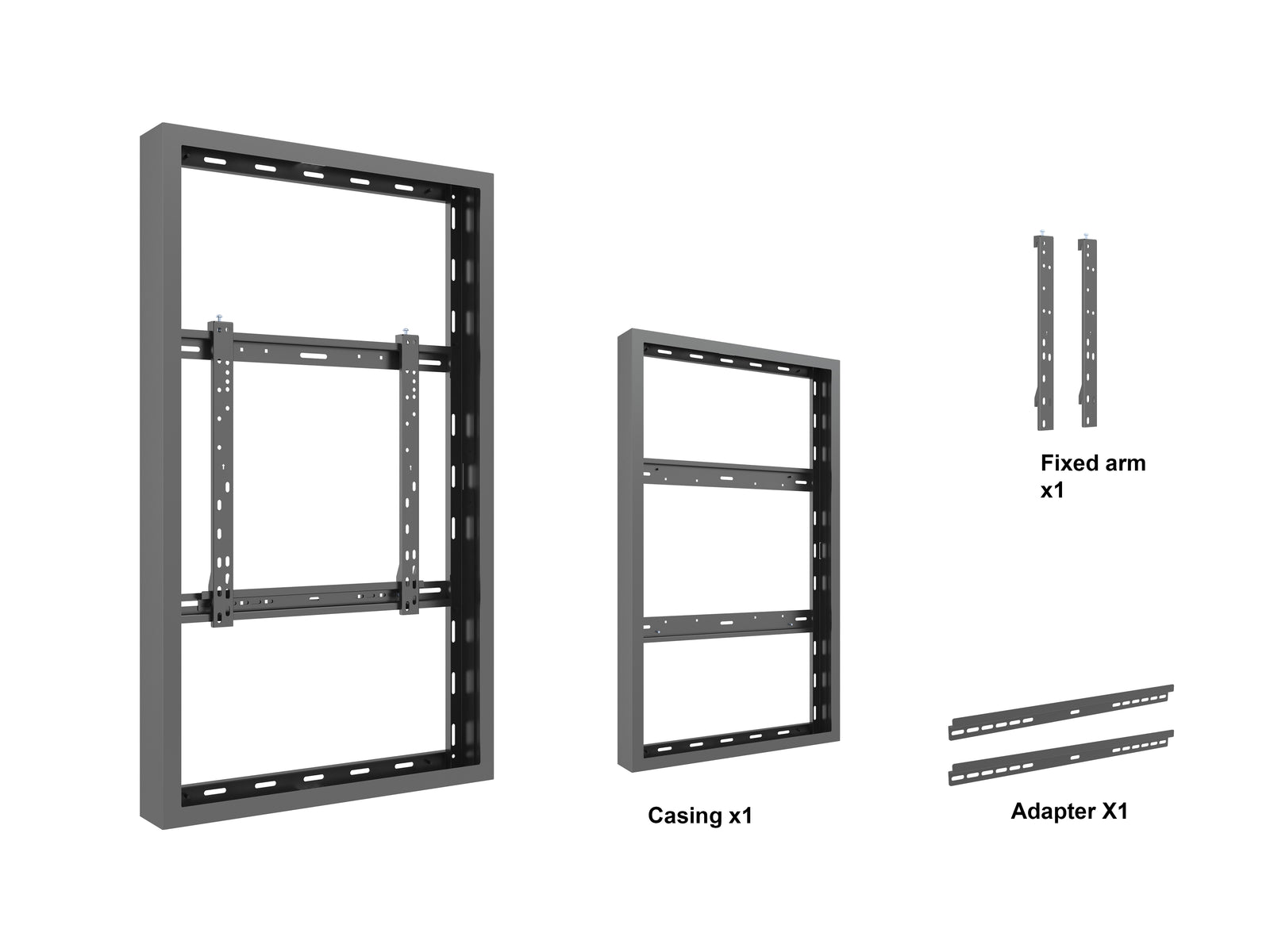

Pre-assembled to simplify installation
| Article No | 7 350 022 738 782 | Colour | Black |
| Material & Finish | Steel, Powder coating RAL9005 | VESA standard | 200x200 - 500x400 mm (Landscape) up to 400x500 (Portrait) |

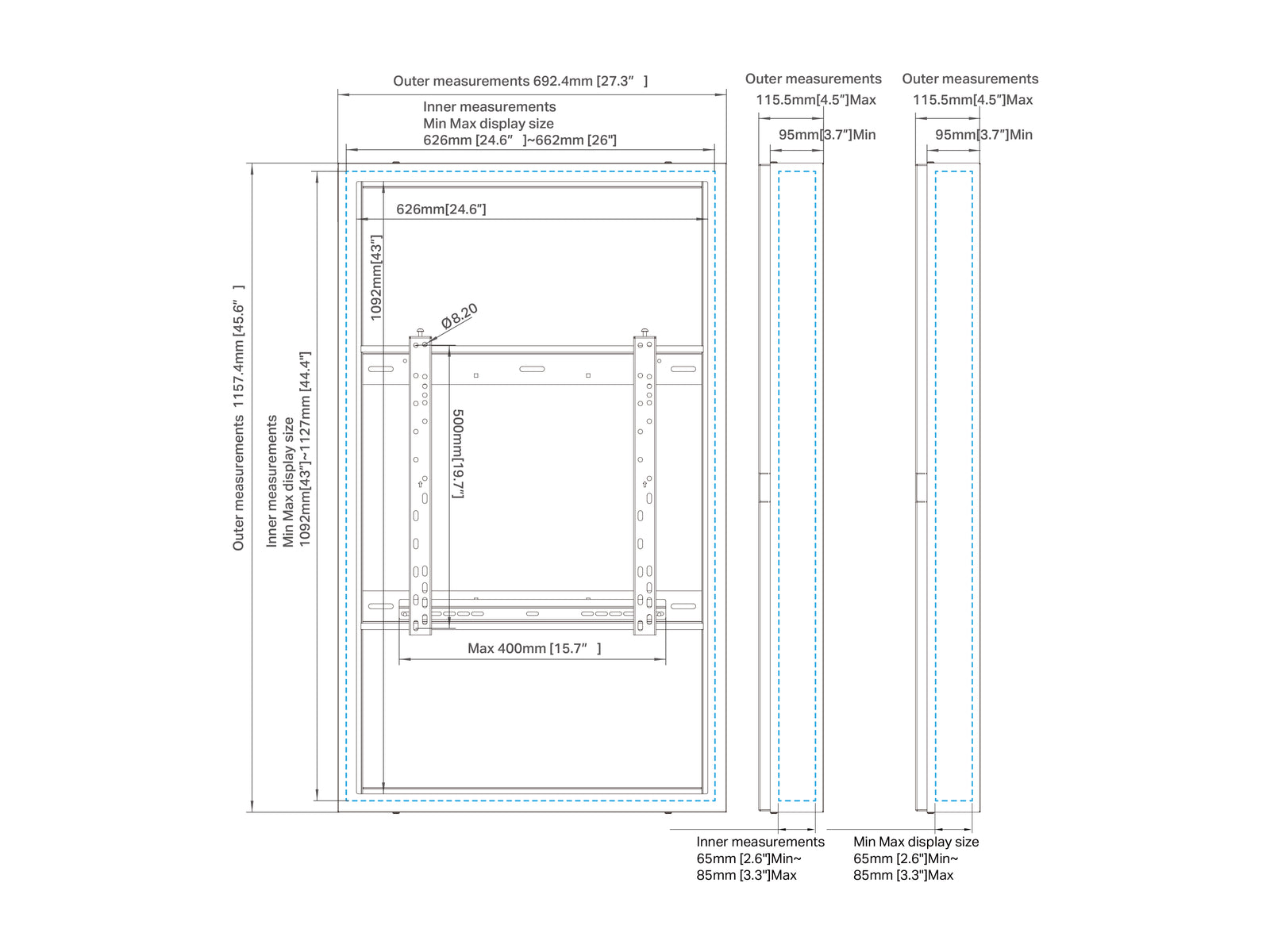

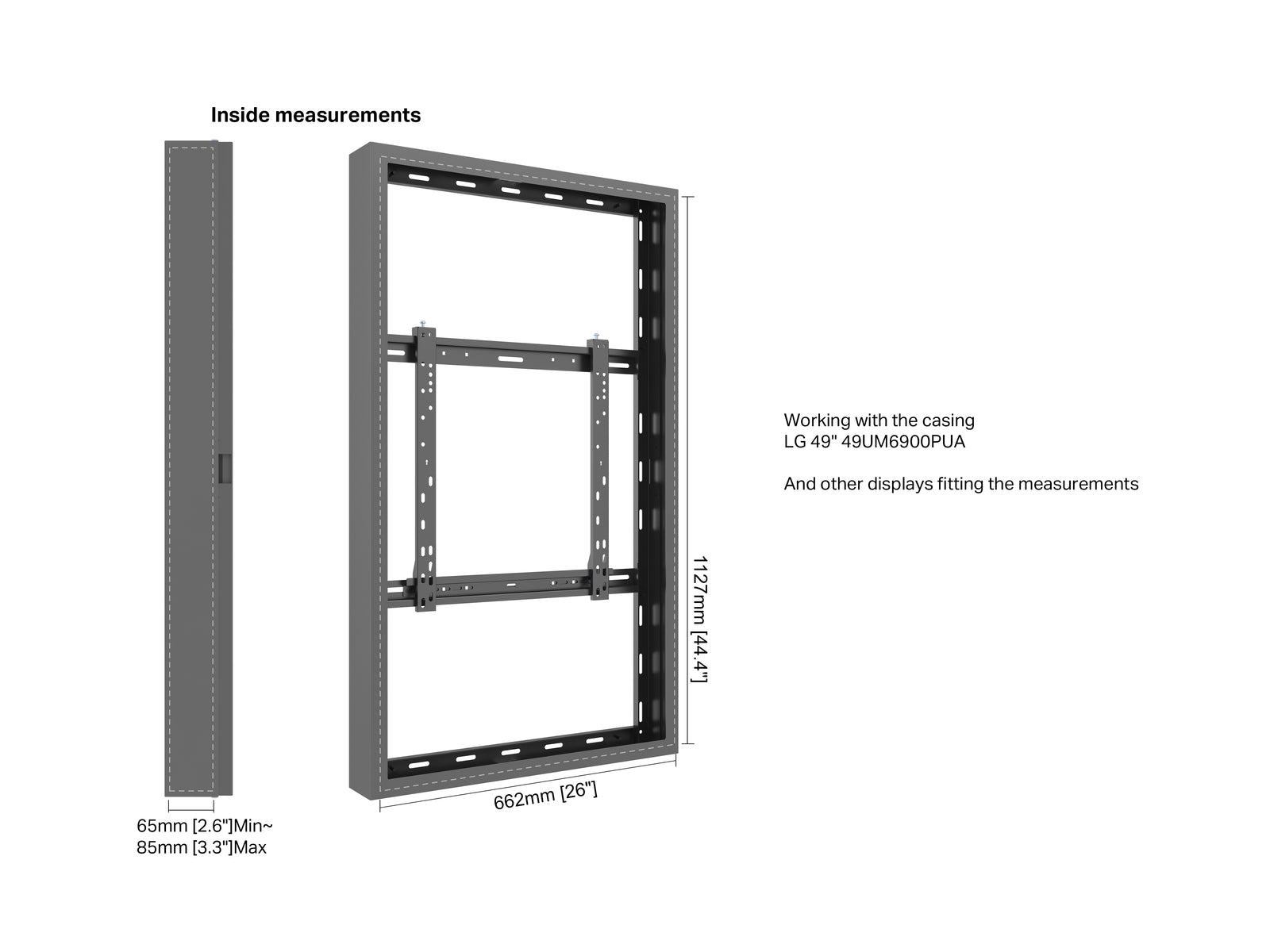

| Measurements | 115.8 x 69.3 x 11.7 cm | Weight | 17 kg |
| Max load | 50 kg | Warranty | 5 years |
| Installation (LG 49") | 49UH5F, 49UH5Q-E, 49UH5N-E + add extender 7350022739161 | Installation (Hisense 49") | 49WF25E |
| Installation (Ilyama 49") | 49UM5N-H | Installation (Other 49") | Other 49" displays not model specified above |
| Retail Package Specification | Distribution Package Specification | ||
| Retail Package Parcels | 1 pcs | Distribution Package Parcels | 1 pcs |
| Retail Package Measurements | 115.8 x 69.3 x 11.7 cm | Distribution Package Measurements | 115.8 x 69.3 x 11.7 cm |
| Retail Package Weight | 20 kg | Distribution Package Weight | 20 kg |
| Description | Downloads |
|---|---|
| Drawing | Download |
| Manual | Download |
