Enter your screen SKU and we will instantly check whether this mount is suitable for your display based on VESA pattern compatibility.

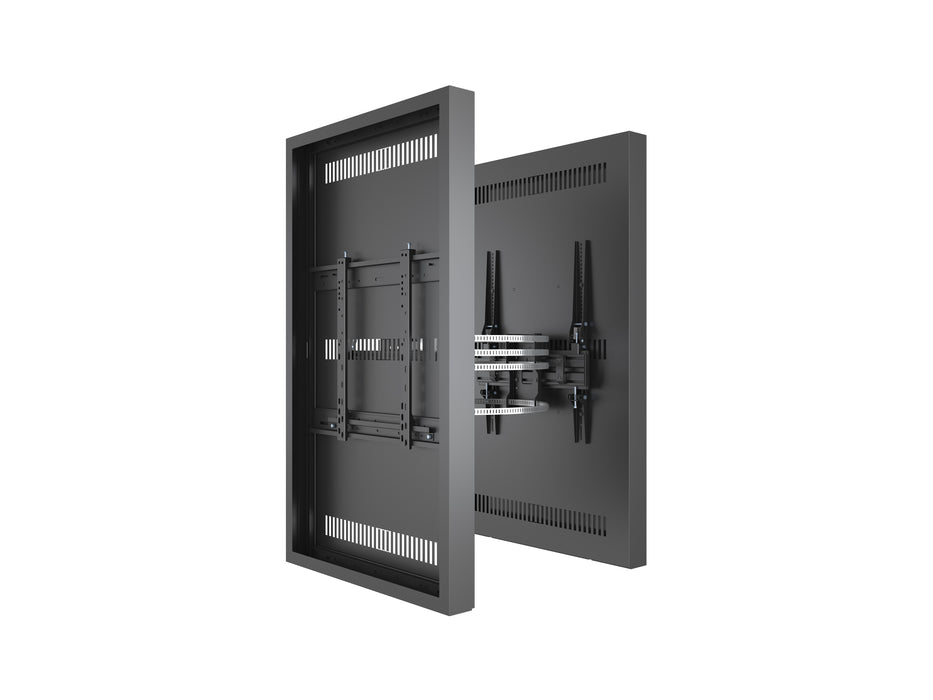

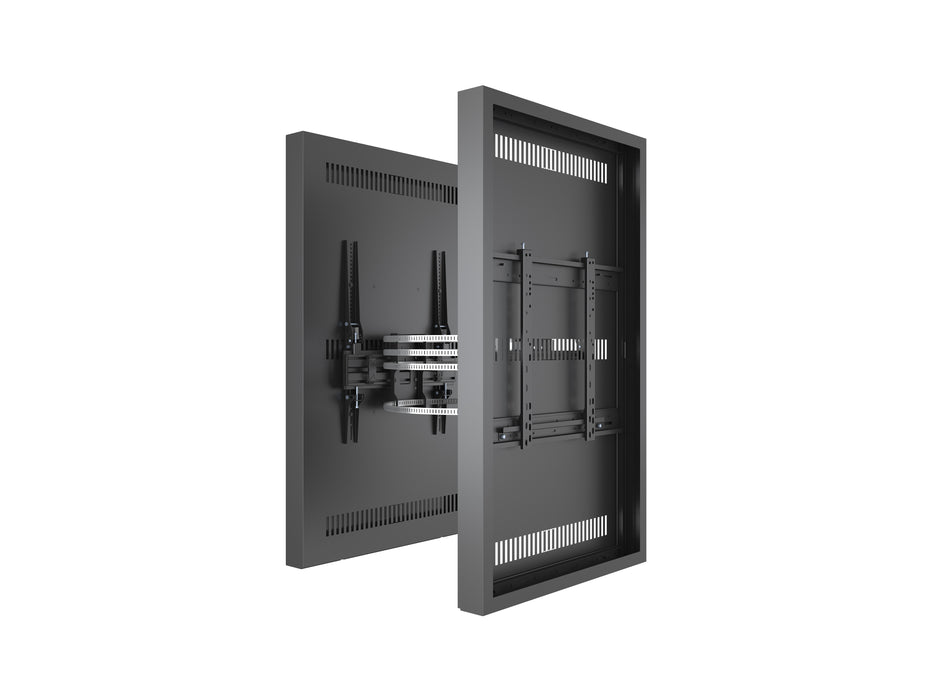

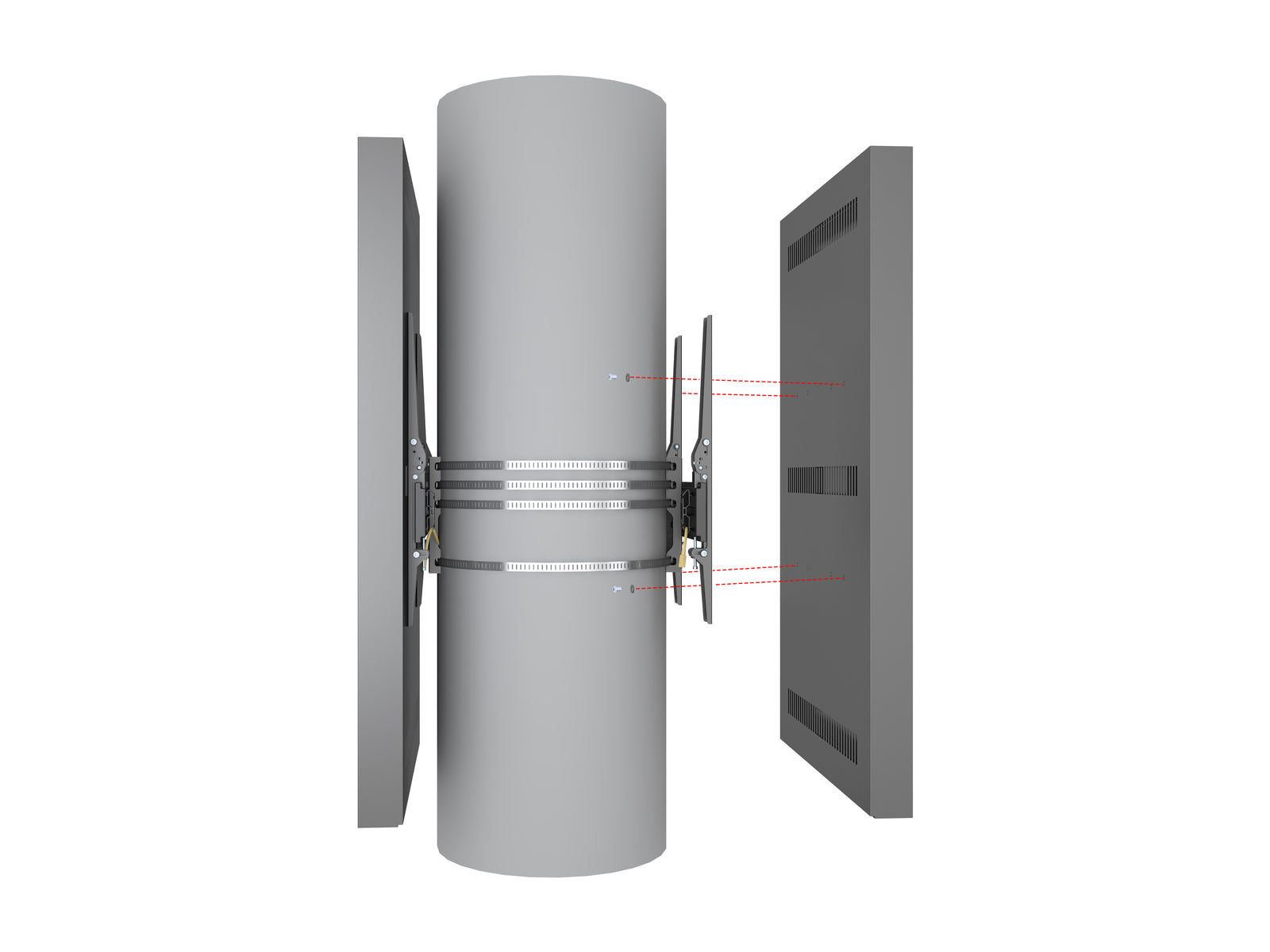

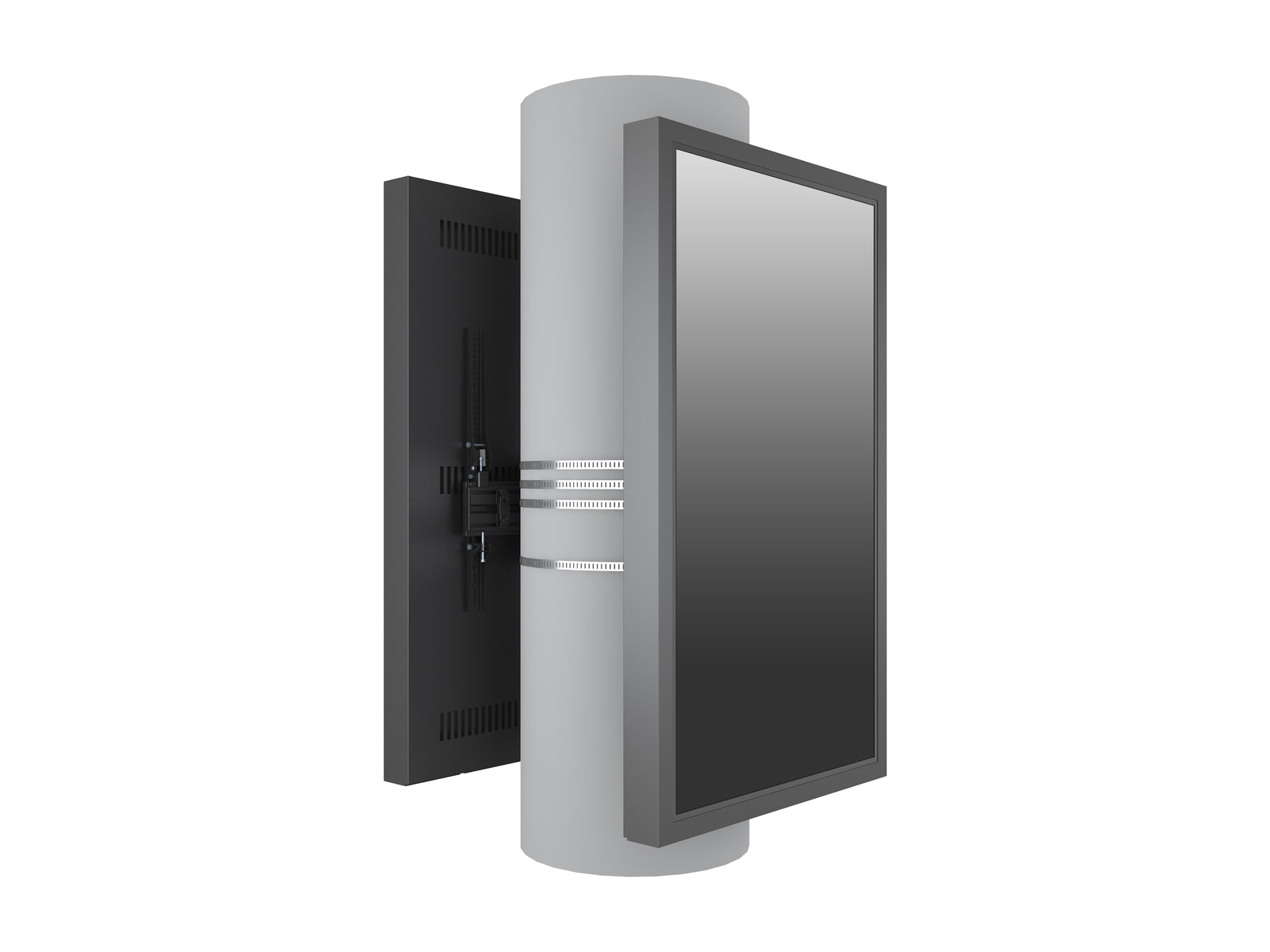

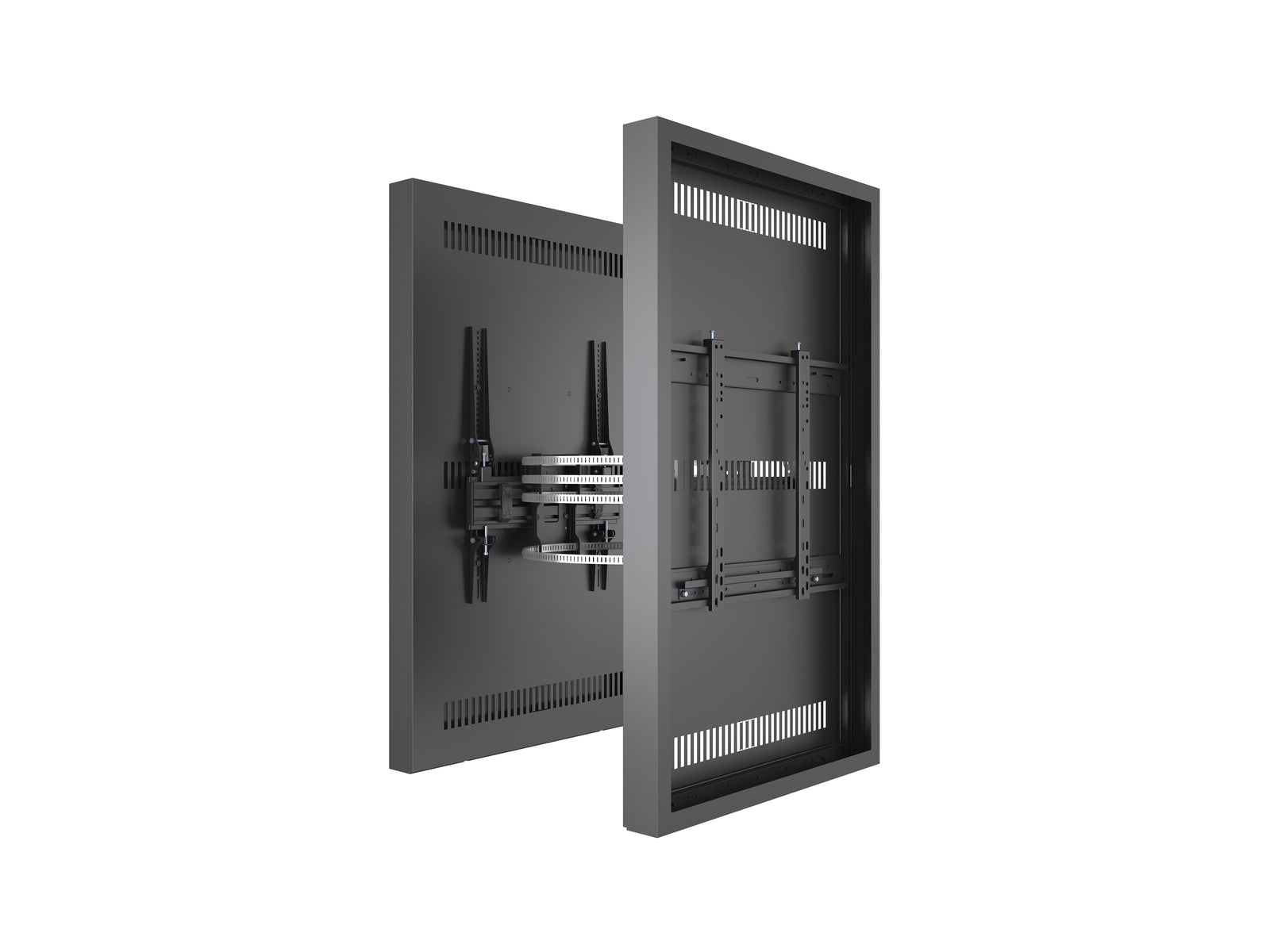

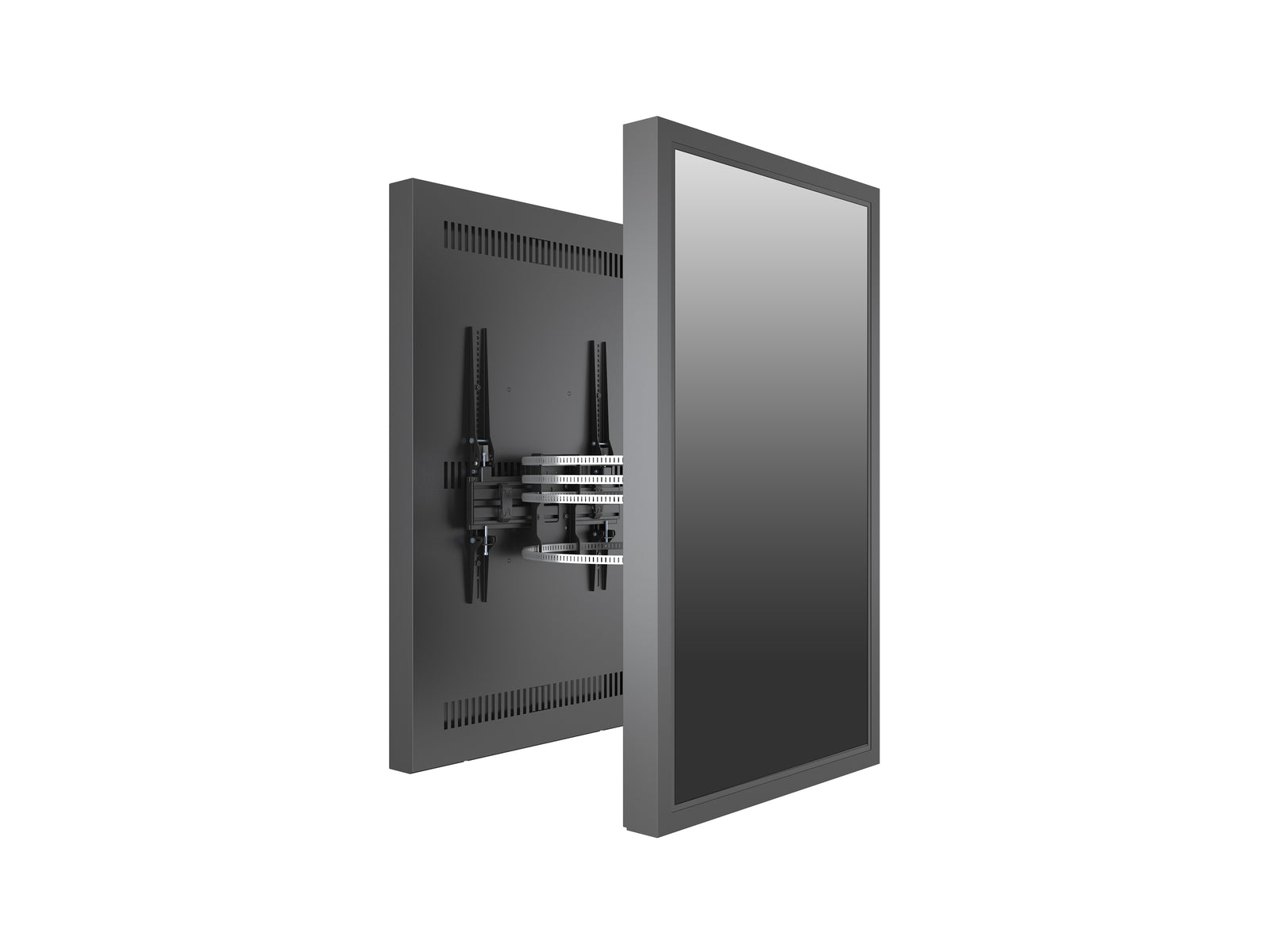

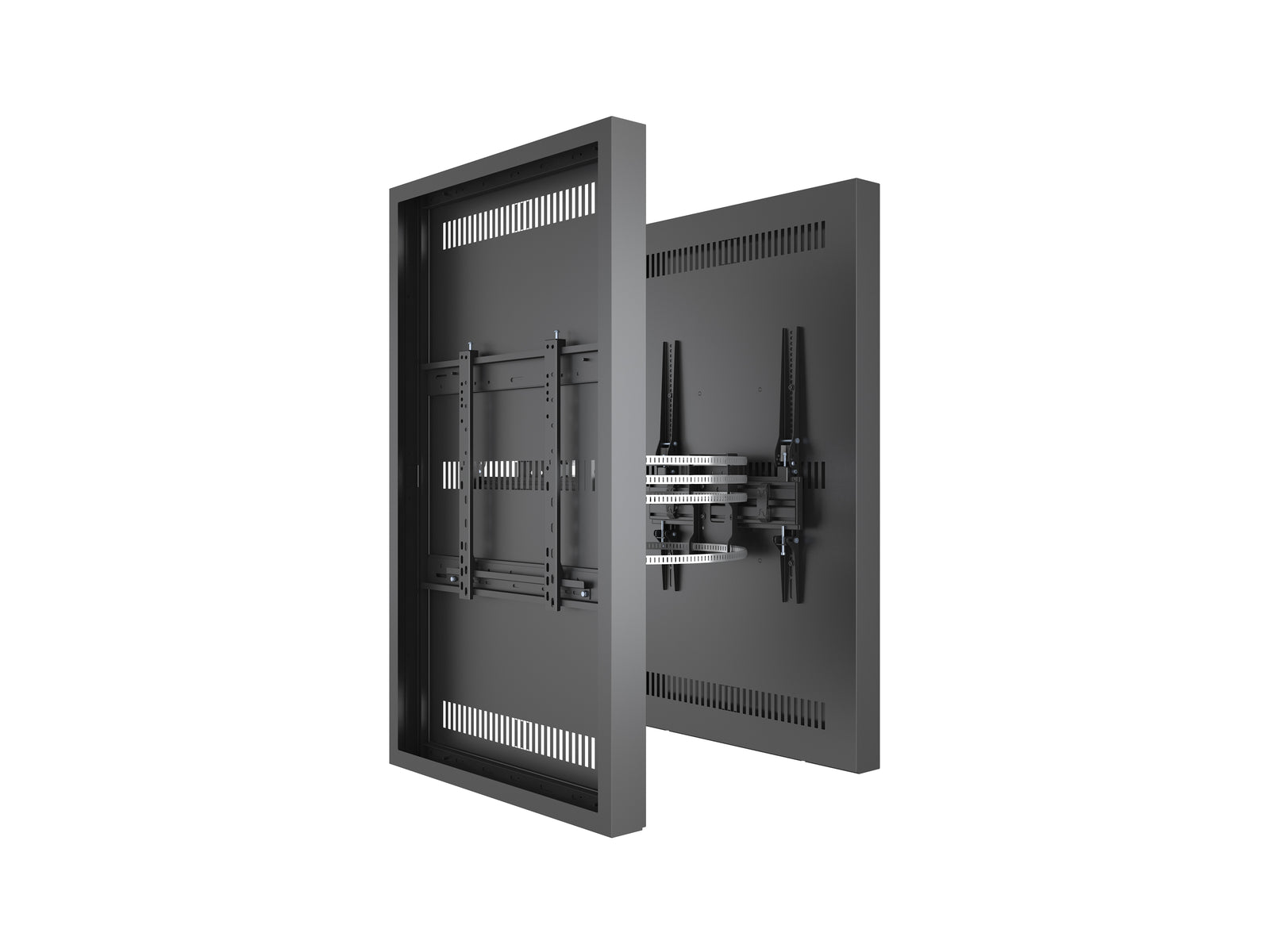

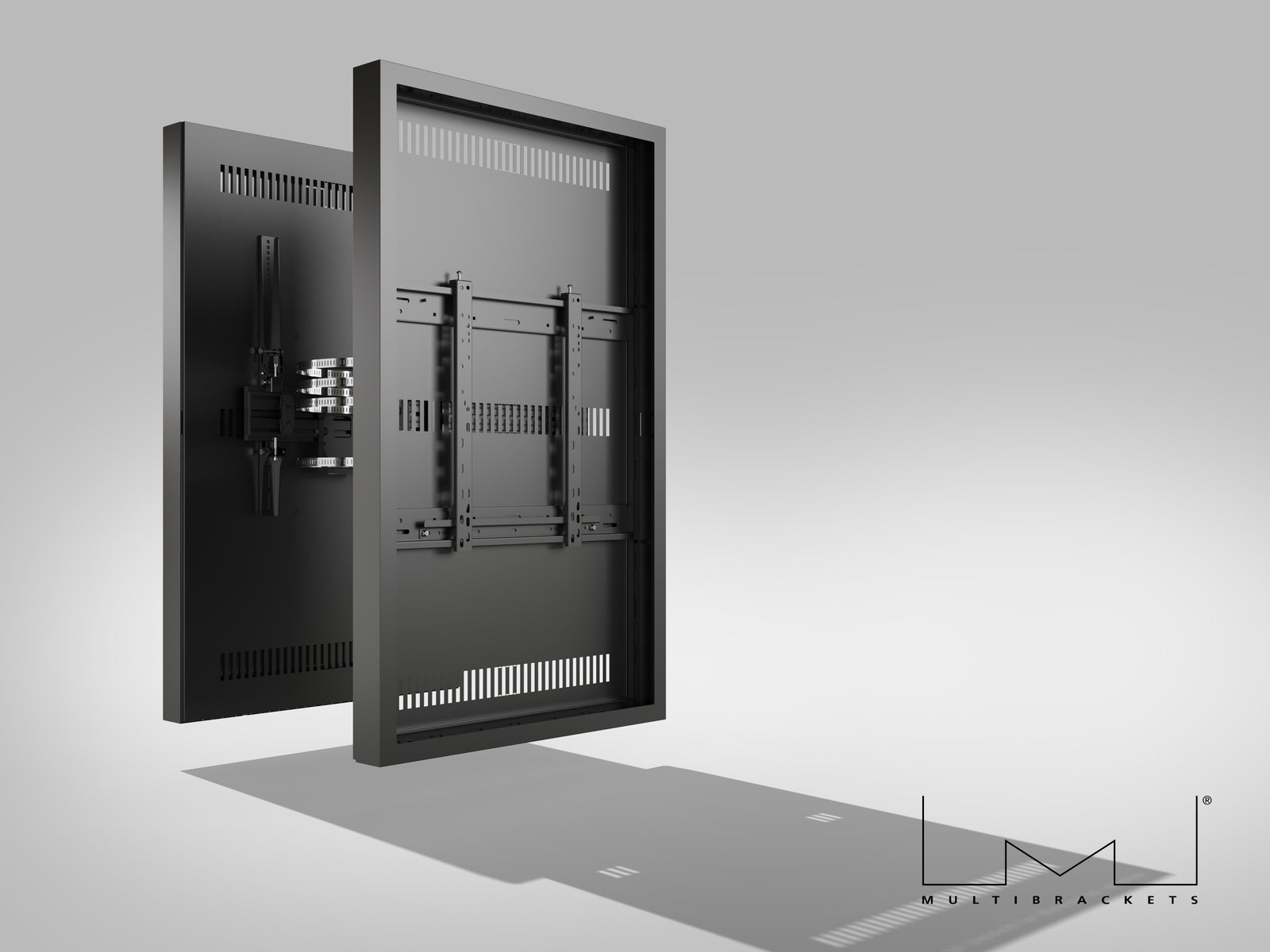

The M Pro Series Enclosure 55" Column Dual Medium Black is a dual-display enclosure designed to mount two 55” professional signage displays on a single column. Engineered for high-traffic commercial environments, this robust solution combines advanced protection, smart thermal performance, and sleek Scandinavian design.
Supporting both portrait and landscape installations, the enclosure accommodates a wide range of brands and VESA patterns up to 400x500 mm. It includes millimeter-precise after-installation adjustment and is compatible with various column diameters. The dual display setup enables impactful back-to-back visibility for public spaces such as retail, airports, and transit hubs.

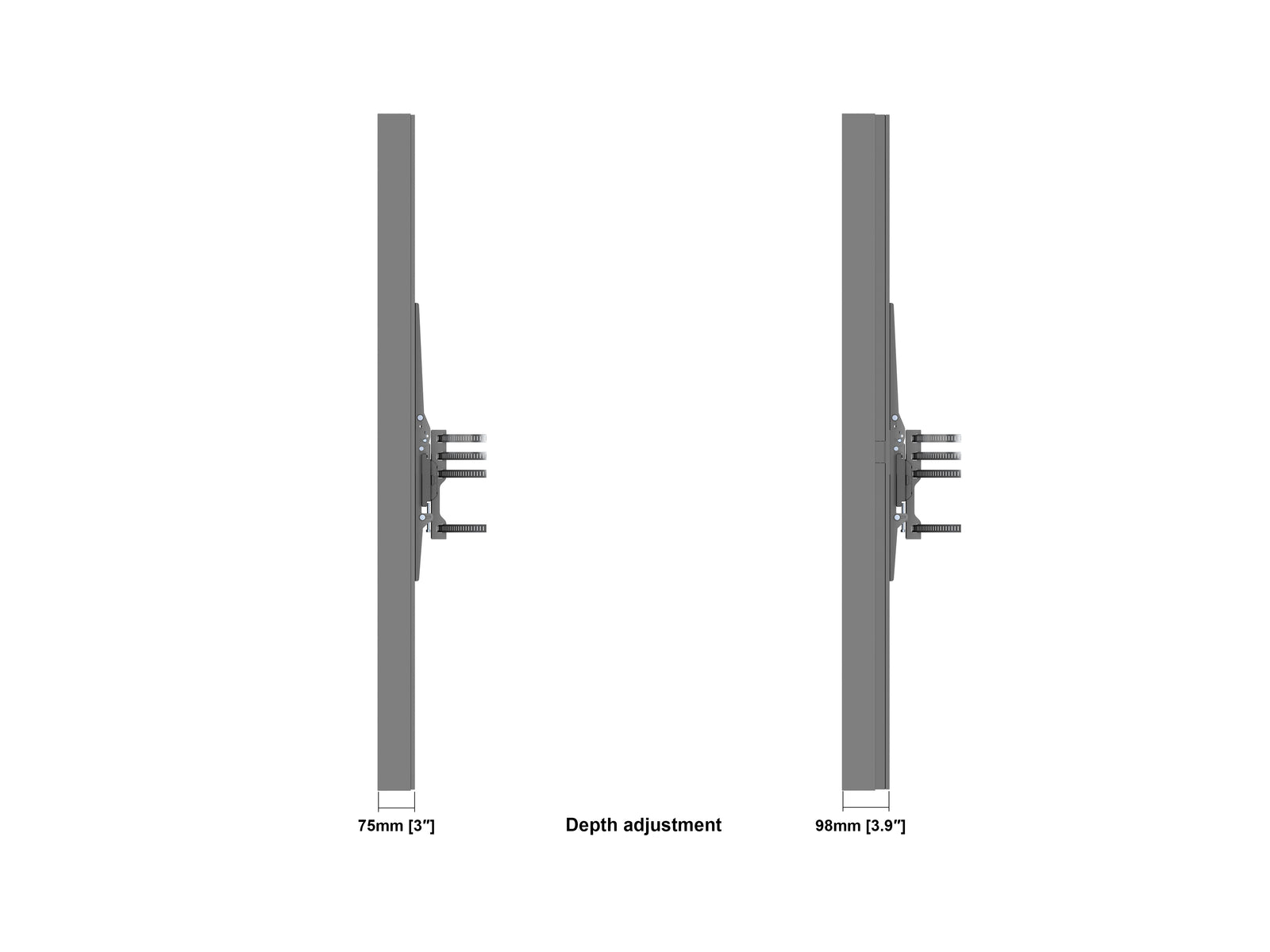

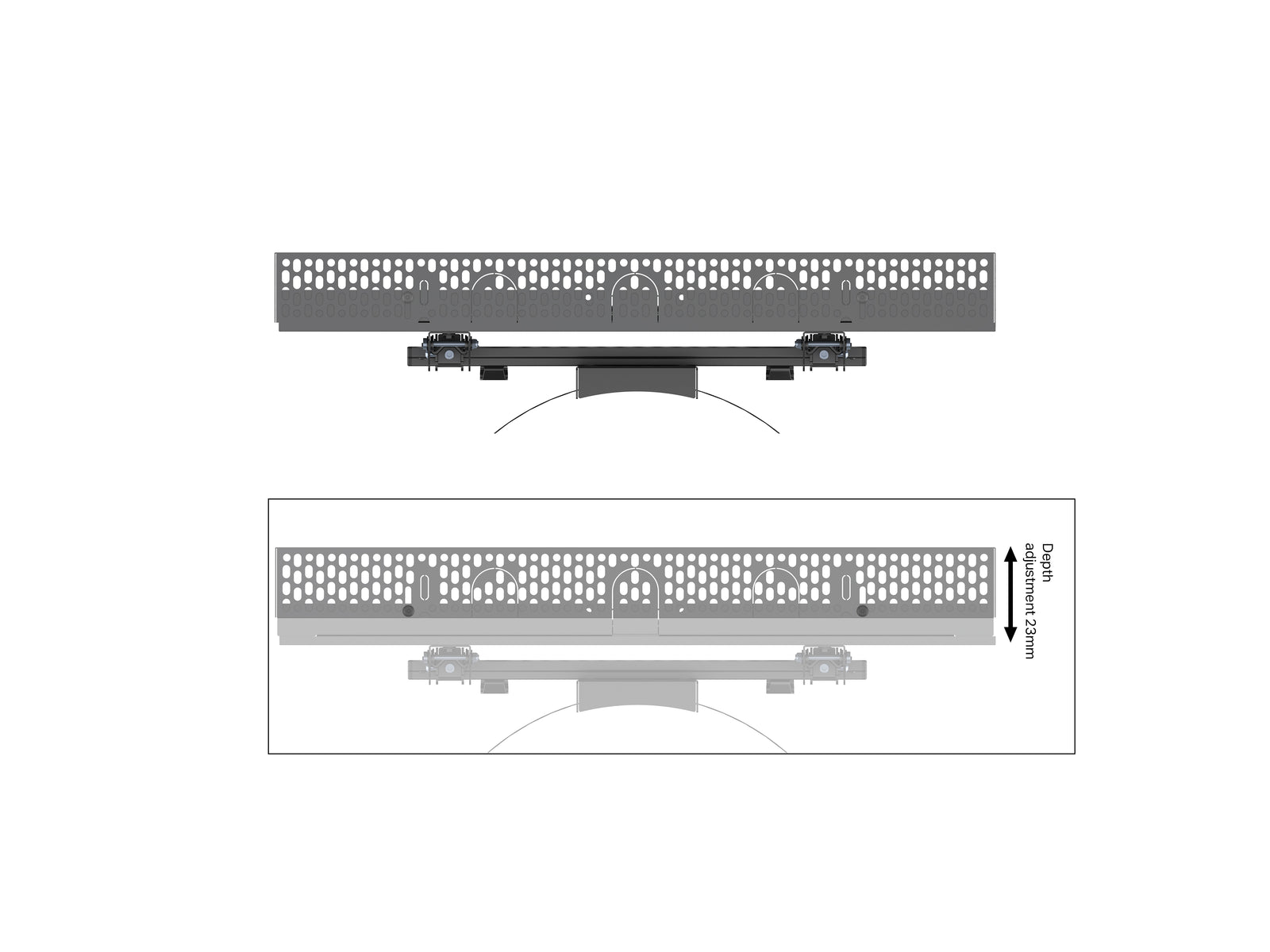

Its depth-adjustable steel frame and hinged access panels allow for efficient servicing and installation. Integrated passive cooling and active thermal management options help protect high-brightness screens from overheating in demanding settings. Tamperproof security hardware safeguards your digital assets from unauthorized access.
Highlights
Dual-display solution for two 55" signage screens
Portrait and landscape mounting supported
Compatible with most display brands
Supports VESA up to 400x500 mm

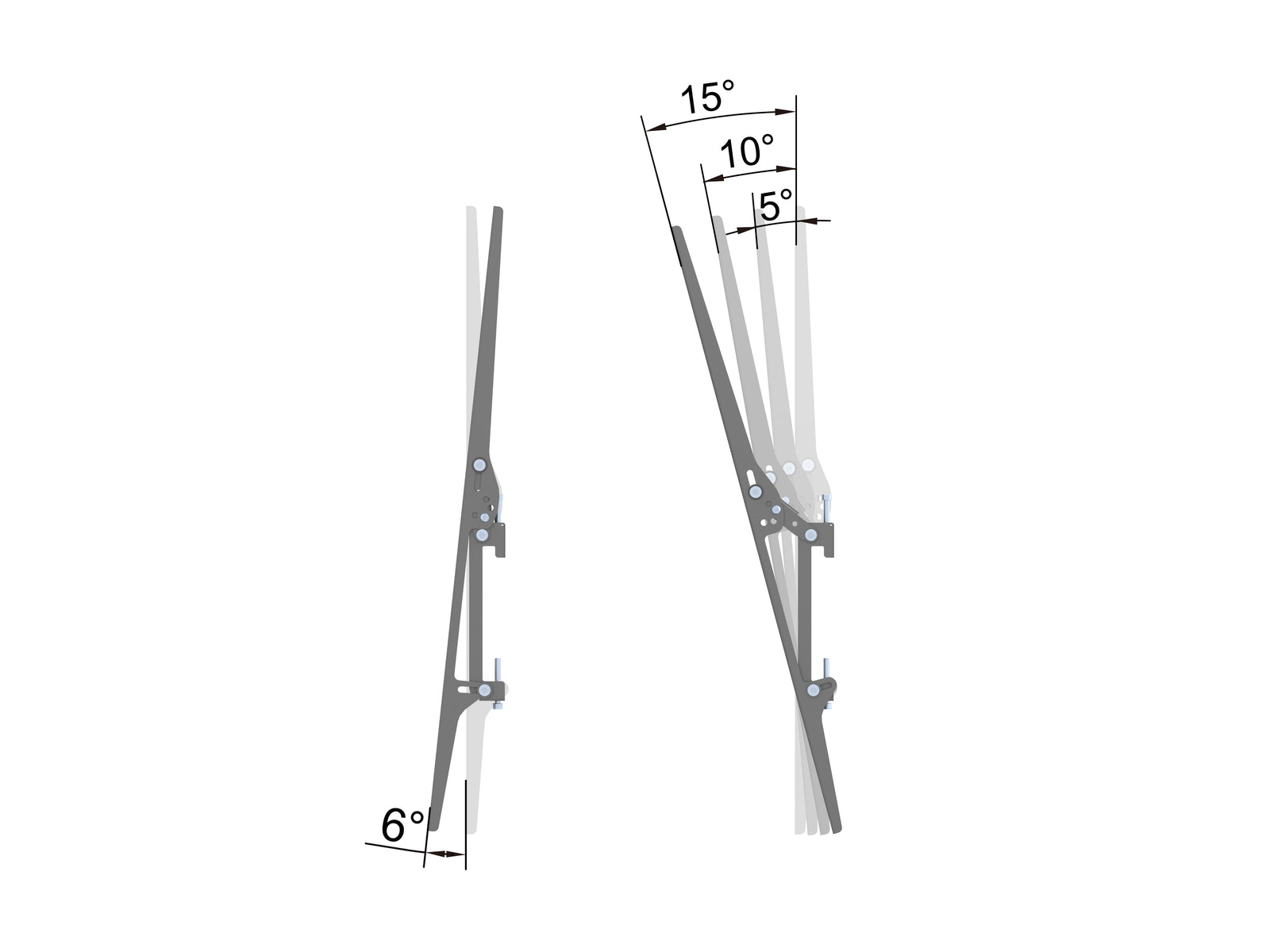

Millimeter-precise after-installation alignment

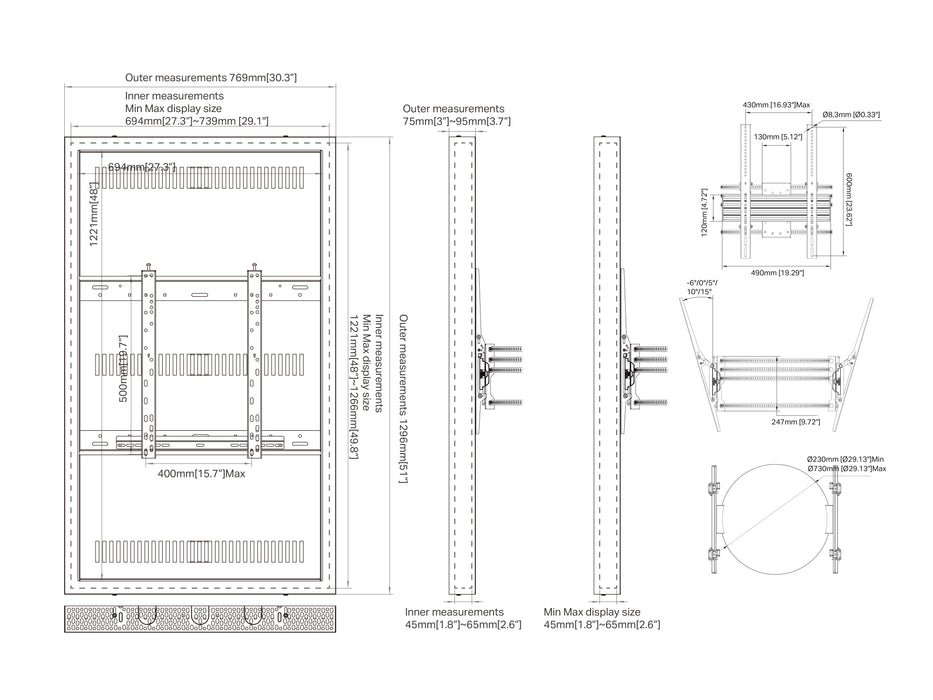

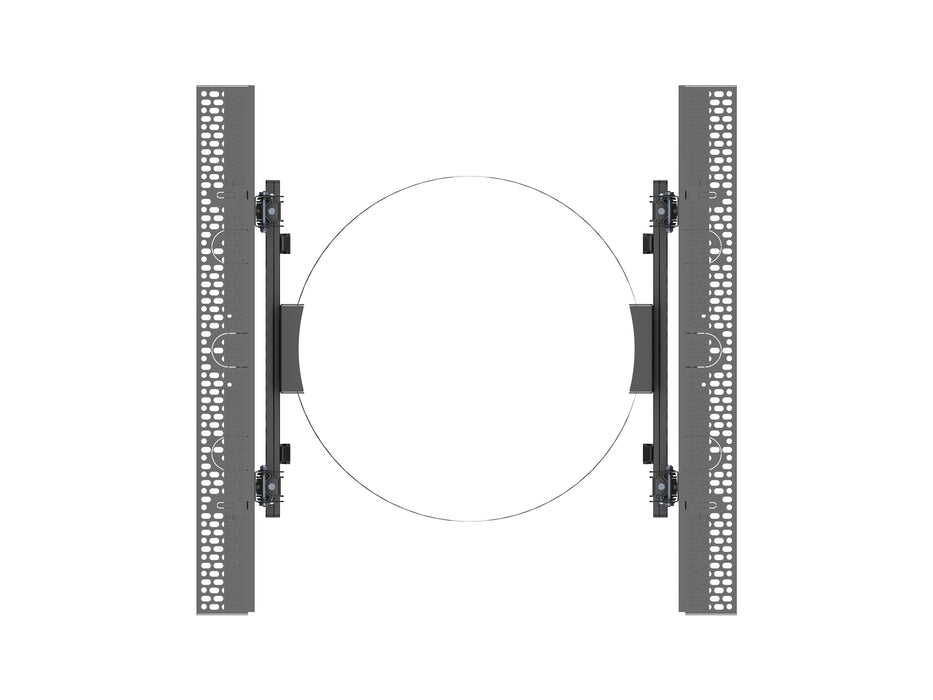

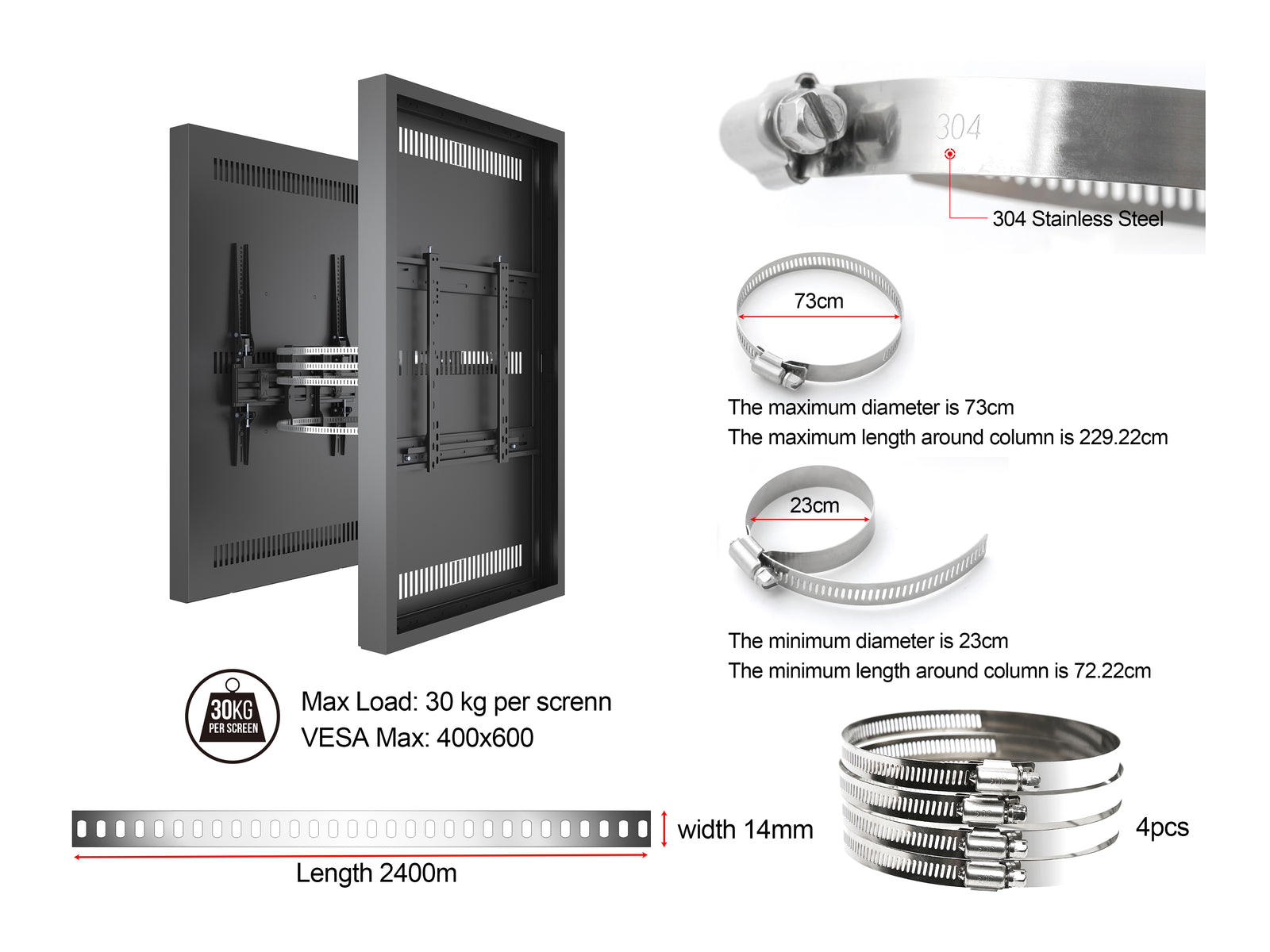

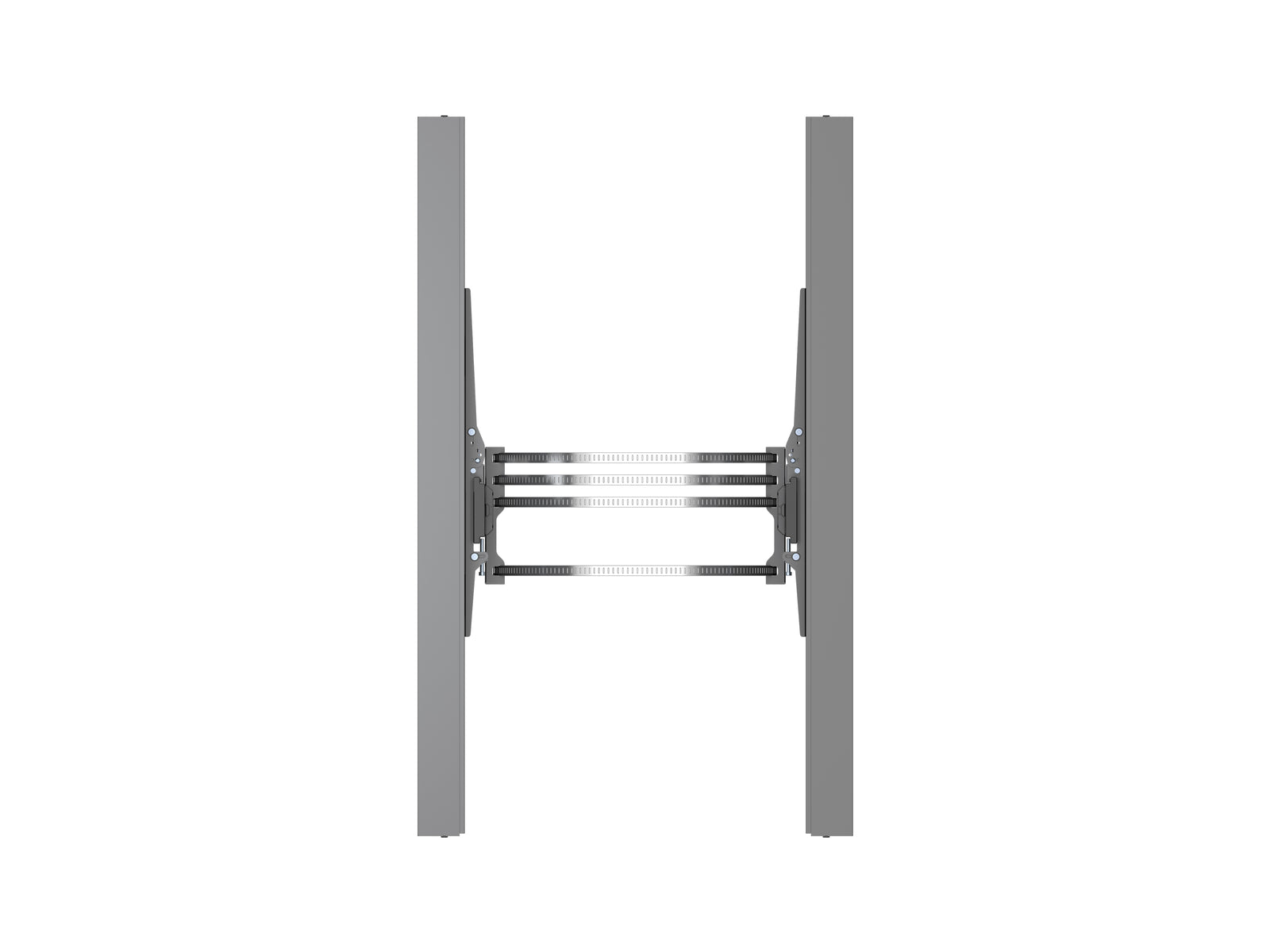

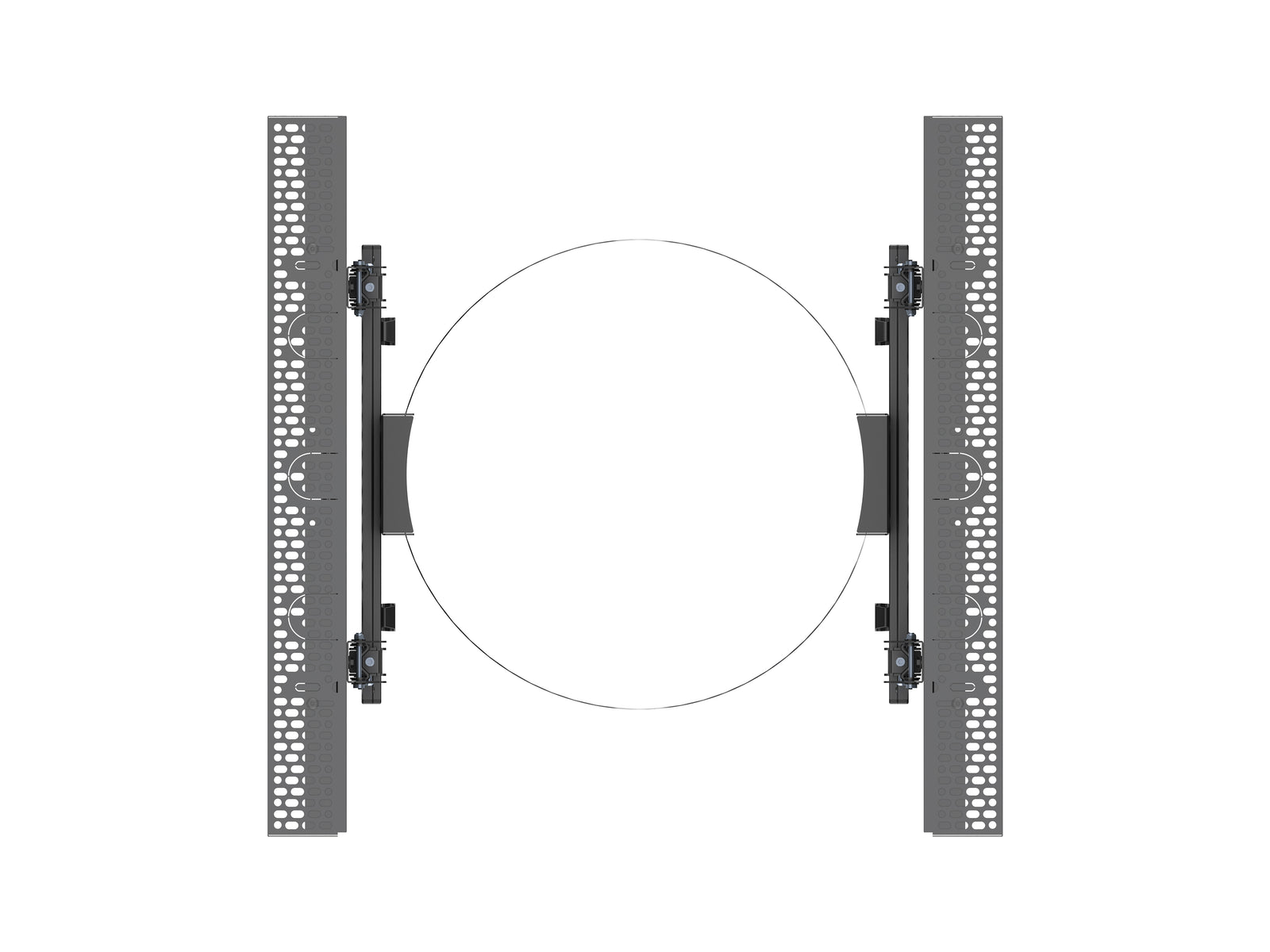

Fits various column diameters (see technical drawing)

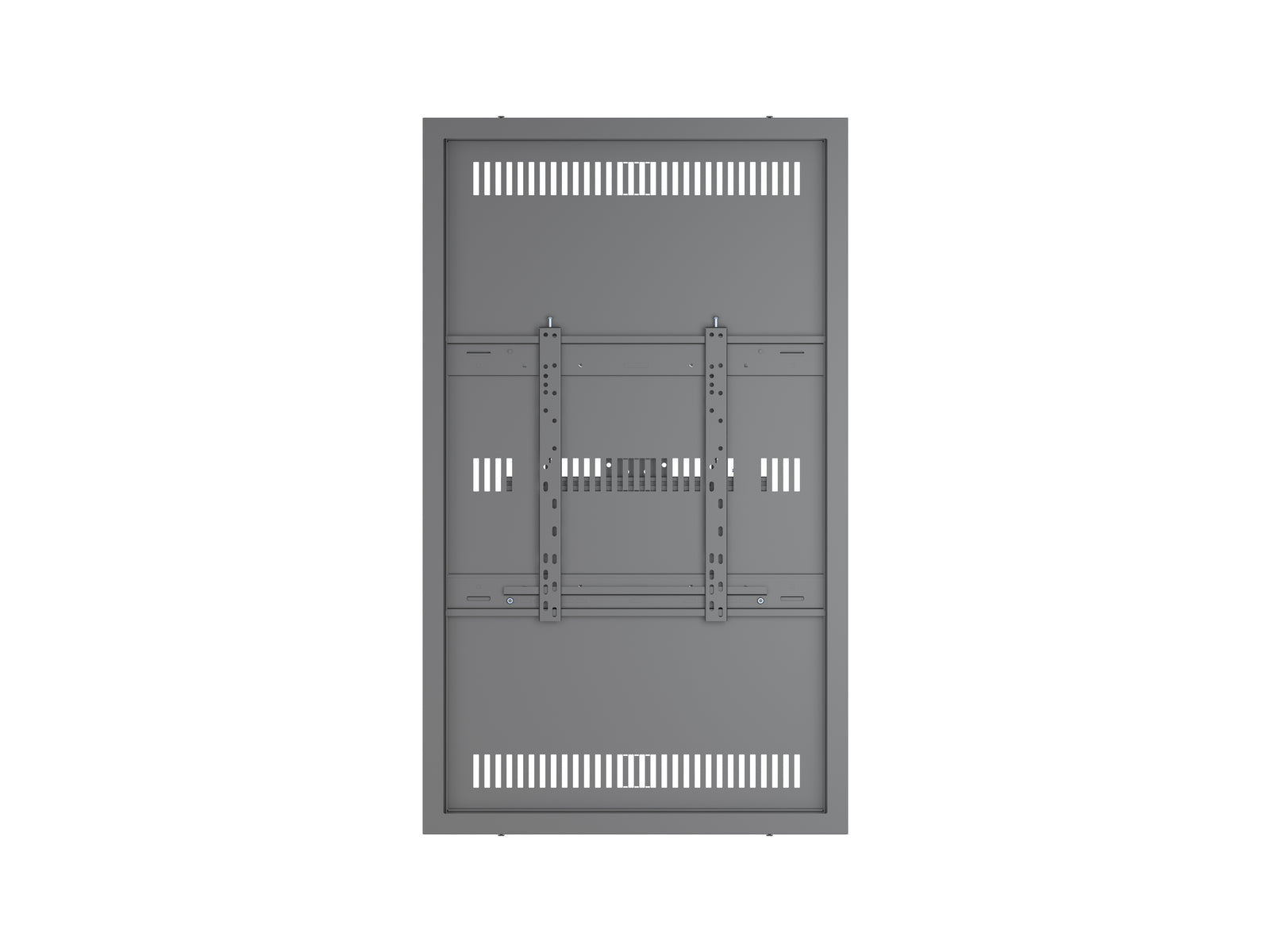

Hinged top frame allows internal access
Ventilated design with active thermal management options
Tamperproof security for high-traffic environments

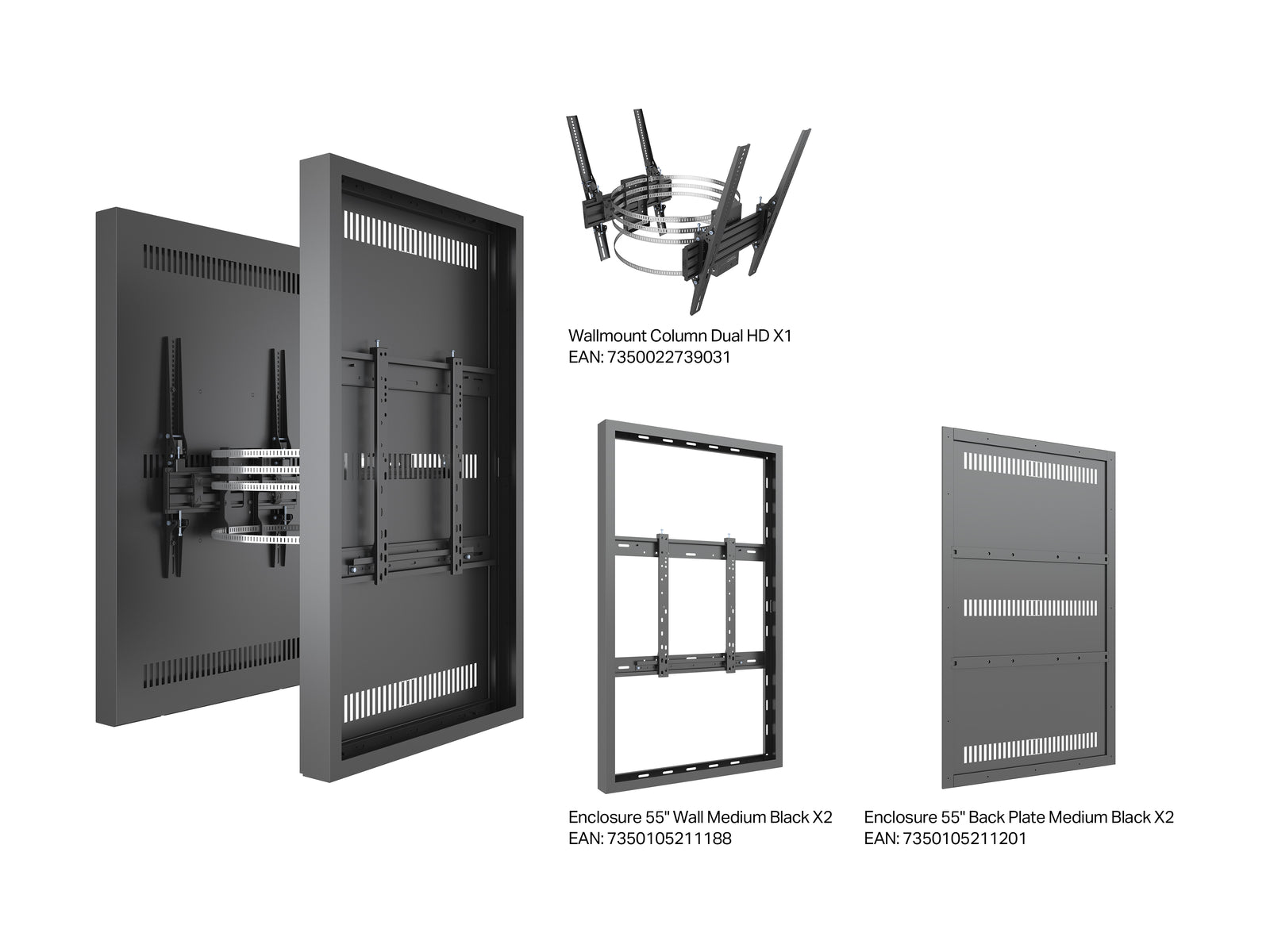

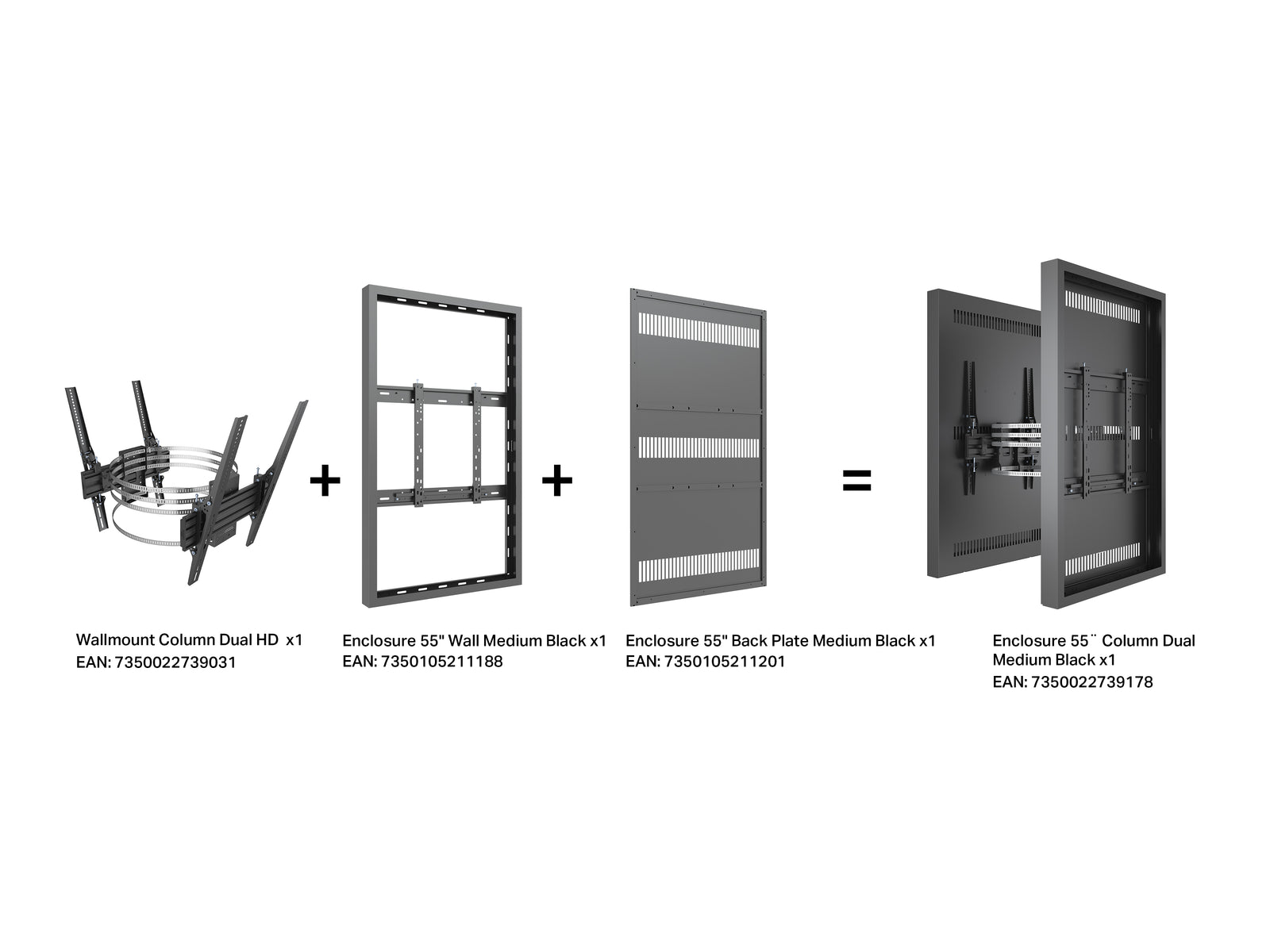

Partially pre-assembled to simplify deployment
| Article No | 7 350 022 739 178 | Colour | Black |
| Material | Steel | Surface Finish | Powder coating RAL9005 |
| VESA standard | 100x100, 200x200, 300x300, 400x400, 400x500 mm | Measurements | 65.5 x 14.5 x 15.4 cm + 136 x 86 x 13.5 cm + 136 x 86 x 13.5 cm |

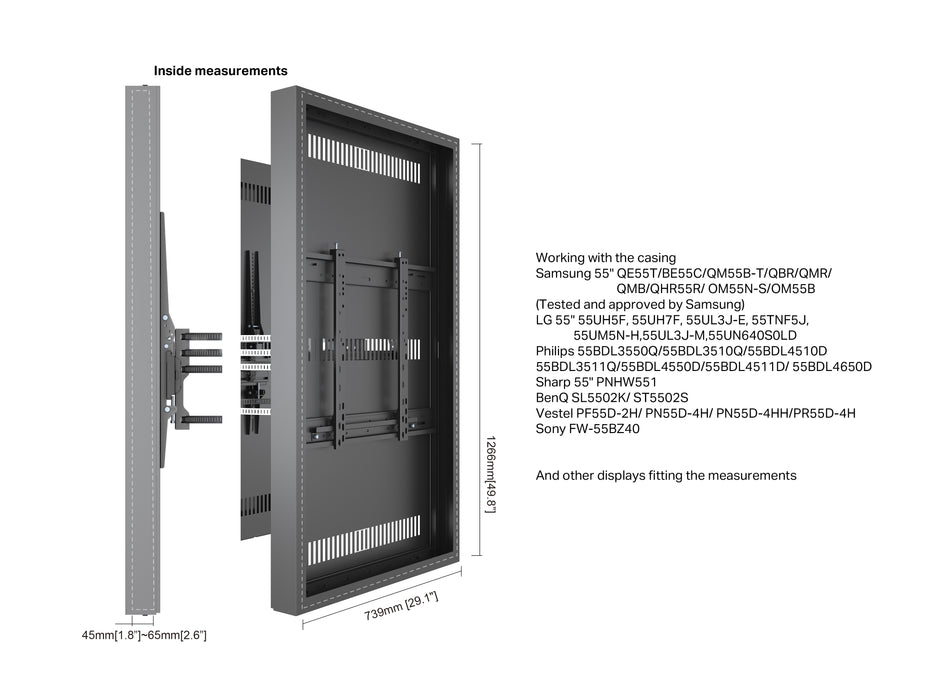

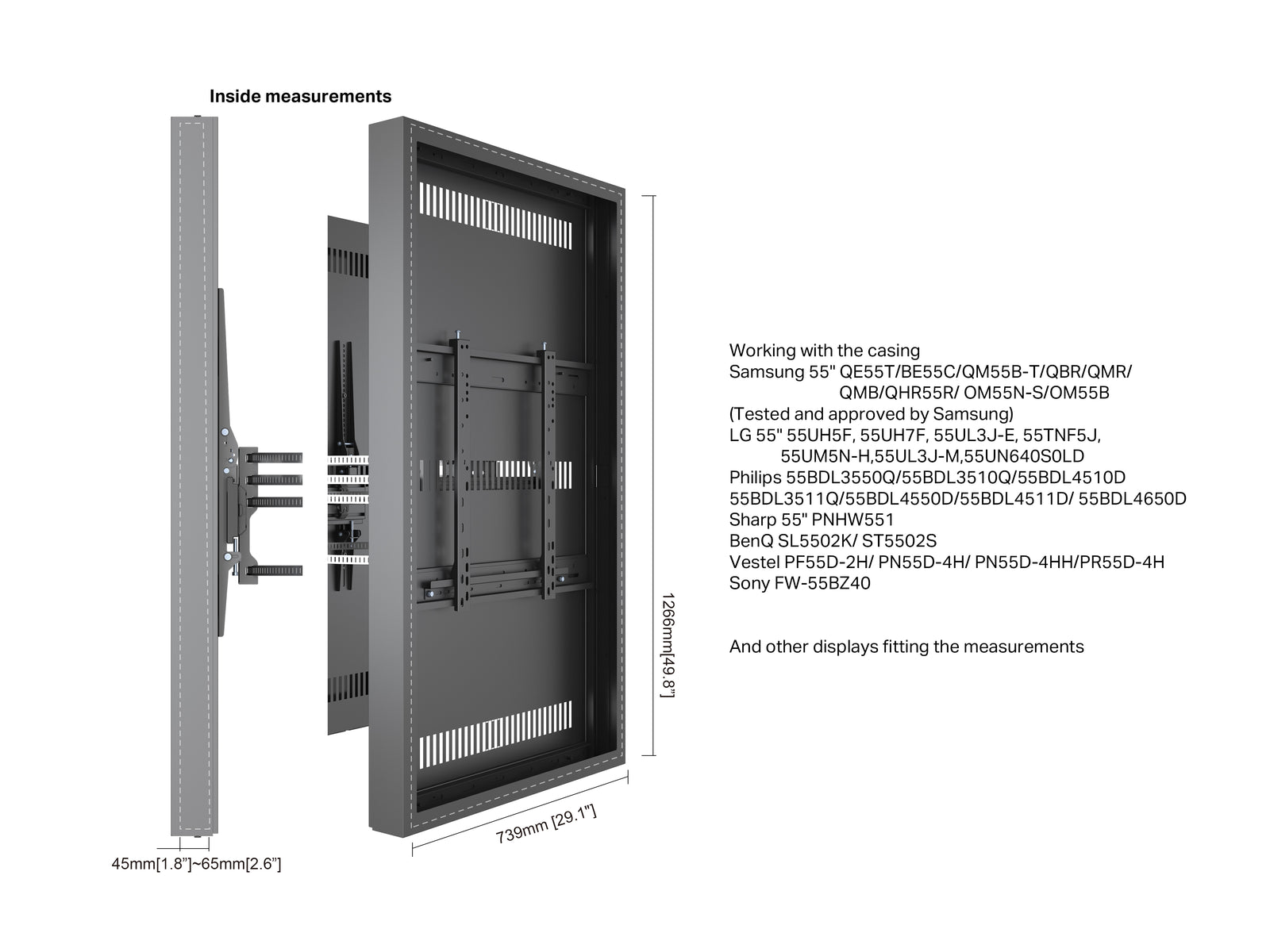

| Installation (Samsung) | QBR, QMR, QHR55R, OM55B, OM55N-S, QMB, QMB-T 55, QBC LH55QMBTBGCXEN | Installation (LG) | 55UH5F, 55UH7F, 55UL3J-E, 55TNF5J, 55UM5N, 55UH5N-E, 55UM5N-H |
| Installation (Philips) | 55BDL3550Q, 55BDL3510Q, 55BDL4510D, 55BDL3511Q, 55BDL4550D, 55BDL4511D, 55BDL4650D, 55BDL4050Q | Installation (Sharp/NEC) | PNHW551, M552 |
| Installation (Sony) | FW-55BZ40L | Installation (Vestel) | PF55D-2H, PN55D-4H, PN55D-4HH |
| Installation (BenQ) | SL5502K, ST5502S, SL5504, SH5504 | Installation (Panasonic) | TH-55CQE2W |
| Installation (Allsee) | AO55H | Installation (Safire) | SF-55DS60 |
| Installation (Iiyama) | LH5560UHS-B1AG, LH5565UHS-B1AG | Installation (Legamaster) | DIS-5520 |
| Other 55" displays | Check measurements | Weight | 50 kg |
| Max load | 30 kg per screen | Warranty | 5 years |
| Package Parcels | 3 pcs | Package Weight | 52 kg |
| Package Measurements | 65.5 x 14.5 x 15.4 cm + 136 x 86 x 13.5 cm + 136 x 86 x 13.5 cm |
| Description | Downloads |
|---|---|

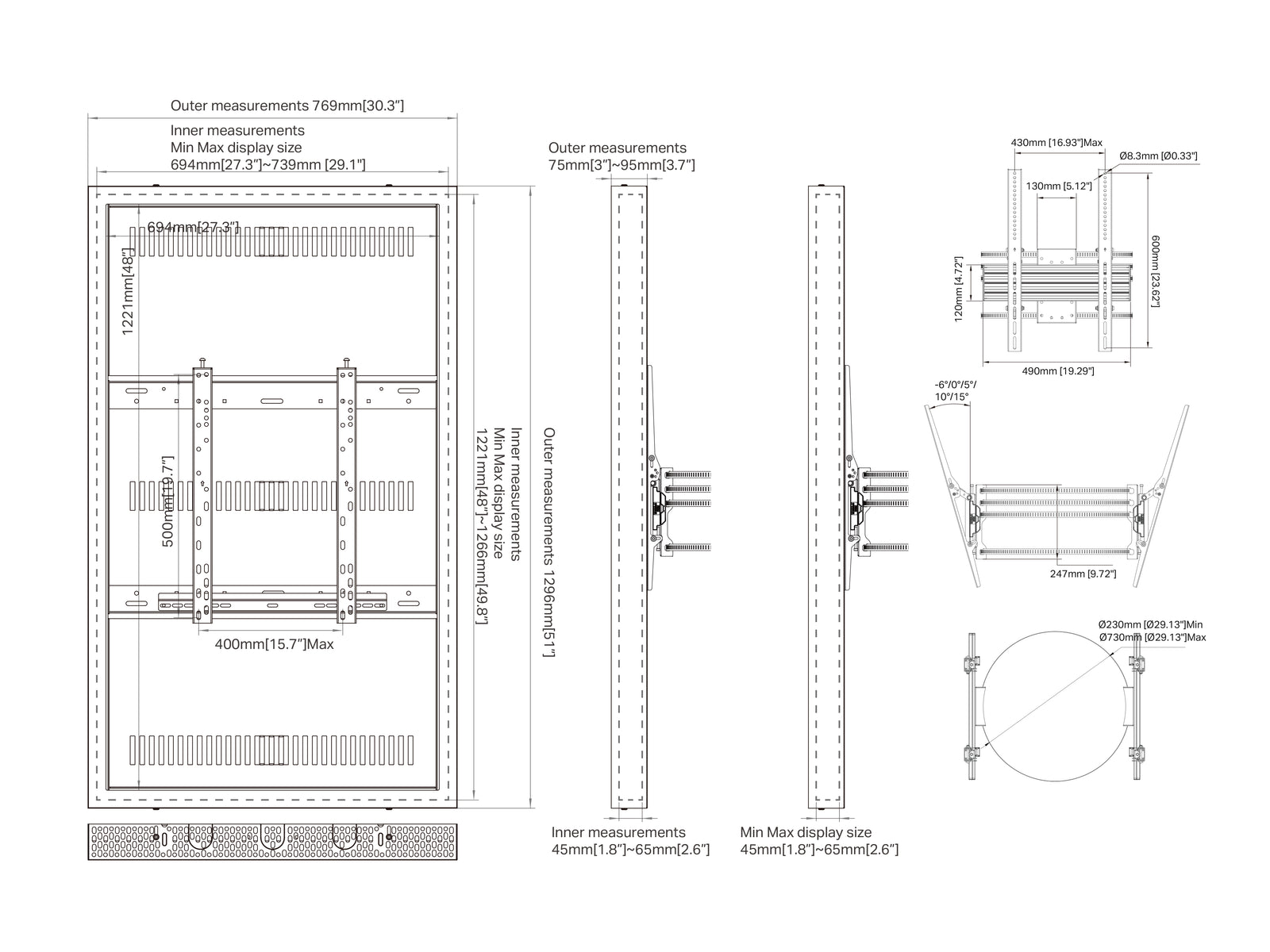

| Drawing | Download |
