Multibrackets MBC2X1U Display Ceiling Mount Pro

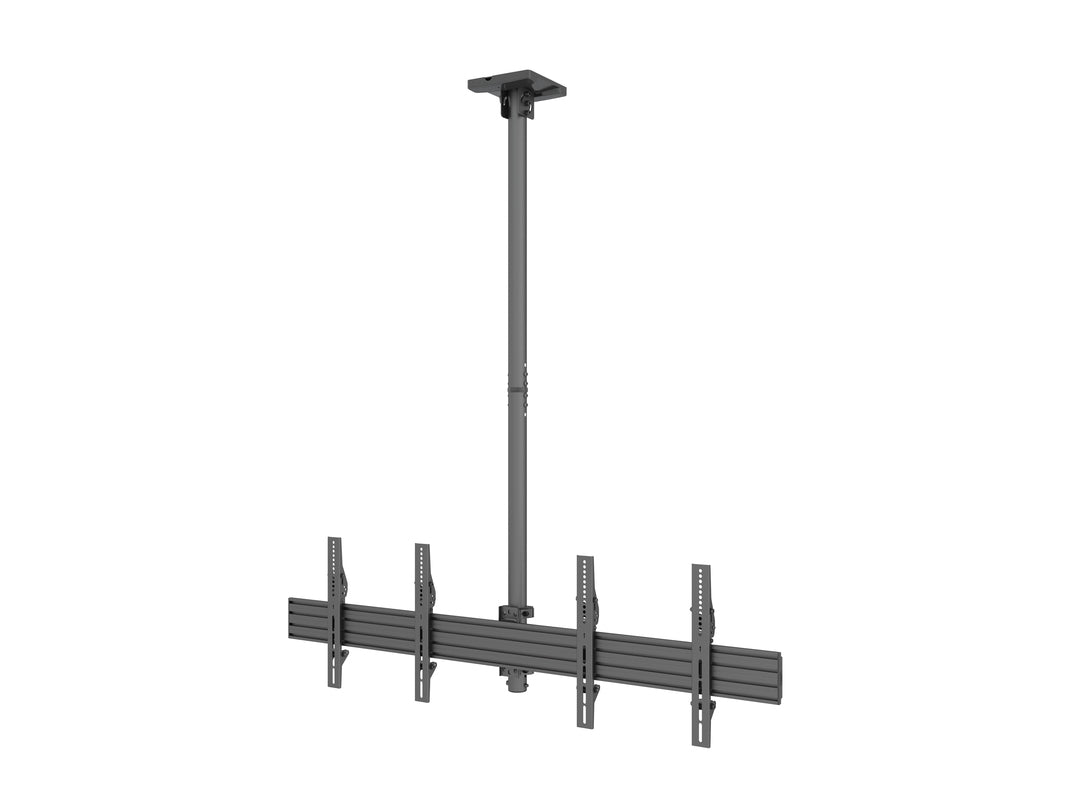

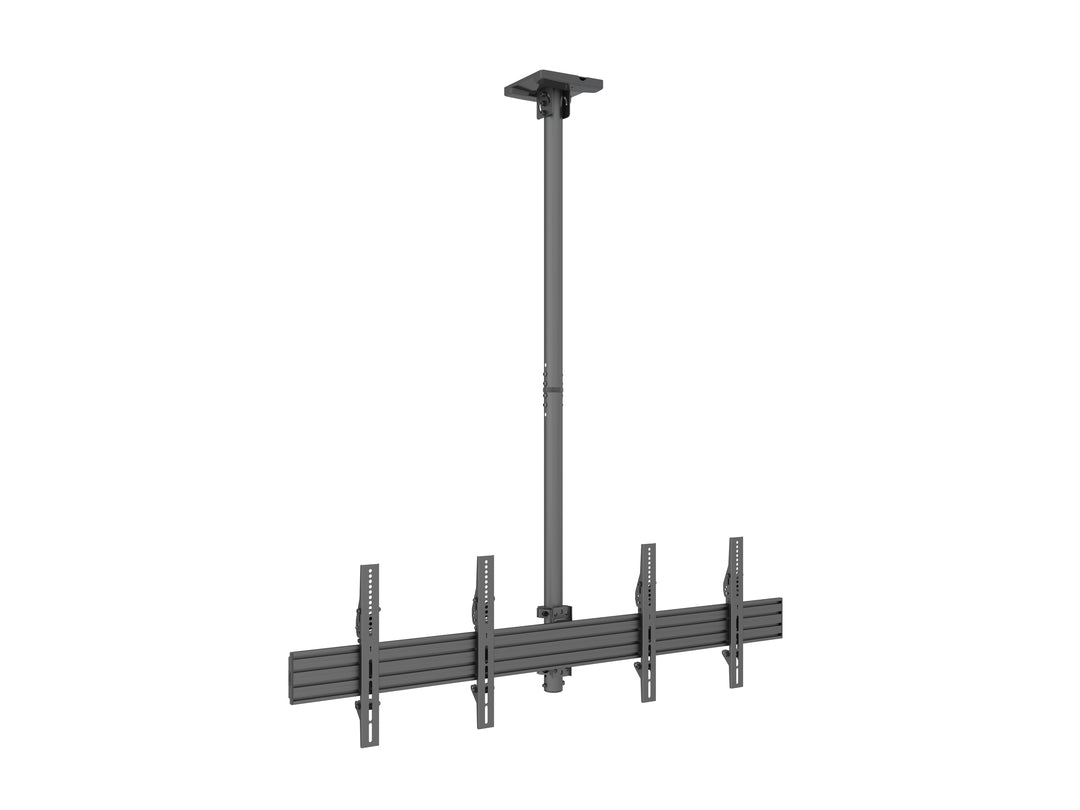

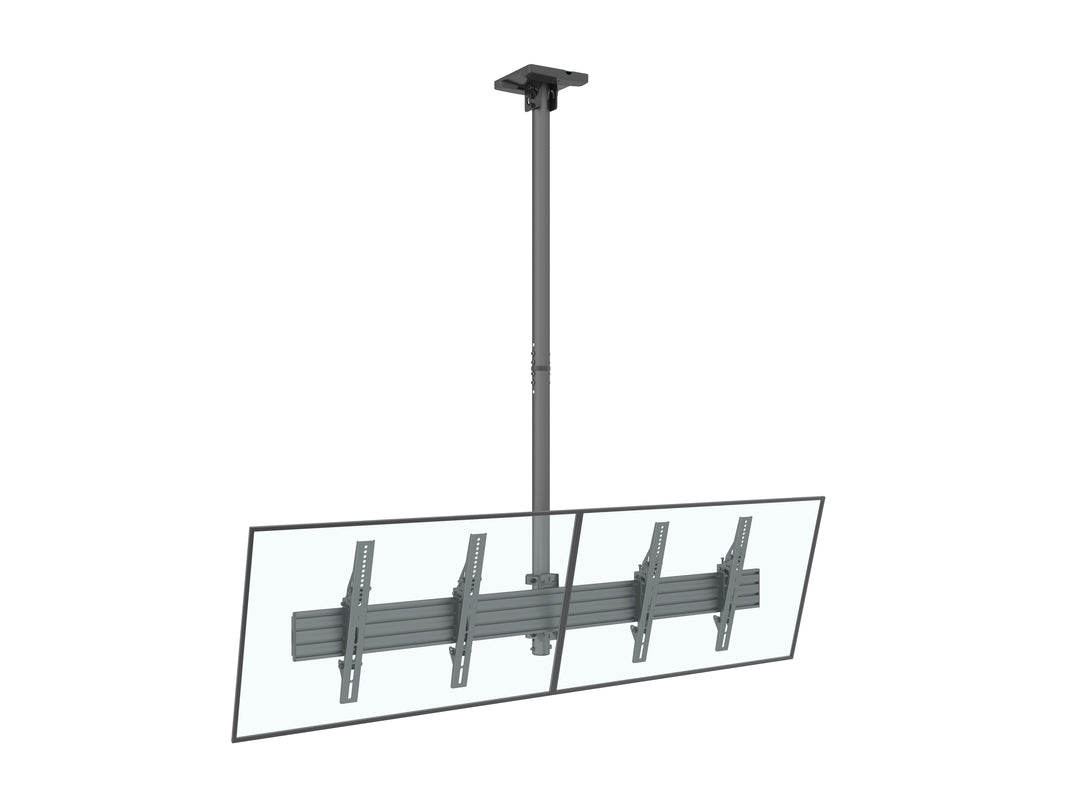

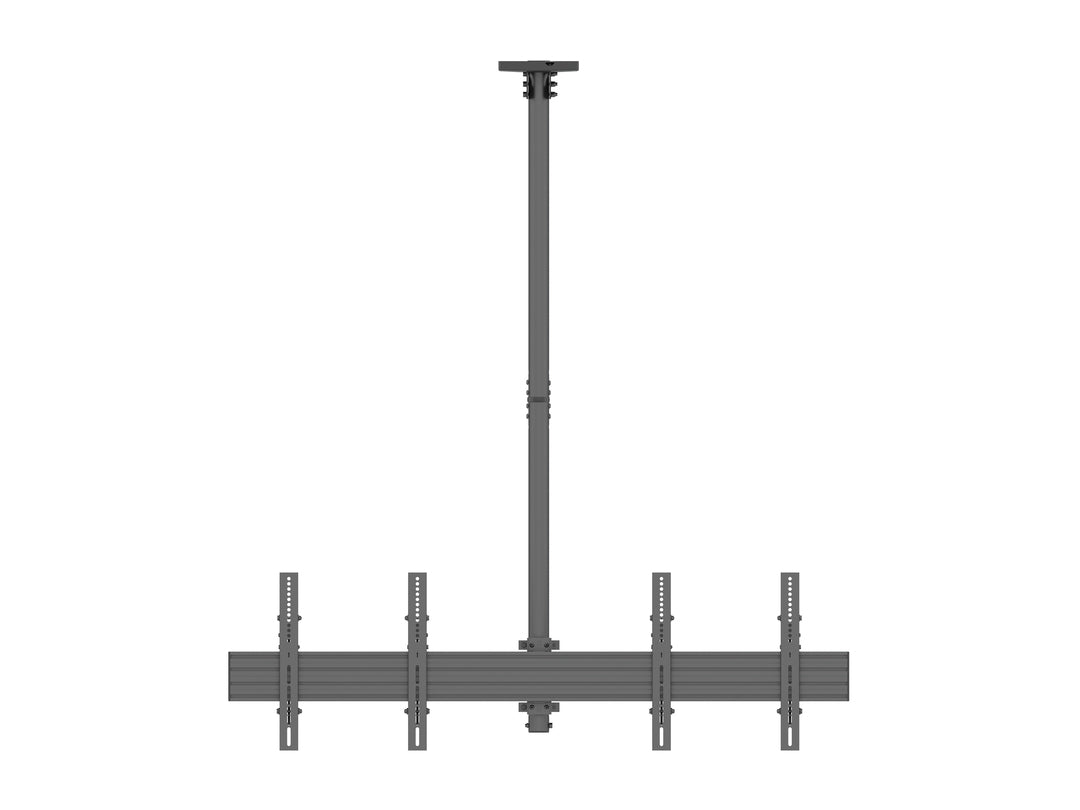

M Ceiling Mount Pro MBC2X1U - Ceiling mount for LCD display, steel, 1,5m length, 2 screens, single side, tilt arms, VESA Max 600x400 - screen size: 40"-65" - black
Multibrackets Pro Series M Ceiling Mount Pro MBC2X1U is our innovative - ready to be installed Single-Display Ceiling Mount.

The new professional Pro Series A/V line from Multibrackets was designed with the installer in mind. Modular, easy to configure, quick to install, and simple to maintain. Working closely with installers we created a range with close to unlimited flexibility. This model the M Ceiling Mount Pro MBC2X1U is no exception. The product provides the versatility and flexibility demanded by installers. Based upon the Pro Series strong and ultra-flexible aluminum rail it is completely modular and has built in cable management throughout the entire solution to quicken installation and creating an esthetic result worth the public eye.

With its modular construction installers have vast possibilities to change, update and reconfigure its design if ideas change over time then Pro Series can follow.

Designed with our Scandinavian heritage in mind and providing a clean Nordic look each part and detail serves its purpose. The result is a sleek Nordic solution emphasizing quality and function. Used in a variety of environments this ceiling mount is truly versatile and is made of the highest quality materials.

The Pro Series possibilities to extend pipes and add details by individual choice is vast so that one can tailor each mount to its location and function. The Pro Series includes hardware so that a basic installation should not be a hassle.

Multibrackets Pro Series Public Ceiling Mounts is ideal for any large screen digital signage ceiling application.

Highlights
A professional, flexible and modular product
Extendable ceilingpipe up to 6 metres
Includes VESA adapters for compatibility up to VESA 600x400

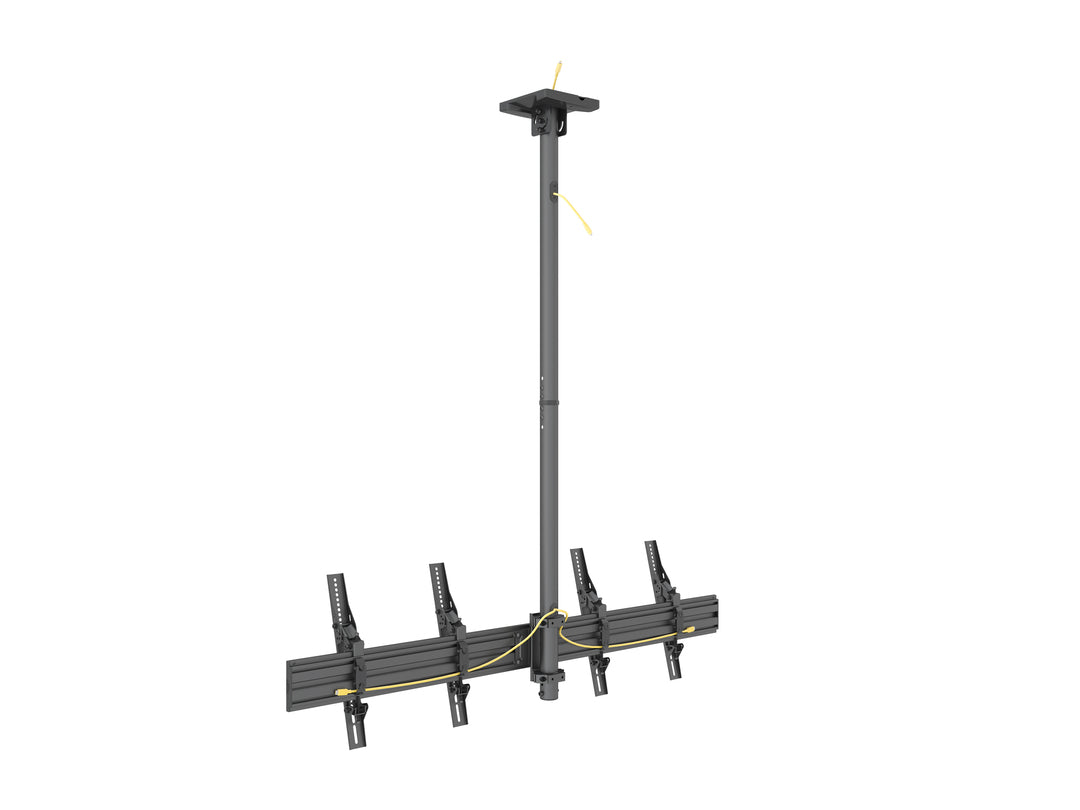

Integrated cable management throughout the entire solution
Power click install for an easy, fast and safe installation
Ceiling plate included
Portrait or landscape position of screen possible

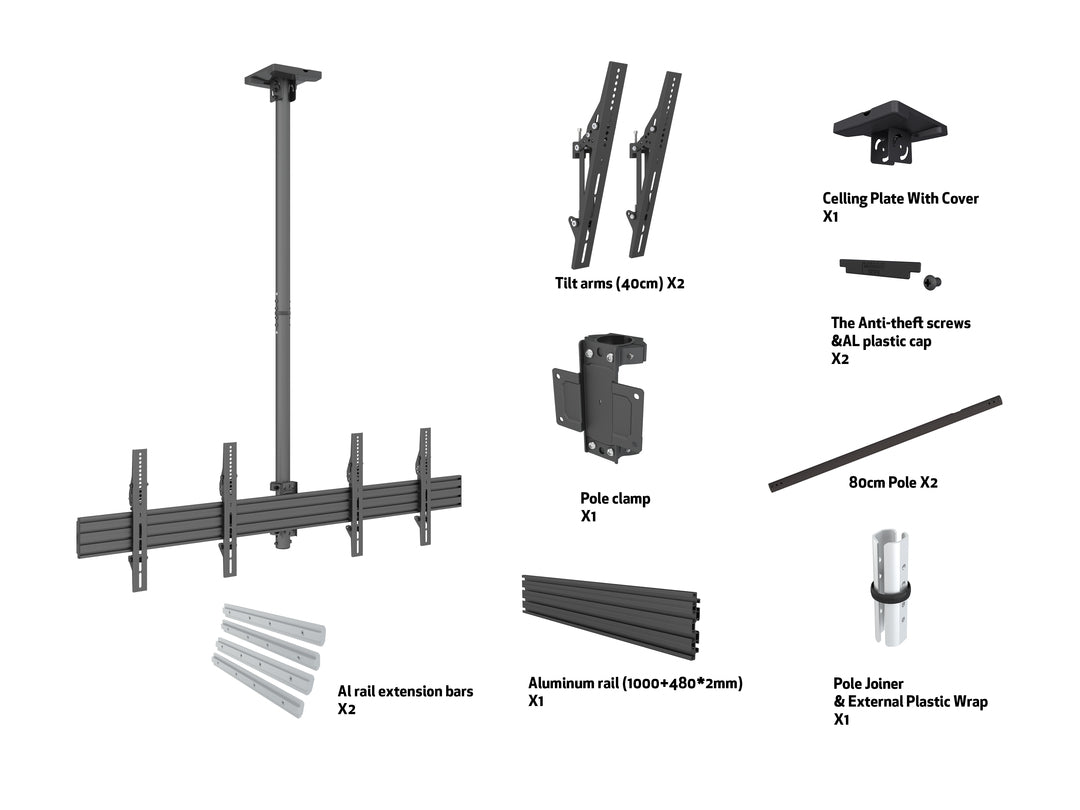

Hardware kit included

Article No	7 350 073 733 460
For Screen Size	40”-65"
Type	Single MBC2X1U
Universal & VESA Standard	Adjustable from 100x100 to 600x400 max (Optional VESA 800x600)
Material	Steel, Aluminium
Color	Black
Surface Finish	Powder coating/Anodic Oxidation
Weight	25 kg

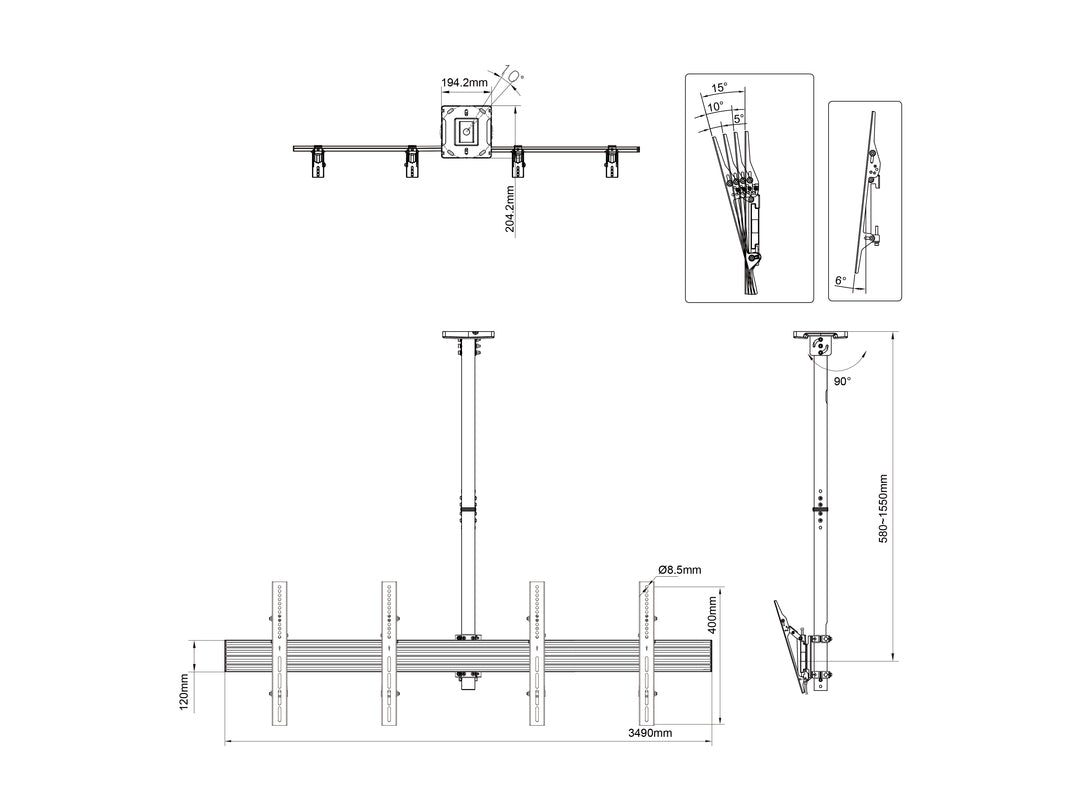

Measurements	222x338x20 cm
Max Load	50 kg per screen
TUV Approved	Yes (at 30 kg per screen)

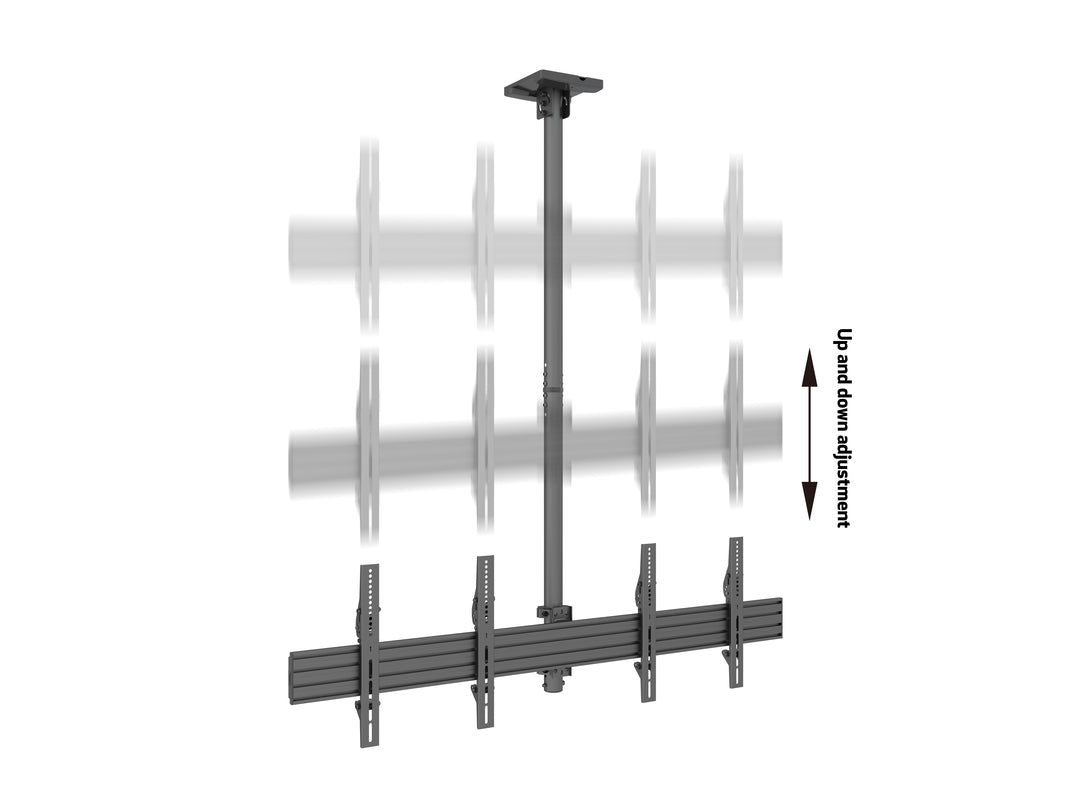

Pillar Length	Min: 580mm to Max: 1550 mm from ceiling to VESA plate center
Extension Pipes	1.5m (800mm*2pcs) included
Tilt	Yes, -6°~+15°
Swivel	Yes, 360°
Rotate	Yes, ±4°
Cable Management	Yes
Options	Extension pipes: 0.8m, 1.5m, 3.0m
Certifications	CE
Warranty	5 years
