Enter your screen SKU and we will instantly check whether this mount is suitable for your display based on VESA pattern compatibility.

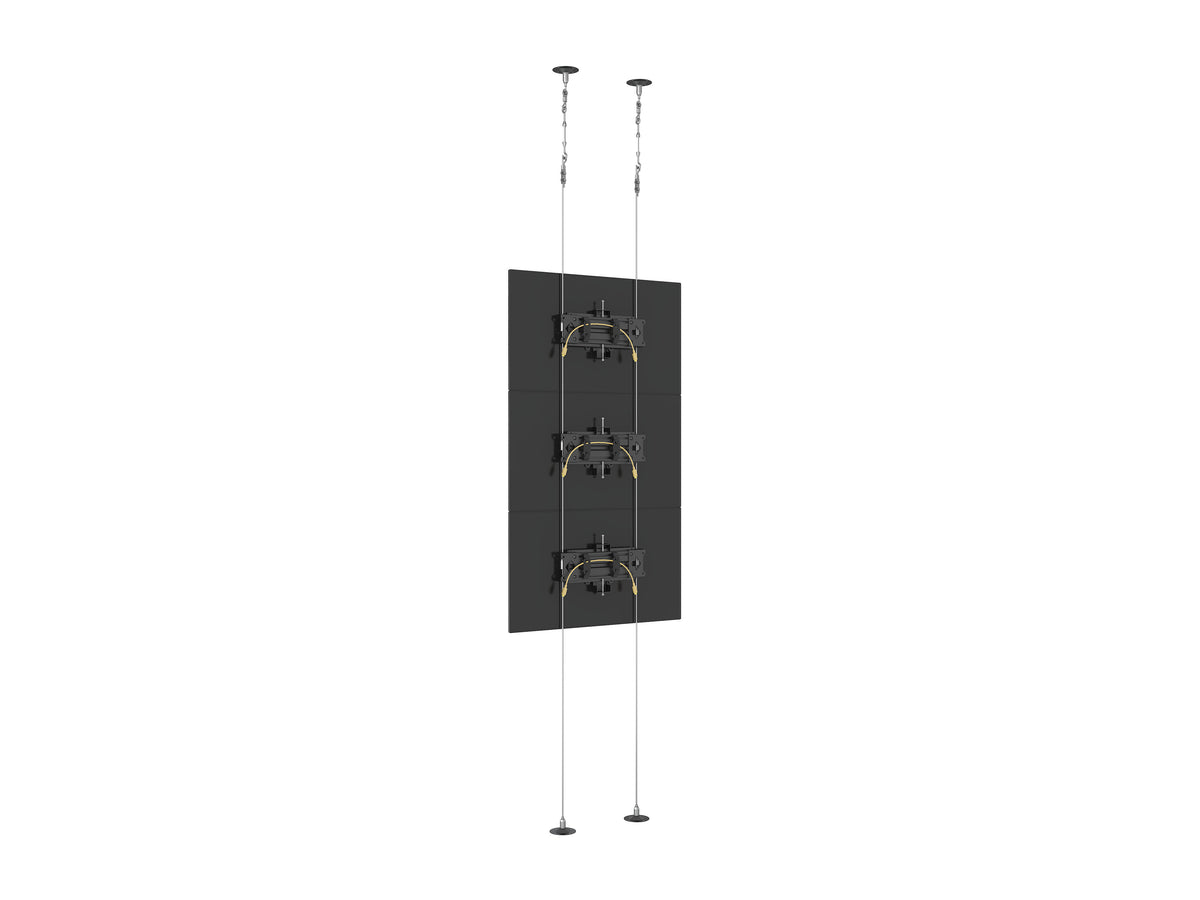

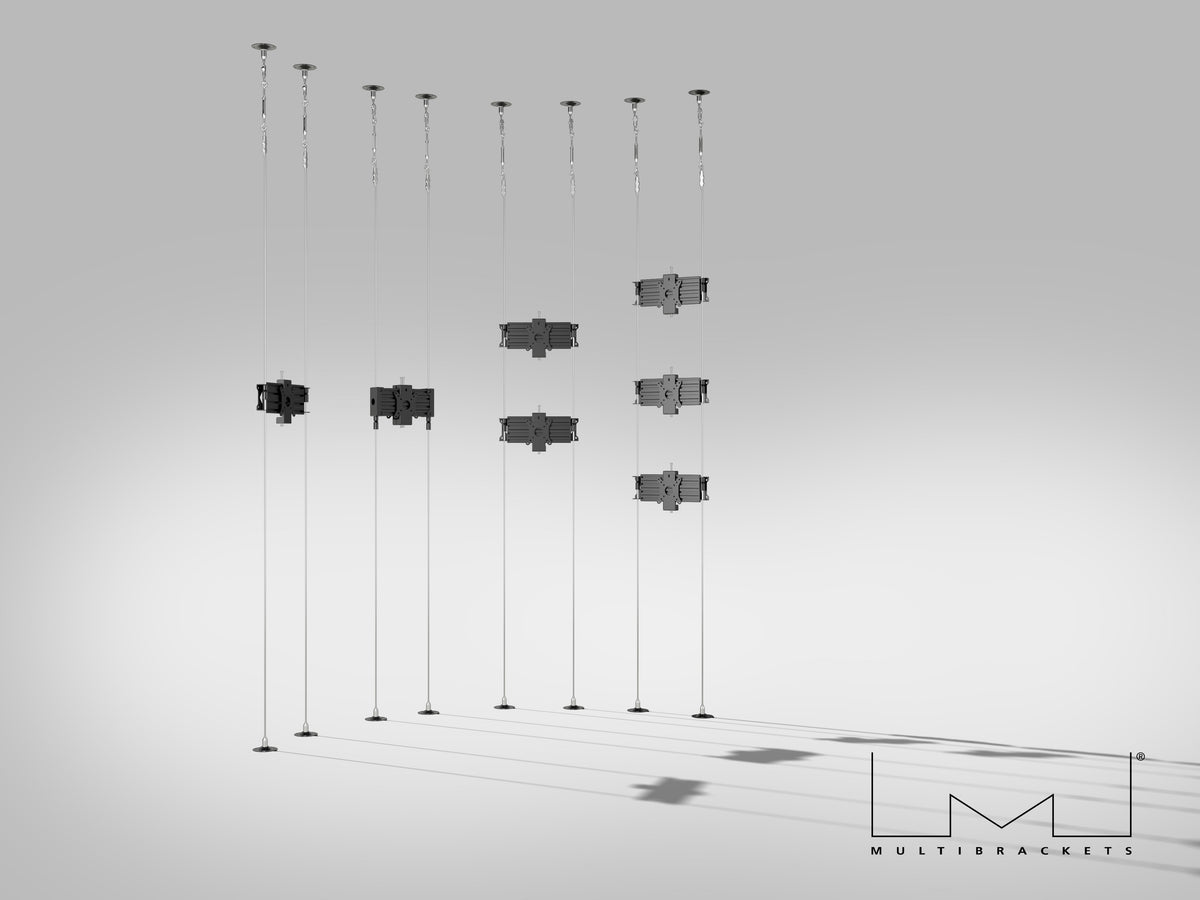

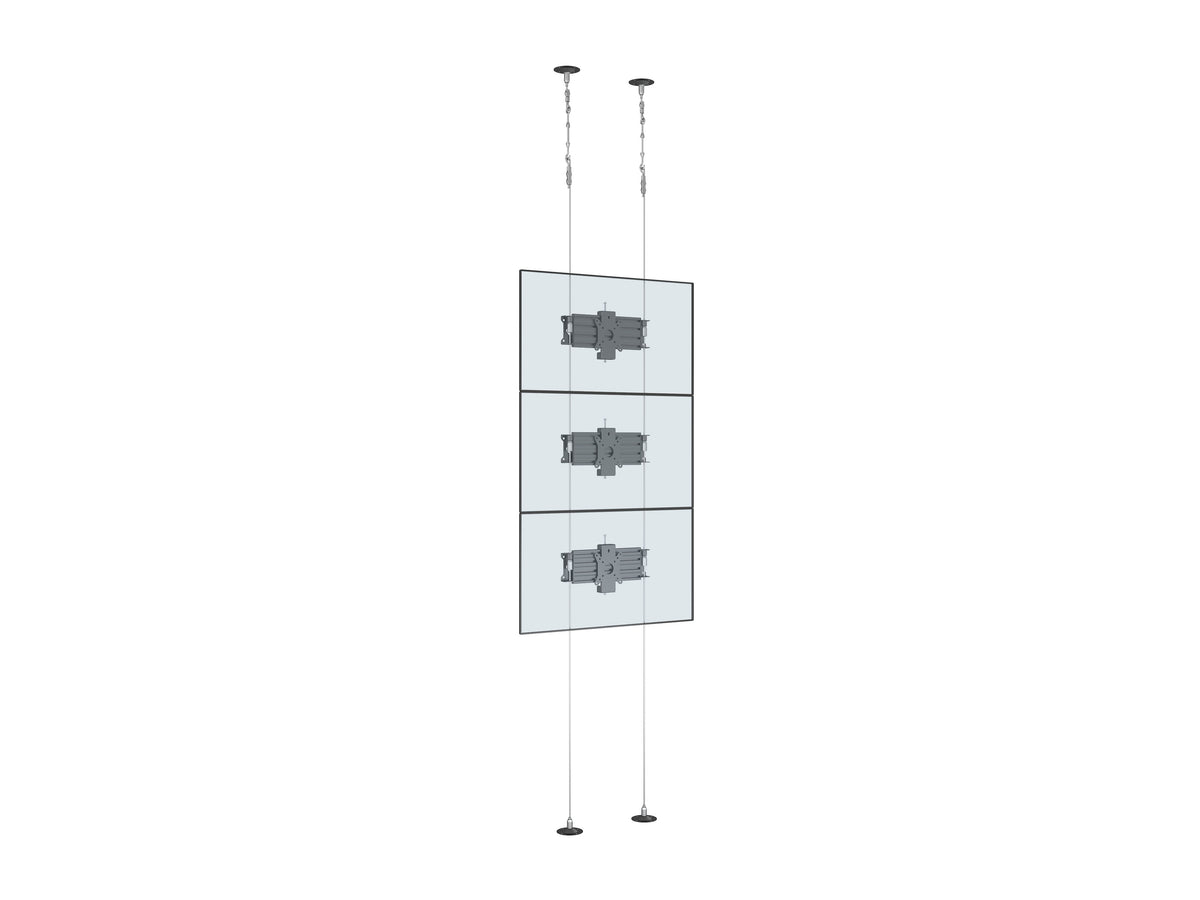

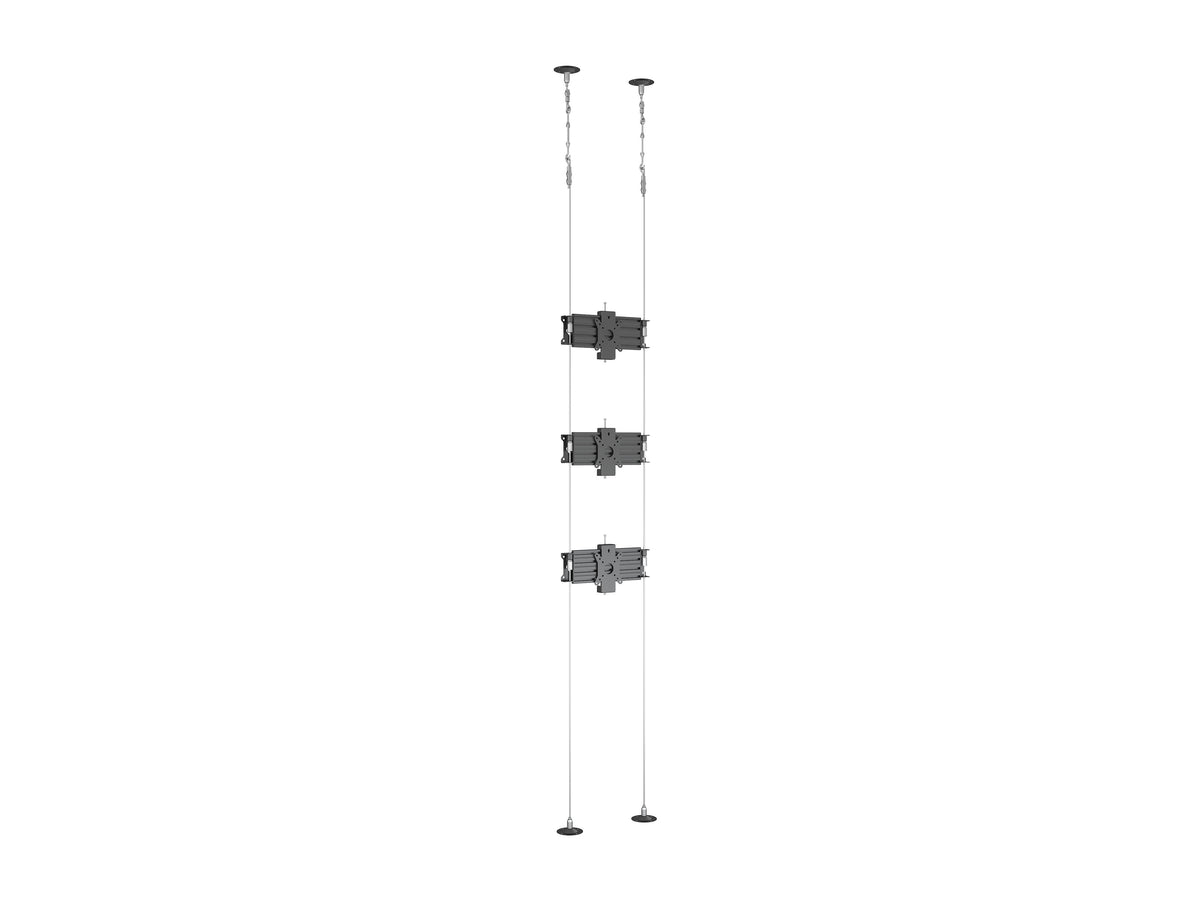

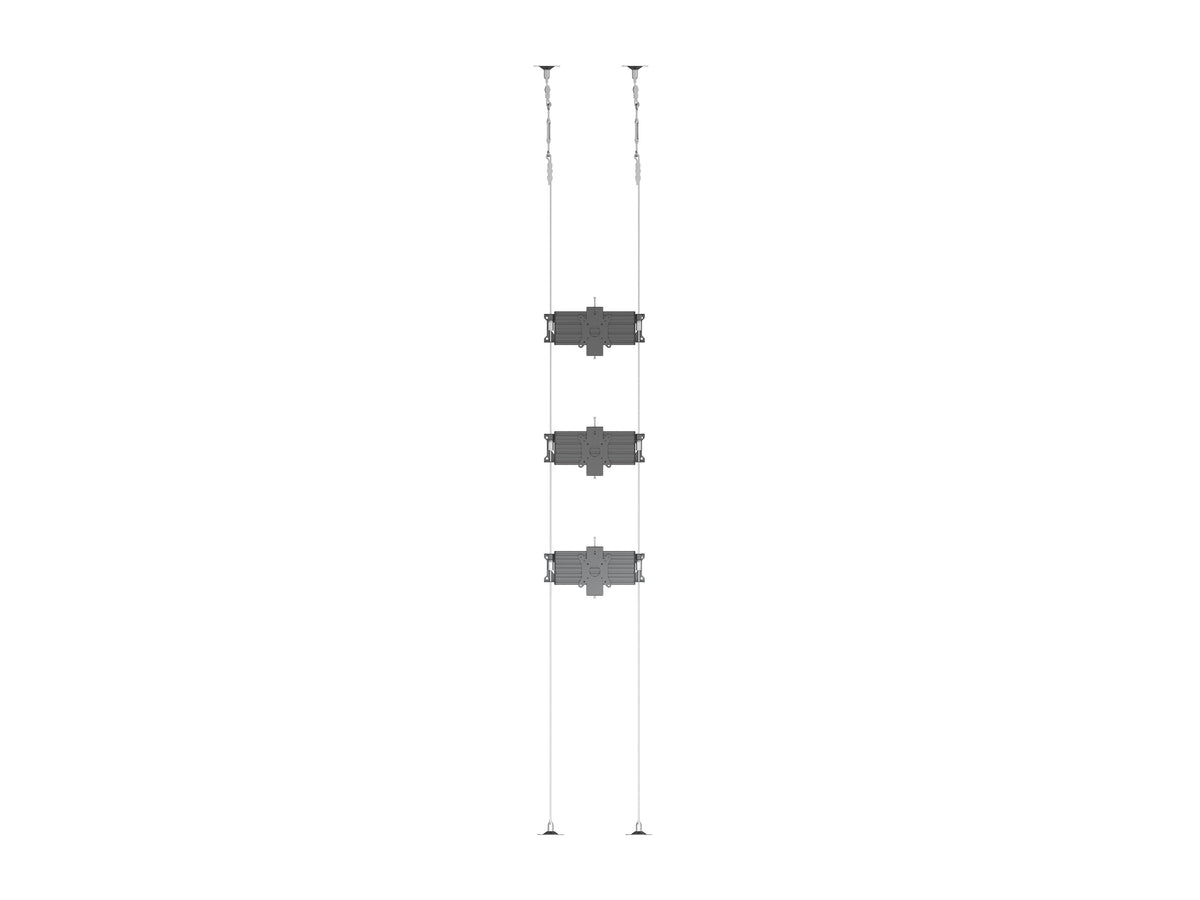

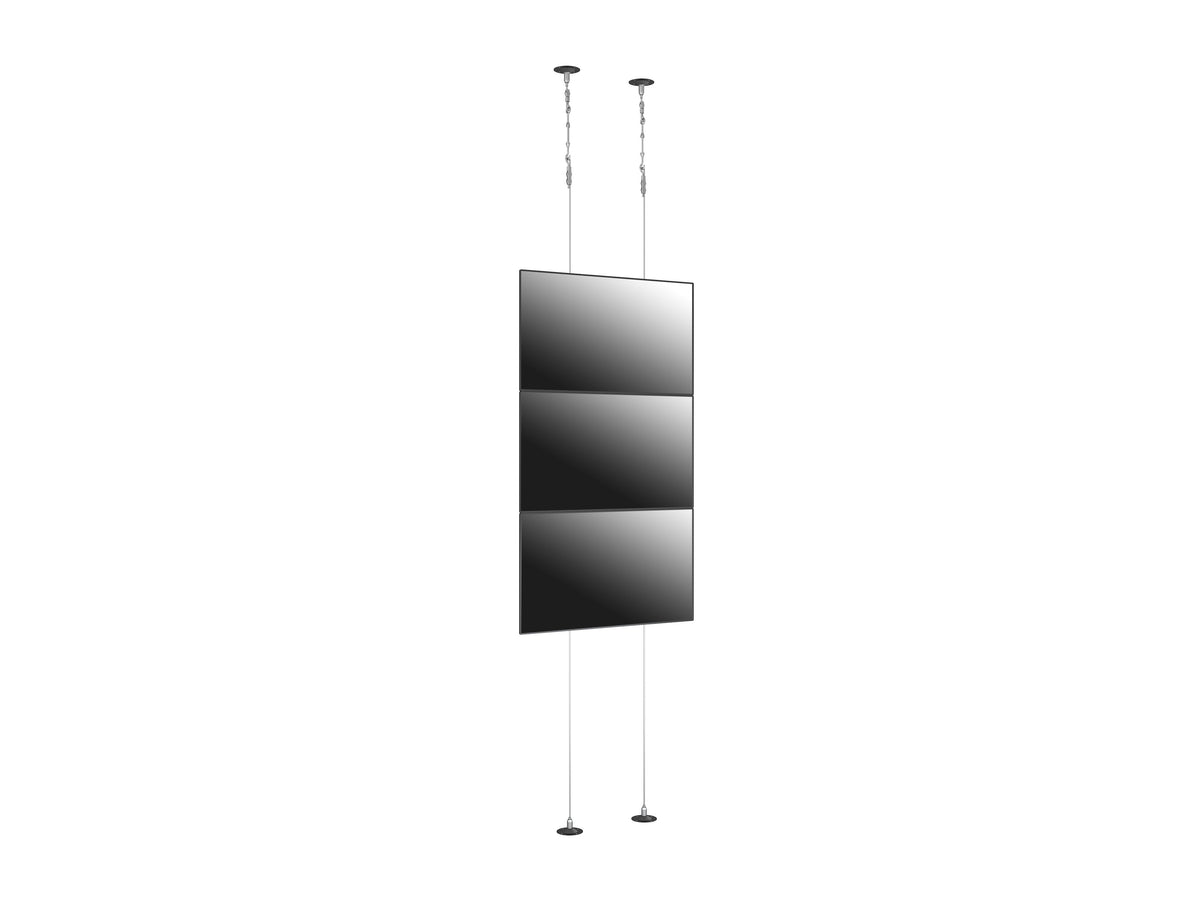

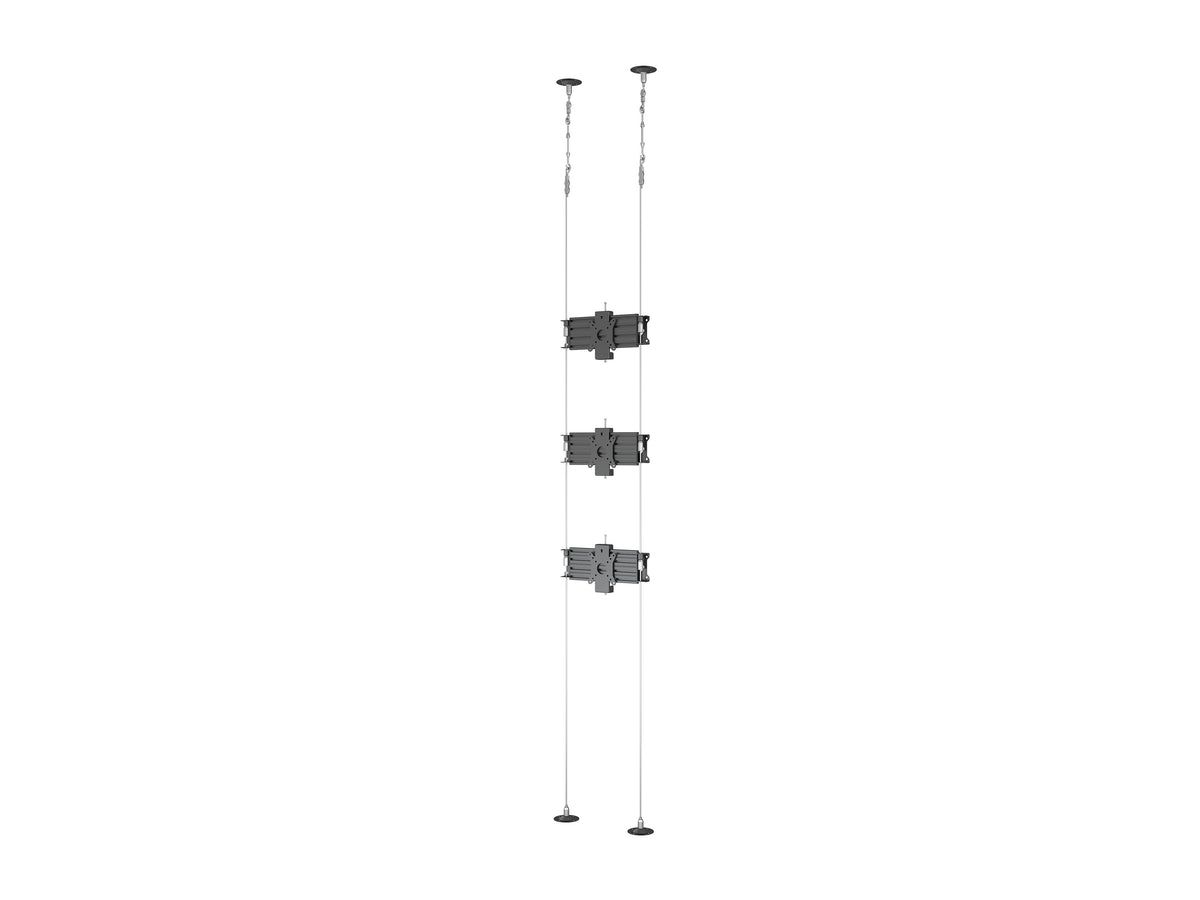

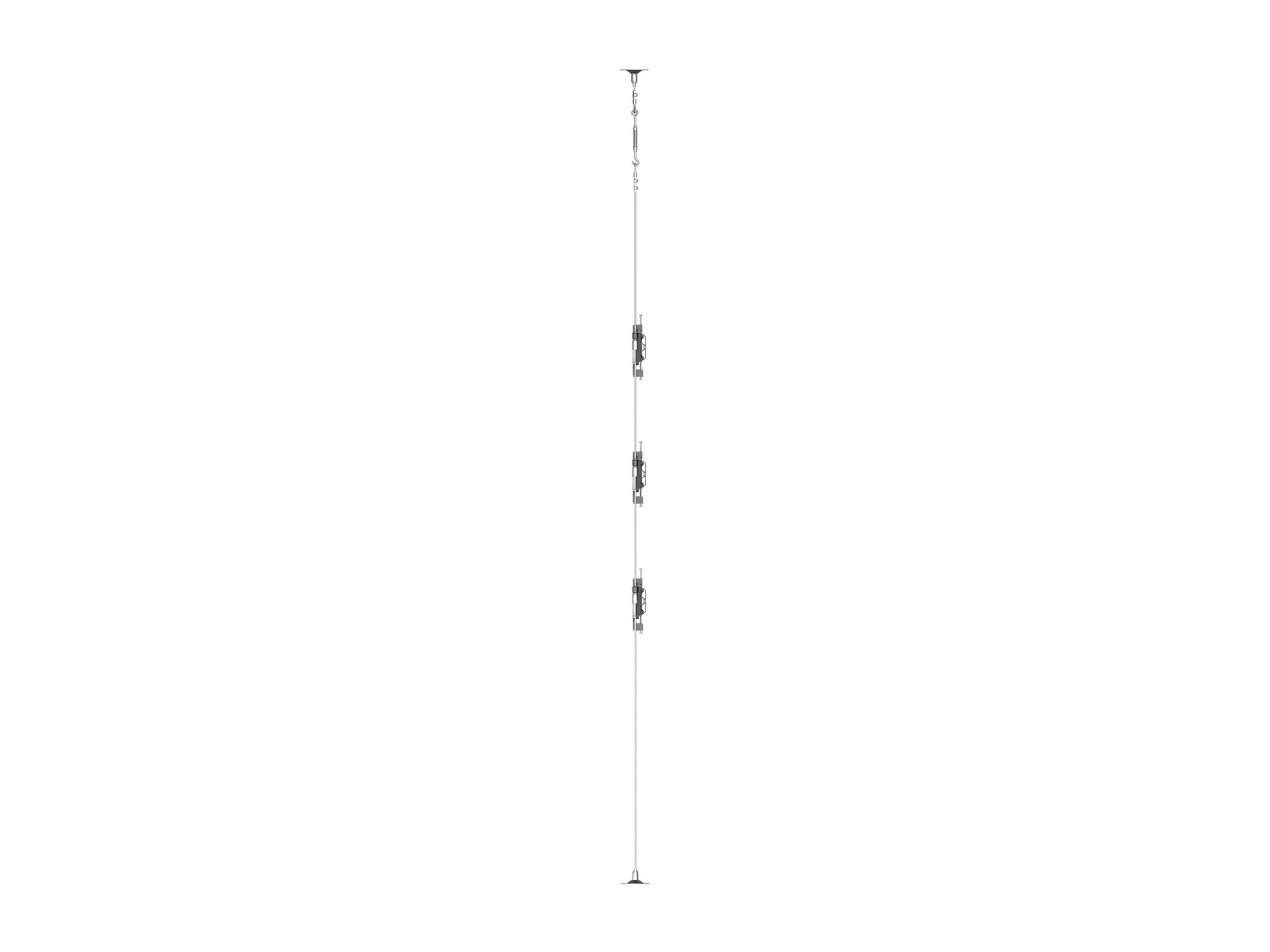

The M Pro Series – Wire MBC3U VESA 75/100 is a floor-to-ceiling ceiling mount solution designed for compact displays in high-traffic environments such as retail stores, quick service restaurants, and commercial spaces. It delivers a professional, space-saving installation while maintaining high visibility and modern aesthetics.
Using high-tensile steel wire, the mount offers secure suspension for single-sided installations and supports screen sizes from 27" to 32" (max load 10kg). It allows flexible screen positioning at any height and supports both landscape and portrait orientations, offering maximum adaptability to the application’s needs.
As part of the Multibrackets Pro Series, this system is modular and optimized for installer convenience. Integrated cable management ensures a clean finish, and the power click feature enables fast, safe installation. Ideal for digital signage, wayfinding, or menu board applications where minimal footprint and sleek design are key.
Highlights
Single-sided floor-to-ceiling wire mount for compact displays
Supports VESA 75x75 and 100x100 standards
Suspended using high-tensile wire for secure and stable mounting
Supports portrait and landscape screen orientations
Flexible height placement along the cable run
Integrated cable management system
Quick and secure power click installation

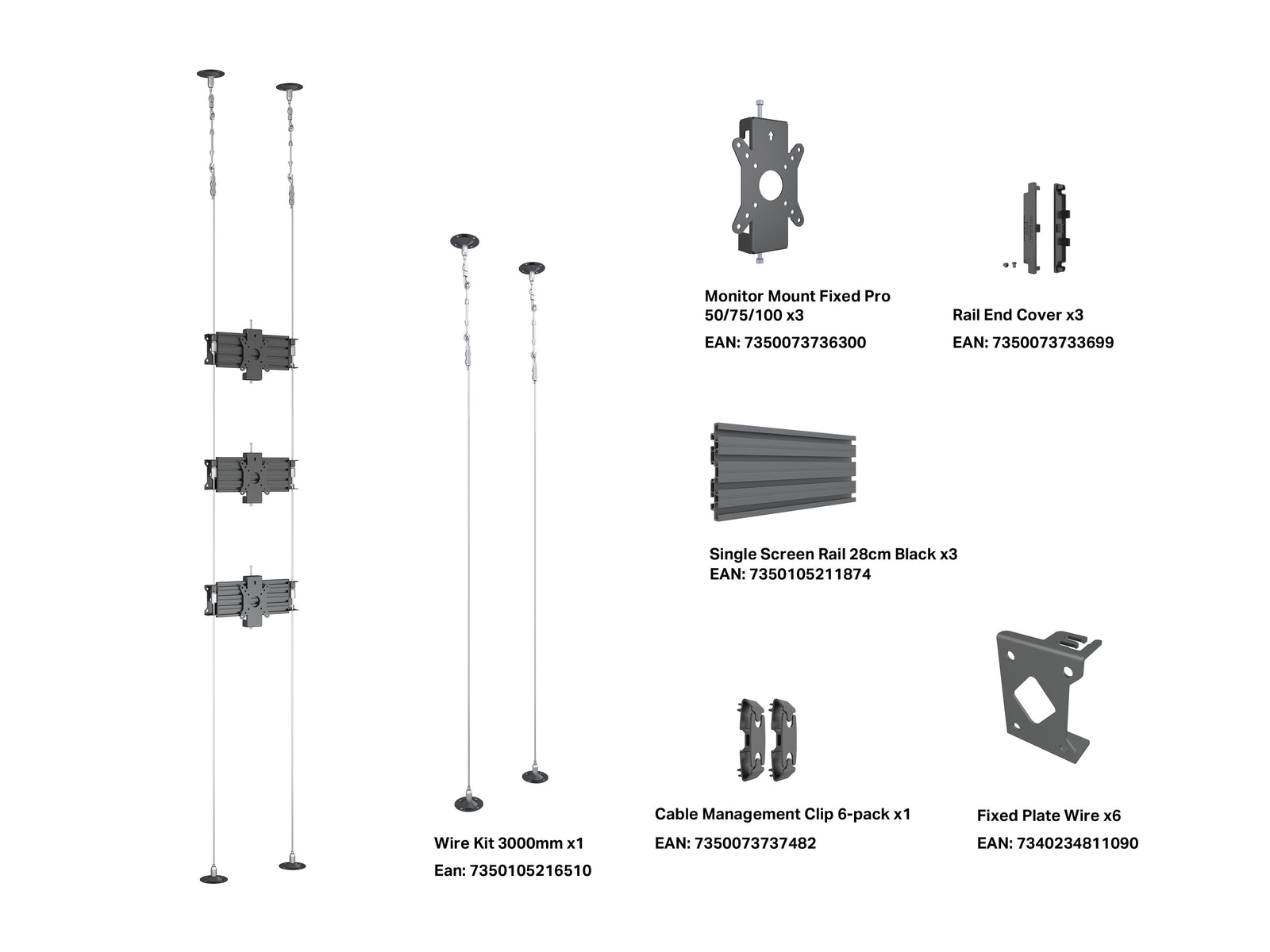

Hardware kit included
| Article No: | 7 340 234 811 304 | For screen size: | 27”-32" |
| Type: | Double Side MBC3U | Universal & VESA standard: | Up to 100x100mm |
| Material: | Steel, Aluminium | Color: | Black |
| Surface Finish: | Powder coating | Weight: | 14 kg |
| Measurements: | 51.5x27.3x15.5cm | Max Load: | 10 kg per screen |
| Wire length: | Adjustable: to max: 3000 mm | Installation: | Samsung OM32D + other smaller 24"-32” displays not model specified here (check measurements) |
| Tilt: | No | Swivel: | No |
| Rotate: | No | Wire thickness: | 5mm |
| Cable management: | Yes | Warranty: | 5 years |
| Retail Package Parcels: | 1 pcs | Retail Package Measurements: | 51.5x27.3x15.5cm |
| Retail Package Weight: | 14 kg | Distribution Package Parcels: | 1 pcs |
| Distribution Package Measurements: | 51.5x27.3x15.5cm | Distribution Package Weight: | 14 kg |
| Description | Downloads |
|---|---|

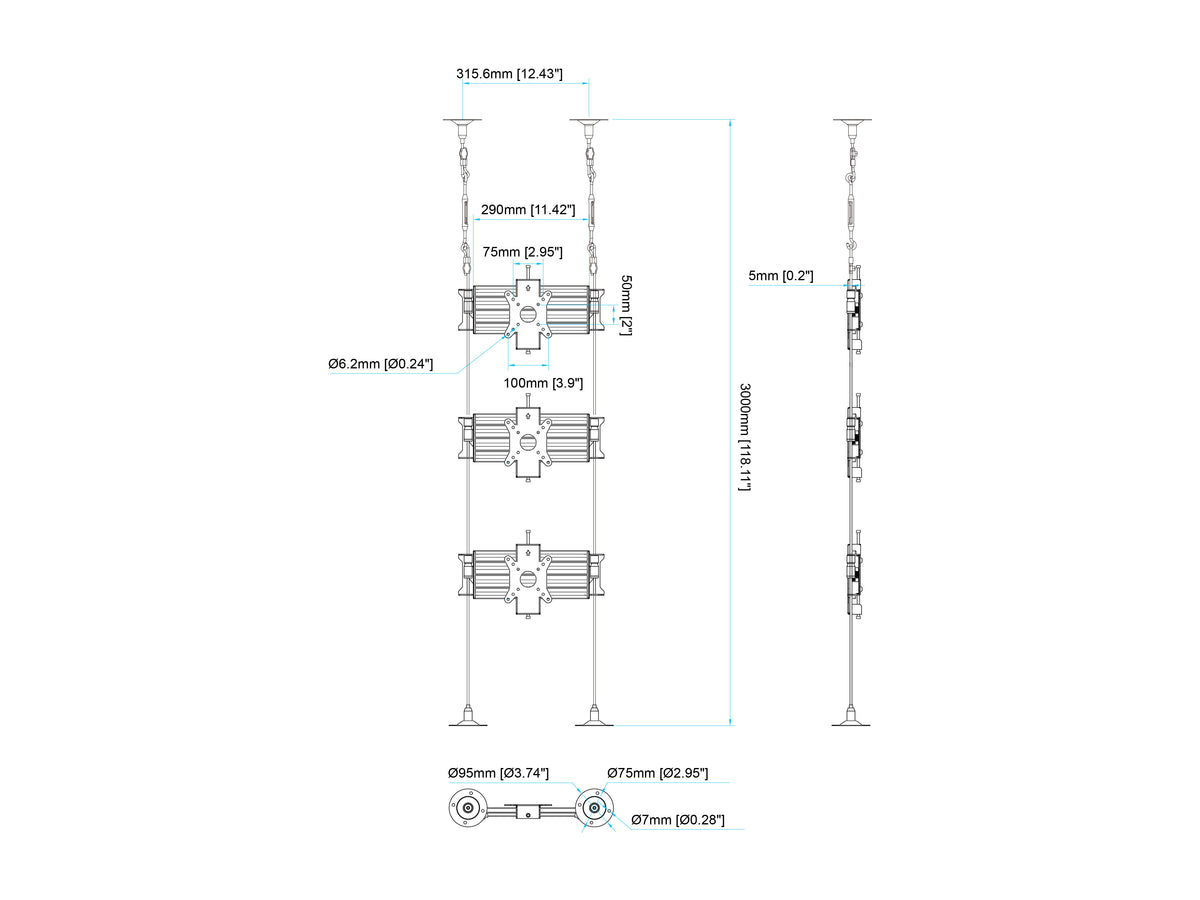

| Drawing | Download |
