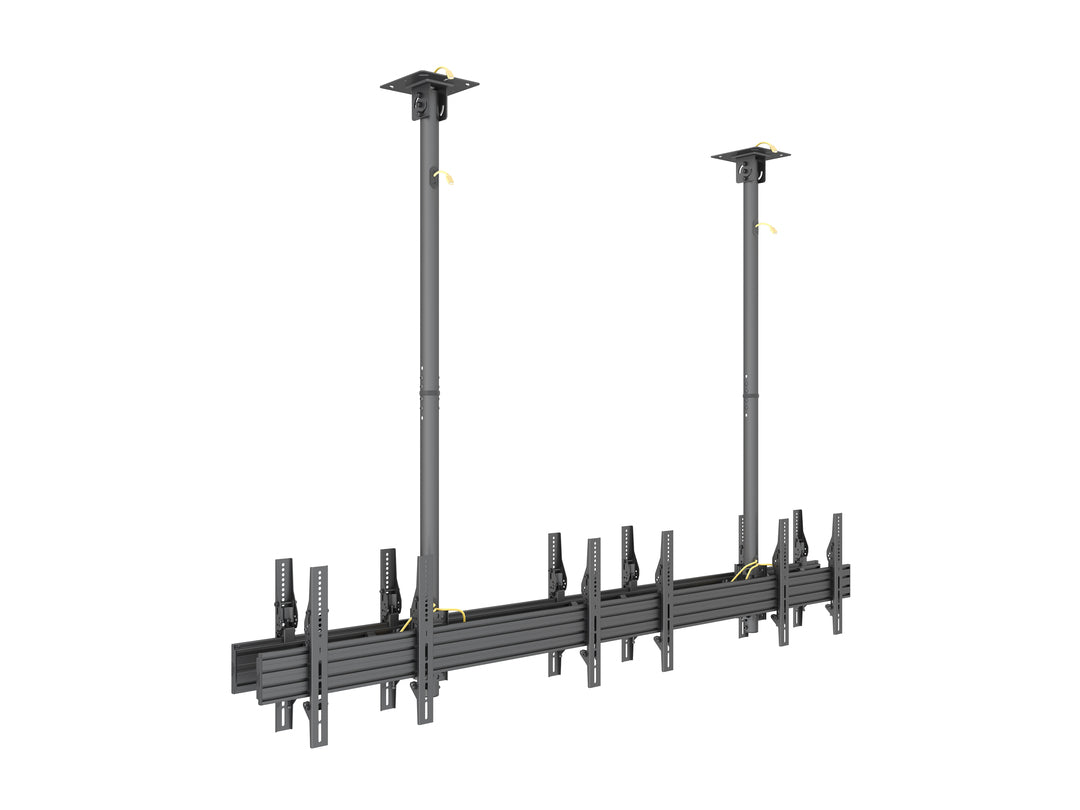

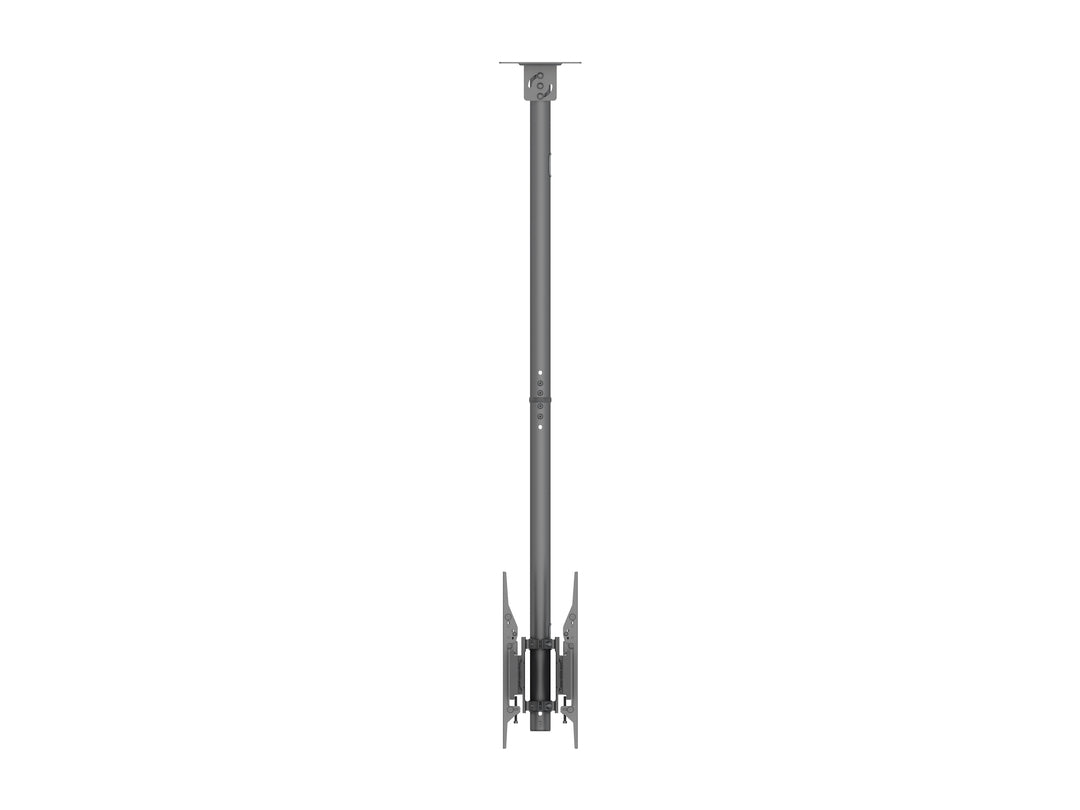

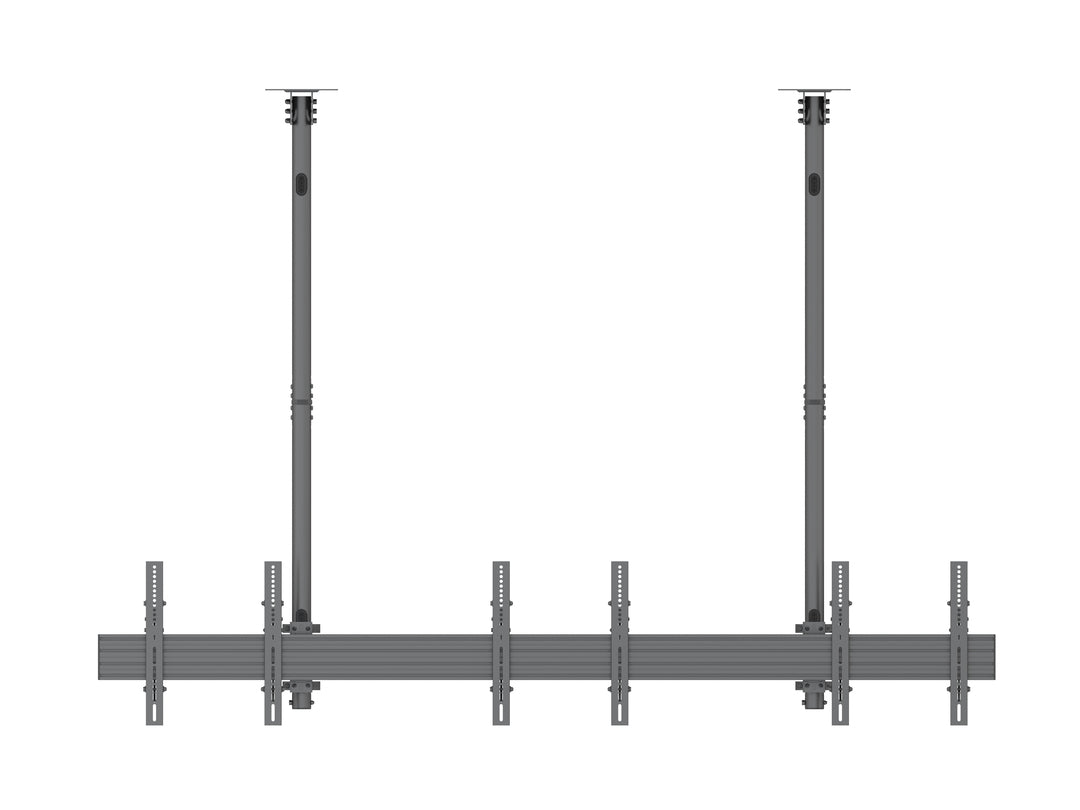

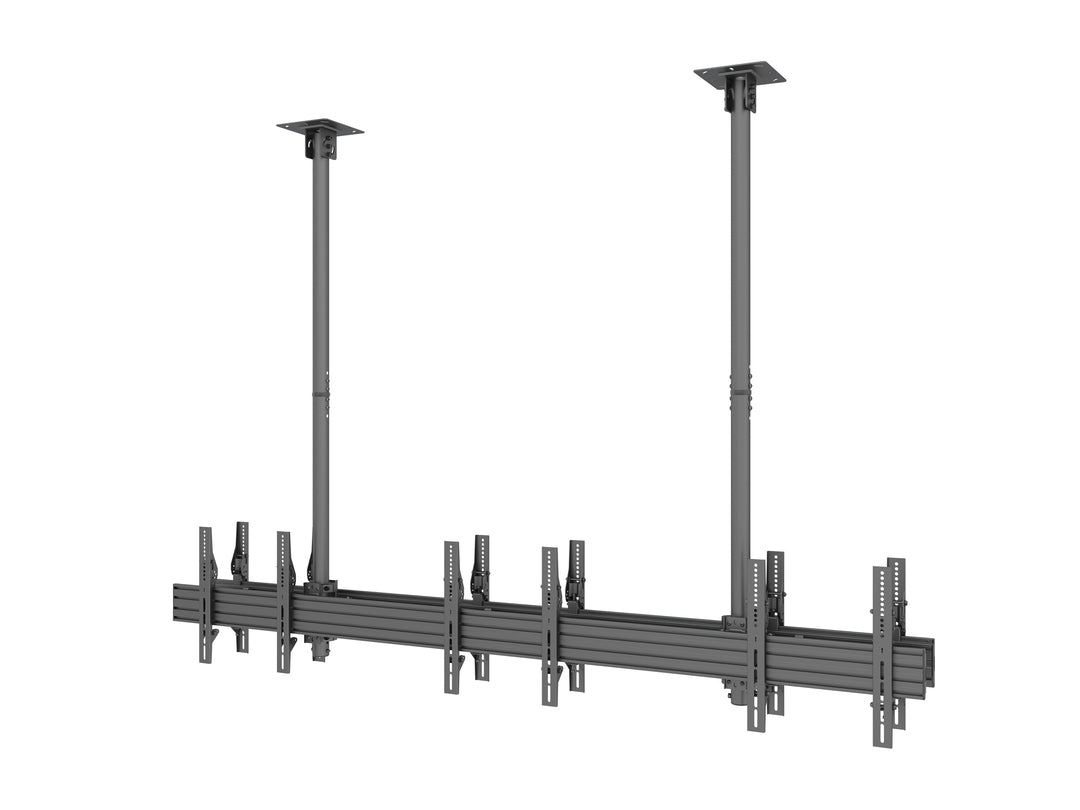

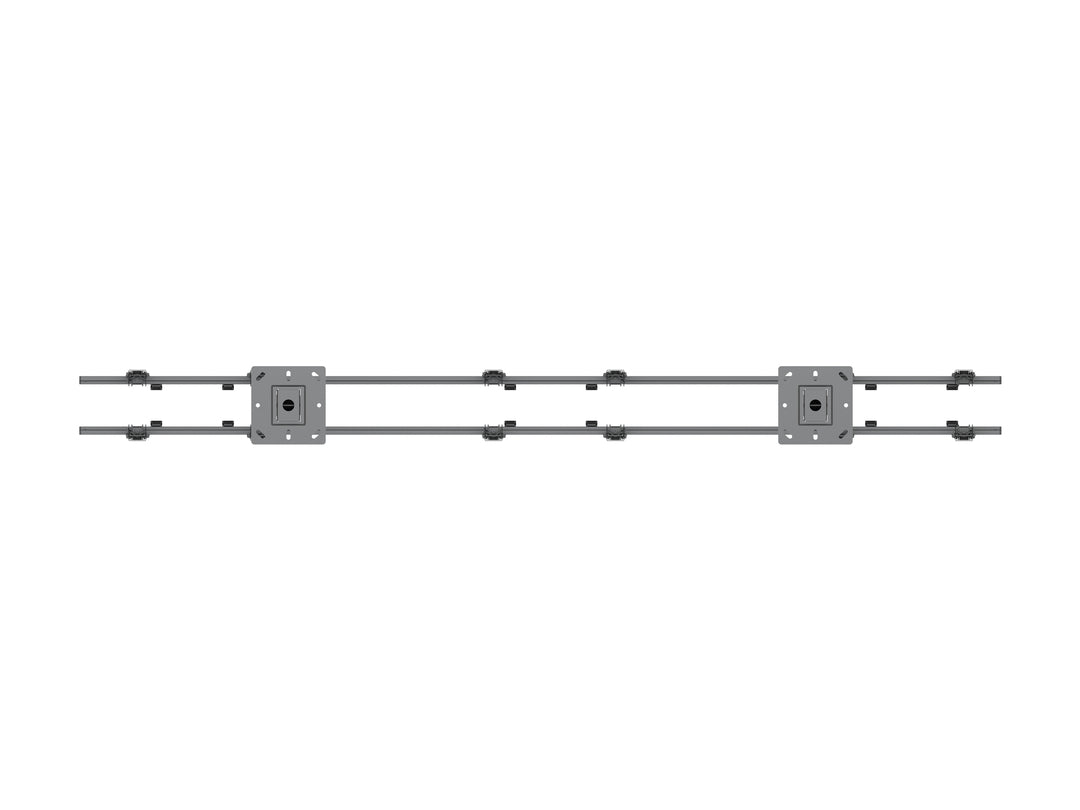

Multibrackets MBC3X1U2 Display Ceiling Mount Pro

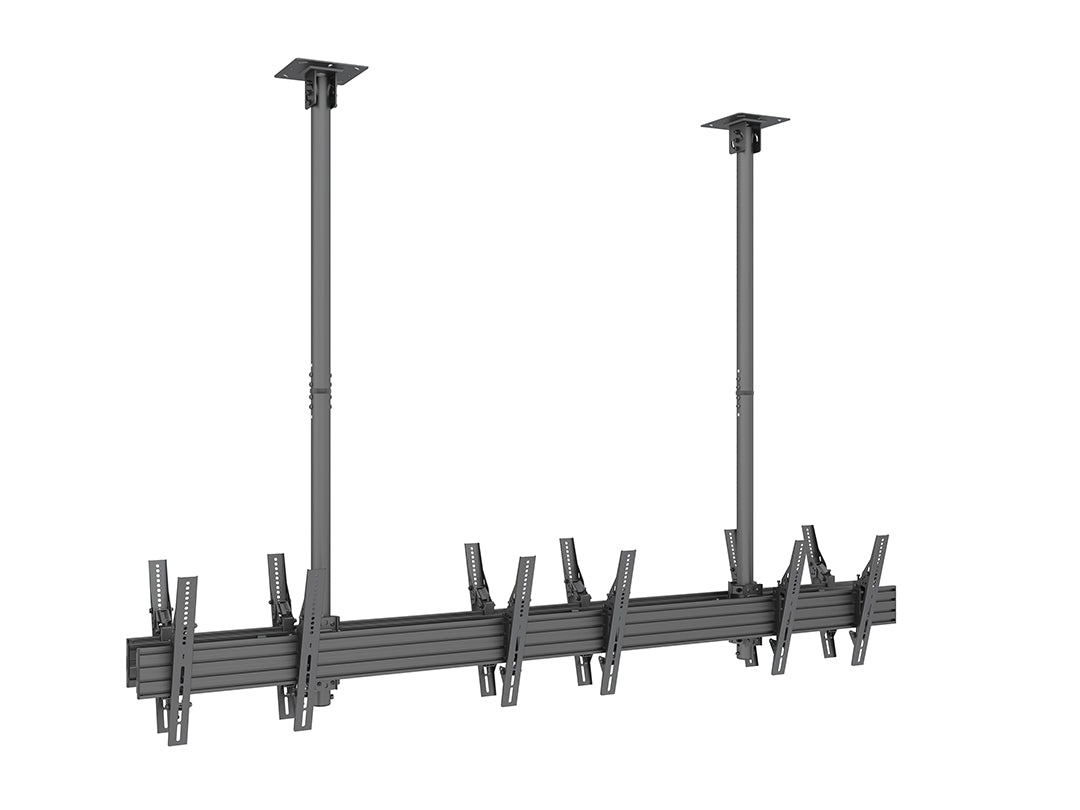

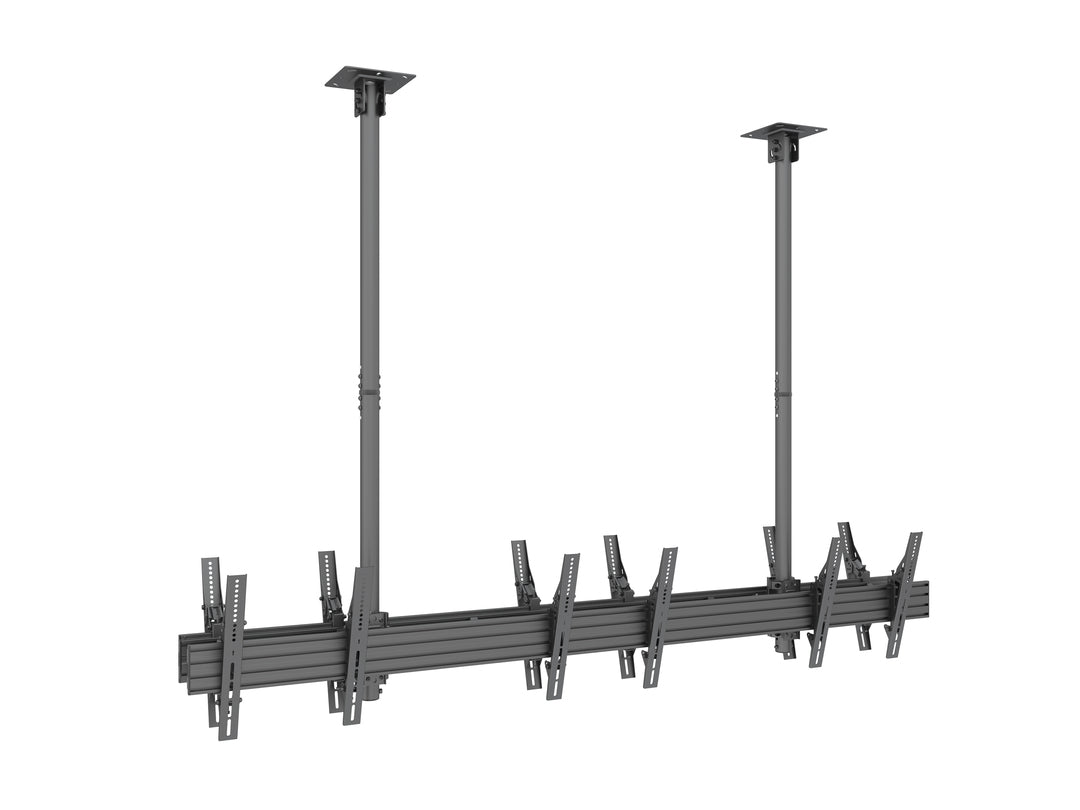

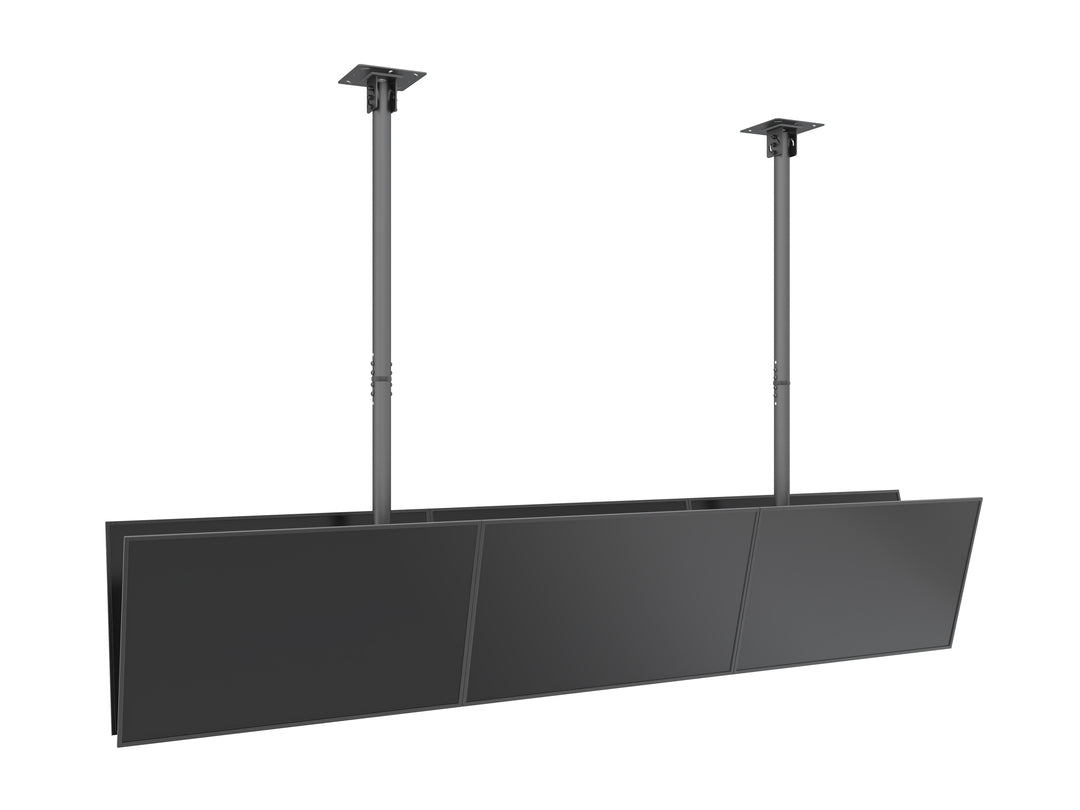

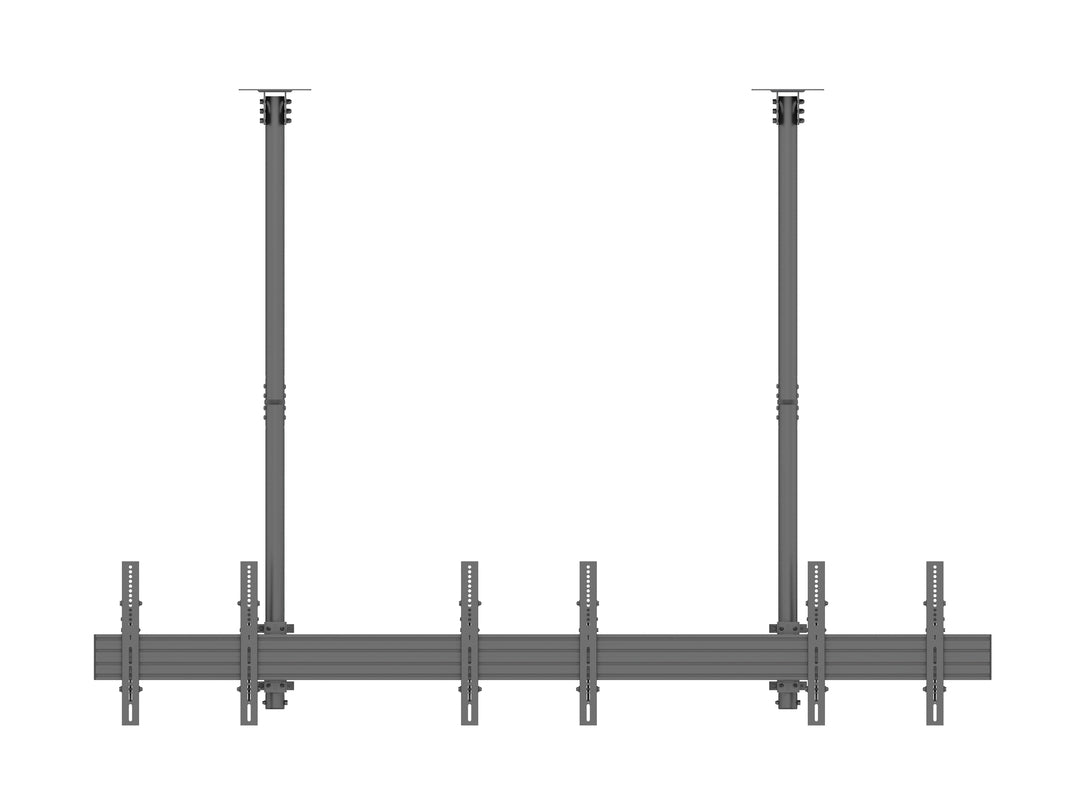

M Ceiling Mount Pro MBC3X1U2 - Ceiling mount for LCD display, steel, 3m length, 6 screens, dual side, tilt arms, VESA Max 600x400 - screen size: 40"-65" - black
Multibrackets Pro Series M Ceiling Mount Pro MBC3X1U2 is our innovative - ready-to-be-installed Dual Side-Display Ceiling Mount.
The new professional Pro Series A/V line from Multibrackets was designed with the installer in mind. Modular, easy to configure, quick to install, and simple to maintain. Working closely with installers we created a range with close to unlimited flexibility. This model the M Ceiling Mount Pro MBC3X1U2 is no exception. The product provides the versatility and flexibility demanded by installers. Based upon the Pro Series strong and ultra-flexible aluminum rail it is completely modular and has built-in cable management throughout the entire solution to quicken installation and create an esthetic result worth the public eye.
Its modular construction installers have vast possibilities to change, update, and reconfigure its design if ideas change over time then Pro Series can follow.
Designed with our Scandinavian heritage in mind and providing a clean Nordic look each part and detail serves its purpose. The result is a sleek Nordic solution emphasizing quality and function. Used in a variety of environments this ceiling mount is truly versatile and is made of the highest quality materials.
The Pro Series possibilities to extend pipes and add details by individual choice are vast so that one can tailor each mount to its location and function. The Pro Series includes hardware so a basic installation should not be a hassle.

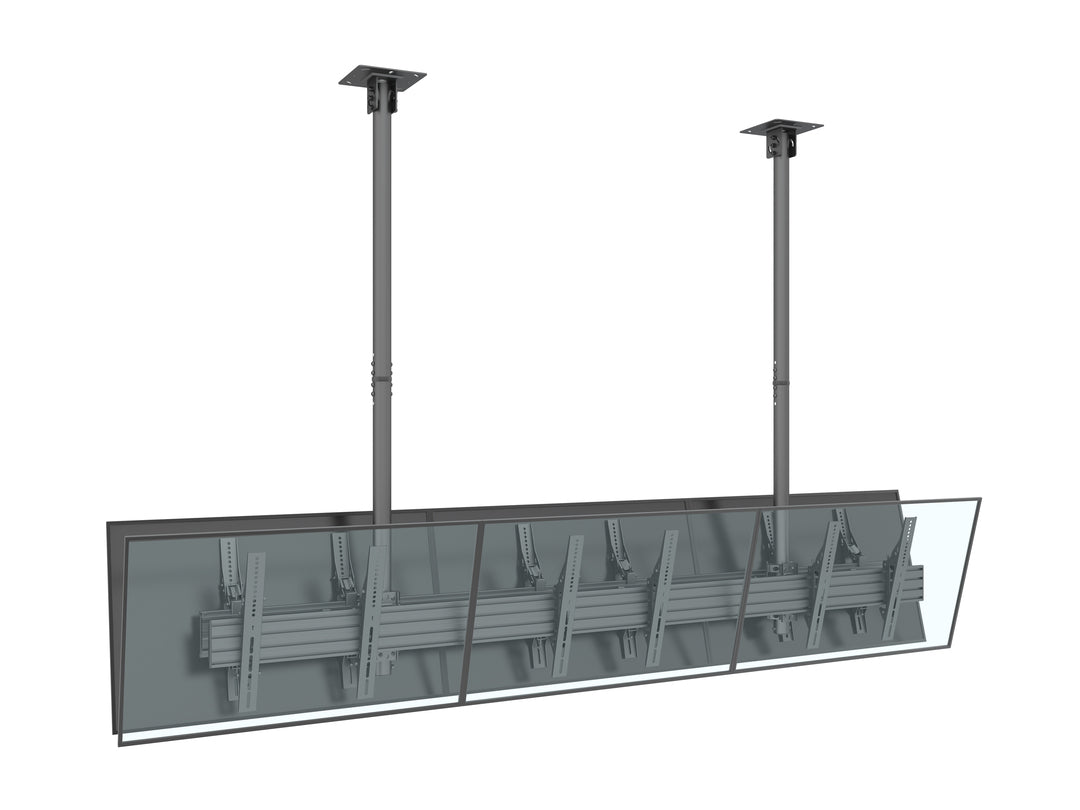

Multibrackets Pro Series Public Ceiling Mounts is ideal for any large screen digital signage ceiling application.
Highlights
A professional, flexible, and modular product
Includes VESA adapters for compatibility up to VESA 600x400

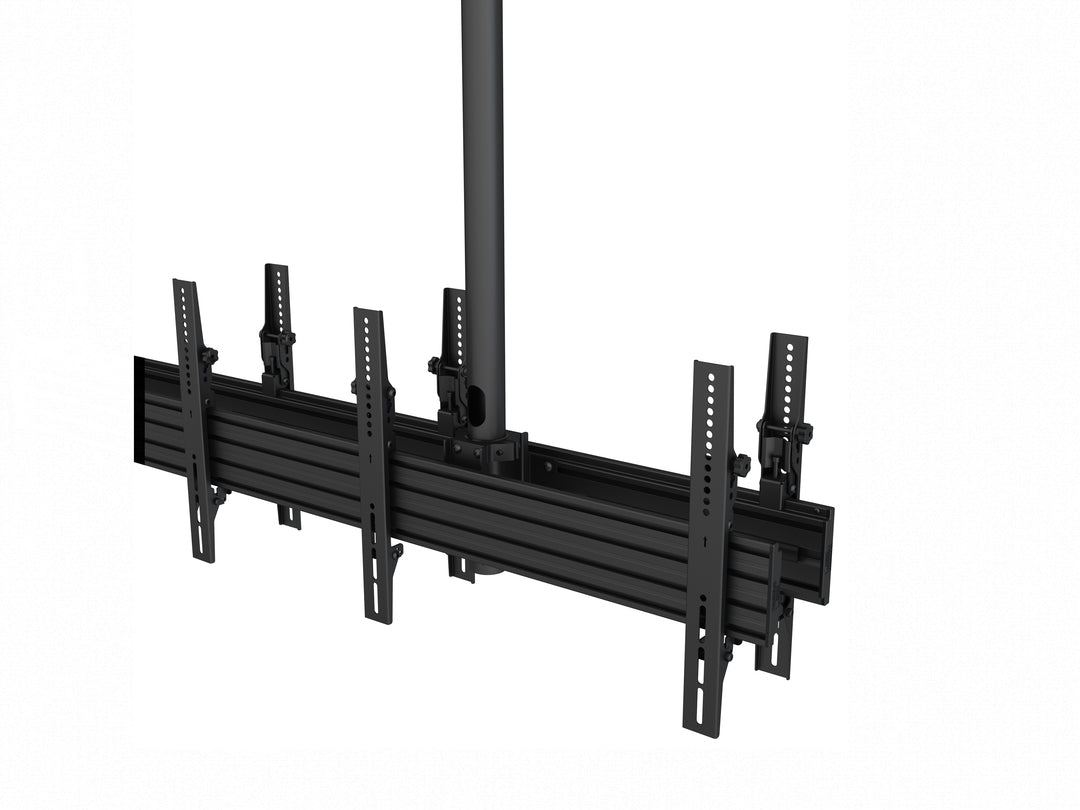

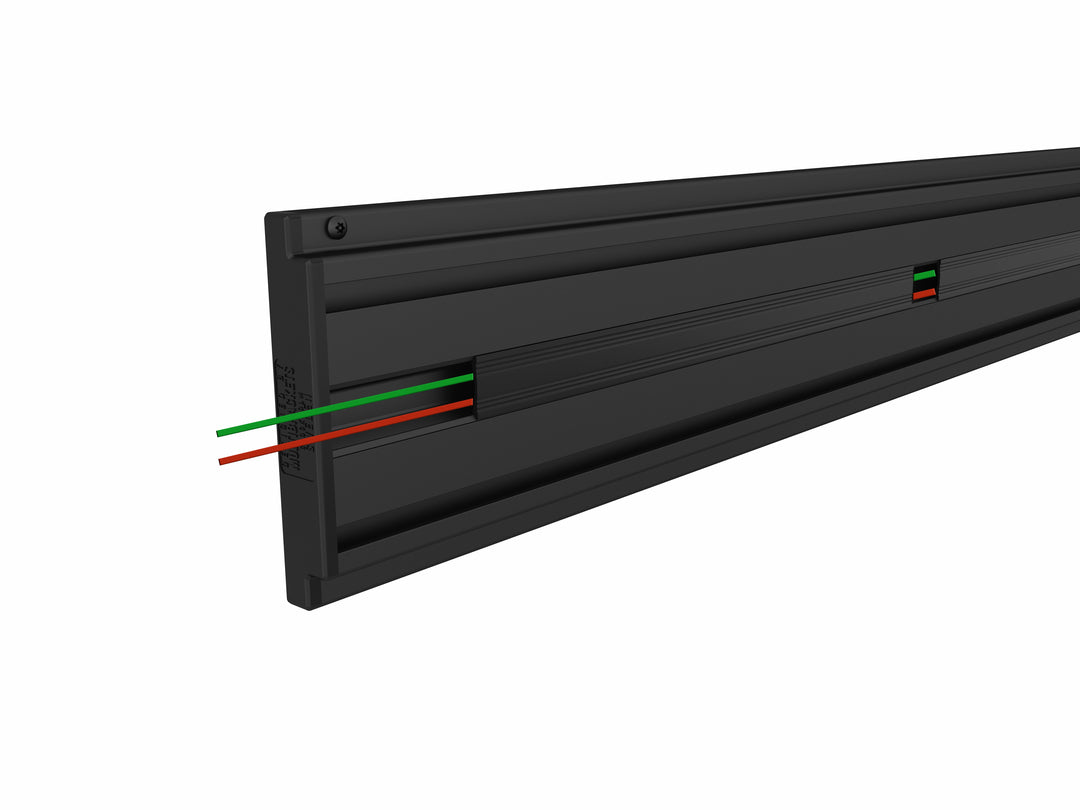

Integrated cable management throughout the entire solution
Power click install for an easy, fast, and safe installation

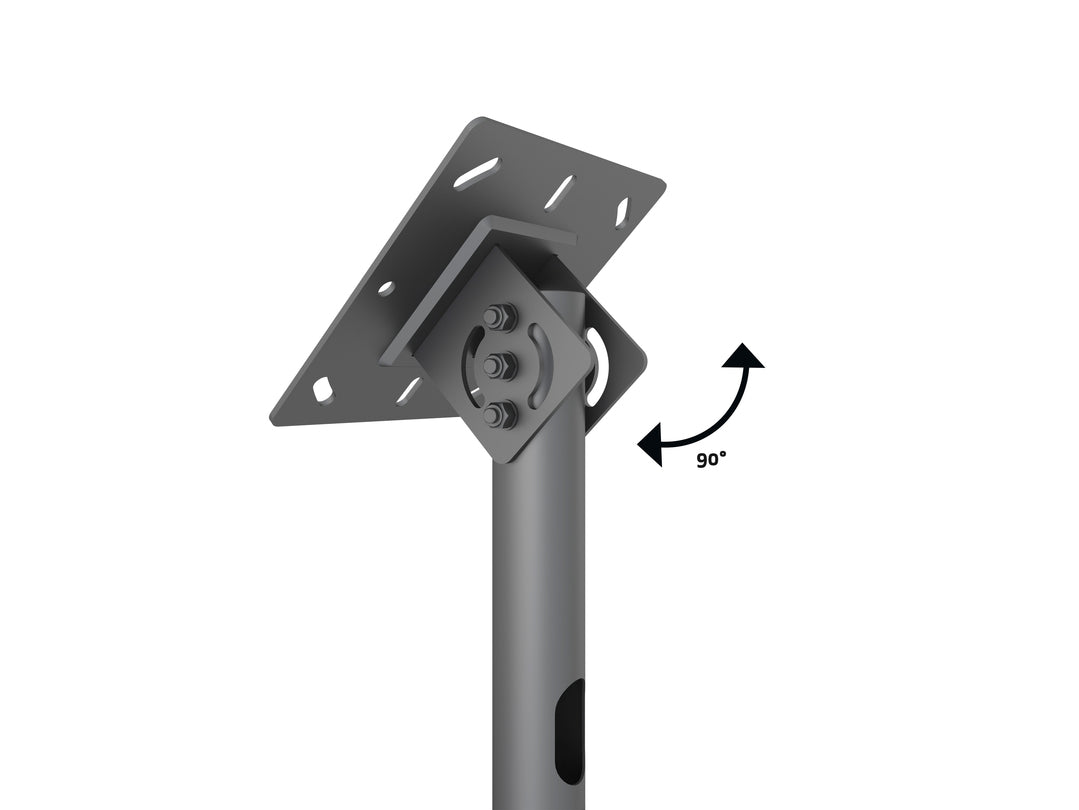

Ceiling plate included
Portrait or landscape position of the screen possible

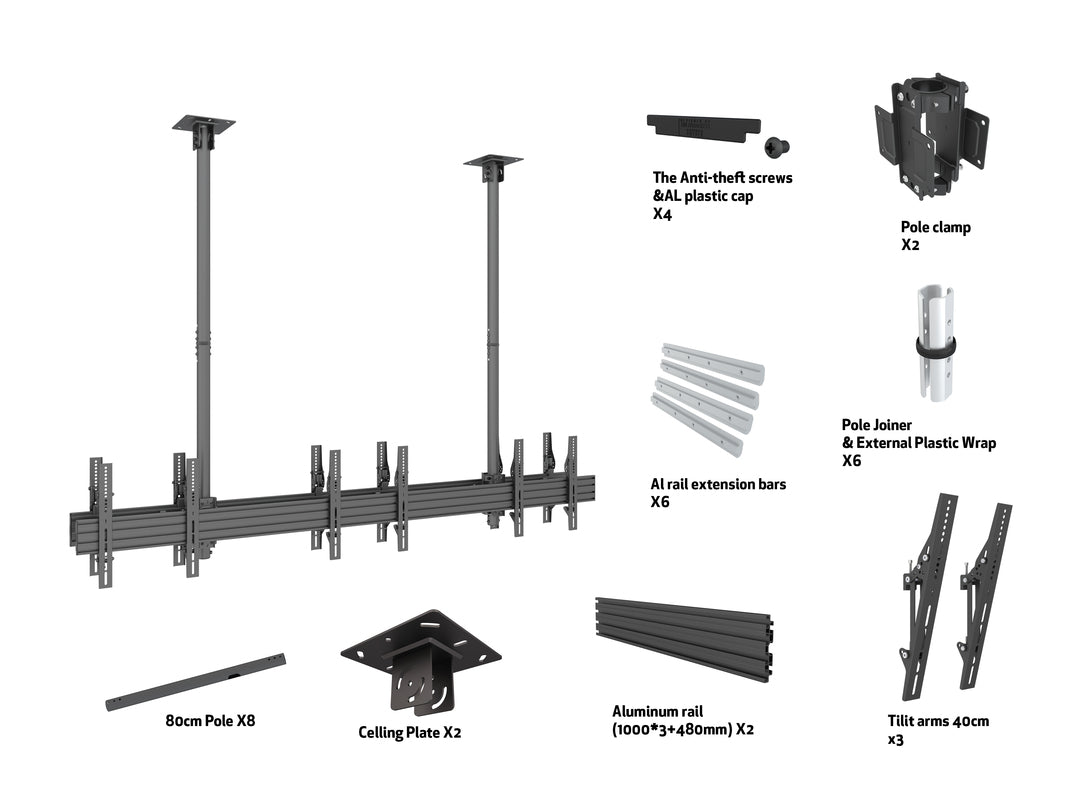

Hardware kit included
-
| Article No: |
7 350 073 733 507 |
| For screen size: |
40”-65" |
| Type: |
Dual Side MBC3X1U2 |
| Universal & VESA standard: |
Adjustable from 100x100 to 600x400 max |
| Optional VESA: |
800x600 |
| Material: |
Steel, Aluminium |
| Color: |
Black |
| Surface Finish: |
Powder coating/Anodic Oxidation |
| Weight: |
43 kg |

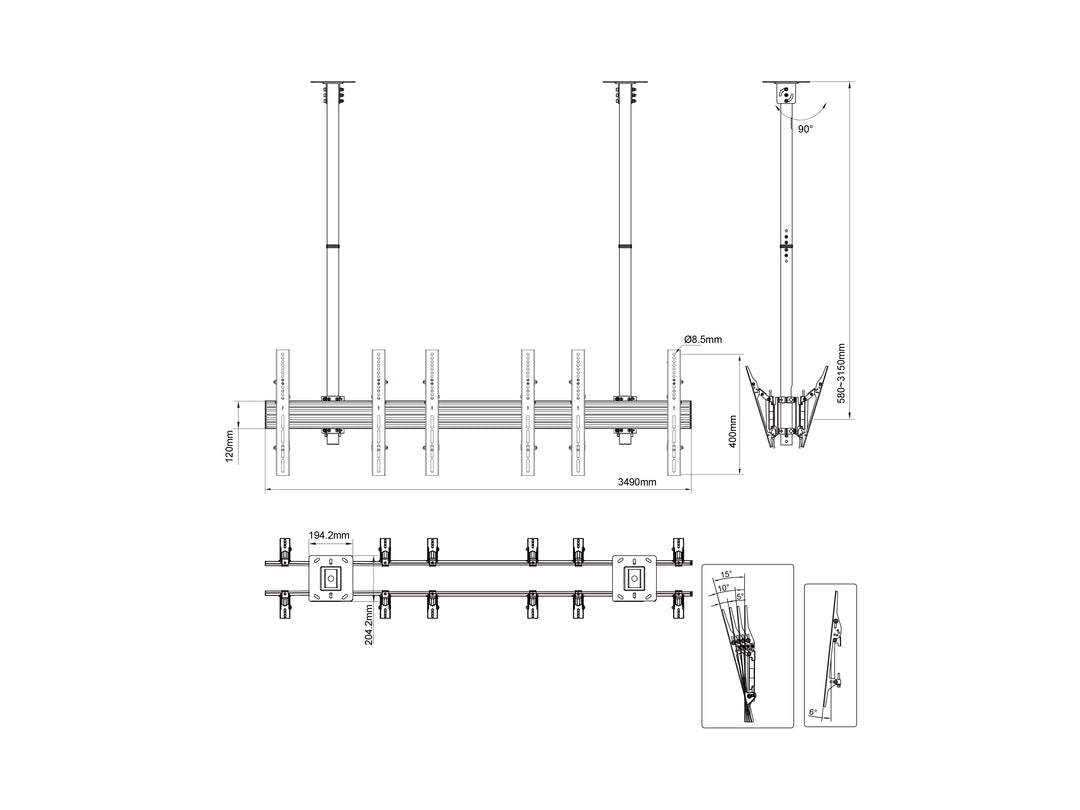

| Measurements: |
369x338x20 cm |
| Max Load: |
30 kg per screen |

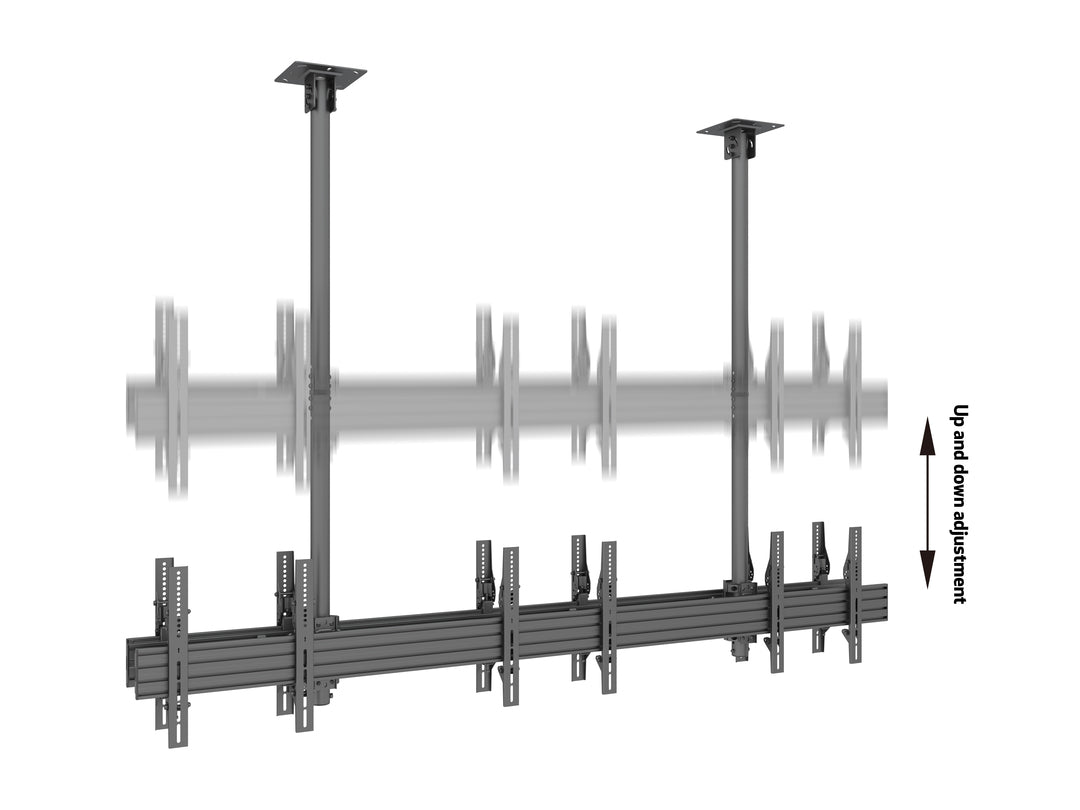

| Pillar length: |
Min: 580mm to Max: 1550 mm from ceiling to VESA plate center |

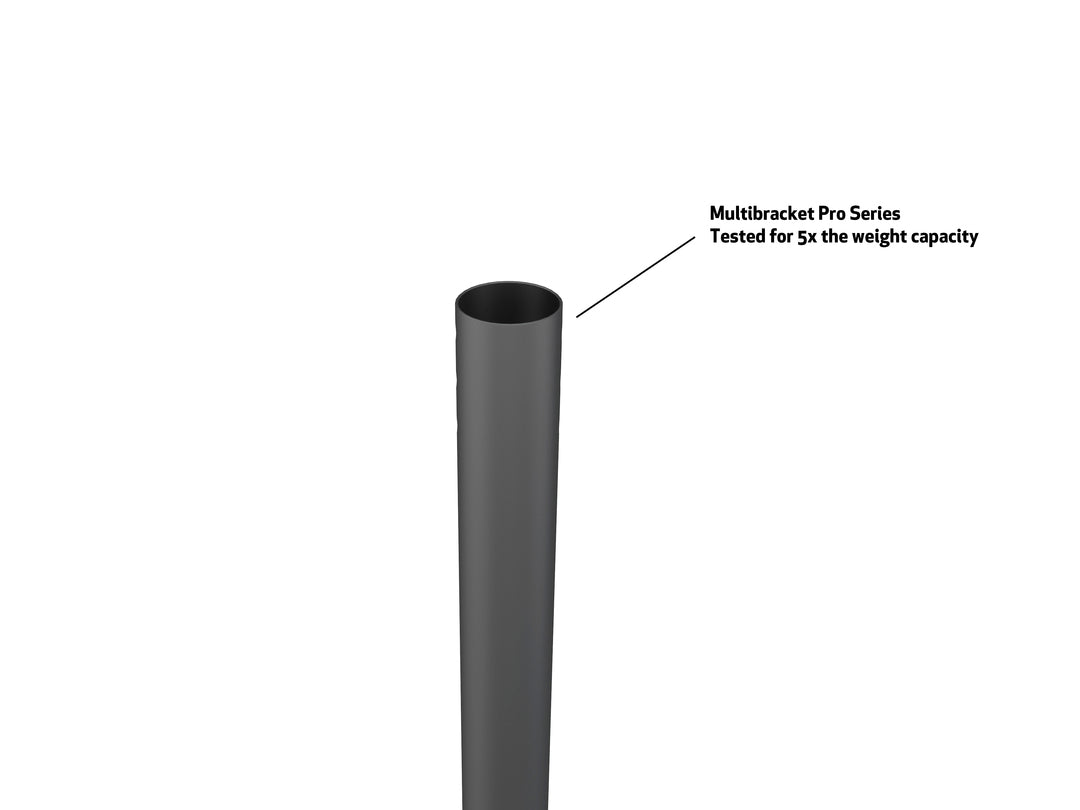

| Extension pipes: |
3m (800mm*8pcs) included |

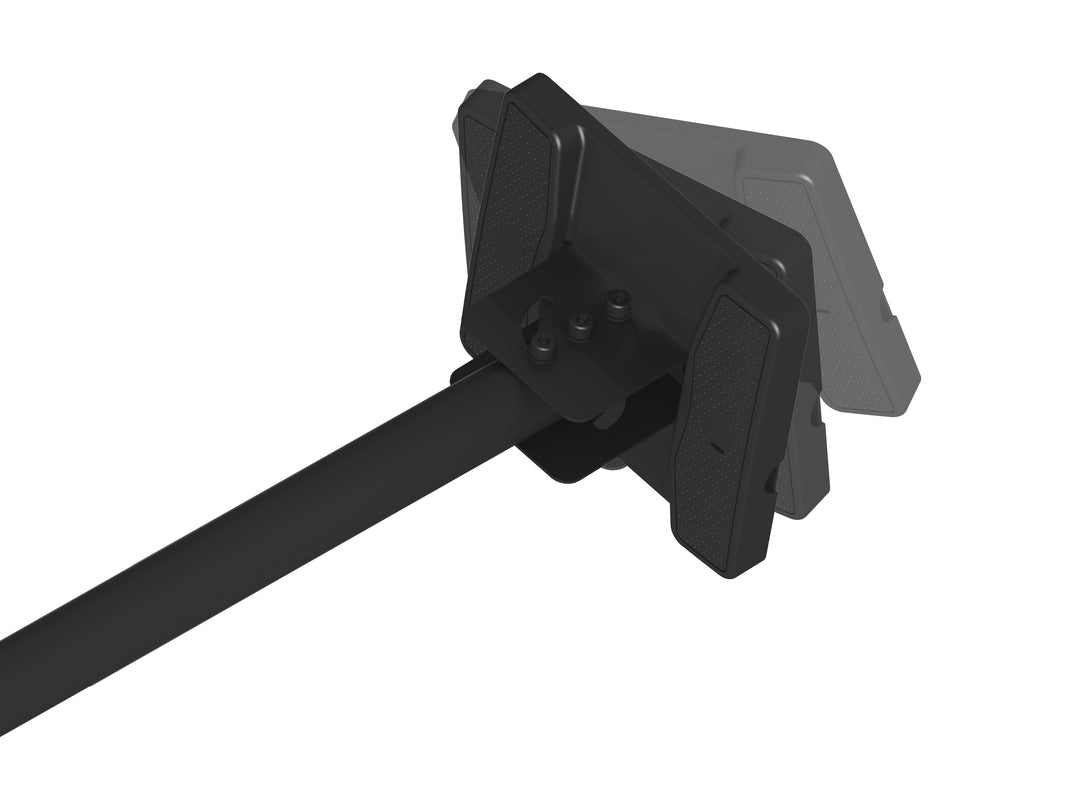

| Tilt: |
Yes, -6°~+15° |
| Swivel: |
Yes, 360° |
| Rotate: |
Yes, ±4° |
| Cable Management: |
Yes |
| Options: |
Extension pipes: 0.8m, 1.5m, 3.0m |
| Certifications: |
CE |
| Warranty: |
5 years |
| Retail Package Specification: |
|
| Package Parcels: |
1 pcs |
| Package Measurements: |
103 x 37 x 33 cm |
| Package Weight: |
46.90 kg |
-
