Multibrackets MBF2x3U M Pro Series Video Wall Stand - (32"-65")

• Description
• Specifications
• Downloads

•
  M Pro Series Video Wall Stand MBF2x3U 300 Micro-Adjustable - Stand for 6 LCDs - aluminum - black - screen size: 32" - 65" - mounting interface: 400 x 400 mm, micro-adjustable - floor-standing

  M Pro Series Video Wall Stand MBF2x3U 300 Micro Adjustable, 6-screen freestanding video wall stand makes it possible to construct video walls in prominent locations for temporary applications.

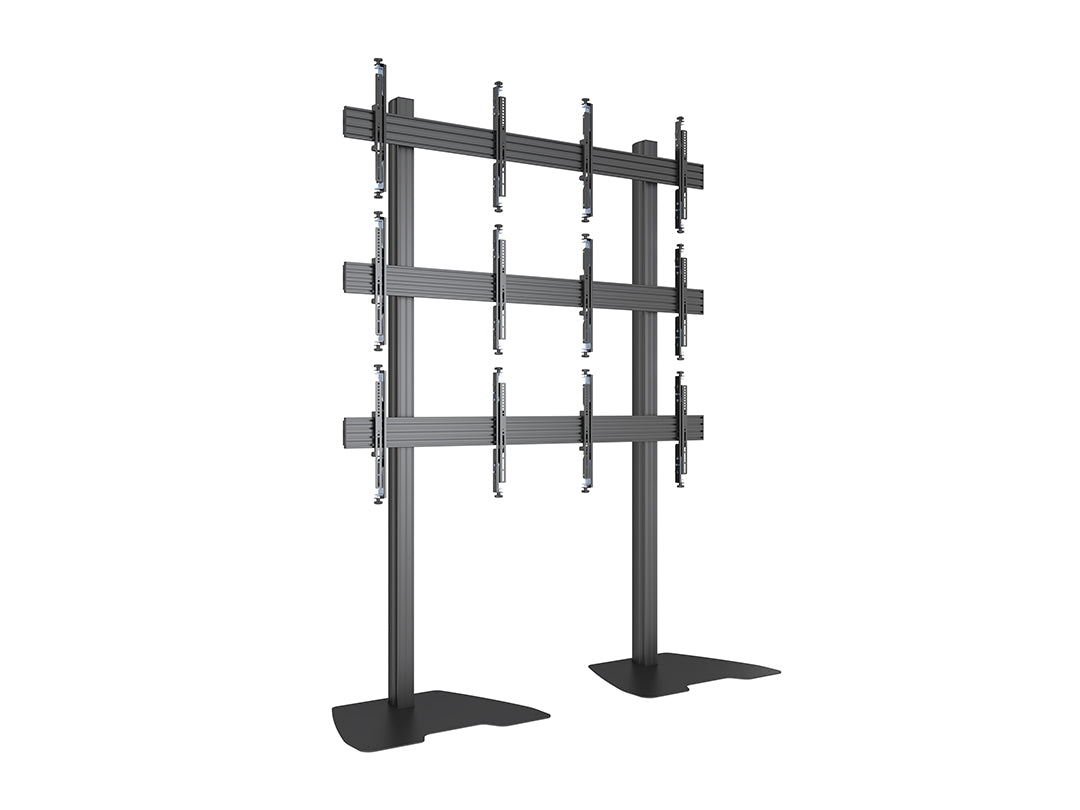

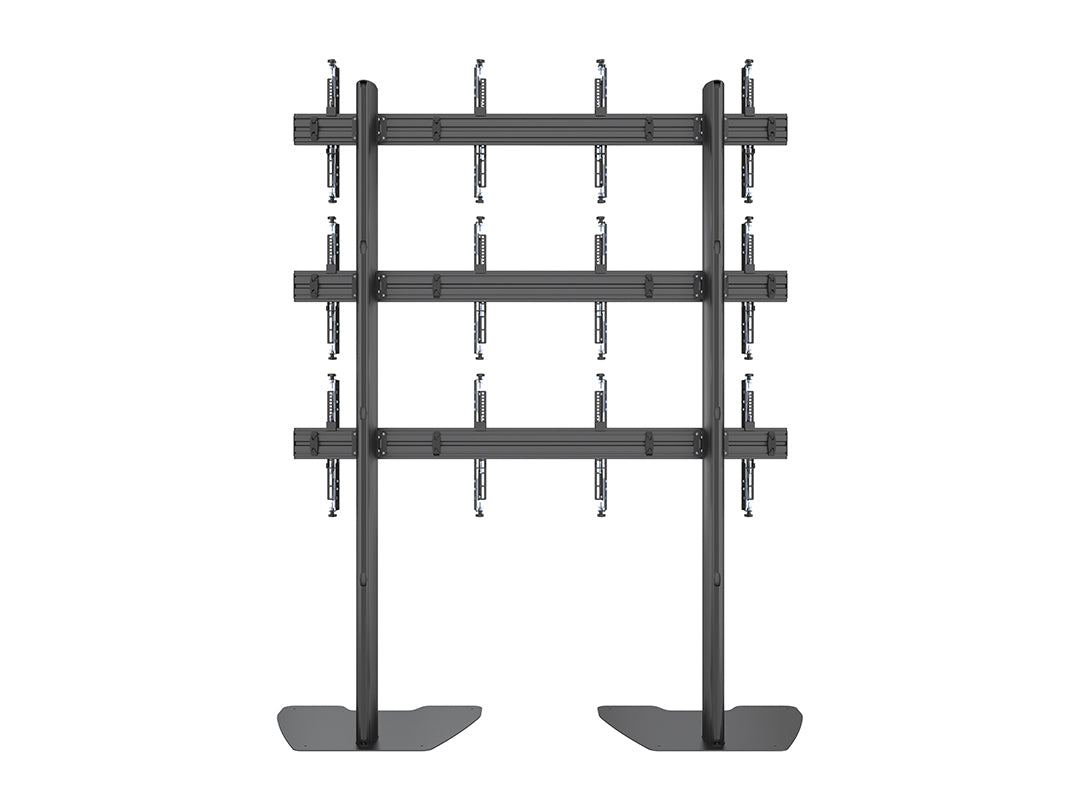

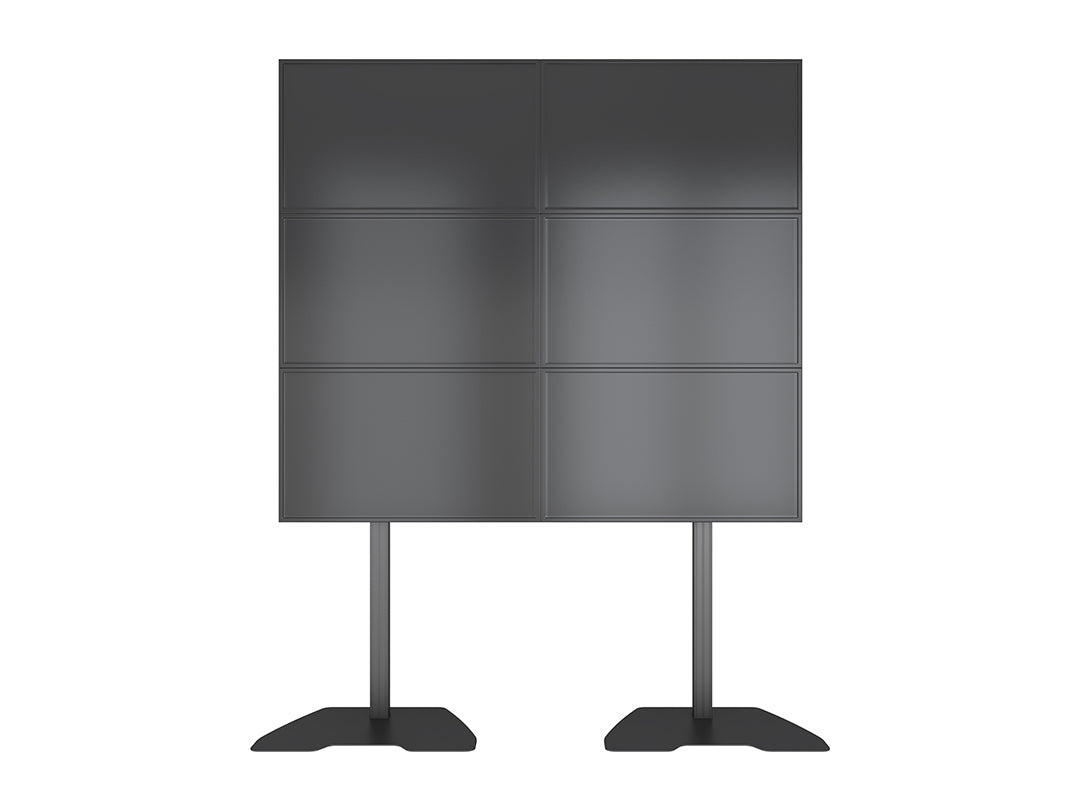

  M Pro Series Video Wall Stand MBF2x3U, 6 Screens (3x2) screen array configuration is 2 screens wide x 3 screens high.

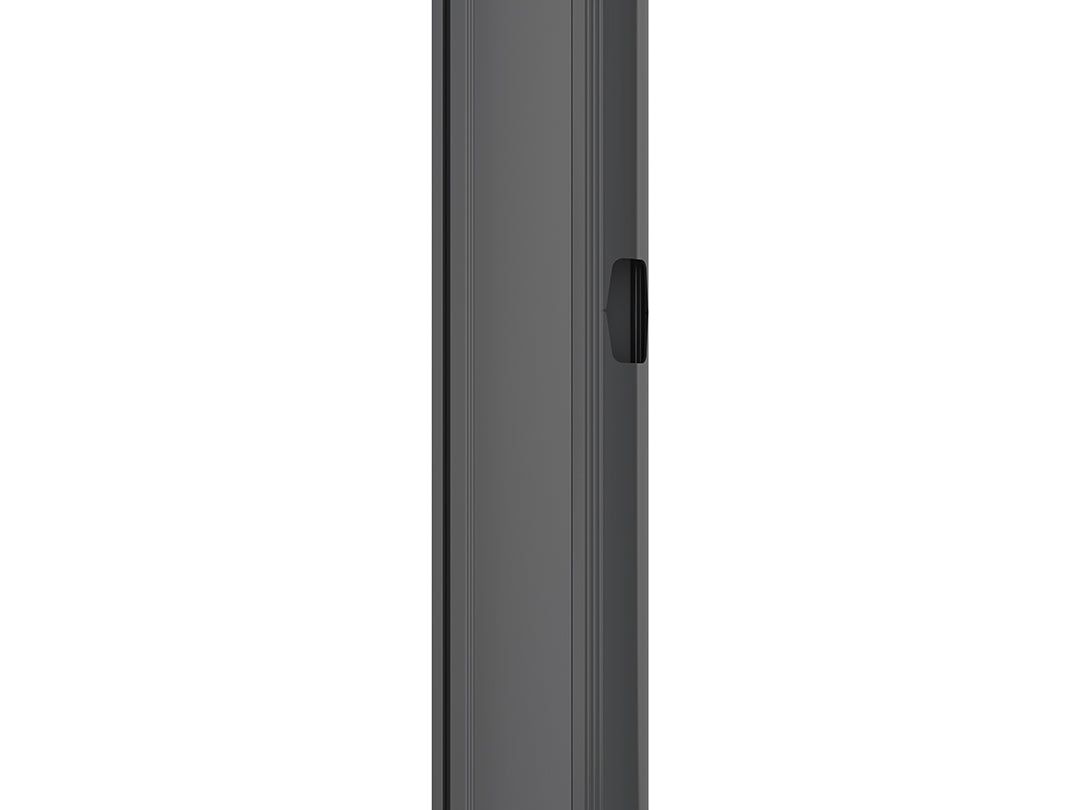

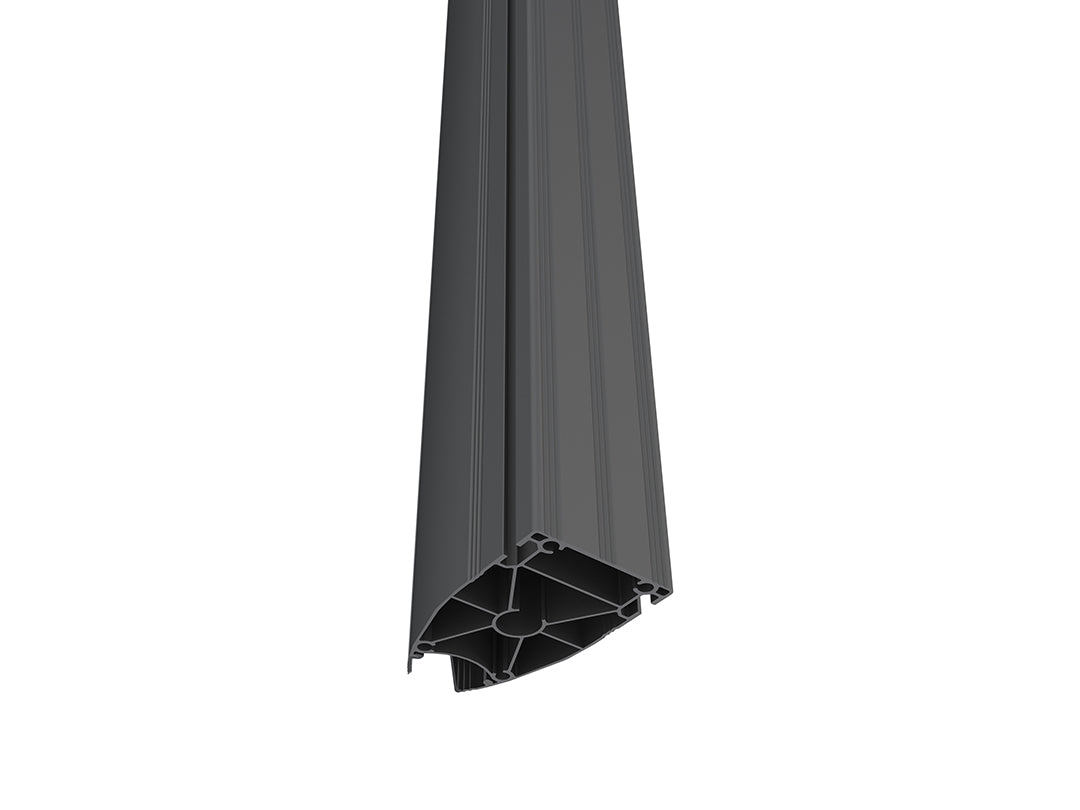

  Based on a 300cm high pillar made out of durable aluminum, the possibilities for height adjustments are very good and it is possible to provide a perfect viewing angle for both a sitting and a standing audience. This movable video wall solution creates a solution that can be used for presentations, trade shows, and store or office entrances.

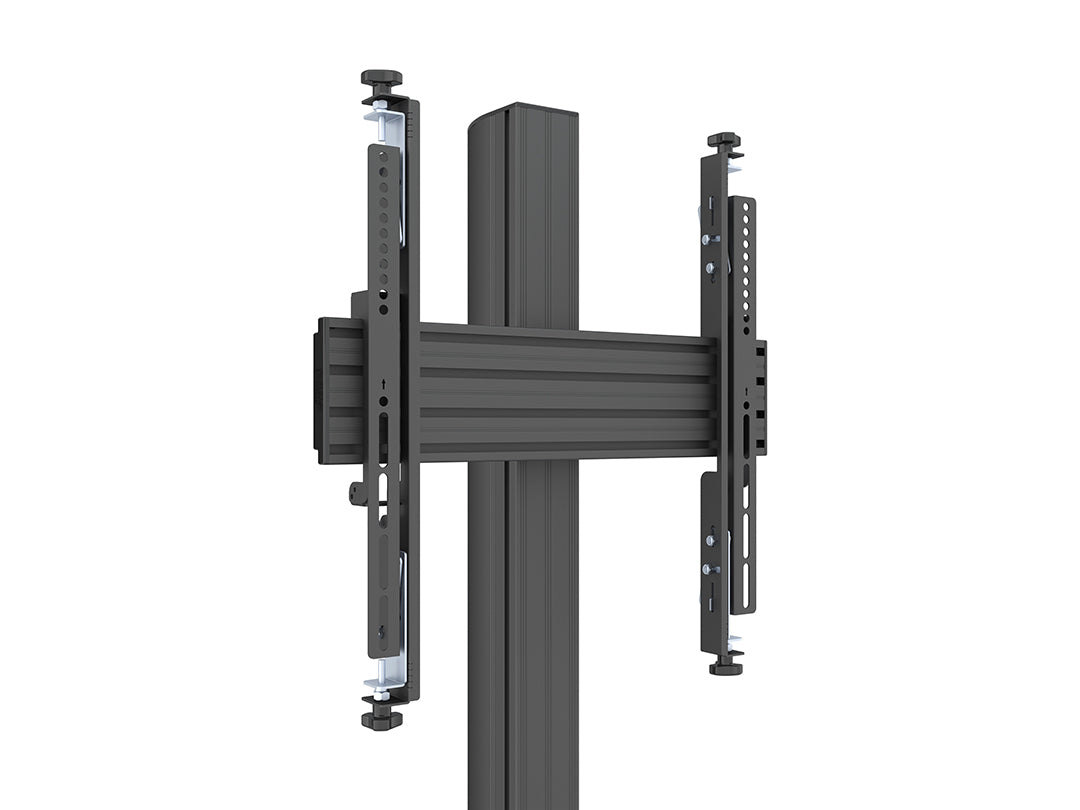

  The Multibrackets Pro Series Video Wall Stands are suitable if you are after a video in a freestanding environment. As this is the Multibrackets Pro Series it’s all modular and could be rebuilt for any updated purpose over time. This video wall floor stand kit is suitable for screens up to 65” displays with a maximum weight of 30kg per display. The Pro Series modular system is quick and easy to install. Micro-adjustable Fine Tune adjustment VESA brackets and interface plates help you create a perfect video wall. With the fine-tune functionality, you can easily align any screen on the X, Y, and Z axis. Even after installation. All displays remain easily accessible for maintenance purposes.

  Highlights

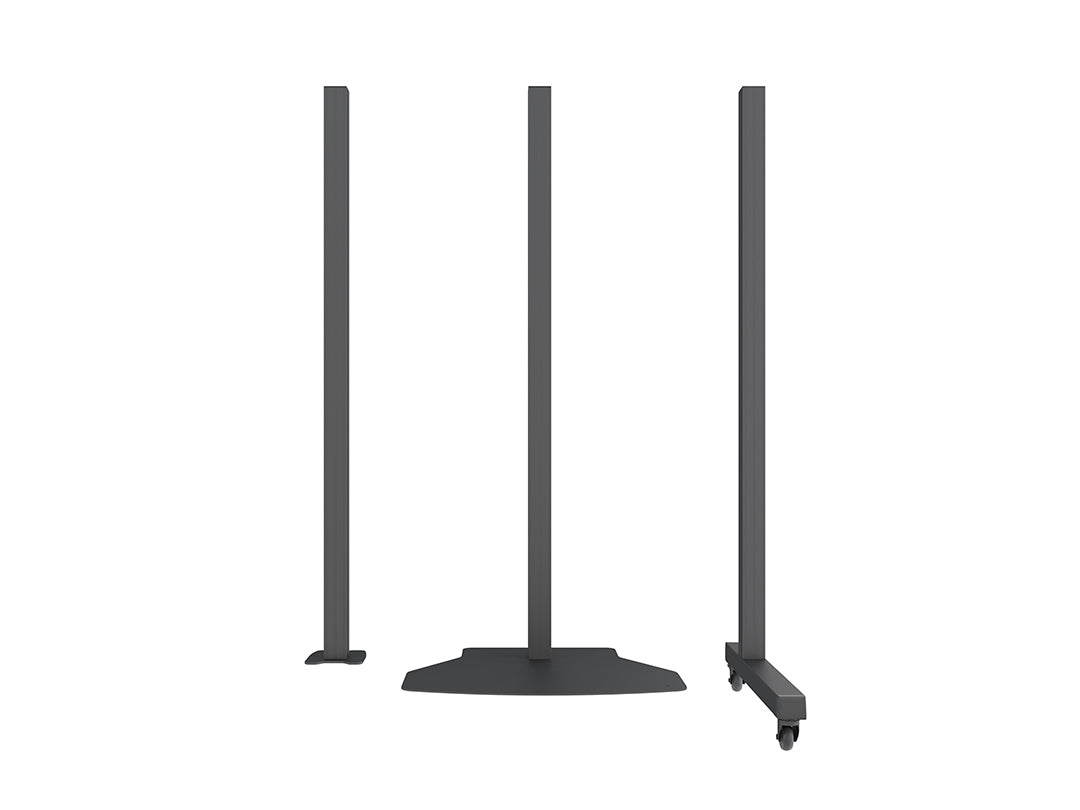

  Works with M Pro Series
  Smart and simple installation process

  This is a perfect solution for customers who need a mobile presentation system for VTC, digital signage applications, and more.

  With the right combination of durability and serviceability, we provide standardized and cost-efficient solutions or even custom-fabricated steel and aluminum video walls designed to fit most applications or environments.

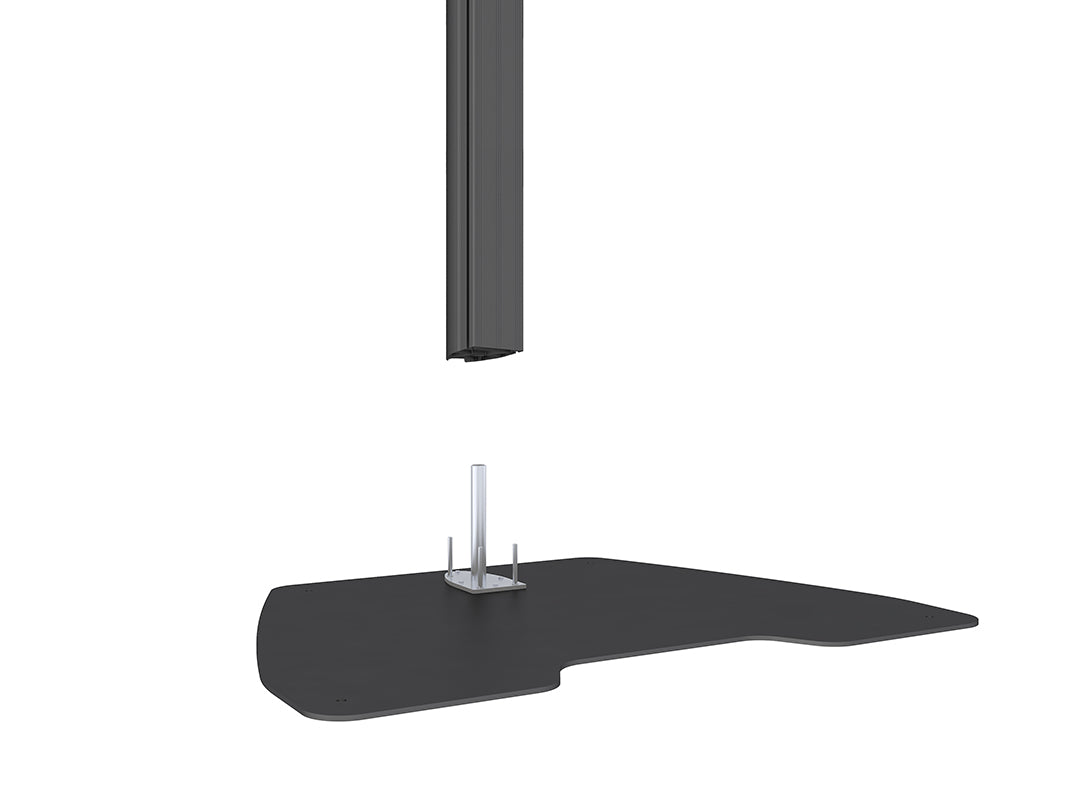

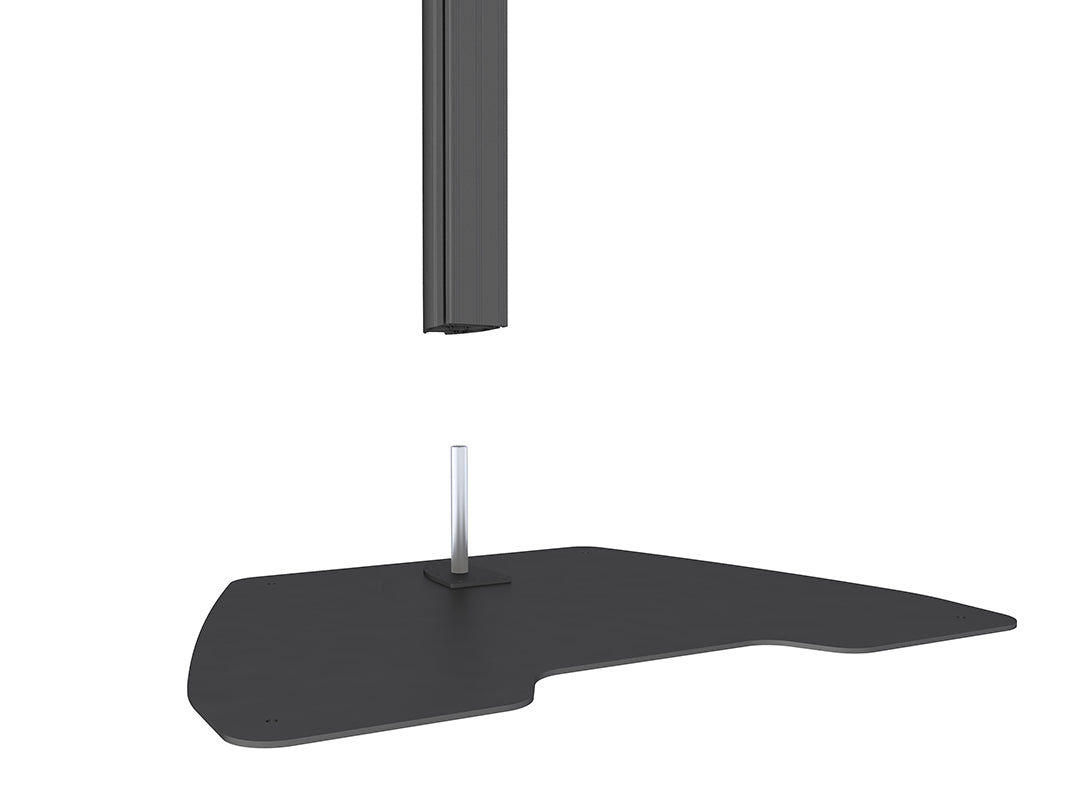

  With the optional floor stand base you can stand or mount it to the floor and make the installation permanent.



• Parameter	Specification
  For screen size	32"-65" - for each screen *

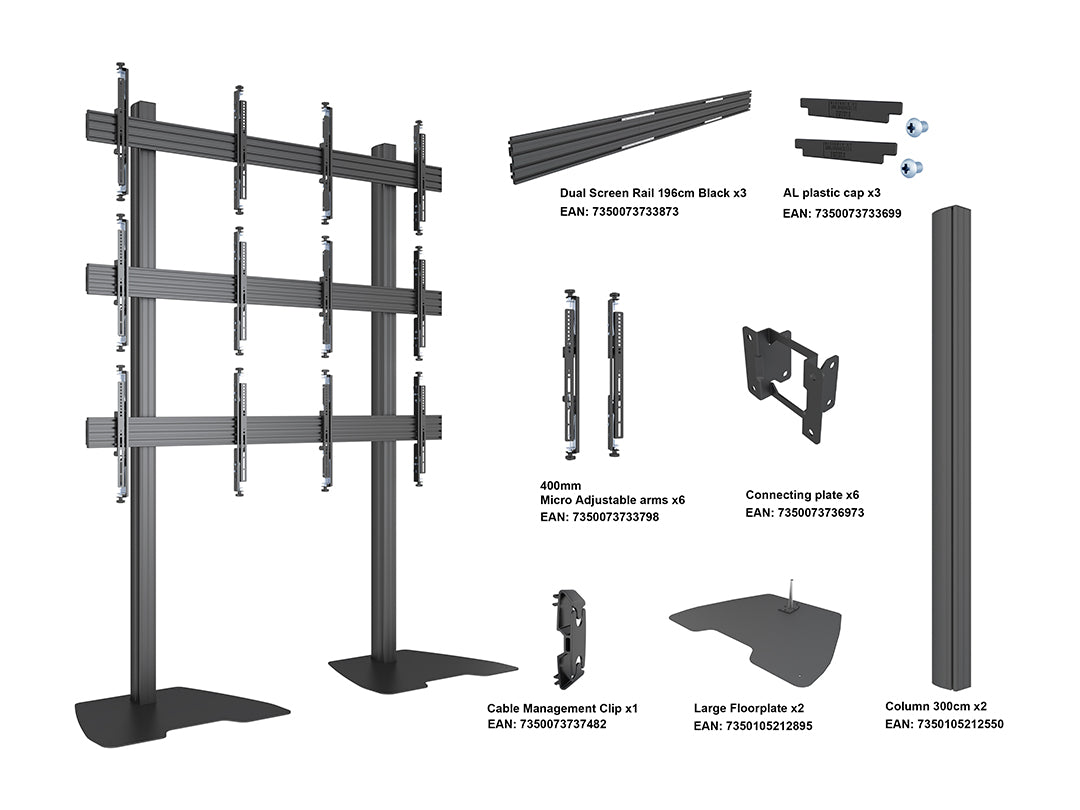

  Feature	6 screen assembly
  VESA standard	75x75, 100x100, 200x200, 300x300, 400x400
  Article No	7 350 105 213 502
  Size in mm	2771 x 355 x 133 mm + 830 x 630 x 45 mm + 584 x 420 x 138 mm + 1045 x 150 x 138 mm

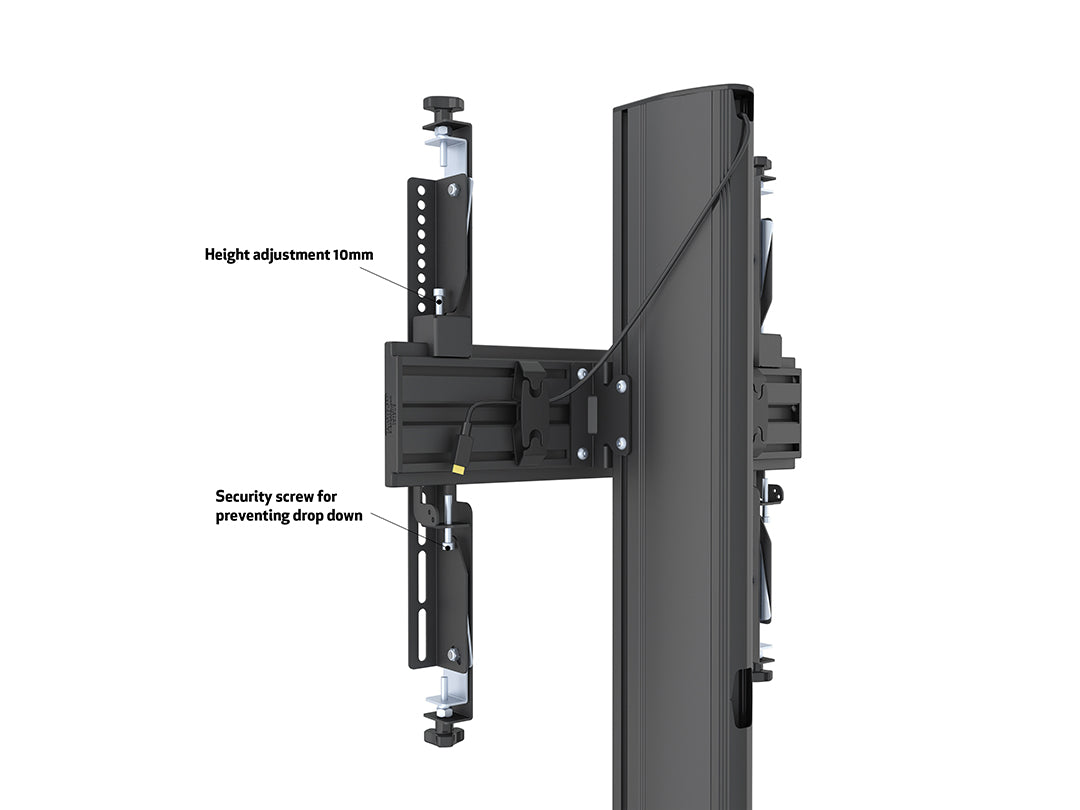

  Adjustable height	10 mm screen height adjustment
  Weight	21 kg + 35 kg + 21 kg + 14 kg
  Color	Black
  Max load per screen	30 kg
  Max load total	180 kg

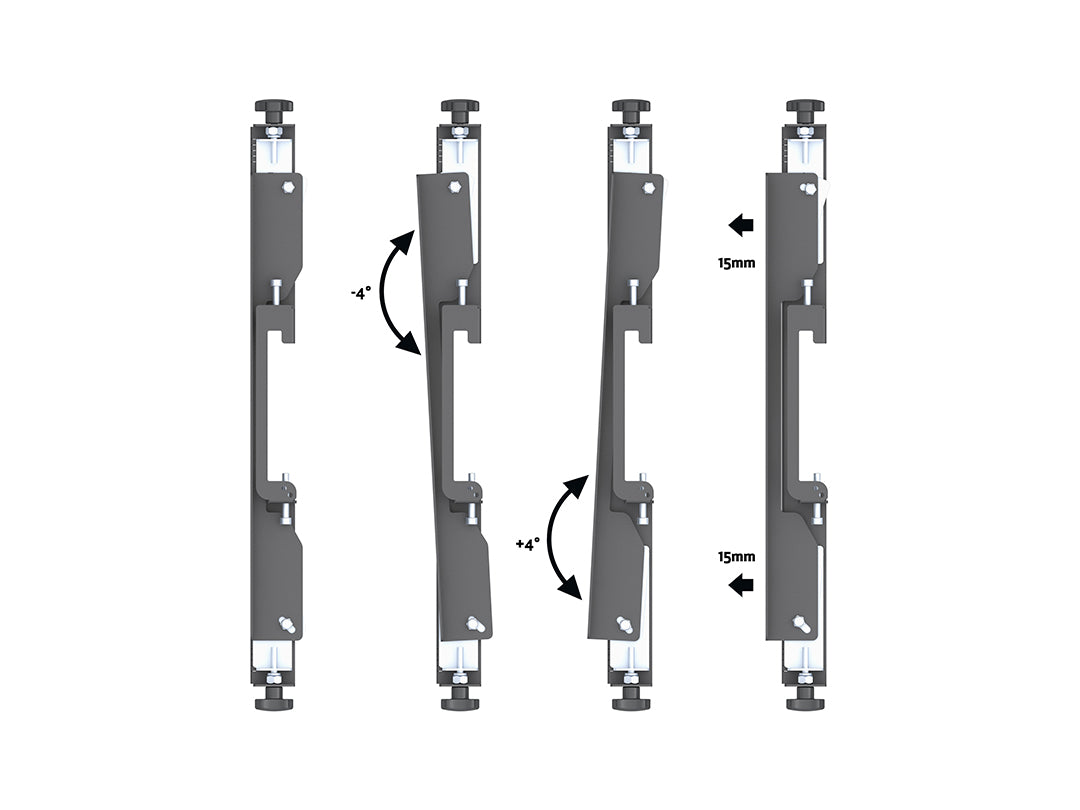

  Tilt	±4°
  Swivel	±0°
  Rotate	±0°
  Material	Steel, Aluminium, Plastic
  Surface Finish	Powder coating
  Warranty	5 years
  Retail Package Specification	Package Parcels: 1 pcs
  Package Measurements	0 x 0 x 0 cm
  Package Weight	0.00 kg

• Download Type	Downloads

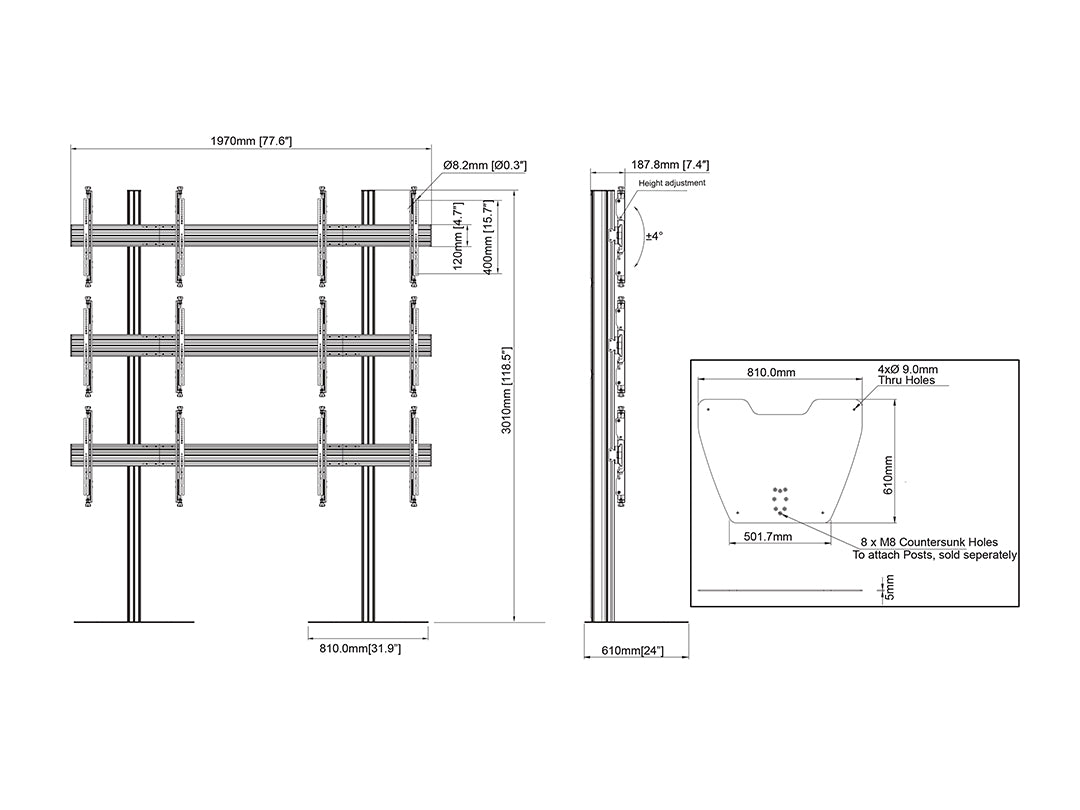

  Drawing PDF	Downloads
