Enter your screen SKU and we will instantly check whether this mount is suitable for your display based on VESA pattern compatibility.

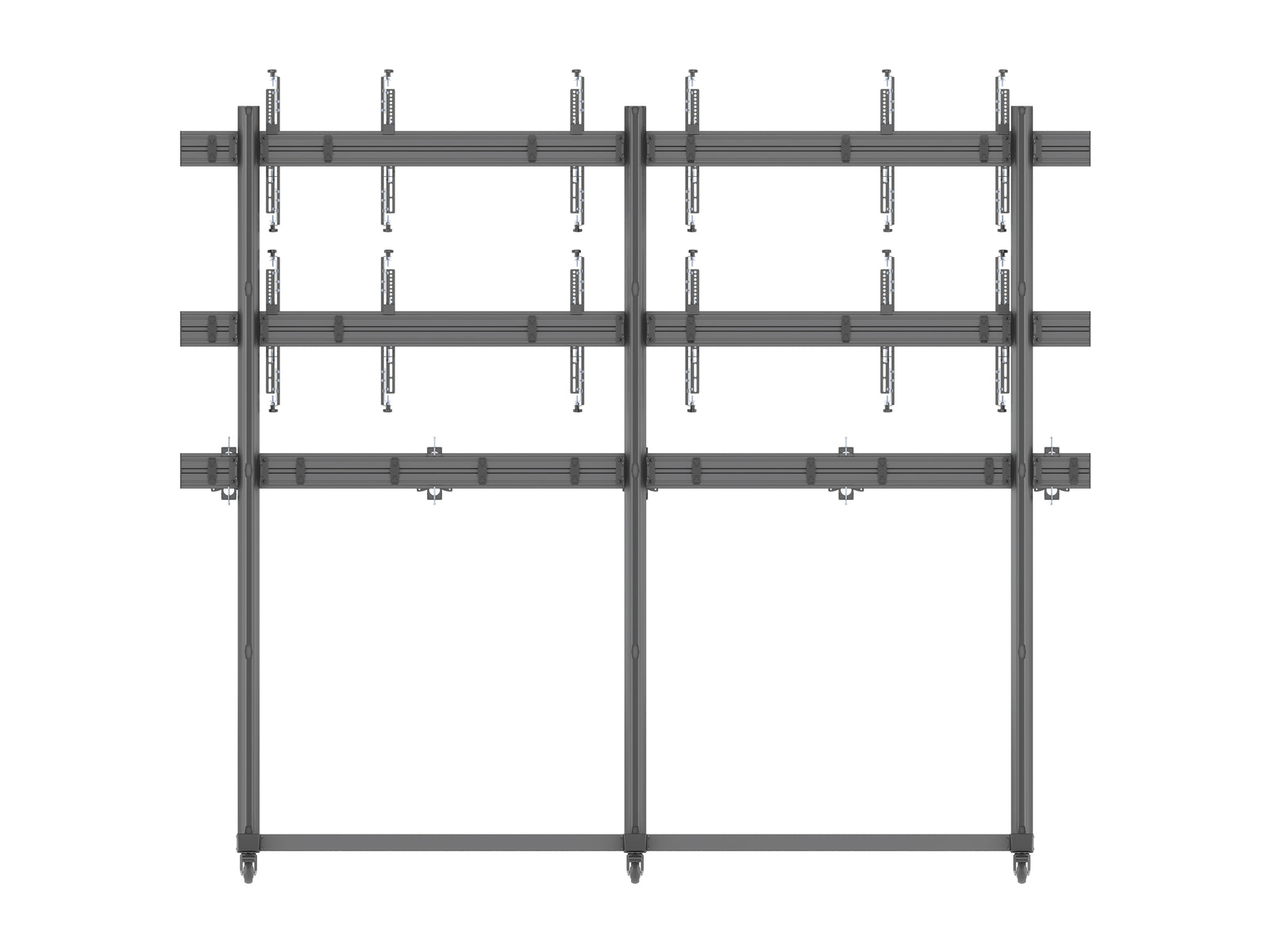

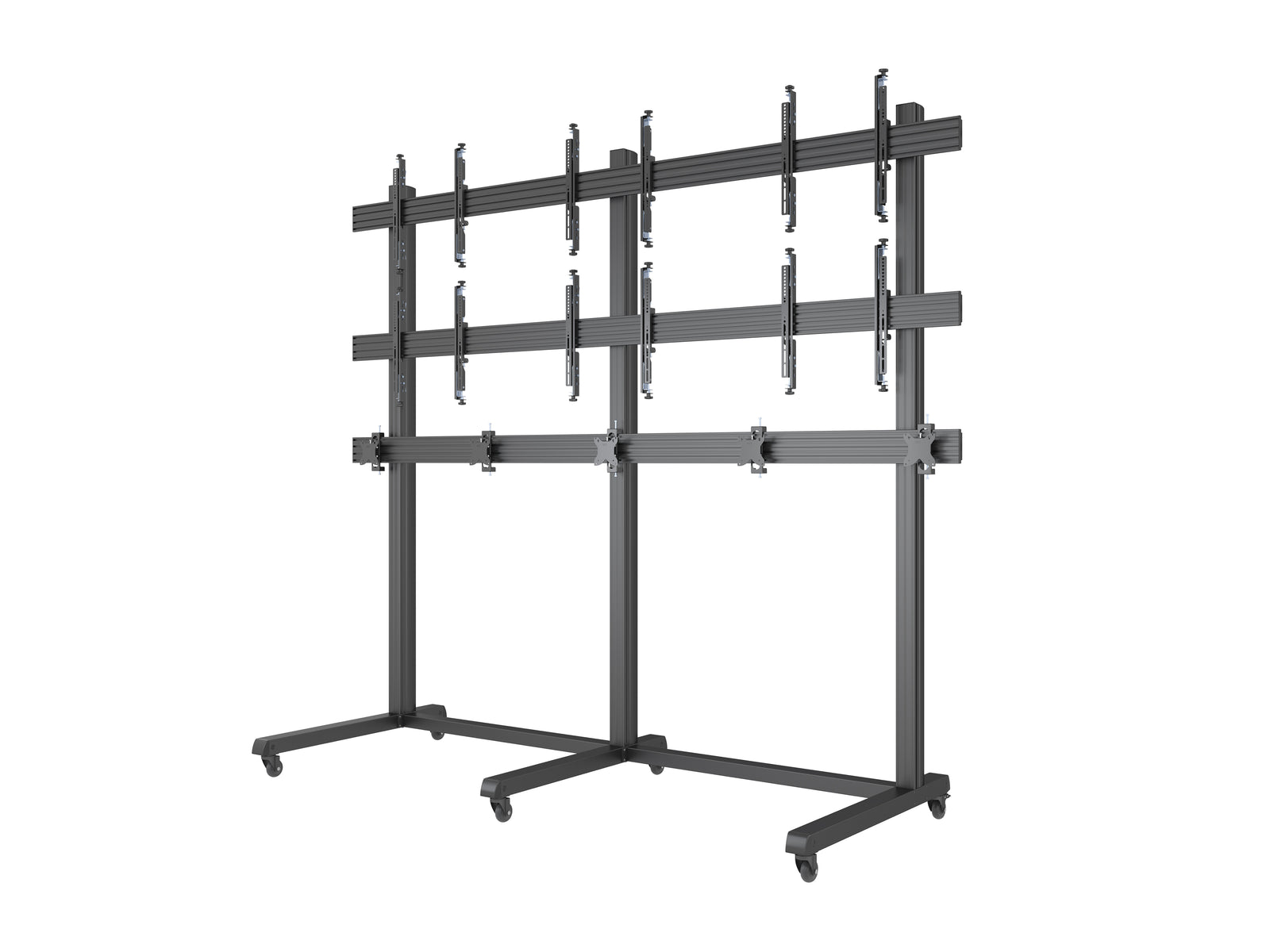

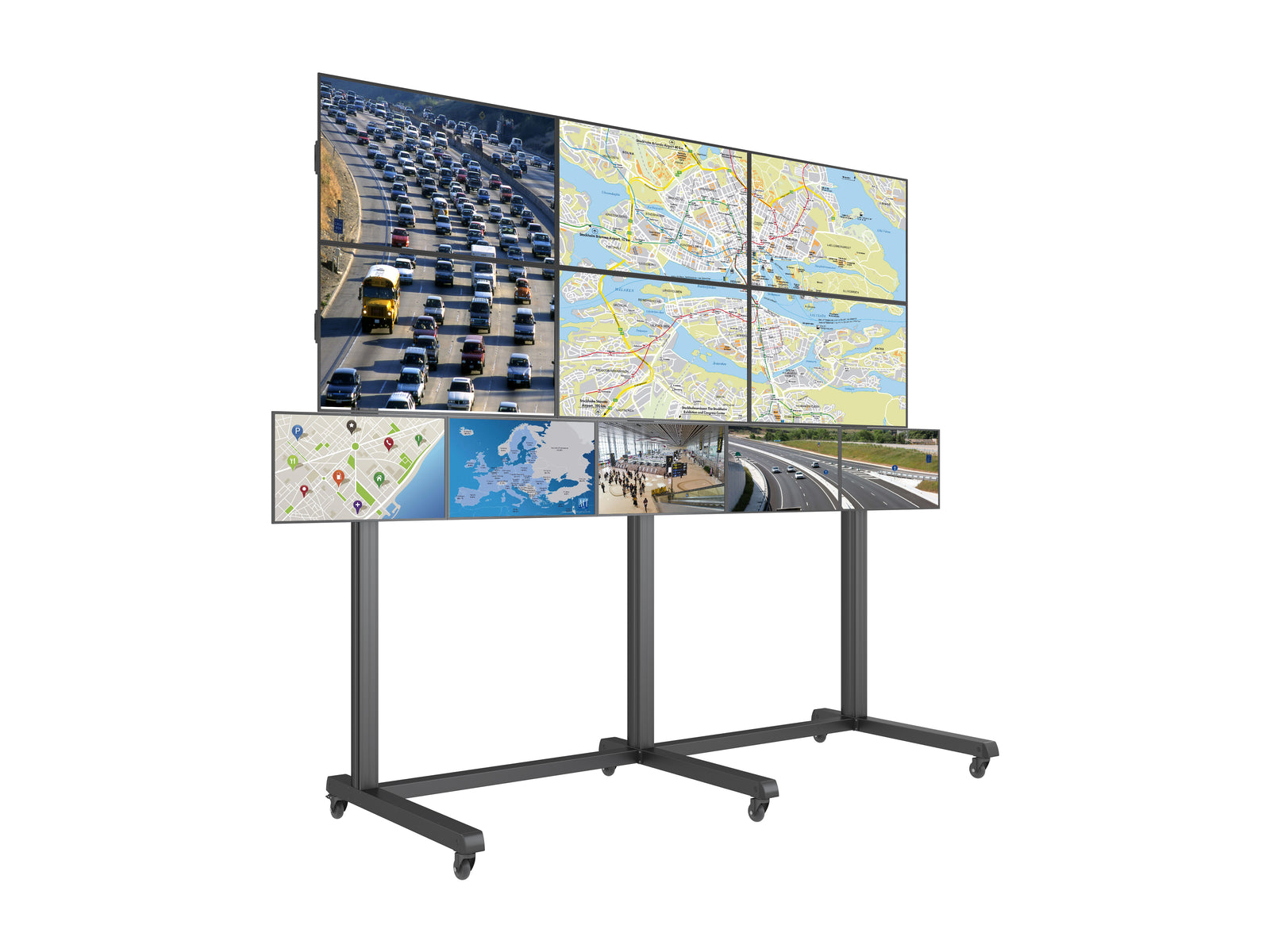

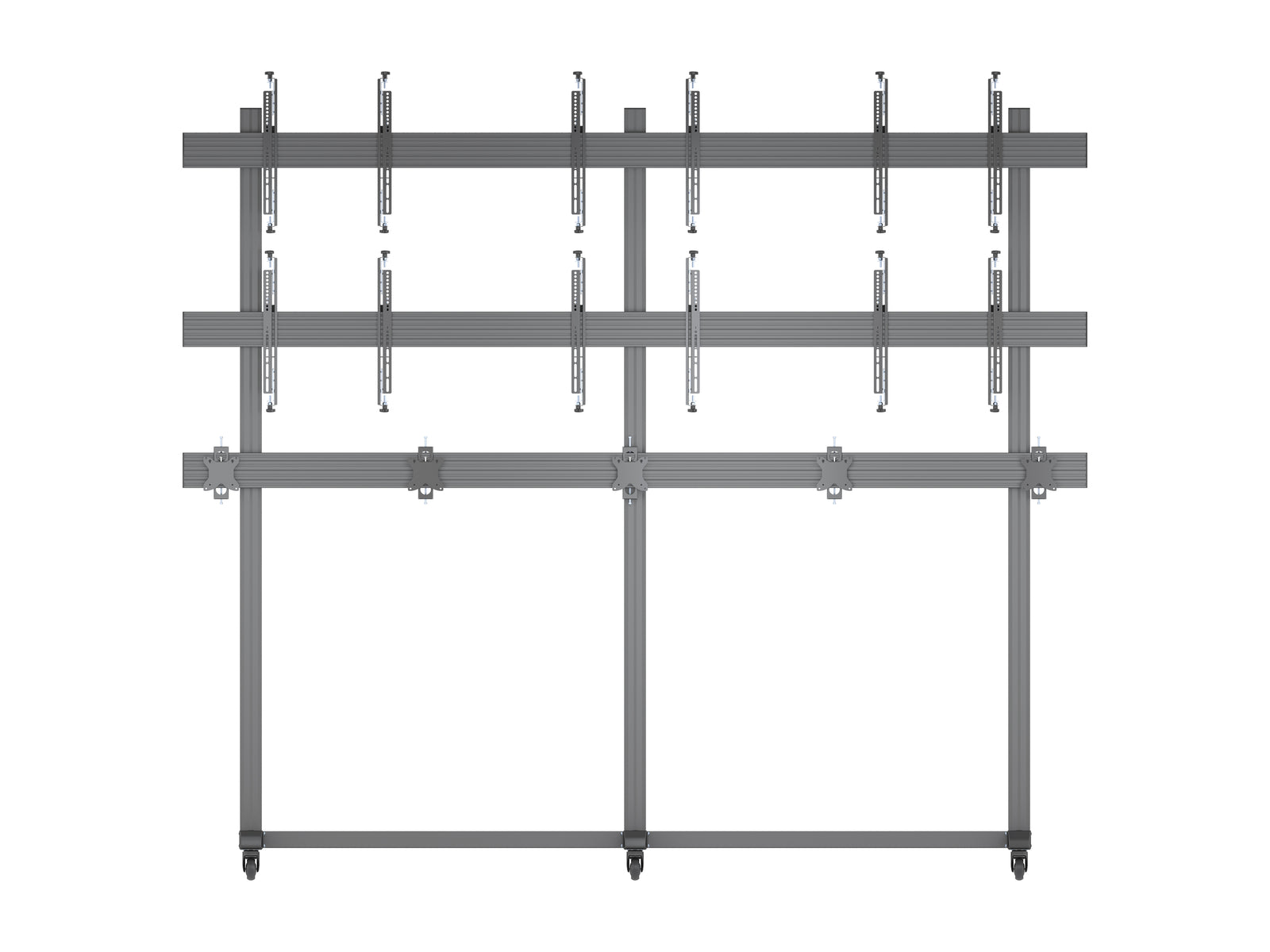

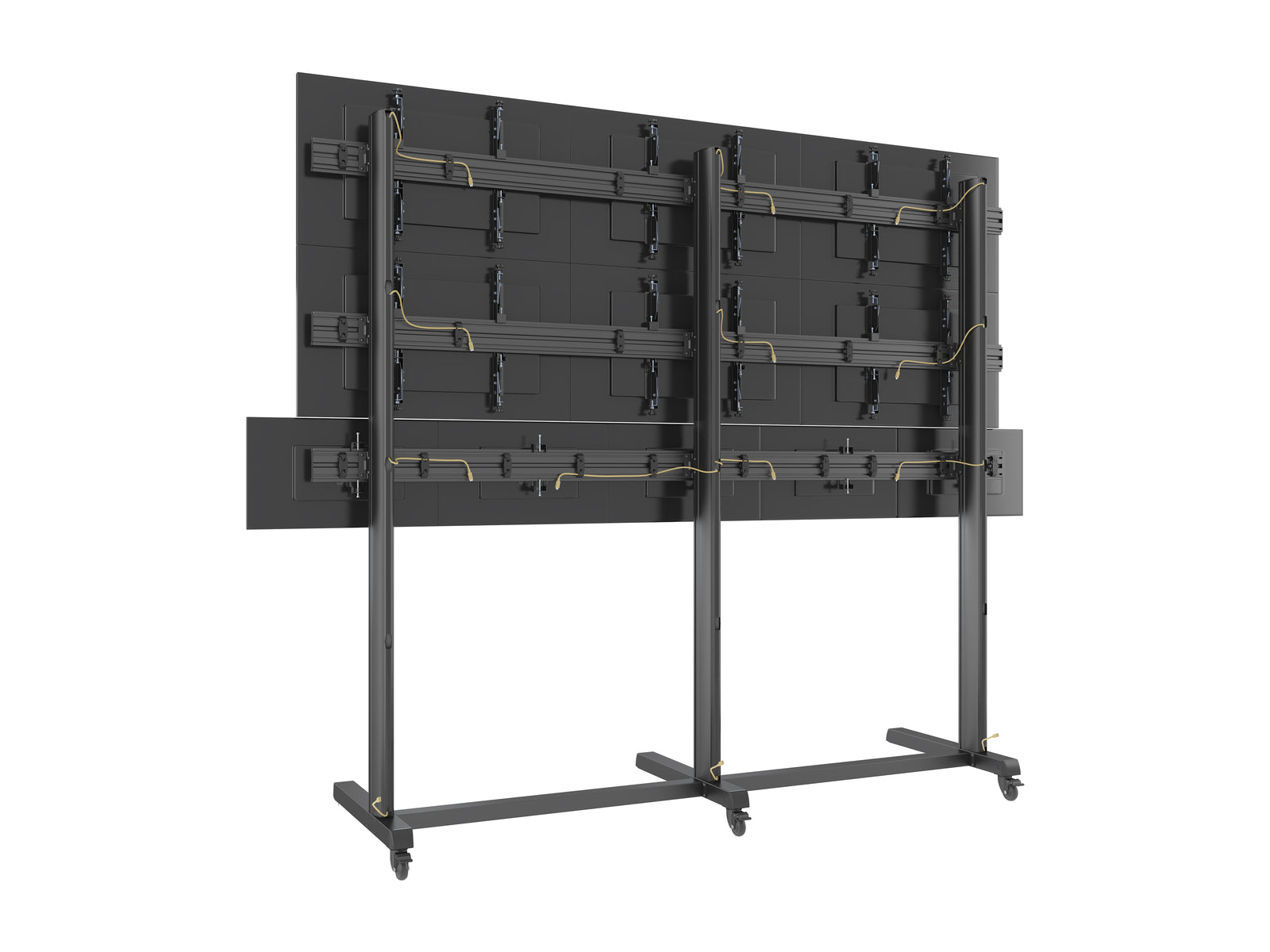

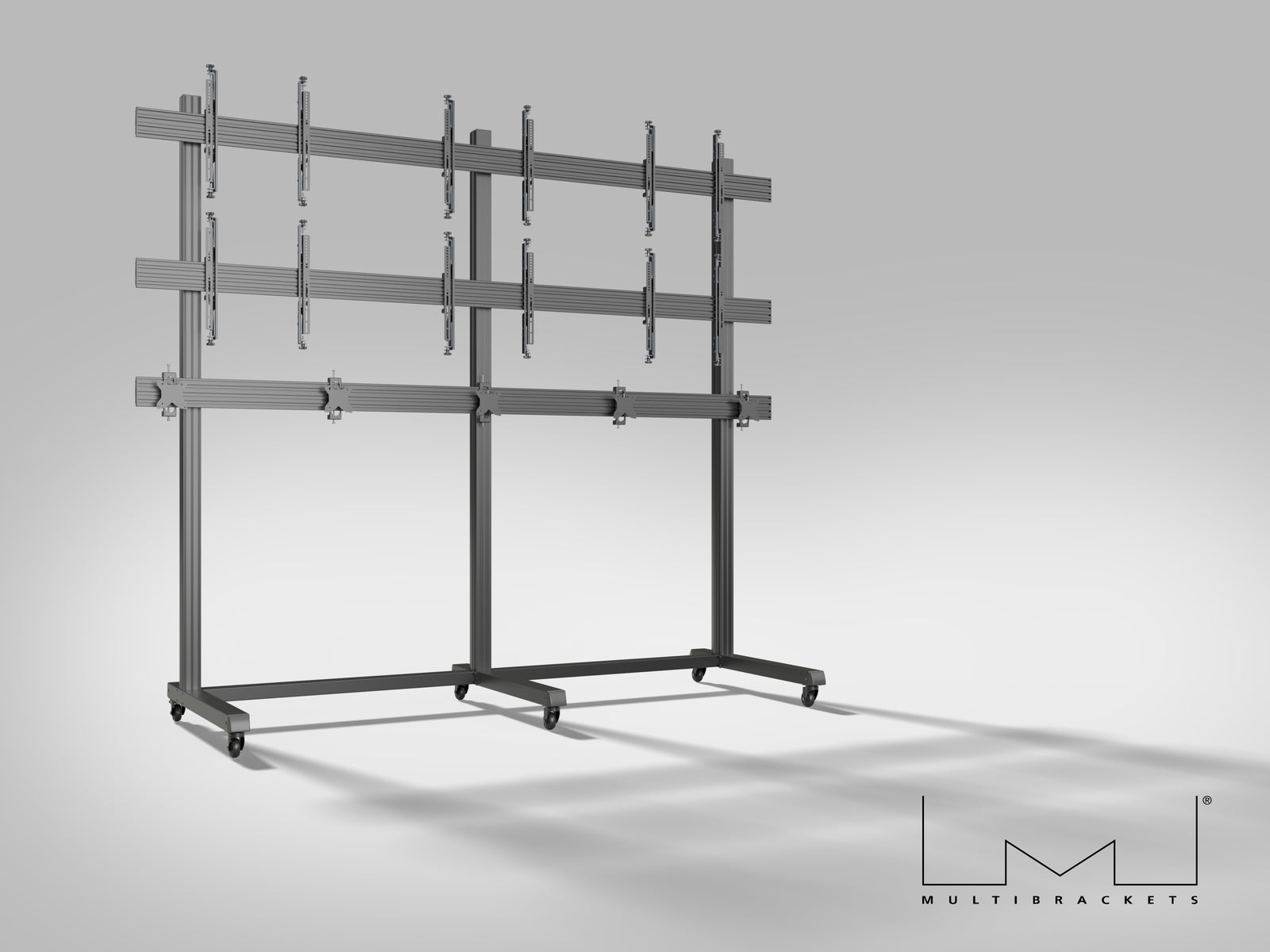

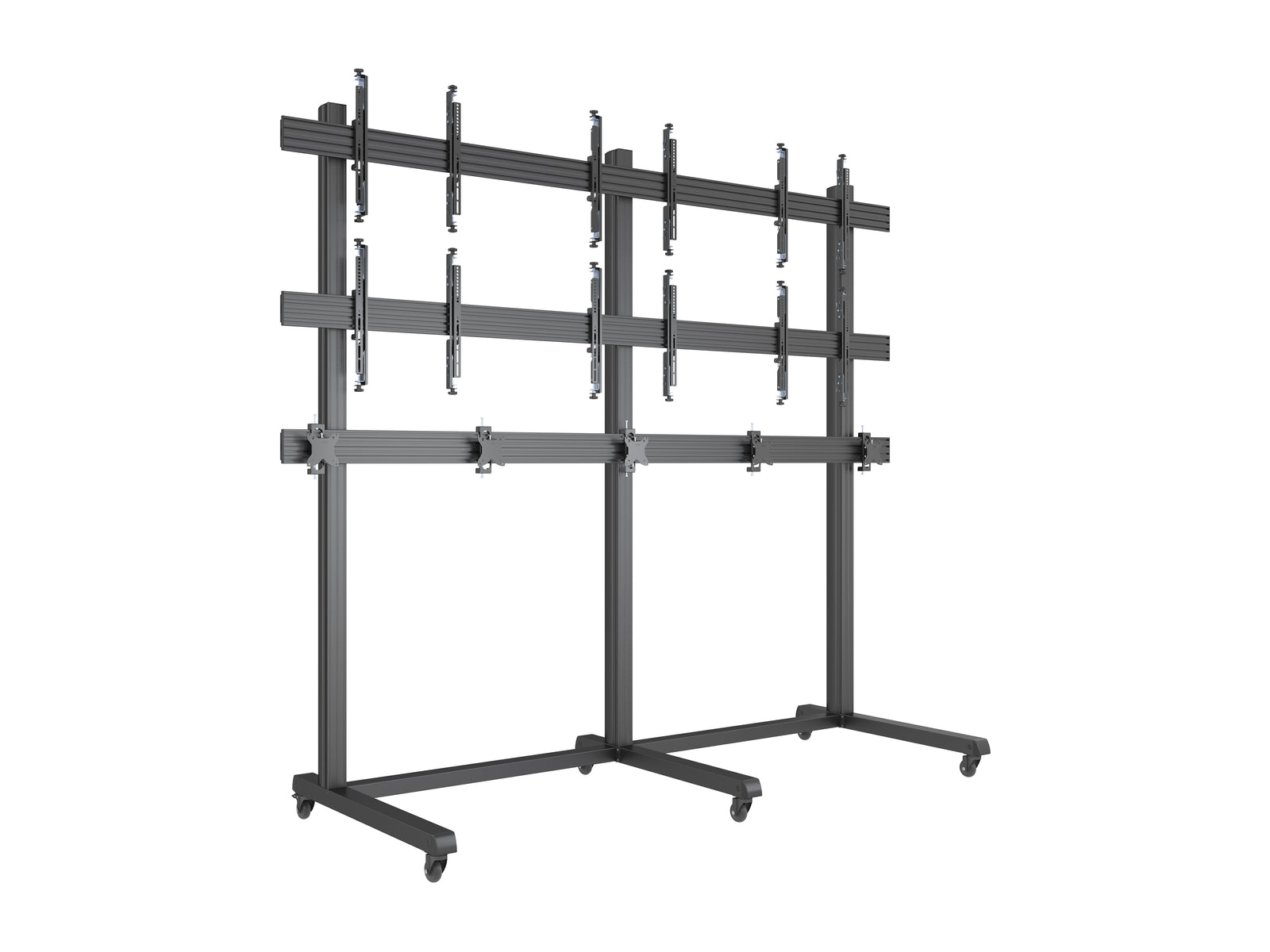

The M Pro Series Video Wall Stand MBF3x2Ux5 270 Micro Adjustable is a powerful freestanding video wall system designed to combine up to six large-format displays (27"-65") in a 3x2 layout with support for up to five additional high-resolution monitors. Built on Multibrackets’ modular Pro Series platform, it is ideal for AV control rooms, trade shows, retail signage, and mission-critical environments.

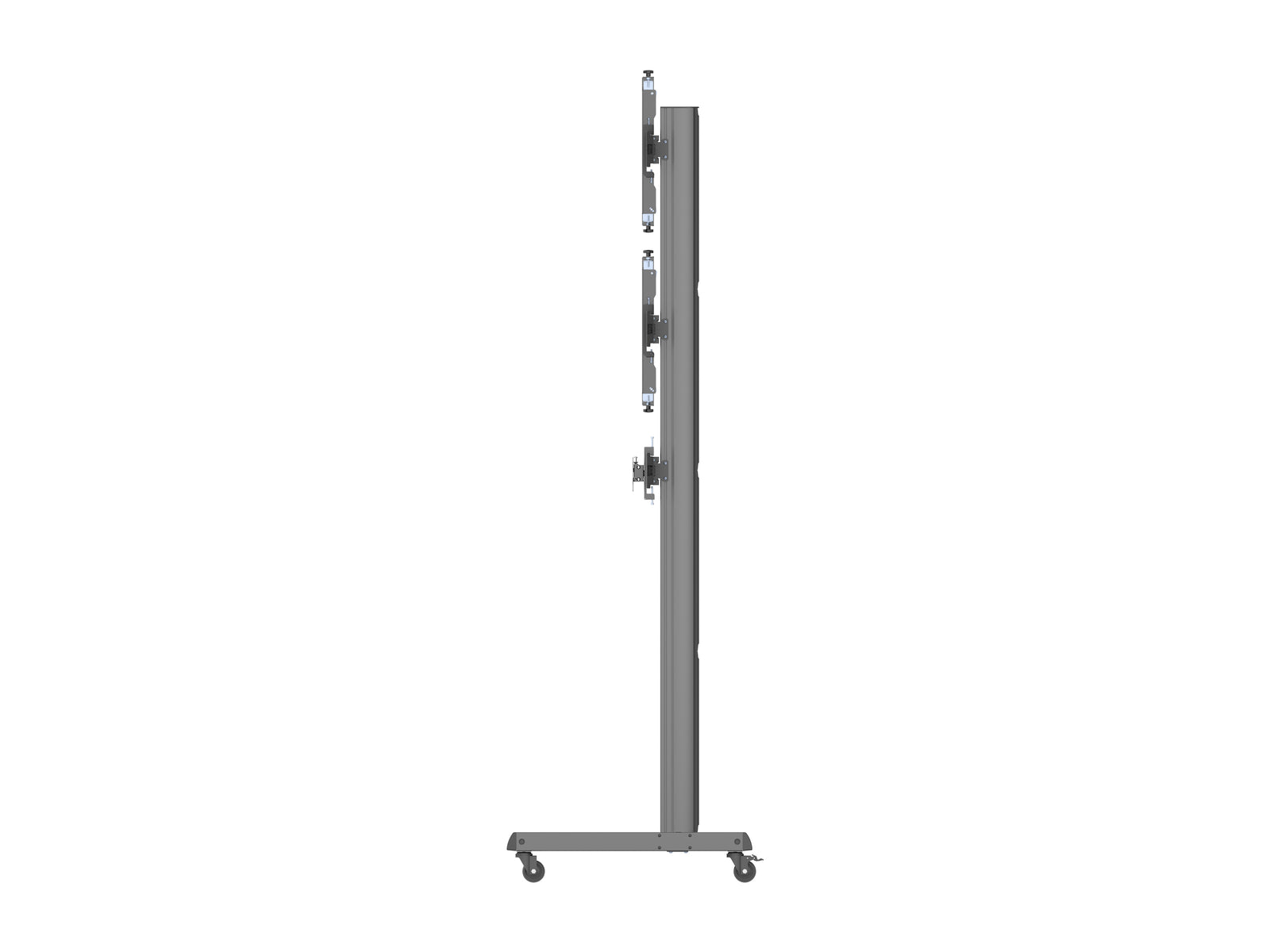

With a durable 270 cm aluminum pillar, this solution offers full height adjustment, perfect for both seated and standing viewing. The micro-adjustable VESA interface allows precision alignment across X, Y, and Z axes – even after installation – ensuring a seamless visual experience. As part of the Pro Series ecosystem, the system is future-proof, flexible, and easily reconfigurable to adapt to evolving needs.
Thanks to its modular architecture, the stand enables easy integration of accessories, fast installation, and straightforward maintenance. Whether used for live operations, collaboration, or digital signage, the MBF3x2Ux5 delivers robust performance and a clean Scandinavian design built to last.
Highlights

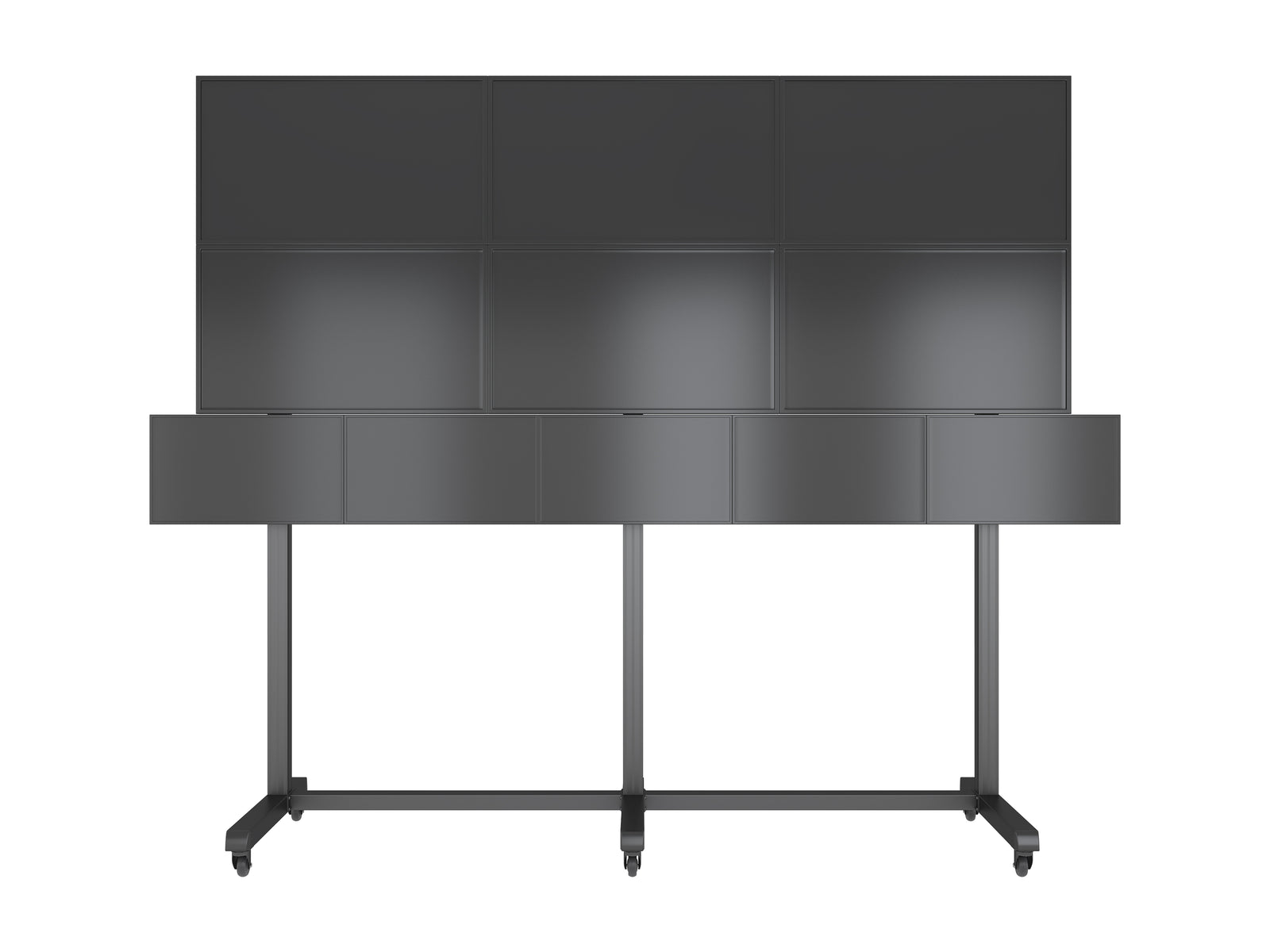

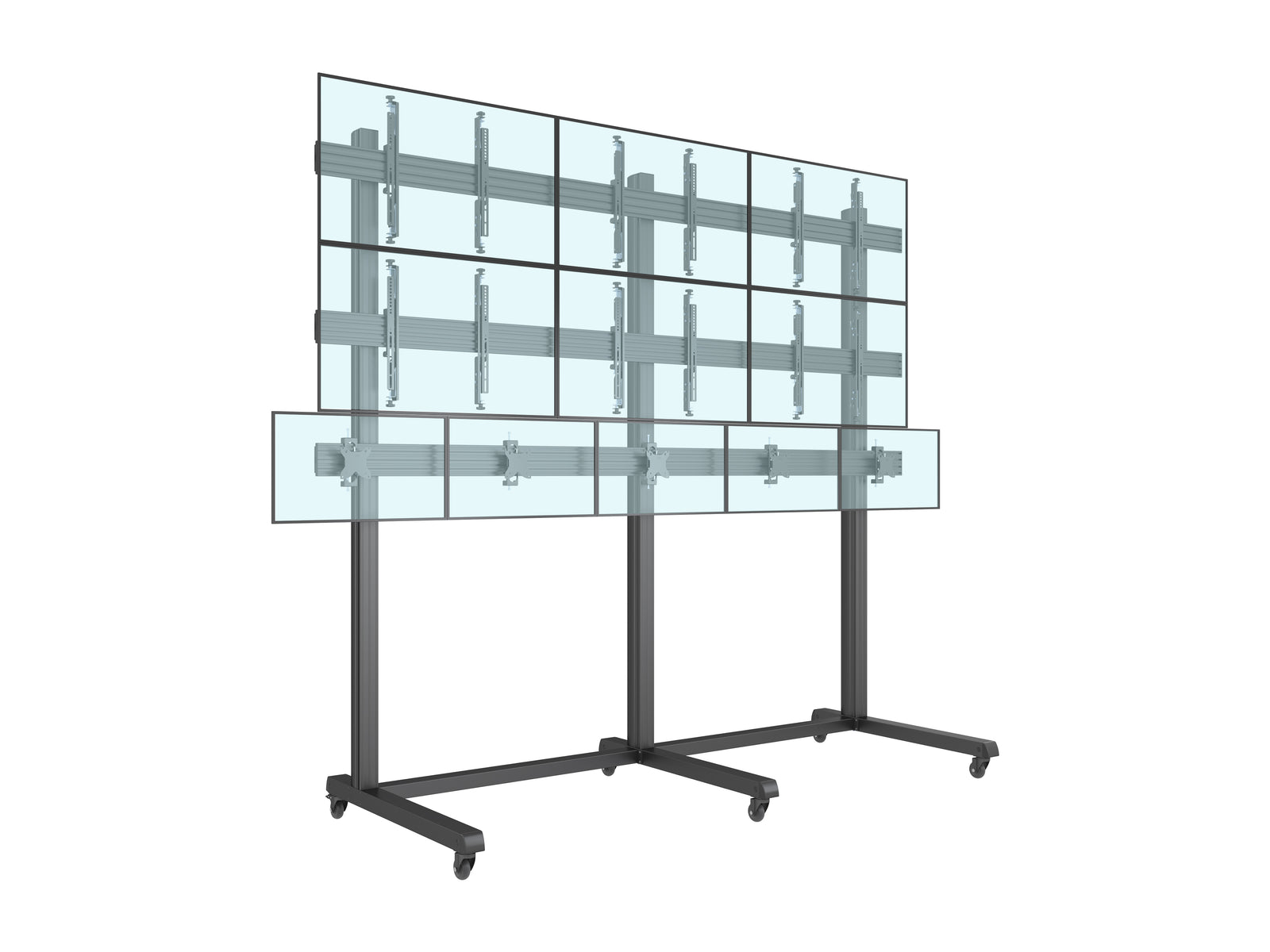

Supports 3x2 displays (up to 65”) with max 30 kg per screen
Additional mounts for up to 5 monitors above or below the main setup

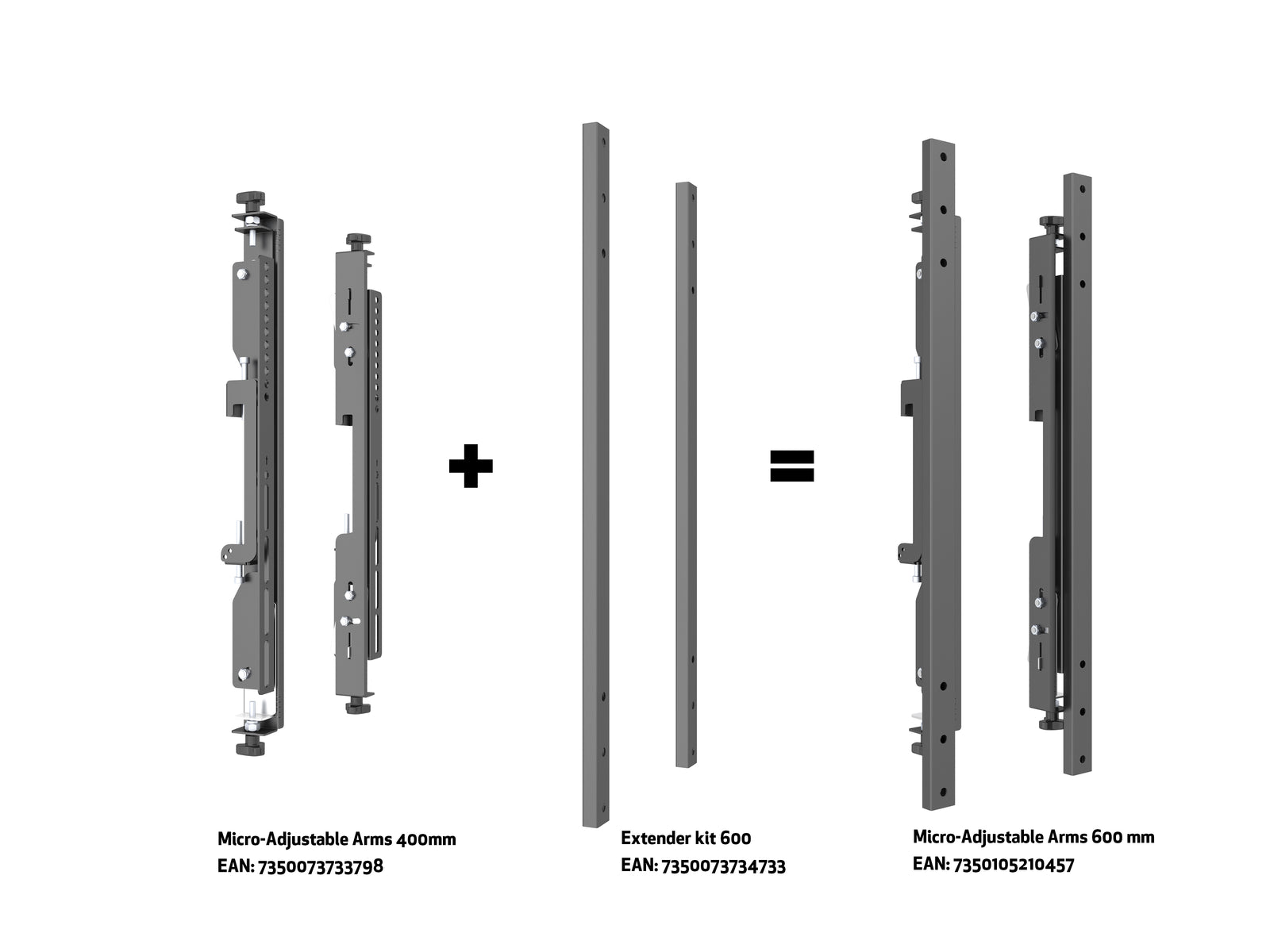

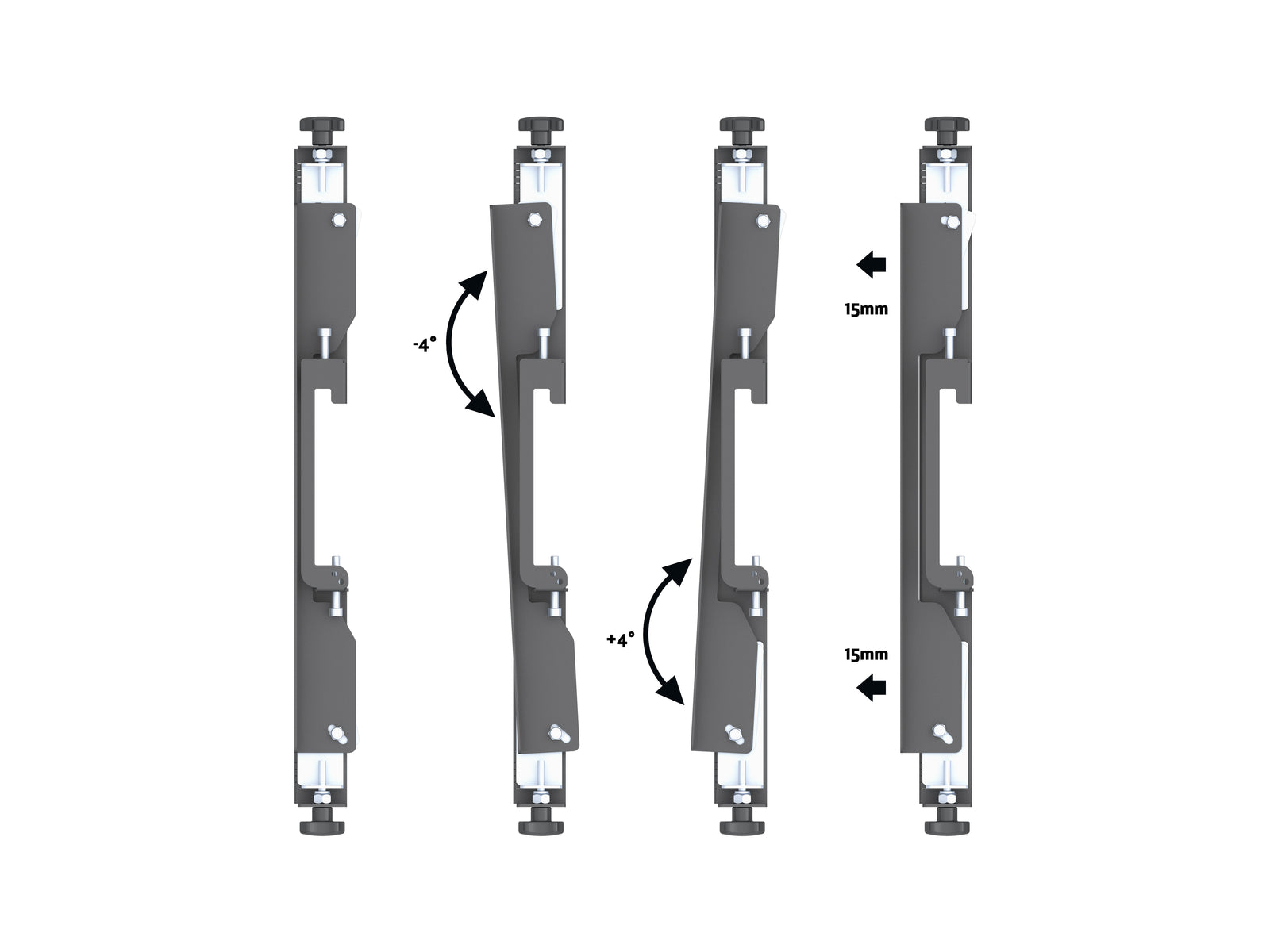

Micro-adjustable VESA brackets for precise screen alignment (X, Y, Z axis)

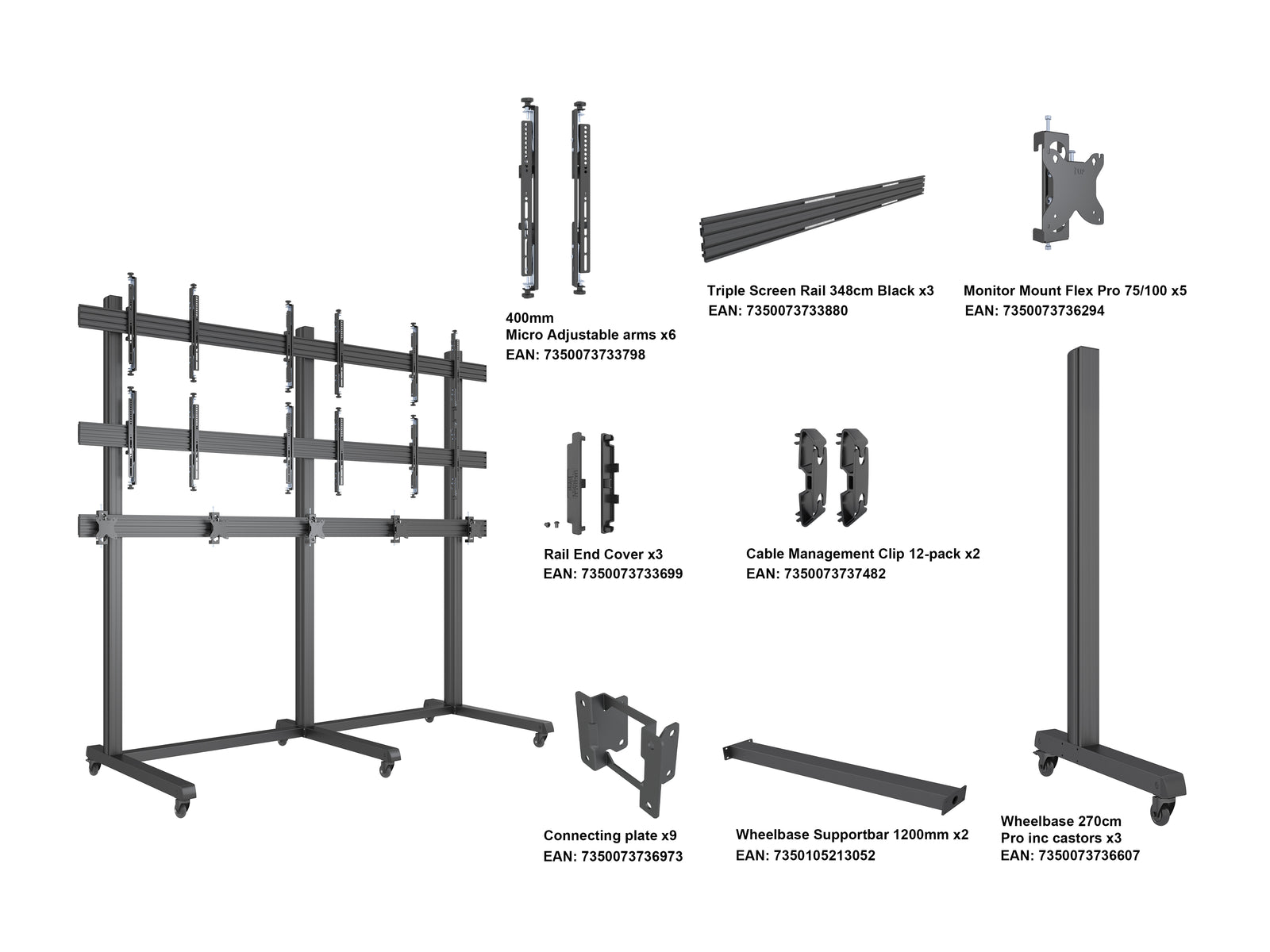

Fully modular design — compatible with all M Pro Series components
Quick and intuitive installation with accessible maintenance features
Ideal for AV control rooms, signage, and multi-display environments

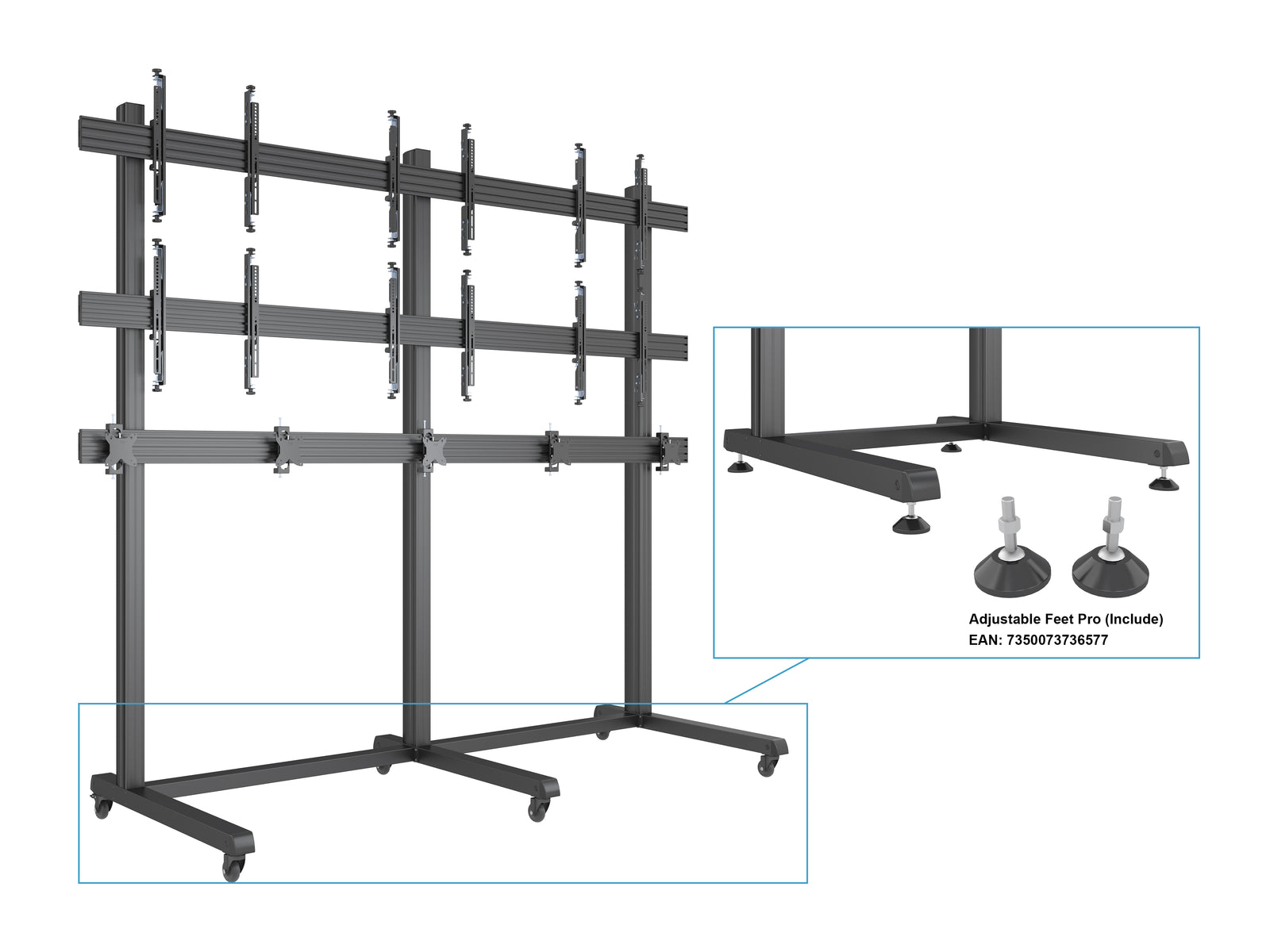

Optional base for fixed or mobile floor installation
| For screen size: | 46"-75" - for each screen * | VESA standard: | 100x100 200x200 300x300 400x400 600x400mm |
| Article No: | 7 350 105 216 916 | Size in mm: (WxDxH) | 279.5x55x13.5cm + 149x39x8.8cm + 105x25.3x14.3cm + 60x48.8x14cm + 48x25x15cm |
| Adjustable height: | 10 mm screen height adjustment | Weight: | 114 kg |
| Colour: | Black | Tilt: | Monitor Mount Flex Pro 75/100 (±12°) |
| Swivel: | ±0° | Rotate: | Monitor Mount Flex Pro 75/100 (360°) |
| Material: | Steel, Aluminium, Plastic | Surface Finish: | Powder coating |
| Warranty: | 5 years |
| Description | Downloads |
|---|---|

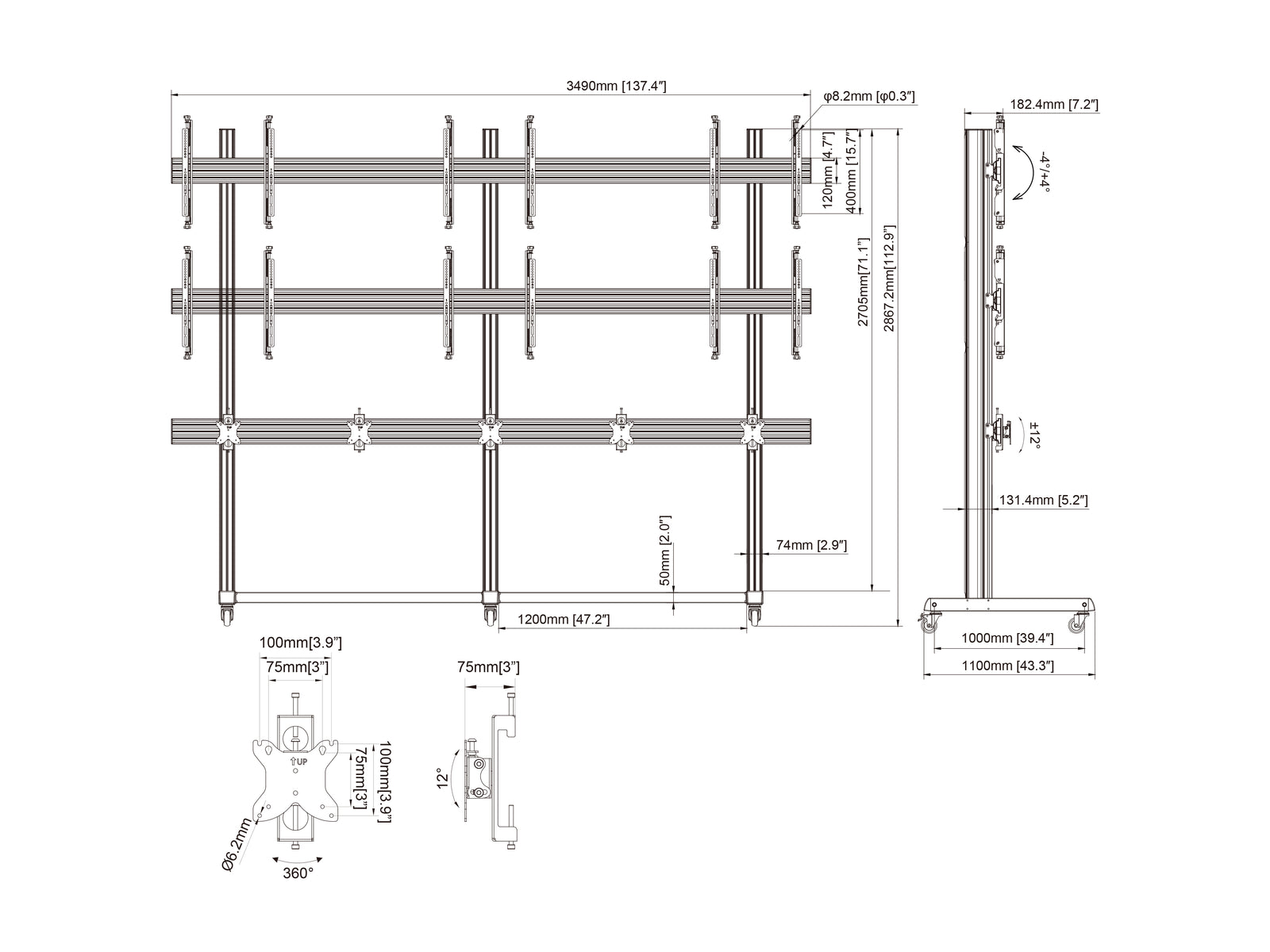

| Drawing | Download |
