Enter your screen SKU and we will instantly check whether this mount is suitable for your display based on VESA pattern compatibility.

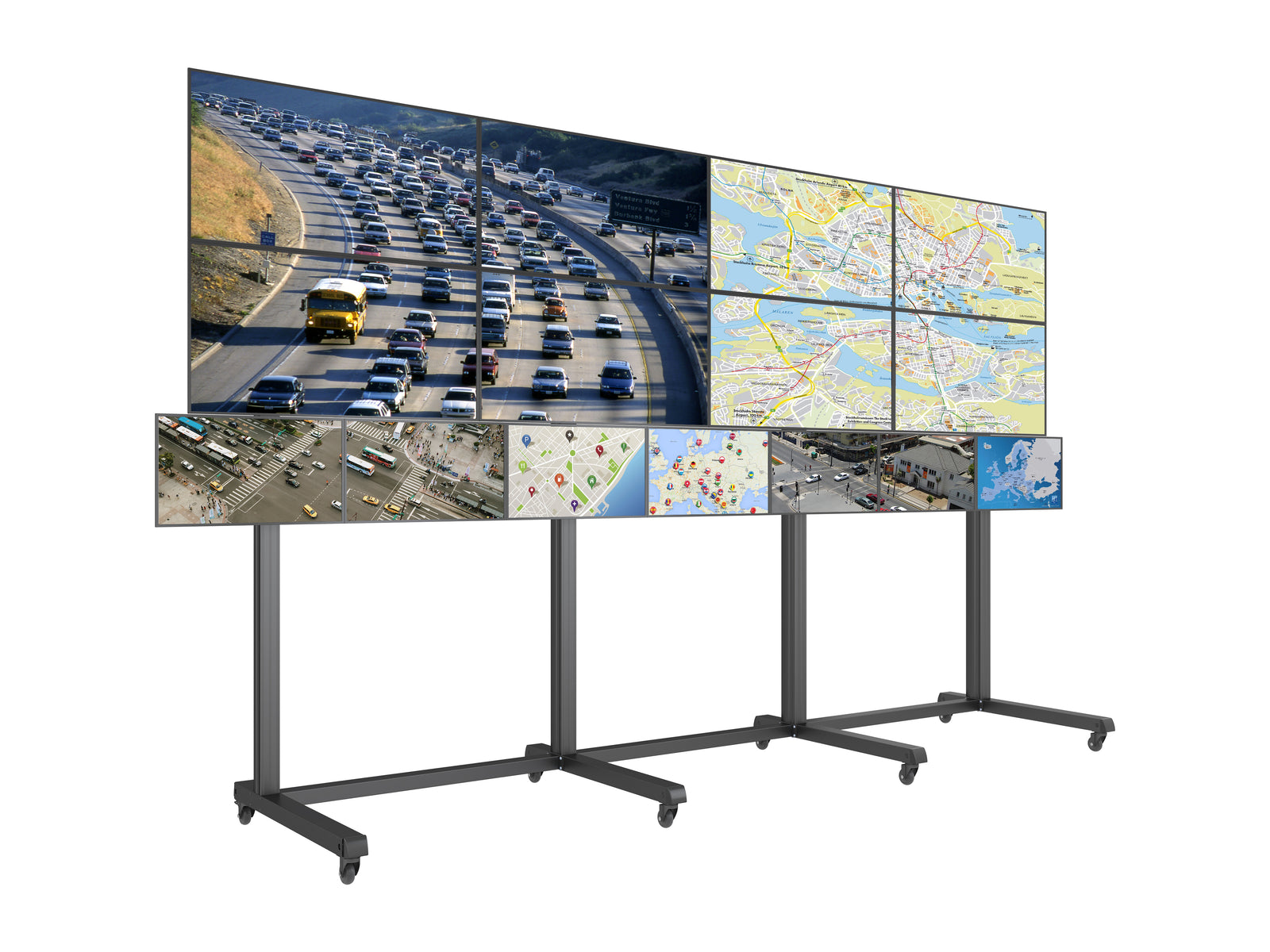

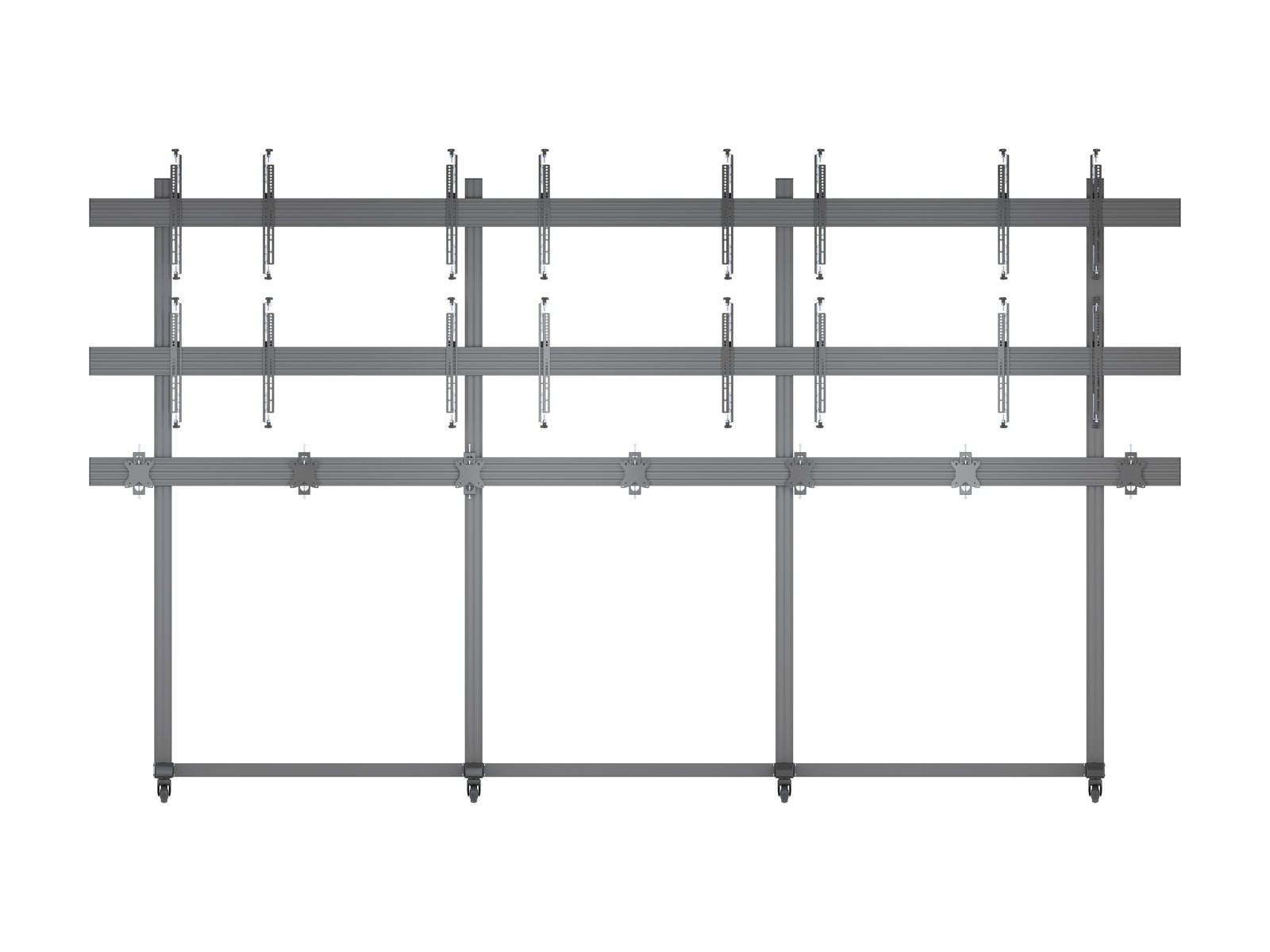

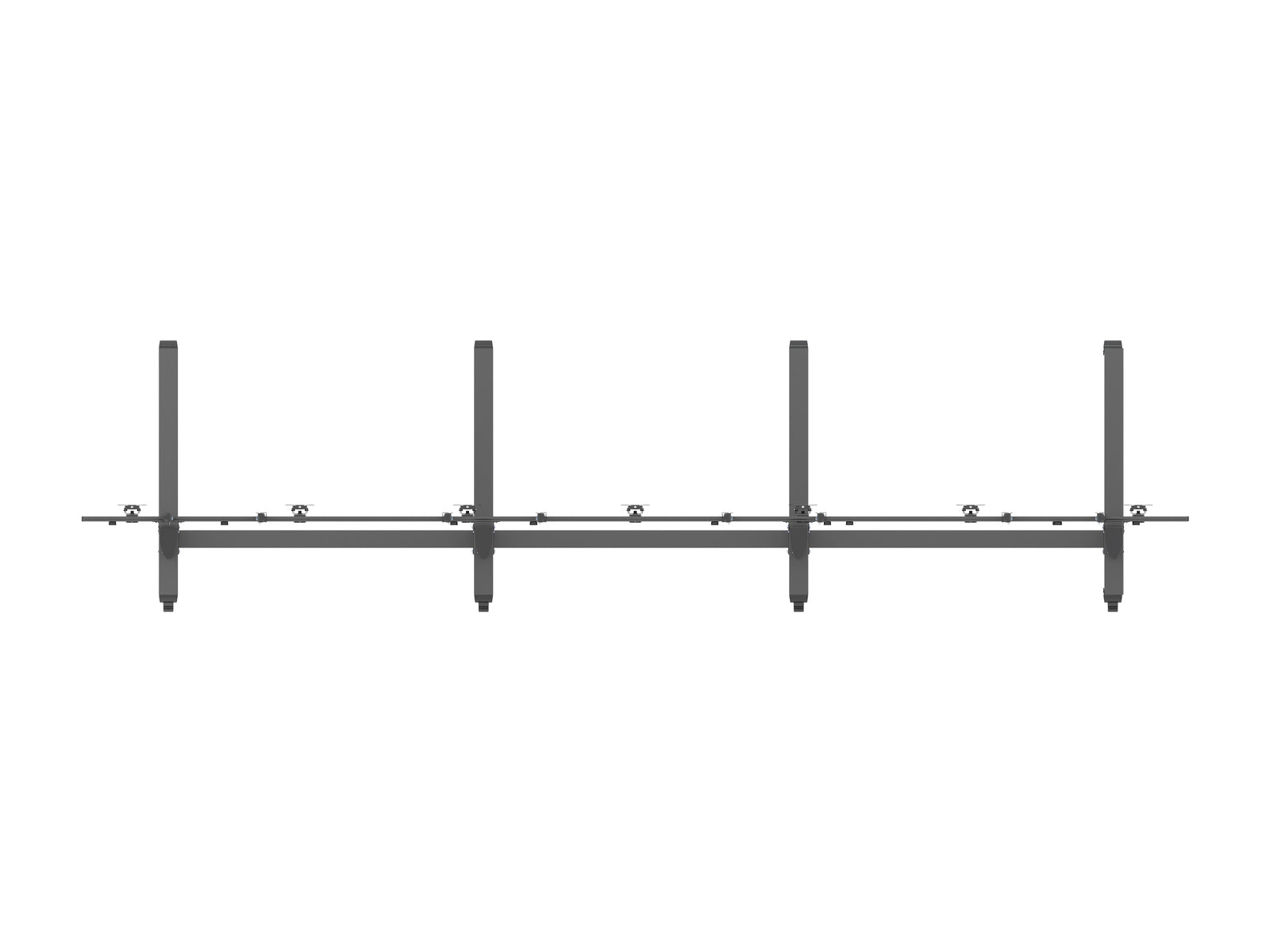

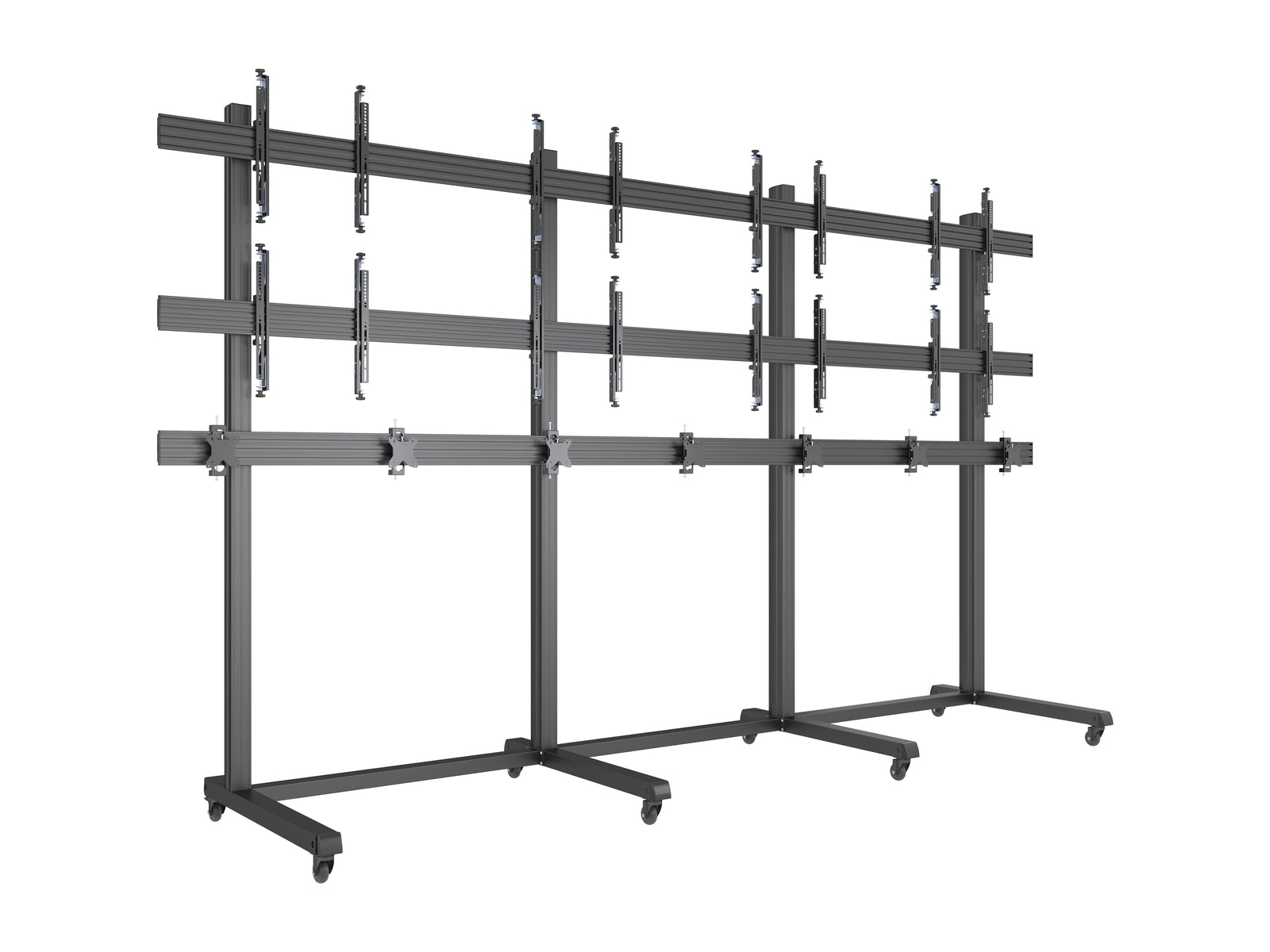

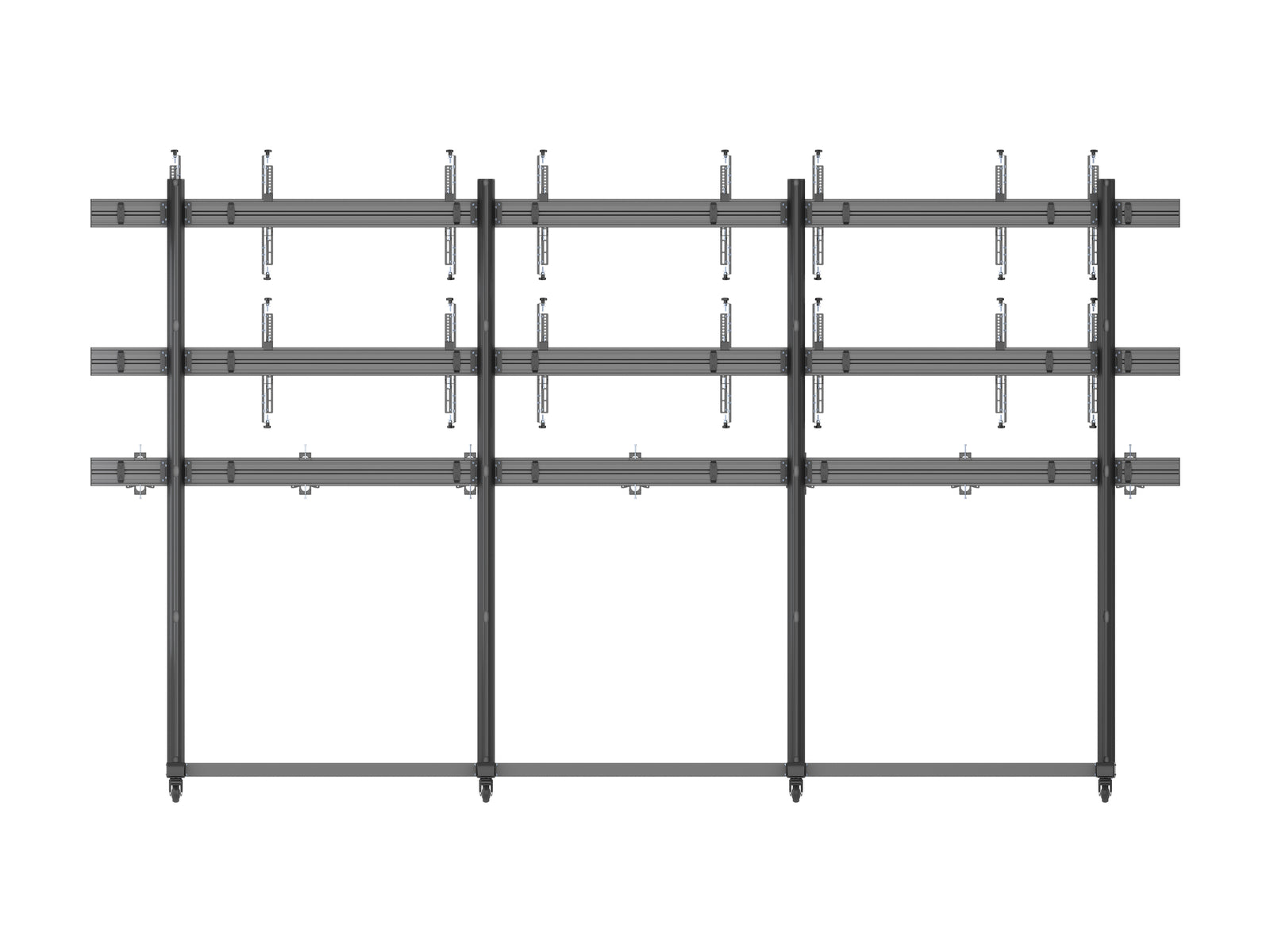

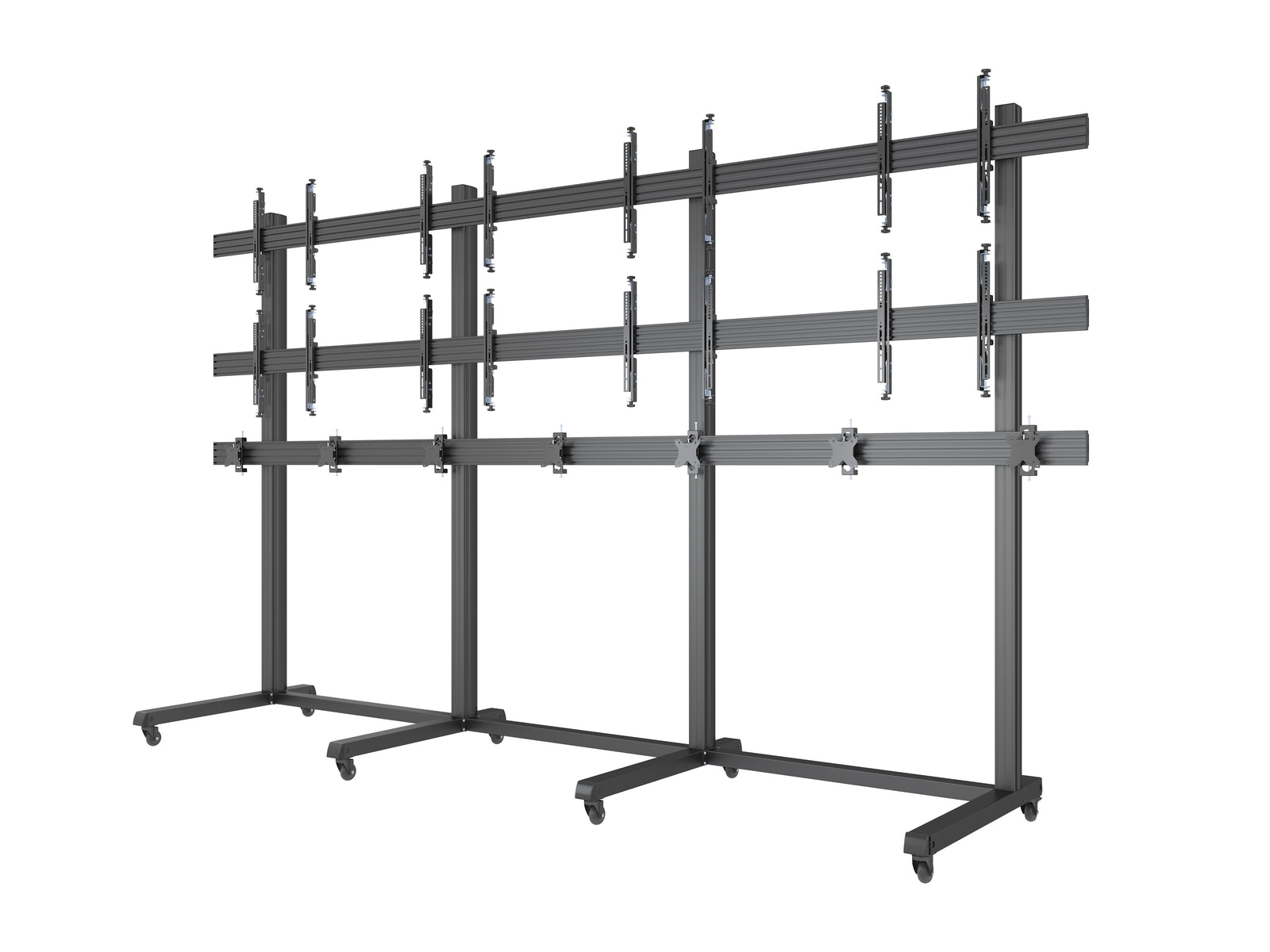

The M Pro Series Video Wall Stand MBF4x2Ux7 270 Micro Adjustable is a high-capacity freestanding display solution, enabling up to 8 large-format screens (27"-65") in a 4x2 configuration with support for up to 7 additional monitors. Built on Multibrackets’ modular Pro Series platform, it is ideal for AV control rooms, large-scale digital signage, and presentation environments.

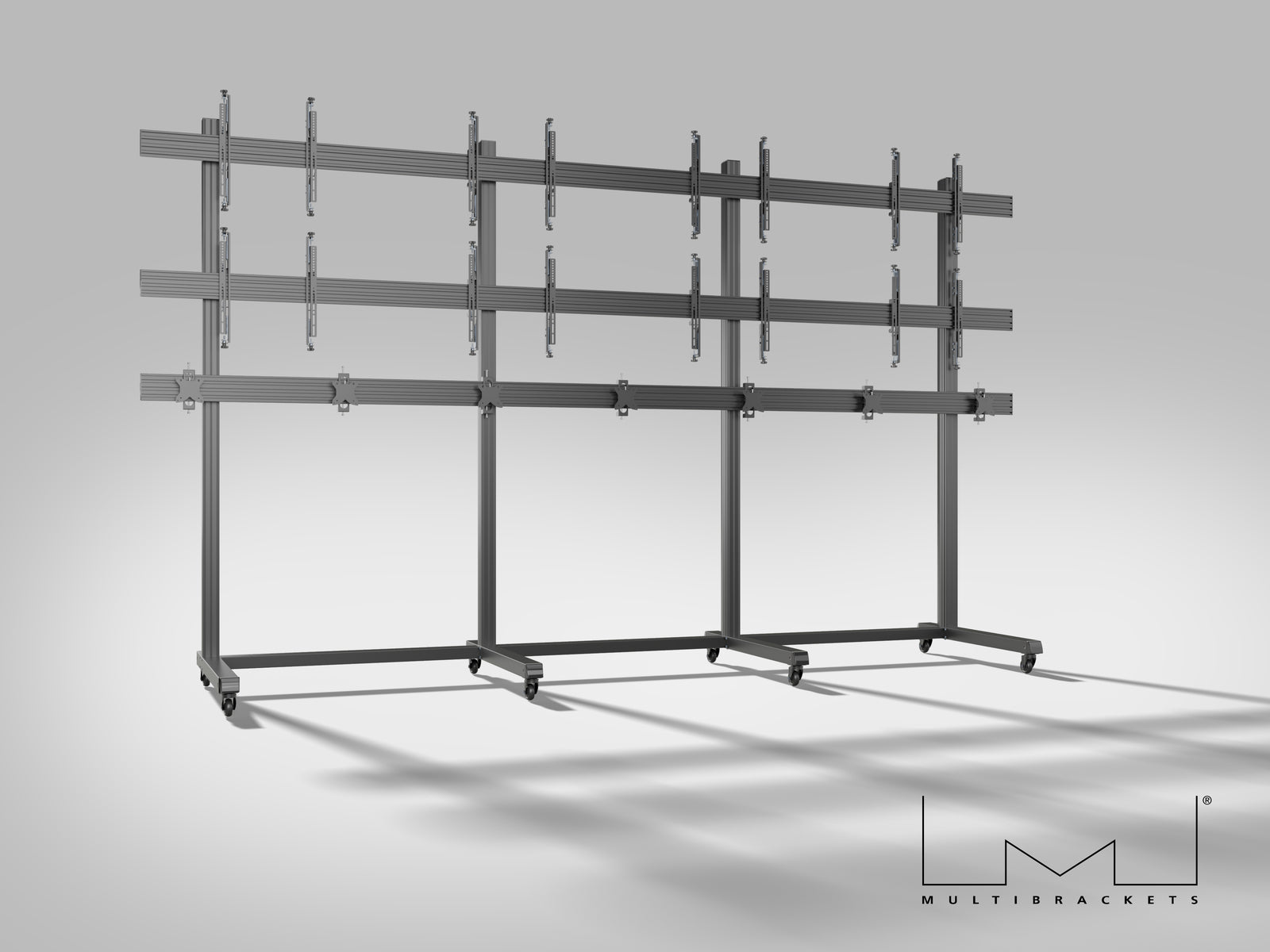

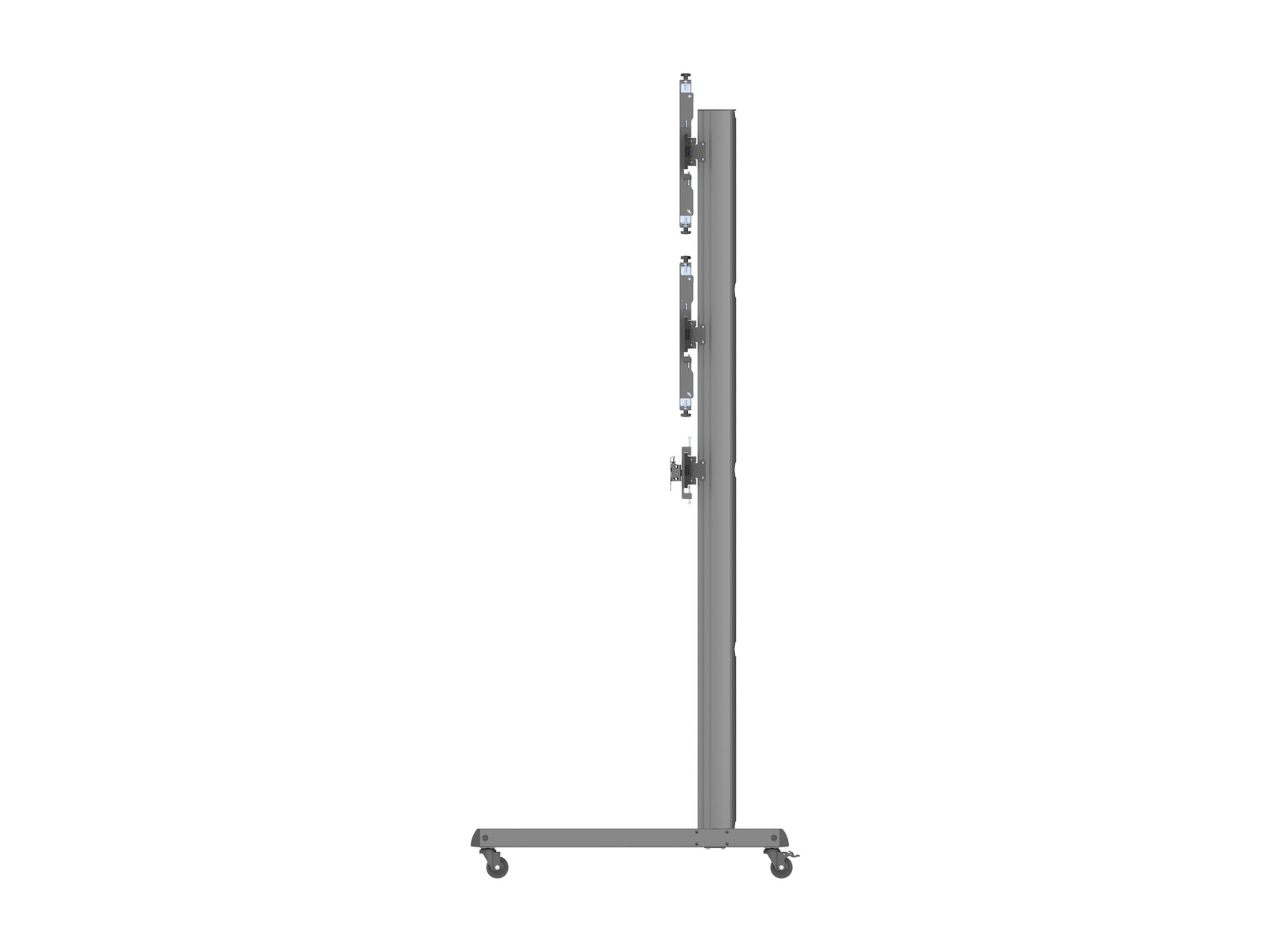

With its 270 cm durable aluminum pillar, this video wall offers excellent vertical adjustability for seated or standing viewing. Micro-adjustable VESA interfaces allow precise alignment across X, Y, and Z axes—even after installation—ensuring a seamless visual setup. Thanks to its modular structure, this system can be reconfigured over time to meet evolving AV needs without replacing the entire setup.
Perfect for control rooms, communication centers, or trade shows, the MBF4x2Ux7 stand is easy to assemble, compatible with a wide range of M Pro Series accessories, and designed to support fast deployment and long-term use. Each screen mount supports up to 30 kg, making the system suitable for most commercial-grade displays.
Highlights

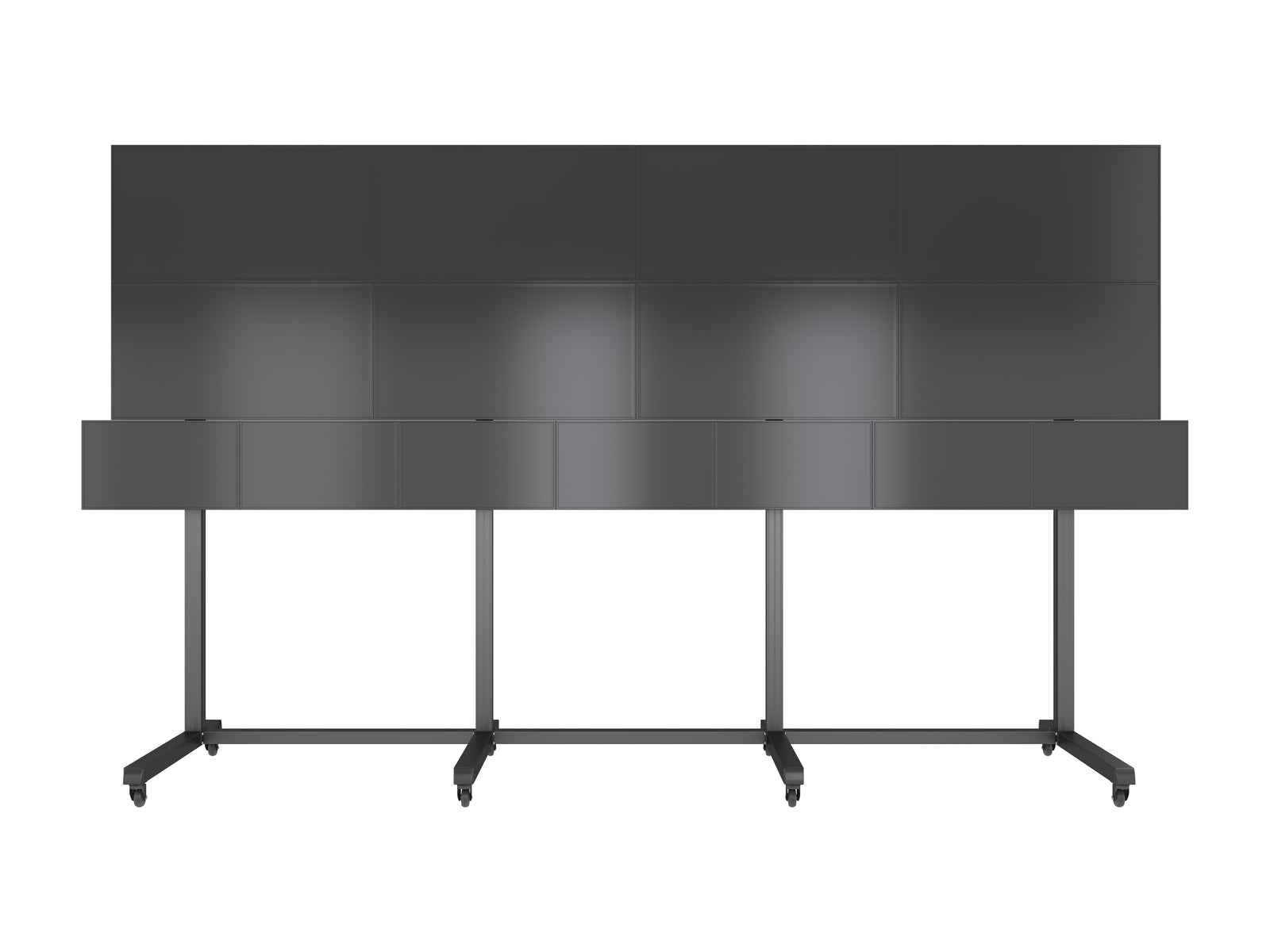

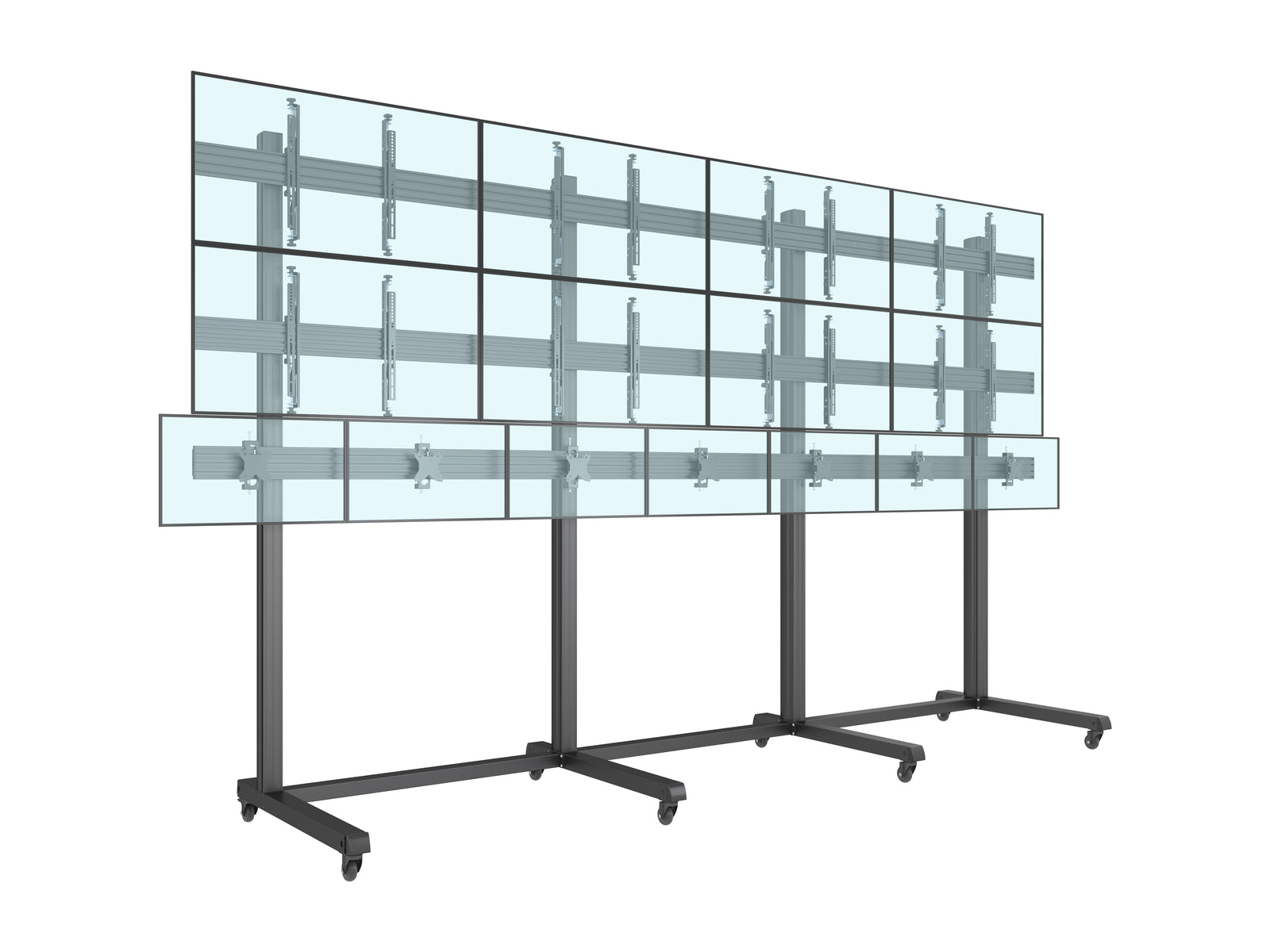

Supports 8 displays in 4x2 layout (up to 65”) with 30 kg per screen
Additional space for up to 7 monitors placed above or below the main array

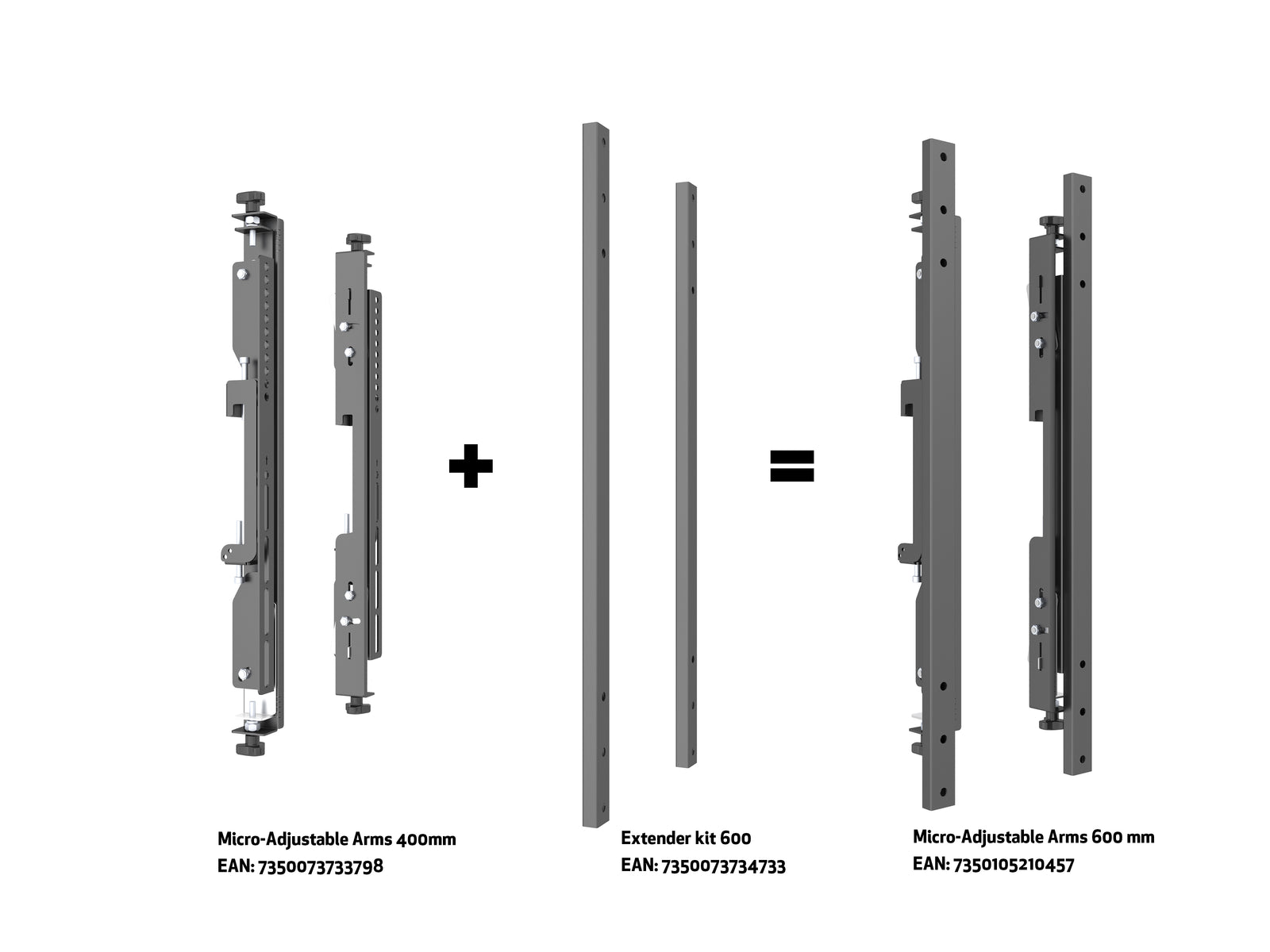

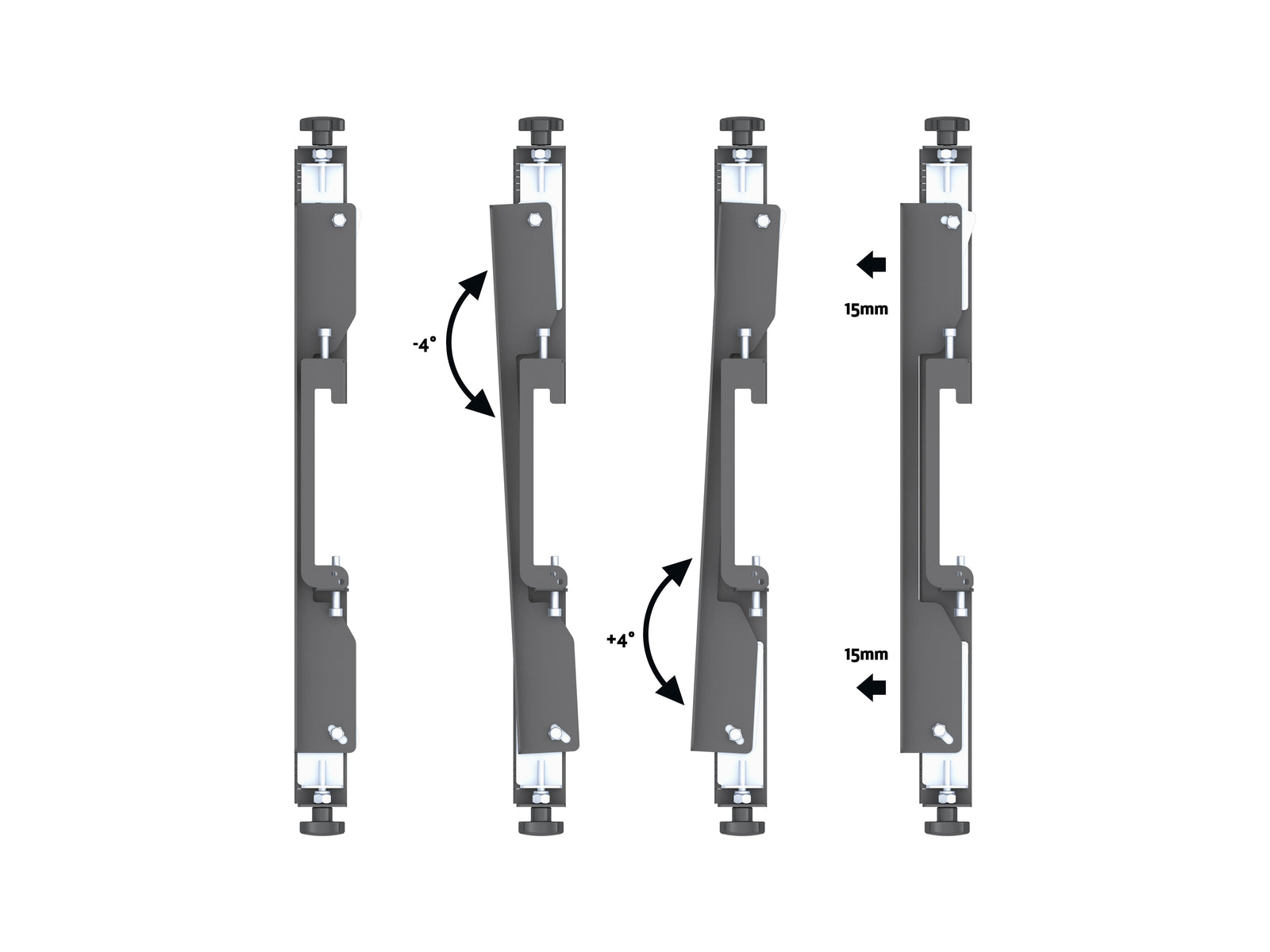

Micro-adjustable brackets for alignment on X, Y, and Z axes

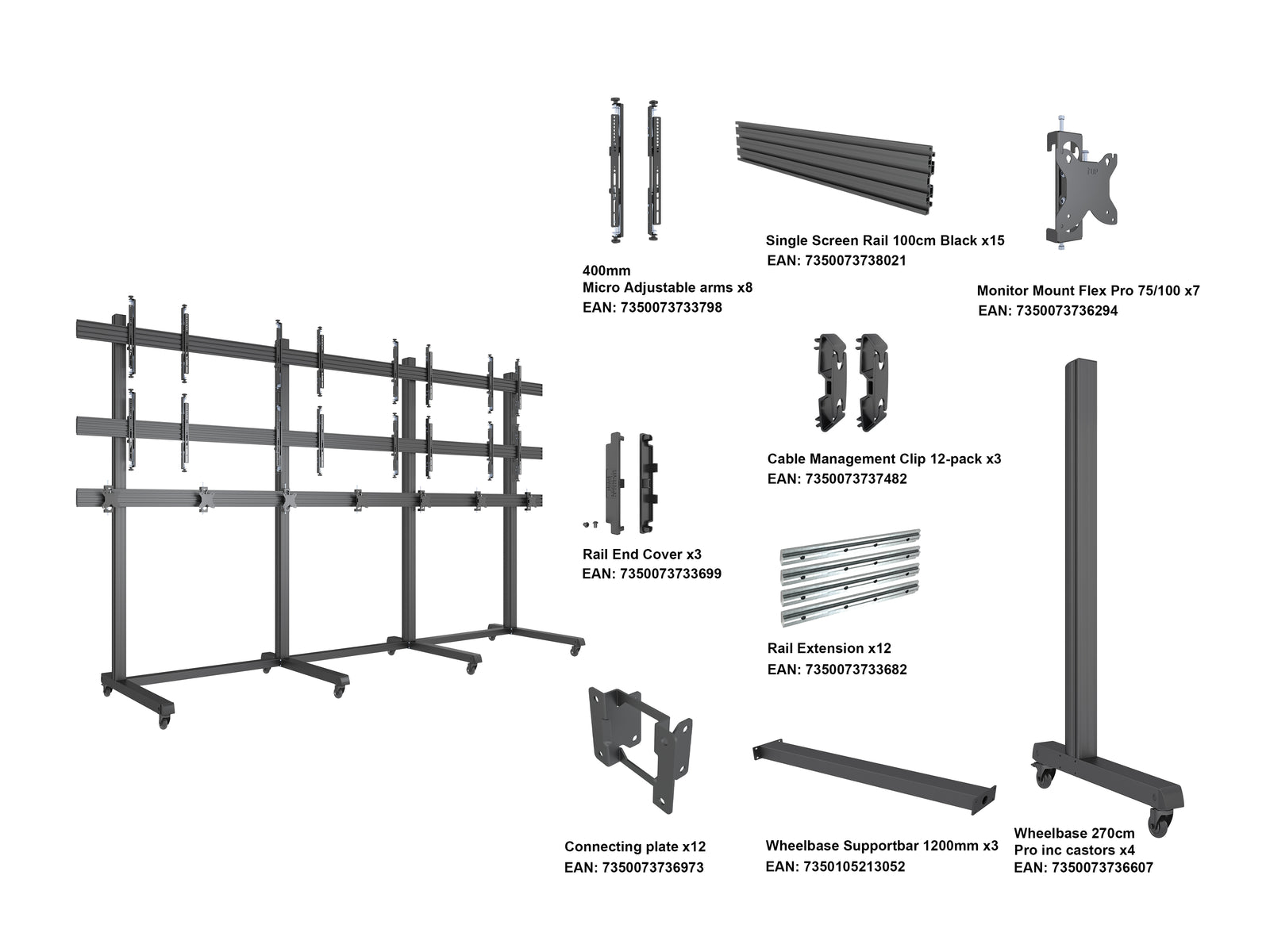

Fully modular design compatible with M Pro Series components
Quick and intuitive installation process

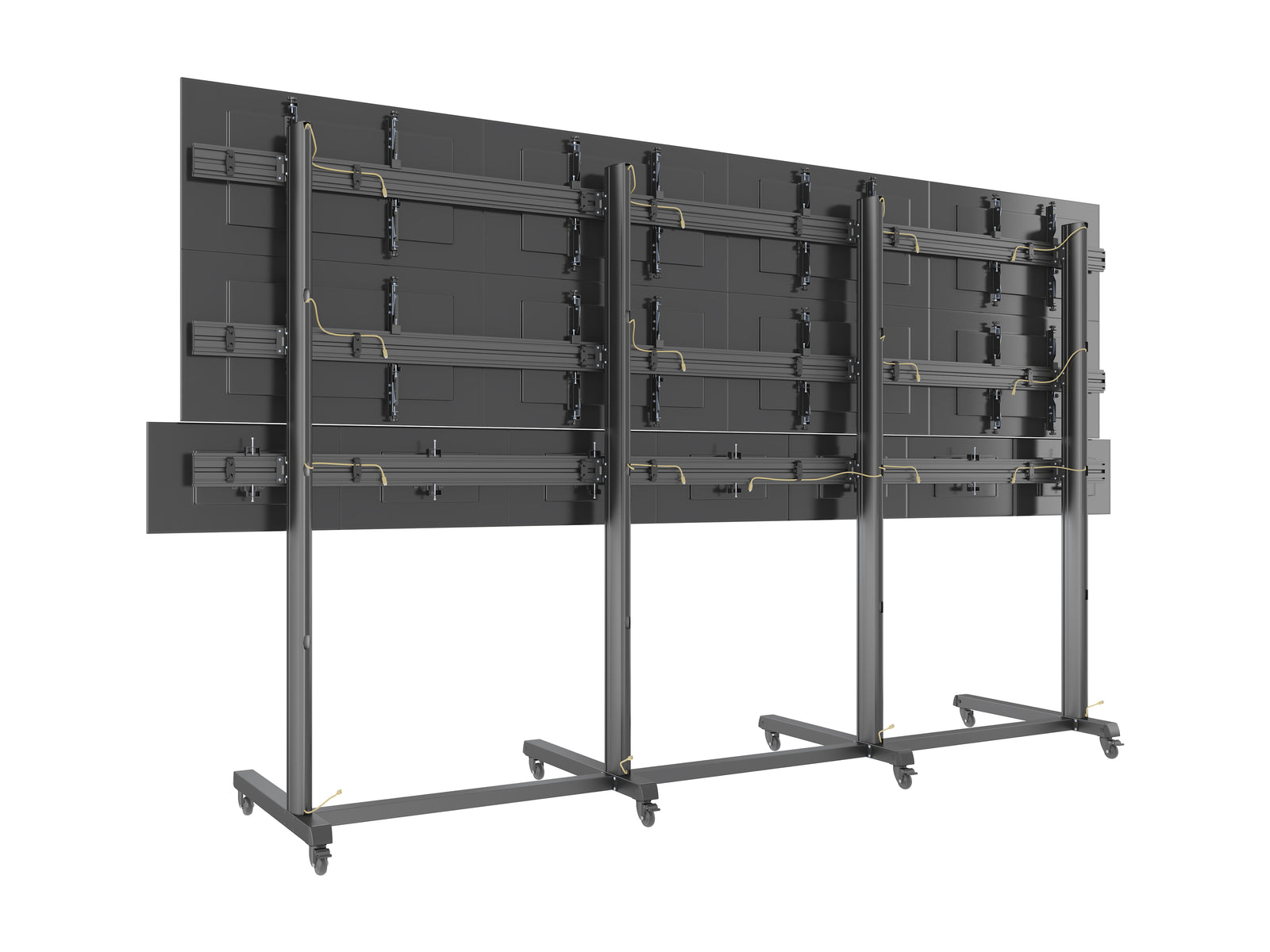

Tool-free servicing — displays remain accessible for maintenance

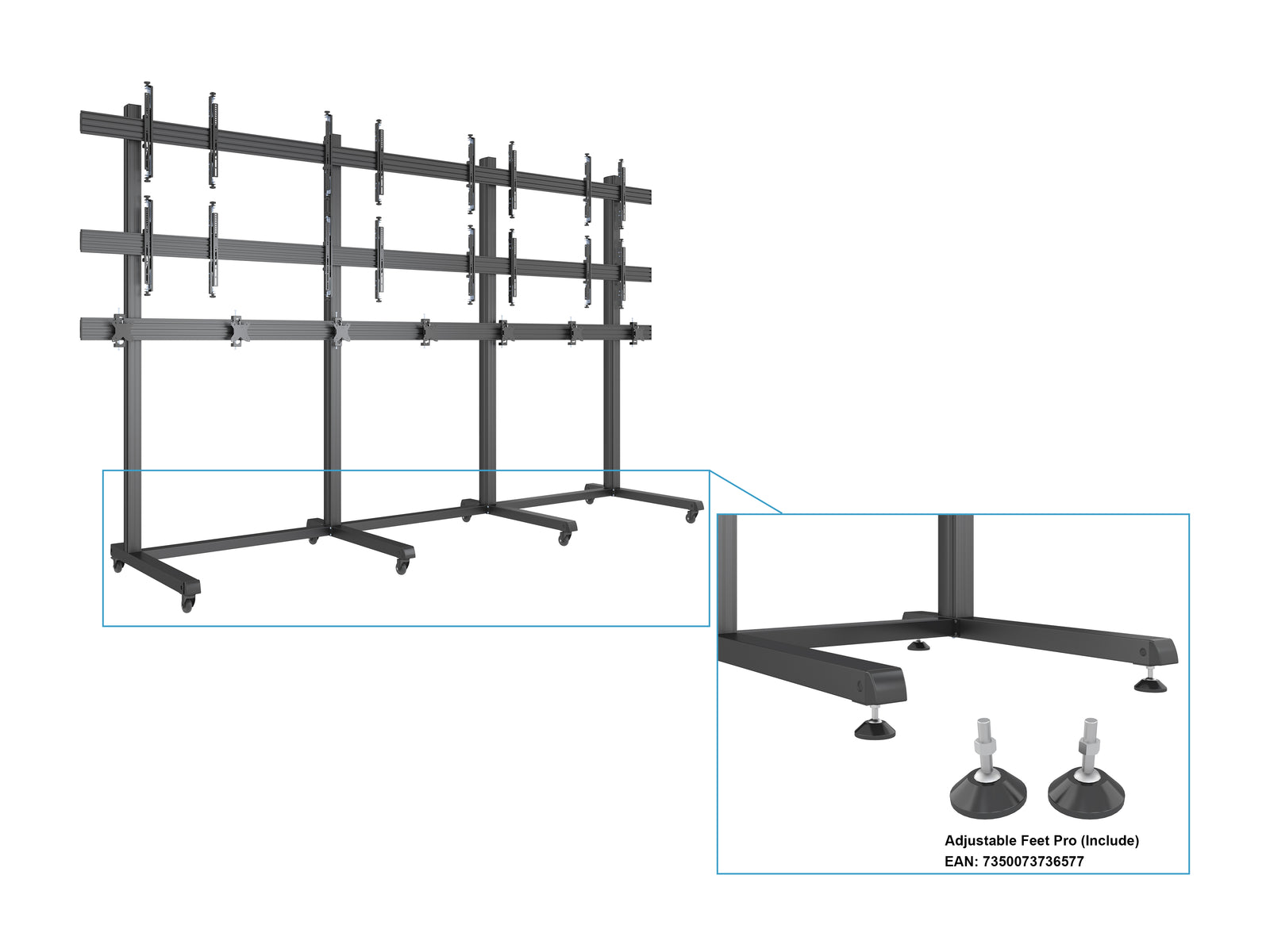

Optional fixed or mobile base configuration
| For screen size: | 46"-75" - for each screen * | Feature: | 7 screen assembly |
| VESA standard: | 100x100 200x200 300x300 400x400 600x400mm | Article No: | 7 350 105 216 923 |
| Size in mm: (WxDxH) | 279.5x35.5x13.2cm + 279.5x35.5x13.2cm + 104.5x18x13.5cm + 104.5x18x13.5cm + 60x48.8x14cm + 149x30x8.8cm + 149x30x8.8cm + 60x25x16cm | Adjustable height: | 10 mm screen height adjustment |
| Weight: | 155 kg | Colour: | Black |
| Tilt: | ±4° | Swivel: | ±0° |
| Rotate: | ±0° | Material: | Steel, Aluminium, Plastic |
| Surface Finish: | Powder coating | Warranty: | 5 years |
| Description | Downloads |
|---|---|

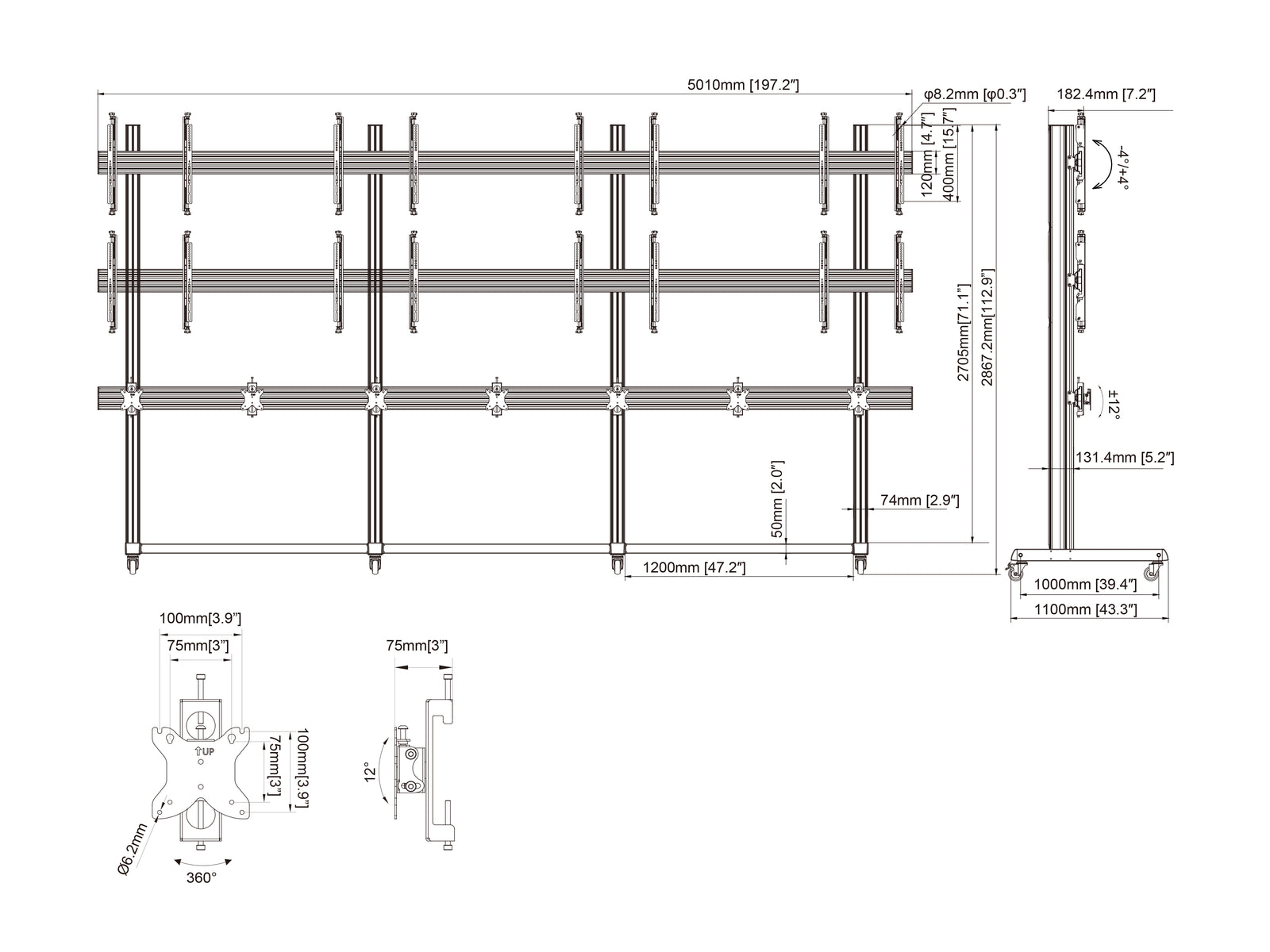

| Drawing | Download |
