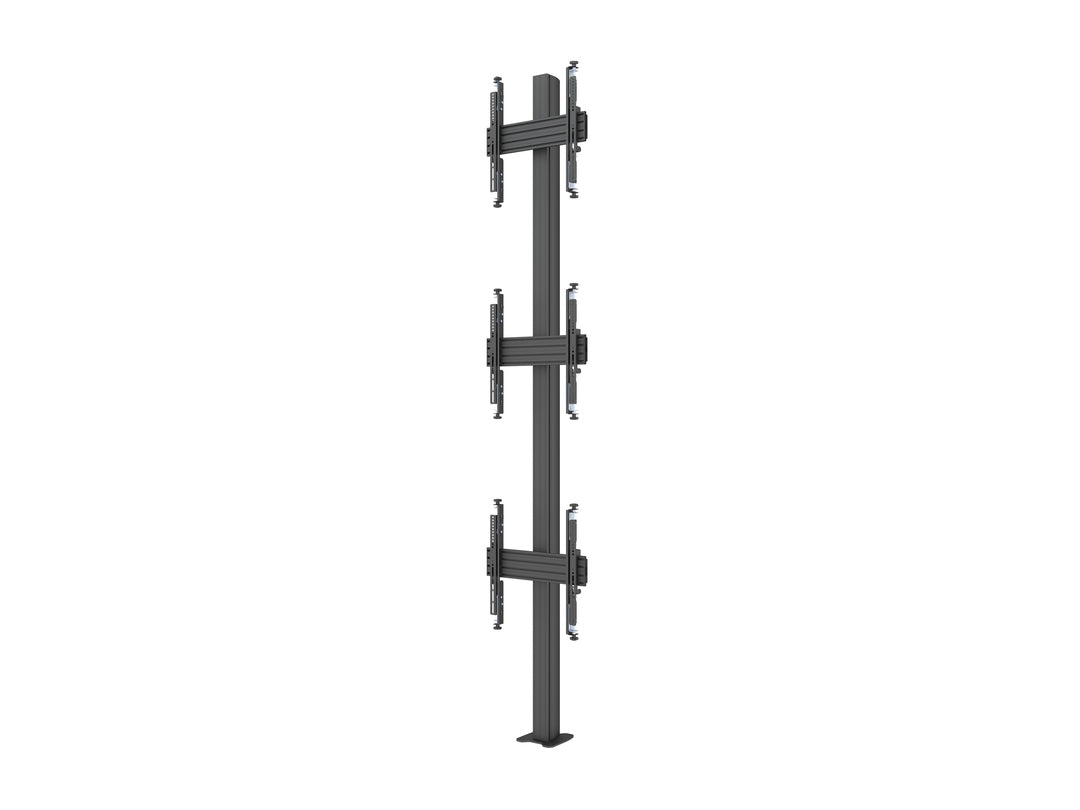

Multibrackets MBFC3U M Floormount Column Pro - (32"-65")

• Description
• Specifications
• Downloads

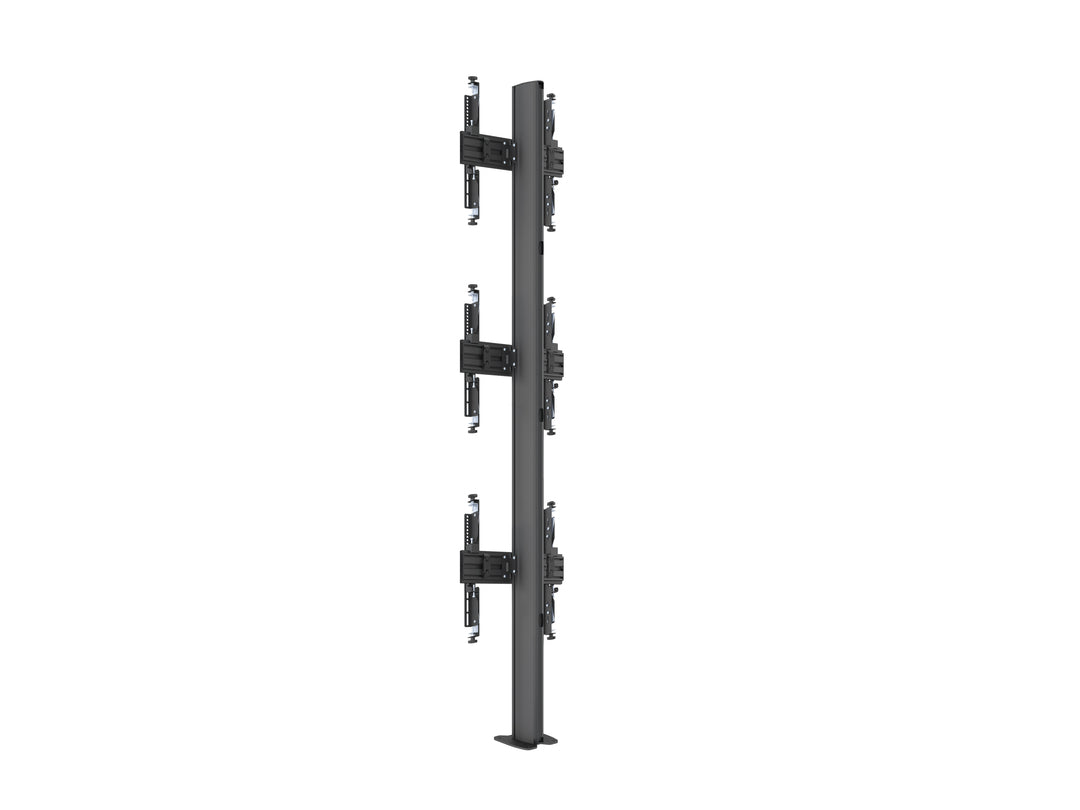

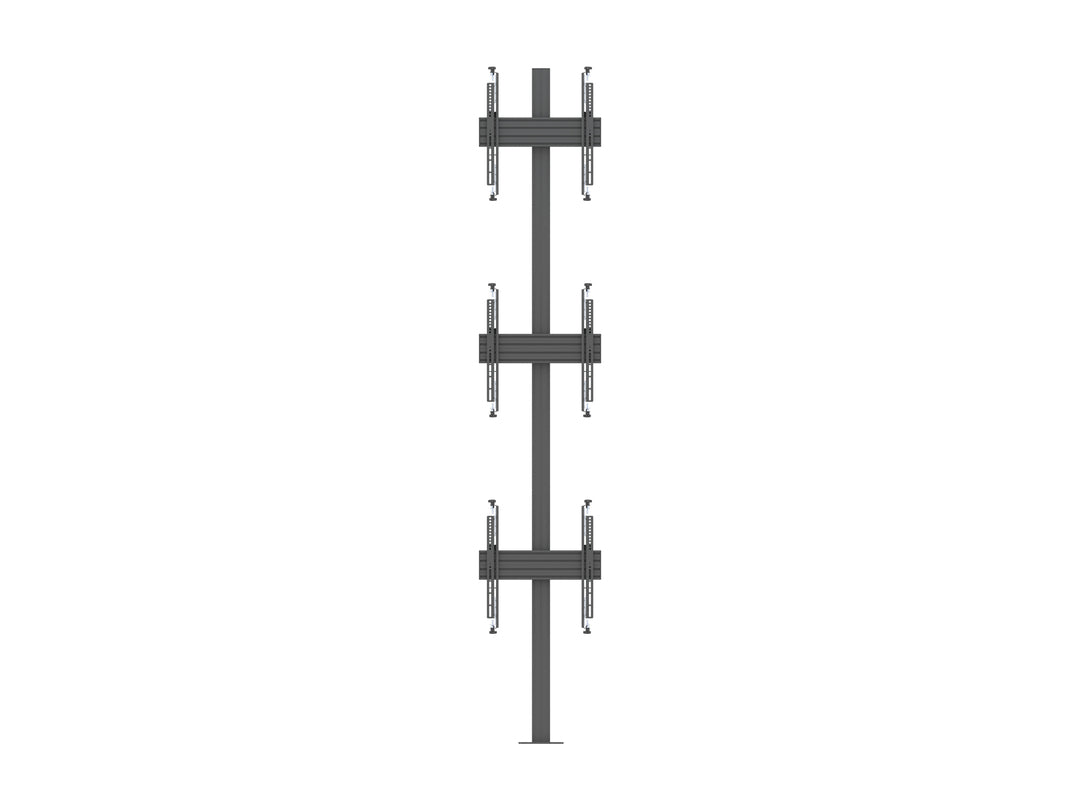

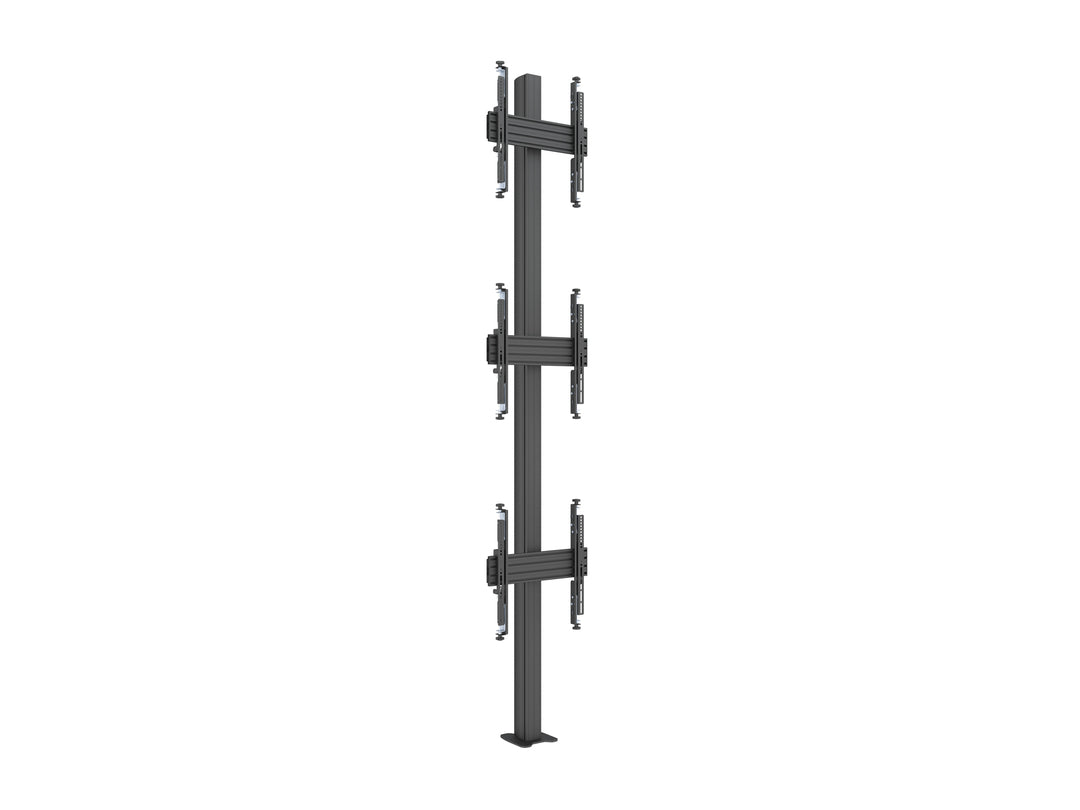

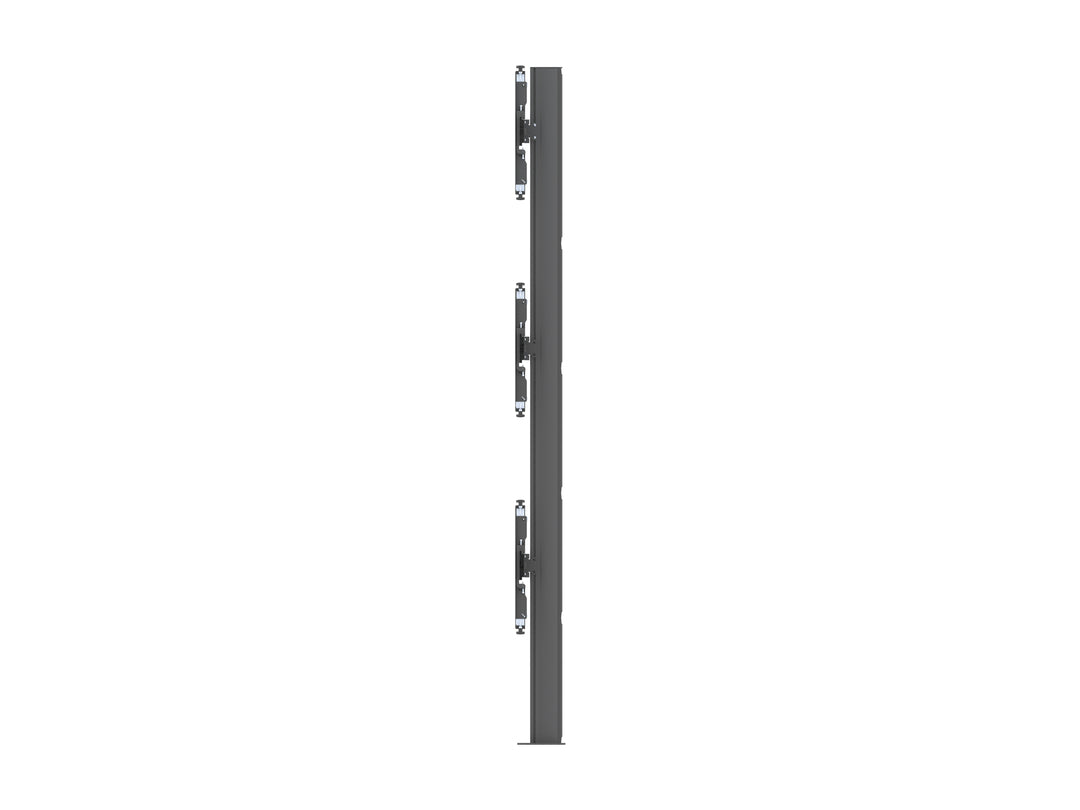

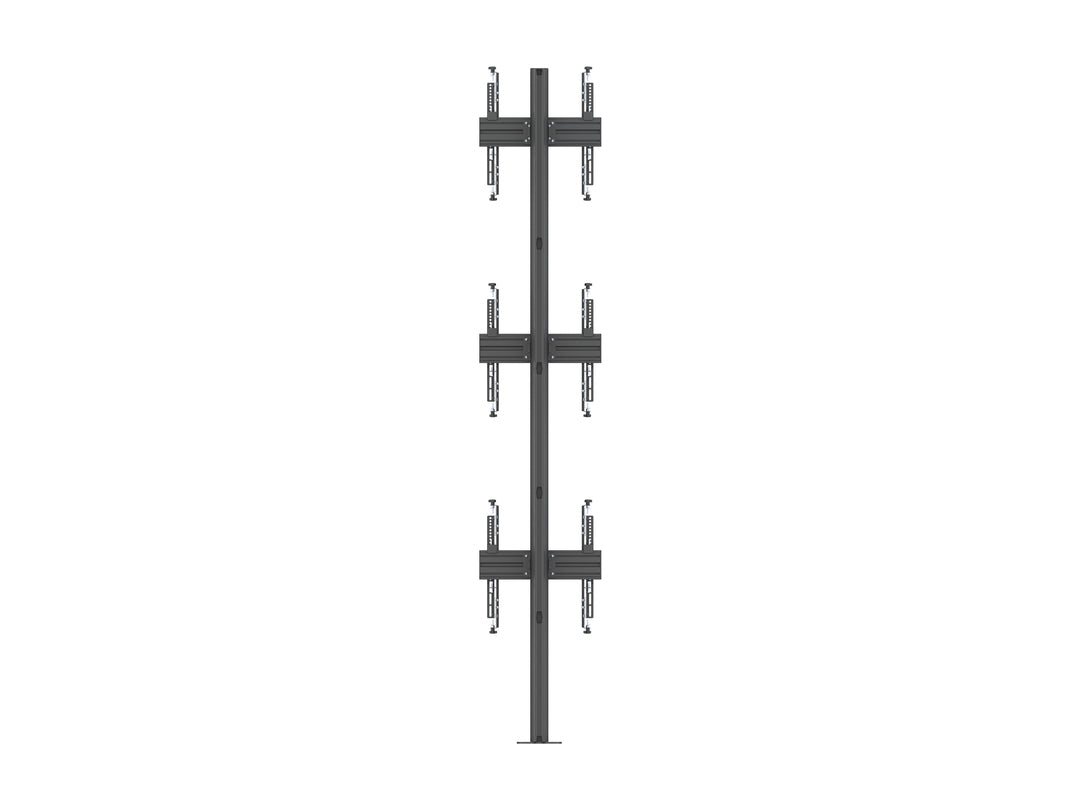

• M Floormount Column Pro MBFC3U 270 Micro-Adjustable - Floor column mount for LCD, steel, 2.7m height, 3 screen, single side, micro-adjustable arms, VESA Max 400x400 - screen size: 32"-65" - black

  M Floormount Column Pro MBFC3U 270 Micro-Adjustable is a signage solution - ready to be installed.

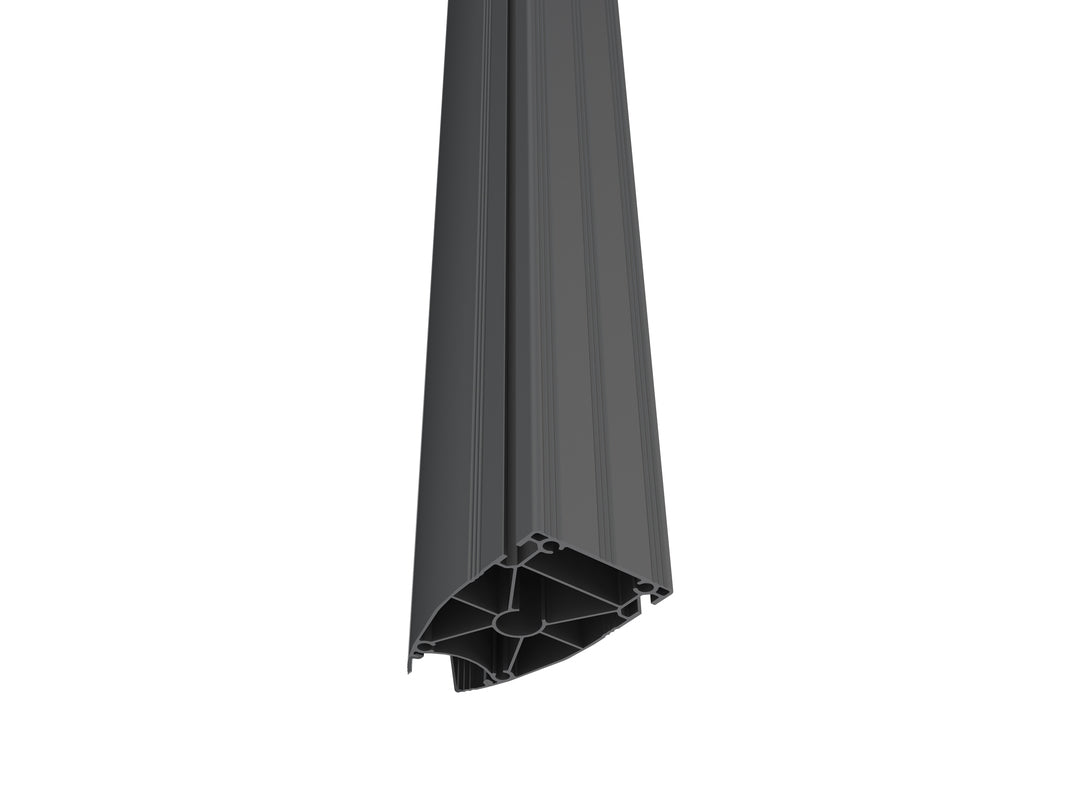

  The professional Pro Series A/V line from Multibrackets was designed with the installer in mind. Modular, easy to configure, quick to install, and simple to maintain. Developed together with installers we added close to unlimited flexibility and versatility. Based on the Pro Series ultra-flexible aluminum rail it is completely modular and has built-in cable management throughout the entire solution to quicken installation and create an esthetic result worth the public eye.

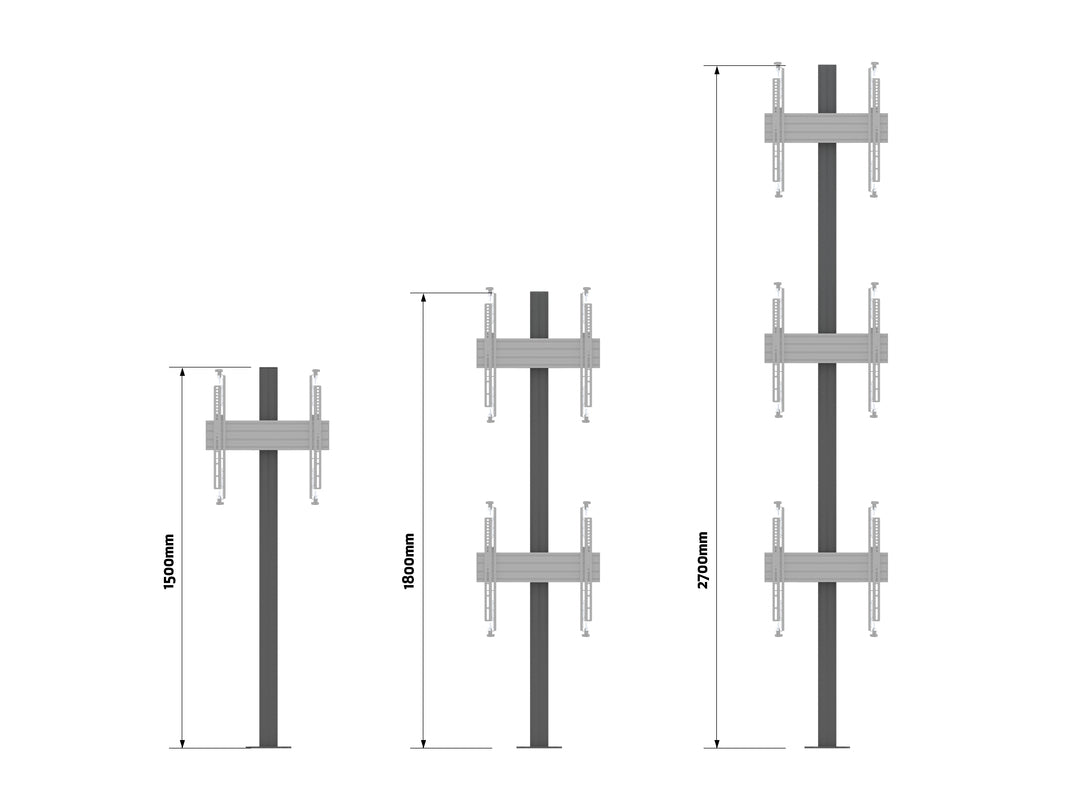

  With its modular construction installers can tailor the MBFC3U 270 Micro Adjustable with the client's needs in mind. Possibilities to change, update, and reconfigure its design and if ideas change over time Pro Series can follow

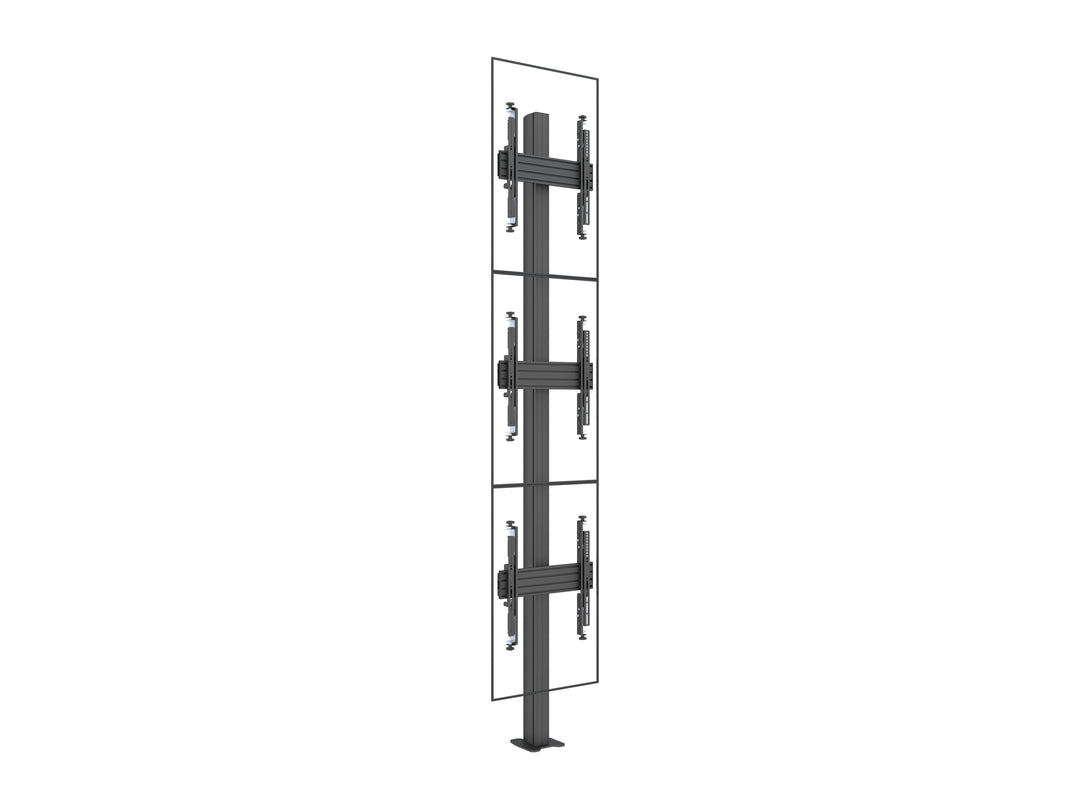

  The M Floormount Column Pro MBFC3U 270 Micro-Adjustable creates a rock-steady screen display solution aimed for the retail store, mall, or any other public area. 50mm black, brass or chrome tubes can be tailored to fit the environment in which the unit is positioned. Mount screens with tilt or fixed displays. Place them side by side and/or above each other.

  This M Floormount Column series was designed with our Scandinavian heritage in mind and provides a clean Nordic look where each part and detail is made as simple as can be and still services its function. The result is a sleek Nordic solution emphasizing quality and function by design and its material choices throughout the entire solution.

  Our Pro Series includes hardware so that a basic installation should not be a hassle. The Pro Series possibilities to extend tubes and add details by choice are so vast that one can tailor each solution to its location and needed function.

  Multibrackets Pro Series Floormount Column is ideal for any large-screen digital signage application

  Highlights
  A professional, flexible, and modular product
  Includes VESA adapters for compatibility up to VESA 400x400

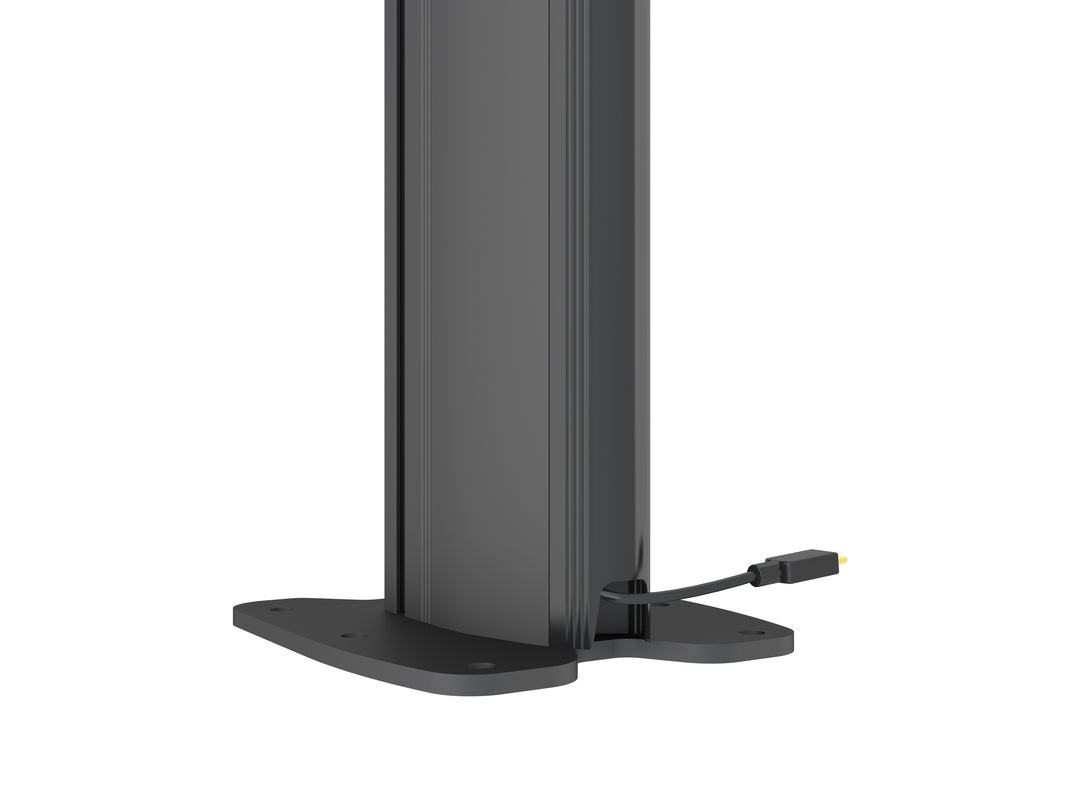

  Integrated cable management throughout the entire solution
  Power click install for an easy, fast, and safe installation
  Portrait or landscape position of the screen possible

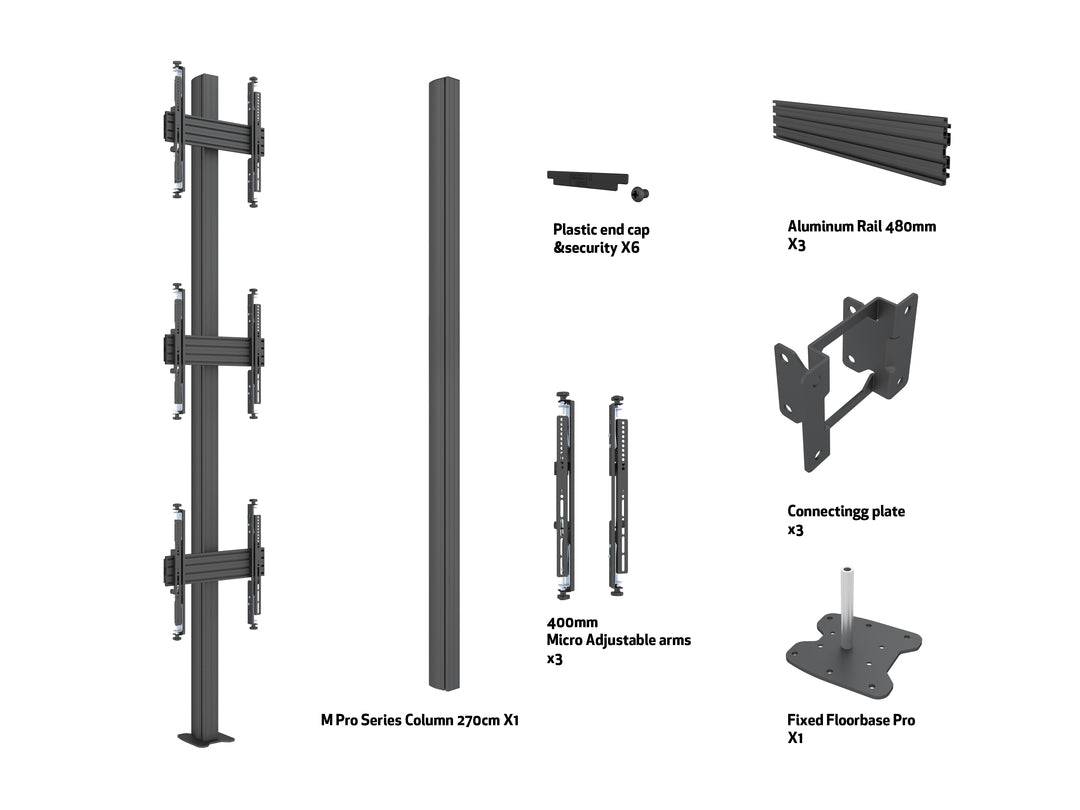

  Hardware kit included



• Property	Details
  Article No	7 350 105 210 334
  Color	Black
  For Screen Size	32"~65"
  Universal & VESA Standard	75x75,100x100,200x200,300x300,400x400
  Material	Steel, Aluminium, Plastic
  Surface Finish	Powder Coating
  Weight	22.5 kg

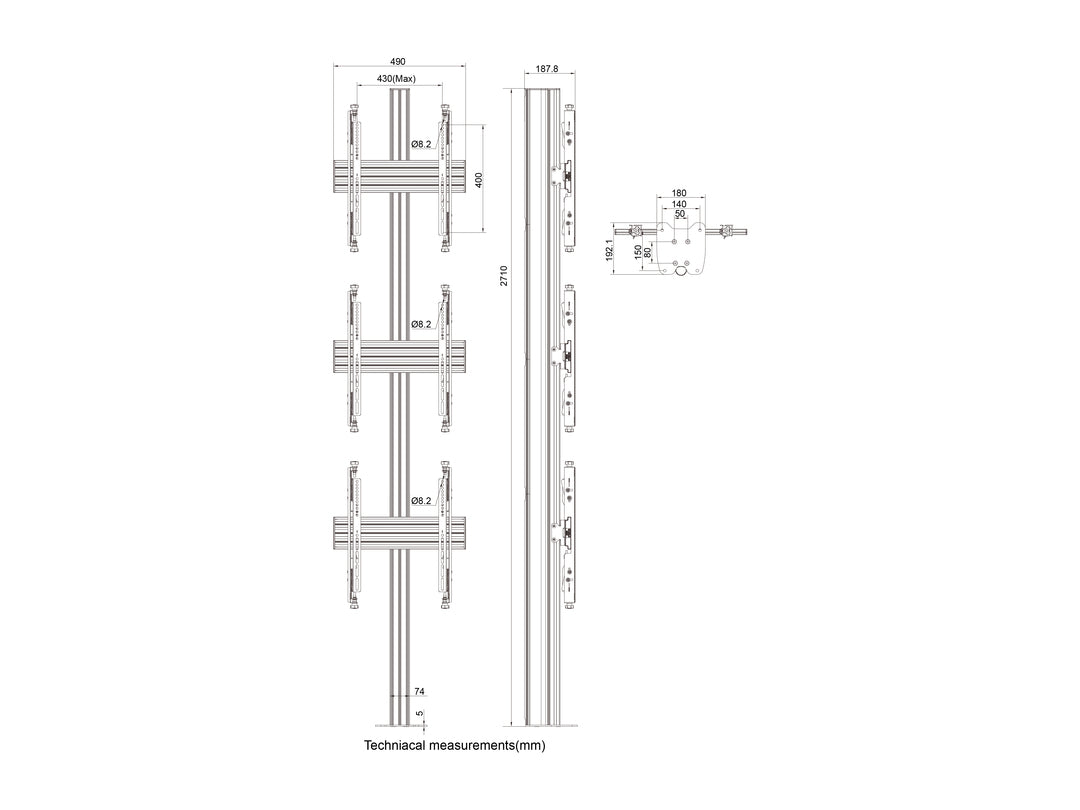

  Measurements	2760x180x125 + 580x190x170
  Max Load	30 kg per screen

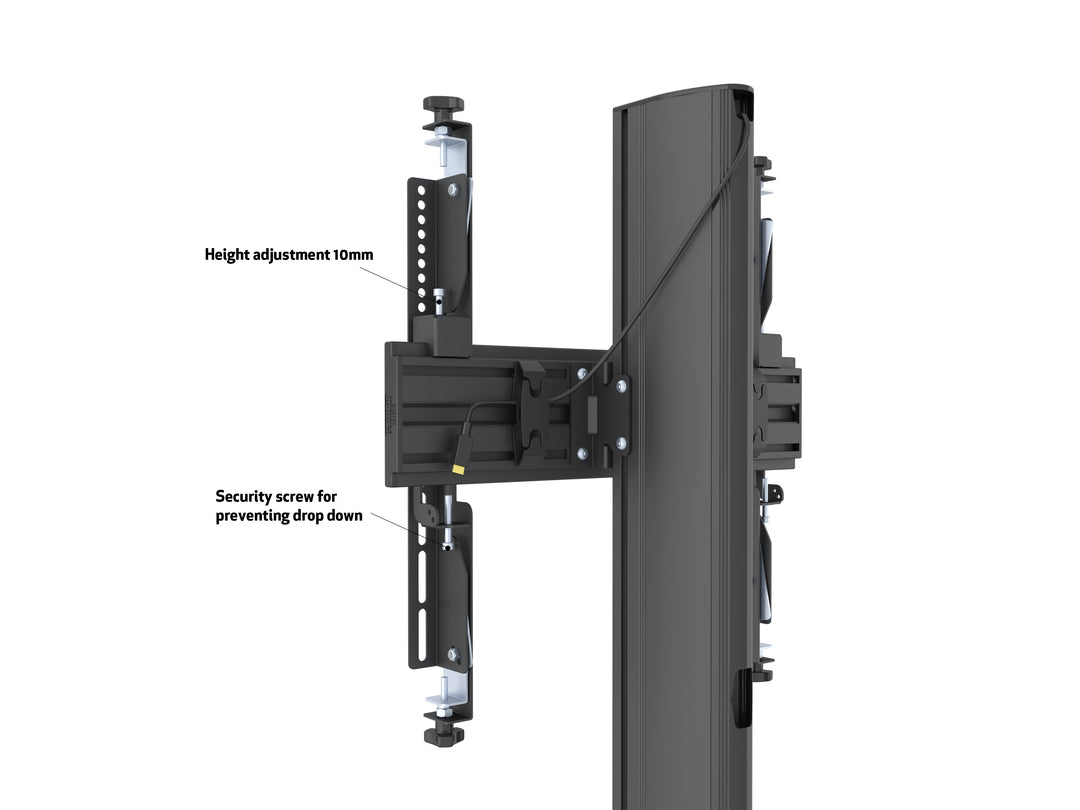

  Height	10 mm height adjustment

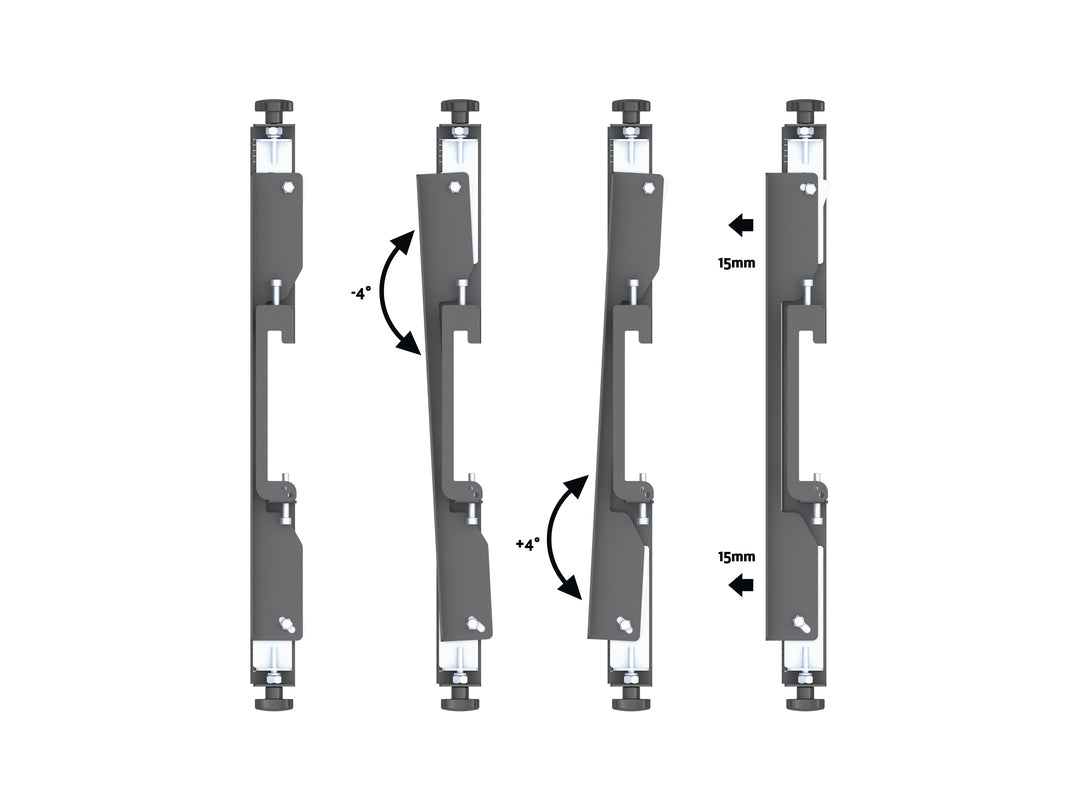

  Tilt	±4°
  Swivel	0°
  Rotate	0°
  Installation	Floor mount
  Cable Management	N/A
  Options	Article no: 4733: M Pro Series - Extender kit 600
  Warranty	5 years
  Retail Package Specification
  Package Parcels	2 pcs
  Parcel 1	276.7x18.5x12.9cm 11.8kg
  Parcel 2	59.5x20.2x19.5cm 15kg
  Package Measurements	0 x 0 x 0 cm
  Package Weight	26.80 kg
