Multibrackets MBFMC6x3U M Pro Series Video Wall Floormount - 600x400

• Description
• Specifications
• Downloads

•

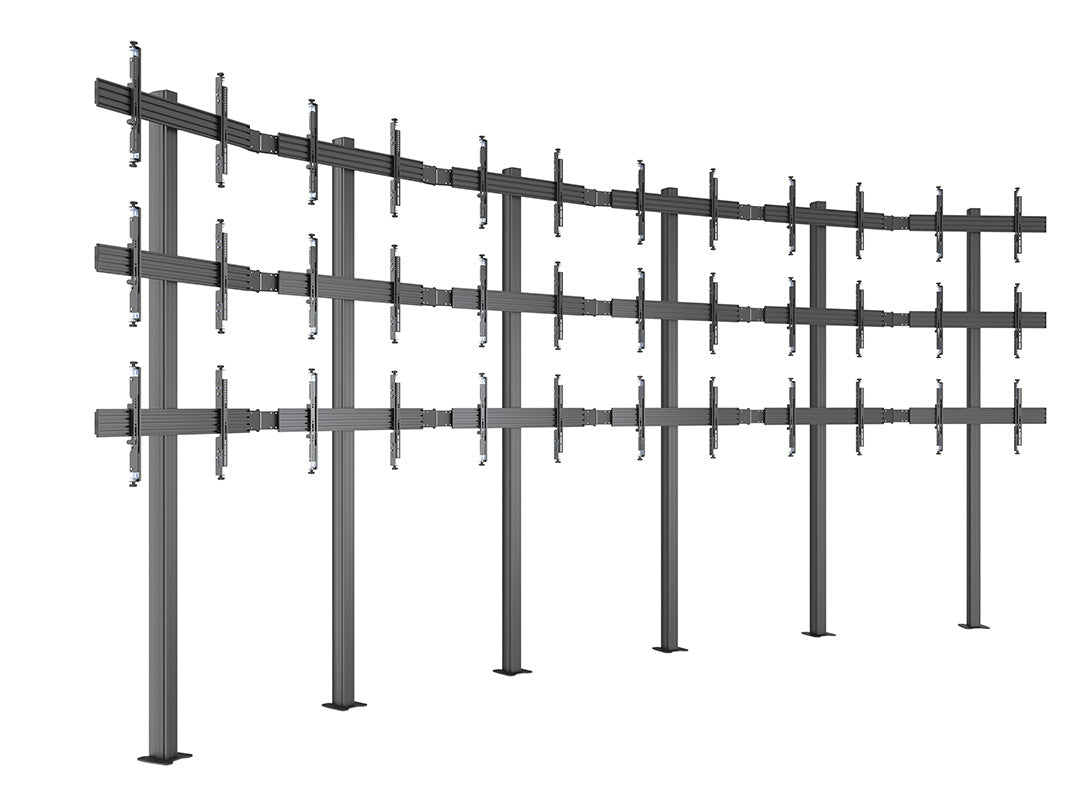

  M Pro Series – Video Wall Floormount MBFMC6x3U - Floor column mount for triple displays, steel, 18 screens, single side, micro-adjustable arms, VESA Max 600x400 - black

  M Pro Series – Video Wall Floormount MBFMC6x3U is a digital signage solution - ready to be installed.

  Multibrackets® Pro Series modular video wall floor mount with loads of useful features that eliminate the need for extra tools and hardware while ensuring your videowall mount application is both safe and its outlook professional.

  The lineup of professional Pro Series A/V line from Multibrackets was designed with the installer in mind. Modular, easy to configure, quick to install, and simple to maintain. Developed together with installers we added close to unlimited flexibility and versatility. Based on the Pro Series ultra-flexible aluminum rail it is completely modular and has built-in cable management throughout the entire solution to quicken installation and create an esthetic result worth the public eye. With its modular construction installers can tailor clients' needs in mind, dual displays side by side with a perfect position to each other. Added there are possibilities to change, update, and reconfigure its design and if ideas change over time Pro Series creates a rock-steady screen display solution aimed for the retail store, mall, or any other public area. These VESA arms are designed to mount medium to large-sized screens onto the horizontal mounting rails. The arms are micro-adjustable with Z, Y, and Z adjustment possibilities for the closest possible positioning.

  This product was designed with our Scandinavian heritage in mind and provides a clean Nordic look where each part and detail is made as simple as can be and still service its function. The result is a sleek Nordic solution emphasizing quality and function by design and its material choices throughout the entire solution.

  Our Pro Series includes hardware so that a basic installation should not be a hassle. The Pro Series possibilities to add details by choice are so vast that one can tailor each solution to its location and needed function.

  Highlights

  M Pro Series is Ideal for creating video
  Bolt-down solution allows for a permanent solution
  Dual displays single row total two displays
  Reliable, and flexible for multi-screen applications
  Includes advanced micro-adjustable VESA adapters fine fine-tune adjustment between displays
  Integrated cable management throughout the entire solution
  Power click install for an easy, fast, and safe installation
  Landscape or portrait orientations
  Complete hardware kit included



• Attribute	Value
  Screen Size	32-65"
  VESA Standard	100x100 - 600x400 mm
  Article No	7 350 105 214 653
  Colour	Black
  Screen Weight	30 kg per screen
  Surface Finish	Powder Coating
  Material	Steel, Aluminum, Plastic
  Tilt Angle	+4° — -4°
  Warranty	5 years
  Retail Package Specification
  Package Parcels	1 pcs
  Package Measurements	0 x 0 x 0 cm
  Package Weight	0.00 kg

• Download Type	Downloads

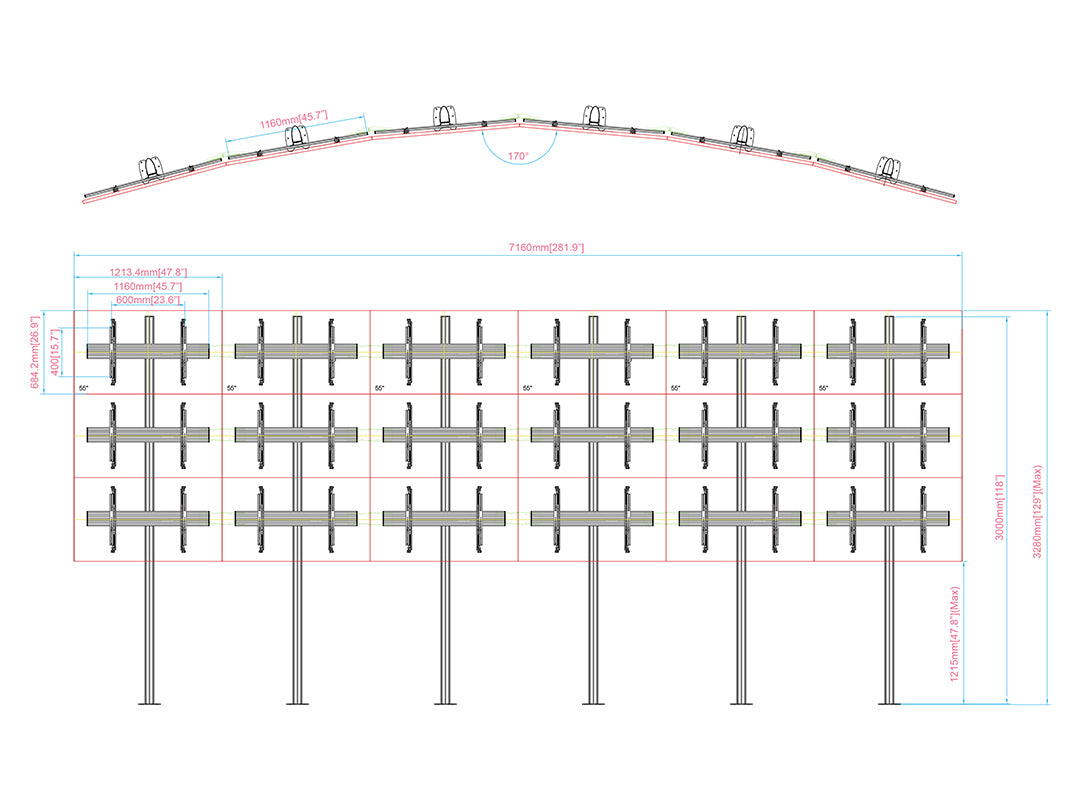

  Drawing PDF	Downloads
  Product Fact Sheet	Downloads
