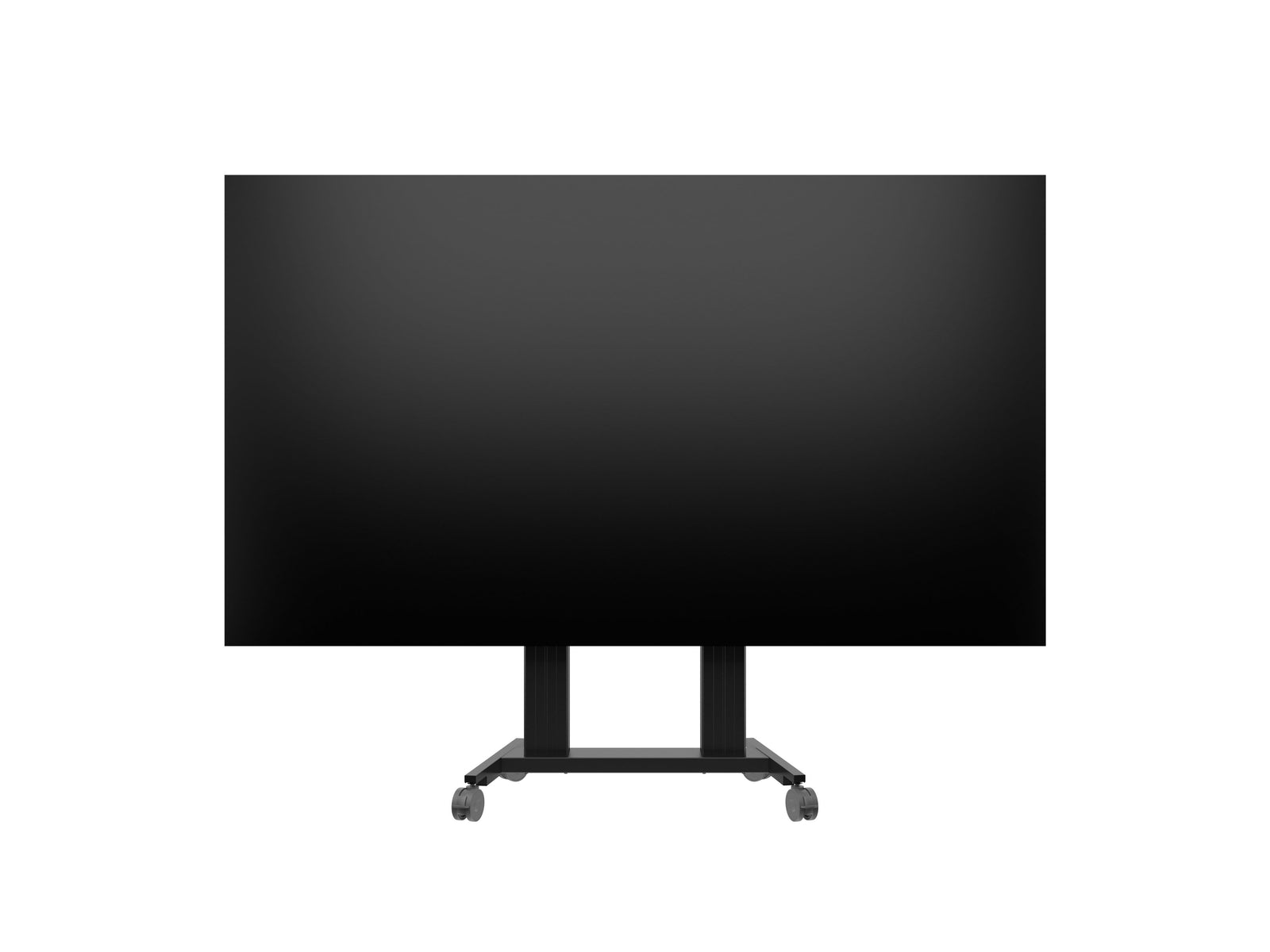

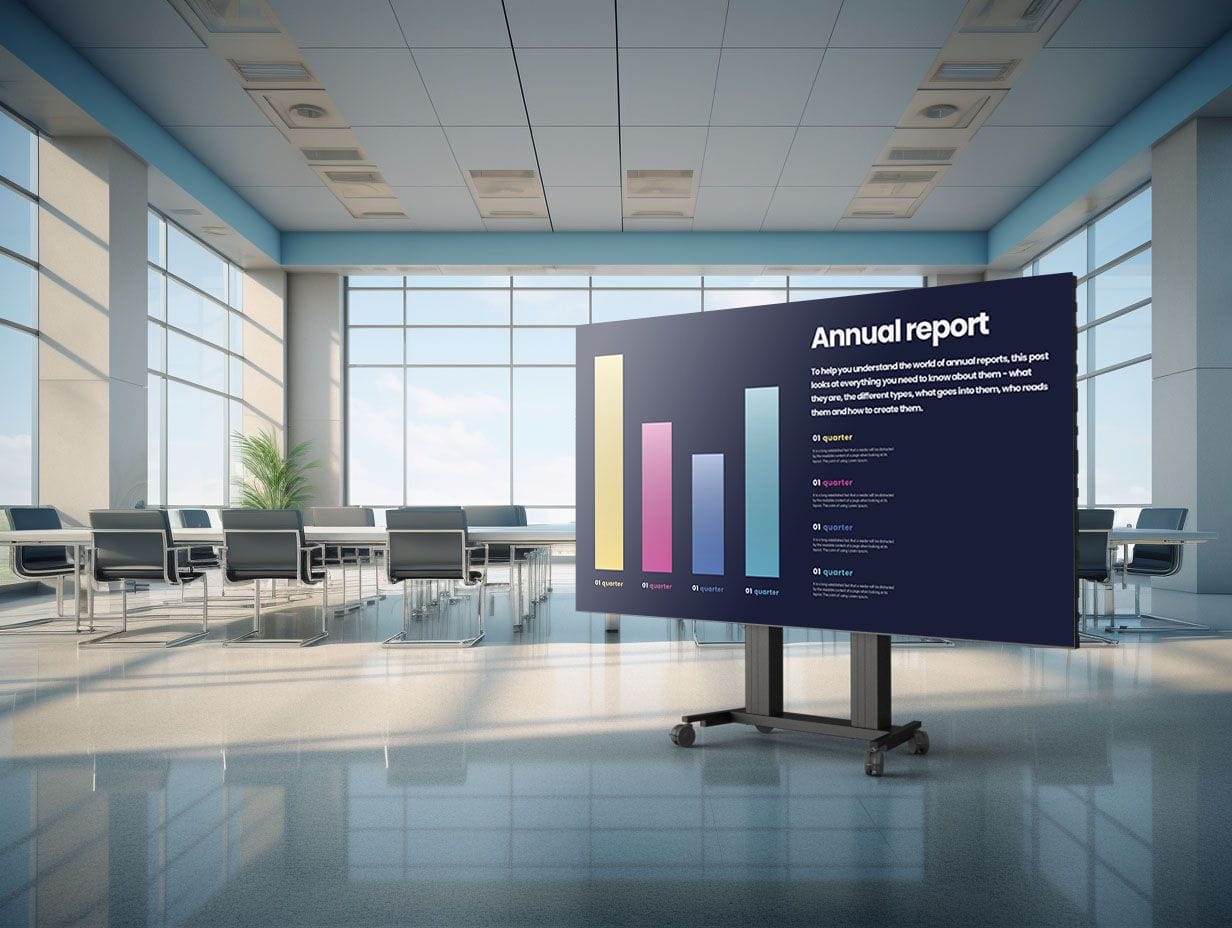

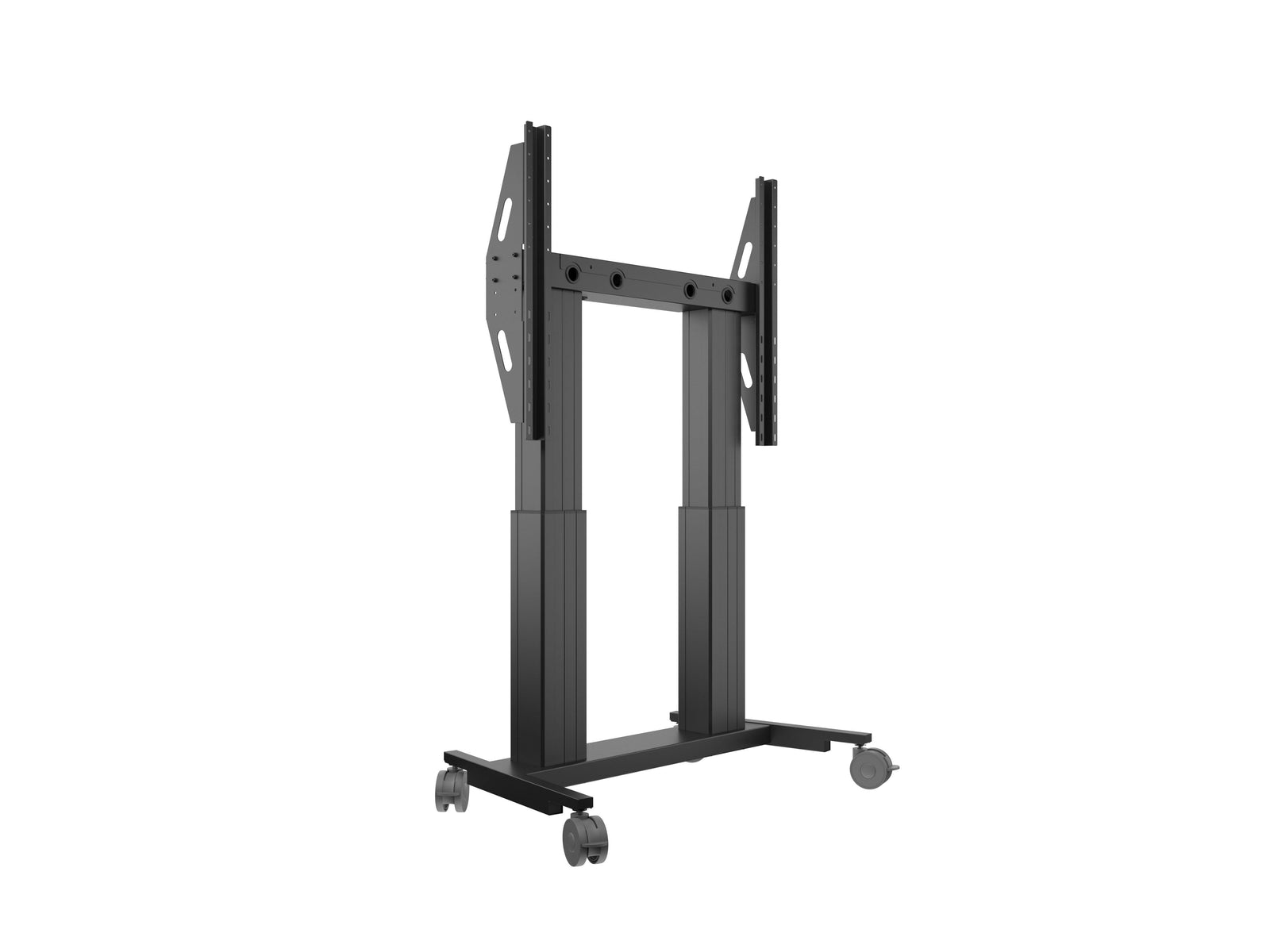

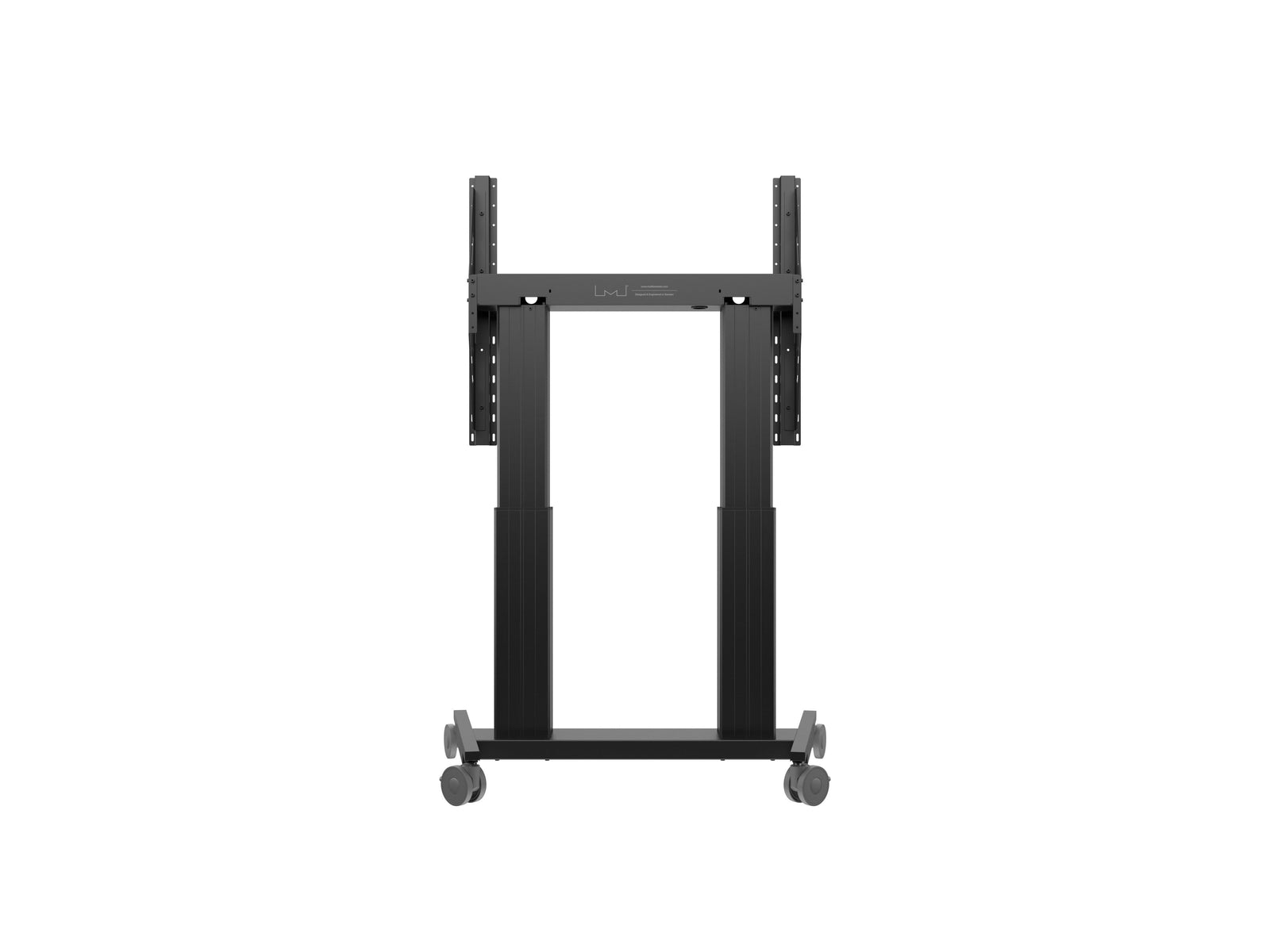

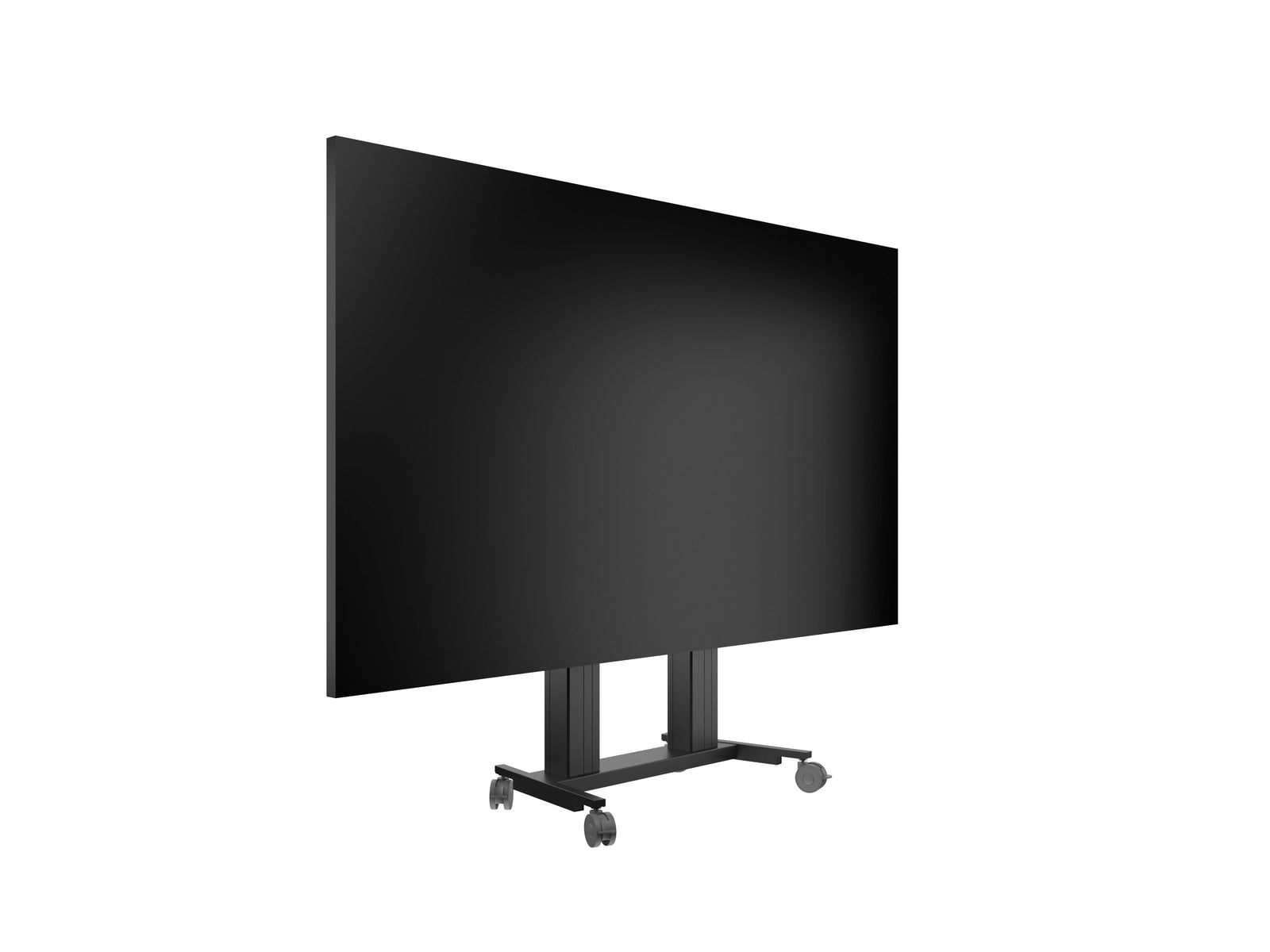

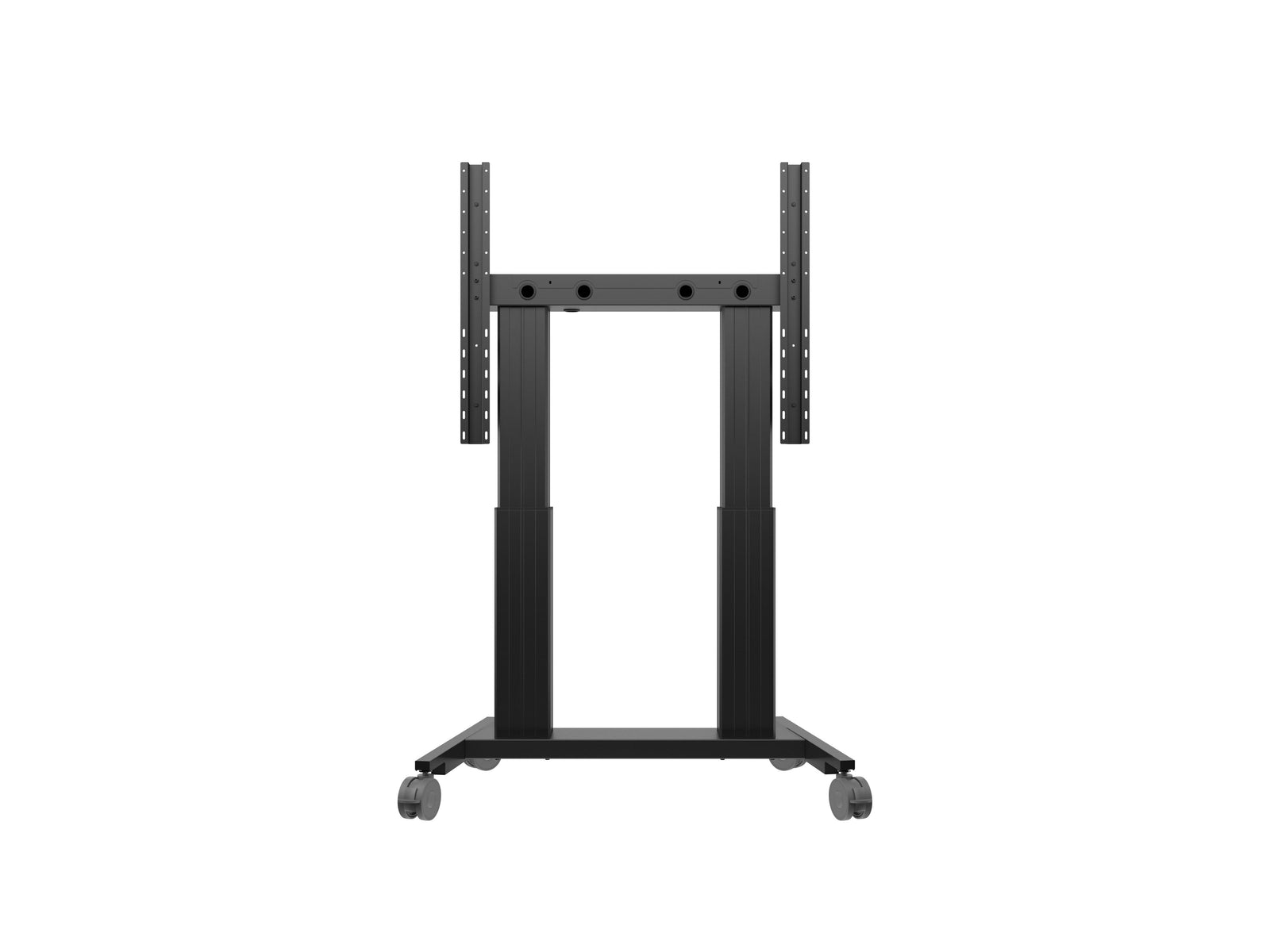

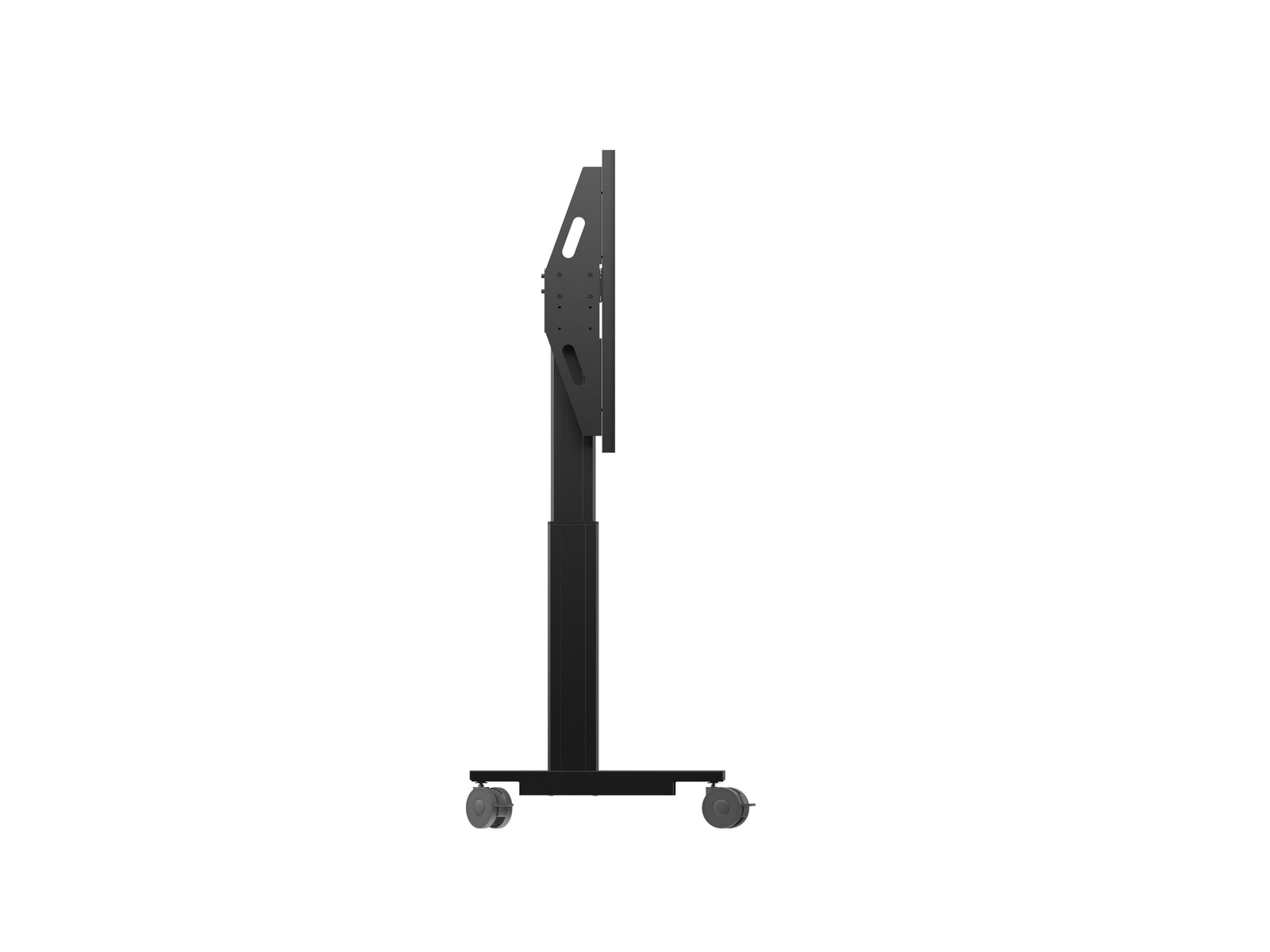

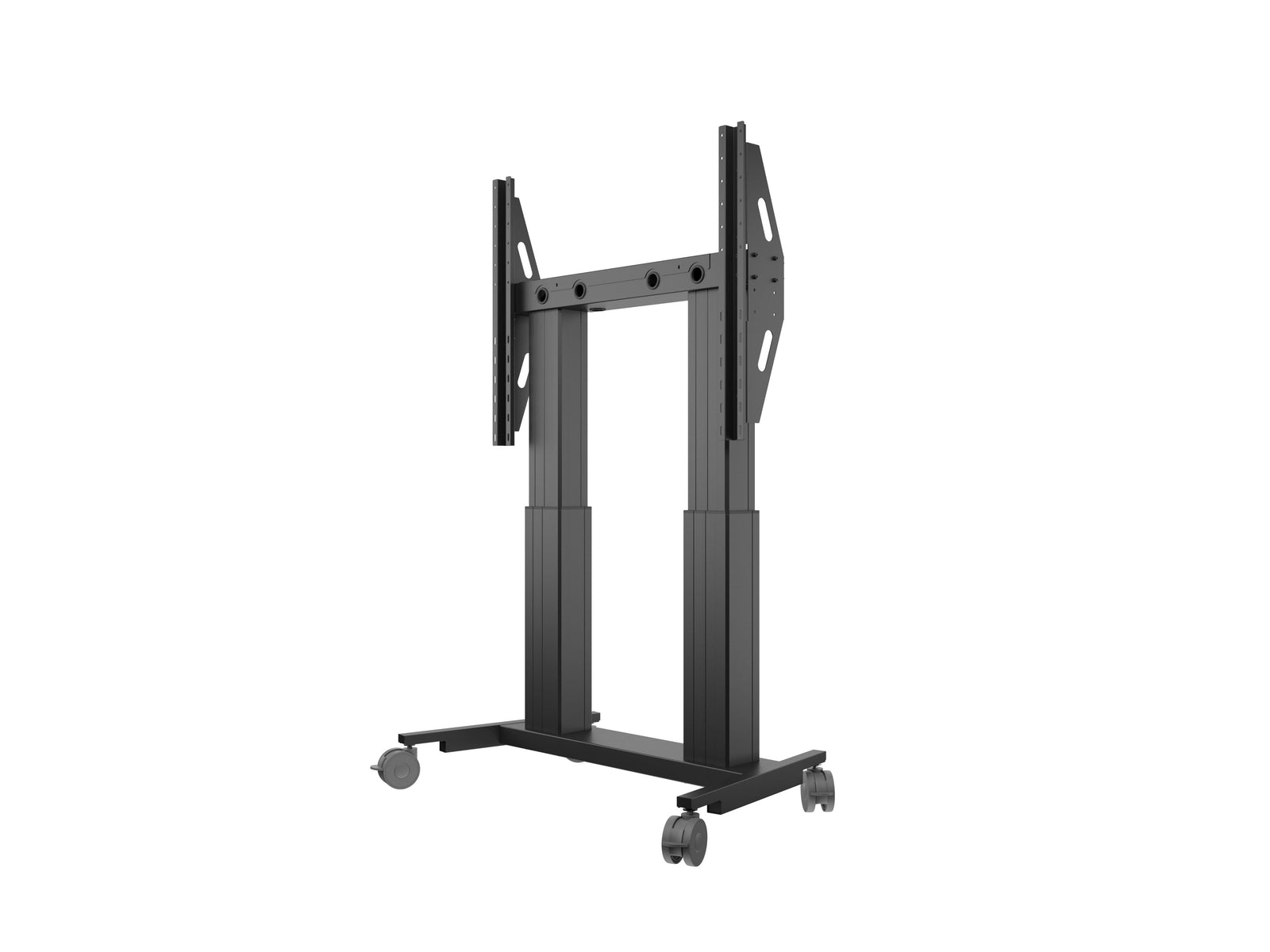

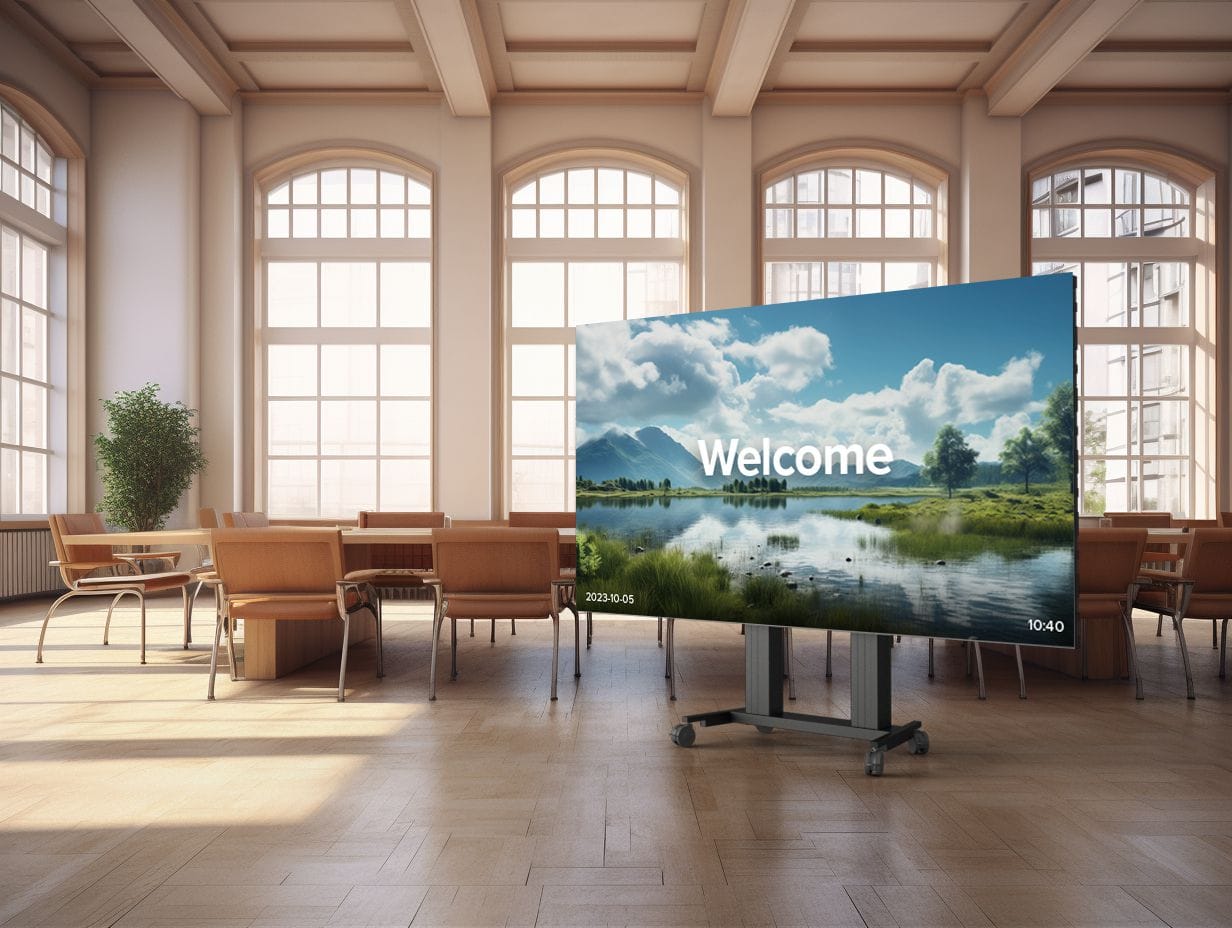

The M Pro Series Motorized LED Floorstand 300kg is a robust, height-adjustable mobile floorstand designed for LED video wall applications in professional environments. Supporting up to 300 kg and LED sizes from 110” to 176”, this solution is perfect for retail, signage, and corporate use where mobility, modularity, and precision are key.
Built on the trusted Multibrackets® Pro Series platform, this stand combines smart motorized lift technology with the Pro Series’ modular aluminum structure. The integrated remote-controlled motor allows for quick and effortless height adjustment — ideal for maneuvering through doorways or adapting to varying audience setups. Compatible with popular LED brands including Samsung, LG, Philips, SHARP/NEC, Infiled, Leyard, and Absen, the system is designed to deliver perfect positioning and screen integrity.
Thanks to its built-in cable management, advanced micro-adjustment VESA support (as defined by LED manufacturers), and fully modular design, the M Pro Series LED Floorstand ensures a clean, safe, and flexible installation that can grow with your needs.
Highlights
Ideal for LED displays from 110" to 176" (max total load: 300 kg)
Motorized height adjustment via remote control
Optimized for passing through doorways and dynamic environments
Supports multi-panel LED screen configurations
Advanced micro-adjustment for precise LED panel alignment
Integrated cable management throughout the full structure
Supports both landscape and portrait orientation
Power click install ensures quick and secure assembly
Complete hardware kit included for immediate setup
| Article No: | 7 350 022 738 034 | Colour: | Black |
| Max. load: | 300 kg | Power Supply: | Input: 200/250 VAC Output: 24 V DC Certificates: CE |
| Motor: | Push force: 2 x 2000N Constant speed 9 mm/s Anticollison up and down | Duty cycle: | 2 min ON, 18 min OFF |
| Remote control: | Yes, wired | Height adjustment: | 700 mm |

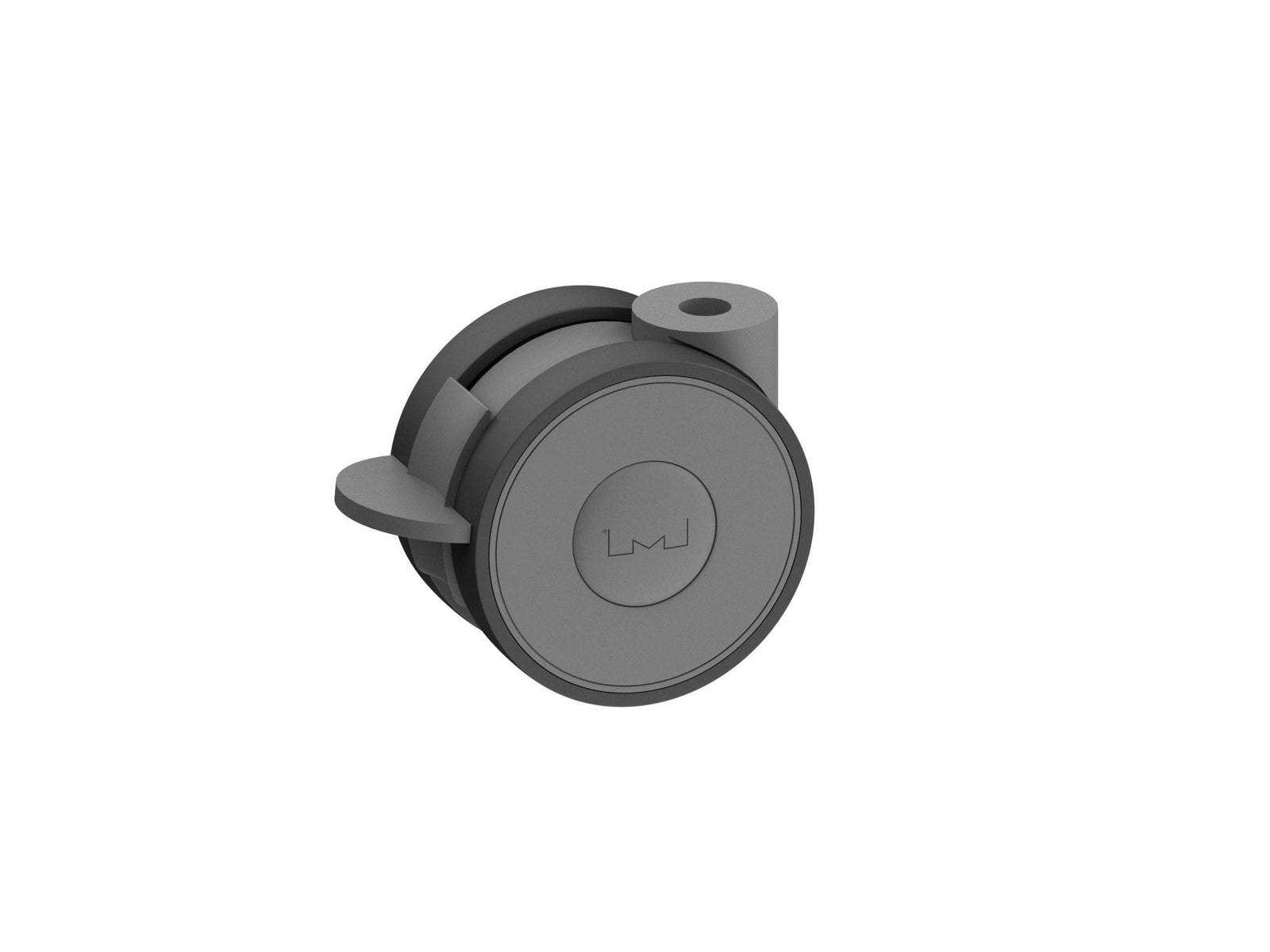

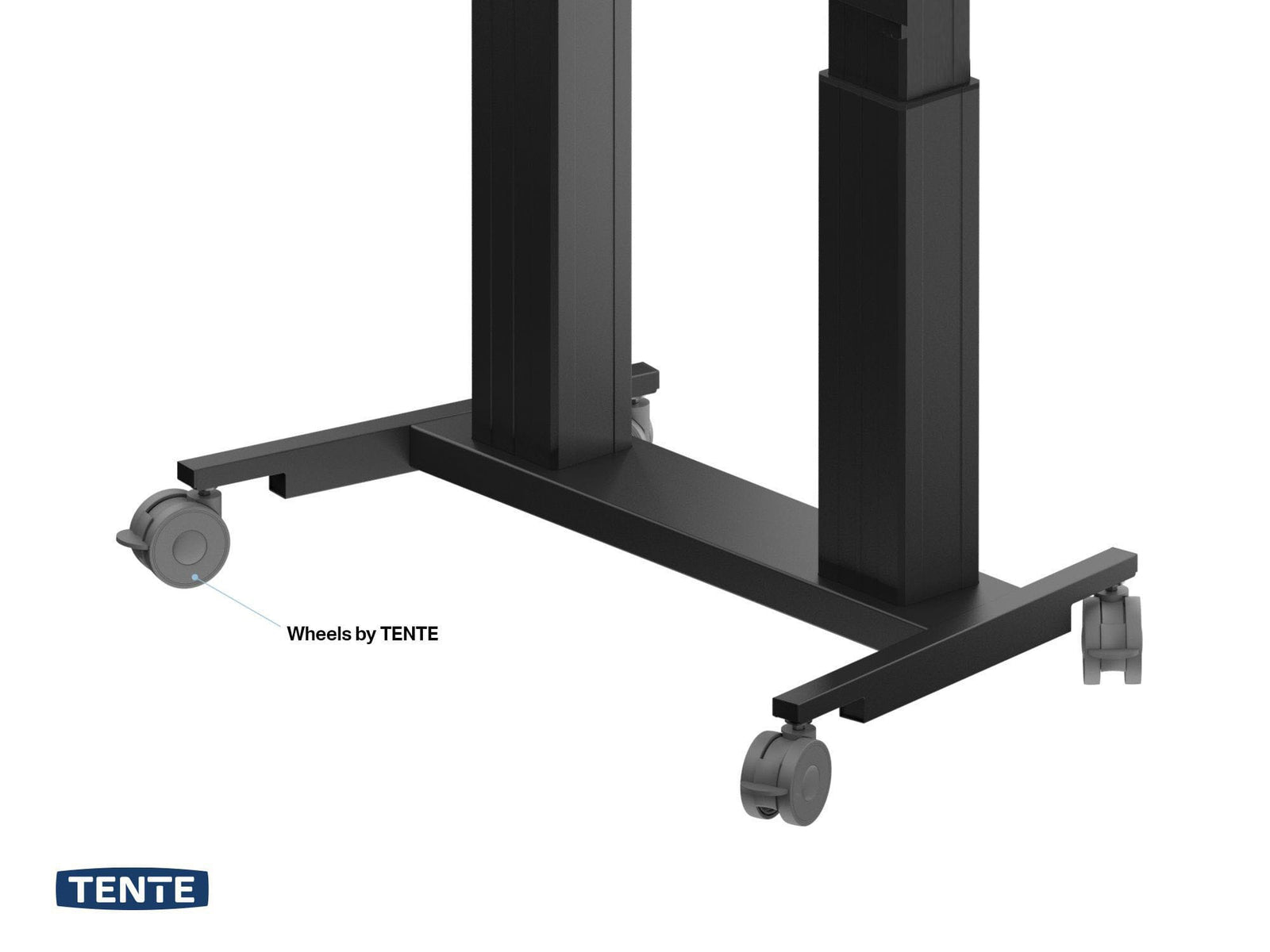

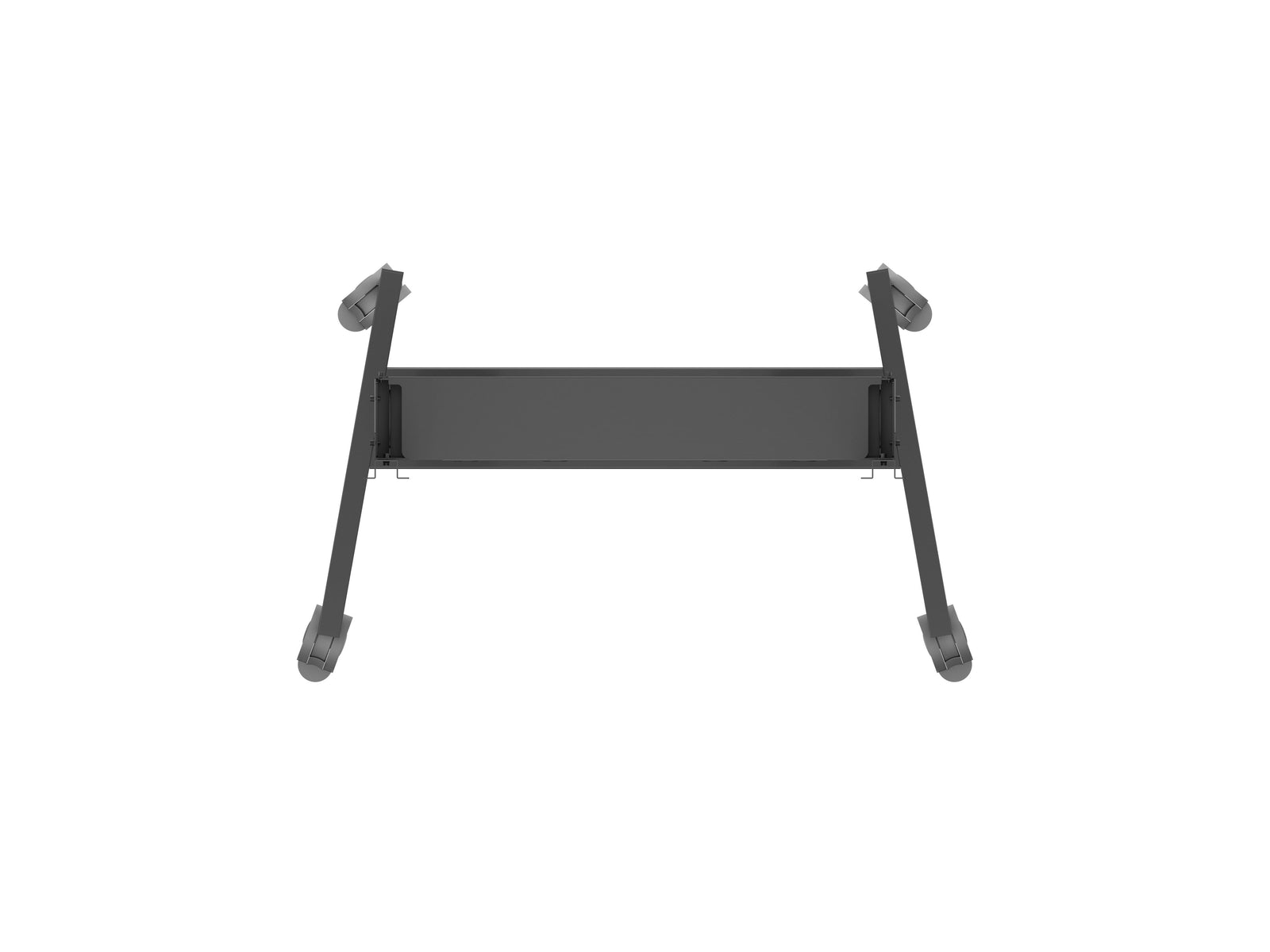

| Trolley: | 4 x TENTE wheels | Cable management: | Yes |

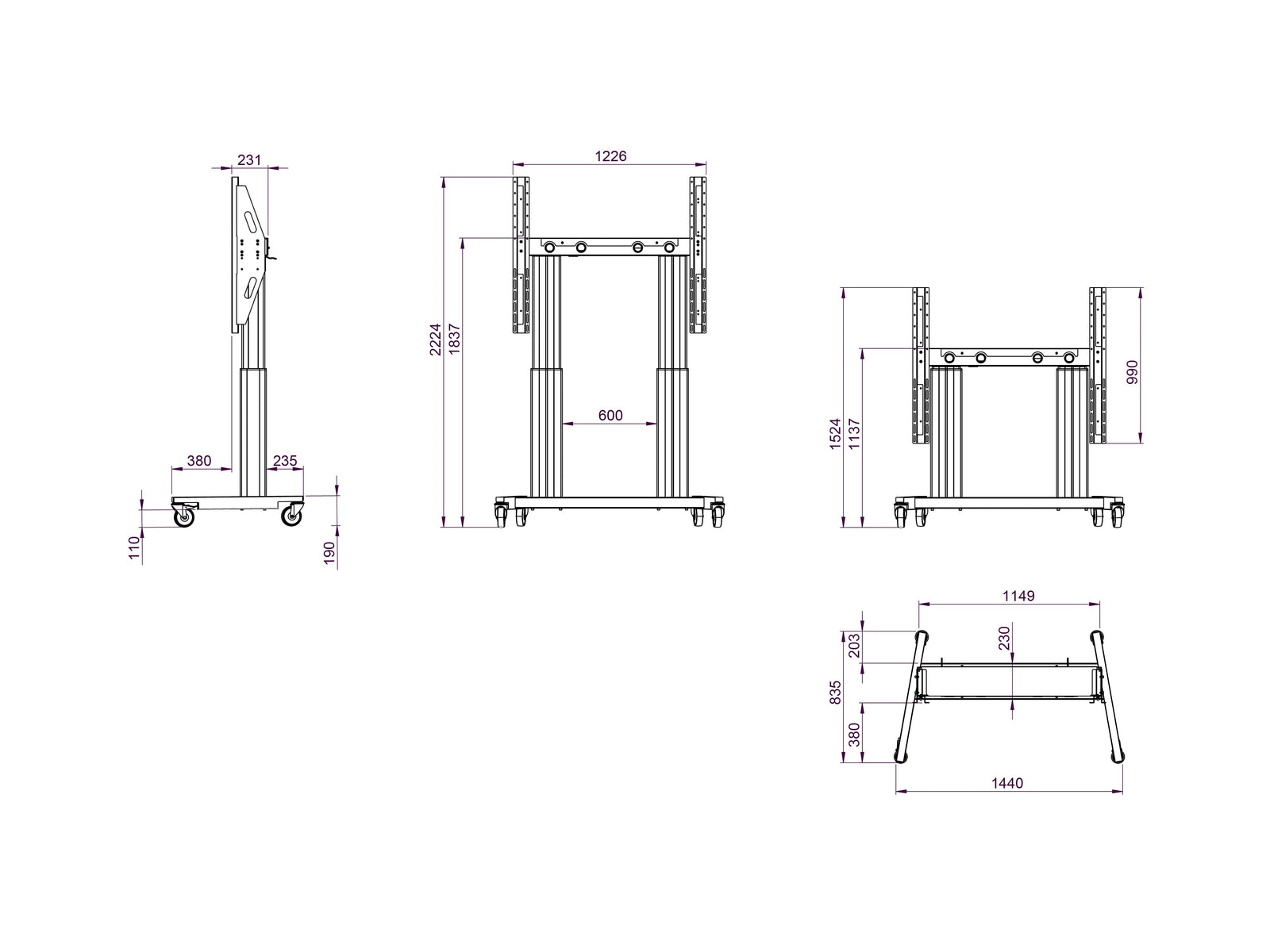

| Dimensions: | 2224 x 1440 x 835 mm | Weight: | 80 kg |
| Certification: | CE | Surface finish: | Powder coating |
| Material: | Steel, aluminum, plastic | Warranty: | 5 years |
| Retail Package Specification: | Package Parcels: | 4 pcs | |
| Package Measurements: | Mobile bs.: 1470x840x100mm LCD mount: 1190x220x170 2xColumn: 960x320x280mm | Package Weight: | 88 kg |
| Description | Downloads |
|---|---|
| Installation Manual | Download |
| Drawing | Download |
