Multibrackets Pro Series M Wallmount Column - (32"-65")

• Description
• Specifications
• Downloads

•
  M Pro Series - Wallmount Column - Wall mount for LCD display, steel, 1 screen, single side, tilt, VESA Max 400x400 - screen size: 32"-65" - black

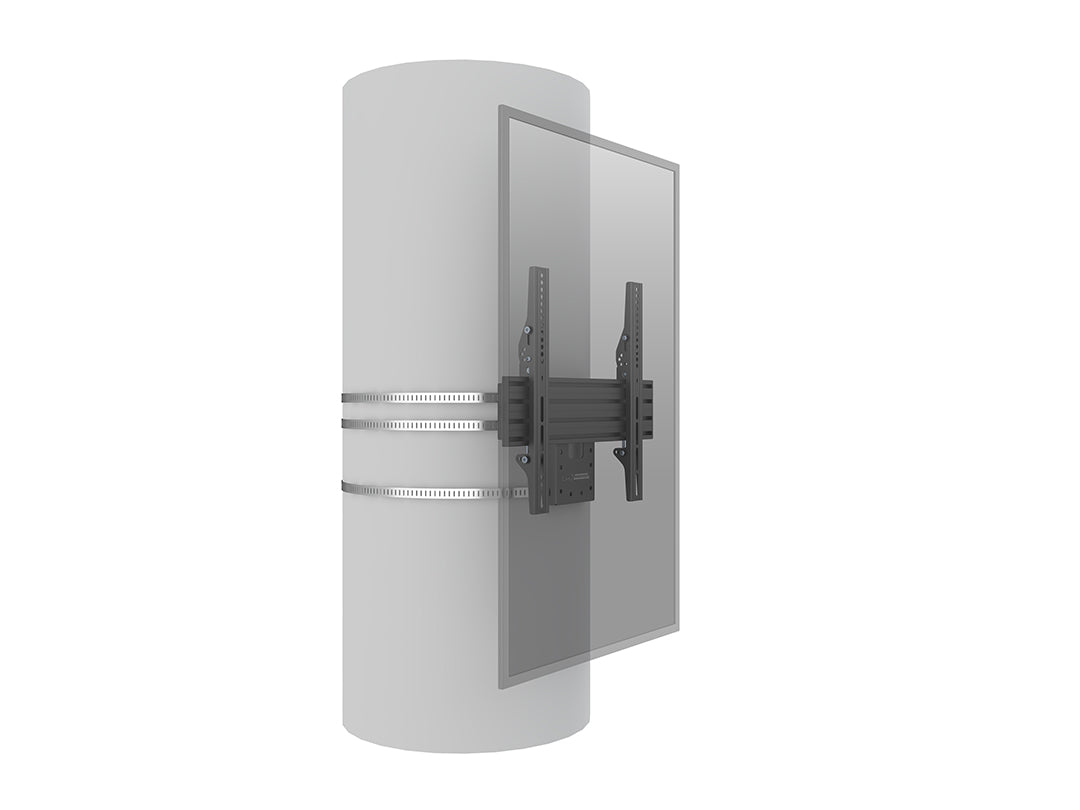

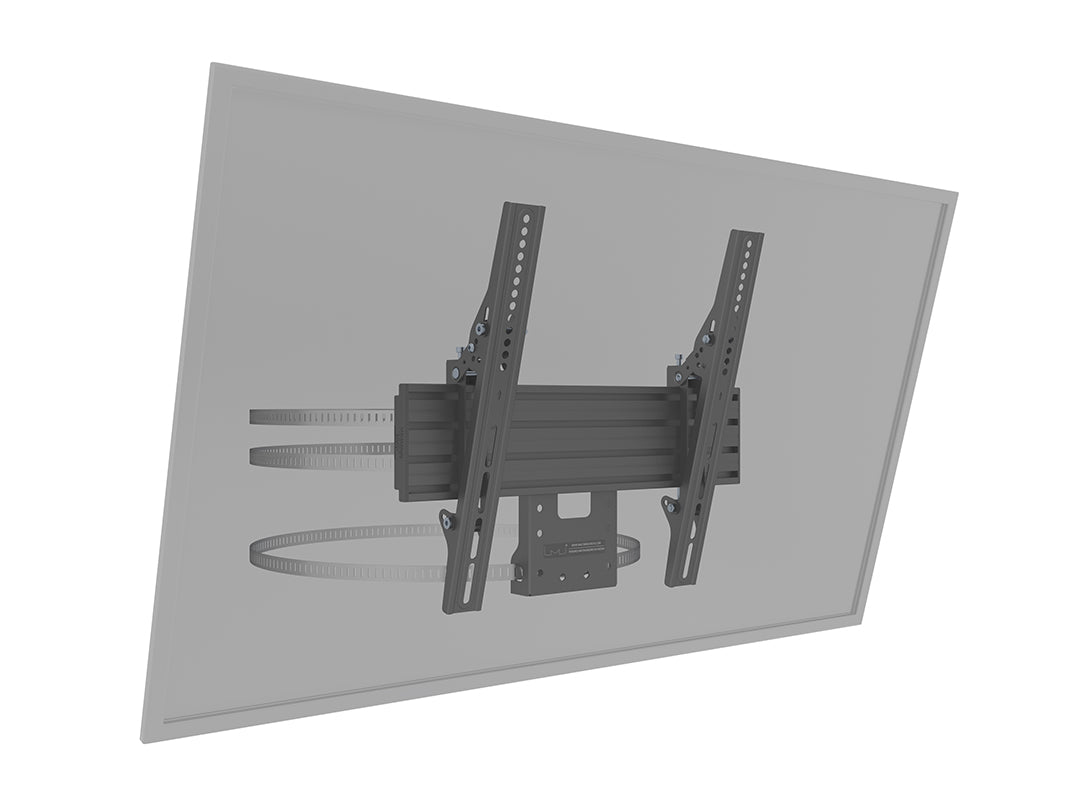

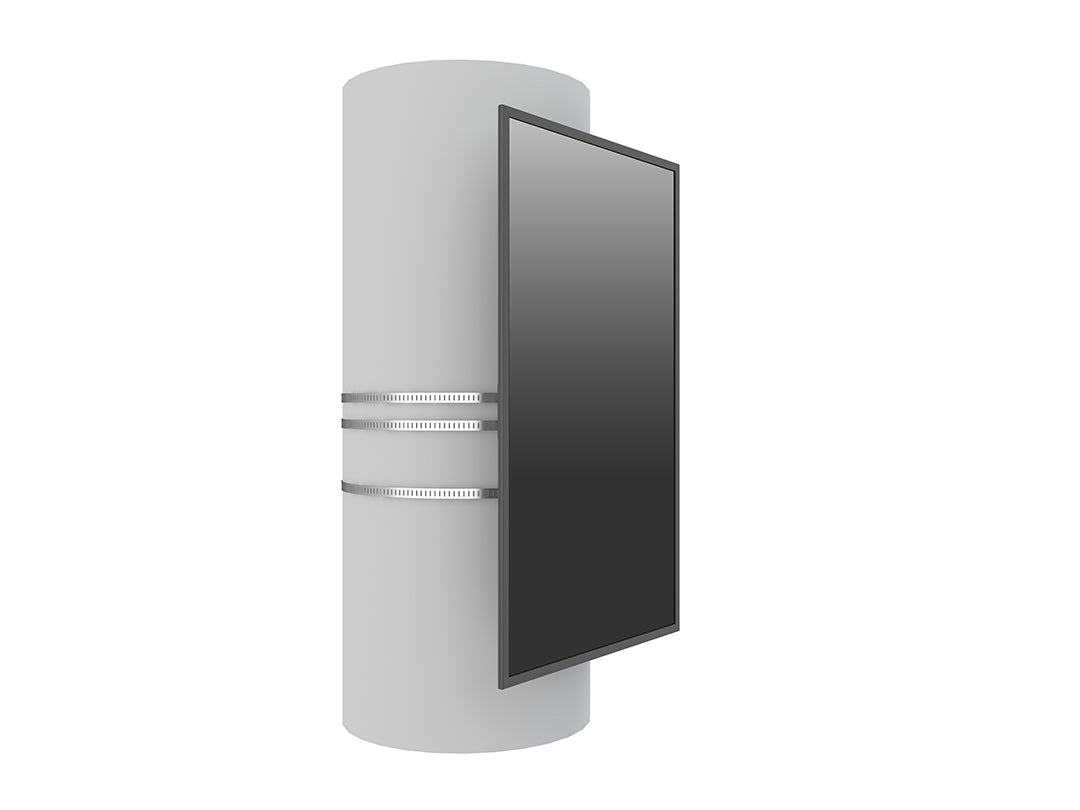

  Multibrackets M Pro Series – Wallmount Column is our innovative - ready to be installed Single-Display Wallmount on a column. A mounting system which enables you to mount displays on columns without drilling.

  The new professional Pro Series A/V line from Multibrackets was designed with the installer in mind. Modular, easy to configure, quick to install, and simple to maintain. Working closely with installers we created a range with close to unlimited flexibility. This model the M Wallmount Pro MBW1U is no exception. The product provides the versatility and flexibility demanded by installers. Based upon the Pro Series strong and ultra-flexible aluminum rail it is completely modular and has built in cable management throughout the entire solution to quicken installation and creating an esthetic result worth the public eye.

  With its modular construction installers have vast possibilities to change, create, update and reconfigure its design if ideas change over time, then Pro Series can follow.

  Designed with our Scandinavian heritage in mind and providing a clean Nordic look each part and detail serves its purpose. The result is a sleek Nordic solution emphasizing quality and function. Used in a variety of environments this ceiling mount is truly versatile and is made of the highest quality materials.

  Selected models are TÜV approved.

  MB Pro Series is Design Protected by Multibrackets



• Attribute	Details
  For screen size	32”-65"
  Type	Single Side MBW1U
  Universal & VESA standard	100x100, 200x200, 300x300, 400x400 mm
  Material	Steel, Aluminium
  Color	Black
  Surface Finish	Powder coating
  Weight	4.3 kg
  Measurements	75.0 x 98 x 16 cm
  Max Load	35 kg

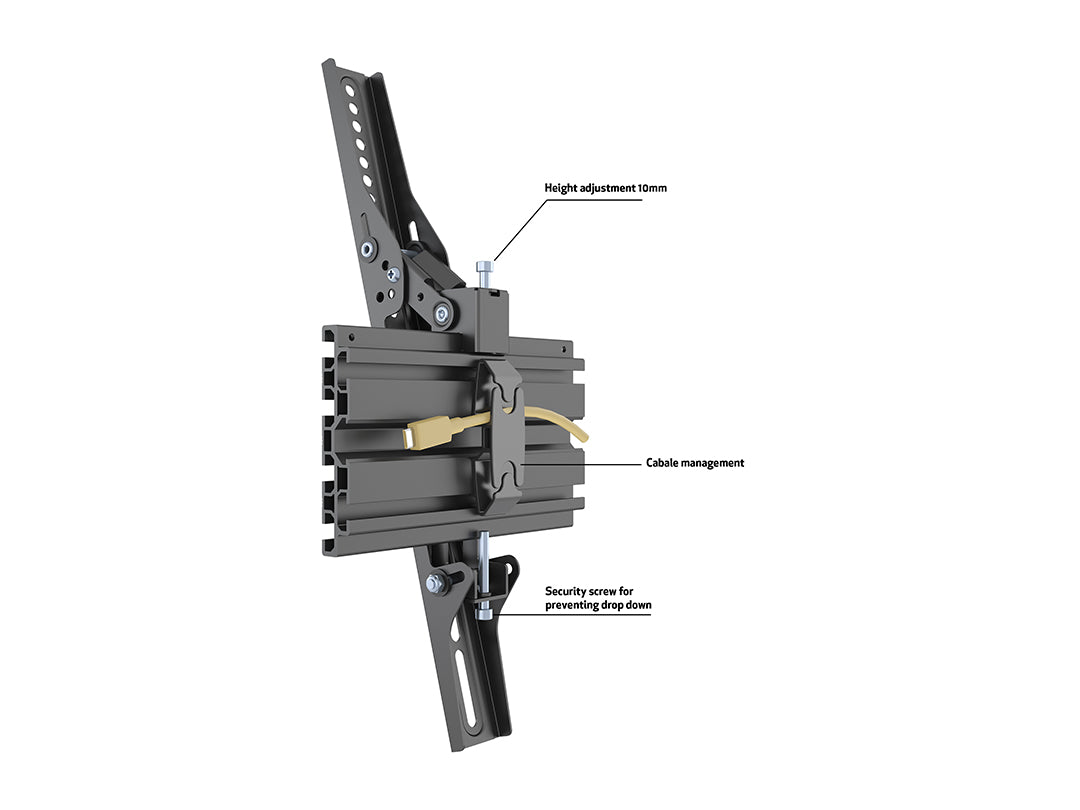

  Height Adjustment	Yes, 10mm

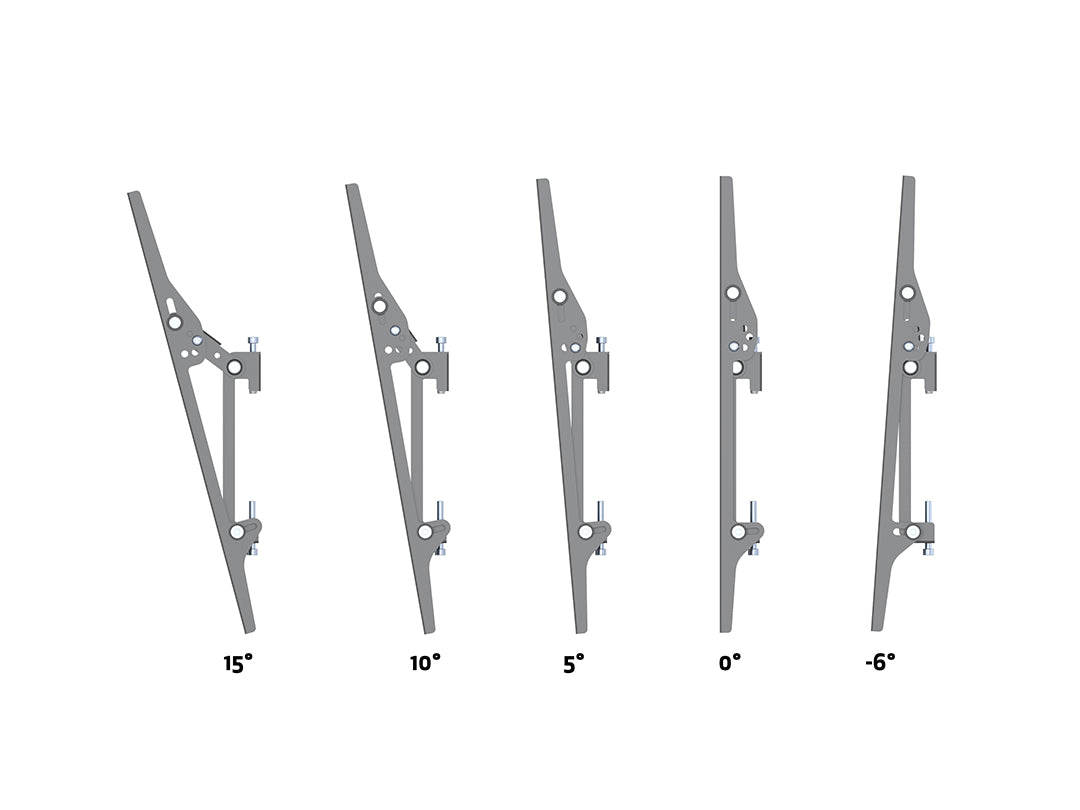

  Tilt	Yes, -6~15°
  Swivel	Yes, 360°
  Rotate	Yes, ±4°

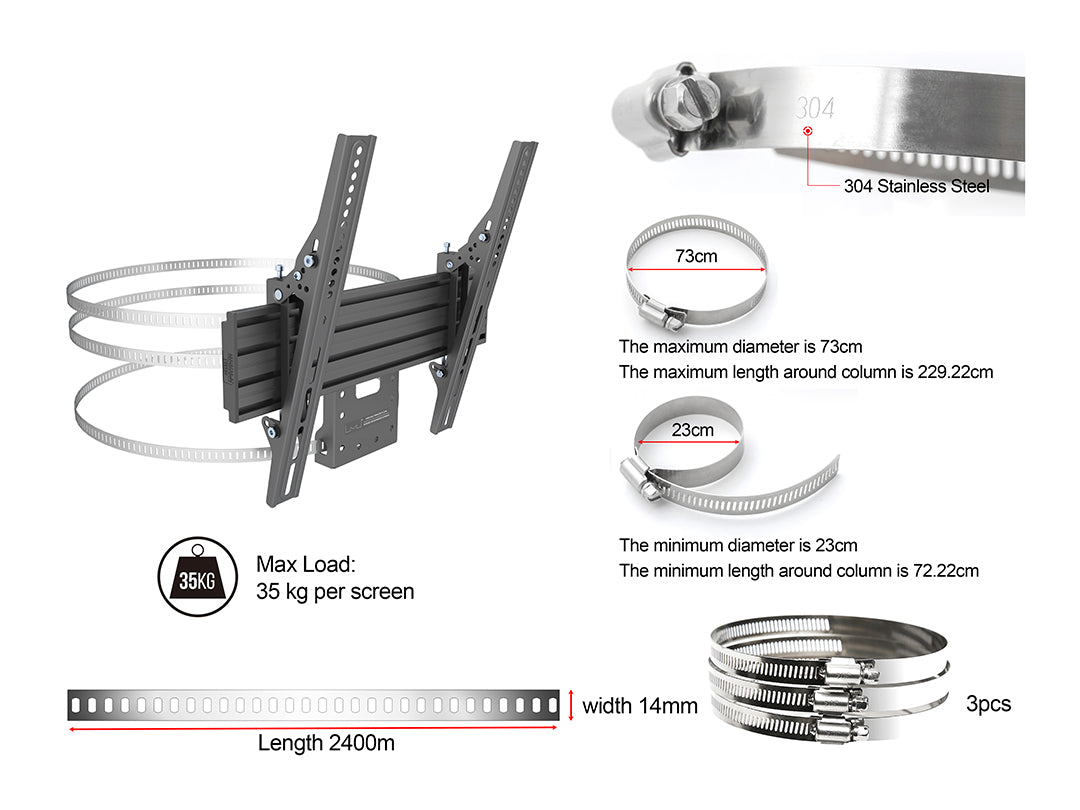

  Flat Band Measurements	2400mm (min 720mm max 2290mm)

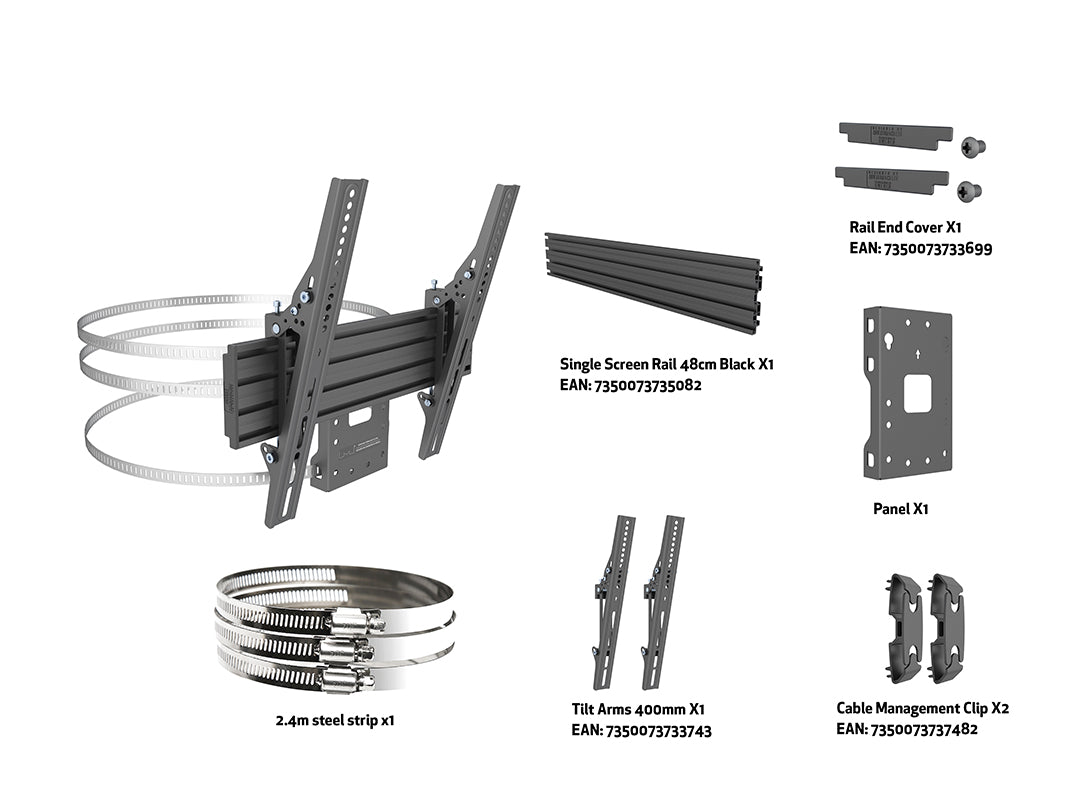

  Options	M Pro Series Parts
  Certifications	CE
  Warranty	5 years
  Retail Package Specification	Package Parcels: 1 pcs
  	Package Measurements: 74.7 x 9.7 x 15.6 cm
  	Package Weight: 4.50 kg

• Download Type	Downloads

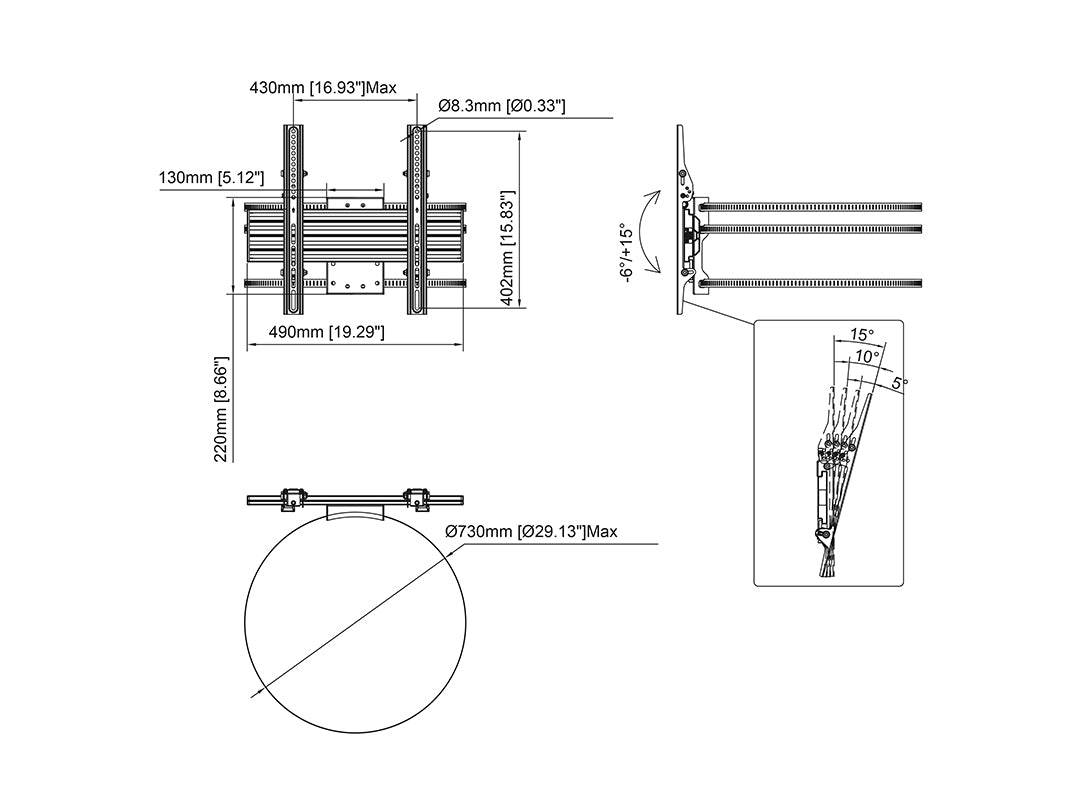

  Drawing PDF	Downloads
  Product Fact Sheet	Downloads
  Manual	Downloads
