Enter your screen SKU and we will instantly check whether this mount is suitable for your display based on VESA pattern compatibility.

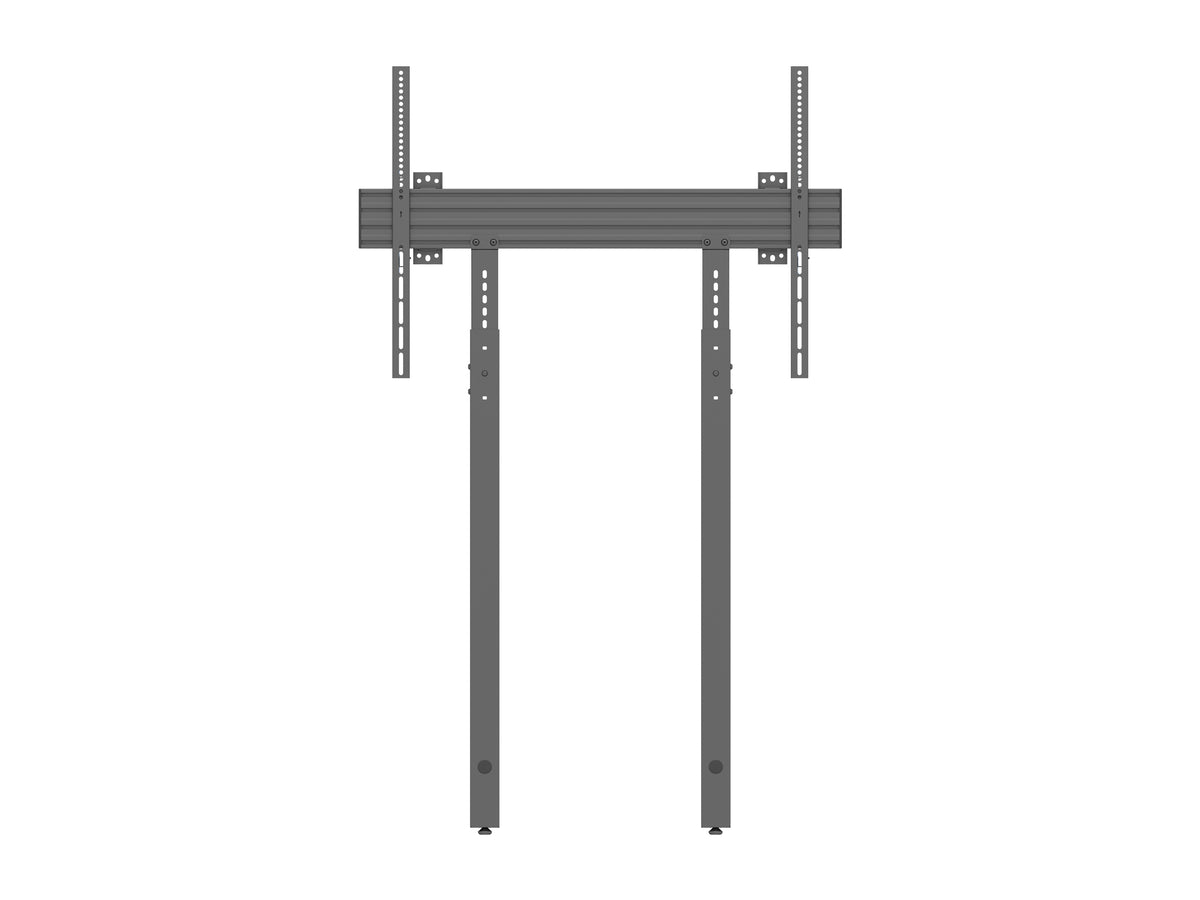

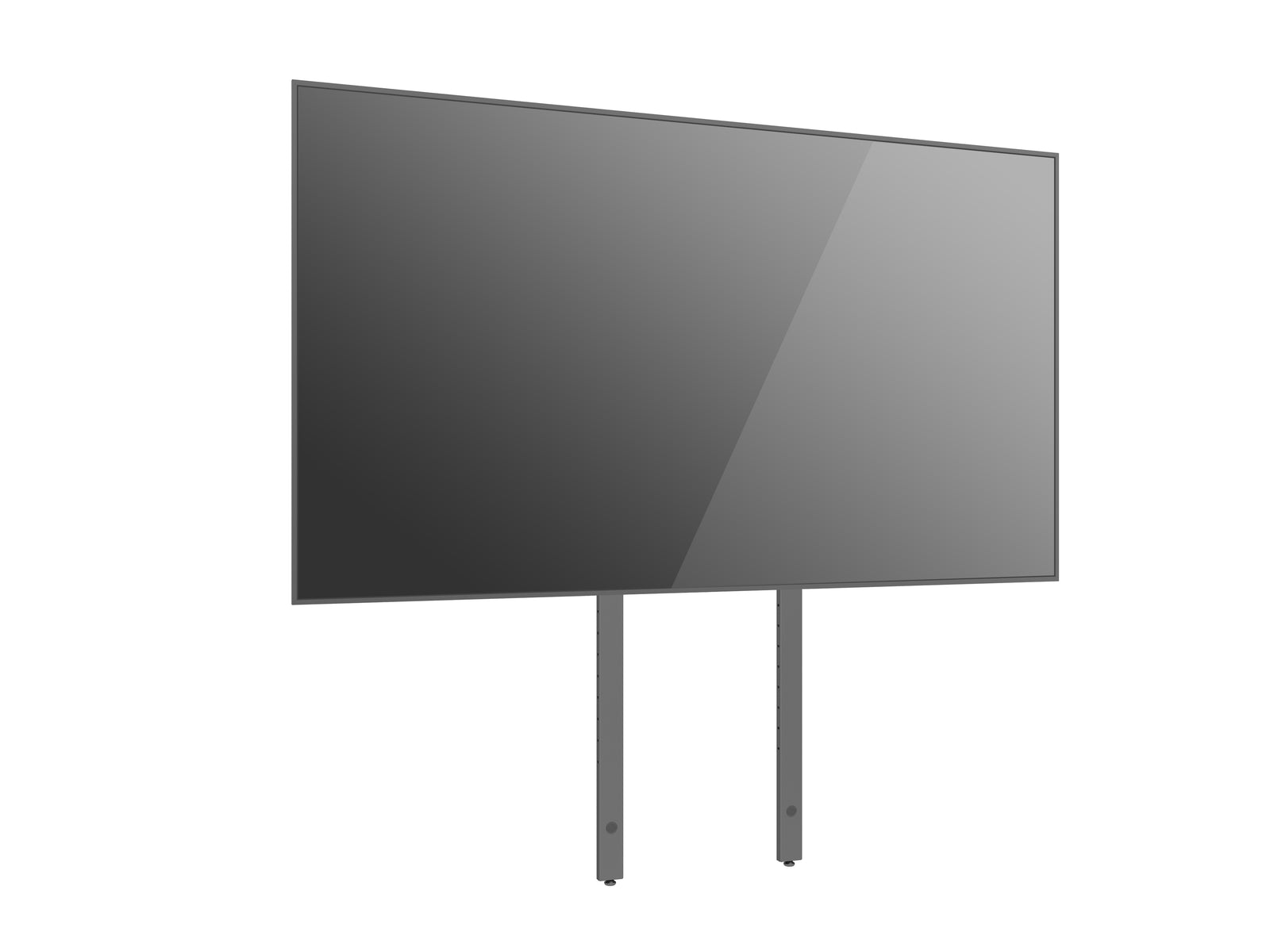

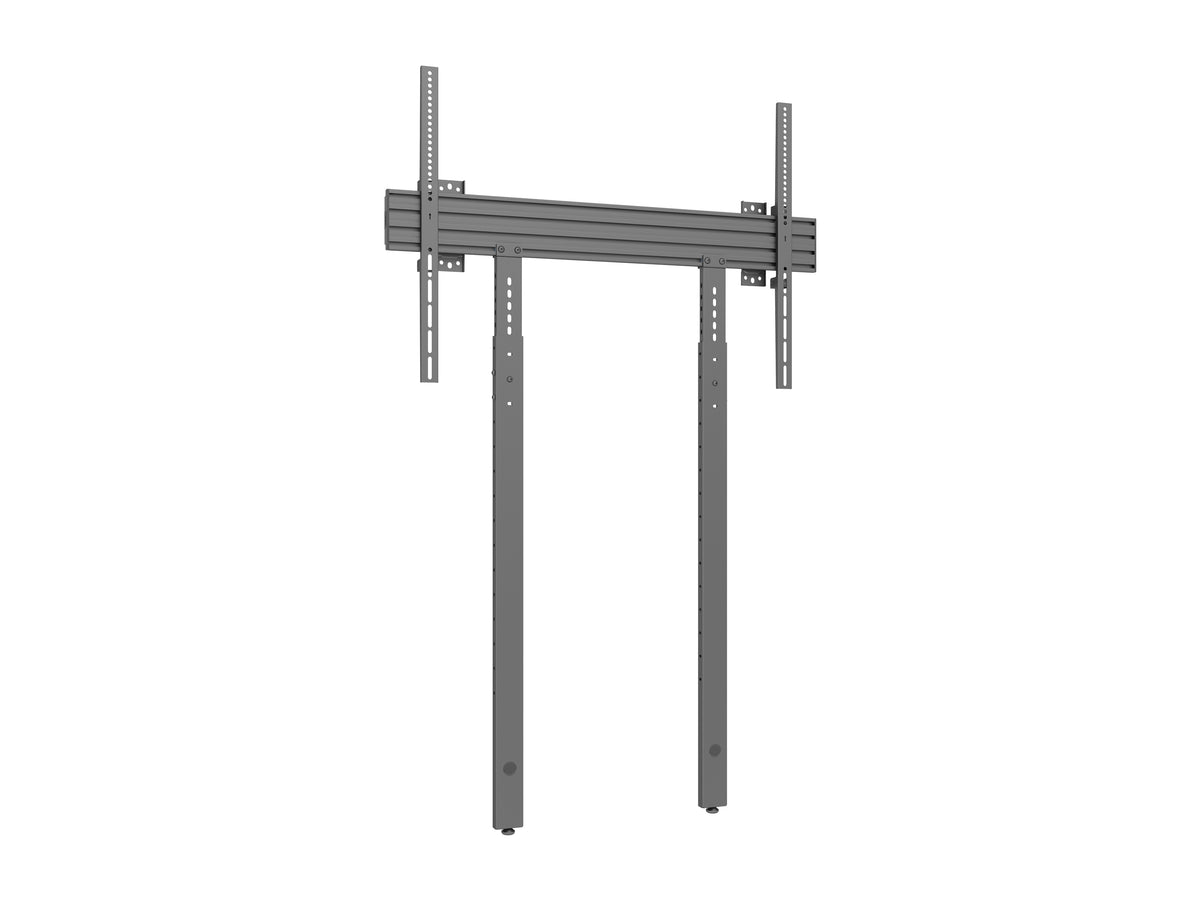

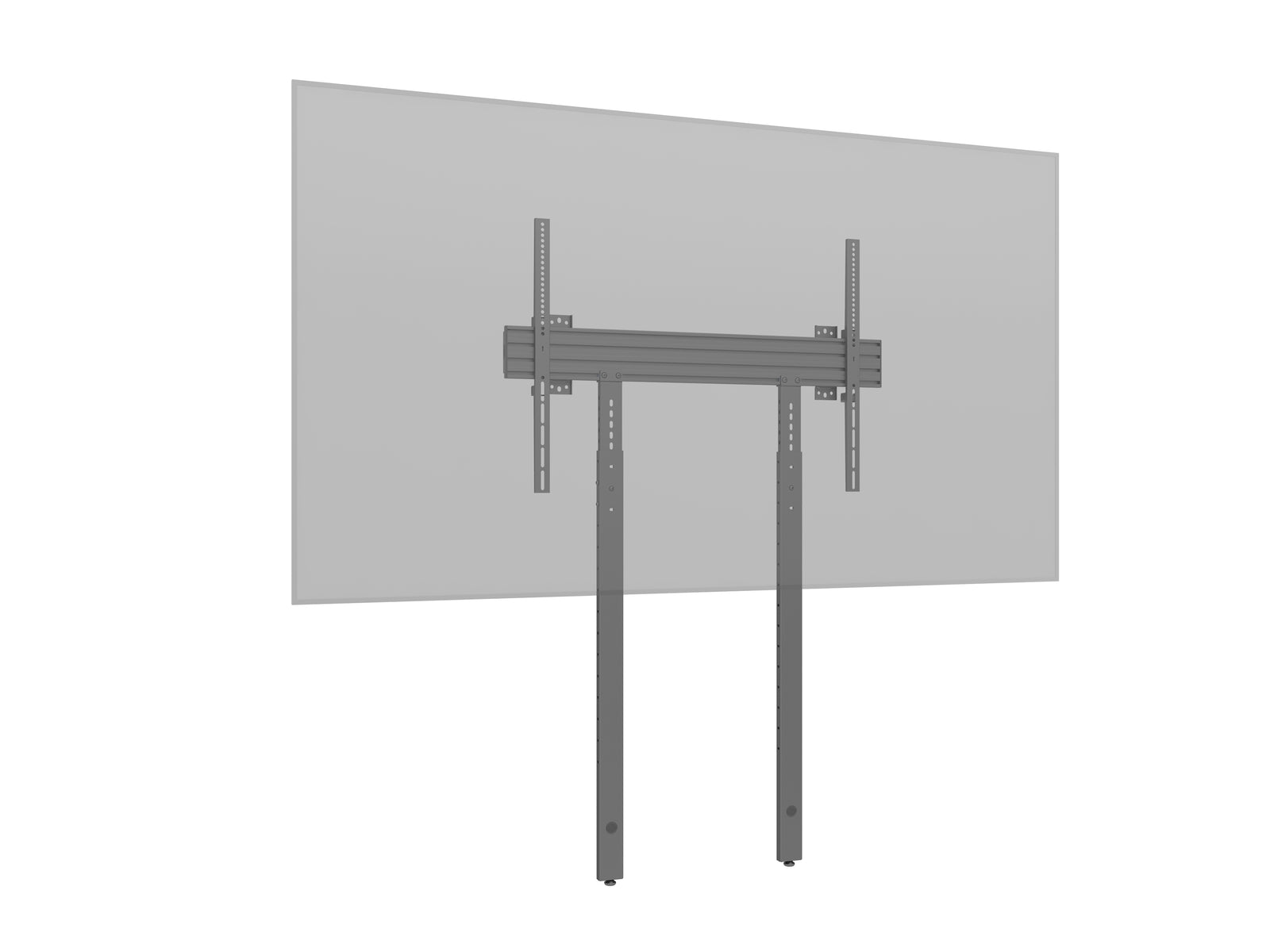

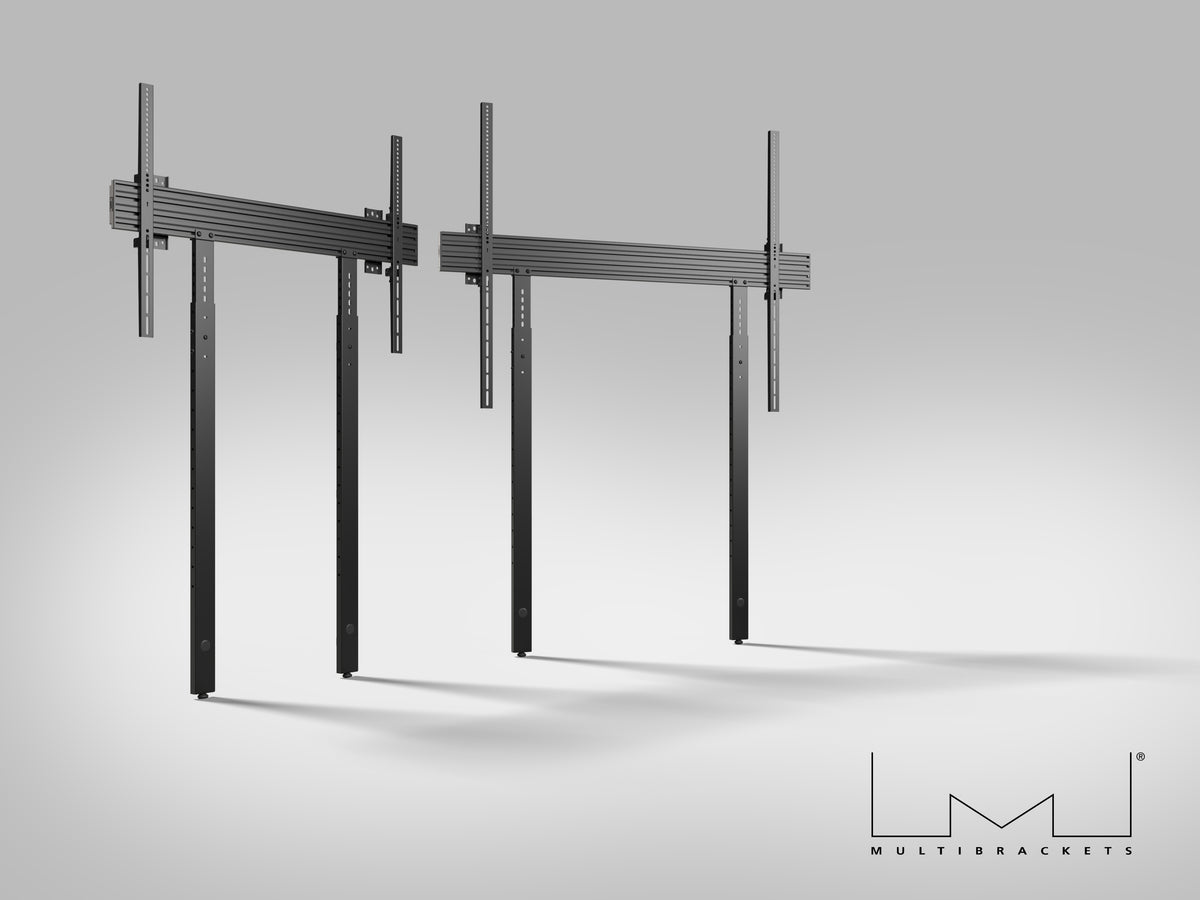

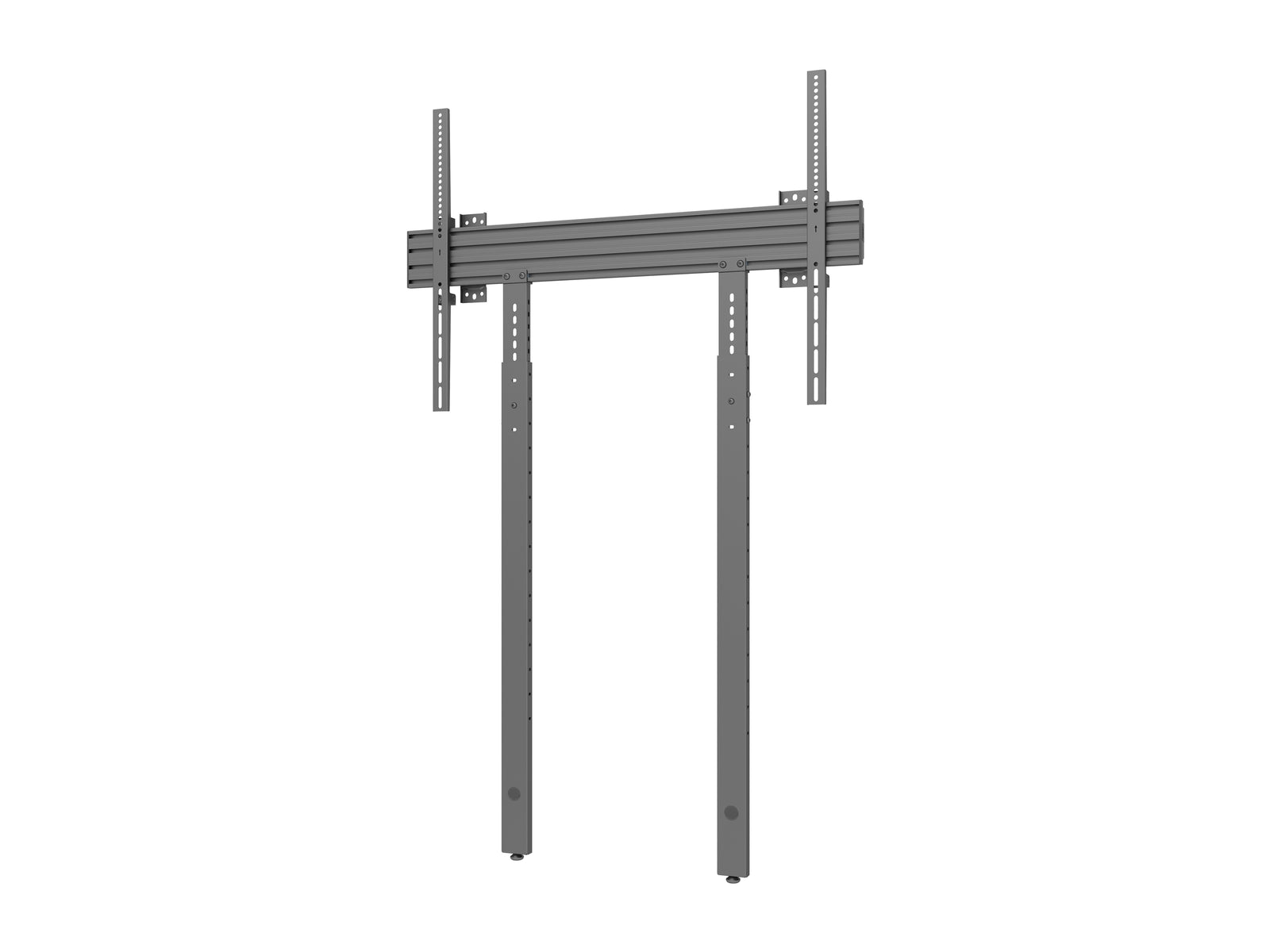

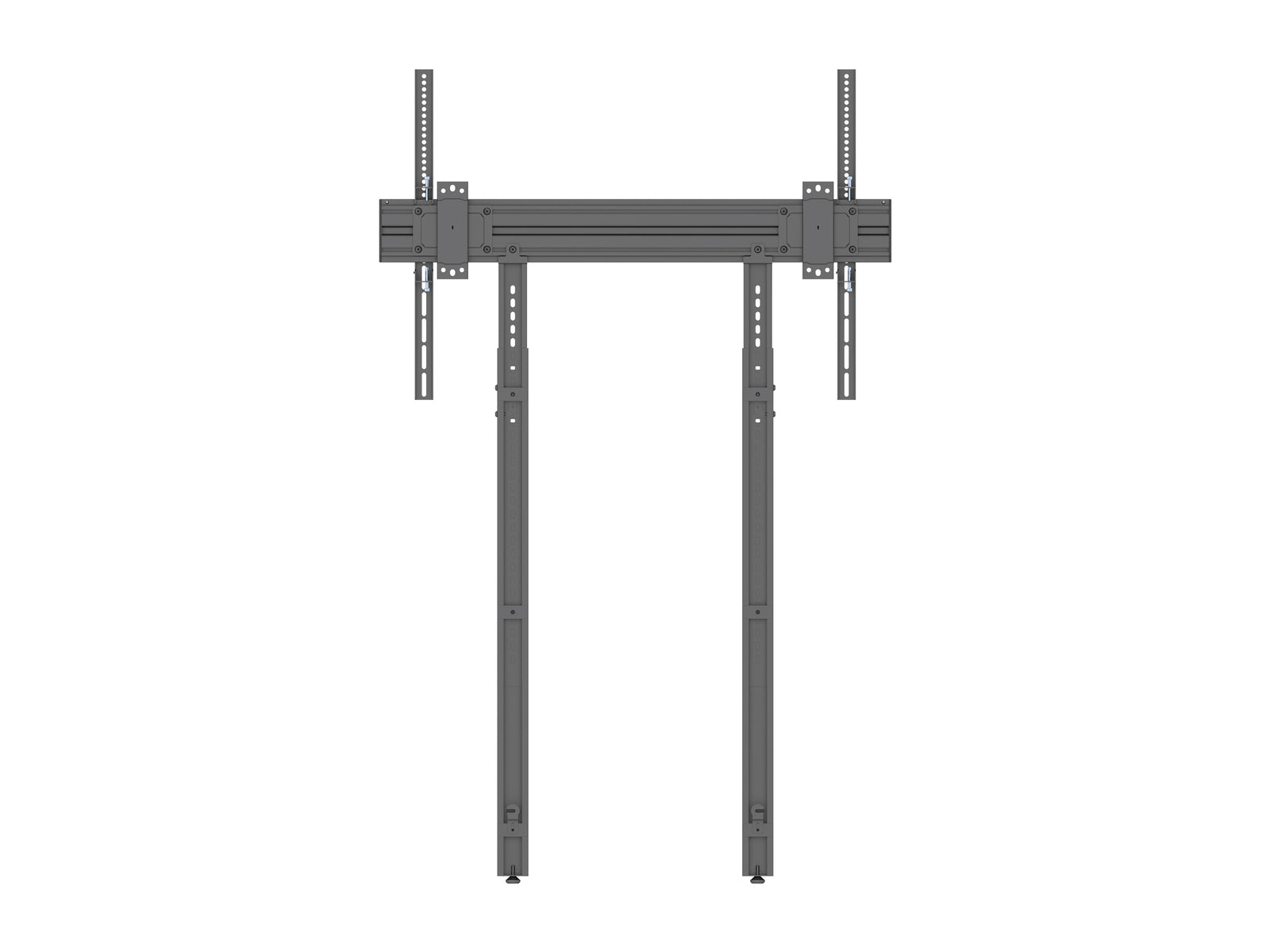

The M Pro Series - Wallmount Fixed MBW1U VESA 900 w Floorsupport from Multibrackets is a robust mounting solution designed for large displays where wall integrity is a concern. This system shifts the load-bearing responsibility from the wall to the floor, enabling safe and secure installation of displays up to VESA 900x600 without compromising on visual appeal or installation quality.
Part of the professional-grade Pro Series ecosystem, this wall mount combines modularity, installer-friendly design, and long-term reliability. Built on a heavy-duty aluminum rail system, it features integrated cable management and height-adjustable floor support to ensure seamless alignment in any commercial or public environment.
Ideal for corporate spaces, signage applications, and public installations, the MBW1U 900x600 w Floorsupport brings together safety, stability, and a sleek Scandinavian design aesthetic for demanding AV installations.
Highlights

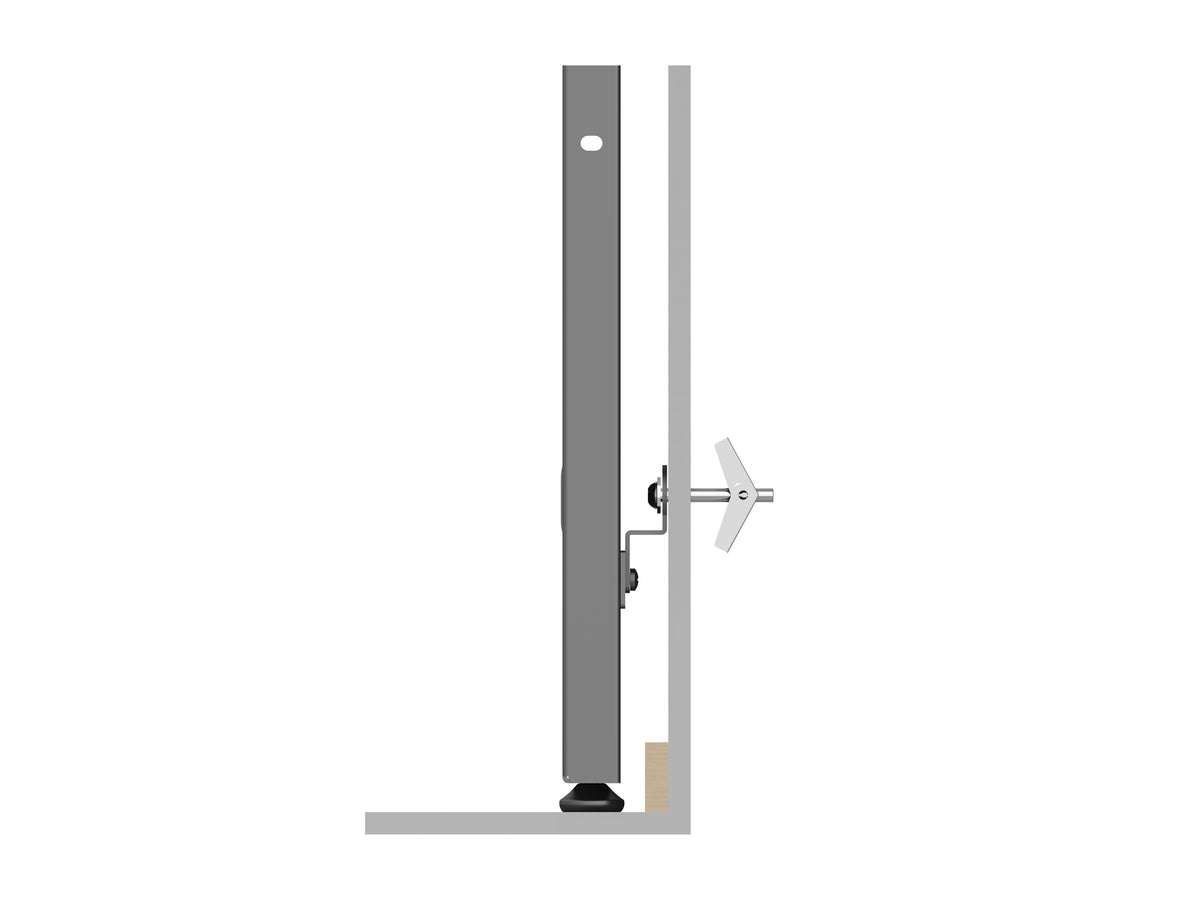

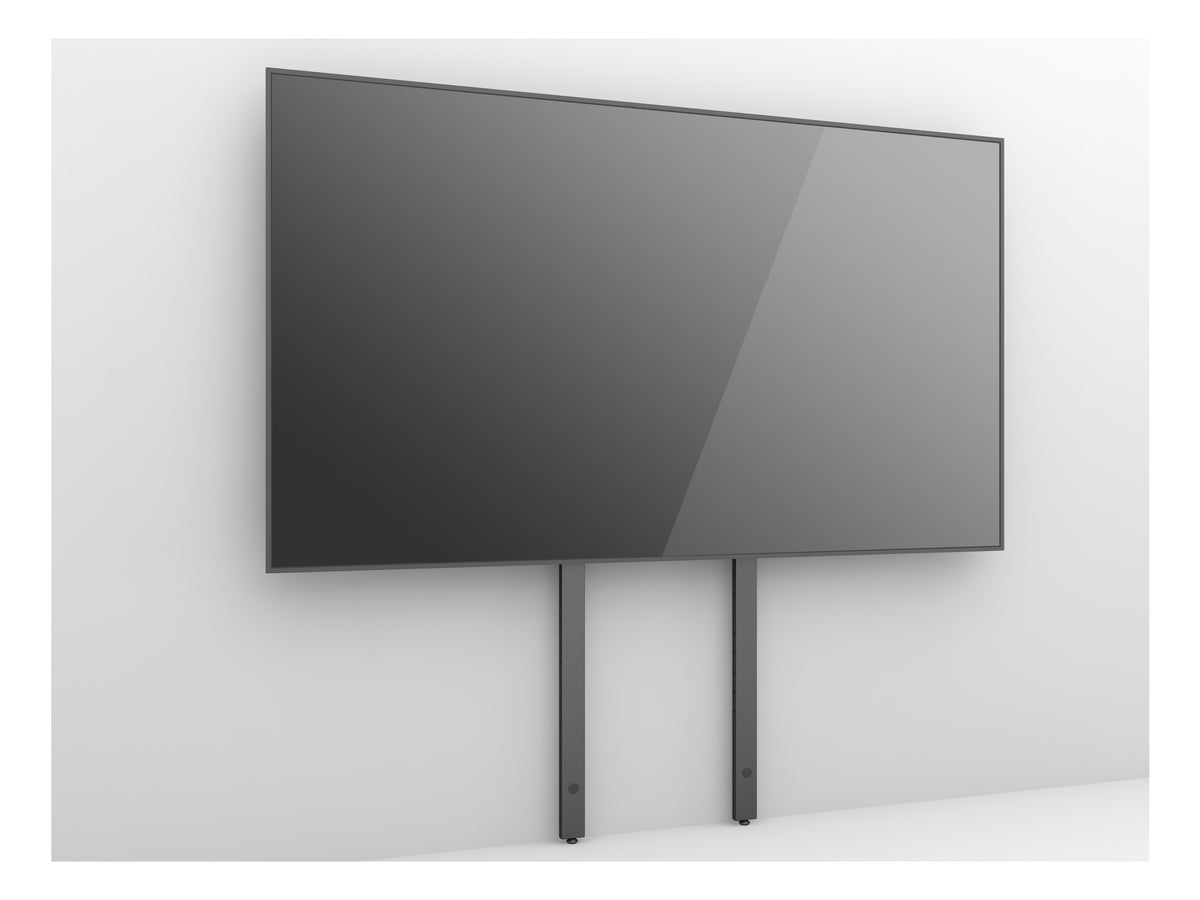

Designed for walls with limited load-bearing capacity – transfers screen weight to the floor
VESA compatibility up to 900x600 – supports large-format displays

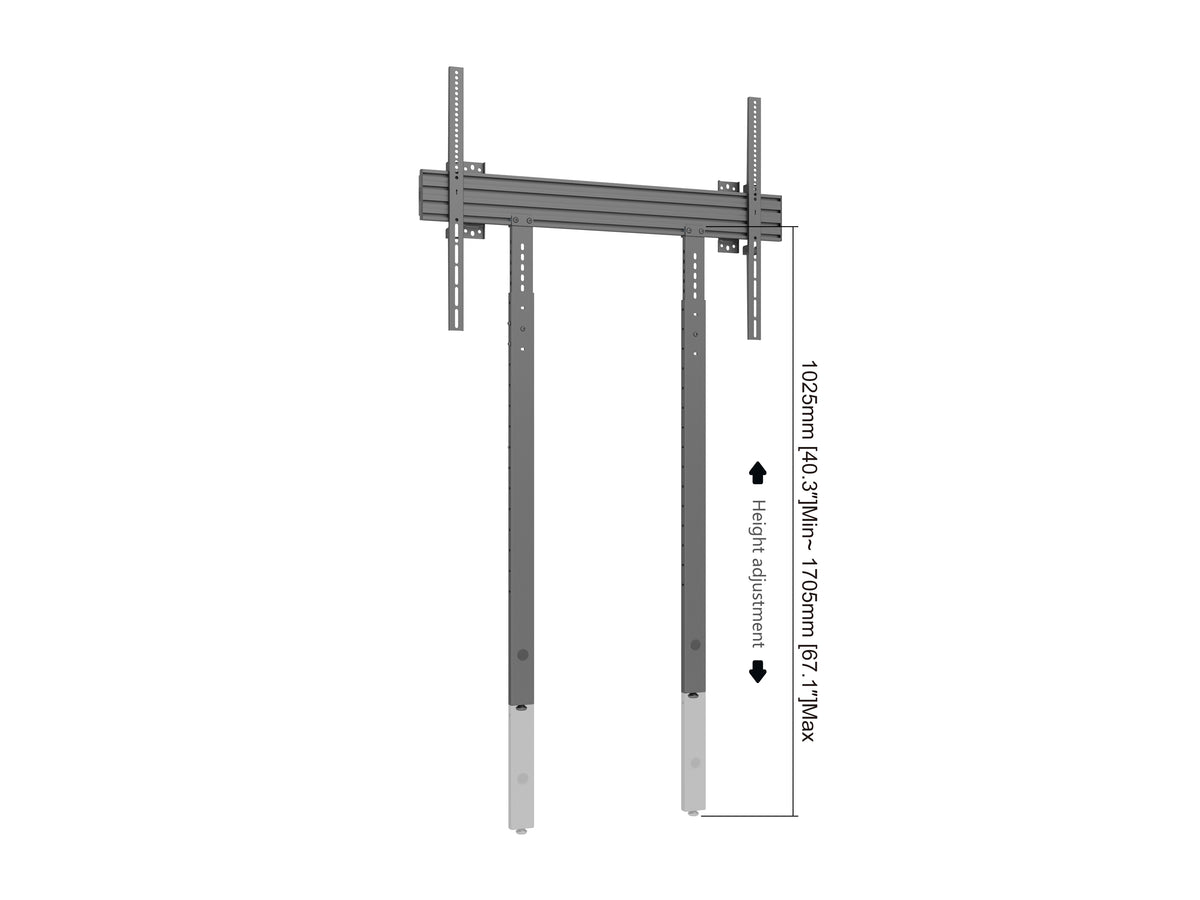

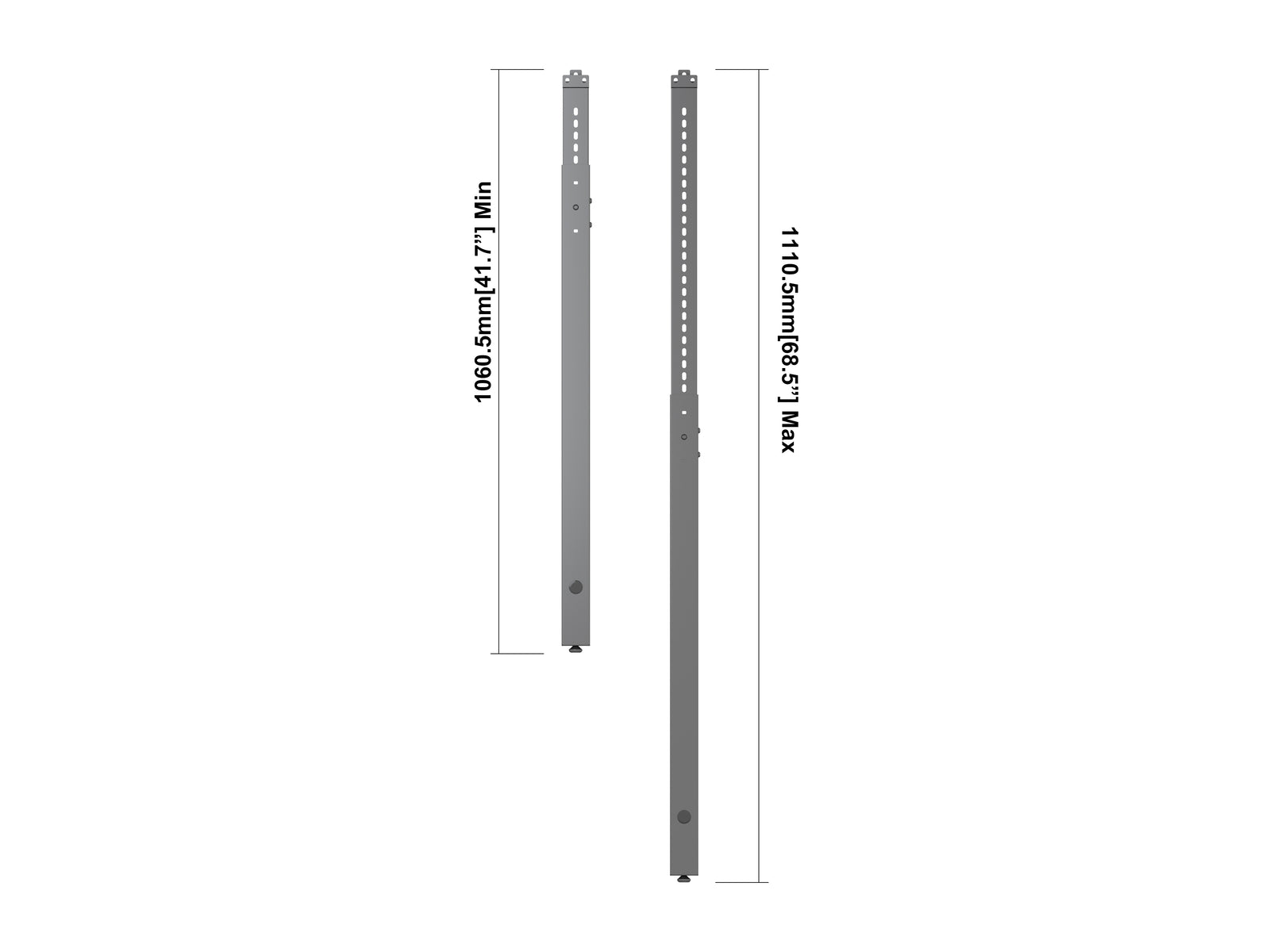

Height-adjustable floor support for flexible installation

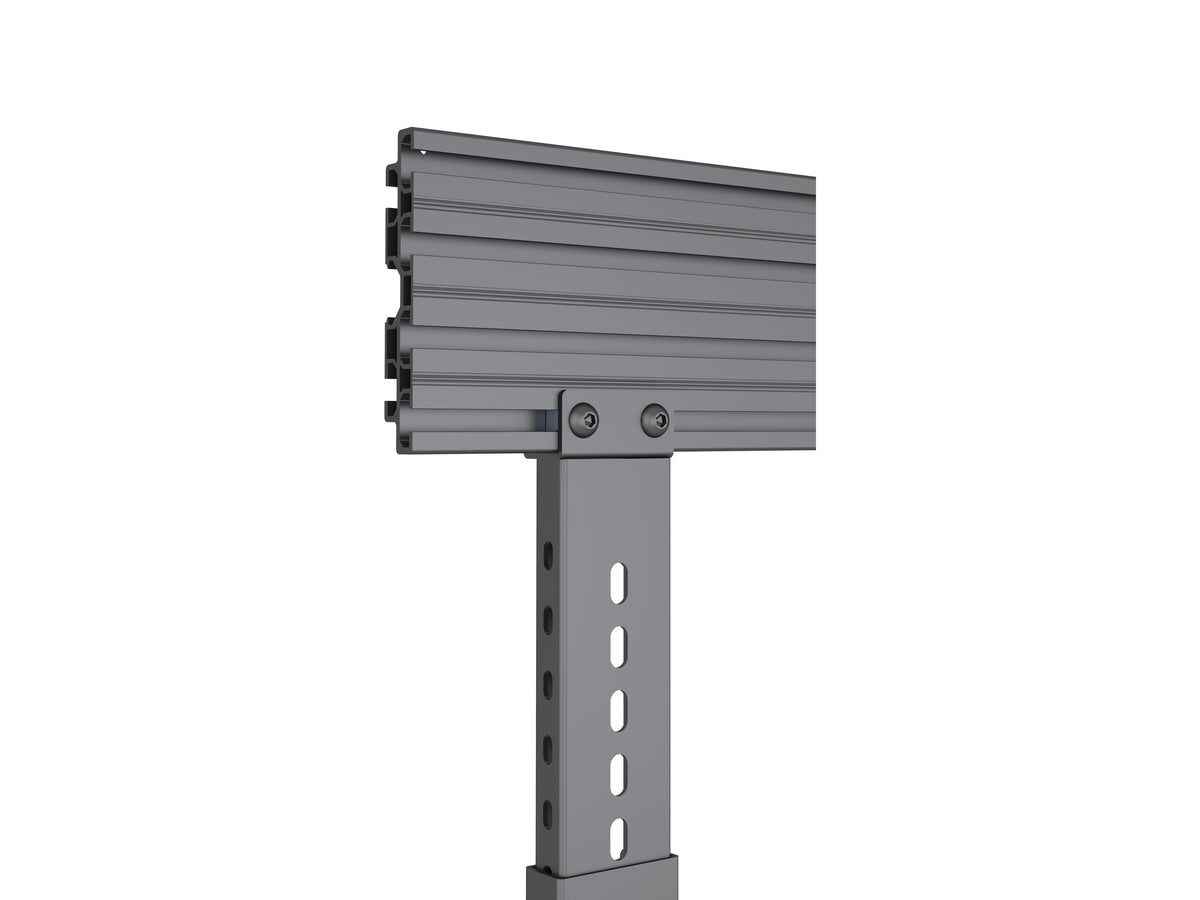

Modular aluminum rail system – cut-free customization
Integrated cable management throughout the entire mount

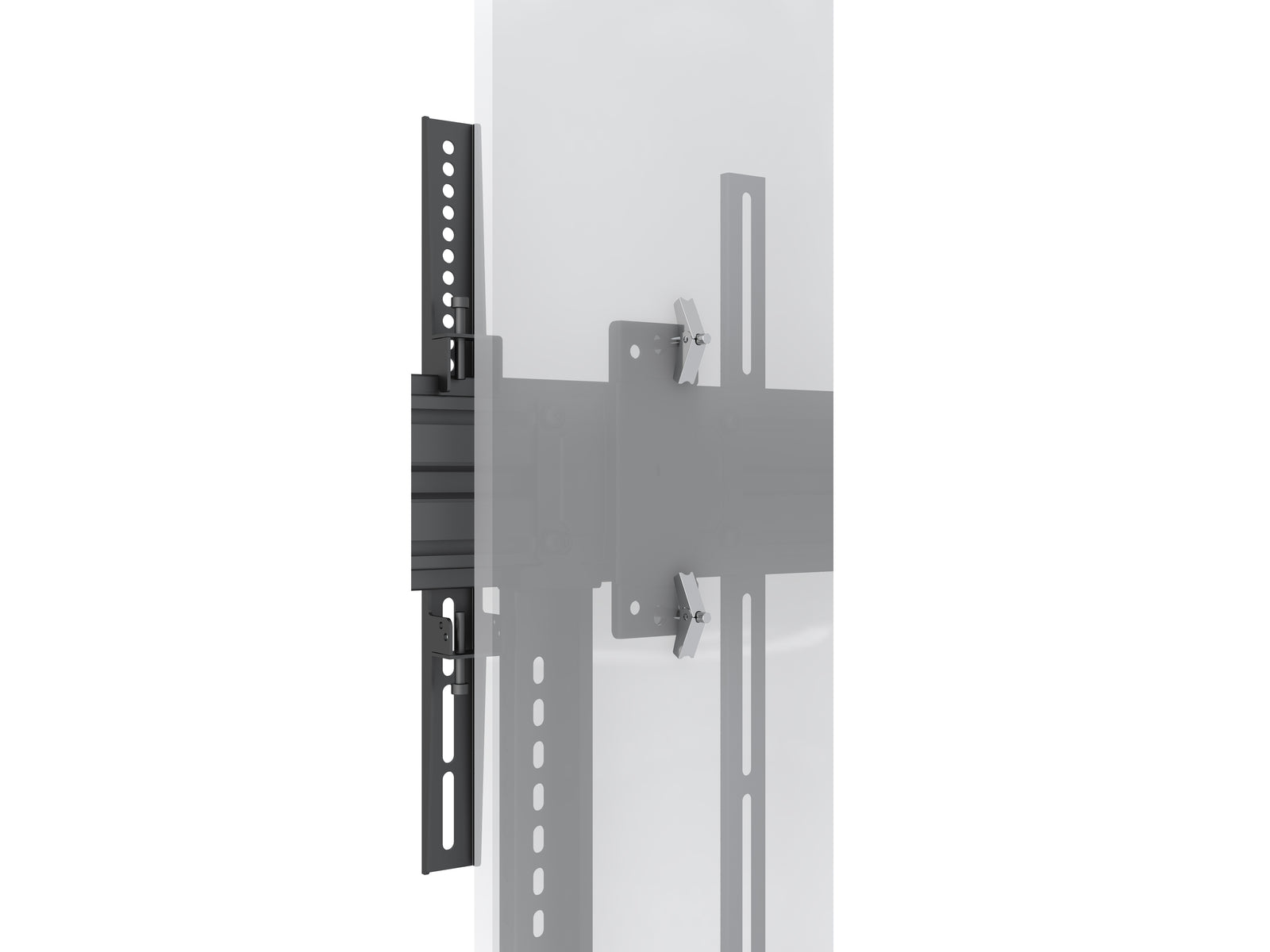

Power Click™ for tool-less and secure mounting
Lateral shifting wallplates ease horizontal alignment
Portrait or landscape screen positioning possible

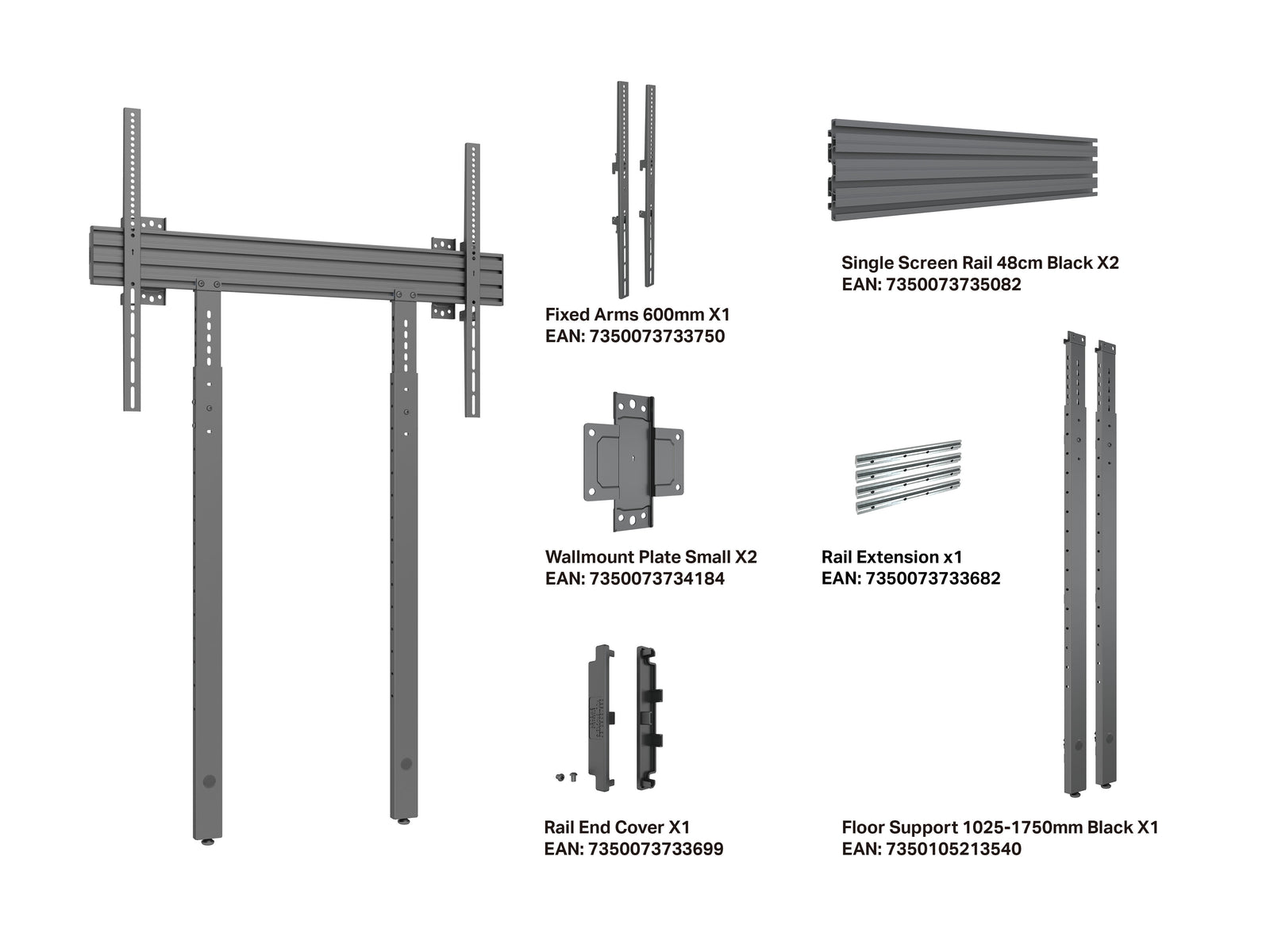

Complete hardware kit included for streamlined setup
| Article No: | 7 340 234 810 802 | Universal & VESA standard: | 100x100, 100x200, 200x100, 200x200, 300x300, 400x200, 400x400, 600x400, 600x600, 800x600, 900x600 |
| Material: | Steel, Aluminium, Plastic | Color: | Black |
| Surface Finish: | Powder coating | Weight: | 6.65kg + 6.4kg |
| Measurements: | 109x5.7x7.3cm + 72x20.3x9.2cm | Max Load: | 90 kg |
| Tilt: | No | Swivel: | No |
| Rotate: | No | Cable Management: | No |
| Options: | M Pro Series Parts | Warranty: | 5 years |
| Retail Package Specification | |||
| Package Parcels: | 2 pcs | Package Measurements: | 109x5.7x7.3cm + 72x20.3x9.2cm |
| Package Weight: | 6.65kg + 6.4kg | ||
| Description | Downloads |
|---|---|

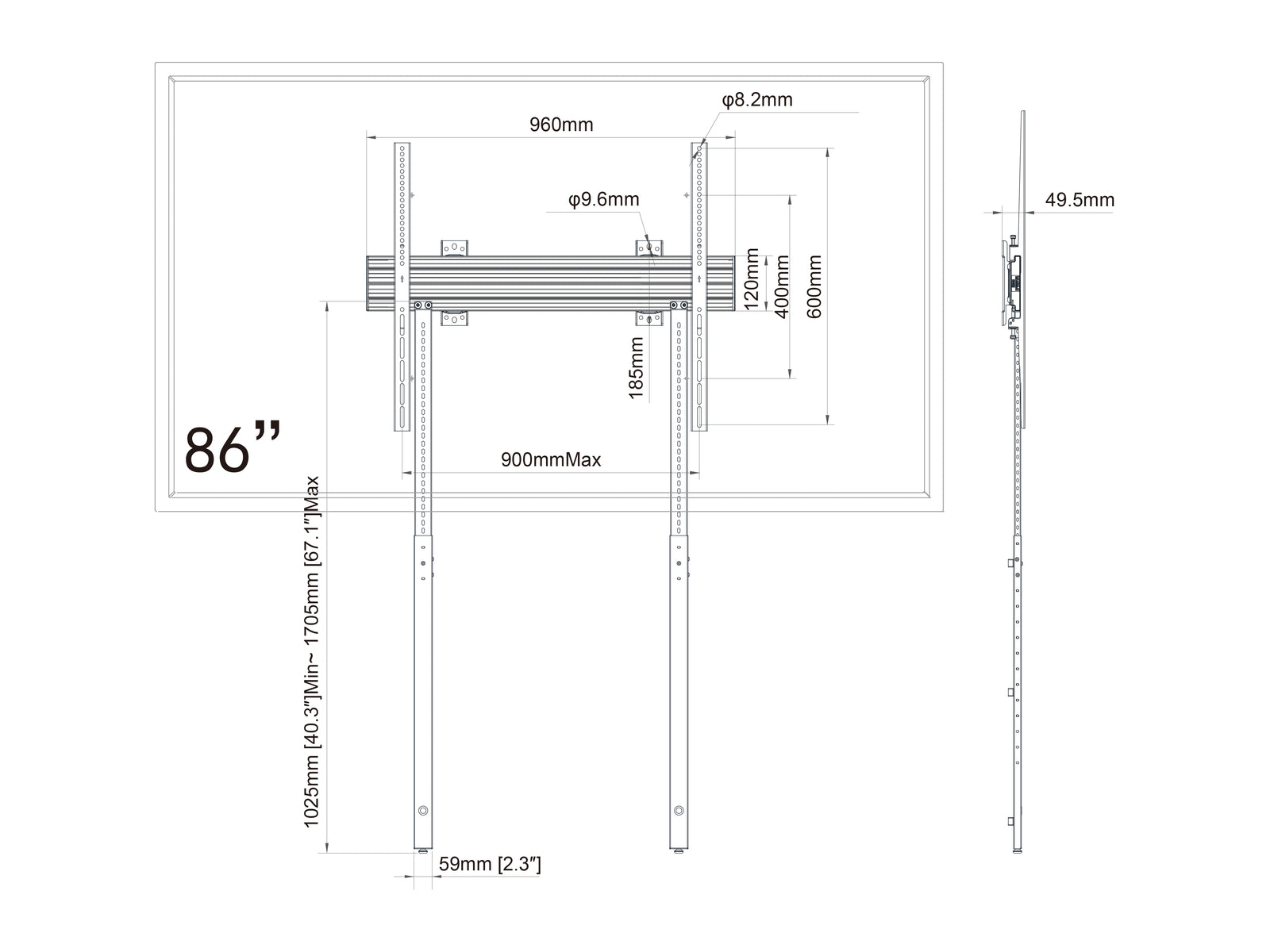

| Drawing | Download |
