Enter your screen SKU and we will instantly check whether this mount is suitable for your display based on VESA pattern compatibility.

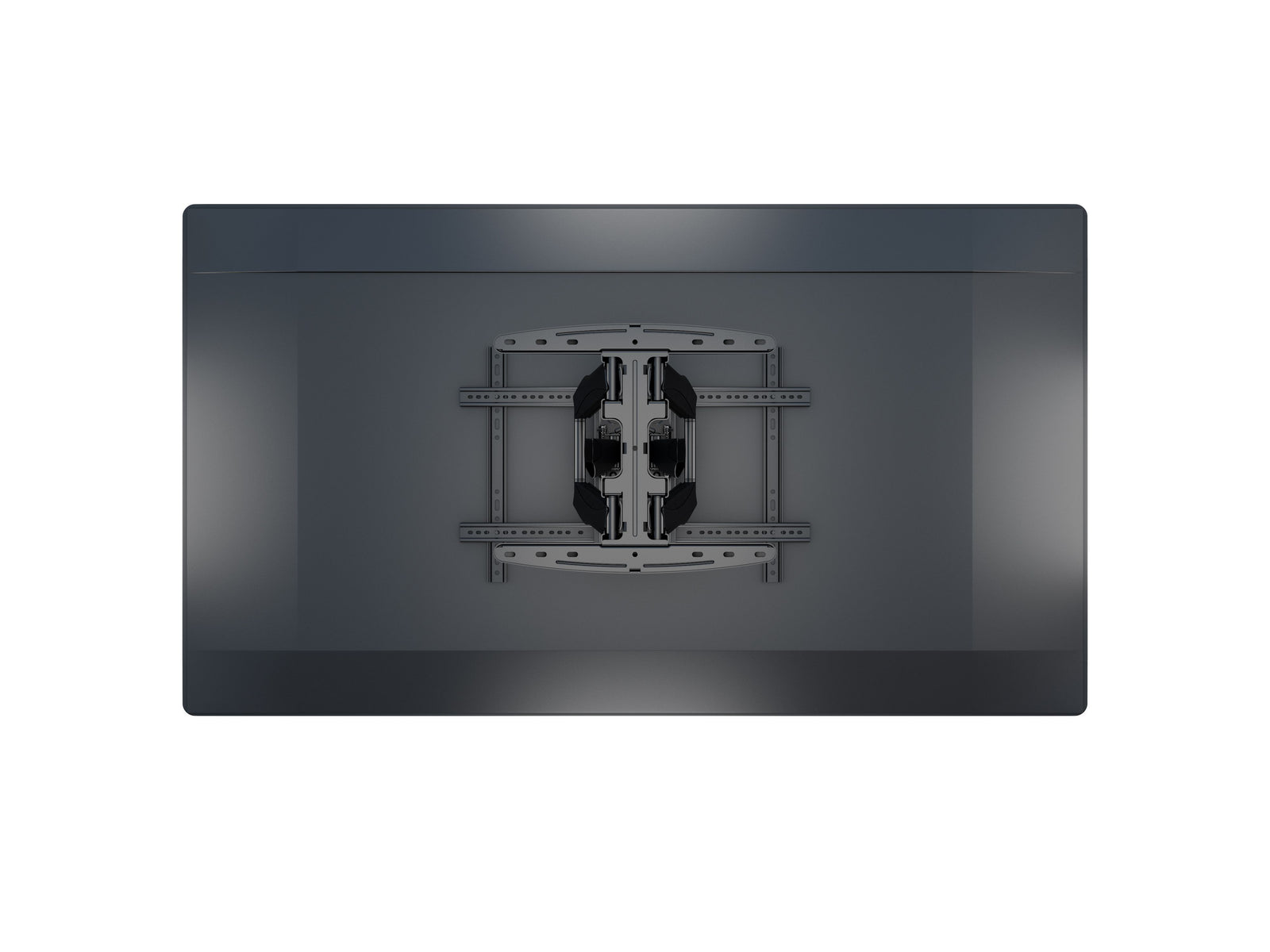

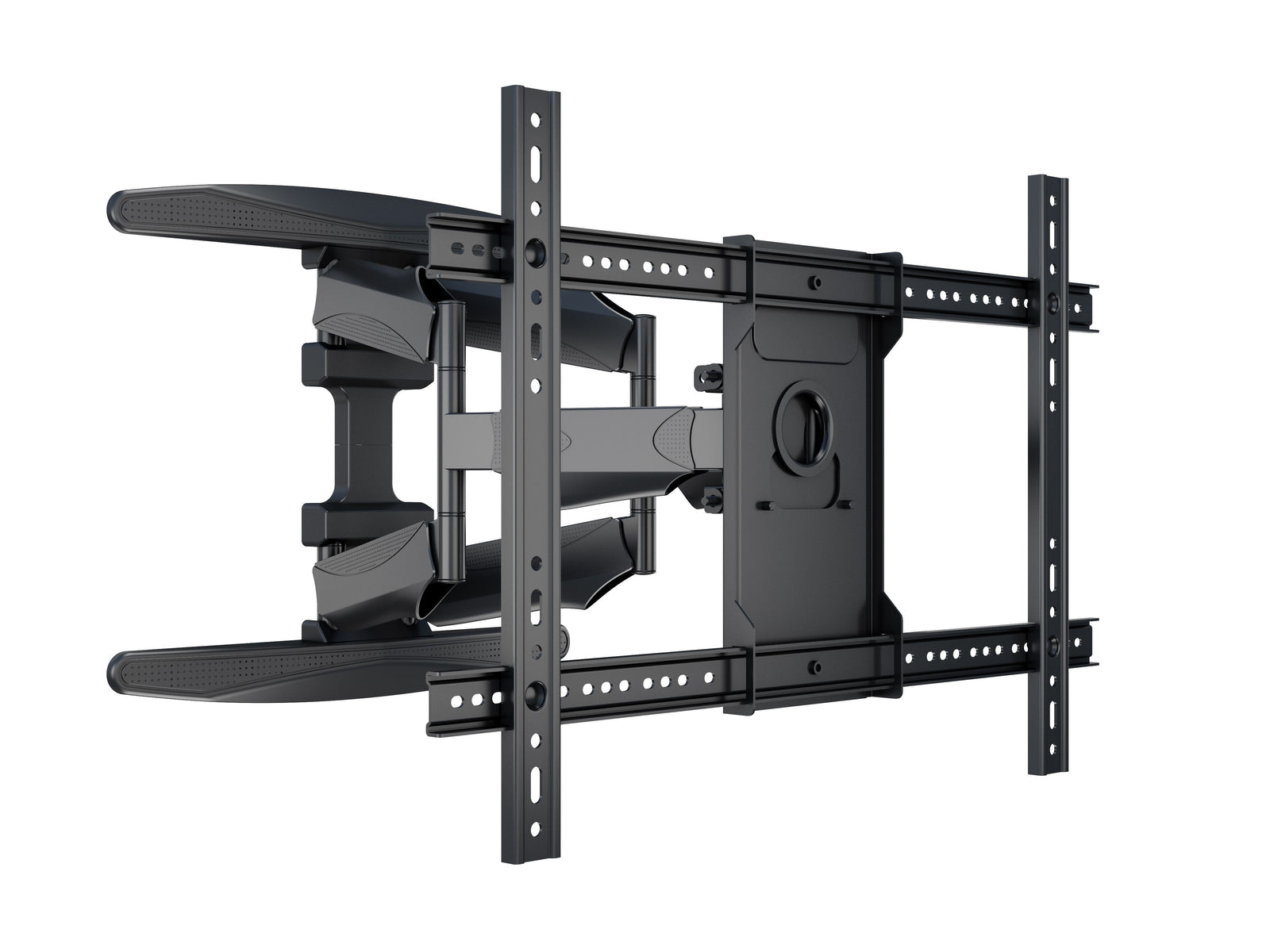

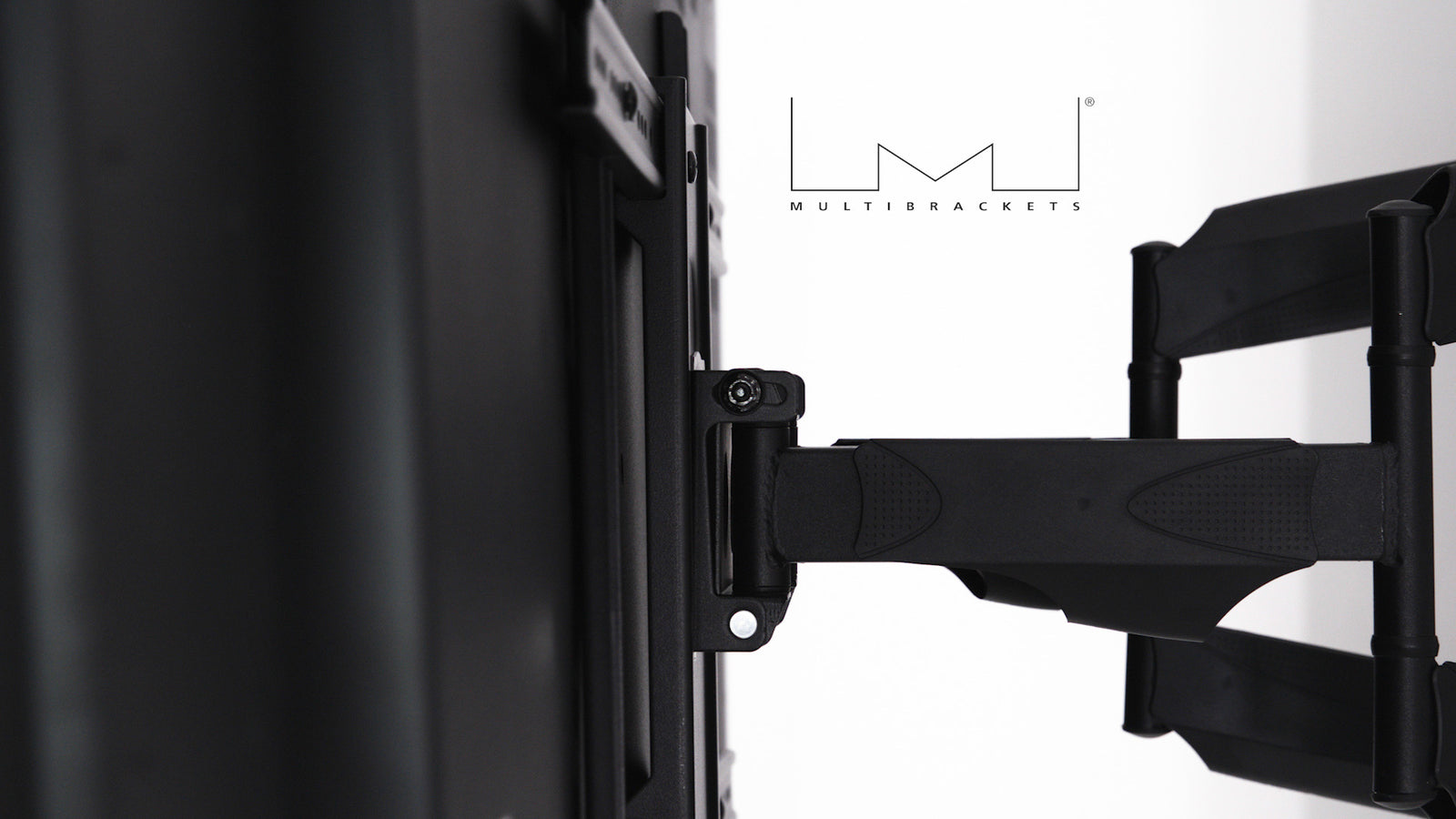

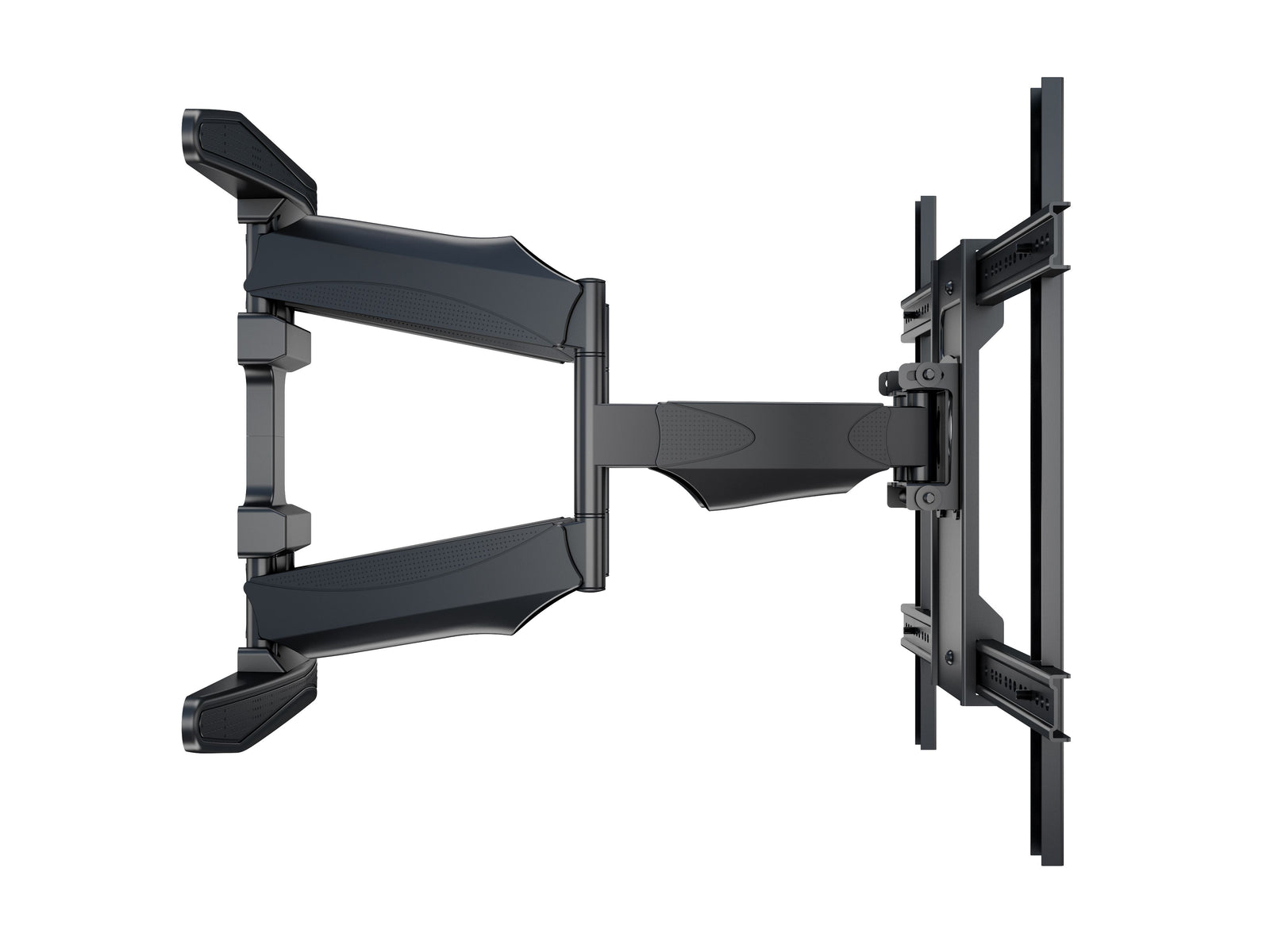

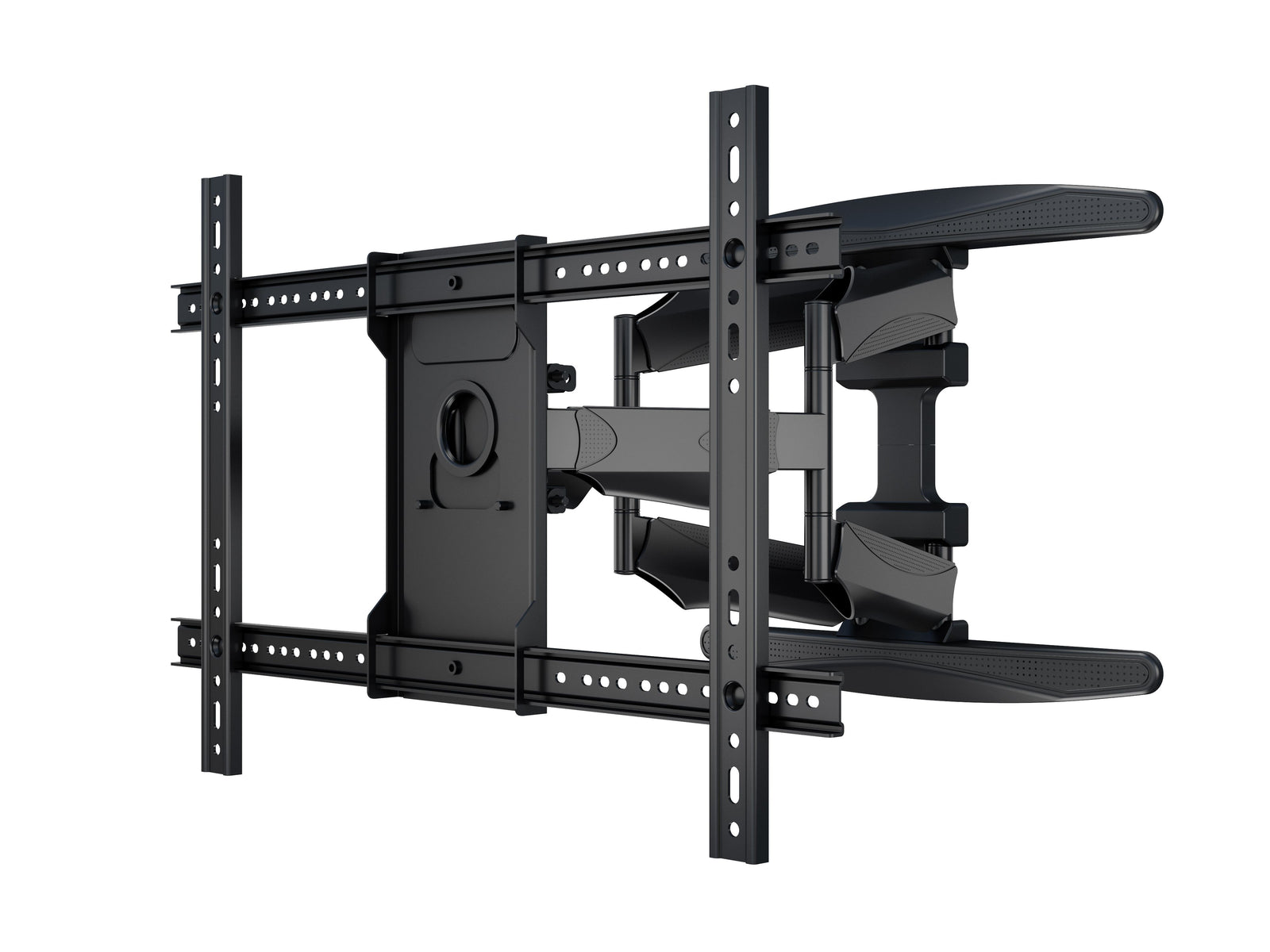

The Multibrackets M VESA Flexarm XL Full Motion Dual is a heavy-duty, fully articulating wall mount engineered for large LCD and LED displays up to 86". With a load capacity of 68 kg and dual-arm construction, this mount offers professional-grade performance for commercial spaces such as corporate environments, control rooms, digital signage, and high-end retail displays.

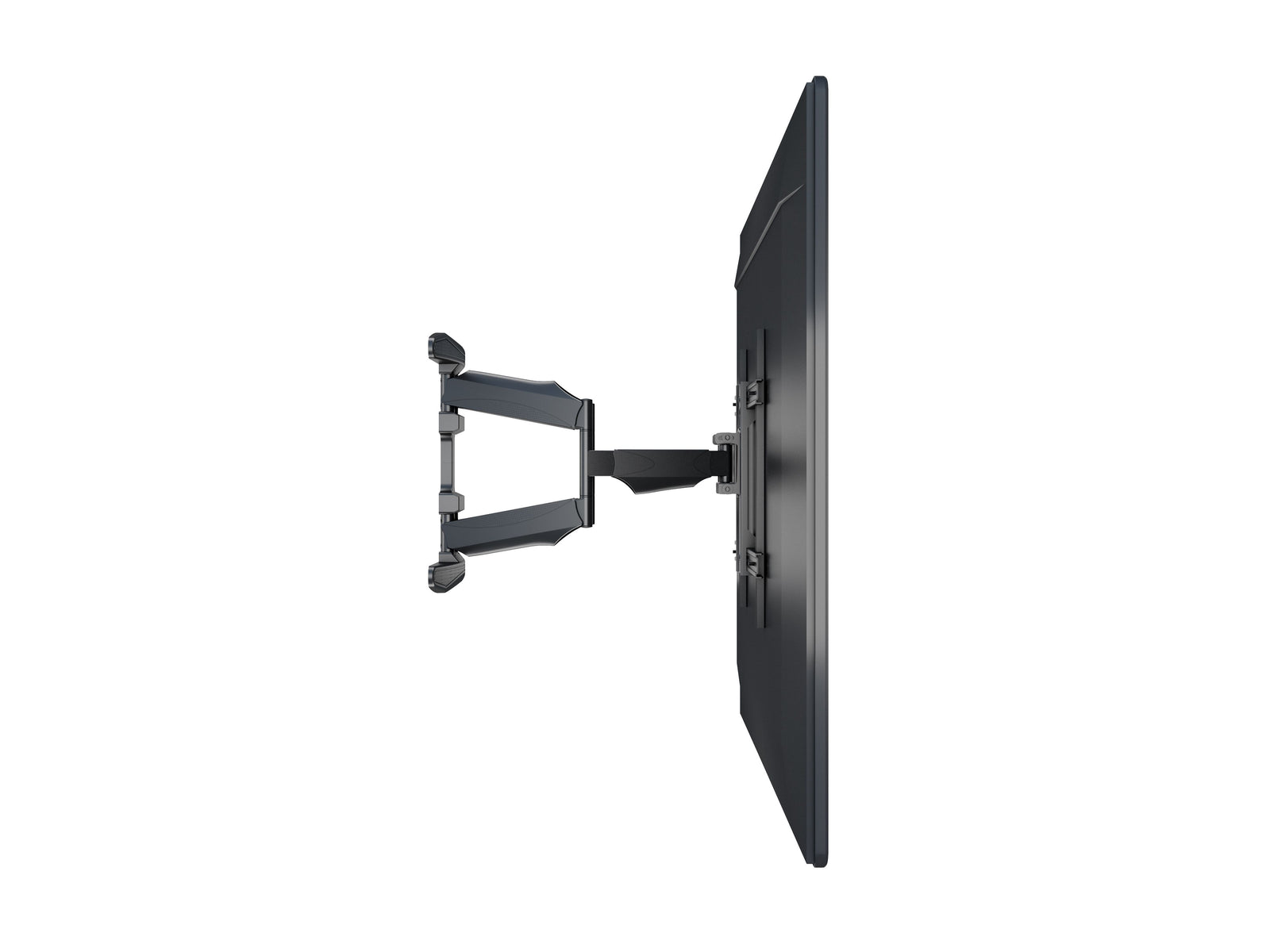

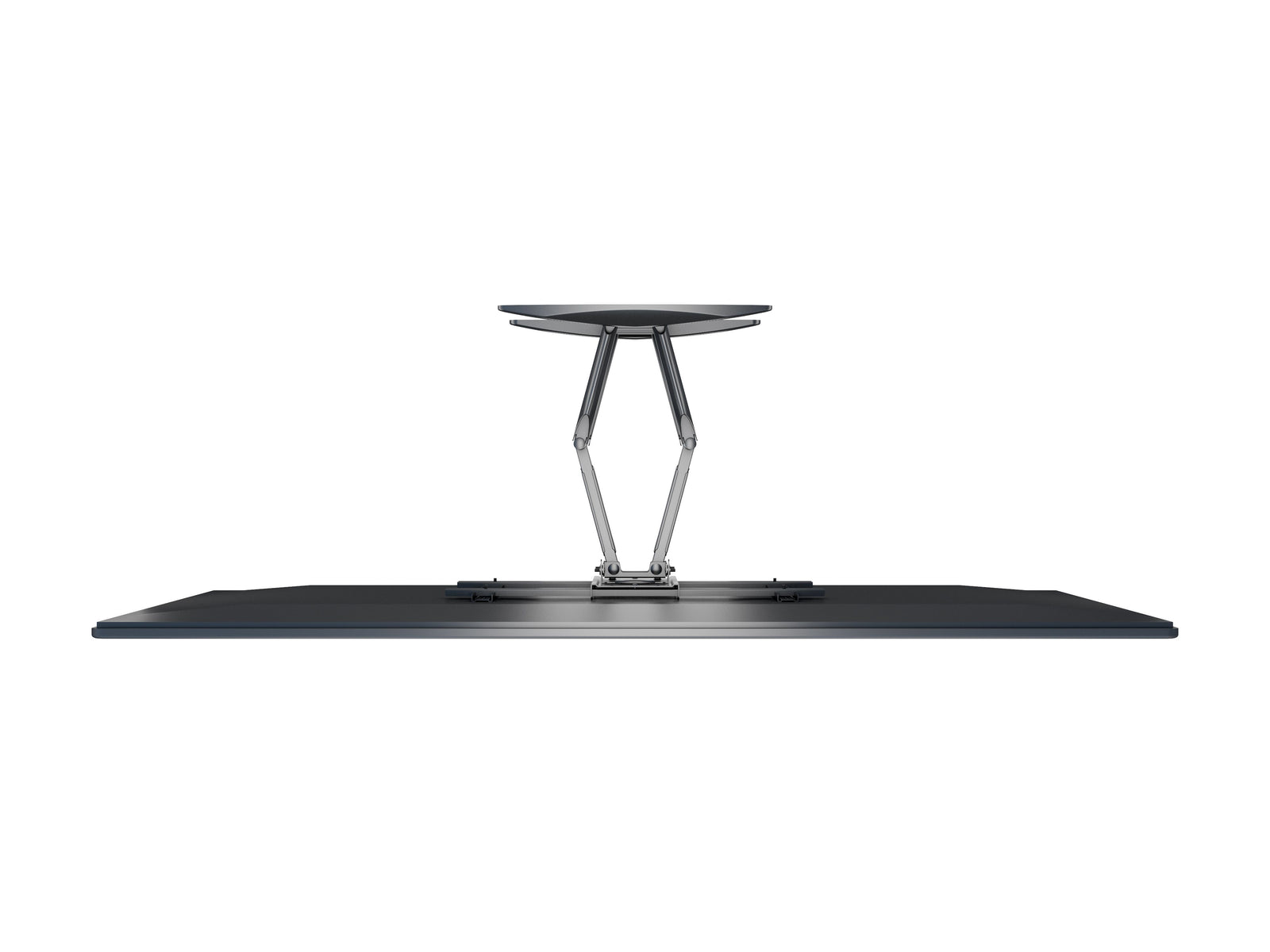

Despite its exceptional strength, the Flexarm XL features a minimal 58 mm profile when retracted and extends up to 500 mm from the wall—providing outstanding reach and flexible positioning. The dual-arm design ensures enhanced stability and smooth, reliable movement when adjusting tilt and swivel angles, even with larger screens.
Compatible with a wide range of VESA patterns from 200x200 up to 600x400 mm, the mount supports most common and oversized screens on the market. The installation process is quick and precise, thanks to the included mounting template, tool kit, and integrated bubble level—making it ideal for one-person installations where time and precision matter.
Highlights
Supports screens from 40" to 86", with a maximum load of 68 kg

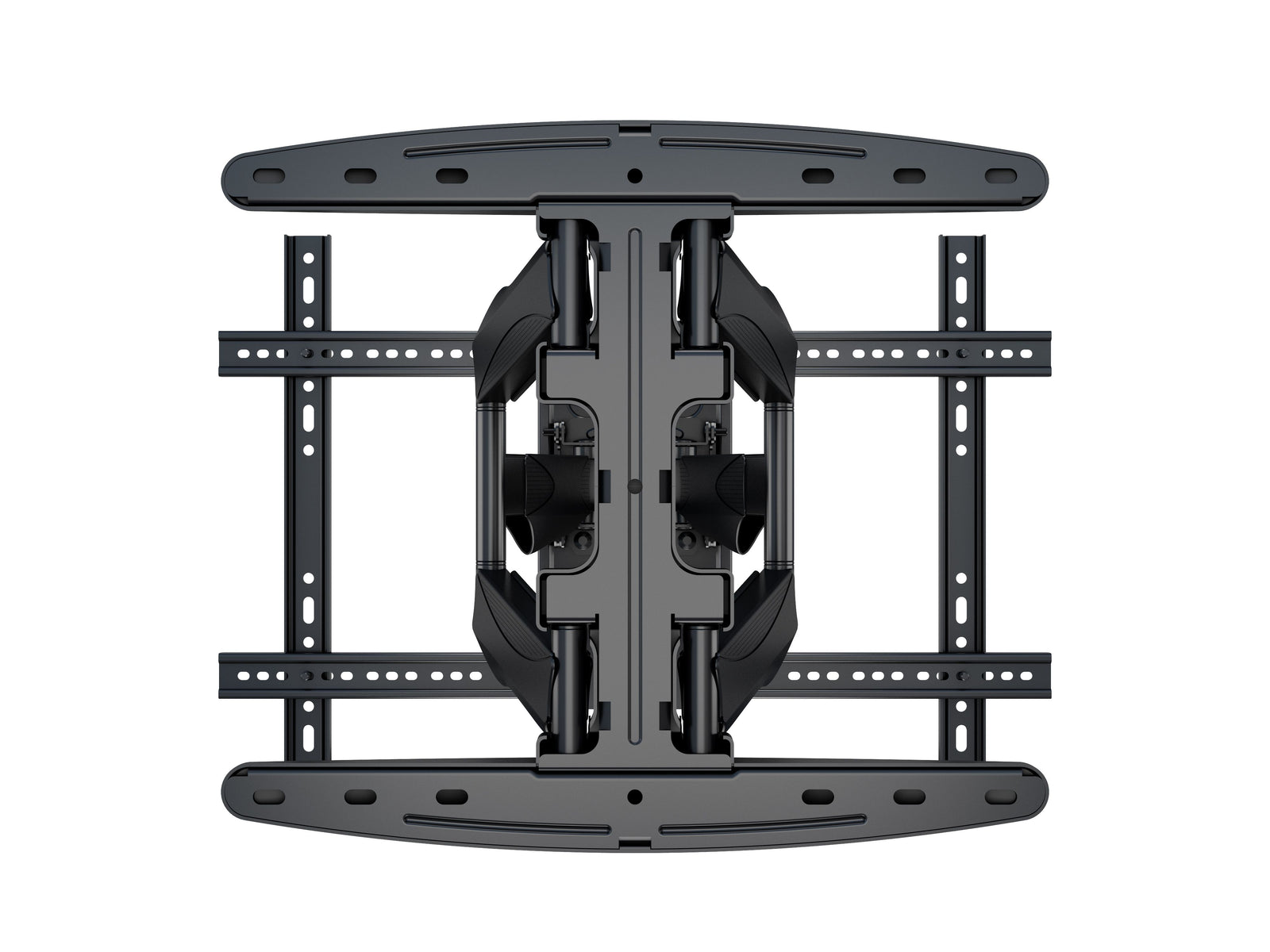

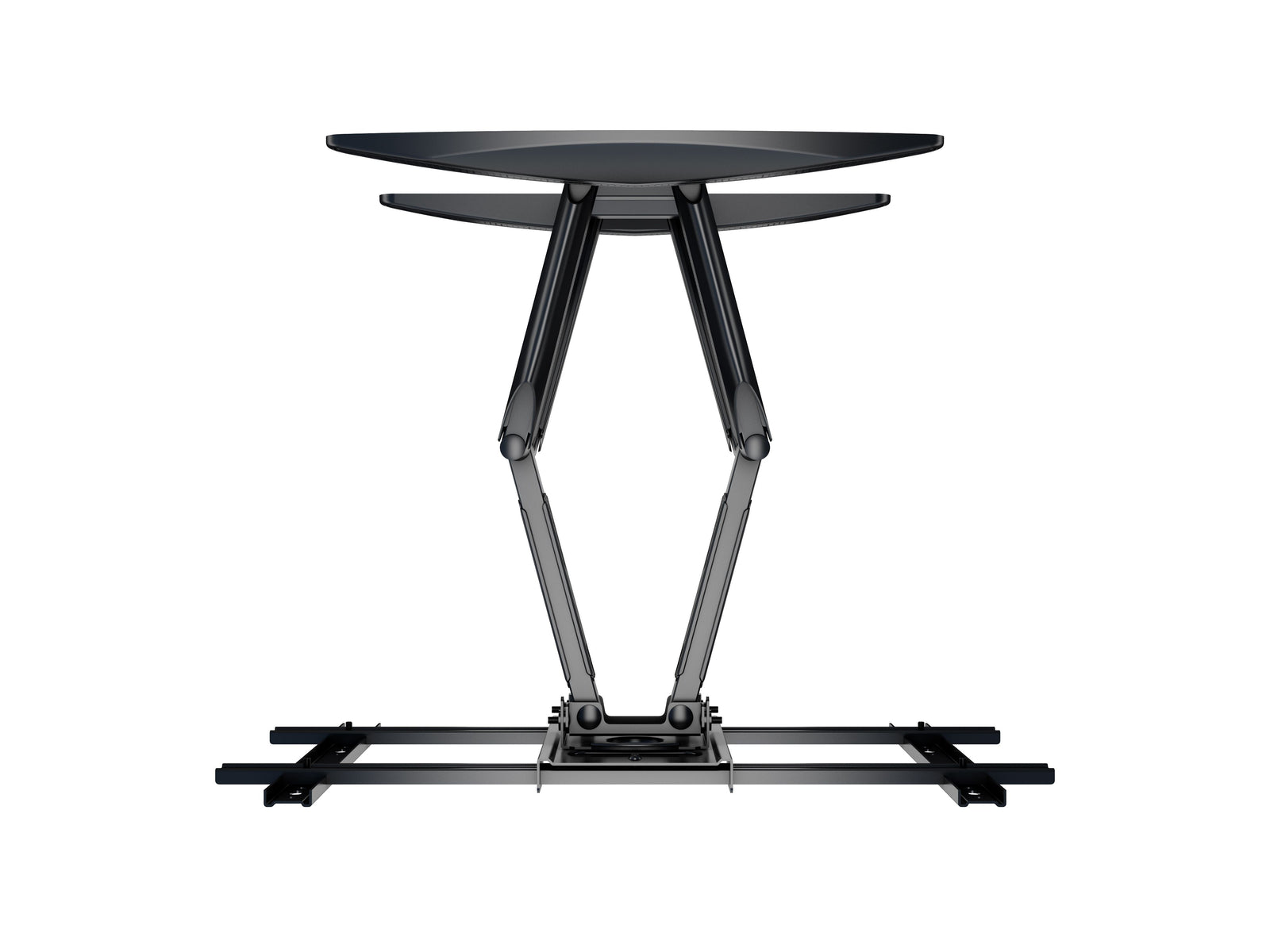

Dual-arm design for added stability and smooth full-motion functionality
Ultra-slim 58 mm wall profile, extends up to 500 mm

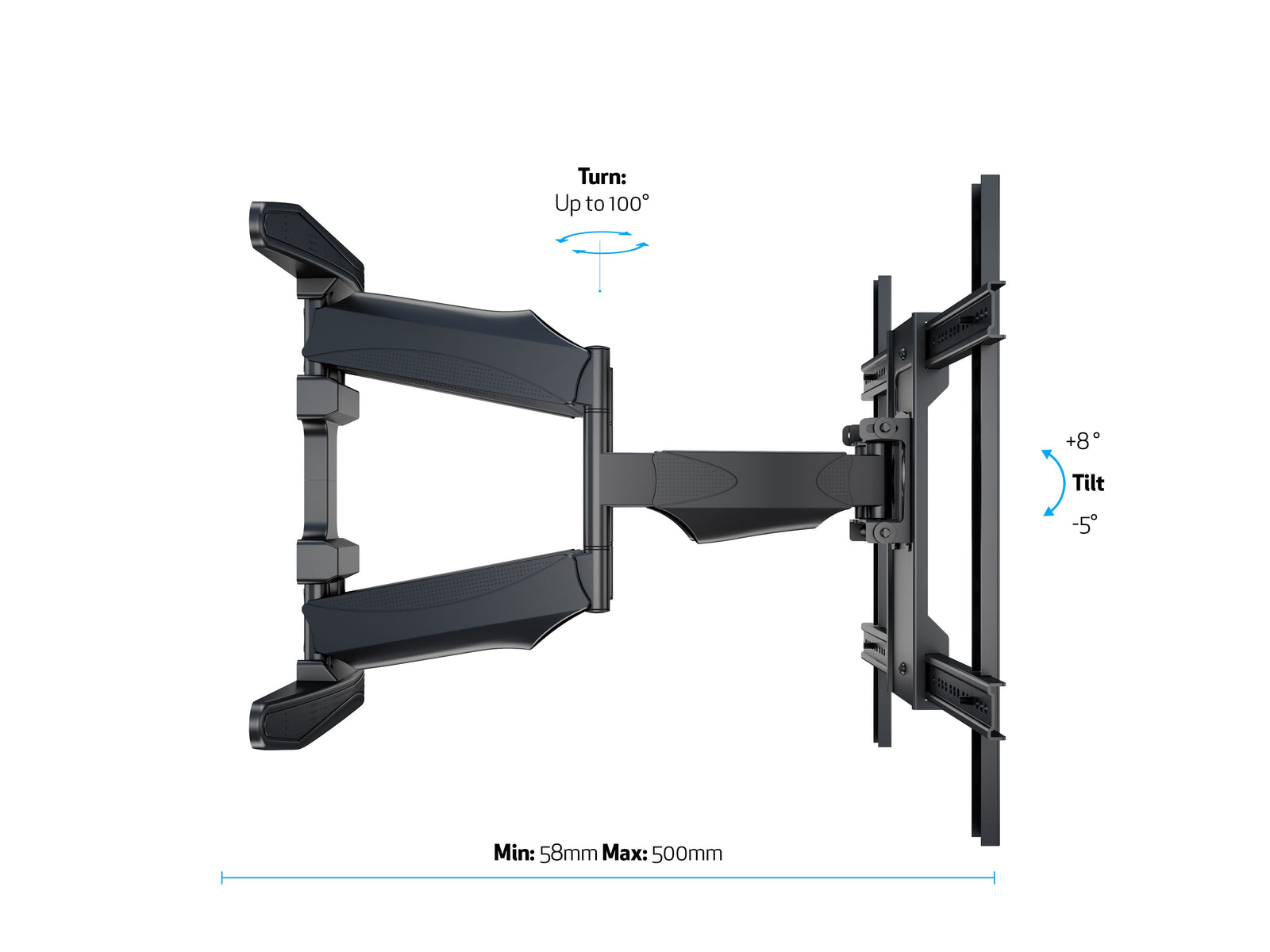

Tilt range: -5° to +8° for glare reduction and optimal viewing
Swivel range: ±60° depending on screen size and configuration

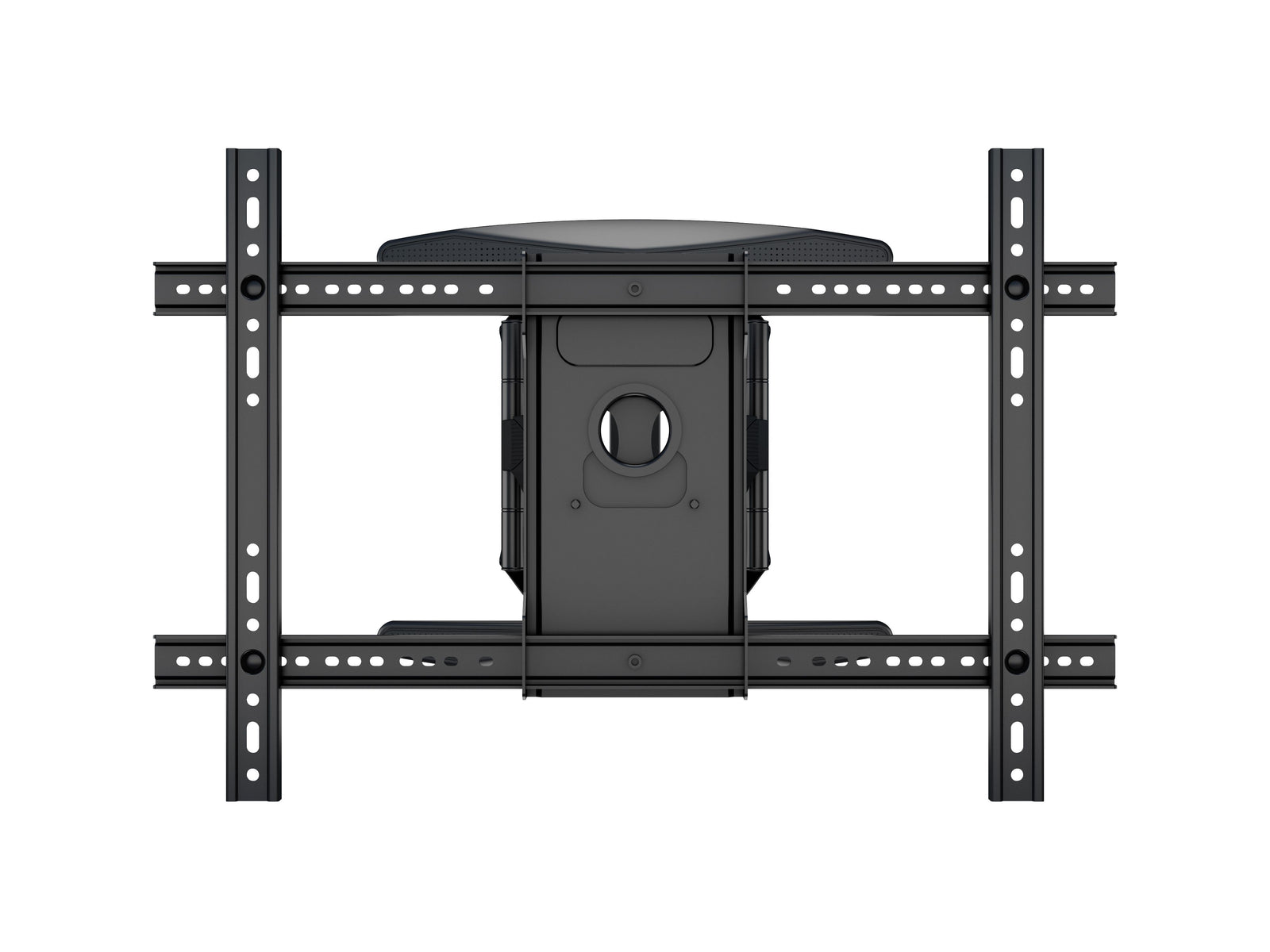

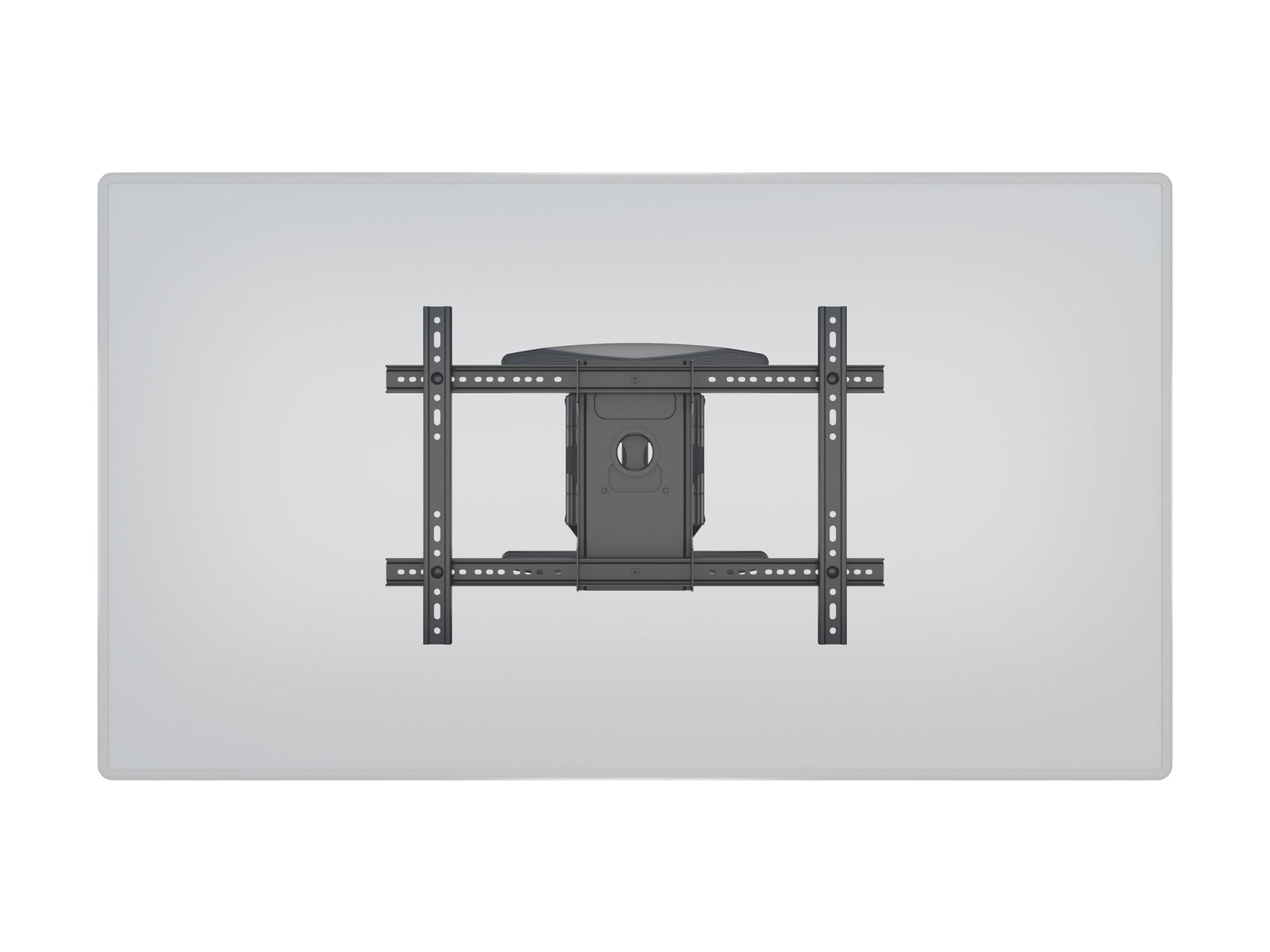

VESA support from 200x200 up to 600x400 mm
Installation kit included with bubble level and mounting template
Perfect for corporate AV, signage, hospitality, and control room use
| For screen size: | 40"-86" | Tilt: | -5° ~ +8° |
| Turn: | Up to -60° ~ +60°, screen size dependant | Leveling adjustment: | +4°/-4° |
| VESA standard: | 200X100,200X200,200X400,300x200,300X300,400X100,400X200,400X300,400X400,500X400,600x400 | Article No: | 7 350 073 736 317 |

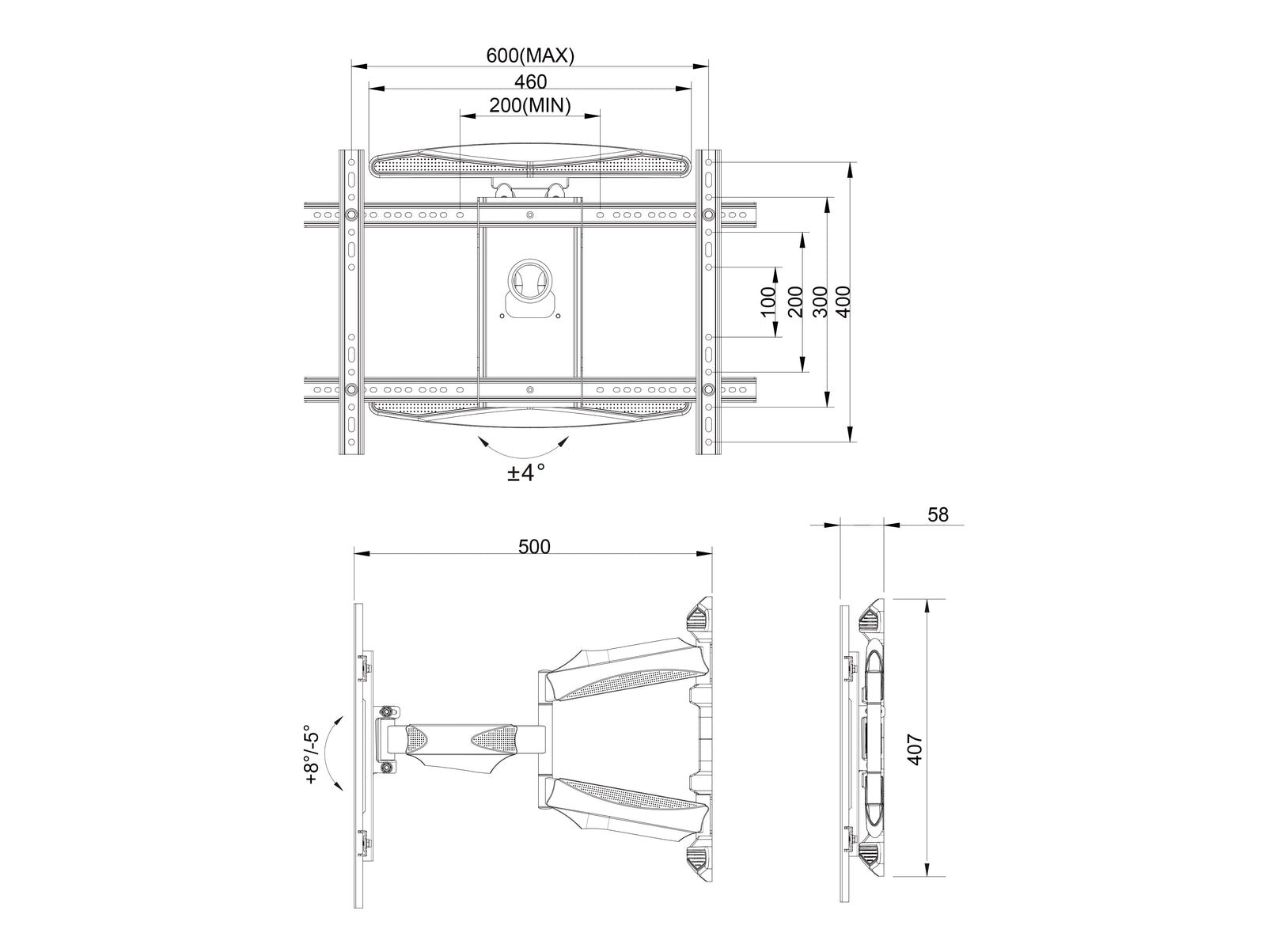

| Size in mm: | 640*450*58-500 (W*H*D) | Distance to wall: | 58 - 500 mm |
| Weight: | 8 kg | Colour: | Black |
| Max load: | 68 kg | Warranty: | 5 years |
| Description | Downloads |
|---|---|
| Datasheet | Download |
| Drawing | Download |
