NEC 22" 5ms TN Panel Led Backlit Widescreen Desktop Monitor | E223W BK

SKU: E223W BK
NEC 22" 5ms TN Panel Led Backlit Widescreen Desktop Monitor | E223W BK Desktop Monitor NEC
Availability:
Out of stock
Sold out

£999,999.99 (Excl. VAT)

- £1,199,999.99 (Inc. VAT)
£999,999.99 - £999,999.99
- - £1,199,999.99
Availability:
Out of stock
  • Visa
  • Mastercard
  • American Express
  • Apple Pay
  • Google Pay
  • Paypal
  • Shop Pay
  • Klarna
  • Bank Transfer (BACS)
Trade pricing for verified resellers, proforma issued on official company letterhead for PO processing.
Education & Public Sector Pricing available for schools, universities, NHS, and government organisations. Contact our Public Sector Team on 020 8191 9223 or email info@screenmoove.com.
  • Description
  • Specifications
  • Downloads

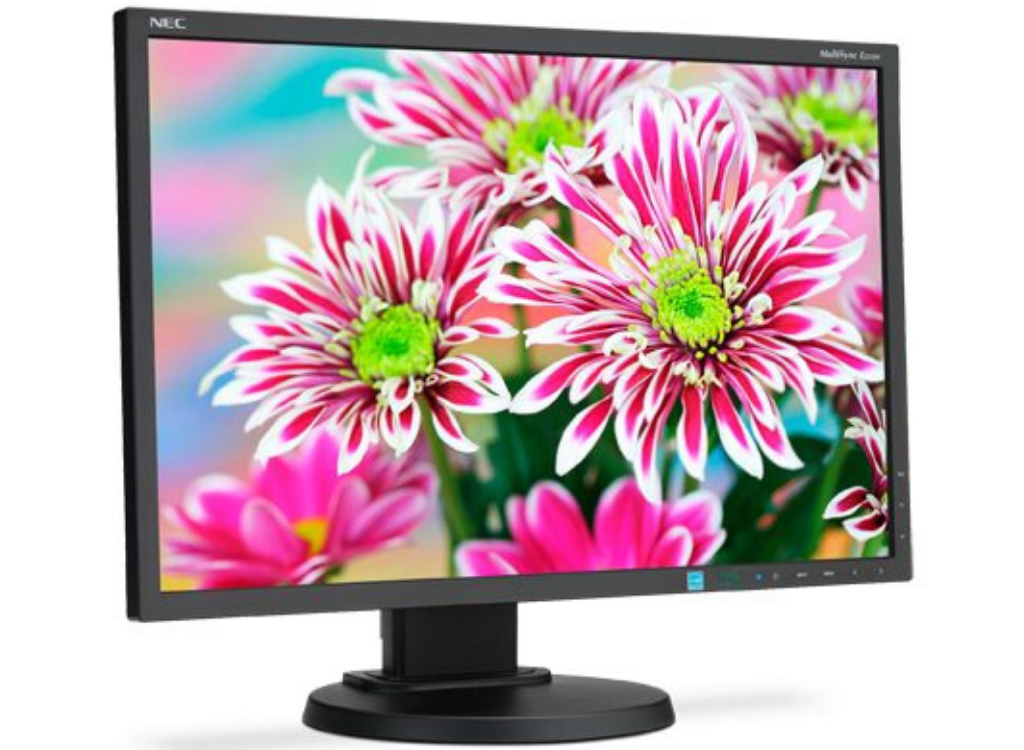

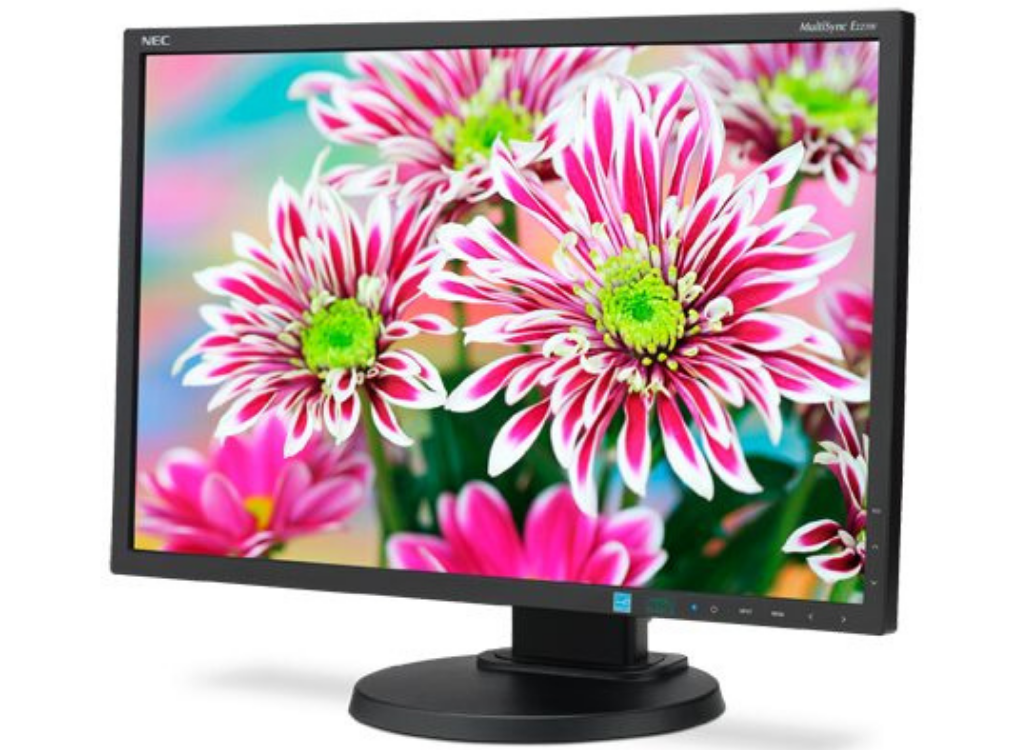

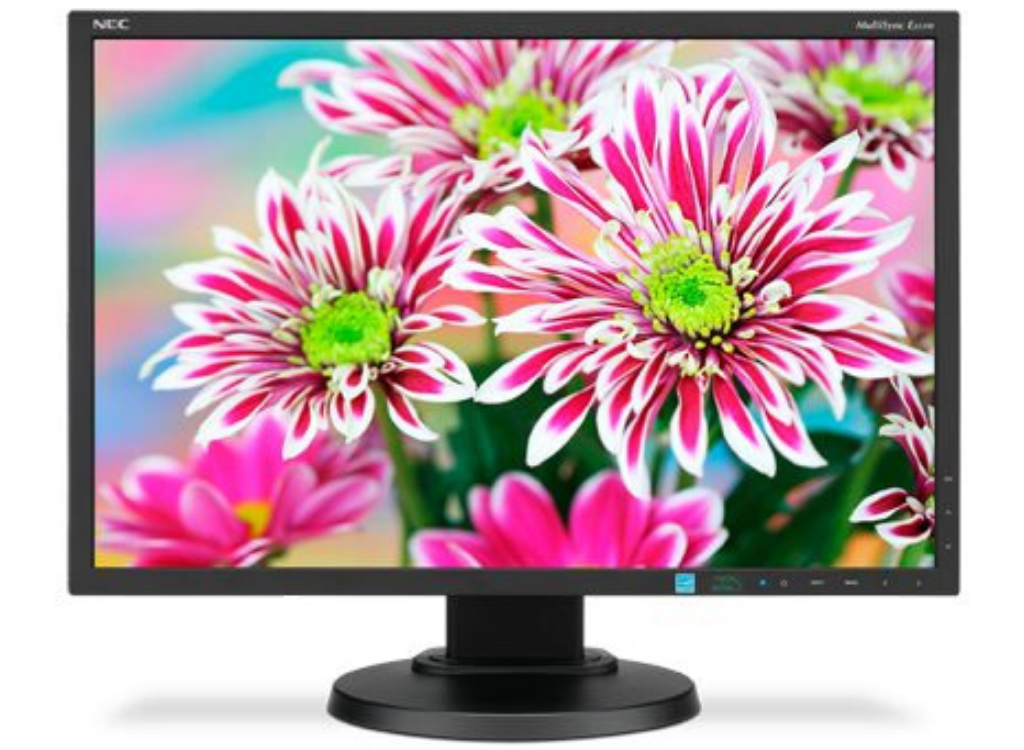

  • NEC 22" 5ms TN Panel Led Backlit Widescreen Desktop Monitor

    The 22" NEC MultiSync E223W delivers the latest in display technologies, while providing many eco-friendly benefits for corporate users. The LED backlighting of the E223W allows for a slimmer profile, lighter weight and increased power savings compared to previous generation models. It offers touch-sensitive controls that are integrated into the bezel, making display adjustments easier and more intuitive than ever. A comprehensive input panel, including DisplayPort, DVI-D and VGA, connects users to the latest peripherals and future-proofs the investment.


    ECO Mode™ function helps save power, reduce heat and extend the life of the display by allowing you to dim the backlight

    Intelligent Power Manager (IPM) system and off timer provide innovative power-saving methods and reduce CO2 emissions by shifting to a lower power consumption level or automatically powering down when the monitor is on but not in use

    Carbon footprint meter helps track and calculate the reduction of green gas emissions

    Compact packaging helps reduce paper usage, shipping costs and waste

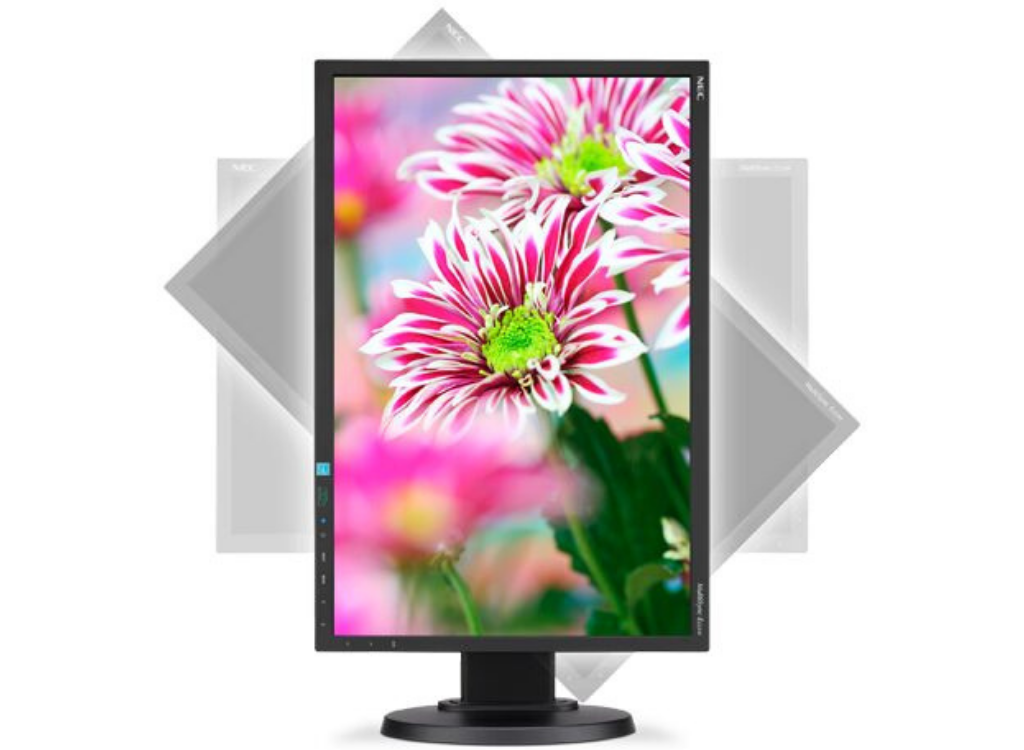

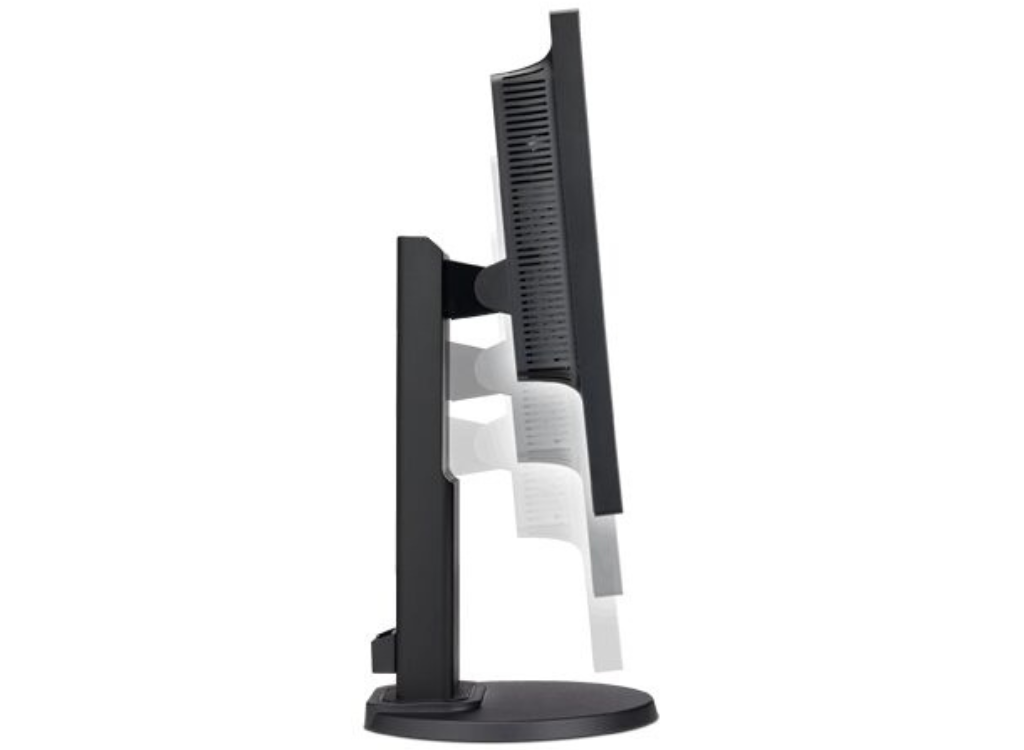

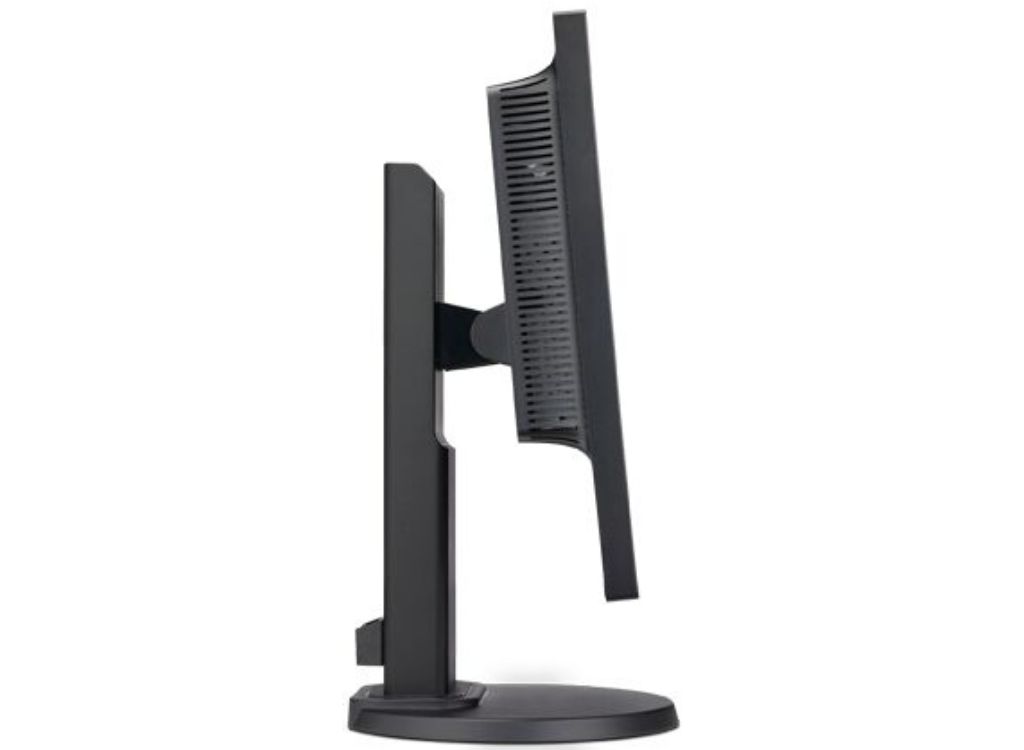

    4-way ergonomic design (height-adjust, pivot, tilt & swivel) enhances your viewing comfort


    Dynamic Visual Mode enhances video and images with real-time optimization of brightness, color
    and contrast

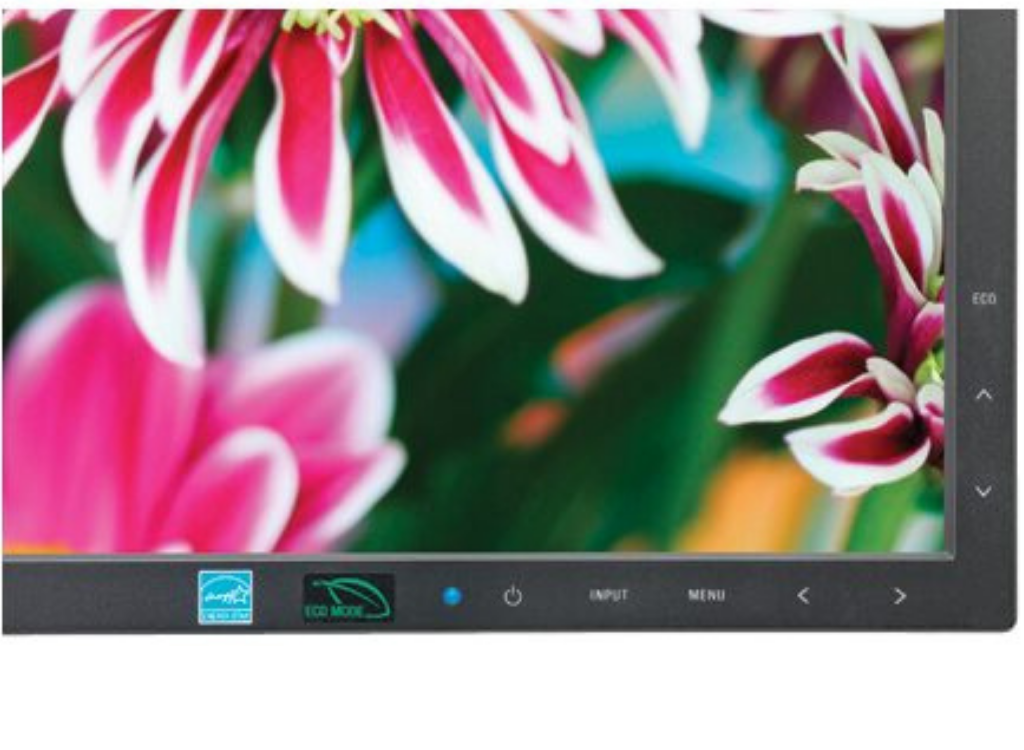

    Touch sensitive OSD controls allows for intuitive screen adjustments

    NaViSet Administrator 2: Free software solution that greatly eases administration and management of larger display device installations

  • Category Specification
    Panel Technology TN
    Viewable Image Size 22"
    Aspect Ratio 16:10
    Screen Resolution 1680x1050
    Pixel Pitch 0.28 mm
    Pixels Per Inch 90 @ native resolution
    Backlight Type W-LED
    Brightness (typical) 250 cd/m²
    Contrast Ratio (typical) 1000:1
    Viewing Angle (typical) 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR > 5
    Response Time (typical) 5 ms
    Displayable Colors More than 16.7 million
    Synchronization Range
    - Horizontal (Analog/Digital) 31.5-82.3 kHz
    - Vertical 56-75 Hz

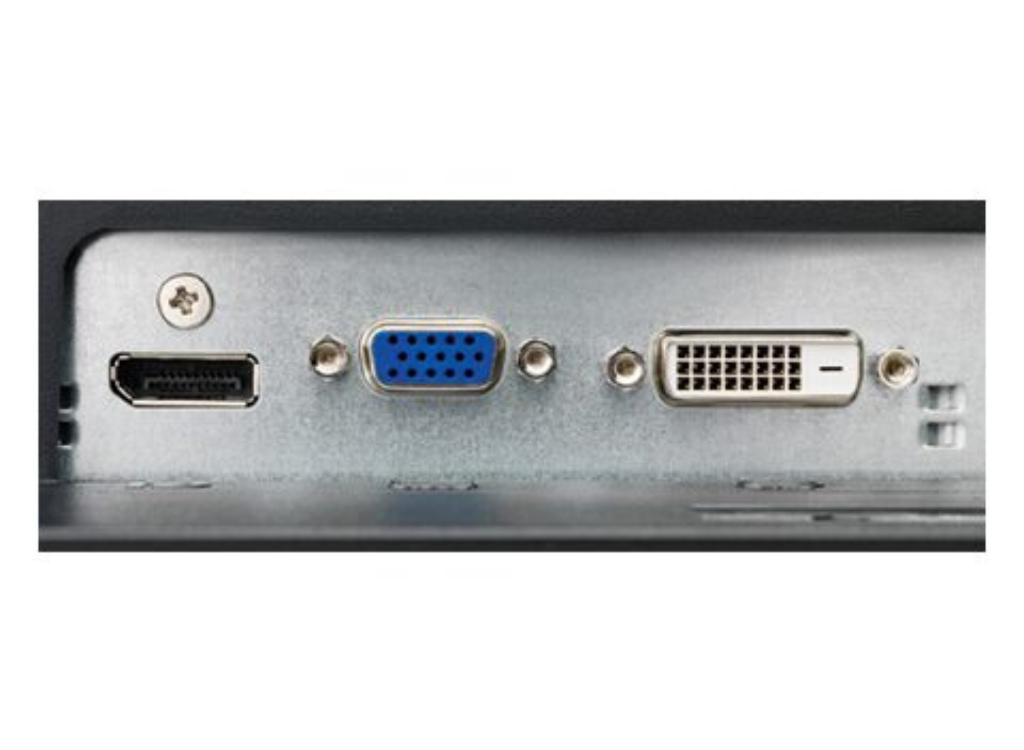

    Input Terminals DVI-D, VGA 15-pin D-sub, DisplayPort
    Power Consumption (typical)
    - On 24W
    - Power Savings Mode 0.35 W
    Dimensions (WxHxD)
    - With stand 19.8 x 15.1-19.4 x 8.4 in. / 503.5 x 383.3-493.3 x 213.9 mm
    - Without stand 19.8 x 13 x 2.4 in. / 503.5 x 329.7 x 60.5 mm
    Weight
    - Net (with stand) 10.8 lbs. / 4.9 kg
    - Net (without stand) 7.1 lbs. / 3.2 kg
    VESA Hole Configuration 100 x 100 mm
    Environmental Conditions
    - Operating Temperature 41-95°F / 5-35°C
    - Operating Humidity 20-80%
    - Operating Altitude 6562 ft. / 2000m
    - Storage Temperature 14-140°F / -10-60°C
    - Storage Humidity 10-85%
    - Storage Altitude 40,000 ft. / 12,192m
    Environmental Compliance
    - ENERGY STAR 7.0
    - RoHS Yes
    - TCO 7.0
    Limited Warranty 3 years (parts & labor)
    Additional Features ECO Mode, Carbon footprint meter, Thin frame, Tilt, Swivel, Pivot, Height-adjustable stand
    Carrying handle, Rapid Response, Ambix, XtraView, OSD user controls, NaViKey
    NaViSet software, Cable management, VESA mount, HDMI-capable via DVI adapter
    HDCP, DDC/CI, No Touch Auto Adjust, Plug and Play (VESA DDC 1/2B), VESA DPMS power mgmt.
    AccuColor color control, Digital smoothing, Digital controls, ISO 13406-2 Class II
  • Description Downloads
    Mechanical Drawing Downloads
    User Manual Downloads
