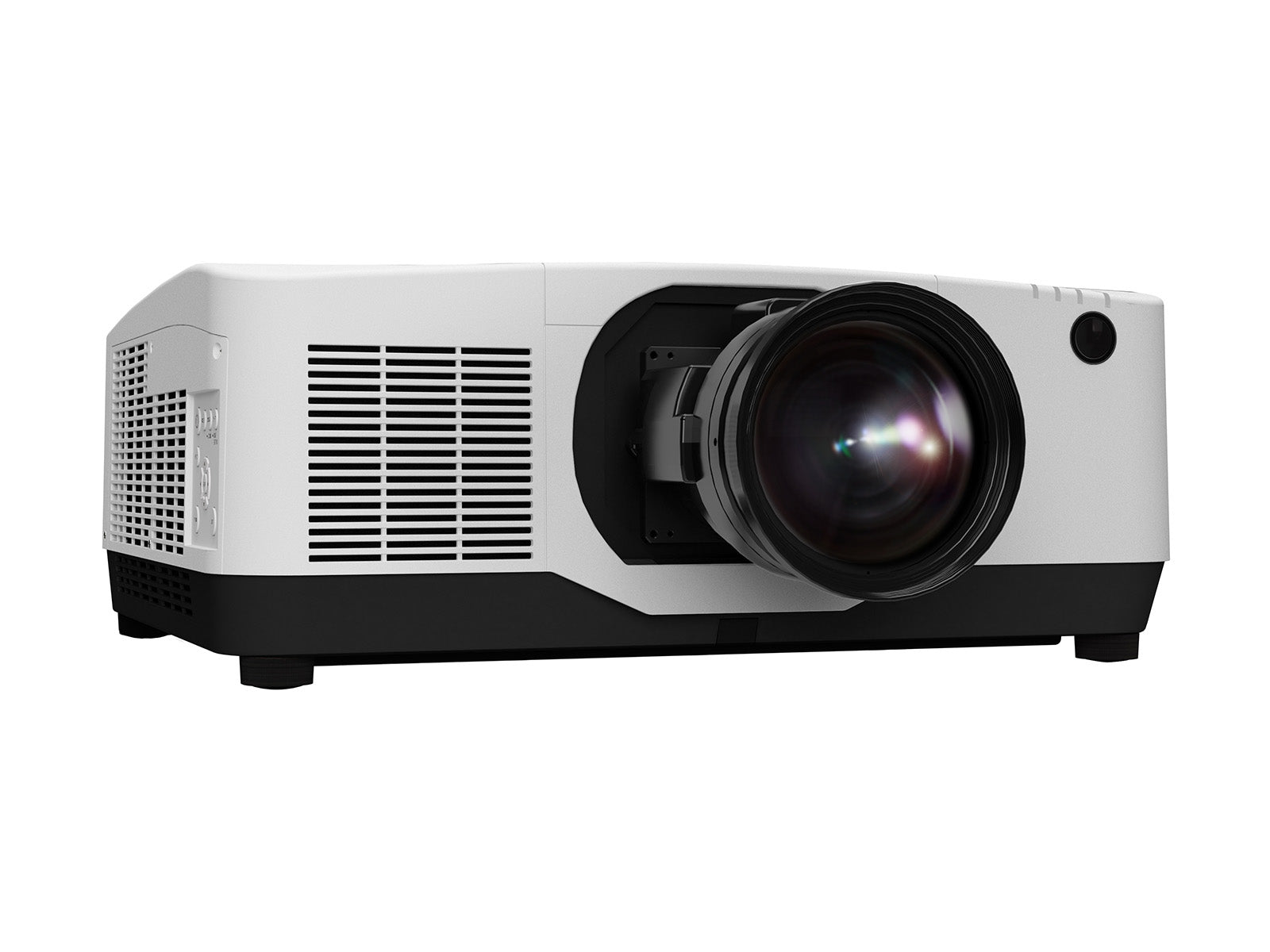

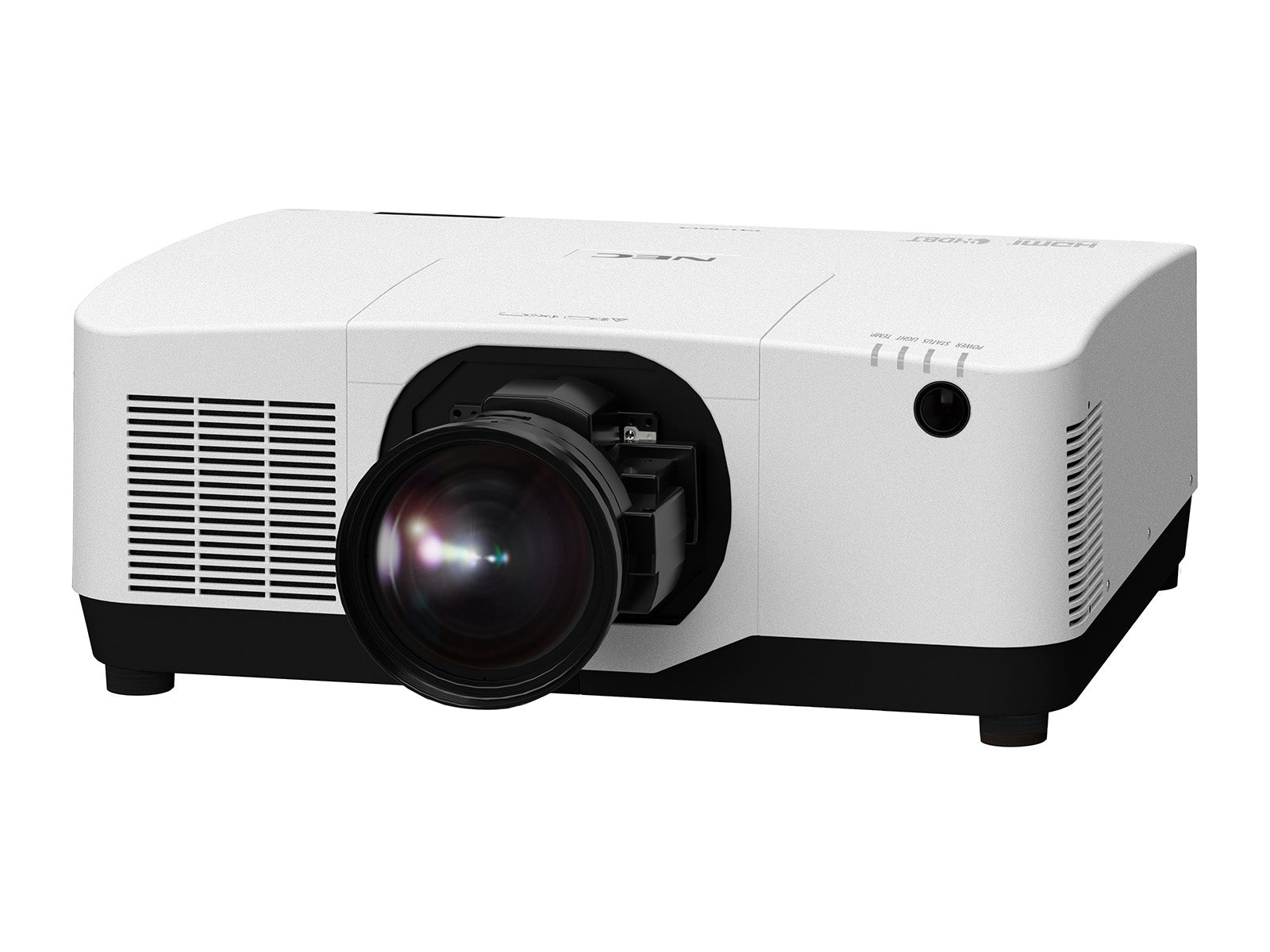

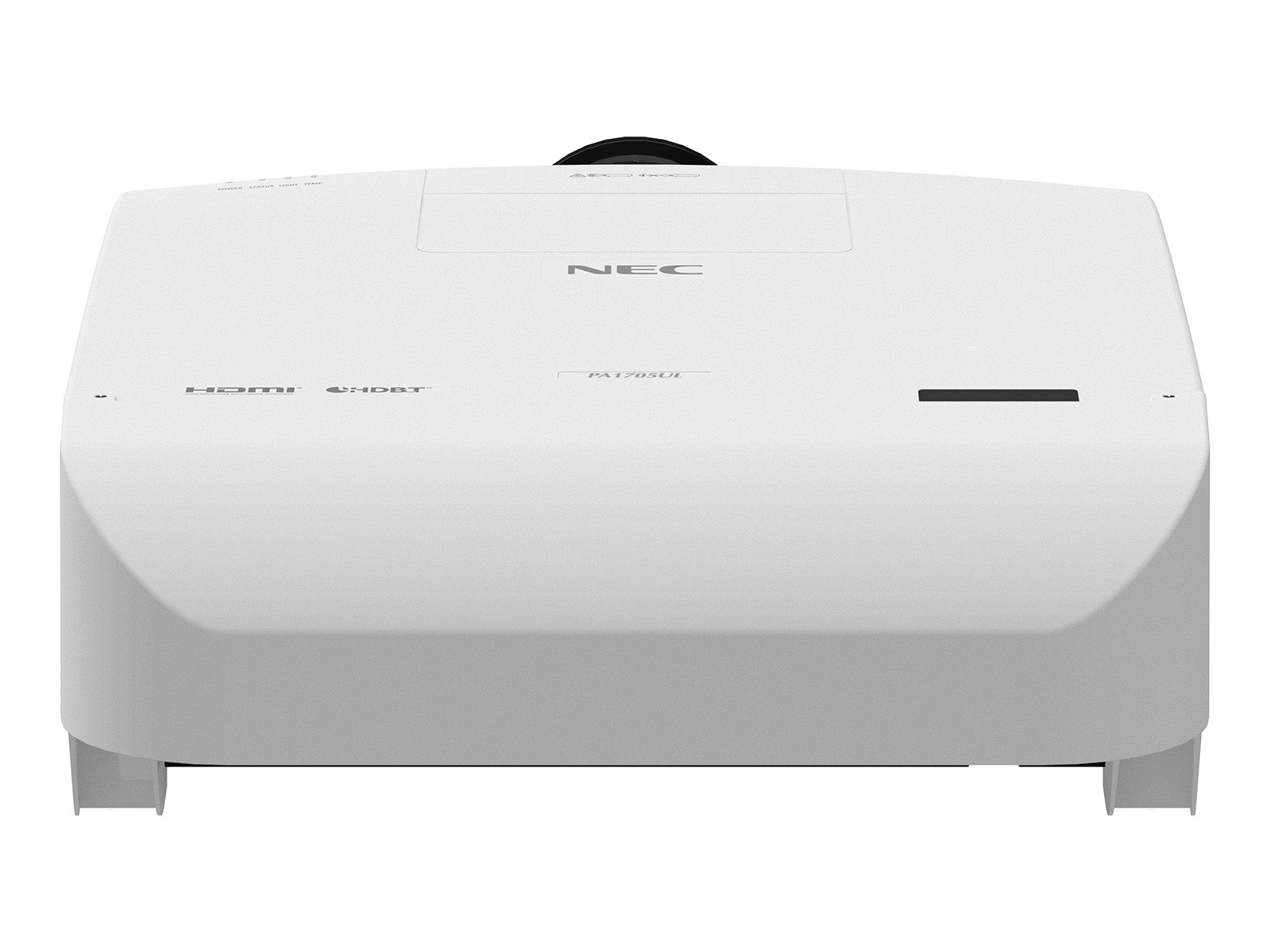

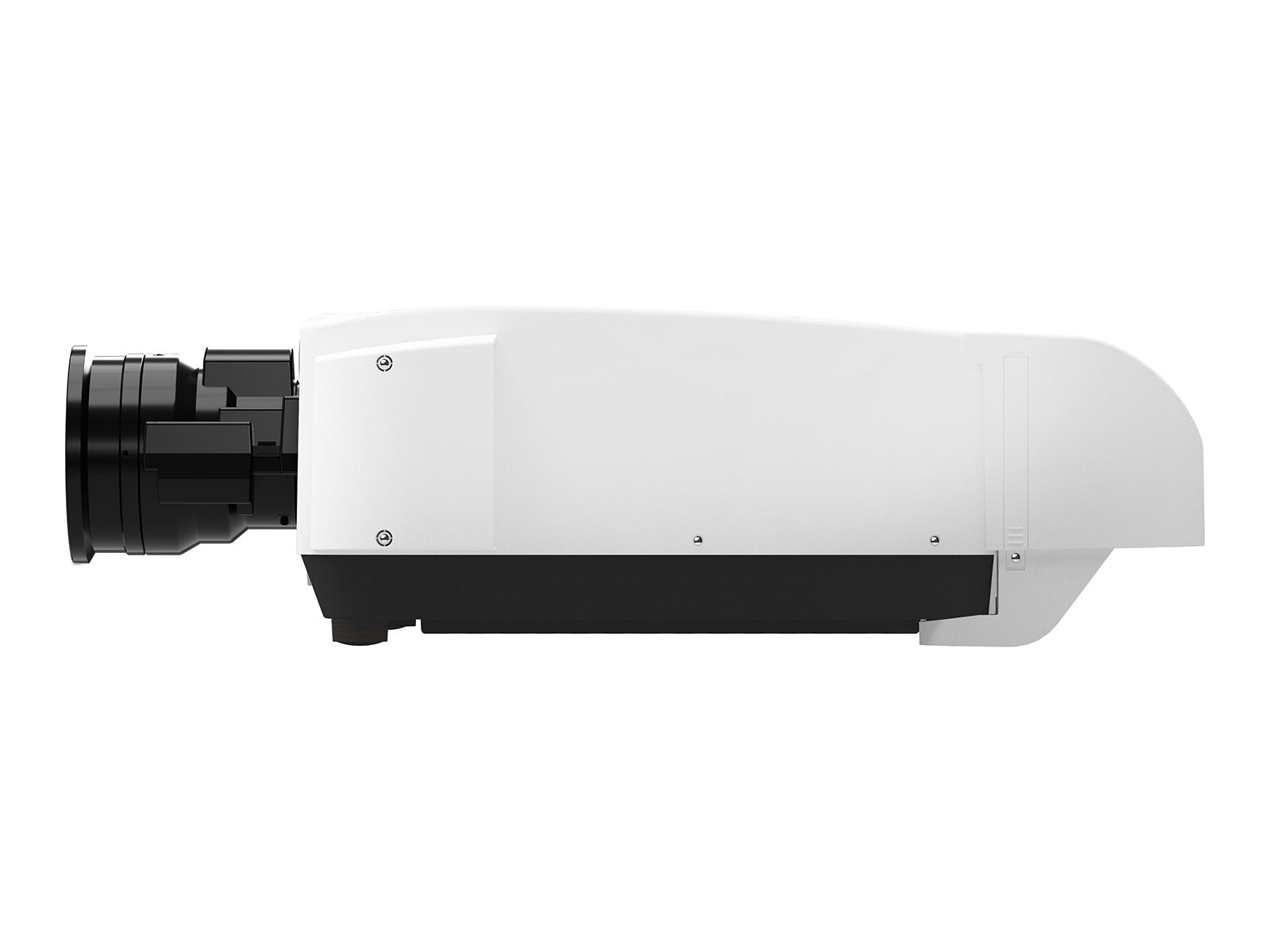

NEC 60005972/PA1705UL Laser Projector - 16200 Lumens

NEC 60005972/PA1705UL Laser Projector - 16000 Lumens

SKU: 60005972
Part Number: 60005972
Condition: Brand New
Purchase Orders Accepted
Save £9,250.92 Save £9,250.92

£11,435.00 (Excl. VAT)

- £13,722.00 (Inc. VAT)
£11,435.00 - £11,435.00
- - £13,722.00
Availability:
Only 2 left at this price!
payment-icons

Bulk Price & Price Match Request

Contact our expert sales team on 020 8191 9223 for best price and dedicated assistance.

Educational & Public Sector Prices Available

For more details, please call us at 020 8191 9223 or email us at info@screenmoove.com

  • Description
  • Specifications
  • Downloads

  • NEC 60005972/PA1705UL Laser Projector - 16000 Lumens

    A new class of bright projection

    Now even larger spaces can benefit from Sharp/NEC’s innovation in silent technology with the 17,000 center lumens PA1705UL laser projector, ensuring all attention is focused on the stunning image delivery.

    Featuring unprecedented White Point performance, factory pre-calibrated for the perfect white, 12-bit colour signal processing and wide colour space, the audience will experience extraordinarily vivid colour saturation and contrast levels.

    The enhanced sealed optical engine allows a filter-free design, IP5X rated against dust ingress - no possibility of dust contaminating the LCD panels for long-term picture stability and brilliant colour brightness. What’s more, with our filterless LCD projector design and no lamp replacement, service costs are dramatically reduced for a low cost of ownership and up to 20,000 hours life-time.

    Sharp/NEC customers can easily make the transition to benefit from the latest laser technology. The PA1705UL is a professional installation projector featuring advanced installation capabilities as demanded by higher education, leisure and museum applications.

    BENEFITS
    No lamp replacement - up to 20,000 h maintenance free operation possible due to Laser Light Source.
    No filter service required - the enhanced sealed optical laser LCD engine allows a filter-free design, IP5X rated against dust ingress. Brilliant colour brightness is maintained and servicing costs need no longer feature in your budget
    Compact design - a large venue projector with a comparatively small footprint and light weight design.
    Impress with vivid colour & contrast - brilliant white and wide colour space with high dynamic contrast supporting HDR10 standard via HDMI interface.
    Incredible visualisation capabilities - impressive free tilt and portrait installation capability, unique geometric adjustment, picture in picture, tiling, 3D support and camera based blending/stacking up to 4K.

  • Projection Technology 3LCD Technology
    Native Resolution 1920 x 1200 (WUXGA)
    Aspect Ratio 16:10
    Contrast Ratio 1 3000000:1
    Brightness 1 16000 Lm / 17000 Lm Center
    Lamp Laser Light Source
    Light Source Life [hrs] 20000 2
    Lens 6 motorized lens options
    Lense Adjustment Motorized
    Lens shift Up to H:±25, V:+65,-65
    Keystone correction +/- 40° manual horizontal / +/- 30° manual vertical
    Projection Factor depending on lens selection (std. option NP54ZL at 1.25-2.01:1)
    Projection Distance [m] 0.68 – 80.77
    Screen Size (diagonal) [cm] / [inch] Maximum: 1,270 / 500"; Minimum: 152 / 60"
    Zoom Motorized
    Focus Adjustment Motorized
    Supported Resolutions 1080i/50/60; 1080p/24/25/30/50/60; 1920x1200 (WUXGA) - 640x480 (VGA); 2048 x 1080 (2k); 2560 x 1600 (WQXGA); 4096 x 2160 (4k); 720p/50; 720p/60
    Frequency Horizontal: analog: 0-0 kHz, digital: 15/24-153 kHz; Vertical: 24 – 120 Hz

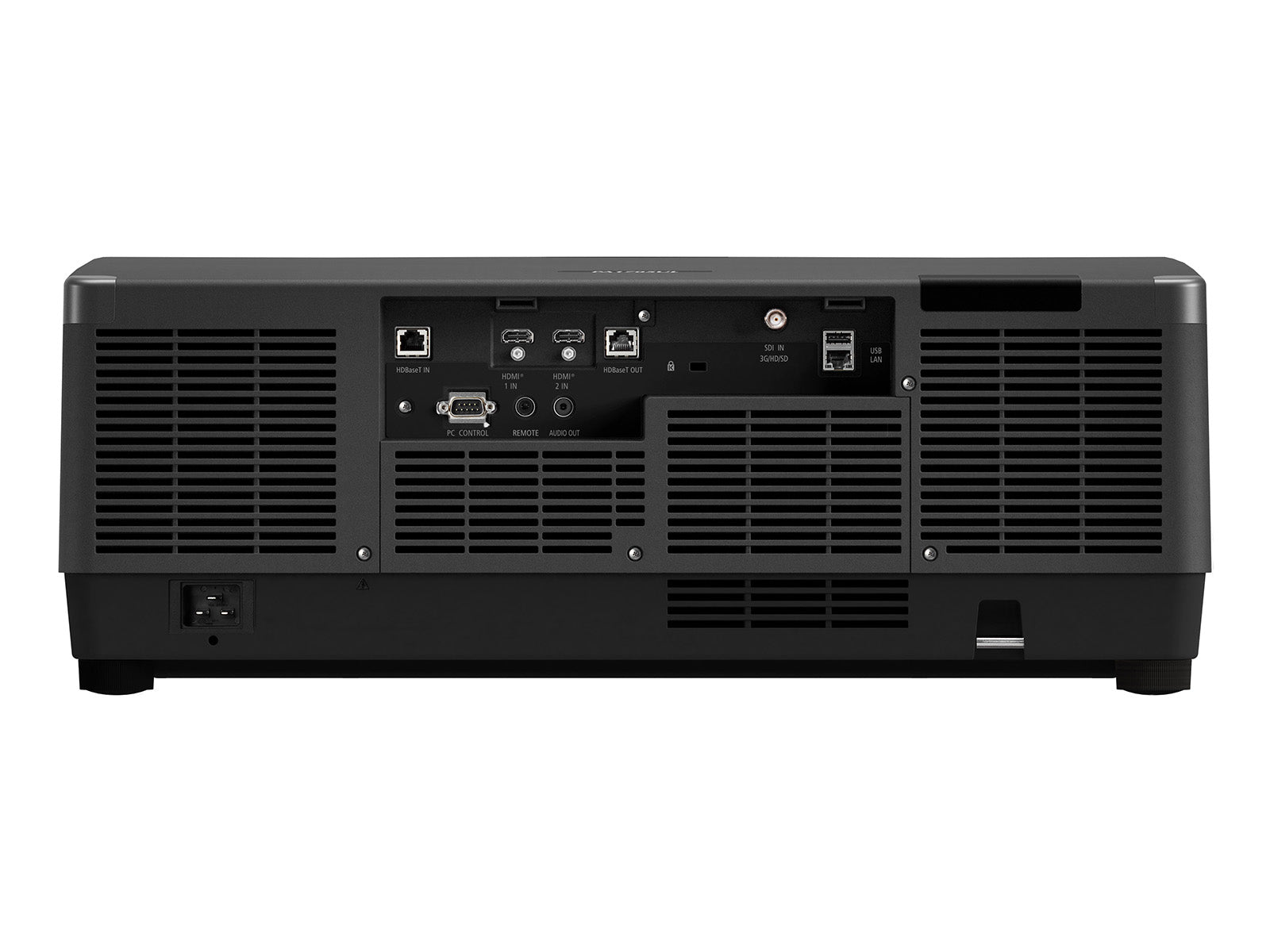

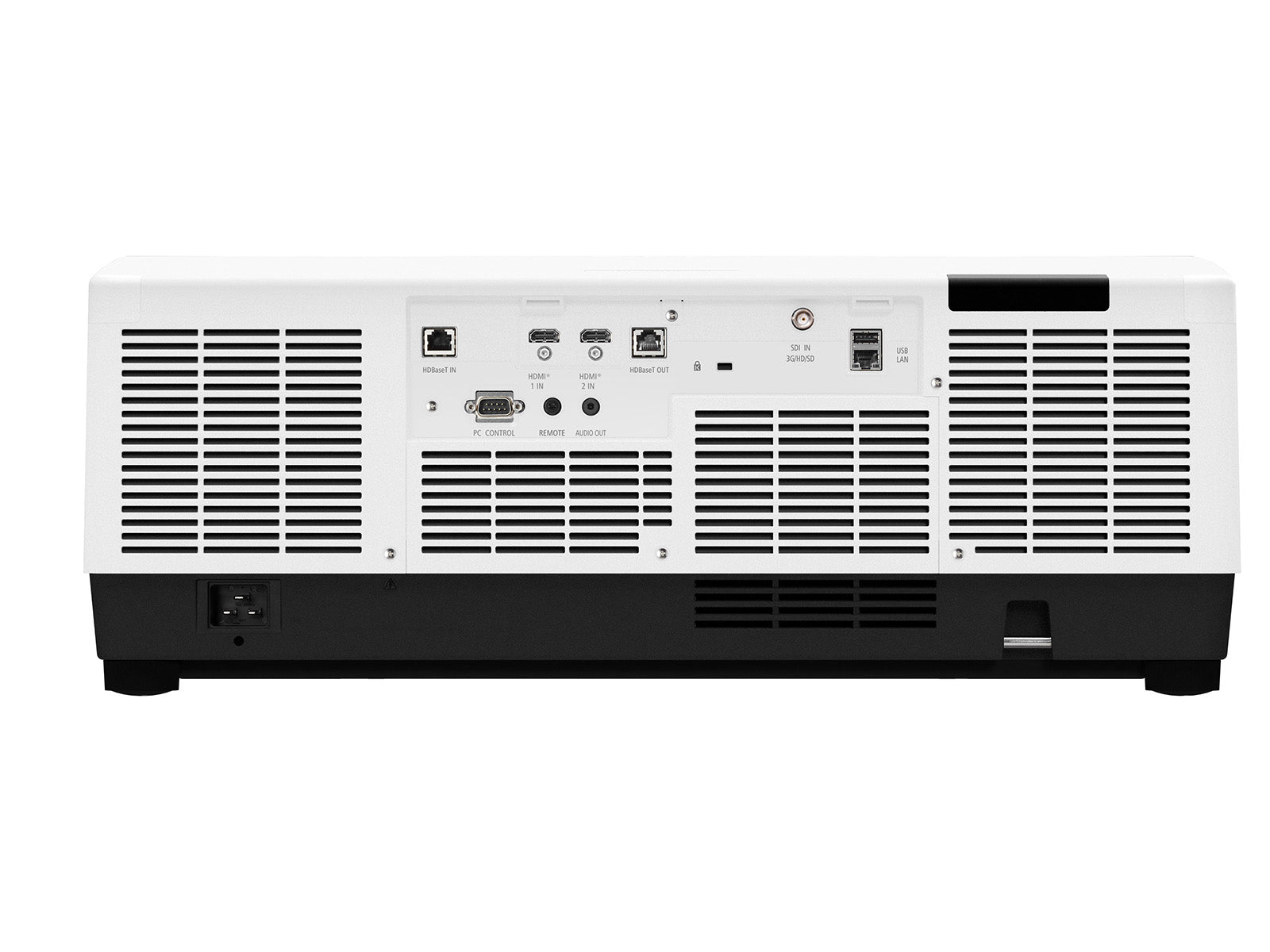

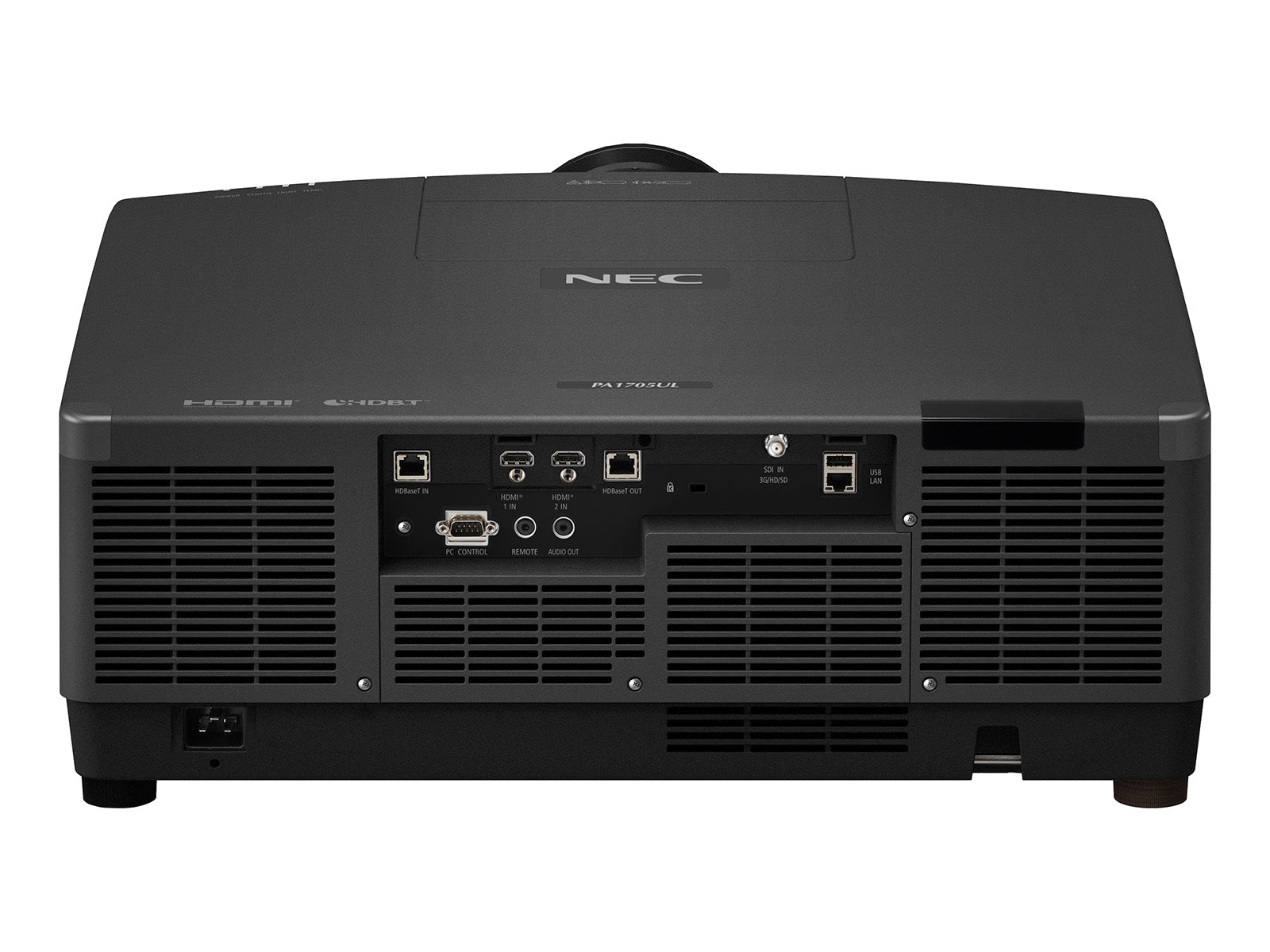

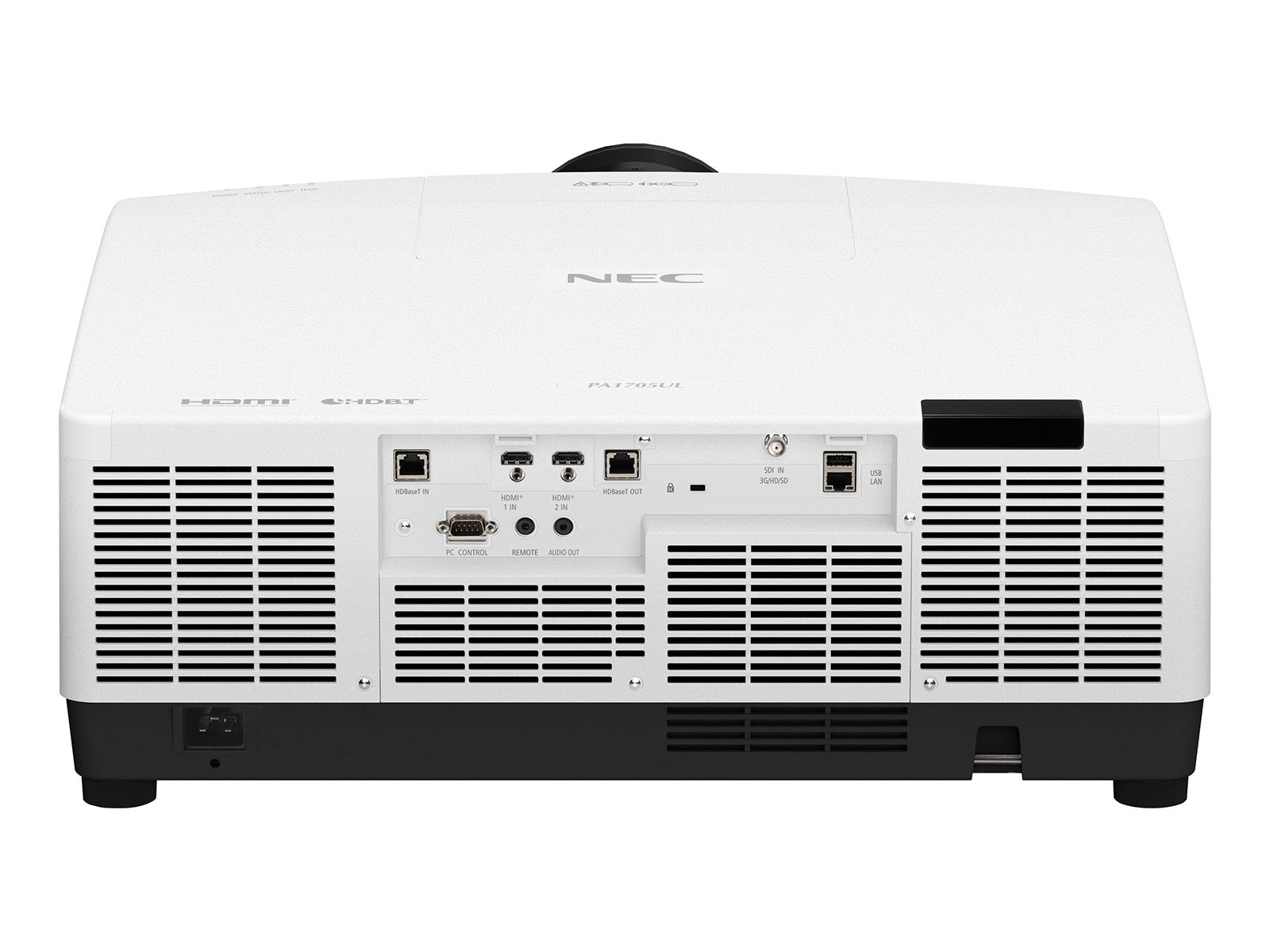

    CONNECTIVITY
    Digital Input 1 x 3G-SDI; 1 x HDBaseT; 2 x HDMI™ supporting HDCP 2.2
    Output 1 x HDBaseT supporting HDCP 2.2
    Audio Input 1 x HDBaseT audio support; 2 x HDMI audio support
    Output 1 x 3.5 mm Stereo Mini Jack (variable)
    Control Input 1 x 3.5 mm Stereo Mini Jack (Wired Remote); 1 x D-Sub 9 pin (RS-232), Ethernet
    LAN 1 x RJ45
    USB 1 x Type A (USB 2.0 high speed)
    REMOTE CONTROL
    Remote Control Audio Control; Digital Zoom; Geometric Correction; ID Select; ID set; Power (On-OFF); Select (up, down, left, right); Shutter function; Source Select; Test Picture; Zoom/Focus and Lens Shift Control
    ELECTRICAL
    Power Supply 100-240 V AC; 50 - 60 Hz
    Power Consumption [W] 995 Normal / 825 Silent Mode / 0.5 Network Stand-by / 2.0 Stand-by
    MECHANICAL
    Dimensions (W x H x D) [mm] 599 x 238 x 490 (without lens and feet)
    Weight [kg] 28.7
    Fan Noise [dB (A)] 43 / 37 (Normal / Silent)

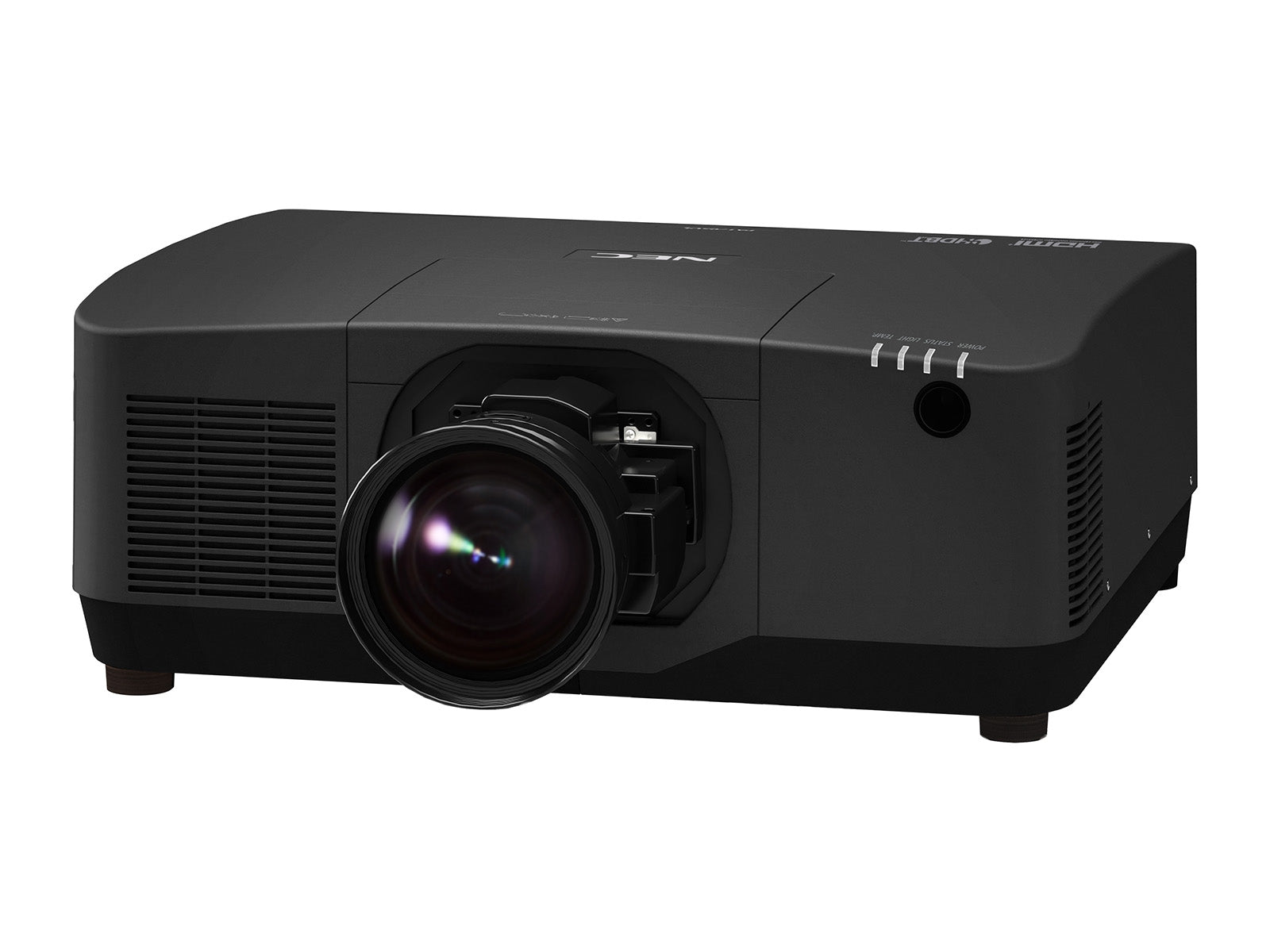

    Colour Versions Black; White
    ENVIRONMENTAL CONDITIONS
    Operating Temperature [°C] 0 to 40
    Operating Humidity [%] 20 to 80 non-condensing
    Storage Temperature [°C] -10 to 50
    Storage Humidity [%] 20 to 80 non-condensing
    ERGONOMICS
    Safety and Ergonomics CE; EAC; ErP; RoHS; TUEV Type Approved
    ADDITIONAL FEATURES
    Special Characteristics 4K/60Hz interfaces; AMX Beacon; Cinema Quality Picture (CQP) Processing for best image quality; Crestron RoomView; DICOM simulation; Digital 3D Reform™; Direct Power-Off Function; Edge Blending Function; Free Tilt; Geometric Correction; HDBaseT; HDR10 Support; High Altitude Mode; Hollywood Quality Video Processing for best image quality; HTTP Browser Control; Keystone Correction (H=±40°, V=±40°); LAN control; Lens Memory; Lens Shift (vertical 0.65 max/-0.65 max, horizontal ± +0.25 max.); Light Source Adjustment; Manual Wall Color Correction; Multi-Screen compensation mode; NaViSet Administrator 2; Optional User Logo; OSD with 27 languages; Password Security System; PIP/Side by Side, HDMI - Input; PJ LINK; Portrait Setting; Rec2020 to Rec709 colour conversion; RS-232 Control; Seamless Switching; Stacking Function; Test Pattern; Timer-Function; UHD player support; Up to 20,000 hrs Light Source Life; Virtual Remote for direct PC control
    GREEN FEATURES
    Energy Efficiency ECO scheduler; Intelligent Power Management; Less than 0.5W Stand-By power; Longer Light Source Life; Software scheduling; Timer-Function
    Ecological Materials 100% recyclable packaging; Downloadable manuals
    Ecological Standards ErP compliant
    WARRANTY
    Projectors 3 years pan-European service
    Light Source 3 years or 10000h (whatever comes first)
    SHIPPING CONTENT
    Shipping Contents IR Remote Control (RD-480E); Power Cord; Projector; Quick Setup Guide; Users Manual on CD-ROM
    OPTIONAL ACCESSORIES
    Optional Accessories 6 optional bayonet lenses; Universal Ceiling Mounts (PJ02UCMPF)
    Lenses - motorized
    NP51ZL (0.53-0.65:1)
    NP52ZL (0.65-0.86:1)
    NP53ZL (0.86-1.25:1)
    NP54ZL (1.24-2.01:1)
    NP55ZL (1.98-3.95:1)
    NP56ZL (3.92-7.5:1)
