NEC ME551

55" Ultra High Definition Commercial Display

• Description
• Specifications
• Warranty
• Downloads

• Create pixel-perfect imagery at a cost-conscious price point with the new fully commercial NEC ME Series large format displays. By focusing on customer needs and maintaining expected NEC quality, the ME series gives customers a reliable mainstream digital signage display that can support both landscape and portrait orientations while also allowing customers the modularity possibilities to customize their needs depending on their application and use. The new series contains a full metal mechanical chassis, allowing for a more robust design necessary for commercial applications while maintaining the attractive aesthetics that allow the focus of onlookers to be on what matters – the message. Simple and targeted connectivity options allow customers to have the up-to-date options that they need while not having to overpay for excess and unused interfaces. The NEC ME series boasts 400 cd/m2 brightness which is ideal for a majority of digital signage applications in corporate, education, house of worship, retail, and grocery store environments when the focus should be on the message, not the budget.

  4K UHD native resolution allows for crystal clear imagery and messaging that become more vivid and lifelike than ever before!

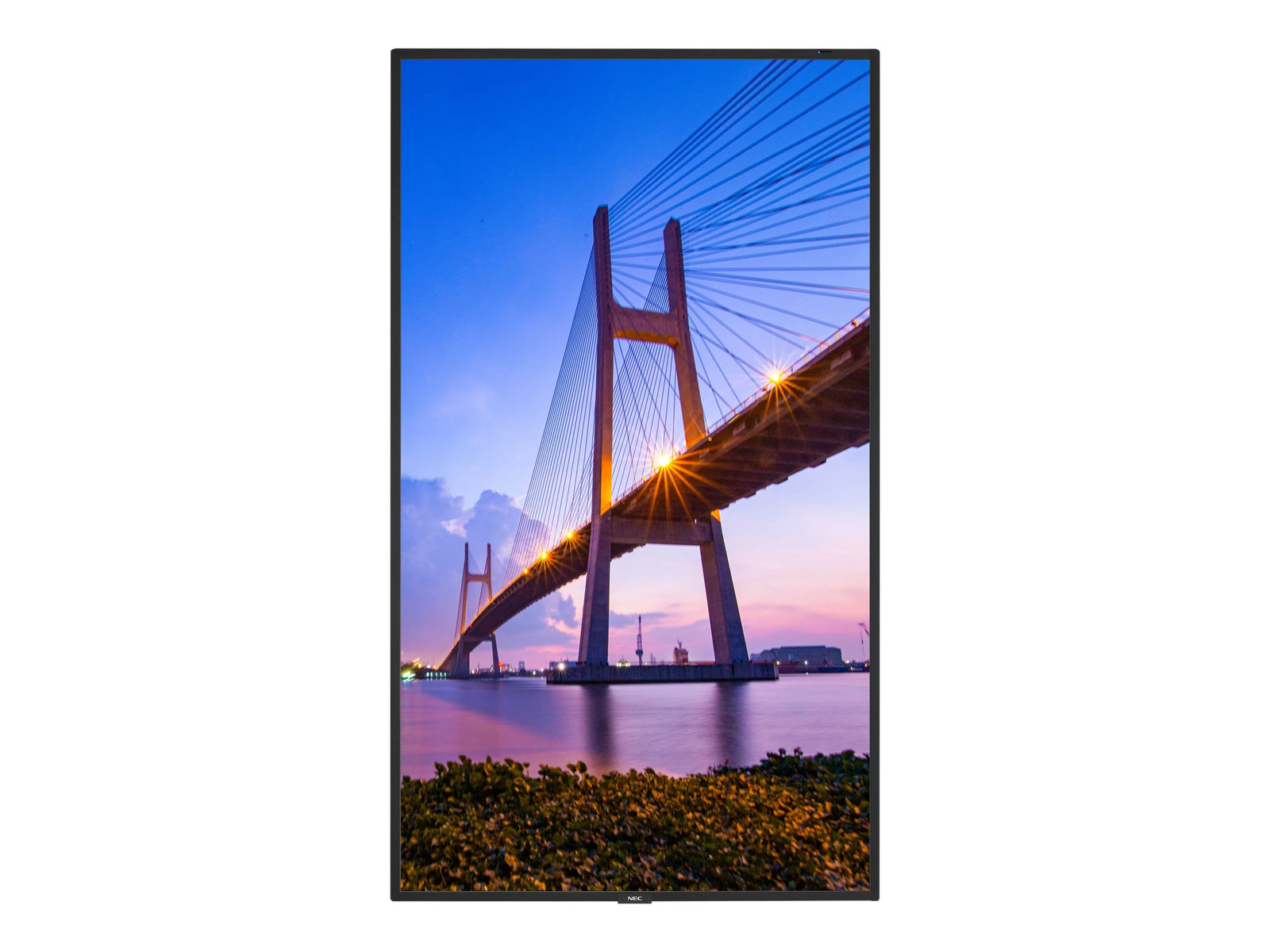

  Landscape and Portrait orientation allows for flexibility of installation depending on your needs

  Accepts Intel® Smart Display Module Small or Large allowing for sleek all-in-one intelligence and interoperability in a small form factor setting by accepting Intel processor-based products and other peripherals directly into the displays

  Raspberry Pi Compute Module 4 allows for future-proof expansion and NEC Mediaplayer support

  Bidirectional and Full External Control allows for easy integration into control systems via LAN or RS232C

  400 cd/m2 brightness and HDR compatibility will capture the attention of the audience in almost any situation

  Integrated Media Player allows for audio, video, or image playback via USB

  18/7 commercial runtimes with built-in real-time clock and full scheduler capabilities

  Failover Capabilities with full Input Detect functionality allow peace of mind as the display will automatically switch to a secondary or tertiary source if the primary source fails

  Energy Star 8.0 Certified Product

  Full 3-year commercial warranty to allow for peace of mind and protection of your investment

  NaViSet Administrator 2 Free software solution that greatly eases the administration and management of larger display device installations

• Panel Technology	IPS	Viewable Image Size	55 "
  Aspect Ratio	16:9	Native Resolution	3840x2160
  Supported Resolutions	DIsplayPort: V1.2 (HDCP 1.3/2.2)VGA60, SVGA60, XGA60, SXGA60, UXGA60, WUXGA60, 1920 x 1080 (60Hz), 1080p, 1080i, 720p@50 Hz/60 Hz, 576p@50 Hz, 480p@60 Hz, 3840x2160 (24 Hz/25 Hz/30 Hz/50 Hz/60 Hz), 4096x2160 (24 Hz/25 Hz/30 Hz/50 Hz/60 Hz)HDMI (HDCP 1.4/2.2)VGA60, SVGA60, XGA60, WXGA60, SXGA60, UXGA60, WUXGA60, 1920x1080 (60 Hz), 1080p, 1080i, 720p@50 Hz/60 Hz, 576p@50 Hz, 480p@60 Hz, 576i@50 Hz, 480i@60 Hz, 3840x2160 (24 Hz/25 Hz/30 Hz/50 Hz (MODE2)/60 Hz (MODE2)),4096x2160 (24 Hz/25 Hz/30 Hz/50 Hz (MODE2)/60 Hz (MODE2))	Pixel Pitch	0.32 mm
  Pixels Per Inch	81 @ native resolution	Backlight Type	LED Direct-lit
  Brightness (typical)	400 cd/m2	Contrast Ratio (typical)	≥8,000:1 (Out of the box conditions, local dimming ON)
  Viewing Angle (typical)	178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10	Response Time (Gray to Gray)	8 ms
  Refresh Rate	60Hz	Active Screen Area	47.2 x 26.8 in. / 1209.6 x 680.4mm
  Orientation	Landscape/Portrait	Dimming Capability	Local Dimming Capable
  Displayable Colors	More than 1.08 billion (8-bit+FRC)	Color Temperature (Max) (°K)	10000K
  Color Temperature (Min) (°K)	2600K	Gamma (Typical)	Native, 2.2, 2.4, S-Gamma, DICOM, Programmable1, Programmable2, Programmable3

  Synchronization Range

  Horizontal (Analog/Digital)

  Digital: 26.0 - 135.0kHz

  Vertical

  Digital: 23.0 - 86.0Hz

  Input Signal

  Video

  Digital TMDS / DisplayPort

  Signal Compatibility/Connectivity

  PC Signal Compatibility	Yes	Macintosh Signal Compatibility	Yes
  Video	Digital TMDS / DisplayPort	External Control	LAN and RS232 In - Full external control capabilities

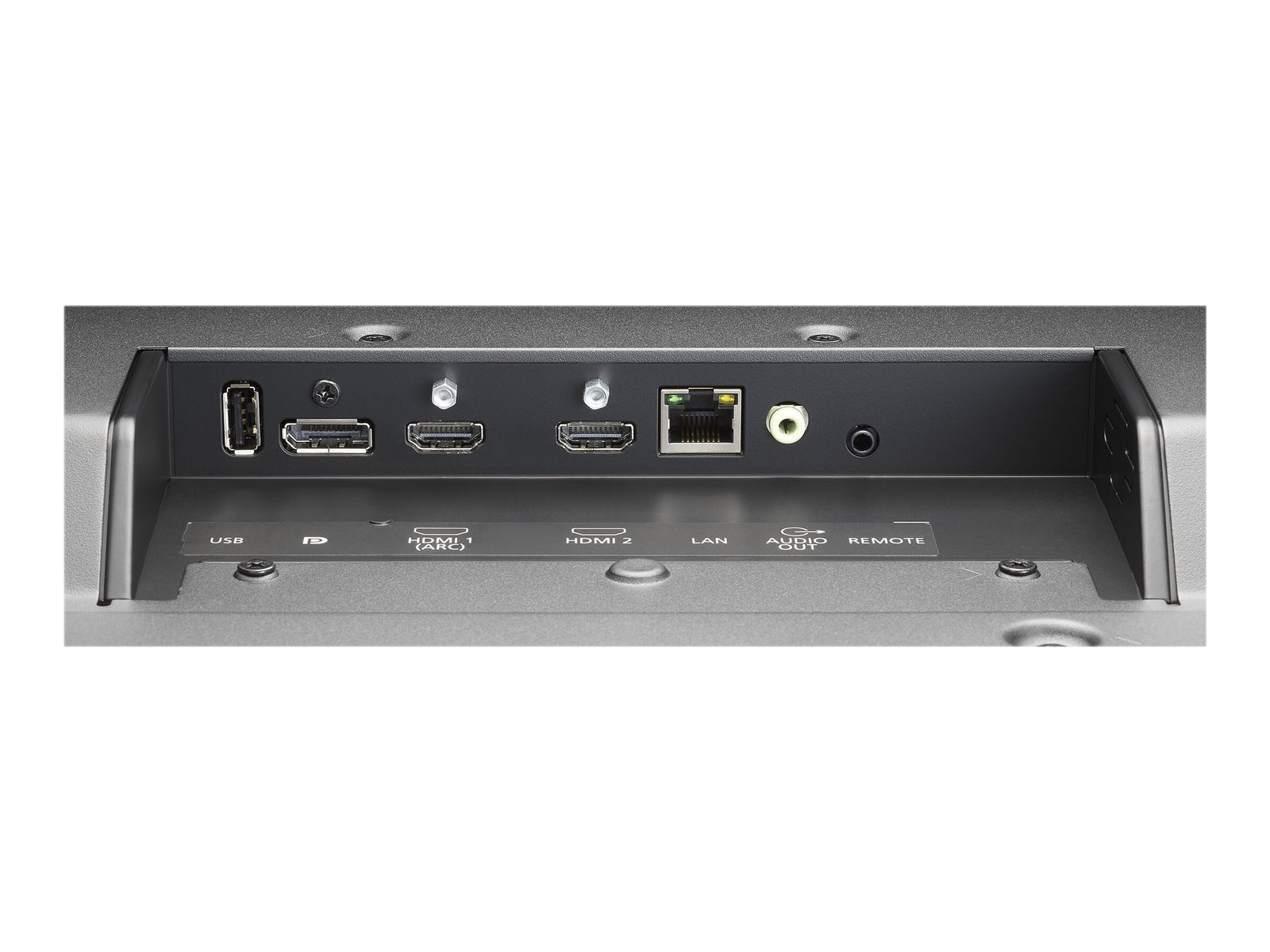

  Input Terminals Digital: HDMI (2.0 x 2 with HDCP), DisplayPort (1.2 with HDCP) Audio: 3.5 Mini-Jack x2, DisplayPort Audio, HDMI Audio x3 External Control: RS-232C, LAN (100Mb), 3.5mm Mini-Jack (IR Remote) Data: USB 2.0 (Media Player)		Output Terminals Audio: 3.5mm Mini-Jack

  Power Consumption (typical)

  On	120W	ECO Mode Standby	<0.5W
  Network Standby	0.5W	Power Consumption (max)	120W (Max Brightness), 265W (Brightness Max, SDM Max, Volume Max)
  Power Savings Mode	2 W

  Physical Specifications

  Bezel Width (Left/Right, Top/Bottom)	0.55 in./0.55 in., 0.55 in./0.55 in. : 13.9 mm/13.9 mm, 13.9 mm/13.9 mm	Dimensions (WxHxD) Without stand: 48.9 x 28.1 x 2.5 in. / 1241.8 x 712.6 x 62.6 mm Shipping: 56.3 x 36.2 x 9.8 in. / 1430.0 x 920.0 x 250.0mm
  Weight Net Weight (without stand): 41.4 lbs. / 18.8 kg. Shipping: 65.0 lbs. / 29.5kg		VESA Hole Configuration	400 x 400mm (M6 x 4-hole)

  Environmental Conditions

  Operating Humidity	20 - 80%	Operating Altitude	9843 ft. / 3000m
  Storage Temperature	-4-140°F / -20-60°C	Storage Humidity	10-80%
  Storage Altitude	40,000 ft. / 12,192m

  Environmental Compliance

  ENERGYSTAR

  Energy Star 8.0

  Limited Warranty (parts & labor)

  3 years Advanced Exchange

  Additional Features

  AMX Support Automated Email Alert Function ARC Support through HDMI Crestron Roomview Support (FW Update) Display Browser Control Display Wall Calibrator Compatible HDR Support (PQ, HLG, HDR10) Key Guide NaViSet Administrator 2 Compatible OSD Rotation for Portrait Orientation Accepts Intel(R) SDM-S or SDM-L PJ Link Support Power USB Port (5V/2A) Raspberry Pi Compute Module 4 Compatible Removeable Logo Ornament Real Time Clock Local Dimming TileMatrix Cisco Webex Compatible SNMP Consumer Electronics Control (CEC) Integrated USB Media Player Integrated Temperature sensor Full Input Detect Functionality Programmable Gamma Energy Star 8.0 Scheduler Function Off Timer Vacation Switch

  Accessories

  Optional

  Wall Mount (WMK-3298T) IR/Human Sensor Accessory (KT-RC3) Table Top Stand (ST-43M) SDM Tuner (DS1-TM01) Table Top Stand (ST-401)

  Cooling Method

  Integrated Temperature Sensor and Cooling Fan for SDM

• In Warranty Support
  Warranty Period 36 Months
  Contact: NEC Display Solutions
  Tel. No. 01952 237003
  Email uklcdservice@emea.nec.com
  Manufacturers Website http://www.nec-display-solutions.co.uk

  NEC deal with all your AfterCare requirements for the product you have purchased, they can help with technical queries and offer advice.


  Please contact them direct.
  You will need the following information to hand:

  * Customer Name
  * Email Address
  * Product Model Number
  *Proof of Purchase
  * Serial Number
  * Details of the fault
  * Any permanent security markings?
  * Any physical damage?
  * Any non-NEC repair or modi?caon?

  Once provided NEC will be able to issue a return and provide a replacement if required.

  If you have any questions or would like further advise, please feel free to contact our AfterCare Team (ACE) on 02081 919223 / who will be happy to assist

  3 Year On-Site Warranty. Please contact NEC for full Ts & Cs (exclusions apply).

• Description	Downloads
  Datasheet	Downloads
  User Manual	Downloads
  Product Drawings	Downloads
  Energy Label	Downloads
