Smart Visuals with Advanced IPS Panel
NEC MultiSync® EA241WU Ultra-Narrow Bezel – best productivity with tailored ergonomics plus style and performance to complement the modern office
With full height adjustability from 0 to 150 mm and 170° swivel functionality, this 24” display enables the user to create an individually tailored workspace. Furthermore, built-in Low Blue Light technology filters out hazardous blue light emissions whilst Flicker-Free technology eliminates the effect of flickering thus ensuring the well-being of the user. Fulfilling the demand for future-ready performance and delivering all the quality and reliability commensurate with the NEC brand, the EA241WU is well positioned to maximise office productivity.
Performance AH-IPS screen technology with LED backlit panel delivers 300 cd/m² of brightness whilst keeping power consumption to a minimum.
Benefits

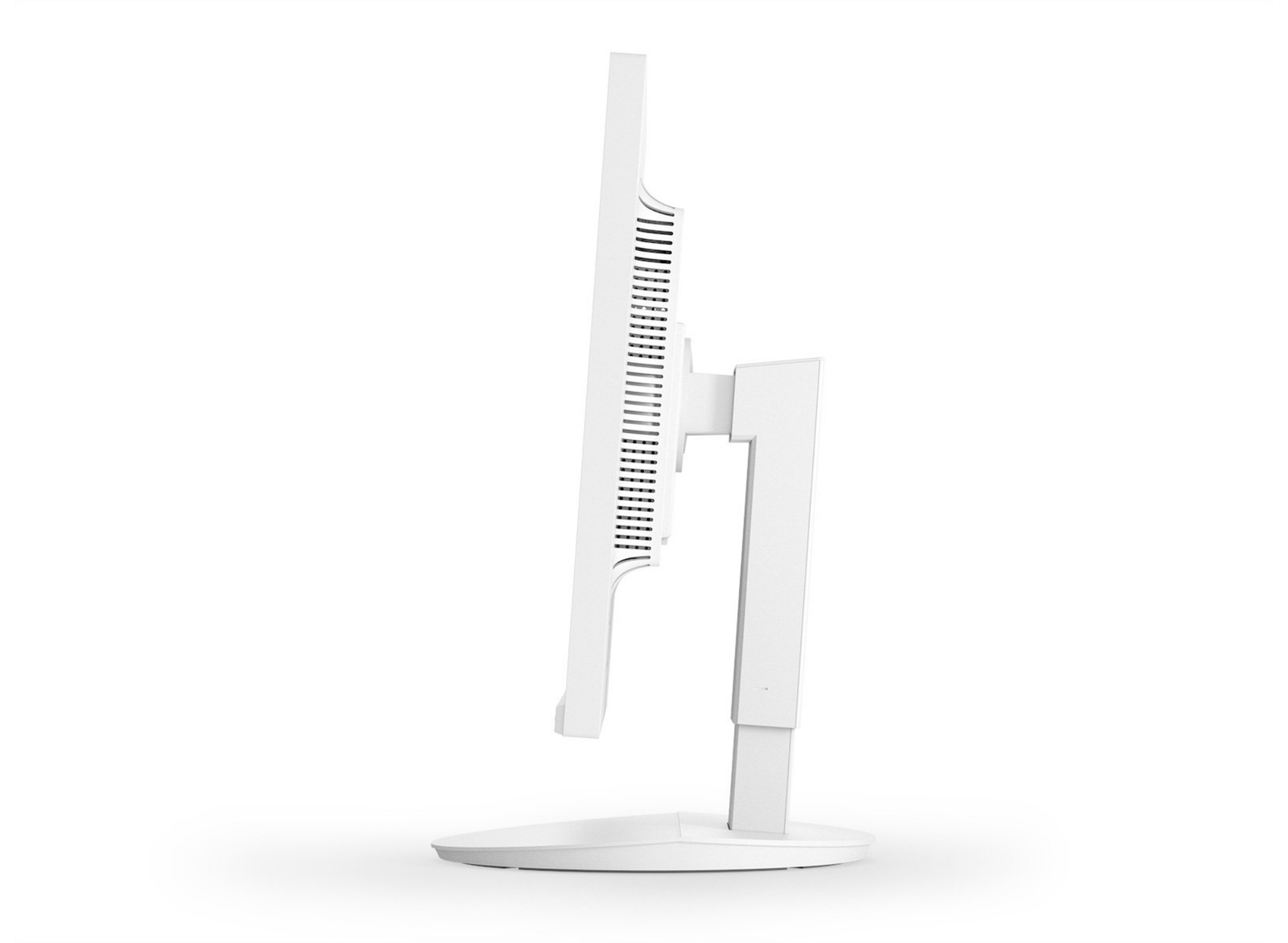

Ergonomic Office – full height adjustability (150 mm), swivel, tilt and pivot functionality ensures perfect individual workspace set-up.
Auto-Adjust Power Consumption – to minimize unnecessary power usage, the Human and Ambient Light Sensors adjust the display brightness according to user presence and room lighting conditions.
Protecting your eyes from strain and damage – Built-in Low Blue Light technology filters out hazardous blue light emissions whilst Flicker-Free technology eliminates any backlight flickering, thus protecting your eyes against cataracts and macular degeneration without compromise to true-to-life display colour performance.
Best in form and function – future-ready design with 3-sided ultra-narrow bezel, available in black or white, complementing a fresh professional office interior.
Business Class Image Quality – Advanced High-Performance IPS (AH-IPS) panel provides the very best viewing angles as well as noticeably better colour reproduction.
-
| Panel Technology |
IPS TFT with W-LED backlight |
Screen Size [inch/cm] |
24 / 61 |
| Screen Aspect Ratio |
16:10 |
Pixel Pitch [mm] |
0.270 |
| Brightness (typ.) [cd/m²] |
300 |
Contrast Ratio (typ.) |
1000:1 (5000:1 dynamic contrast ratio) |
| Viewing Angle [°] |
178 horizontal / 178 vertical (typ. at contrast ratio 10:1) |
Response Time (typ.) [ms] |
5 |
| Colours [Mio.] |
16.77 |
Horizontal Frequency [kHz] |
31.5 - 95 |
| Vertical Frequency [Hz] |
56 - 75 |
Optimum Resolution |
1920 x 1200 at 60 Hz |
| Supported Resolutions |
1024x768; 1280x1024; 1280x960; 1366x768; 1400x1050; 1440x900; 1600x1200; 1680x1050; 1920x1200; 640x480; 800x600 |

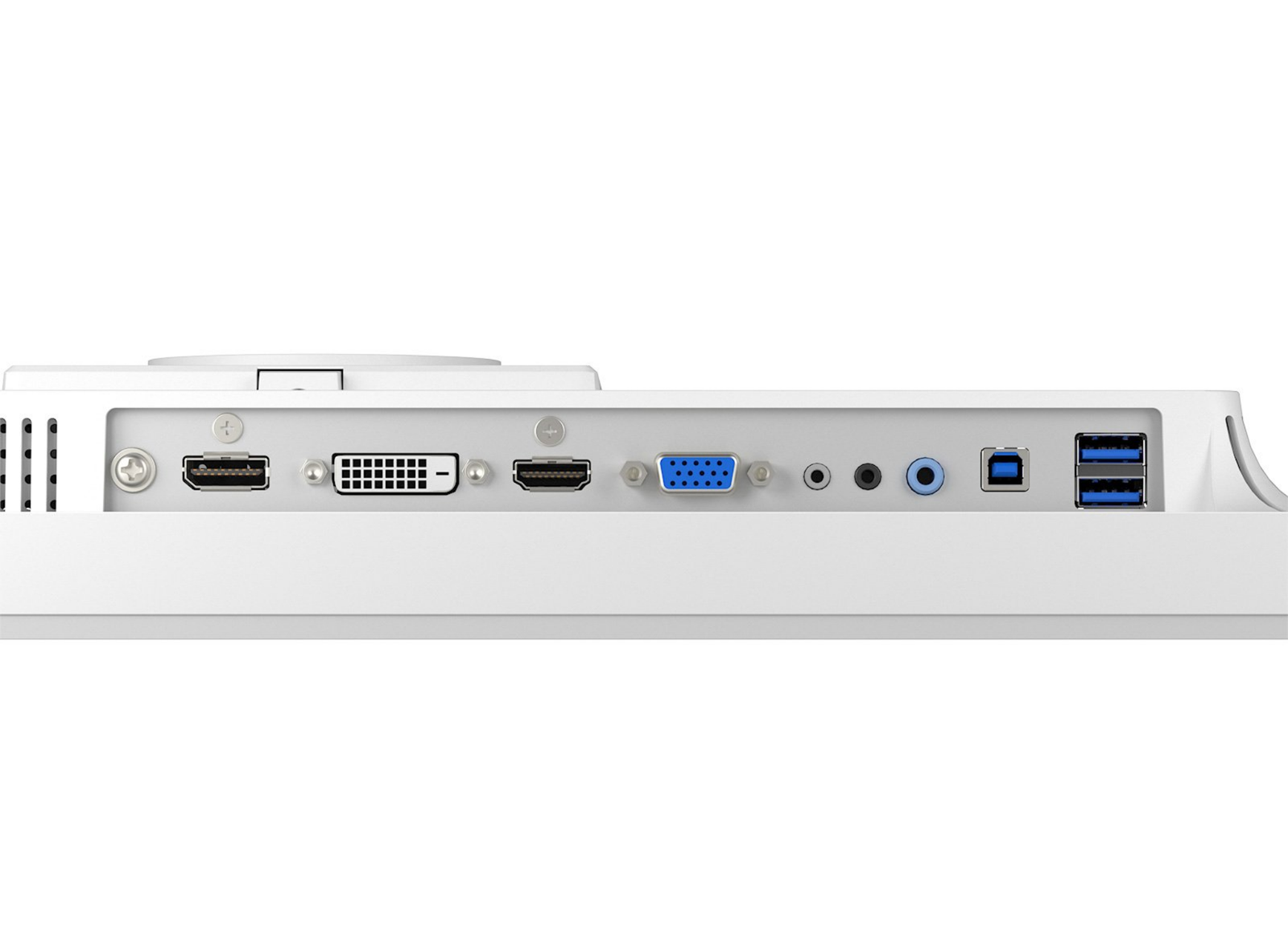

Digital Connectivity |
1 x DisplayPort; 1 x DVI-D; 1 x HDMI; USB 3.0 (3 down / 1 up) |
| Analog Connectivity |
1 x D-sub 15 pin |
Power Consumption on Mode [W] |
15 (Eco Mode 2); 20 (typ.); 47 (max.) |
| Power Savings Mode [W] |
0.3 |
Power Supply |
Internal power supply |
| Operating Temperature [°C] |
+5 to +35 |
Operating Humidity [%] |
20 to 80 |
| Height Adjustable Stand [mm] |
150 |
Tilt / Swivel [°] |
-5 to +35; -170 to +170 |
| Screen Rotate [°] |
-90 to 90 (landscape to portrait mode) |
Bezel Width [mm] |
0.8 (left/right/top) |
| Dimensions (W x H x D) [mm] |
531.5 x 515.4 x 250 (with stand) |
Weight [kg] |
6.7 |
| VESA Mounting [mm] |
100 x 100 |
Special Characteristics |
Ambient light sensor; Carbon Footprint Meter; ControlSync®; EcoModes; Human Sensor; LED Backlight; Quick Release; sRGB Support; Touch Sensor Keys; USB 3.0 |
| Colour Versions |
Black Front Bezel, Black Back Cabinet; White Front Bezel, White Back Cabinet |
Cable Management |
Yes |
| Kensington Security Slot |
Yes |
Plug and Play |
VESA DDC2B; VESA DDCi |
| Audio |
Headphone Jack; Integrated Speakers (1 W + 1 W) |
Adjust Functions |
Audio Volume, Auto Adjust, Brightness, Colour Temp Control, Contrast, EcoMode, Human Sensing, Power-Off Timer, sRGB |
| Shipping Content |
Control Sync Cable; DisplayPort Cable; Monitor; Power Cable; Setup Guide; USB Cable |
Safety and Ergonomics |
CE; EAC; EnergyStar 8.0; ErP; Flicker-free; ISO 9241-307; Low Blue Light; RoHS; TCO 8.0; TÜV Ergonomics; TÜV GS; UL/C-UL; CSA; WEEE |
| Warranty |
3 years incl. backlight; optional 24/7 usage and up to 5 years extended warranty |
Energy Efficiency |
Ambient light sensor; 12 kWh/1000 h; Energy Class C; Human sensor; Intelligent power management |
| Ecological Materials |
Downloadable manuals |
Ecological Standards |
Energy Star 8.0; TCO 8.0 |
-
