WUXGA Clarity and Professional Precision
Primed for Office Productivity
Optimised for multi-display set ups, the ultra-narrow bezel NEC MultiSync® EA242WU is designed to support maximum productivity in today’s hybrid workspaces. Daisy-chaining neighbouring displays, embedded LAN and USB-C connectivity all contribute to minimal cabling and maximum flexibility – the display becomes the hub of workspace communications!
Create individually tailored workspaces with best ergonomic adjustability and user-centred features including built-in low blue light and flicker-free technologies to protect the health of the viewers’ eyes and guard against fatigue, without compromising the high-performance IPS screen technology.
Fulfilling the demand for future-ready performance and delivering all the trusted quality and reliability of the Sharp/NEC brand, the EA242WU is purpose-designed to maximise office productivity.
Benefits
Improve your Productivity – with embedded LAN and USB-C, this display serves as a docking hub in your Personal Workspace.
Future-proof flexibility – wide connectivity provides high-level flexibility with LAN, DP, HDMI, USB Type C, USB A and audio output.
Clutter-free workspace – Powerful 65W USB Type-C connectivity manages video, audio, power and USB via a single cable
Easy multi-screen set-up – Daisy-chain multiple display configurations through DisplayPort-out, no additional cables needed

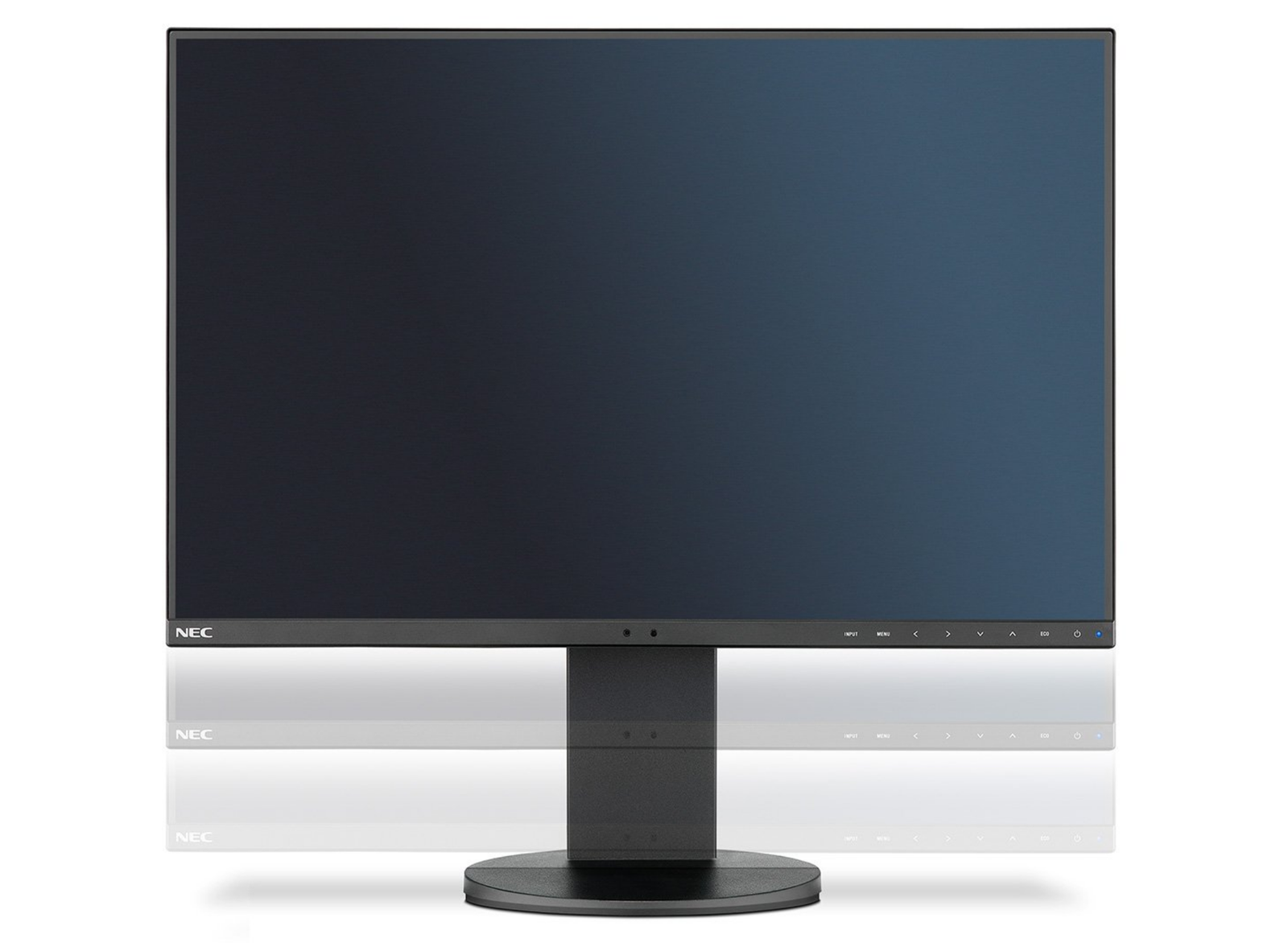

Maximum attention to health and well-being – the outstanding ergonomic height adjustment from 0 to 150 mm; eye pleasing built-in Low Blue Light and Flicker-Free technology; plus integrated ambient light sensor all combines to tailor the perfect individual setup to boost productivity.
-
| Panel Technology |
IPS TFT with W-LED backlight |
Screen Size [inch/cm] |
24 / 61 |
| Screen Aspect Ratio |
16:10 |
Pixel Pitch [mm] |
0.270 |
| Brightness (typ.) [cd/m²] |
300 |
Contrast Ratio (typ.) |
1000:1 (5000:1 dynamic contrast ratio) |
| Viewing Angle [°] |
178 horizontal / 178 vertical |
Response Time [ms] |
6 |
| Colours [Mio.] |
16.77 |
Horizontal Frequency [kHz] |
31.5 - 77 |
| Vertical Frequency [Hz] |
50 - 60 |
Optimum Resolution |
1920 x 1200 at 60 Hz |
| Supported Resolutions |
1024x768; 1280x1024; 1280x720; 1280x768; 1280x960; 1360x768; 1366x768; 1400x1050; 1440x900; 1600x1200; 1680x1050; 1920x1080; 1920x1200; 640x480; 800x600 |
Digital Connectivity |

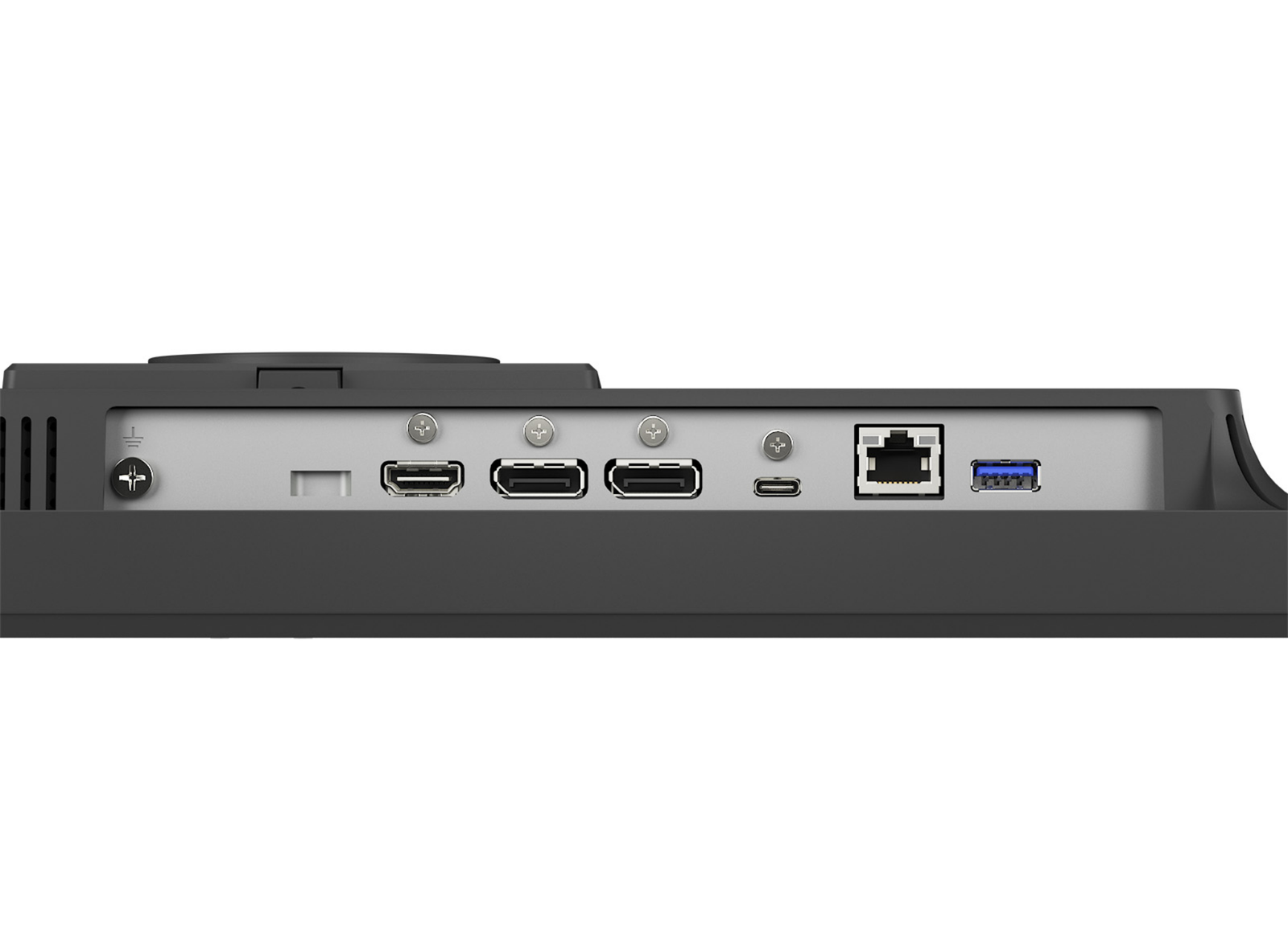

1x DisplayPort; 1x DisplayPort out; 1x HDMI; 1x USB Type C (65 W); USB 3.1 (2 down / 1 up) |
| Output Control |
1x LAN/RJ45 |
Power Consumption [W] |
12 (Eco Mode 2); 21 (typ.) |
| Power Savings Mode [W] |
0.3 |
Power Supply |
Internal power supply |
| Operating Temperature [°C] |
+5 to +35 |
Operating Humidity [%] |
20 to 80 |
| Height Adjustable Stand [mm] |
150 |
Screen Tilt / Swivel [°] |
-5 to +35; -170 to +170 |
| Screen Rotate [°] |
-90 to 90 (landscape to portrait mode) |
Bezel Width [mm] |
0.8 (left/right/top) |
| Dimensions (W x H x D) [mm] |
531.5 x 365.3 - 515.3 x 250 (Landscape mode) |
Weight [kg] |
6.7 |
| VESA Mounting [mm] |
100 x 100 |
Special Characteristics |
Ambient light sensor; Carbon Footprint & Savings Meter; DICOM preset/simulation; EcoModes; Human Sensor; LED Backlight; NaViSet Admin 2; Quick release stand; sRGB Support; Touch Sensor Keys |
| Colour Versions |
Black Front Bezel, Black Back Cabinet; White Front Bezel, White Back Cabinet |
Cable Management |
Yes |
| Kensington Security Slot |
Yes |
Plug and Play |
VESA DDC2B; VESA DDCi |
| Audio |
Headphone Jack; Integrated Speakers (1 W + 1 W) |
Adjust Functions |
Audio Volume; Auto Adjust; Brightness; Colour Temp Control; Contrast; Control Sync; EcoMode; Human Sensing; Intelligent Power Management; Power-Off Timer; sRGB |
| Shipping Content |
Monitor; Power Cable; Setup Guide; USB-C Cable |
Safety and Ergonomics |
CE; EnergyStar 8.0; Flicker-free; ISO 9241-307; Low Blue Light; TCO 9.0 |
| Warranty |
3 years incl. backlight; optional 24/7 1–3 yrs; 4–5 yr extension |
Energy Efficiency |
Ambient light sensor; 13 kWh/1000 h; Class D; Human sensor; Intelligent power management |
| Ecological Materials |
Downloadable manuals |
Ecological Standards |
Energy Star 8.0; TCO 9.0 |
-
