Perfect for Multi-Screen Professional Setups

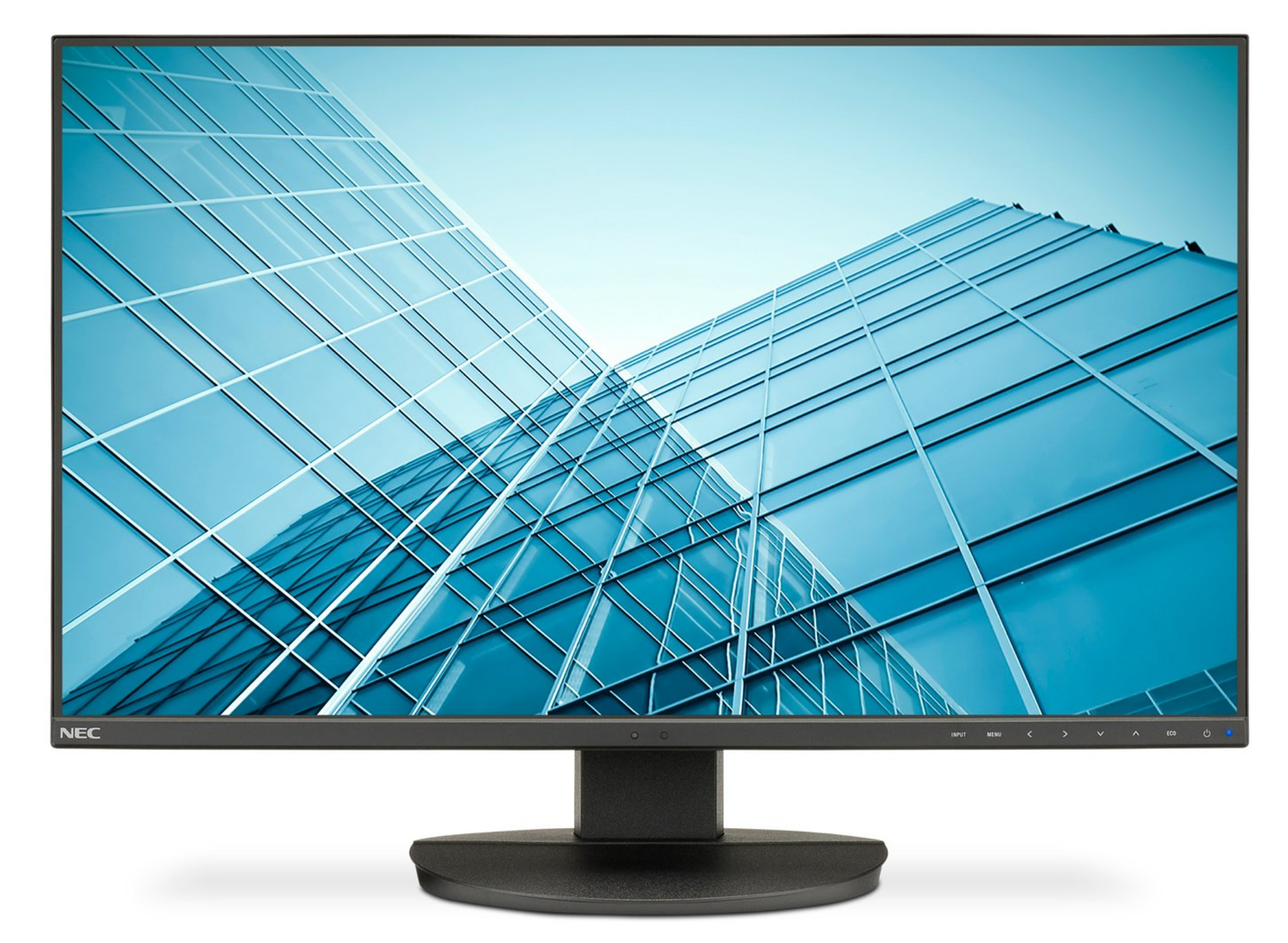

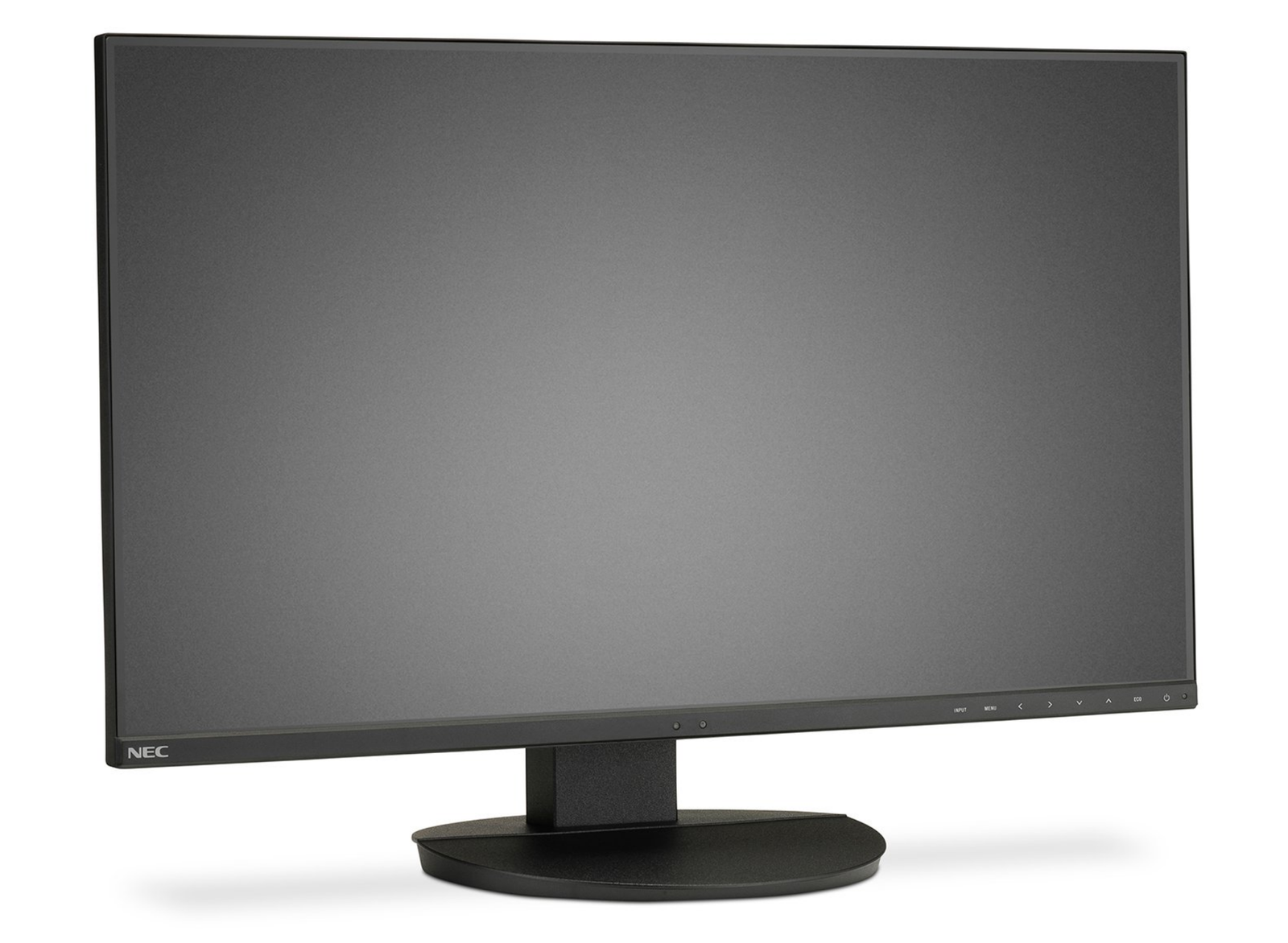

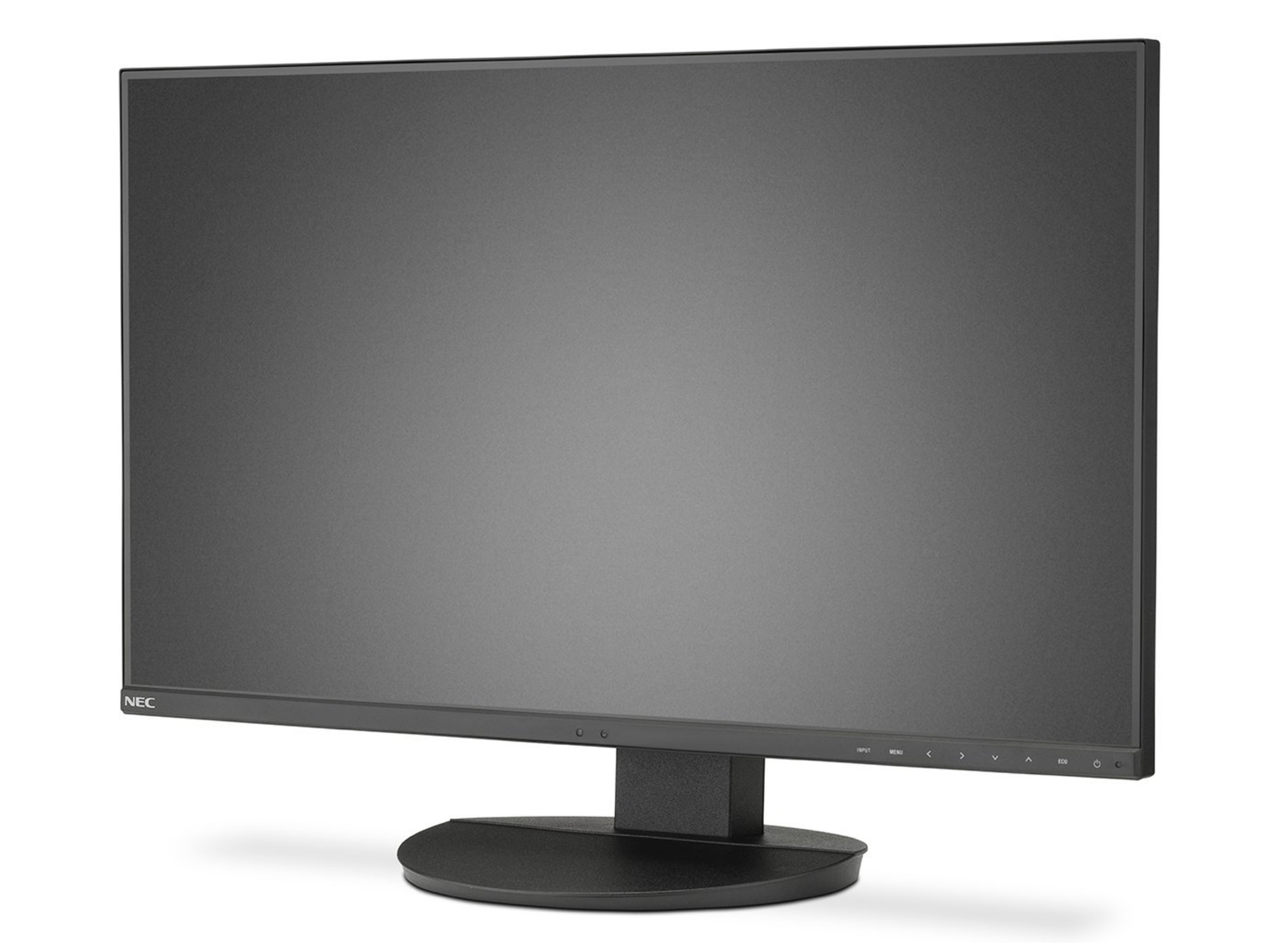

NEC MultiSync® EA271F – future-proof professional office productivity, matching best visualisation with superior ergonomics
Protecting your health and comfort, this highly adjustable 27” ultra-narrow bezel display adapts to your ideal desktop scenario maximising efficiency and office productivity.
Outstanding ergonomic features allow perfect display adjustment according to your individual needs. In addition, high attention is given to ensuring user well-being with an integrated ambient light sensor, Low Blue Light and Flicker-Free technology to protect the viewer’s eyes. Investment protection is assured with comprehensive connectivity.
The display attracts office professionals as well as control room and trading floor operators. Perfectly designed for multiple display set-ups, the ultra-narrow bezel ensures minimal gaps between productive screen areas.
Benefits

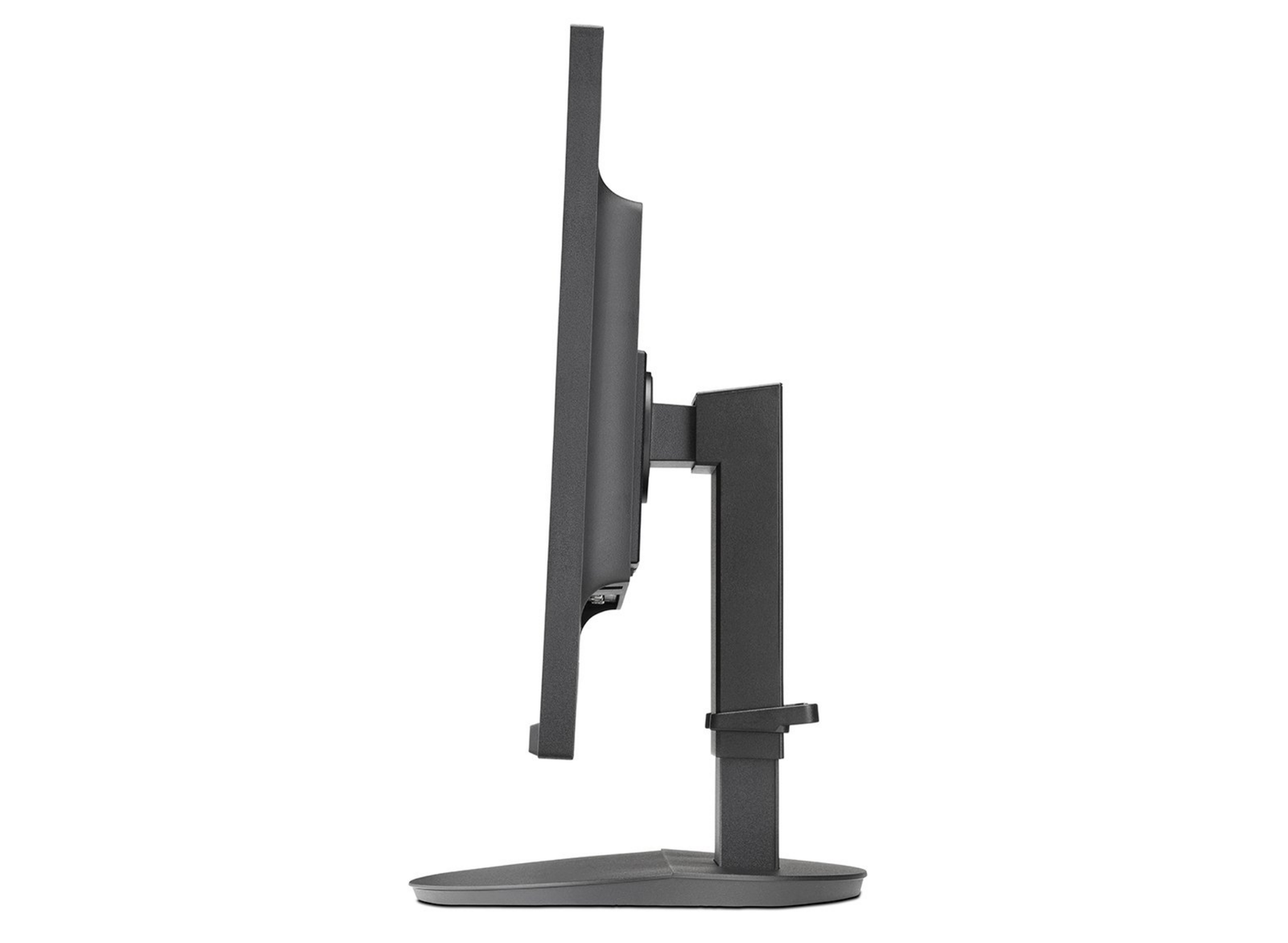

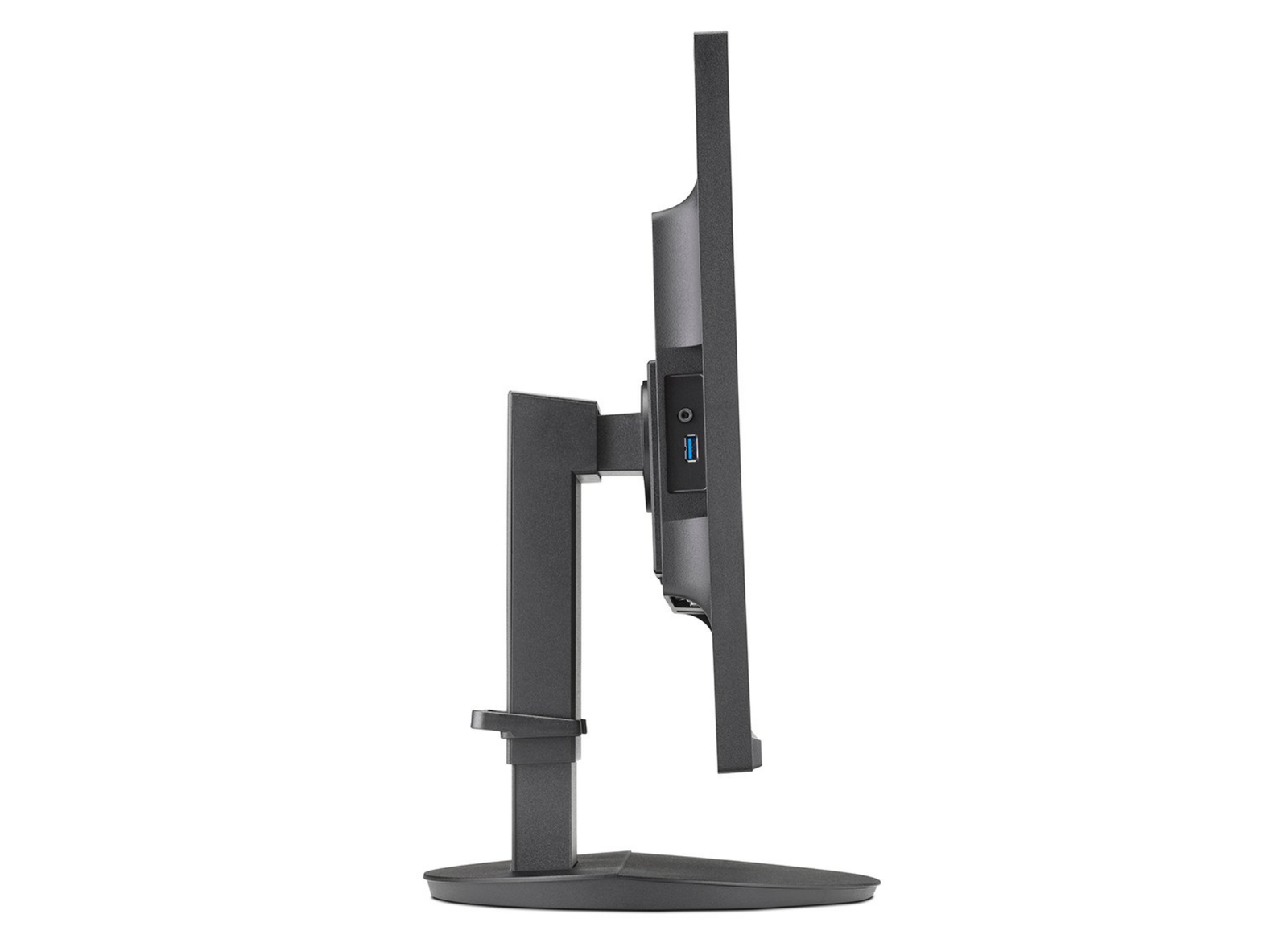

Ergonomic Office – full height adjustability (150 mm), swivel, tilt and pivot functionality ensures perfect individual workspace set-up.
Protecting your eyes from strain and damage – Built-in Low Blue Light technology filters out hazardous blue light emissions whilst Flicker-Free technology eliminates any backlight flickering, thus protecting your eyes against cataracts and macular degeneration without compromise to true-to-life display colour performance.

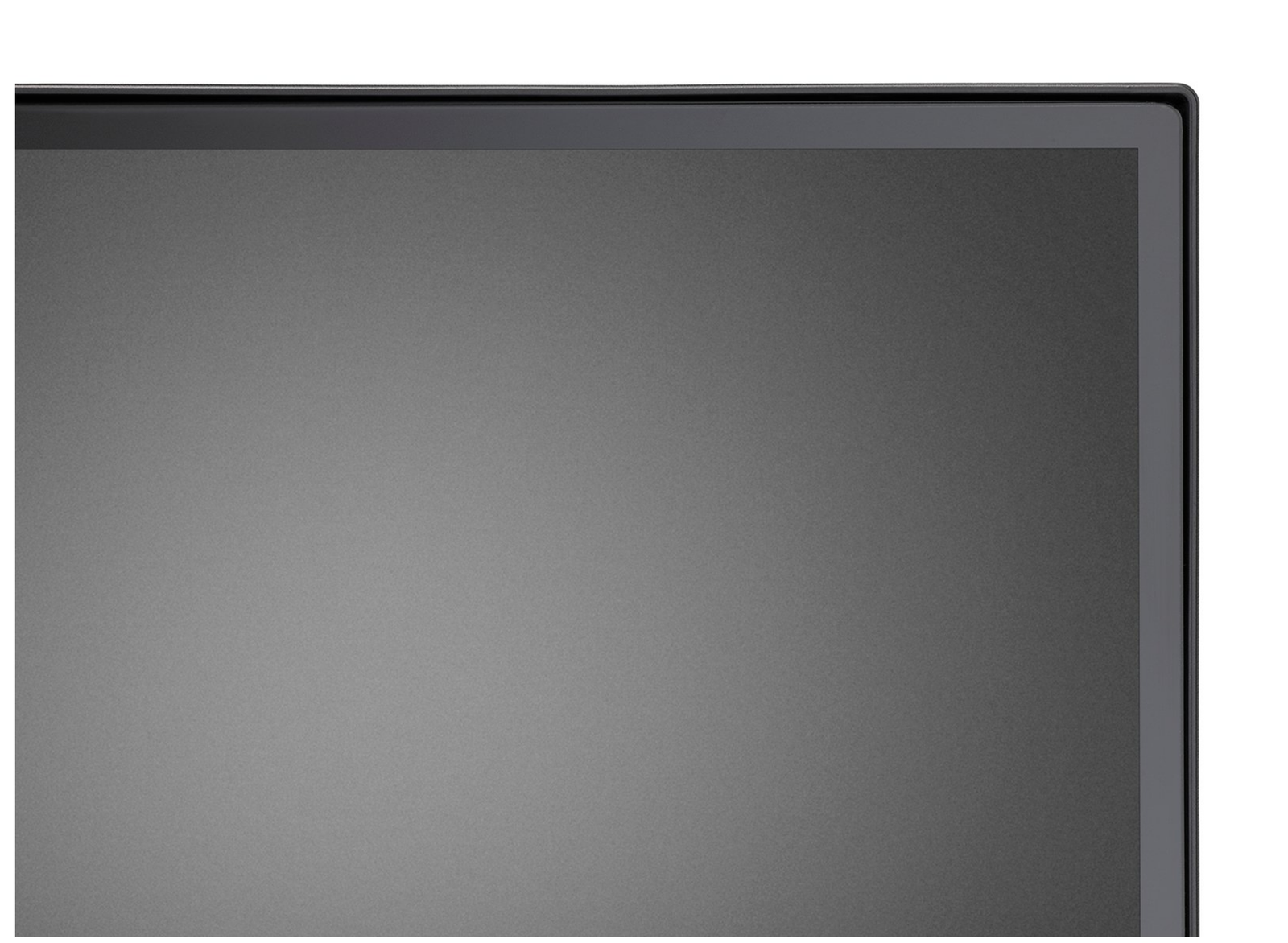

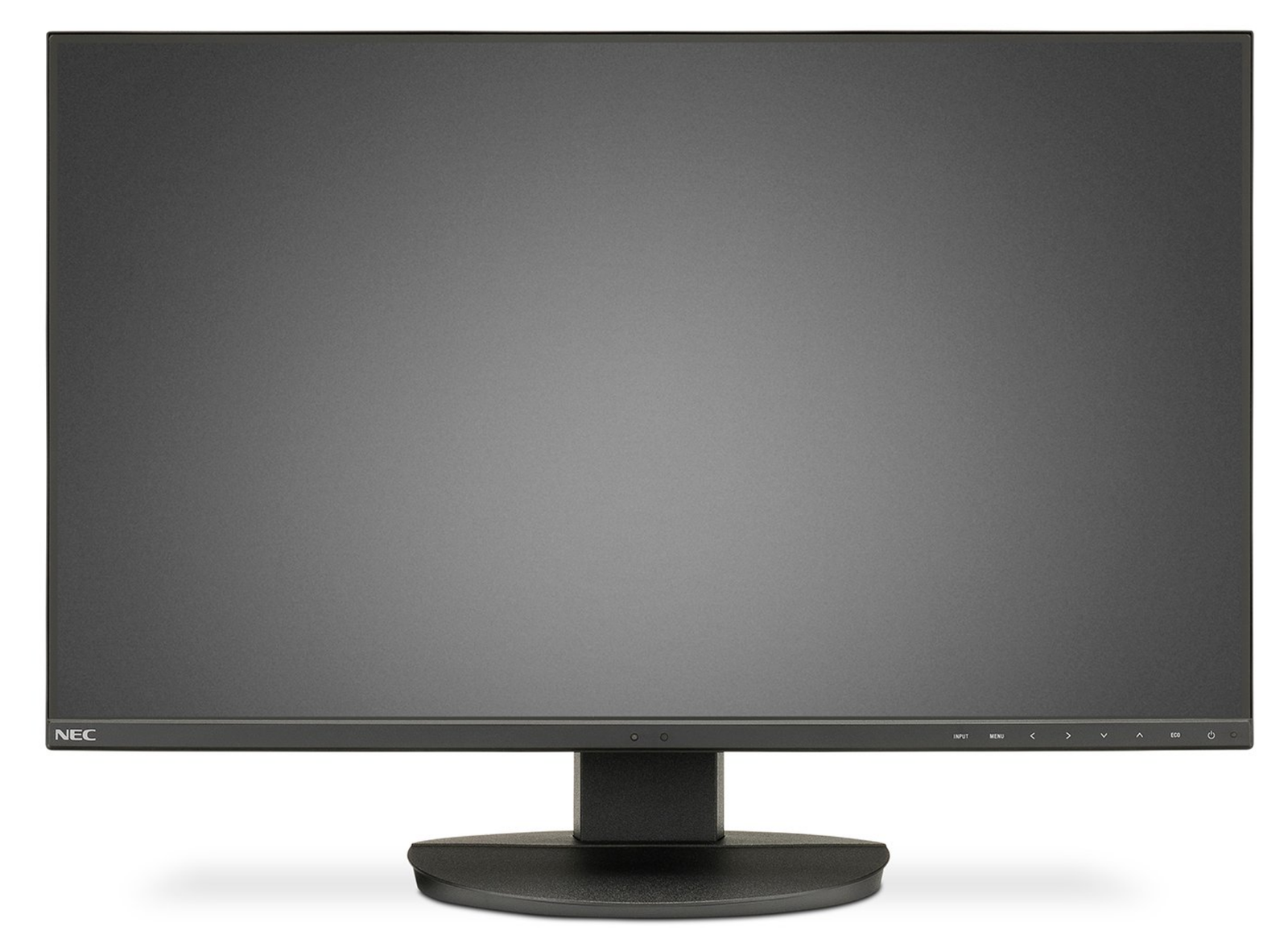

Best in form and function – future-ready design with 3-sided ultra-narrow bezel, available in black or white, complementing a fresh professional office interior.
Ease of multi-display control – manage the settings of up to 5 displays in a multi-monitor configuration via the master display with ControlSync® technology.
Maximise image quality with Uniformity Control – benefit from perfect uniformity across multi-screen setups with just one click in the display’s on-screen menu.
-
| Panel Technology |
AH-IPS LCD with LED Backlight |
Screen Size [inch/cm] |
27 / 69 |
| Screen Aspect Ratio |
16:9 |
Colour Gamuts |
102% sRGB; 75.5% AdobeRGB; 72% NTSC |
| Pixel Pitch [mm] |
0.311 |
Brightness (typ.) [cd/m²] |
250 |
| Contrast Ratio (typ.) |
1000:1 (5000:1 dynamic contrast ratio) |
Response Time [ms] |
6 |
| Colours [Mio.] |
16.777 |
Horizontal Frequency [kHz] |
31.5 - 83 |
| Vertical Frequency [Hz] |
56 - 75 |
Optimum Resolution |
1920 x 1080 at 60 Hz |
| Supported Resolutions |
1024x768; 1280x1024; 1280x720; 1280x960; 1440x900; 1680x1050; 1920x1080; 640x480; 720x400 (70Hz); 800x600 |
Digital Connectivity |
1 x DisplayPort; 1 x DVI-D; 1 x HDMI; USB 3.1 (3 down / 1 up) |
| Analog Connectivity |
1 x VGA |
Power Consumption [W] |
12 (Eco Mode 2); 17 (Eco Mode); 17 (typ.); 45 (max.) |
| Power Savings Mode [W] |
< 0.5 |
Power Supply |
0.85 A/0.45 A; 100-240 V; integrated power supply |
| Operating Temperature [°C] |
+5 to +35 |
Operating Humidity [%] |
20 to 80 |
| Storage Temperature [°C] |
-10 to 60 |
Storage Humidity [%] |
10 to 85 |

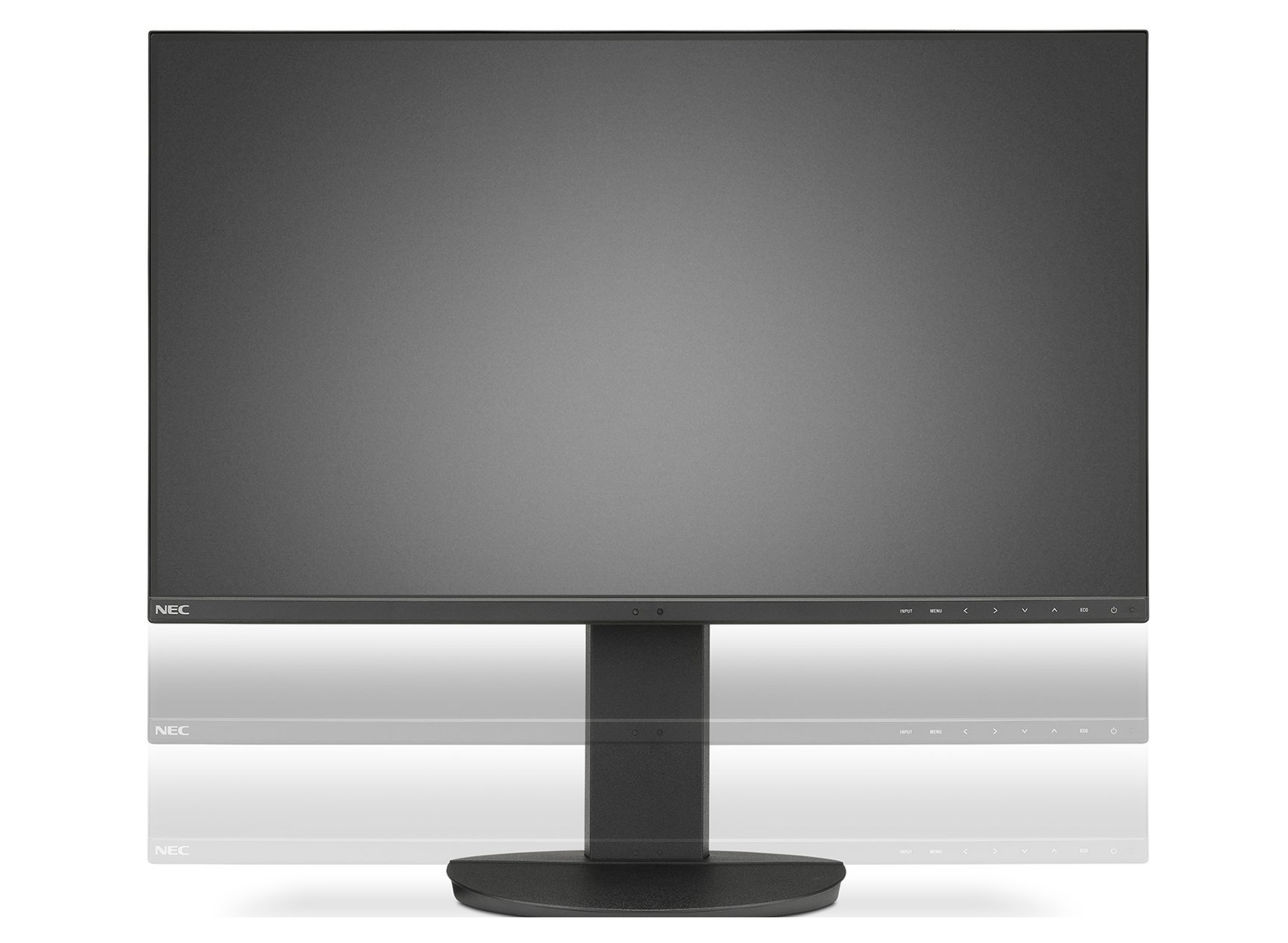

| Height Adjustable Stand [mm] |
150 (Landscape mode) |
Screen Tilt [°] |
-5 to 35 |
| Screen Swivel [°] |
-170 to Value |

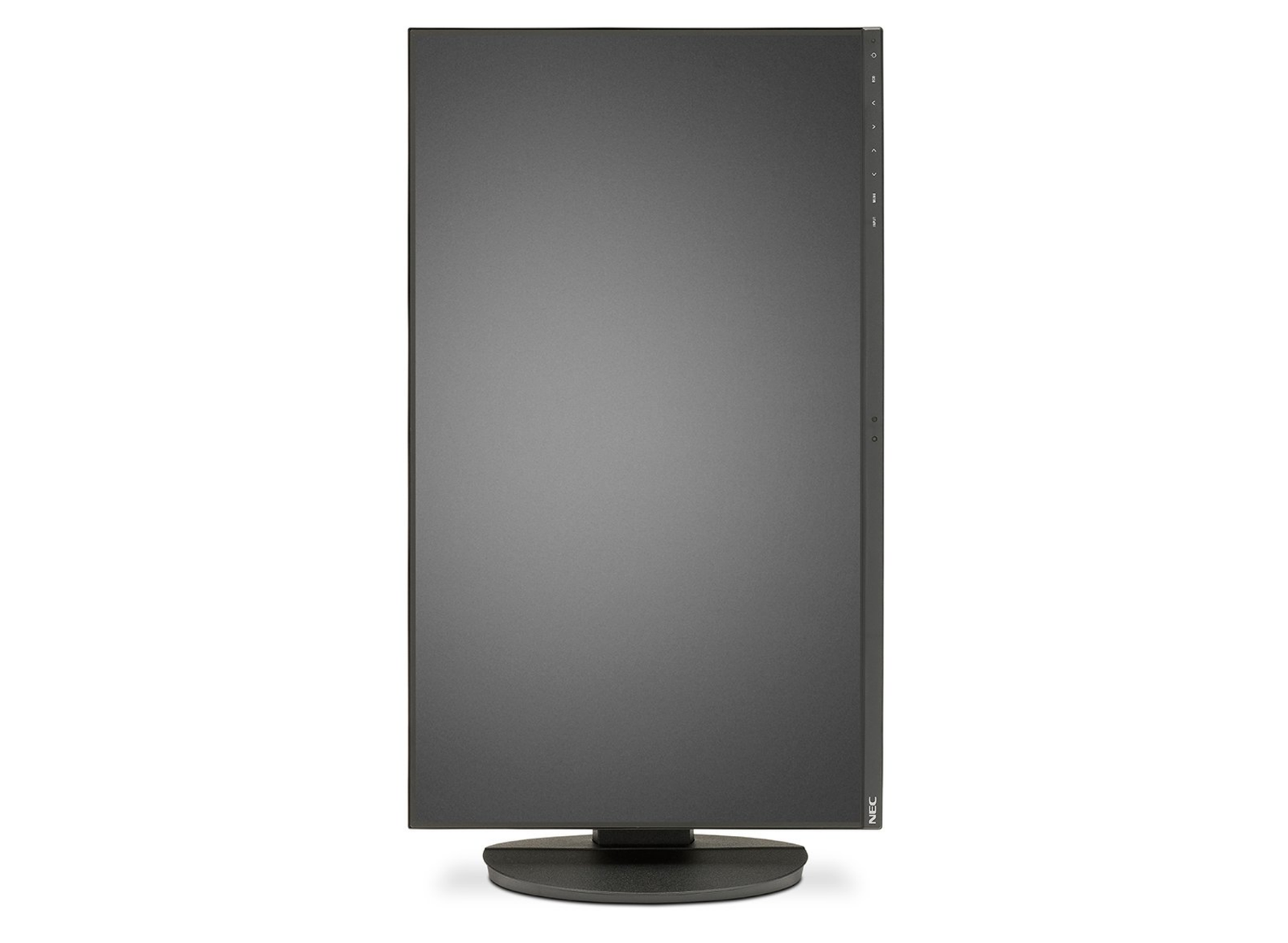

Screen Rotate [°] |

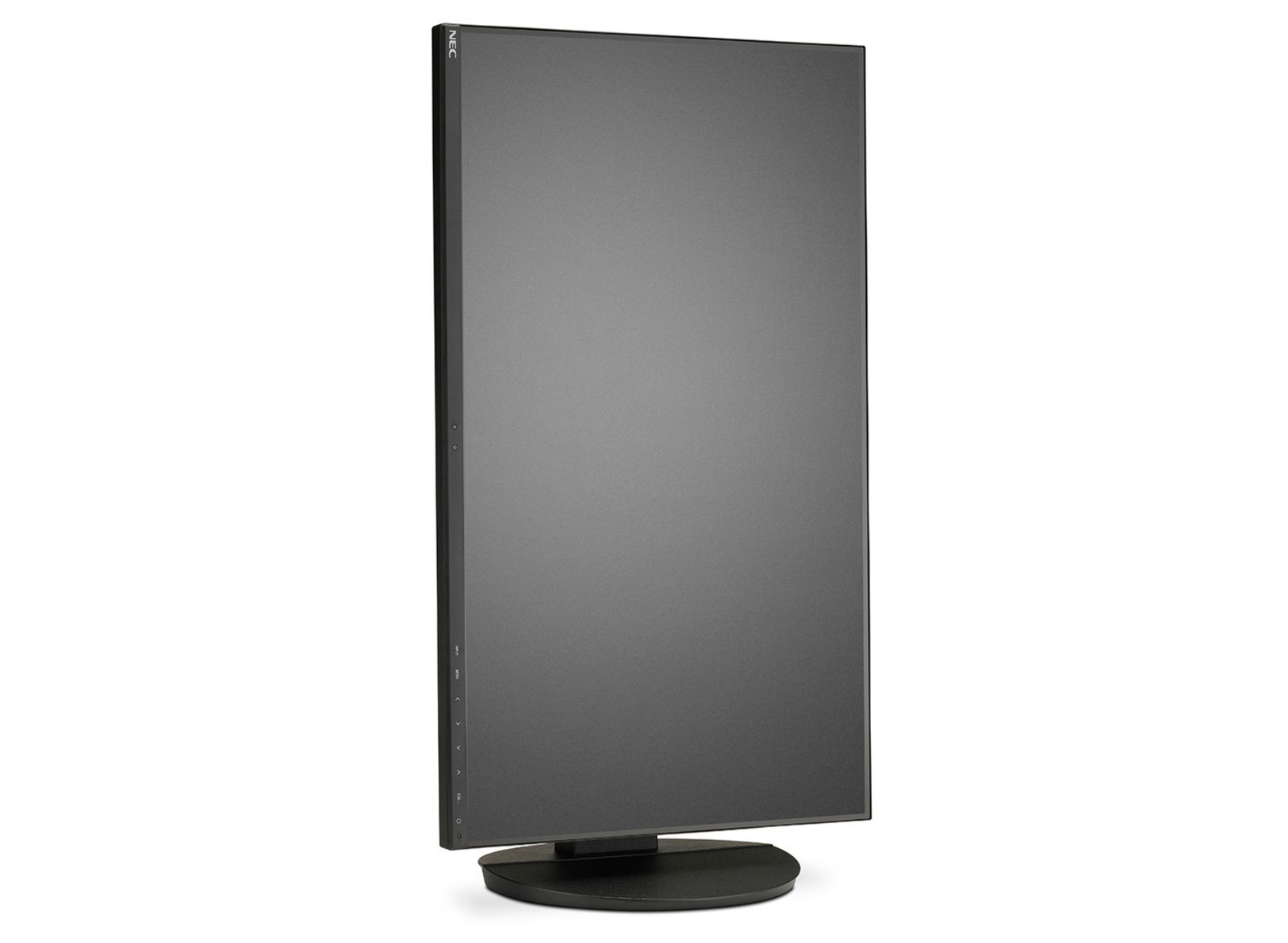

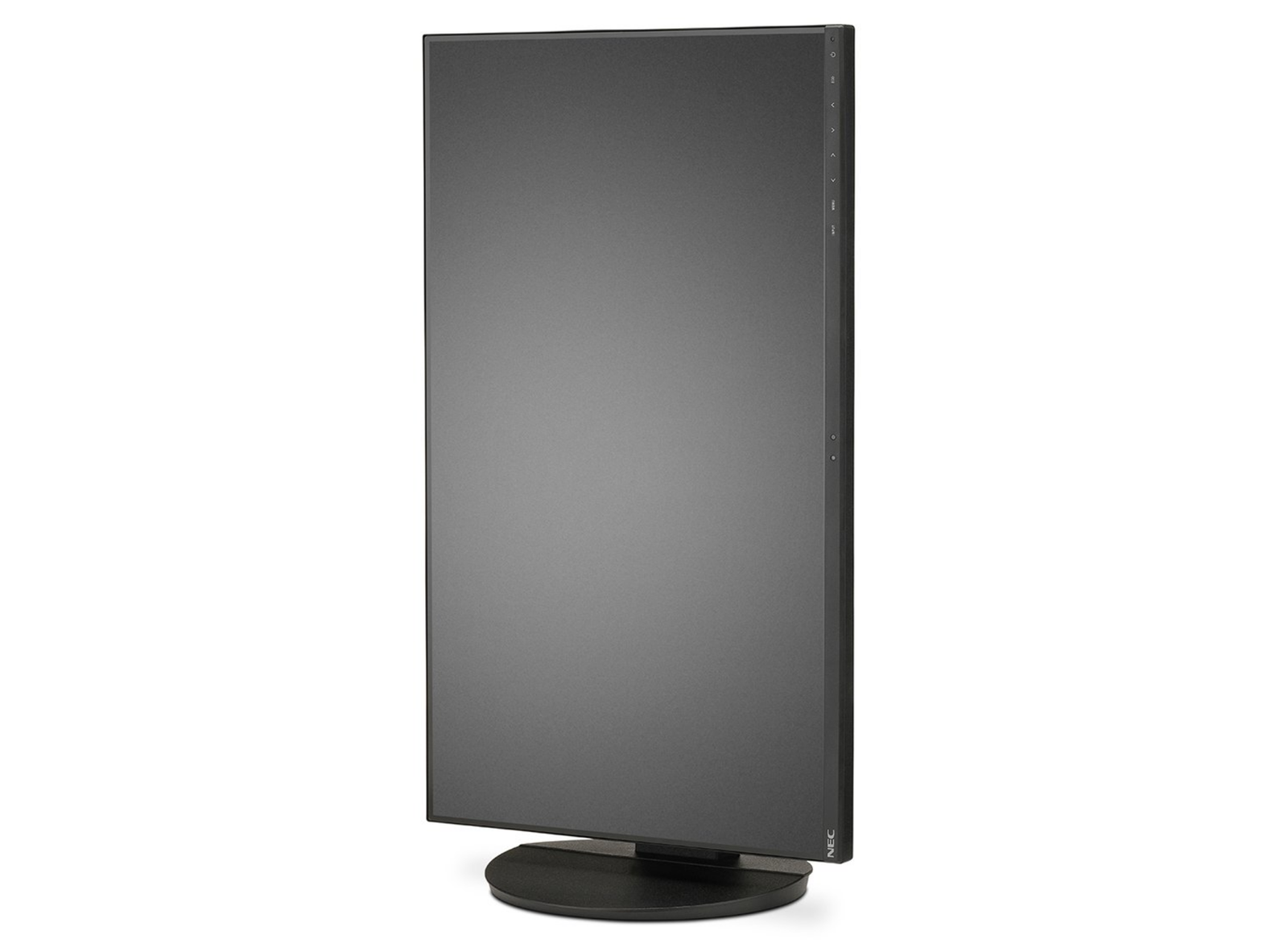

-90 to 90 (landscape to portrait mode) |
| Bezel Width [mm] |
1 (left/right/top) |
Dimensions (W x H x D) [mm] |
359.8 x 628.4 - 652.6 x 250 (Portrait); 610.2 x 377.3 - 527.3 x 250 (Landscape) |
| Weight [kg] |
With stand: 7.6; Without stand: 5 |
VESA Mounting [mm] |
100 x 100 |
| Special Characteristics |
Ambient light sensor; Auto Contrast; Carbon Footprint & Savings Meter; ControlSync®; DICOM simulation; EcoModes; ErgoDesign®; Human Sensor; Quick release stand; LED Backlight; NaViSet; Windows 10 compatible |
Colour Versions |
Black Front Bezel, Black Back Cabinet; White Front Bezel, White Back Cabinet |
| Cable Management |
Yes |
Kensington Security Slot |
Yes |
| Plug and Play |
DDC2B/2Bi; EDID Standard; VESA DDC/CI |
Audio |
Headphone Jack; Integrated Speakers (1 W + 1 W) |
| Adjust Functions |
Audio Volume; Auto Adjust; Brightness; Colour Temp; Contrast; Control Sync; EcoMode; Human Sensing; Intelligent Power Mgmt; Power-Off Timer; sRGB |
Shipping Content |
Control Sync Cable; DisplayPort cable; Monitor; Power Cable; Manual; Setup Guide; USB Cable |
| Safety and Ergonomics |
CE; EAC; EnergyStar 8.0; ErP; FCC Class B; Flicker-free; ISO 9241-307; Low Blue Light; PSB; RoHS; TCO 8.0; TÜV Ergonomics; TÜV GS; UL/C-UL or CSA |
Warranty |
3 years incl. backlight; optional 24/7 1–3 yrs; 4–5 yr extension |
| Optional Accessories |
MDSVSENSOR Value |
Energy Efficiency |
Ambient light sensor; Auto brightness; Carbon Footprint Meter; ECOMode; 11 kWh/1000h; Class C; Human sensor; LED Backlight |
| Ecological Materials |
Efficient mechanical design; minimal use of harmful material |
Ecological Standards |
Energy Star 8.0; ErP compliant; TCO 8.0; WEEE |
-
| Description |
Downloads |
| NEC MultiSync® EA271F 27" 60Hz 6ms Full HD LCD Enterprise Display | 60004304 Datasheet |
Download |
