Intuitive professional content delivery
Great first impressions can make all the difference; presenting your business in the best possible way will boost your brand. With slim, modern styling, 24/7 operation and high haze panel to reduce reflections when ambient light is high, the M series is the professional way to deliver your message, yet at an attractive price point.
With the optional NEC MediaPlayer or the more powerful Intel® Smart Display Module (Intel® SDM) computing device, you are primed and ready for intuitive signage creation delivering real-time media playback for exceptional visual experiences. For advertising, infotainment and meeting room applications, the M Series provides powerful, upgradable functionality and all the aesthetic appeal to effortlessly reflect your brand credentials.
Modern and slim design – robust yet elegant allowing for an unobtrusive integration into any application and environment.
Secure remote management – control your devices remotely and securely using NEC NaviSet Administrator 2; proactively manage maintenance requirements saving time and resources
Unhindered readability – no reflections from windows or other light sources means no disruption to the visibility of signage content or meeting room presentation
Mission-critical 24/7 ready operation – the meticulous selection of industrial-grade components and careful design focused on demanding usage scenarios accompany an impressive and continuous viewer experience.
Future Ready Connectivity – featuring multiple industry standard digital and analogue signal inputs for flexible integration into AV infrastructures.
| Category | Specification |
|---|---|
| DISPLAY | |
| Panel Technology | IPS with Direct LED backlights |
| Screen Size | 65" / 163.9 cm |
| Aspect Ratio | 16:9 |
| Brightness | 500 cd/m² |
| Contrast Ratio | ≥ 8000:1 |
| Viewing Angle | 178° horizontal / 178° vertical (typ. at contrast ratio 10:1) |
| Colour Depth | 1.076 bn (10bit) |
| Response Time | 8 ms |
| Panel Refresh Rate | 60 Hz |
| Haze Level | Pro (28%) |
| Supported Orientation | Face Up 2; Landscape; Portrait |
| RESOLUTION | |
| Native Resolution | 3840 x 2160 |
| Supported Resolutions | See list above |
| SYNCHRONISATION RATE | |
| Horizontal Frequency | 26 - 91.1 kHz |
| Vertical Frequency | 23 - 86 Hz |

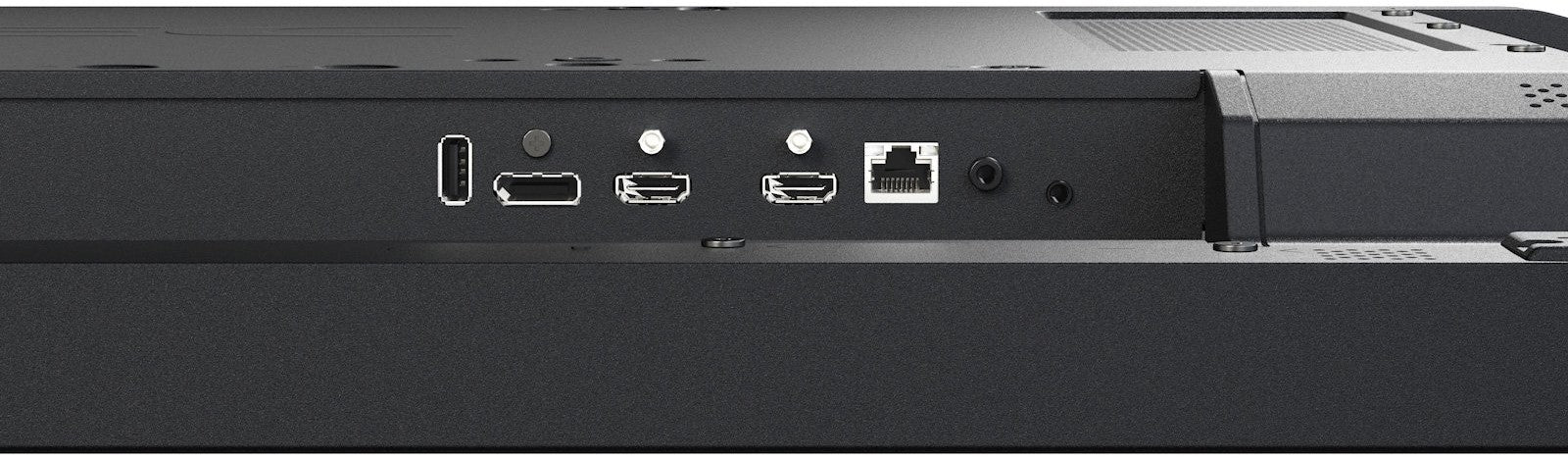

| CONNECTIVITY | |
| Input Video Digital | 1 x DisplayPort (with HDCP); 2 x HDMI (with HDCP) |
| Input Audio Digital | 1 x DisplayPort; 2 x HDMI |

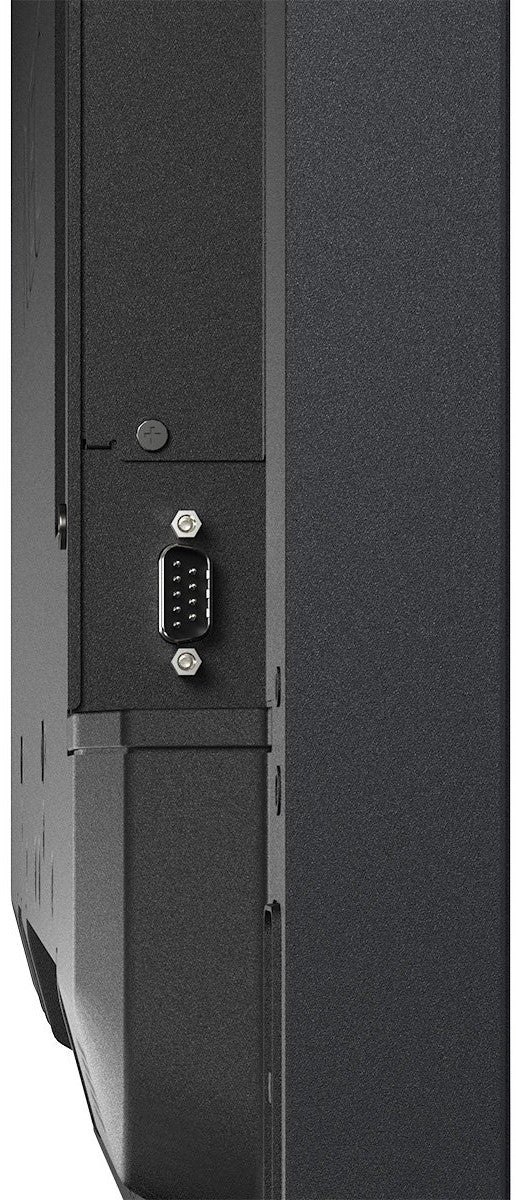

| Input Control | LAN 100Mbit; RS232; remote control wire (3.5mm jack) |
| Input Data | 1 x USB 2.0 (MediaPlayer) |
| Output Audio Analogue | 1 x 3.5 mm jack |
| Input Detect | Custom; First; Last |
| OPEN MODULAR INTELLIGENCE | |
| Intel® SDM | Accepts Intel® Smart Display Modules Large and Small up to 66 W |
| Compute Module Slot | RPi Compute Module 4 |
| SENSORS | |
| Ambient Light Sensor | Integrated, triggered actions programmable |
| Temperature Sensor | Integrated, 3 sensors, triggered actions programmable |
| ELECTRICAL | |
| Power Consumption | 120 W (shipping) |
| Power Savings Mode | < 0.5 W; < 2 W (Networked Standby) |
| Power Management | VESA DPMS |
| Power Supply | 100-240 V AC; 50/60 Hz; internal |
| ENVIRONMENTAL CONDITIONS | |
| Operating Temperature | +0 to +40 °C |
| Operating Humidity | 20 to 80% RH (No condensation) |
| Storage Humidity | 10 to 90% RH (No condensation) |
| Storage Temperature | -20 to 60 °C |
| MECHANICAL | |
| Dimensions | 1,458.4 x 836.2 x 62.6 mm |
| Weight | 37.1 kg |
| Bezel Width | 12 mm (top); 12.5 mm (left and right); 15.6 mm (bottom) |

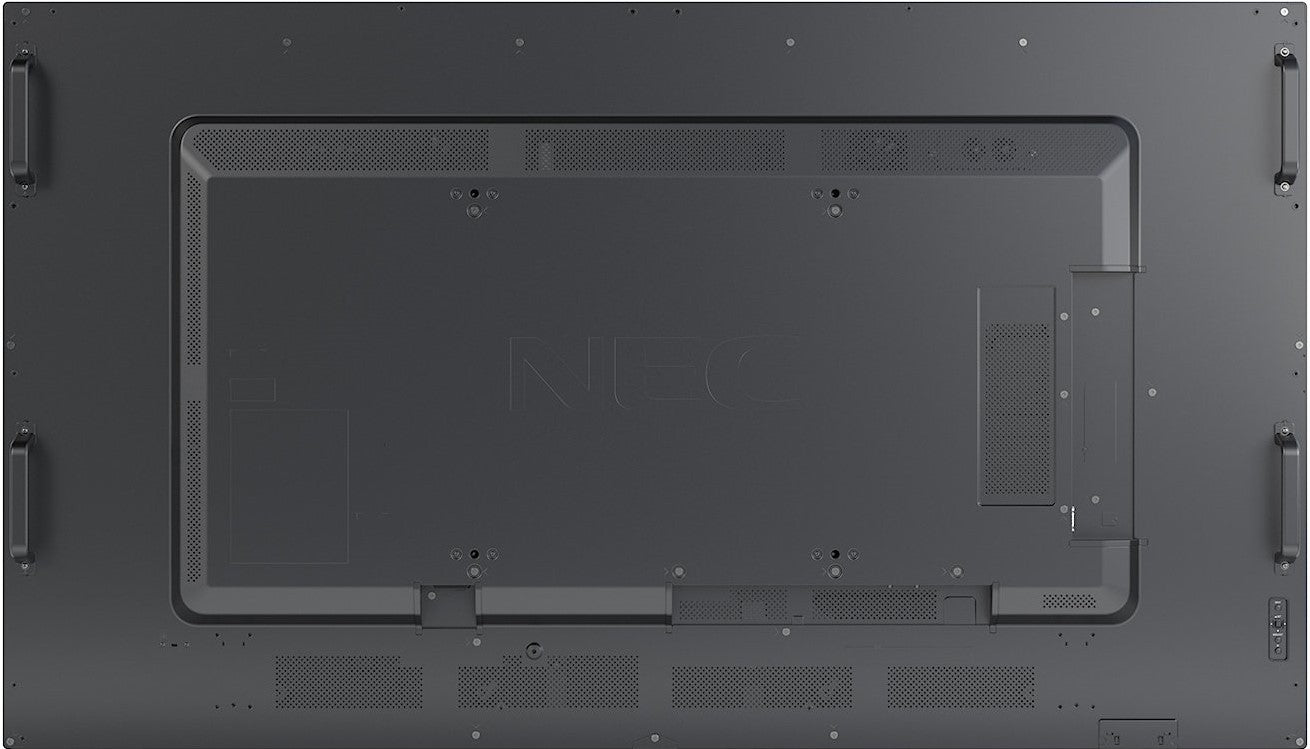

| VESA Mounting | 400 x 400 mm (FDMI); M8 |
| Ingress Protection | IP5x (front); IP2x (back) |
| MEDIAPLAYER | |
| Supported File Storage | USB 2.0 / FAT16, FAT32 |
| Supported Image Formats | JPG (baseline, progressive, RGB, CMYK) |
| Supported Video Formats | See list above |
| Supported Audio Formats | MP3 (MP3); max. bit-rate 320 kBit/s |
| AVAILABLE OPTIONS | |
| Accessories | See list above |
| GREEN FEATURES | |
| Energy Efficiency | Energy consumption: 116 kWh/1000 h; Energy efficiency class: G |
| Ecological Standards | EnergyStar 8.0 |
| ADDITIONAL FEATURES | |
| Special Characteristics | DICOM Simulation; HDMI ARC; Powered USB Port; Removable Logo |
| Safety and Ergonomics | See list above |
| Pixel Failure Class | ISO 9241-307, Class 1 |
| Audio | Integrated Speakers (10 W + 10 W) |
| Shipping Content | See list above |
| Warranty | 3 years warranty incl. backlight; additional services available; optional 4. + 5. year warranty extension |
| Operating Hours | 24/7 |
| External Control | See list above |
| Remote Management | Automated Email Alerts; NEC NaViSet Administrator 2 |
| Security | Disable HW Buttons; Disable IR Functionality; Emergency Notification |
| Resistance to Fire | Metal backcover, plastic material certified acc. to UL94-5VB |
In Warranty Support
Warranty Period 36 Months
Contact: NEC Display Solutions
Tel. No. 01952 237003
Email uklcdservice@emea.nec.com
Manufacturers Website http://www.nec-display-solutions.co.uk
NEC deal with all your AfterCare requirements for the product you have purchased, they can help with technical queries and offer advice.
| Description | Downloads |
|---|---|
| Datasheet | Downloads |
| User Manual | Downloads |
| Energy Label | Downloads |
