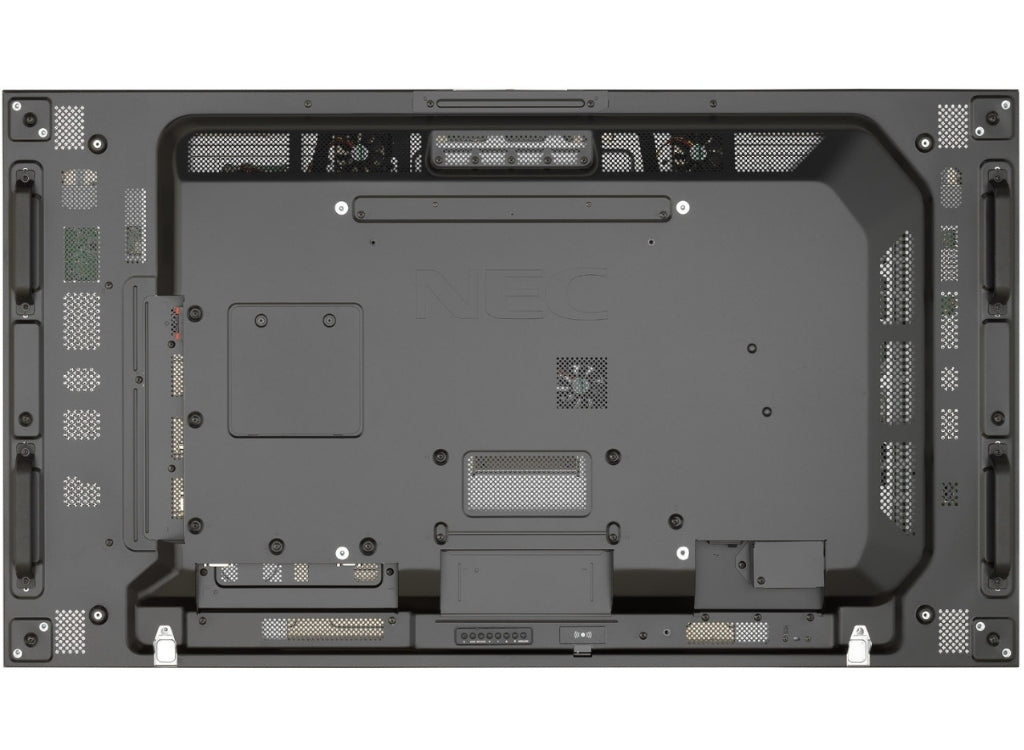

NEC MultiSync® UN552 LCD 55" Video Wall Display | 60004884
SKU: 60004884
£2,650.02 (Excl. VAT)
- Display Size55"
- Operating SystemNone
- VESA Patterns400x400
- Panel TypeIPS Panel
- ResolutionFull HD (1080p)
- Screen TypeFlat
Book a Free Product Demo
Remote or on-site. No obligation.
Integrator or Installer?
Trade pricing, volume discounts, same-day collection.
Education & Public Sector Solutions
Exclusive pricing, flexible terms, and dedicated support for schools, universities, NHS, and government organisations.
- Description
- Specifications
- Warranty
- Downloads
-

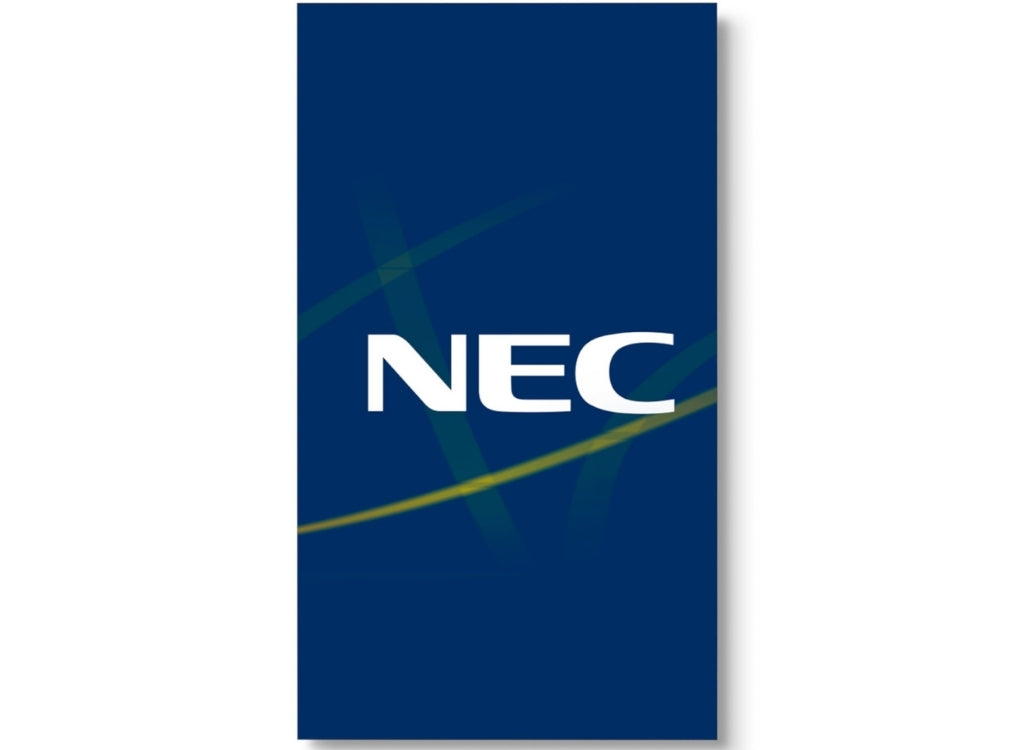

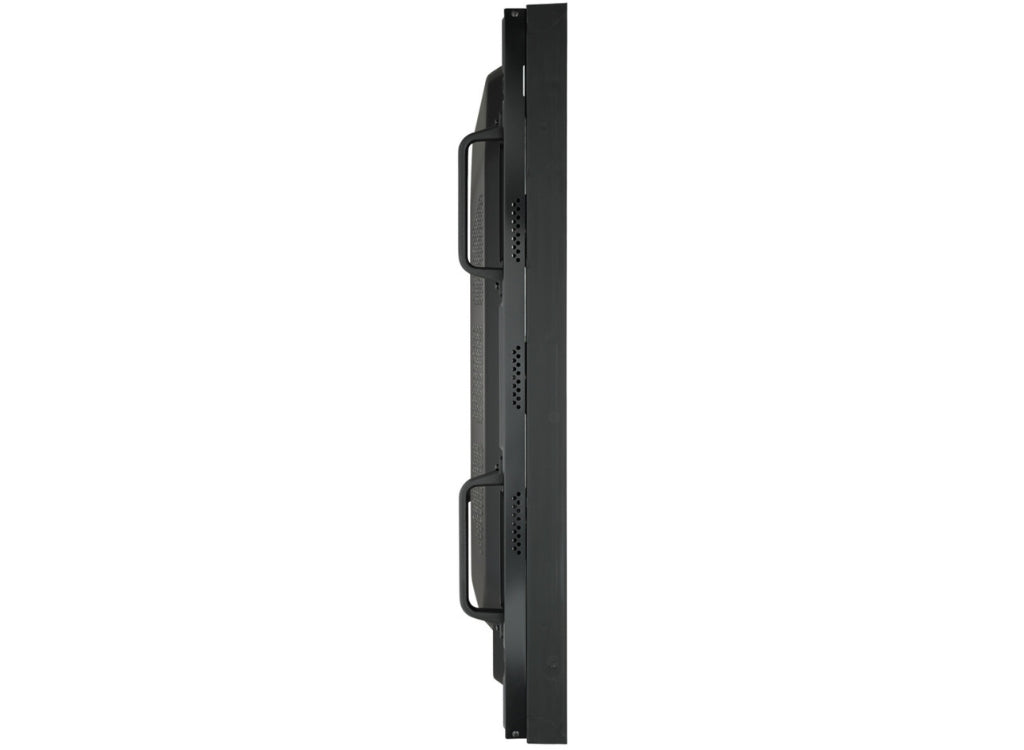

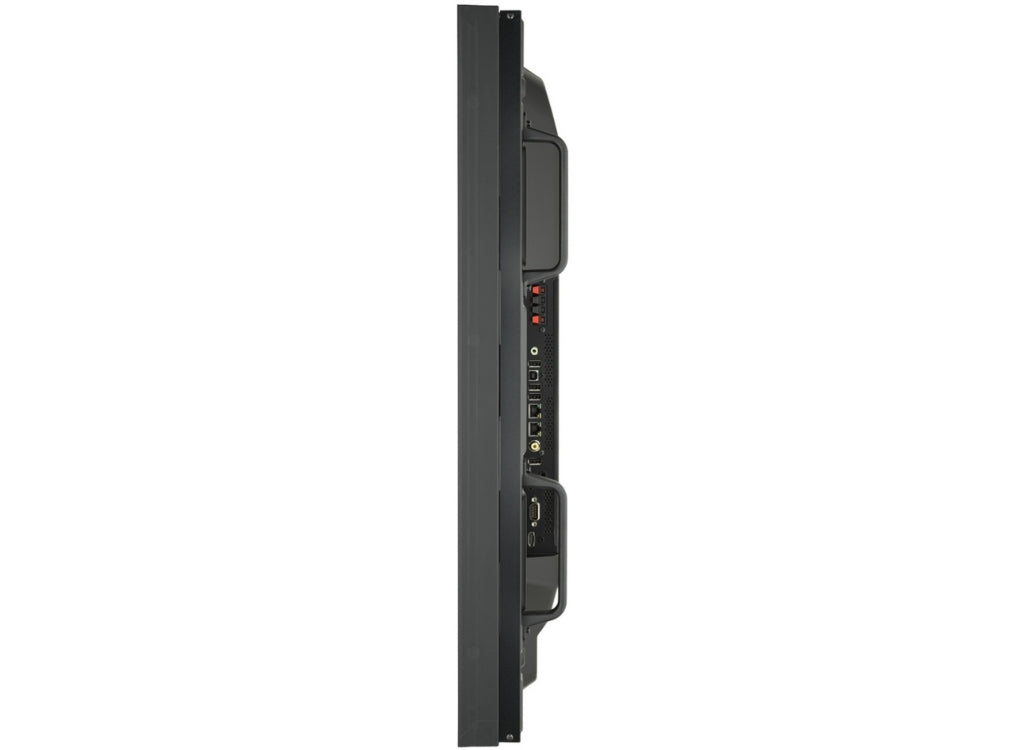

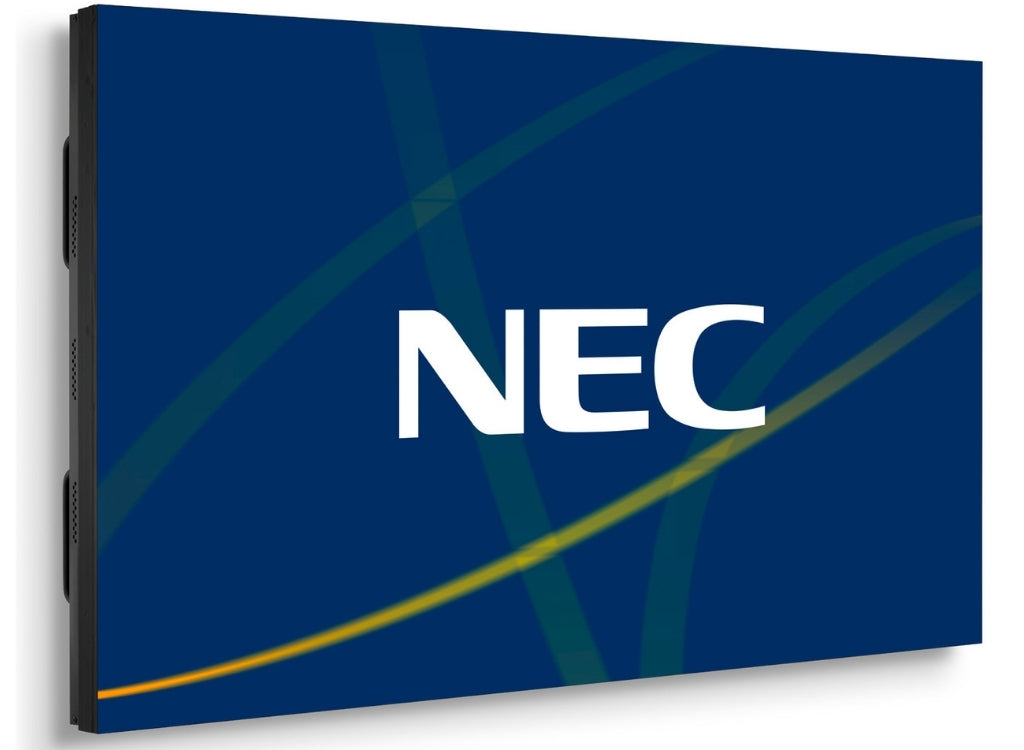

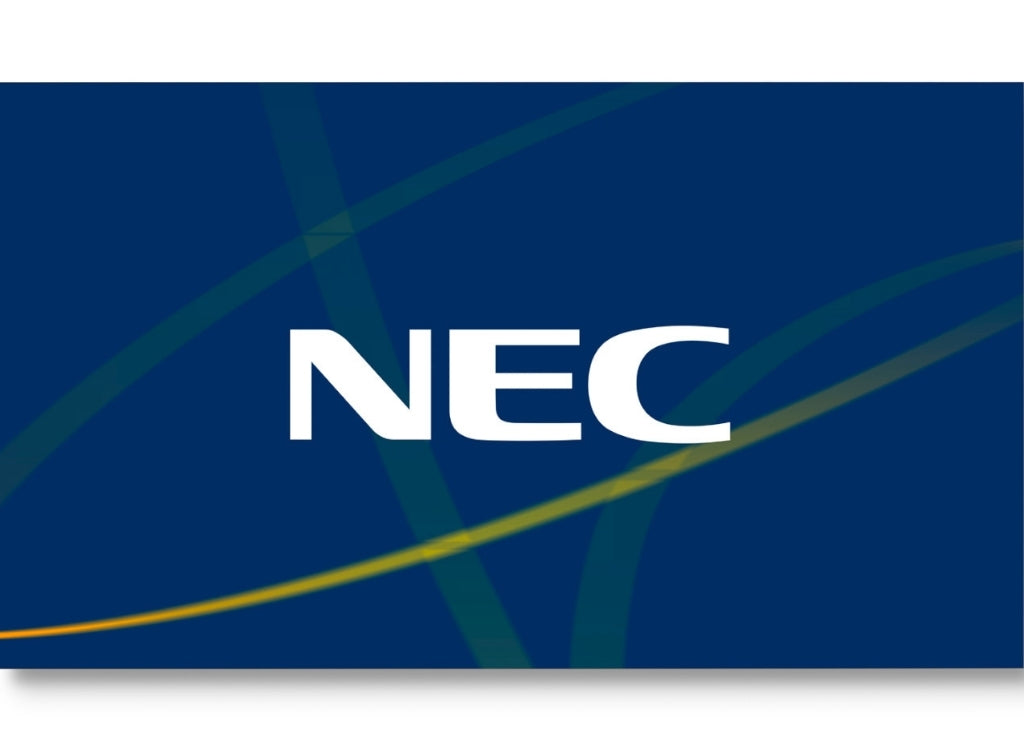

NEC MultiSync® UN552 LCD 55" Video Wall Display
Video Walls you can rely on

The MultiSync® UN552 sets the standard for video wall technology. Featuring a minimal 3.5 mm bezel these display modules create impressive high resolution video walls with barely visible image gaps. With perfect picture quality and high product reliability, these displays are designed for the rigors of 24/7 operation. At a high brightness level of 700 cd/m² your message will be well received with effortless readability even in the brightest ambient light conditions. An advanced set of intelligent features make the displays easy to install and operate and support significantly reduced maintenance requirements. The 55” display is ideally suited to create huge screen surfaces for fixed installations and for mid and longer viewing distances.
NEC's vast experience in the video wall market is evident in the design with features that reduce costs, ease installation and enhance the visual impact of content in control rooms, broadcast studios, transport installations and the rental market.
Benefits
Easy installation – effortlessly set up you wall display with Auto TileMatrix and out-of-the-box calibrations. Save time by plugging in ready-to-use image presets for predefined application scenarios.
Enhanced imaging performance – advanced settings of all relevant visual parameters allow full control of brightness, colour, gamma and uniformity via the SpectraView Engine for precise, natural images.
Secure Reliability and Longevity of Video Walls – unique NEC heat management system enables the user to monitor and control the heat inside the display.
Smart media integration – seamlessly integrate the media source of your choice into the video wall display. Use the wide range of NEC’s OPS Slot-in PCs, and Raspberry Pi compute modules, for content feed and computing.
Lifelike and consistent colour – expect colour reproduction that feels true to life with IPS panel technology, the top choice when it comes to colour consistency. The S-IPS panel ensures that perfect visibility is maintained in landscape and portrait mode and at extreme viewing angles as viewers pass by. -

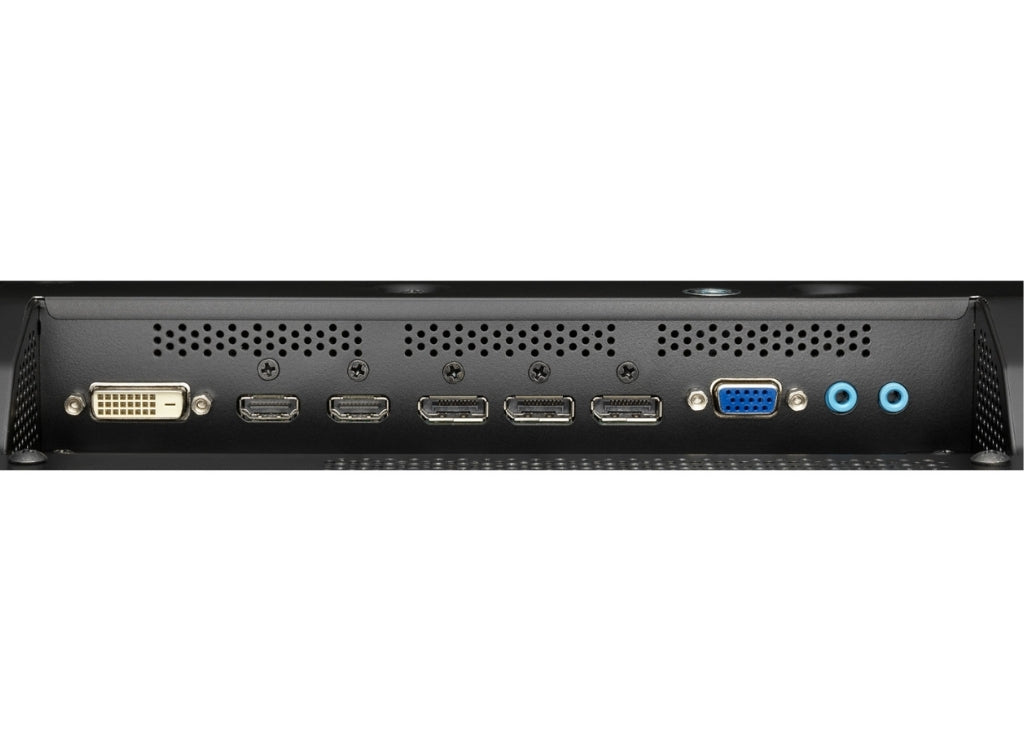

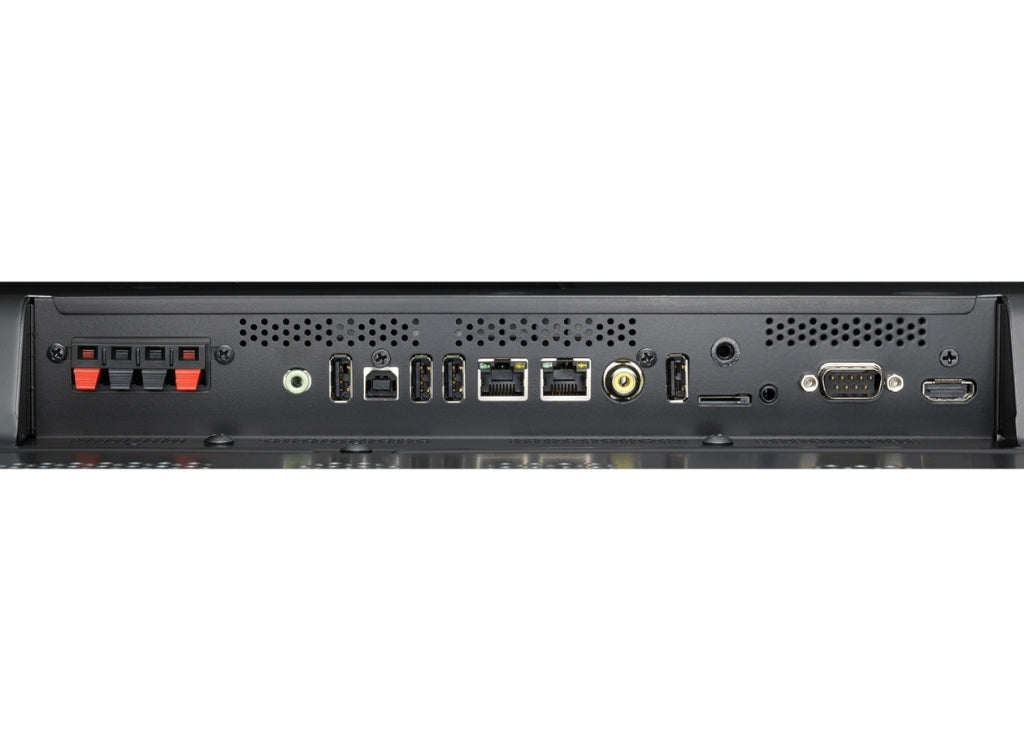

Category Specification Panel Technology S-IPS with Direct LED backlights Active Screen Area 1,209.6 x 680.4 mm Screen Size 55 inches / 138.8 cm Aspect Ratio 16:9 Pixel Pitch 0.630 mm Brightness 700 cd/m² Contrast Ratio >1700:1 Viewing Angle 178° horizontal / 178° vertical (typical at contrast ratio 10:1) Colour Gamut 72% of NTSC Response Time 8 ms Panel Refresh Rate 60 Hz Haze Level Pro (28%) Supported Orientation Landscape; Portrait Native Resolution 1920 x 1080 Supported Resolutions 1024 x 768; 1080i; 1080p; 1280 x 1024; 1280 x 768; 1360 x 768; 1600 x 1200; 1920 x 1080; 3840 x 2160; 640 x 480; 720p (50/60 Hz); 800 x 600 Horizontal Frequency 26 - 134 kHz Vertical Frequency 23 - 86 Hz Input Video Analogue 1 x VGA; Composite (RCA) Input Video Digital 1 x DVI-D (with HDCP); 1 x OPS Slot; 2 x DisplayPort (with HDCP); 2 x HDMI (with HDCP) Input Audio Analogue 2 x 3.5 mm jack Input Audio Digital 2 x DisplayPort; 2 x HDMI Input Control 1 x Remote Control (3.5 mm jack); 1 x RS232; 2 x LAN 100Mbit Input Data 1 x microSD (MediaPlayer); 1 x USB 1.0 (Downstream); 1 x USB 1.0 (MediaPlayer); 1 x USB 2.0 (Upstream); 2 x USB 1.0 (Compute Module, 1 x 5V/2A powered) Output Video Digital 1 x DisplayPort (loop through: DisplayPort, OPS slot-in PC); 1 x HDMI (loop through: HDMI, OPS slot-in PC, Mediaplayer) Output Audio Analogue 1 x 3.5mm jack Output Control LAN 100Mbit Factory Calibration Gamma; Intensity; RGB; Uniformity; White Point Sensor Calibration PC-less Calibration with USB Sensor MDSVSensor3; White Copy (post self-calibration) Calibration with Software Corner Uniformity; Gamma; Intensity; RGB; Update Factory Calibration; Update Uniformity Correction; White Point Calibration Software NEC Display Wall Calibrator OPS Slot Slot Technology: Open pluggable specification (NEC / Intel OPS standard) OPS Max. Current / Power Consumption 3.6 A / 58 W Compute Module Slot Slot Technology: Compute Module 3 Slot (NEC proprietary standard) Human Sensor Optional, external, 4-5m range, triggered actions programmable Temperature Sensor Integrated, 3 sensors, triggered actions programmable NFC Sensor Integrated, 2cm range, free NEC Android App required Power Consumption Eco/max. 150 W (shipping); 380 W (max.) Power Savings Mode <0.5 W; <2 W (Networked Standby) Operating Temperature 0°C to 40°C Operating Humidity 20% to 80% Storage Temperature -20°C to 60°C Storage Humidity 10% to 90% Dimensions Without stand: 1,213.4 x 684.2 x 103.8 mm Weight Without stand: 25.5 kg Bezel Width 1.2 mm bottom/right; 2.3 mm top/left; 3.5 mm VESA Mounting 4 holes; 400 x 400 (FDMI); -
In Warranty Support
Warranty Period 36 Months
Contact: NEC Display Solutions
Email uklcdservice@emea.nec.com
Manufacturers Website http://www.nec-display-solutions.co.ukNEC deal with all your AfterCare requirements for the product you have purchased, they can help with technical queries and offer advice.
Please contact them direct.
You will need the following information to hand:
* Customer Name
* Email Address
* Product Model Number
*Proof of Purchase
* Serial Number
* Details of the fault
* Any permanent security markings?
* Any physical damage?
* Any non-NEC repair or modi?caon?
Once provided NEC will be able to issue a return and provide a replacement if required.
If you have any questions or would like further advise, please feel free to contact our AfterCare Team (ACE) on 02081 919223 / who will be happy to assist
3 Year On-Site Warranty. Please contact NEC for full Ts & Cs (exclusions apply). -
Description Downloads Datasheet Downloads User Manual Downloads Energy Label Downloads
