| Product Information |
|
| Product Name |

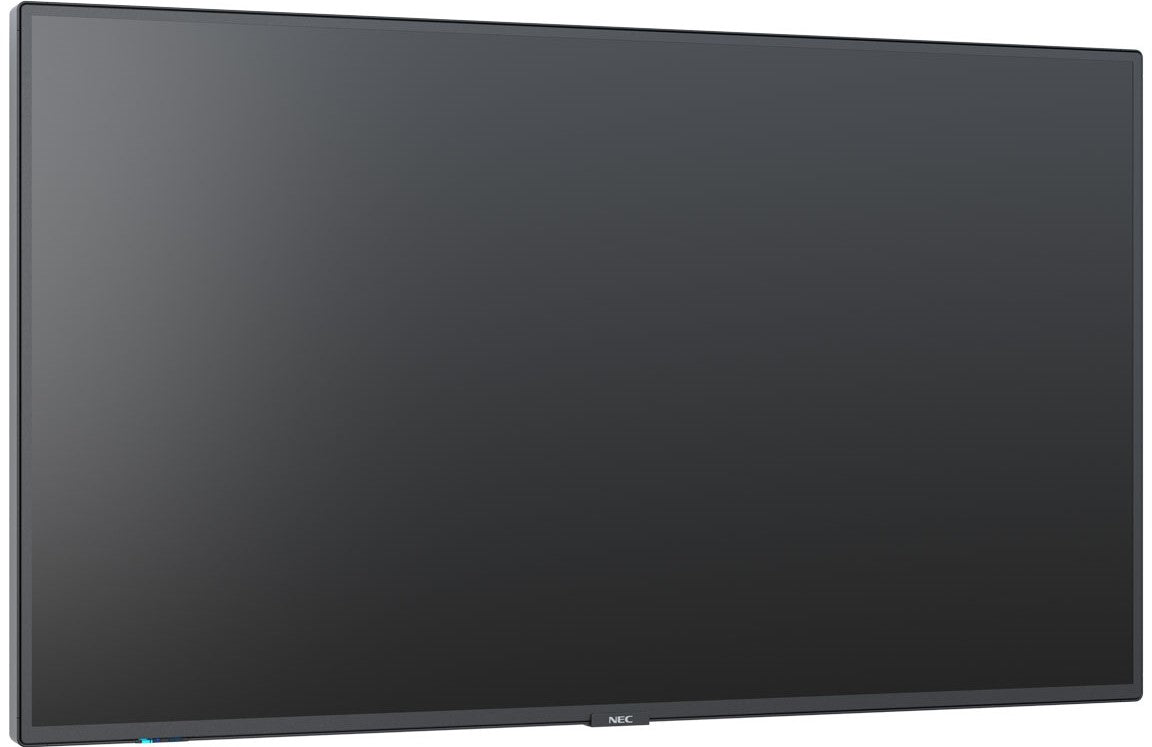

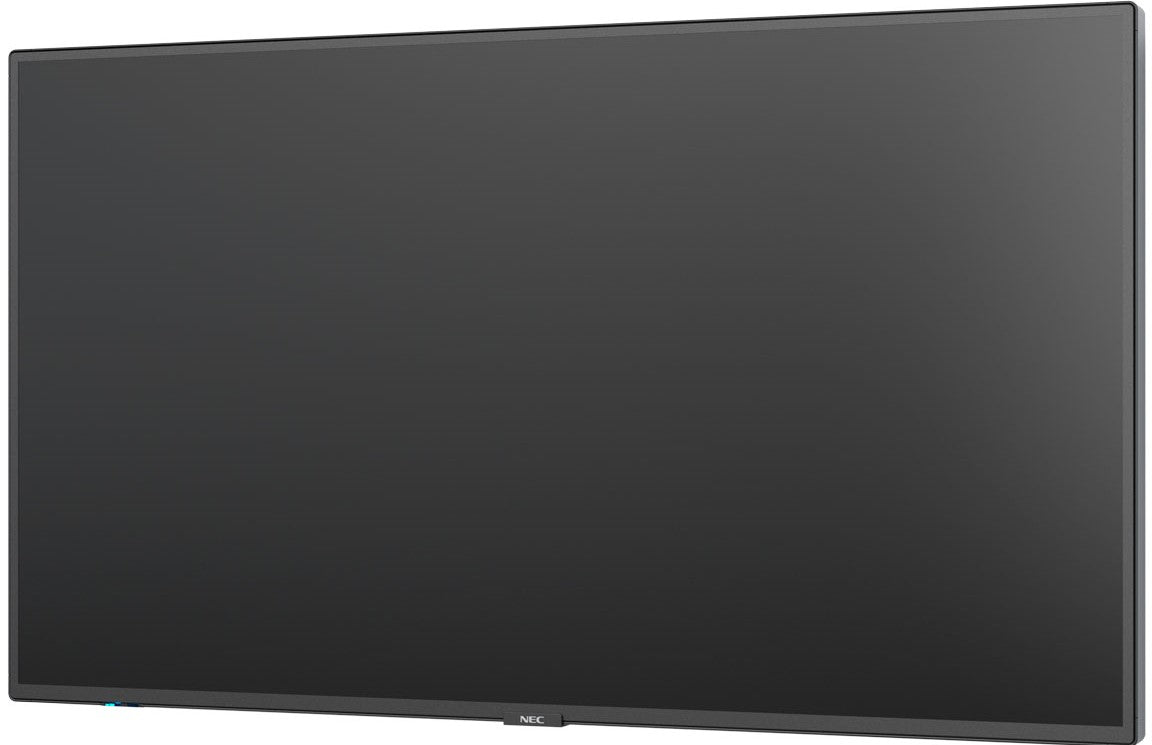

NEC MultiSync® MA551-MPi4 |
| Product Group |
LCD 55" Midrange Large Format Display (incl. NEC MediaPlayer) |
| Order Code |
60005371 |
| Display |
|
| Panel Technology |
IPS with Edge LED backlights |
| Screen Size (inch/cm) |
55 / 138.8 |
| Aspect Ratio |
16:9 |
| Brightness [cd/m²] |
500 |
| Contrast Ratio |
≥ 8000:1 |
| Viewing Angle [°] |
178 horizontal / 178 vertical (typ. at contrast ratio 10:1) |
| Colour Depth [bn] |
1.073 (10bit) |
| Colour Gamut |
86% of DCI |
| Response Time (typ.) [ms] |
8 |
| Panel Refresh Rate [Hz] |
60 |
| Haze Level [%] |
Pro (28) |

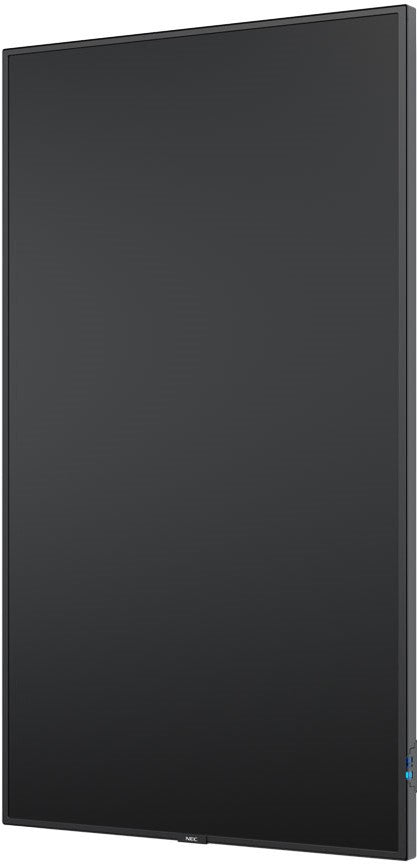

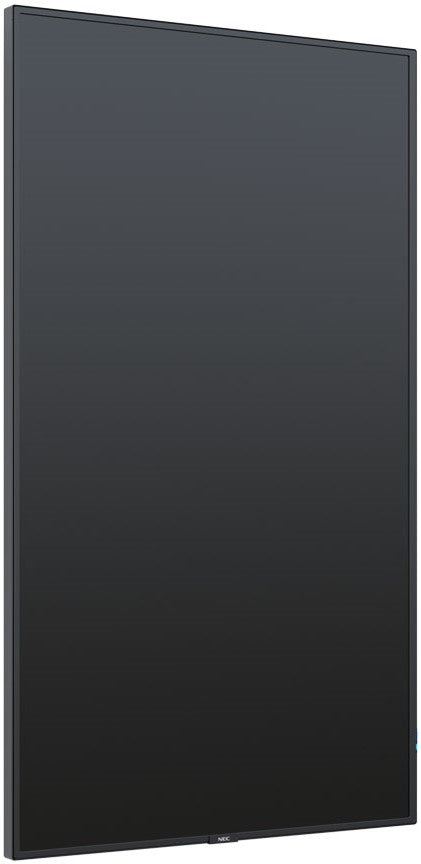

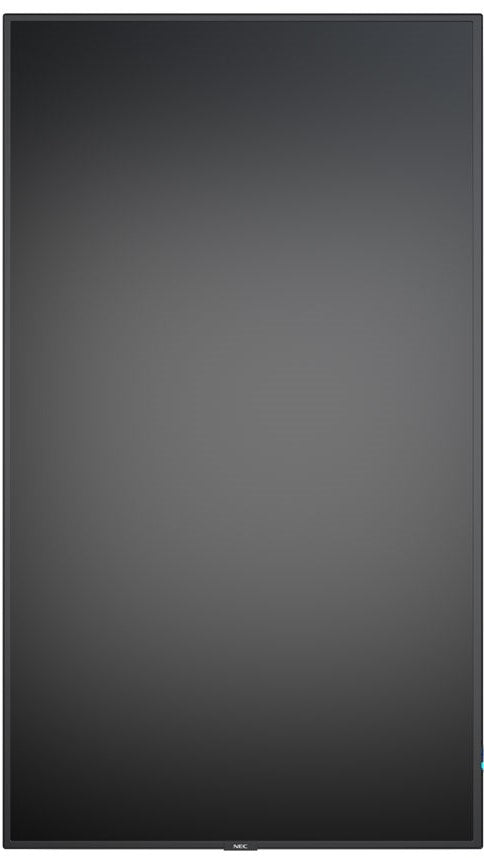

| Supported Orientation |
Face Up 2; Landscape; Portrait |
| Resolution |
|
| Native Resolution |
3840 x 2160 |
| Supported Resolutions |
See list provided |
| Synchronization Rate |
|
| Horizontal Frequency [kHz] |
26 - 91.1 |
| Vertical Frequency [Hz] |
23 - 86 |
| Connectivity |
|
| Input Video Digital |
2 x DisplayPort (with HDCP); 2 x HDMI (with HDCP) |
| Input Audio Digital |
1 x DisplayPort; 2 x HDMI |
| Input Control |
LAN 100Mbit; remote control wire (3.5mm jack); RS232 |
| Input Data |
1 x USB 2.0 (Downstream); 1 x USB 2.0 (Powered 5V/2A, Firmware Updates); 1 x USB 2.0 Type-B (Downstream) |
| Output Video Digital |
1 x DisplayPort (loop through: DisplayPort, SDM slot-in PC); 1 x HDMI (loop through: HDMI, SDM slot-in PC) |
| Output Audio Analogue |
1 x 3.5 mm jack |
| Output Control |
1 x LAN 100Mbit |
| Input Detect |
Custom; First; Last |
| PiP/PbP |
Dual-Split; Quad-Split; scalable picture size |
| Calibration |
|
| Factory Calibration |
Gamma; Intensity; RGB; Uniformity; White Point |
| Sensor Calibration |
PC-less Calibration with USB Sensor MDSVSensor3; White Copy (post self-calibration) |
| Calibration with Software |
Corner Uniformity; Gamma; Intensity; RGB; Update Factory Calibration; White Point |
| Calibration Software |
NEC Display Wall Calibrator |
| Open Modular Intelligence |
|
| Intel® SDM |
Accepts Intel® Smart Display Modules Large and Small up to 66 W |
| Compute Module Slot |
RPi Compute Module 4 |
| Sensors |
|
| Ambient Light Sensor |
Integrated, triggered actions programmable |
| Temperature Sensor |
Integrated, 3 sensors, triggered actions programmable |
| Electrical |
|
| Power Consumption [W] |
90 shipping |
| Power Savings Mode [W] |
< 0.5; < 2 (Networked Standby) |
| Power Management |
VESA DPMS |
| Power Supply |
100-240 V AC; 50/60 Hz; internal |
| Environmental Conditions |
|
| Operating Temperature [°C] |
+0 to +40 |
| Operating Humidity [%] |
20 to 80 |
| Storage Humidity [%] |
10 to 90 |
| Storage Temperature [°C] |
-20 to 60 |
| Mechanical |
|
| Dimensions (W x H x D) [mm] |
1,239.6 x 713 x 61.1 |
| Weight [kg] |
27.6 |
| Bezel Width [mm] |
12 (top); 12.5 (left and right); 15.6 (bottom) |
| VESA Mounting [mm] |
300 x 300 (FDMI); 4 holes; M6 |
| Ingress Protection |
IP5x (front); IP2x (back) |
| Packaging Dimensions [mm] |
1,430 x 920 x 250 |
| Packaging Weight [kg] |
37.7 |
| Colour Bezel |
Pantone 426M (black) |
| Material |
Metal |

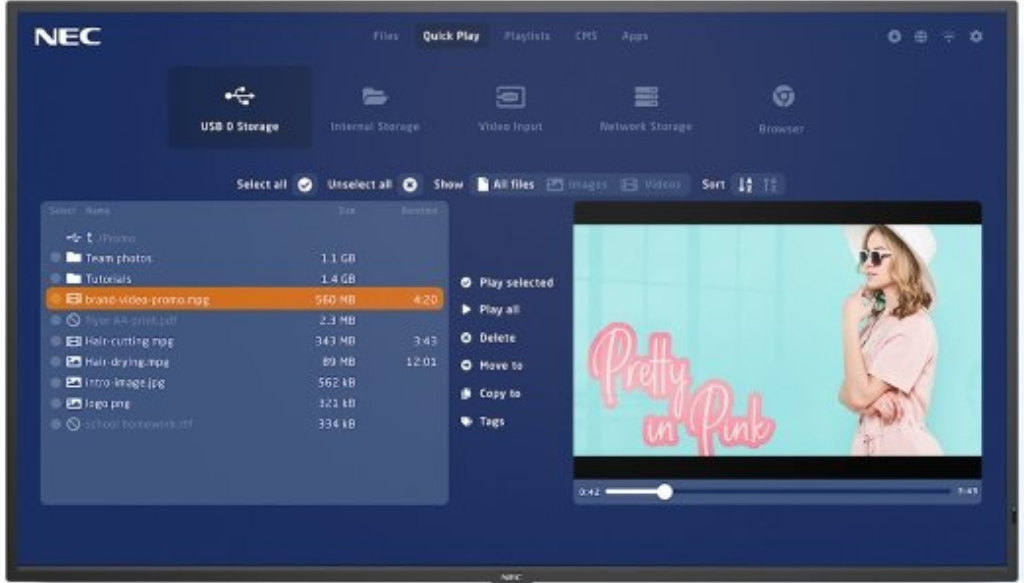

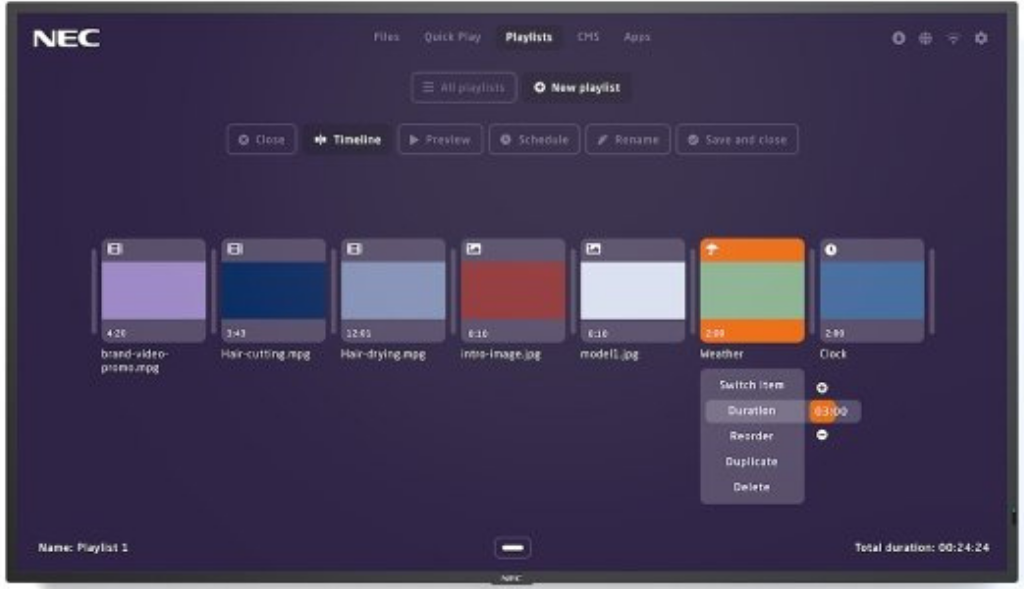

| MediaPlayer |
|
| Supported File Storage |
USB 2.0 / FAT16, FAT32 |
| Internal Storage |
32GB eMMC (2GB occupied by OS, 28GB available for files) |
| Processor |
Cortex-A72 (ARMv8) 64-bit SoC @ 1.5GHz |
| Supported Image Formats |
JPG / JPEG; PNG |
| Supported Video Formats |
MP4 / MOV / AVI / MPEG / WMV / MPG / M4V / VOB / MKV (H.265); MPEG-2; M4K; VP8 / VP9; HTML5 |
| Supported Audio Formats |
MP3; AAC; AC-3 |
| Available Options |
See list provided |
| Green Features |
|
| Energy Efficiency |
Energy consumption: 106 kWh/1000 h; Energy efficiency class: G; LED backlight |
| Ecological Standards |
EnergyStar 8.0 |
| Additional Features |
|
| Special Characteristics |
DICOM Simulation; HDMI ARC; Powered USB Port (10 W); Removable Logo |
| Safety and Ergonomics |
BSMI; CE; EAC; EMC Class B; Energy Star 8; FCC Class B; KC/KCC; PSB; RCM; RoHS; VCCI |
| Pixel Failure Class |
ISO 9241-307, Class 1 |
| Shipping Content |
2x AAA batteries; Display; HDMI Cable; Power Cable; Pre-installed MPi4 MediaPlayer Kit; Remote Control; Setup Manual |
| Warranty |
3 years warranty incl. backlight; additional services available; optional 4. + 5. year warranty extension |
| Operating Hours |
24/7 |
| External Control |
AMX NetLinx Support; ASCII Control Commands; Crestron Connected; HDMI CEC; HTTP Browser; PJLink; Scheduled Timer; SNMP |
| Remote Management |
Automated Email Alerts; NEC NaViSet Administrator 2 |
| Security |
Disable HW Buttons; Disable IR Functionality; Emergency Notification |
| Resistance to Fire |
Metal backcover, plastic material certified acc. to UL94-5VB |
