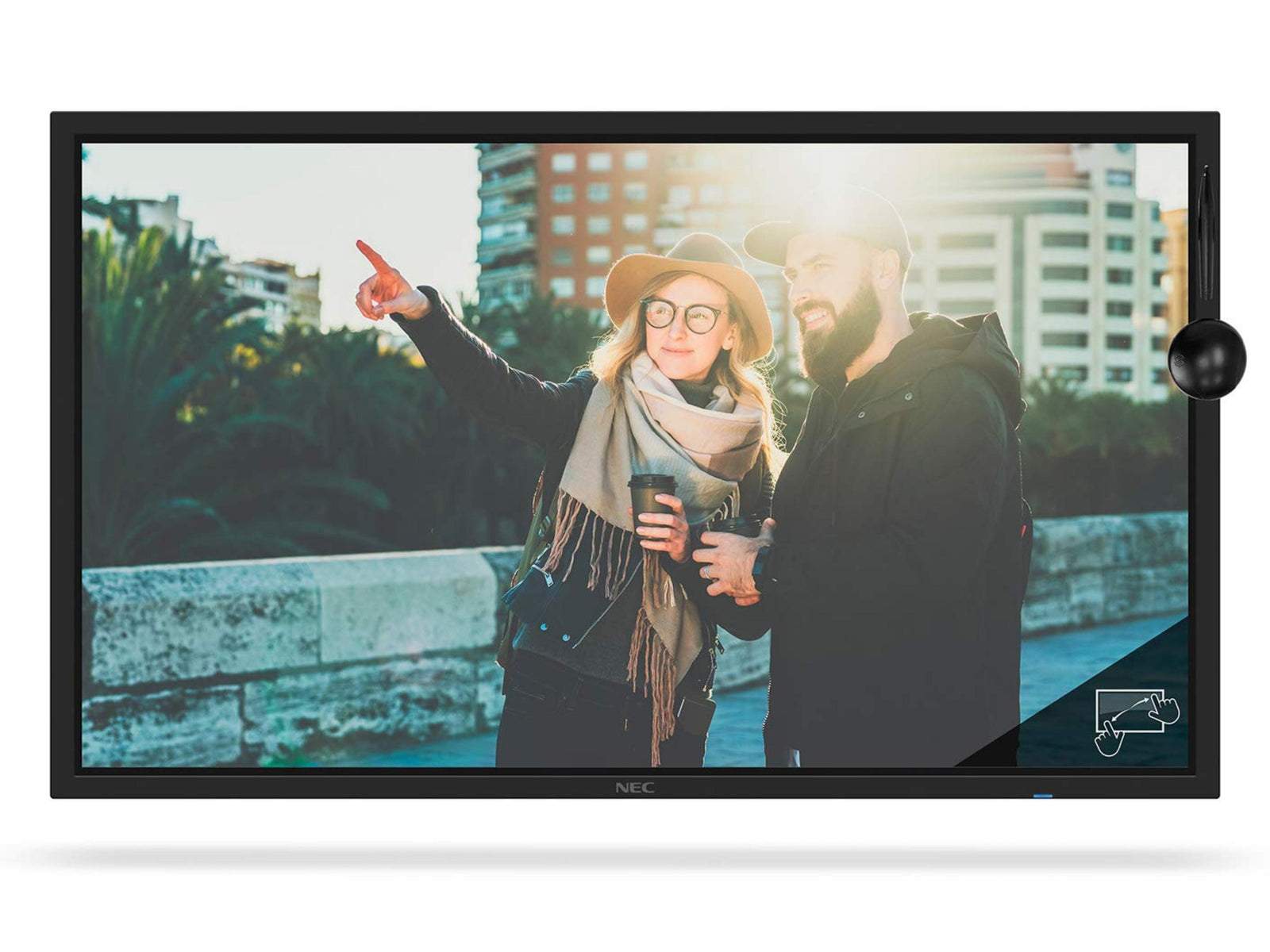

NEC MultiSync® C981Q SST | 60004577 98" Large Format Touch Display
SKU: 60004577
£13,390.41 (Excl. VAT)
Book a Free Product Demo
Remote or on-site. No obligation.
Integrator or Installer?
Trade pricing, volume discounts, same-day collection.
Education & Public Sector Solutions
Exclusive pricing, flexible terms, and dedicated support for schools, universities, NHS, and government organisations.
- Description
- Specifications
- Warranty
-
Give your meeting room a bright new touch
Enhance your meeting and conferencing performance with stunning UHD resolution. Get high-end quality and reliability at a low total cost of ownership, with long life-times.
The ShadowSenseTM Technology gives you the freedom to throw open the blinds and let the daylight enrich your meeting – even in direct sunlight the precise touch interface functions perfectly without ghost touches. Meanwhile, the anti-glare coating minimizes disturbing reflections and helps to eliminate annoying fingerprints on the touch surface. The design of the touch frame brings a modern styling to ShadowSenseTM Touchscreens, whilst the precision pen the user an even better writing experience. Add the Mosaic Canvas software for whiteboarding and sketching capability to deliver the perfect interactive meeting solution. When adding an OPS Slot-in PC, an NEC Soundbar and Huddly Go wide screen camera, your collaborative meeting solution is ready to boost creativity and efficiency in your meeting rooms.
Seamless Touch Integration – work hand-in-hand with multi-touch applications while using the 10 touch points of ShadowSense™ touch technology in real-time collaboration.
Simple Plug & Play – easy set-up without the need to install any drivers on the host PC for all major operating systems.
Avoid Touch Frustration – satisfy users with the highest touch point accuracy, filtering out misleading touch-sizes and avoiding ghost touches even in high ambient light operation.
Intuitive Touch Behaviour – benefit from Windows Ink supported automatic recognition of interactions, whether touch gestures, pen writing or erasing, in MS Office applications.
Future-proof connectivity and processing – enjoy latency-free touch experience with 60 Hz refresh rates at numerous native UHD inputs including the OPS option slot. -
Parameter Value Panel Technology IPS with Direct LED backlights Active Screen Area (W x H) 2,158.9 x 1,214.4 mm Screen Size 98 inch / 248 cm Brightness 350 cd/m² (245 cd/m² in shipment setting) Contrast Ratio 1300:1 Viewing Angle 178° horizontal / 178° vertical (at contrast ratio > 10:1) Colour Depth 1.073 billion (10-bit) Response Time 8 ms (grey-to-grey) Haze Level Pro (28%) Supported Orientation Face Up 1, Landscape, Portrait Touch Technology ShadowSense™ Number of Touches Real multi-touch up to 12 touches Response Time (Touch) 6 to 8 ms Touch Method Finger, Gloves, Stylus (≥ 2 mm) Supported Operating System Native Multi-Touch: Windows 7, 8, 10, Linux, Android; Default Mouse: Windows XP, Vista, Mac OS X Data Interface USB 2.0 (full speed) HID; USB powered, plug & play Accuracy < 2 mm Touch Resolution 12-bit (4096 x 4096) Ambient Light Rejection Up to full sunlight (approx. 100,000 lux) Palm Rejection No Windows Ink Yes Glass Type Premium toughened glass, single-sided anti-reflective coating Glass Thickness 5 mm Light Transmission 92% (+/- 2%) Native Resolution 3840 x 2160 Supported Resolutions 1920 x 1080, 1920 x 2160, 3840 x 2160, 4096 x 2160 Horizontal Frequency 31.5 - 91.1 kHz Vertical Frequency 24 - 85 Hz Input Video Digital 2 x DisplayPort (with HDCP), 3 x HDMI (with HDCP) Input Audio Analogue 1 x 3.5 mm jack Input Audio Digital 2 x DisplayPort, 3 x HDMI Input Control 1 x LAN 100Mbit, 1 x Remote Control (3.5 mm jack), 1 x RS232 Input Data 1 x microSD (MediaPlayer), 1 x USB 2.0 (Downstream), 1 x USB 2.0 (MediaPlayer), 1 x USB Type-B (Upstream), 2 x USB 2.0 (Compute Module, 1 x 5V/2A powered) Output Video Digital 1 x DisplayPort (loop through: DisplayPort, OPS slot-in PC) Output Audio Analogue 1 x 3.5 mm jack Output Control 1 x LAN 100Mbit OPS Slot Slot Technology: Open pluggable specification (NEC / Intel OPS standard) OPS Max. Current / Power 4.7 A / 75 W Compute Module Slot Slot Technology: Compute Module 3 Slot (NEC proprietary standard) Human Sensor Optional, external, 4-5m range, triggered actions programmable Temperature Sensor Integrated, 3 sensors, triggered actions programmable NFC Sensor Integrated, 2 cm range, NEC Android App required Power Consumption Eco: 252 W (shipment setting), Max: 380 W Power Savings Mode < 0.5 W (Networked Standby), < 2 W Power Management VESA DPMS Operating Temperature +0 to +35°C Operating Humidity 20% to 80% Dimensions (W x H x D) Without stand: 2,256.5 x 1,310 x 110.7 mm Weight 152 kg Bezel Width 35 mm (left and right), 35 mm (top and bottom) VESA Mounting 4 holes; 400 x 400 (FDMI), 600 x 400 (FDMI), M8 Ingress Protection IP5x (front), IP2x (back) Supported File Storage/ System MicroSDHC/FAT16, FAT32; USB 2.0/FAT16, FAT32 Supported Image Formats JPG (baseline, progressive, RGB, CMYK); max. resolution 5000 x 5000; PNG (interlace, alpha channel); max. resolution 4000 x 4000 Supported Video Formats MP4/MOV/FLV (video H.264, audio MP3, AAC); max. resolution 1080p at 30 Hz, 1080i at 60 Hz; MPG (video mpeg1/2, audio mpeg audio layer2/3, AAC-LC); MP @ ML, MP @ HL; WMV (video H.264, wmv advanced L3, wmv simple/main, audio mp3 wmv std); max. resolution 1080p at 30 Hz, 1080i at 60 Hz Supported Audio Formats MP3 (MP3); max. bit-rate 320 kBit/s; WAV (LPCM); max. 48 kHz sampling Available Options Soundbar, Speaker (SP-TF1), Trolley (PD03MHA), Wall mount (PDW T XL-2) Compute Module Slot Options NEC Compute Module, Raspberry Pi Compute Module 1 and 3 OPS Slot Options HDBaseT receiver, Intel® Atom, Celeron and Core CPUs, OPS-2C Quad 3G SDI Energy Efficiency Carbon savings meter, ECOMode, Local dimming Special Characteristics 12-bit Look Up table, AMX NetLinx Support, ASCII Control Commands, Auto ID assignment, Auto tiling function, Automated Email Alert, CEC Support, Cisco Webex Kit compatible, Crestron Connected Support, DICOM Simulation, Display Browser Control, Emergency Notification, HDMI with UHD at 60 Hz, HDR Gamma Support (HLG, PQ), KeyGuide, MediaPlayer with Browser Control, NaViSet Administrator 2, OmniColor Control, OSD rotation for portrait mode, PIN as theft protection, PJLink Support, Powered USB-Port, Scheduler, Slim LED Indicator, SNMP Support, TileMatrix (10 x 10), User readable log function Colour Versions Colour variations available on request Safety and Ergonomics CE, EMC Class B, RoHS Pixel Failure Class ISO 9241-307, Class 1 Audio Integrated Speakers (10 W + 10 W), Optional Speakers (15 W + 15 W) Shipping Content CD-ROM (User Guides/Manuals), Display, DisplayPort Cable, Pen and Eraser, Remote Control, USB cable Warranty Optional 4th and 5th-year warranty extension Operating Hours 24/7 -
In Warranty Support
Warranty Period 36 Months
Contact: NEC Display Solutions
Tel. No. 01952 237003
Email uklcdservice@emea.nec.com
Manufacturers Website http://www.nec-display-solutions.co.ukNEC deal with all your AfterCare requirements for the product you have purchased, they can help with technical queries and offer advice.
Please contact them direct.
You will need the following information to hand:
* Customer Name
* Email Address
* Product Model Number
*Proof of Purchase
* Serial Number
* Details of the fault
* Any permanent security markings?
* Any physical damage?
* Any non-NEC repair or modi?caon?
Once provided NEC will be able to issue a return and provide a replacement if required.
If you have any questions or would like further advise, please feel free to contact our AfterCare Team (ACE) on 02081 919223 / who will be happy to assist
3 Year On-Site Warranty. Please contact NEC for full Ts & Cs (exclusions apply).
