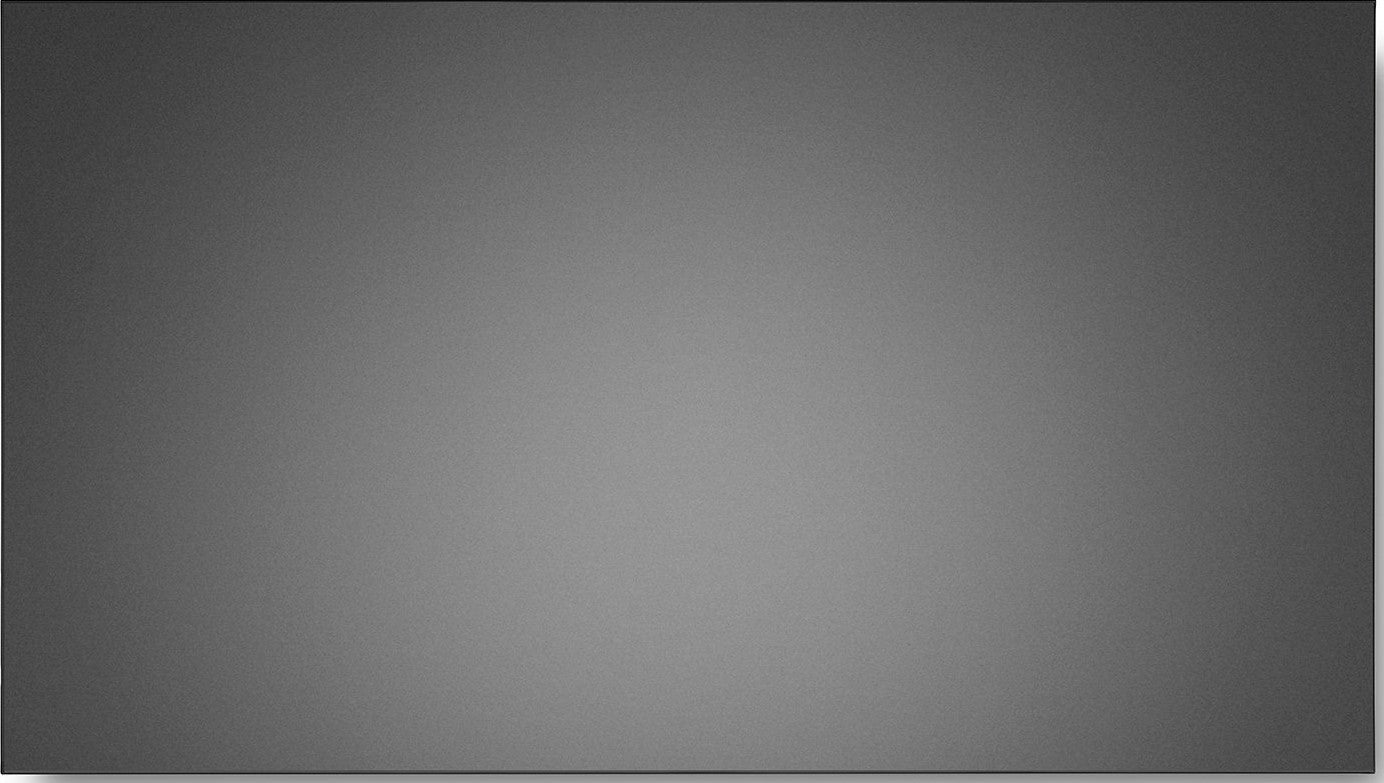

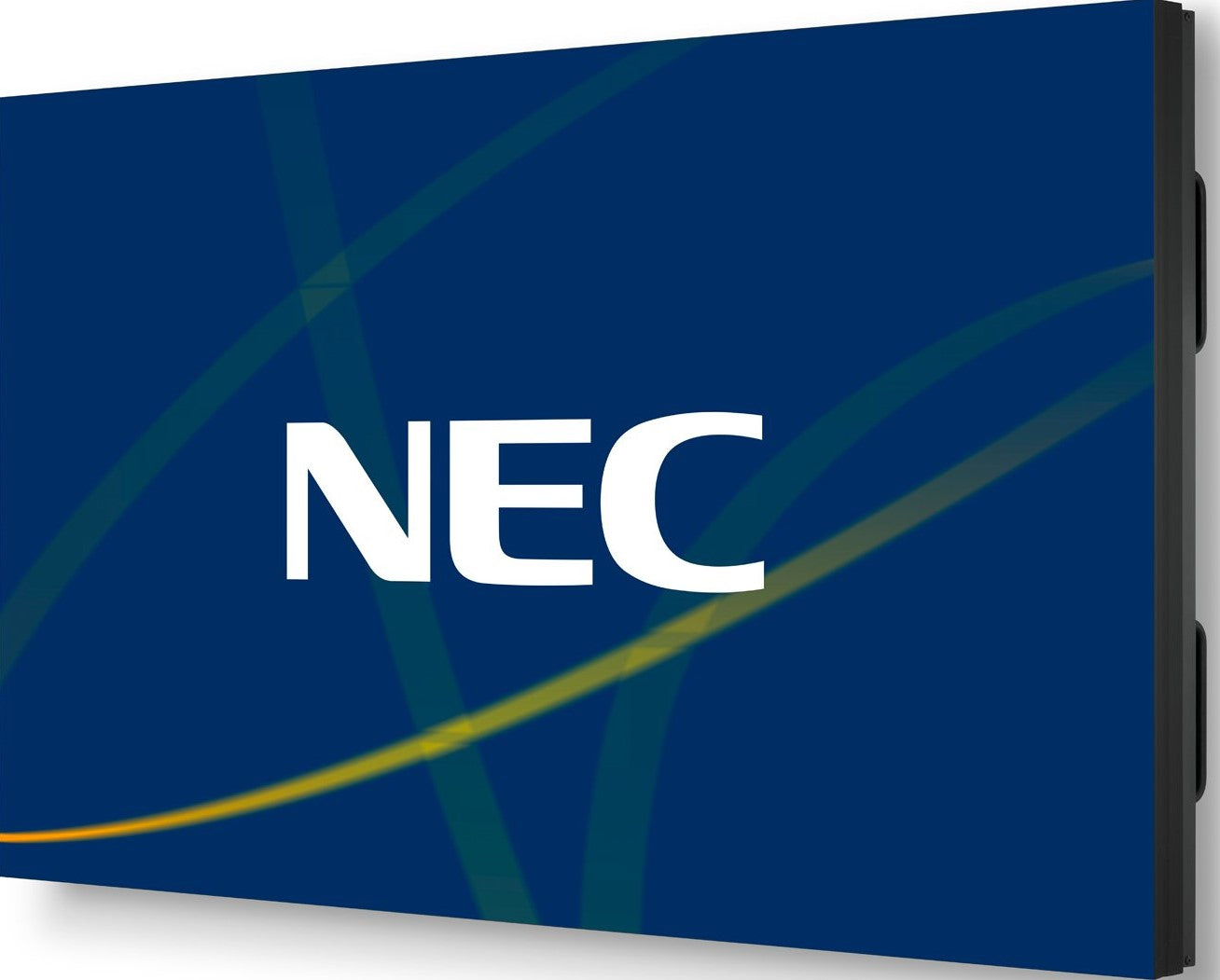

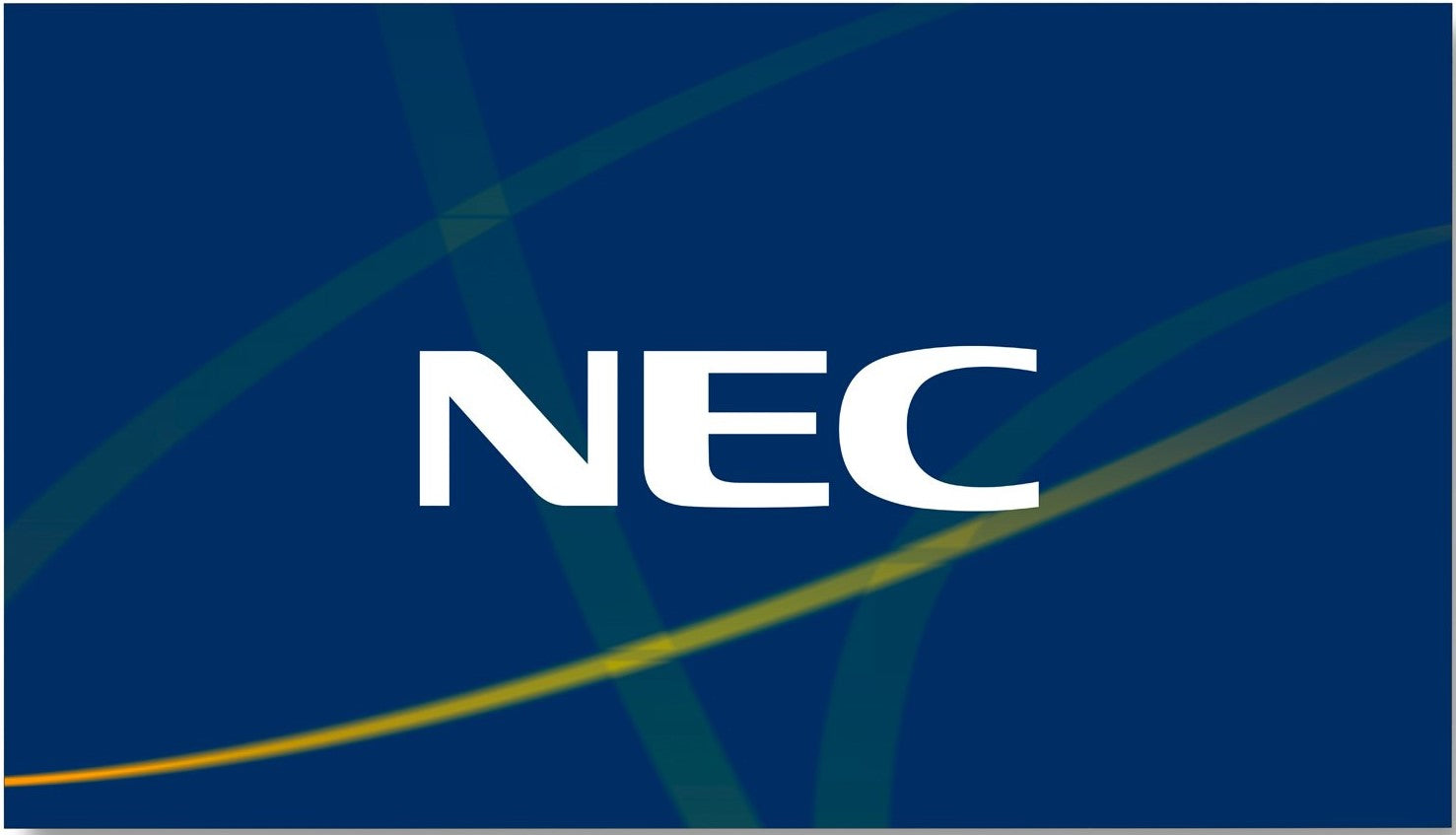

NEC MultiSync UN552S LCD 55" Full HD Video Wall Display
Bring your walls to life
For the most engaging and creative visual experiences, the 55” Multisync® UN552S video wall display offers better image quality, easier installation and a reliable longer-lasting performance.
Installation and operation becomes so simple as powerful calibration capabilities provide compelling picture performance throughout the display’s entire lifetime. Tune picture attributes according to your specific application needs and create a single image across multiple displays. With a combined adjoining bezel of just 0.88mm, the holistic video wall experience offers an expansive digital canvas with barely noticeable interruption. The 700cd/m² display brightness and an anti-glare surface delivers the best readability with no annoying reflections even in bright ambient light conditions.
Attracting shoppers in retail malls, entertaining museum-goers or presenting menu choices, these large modular displays, in different shapes and formations, get your content noticed.
Benefits
Easy installation – effortlessly set up you wall display with Auto TileMatrix and out-of-the-box calibrations. Save time by plugging in ready-to-use image presets for predefined application scenarios.
Enhanced imaging performance – advanced settings of all relevant visual parameters allow full control of brightness, colour, gamma and uniformity via the SpectraView Engine for precise, natural images.

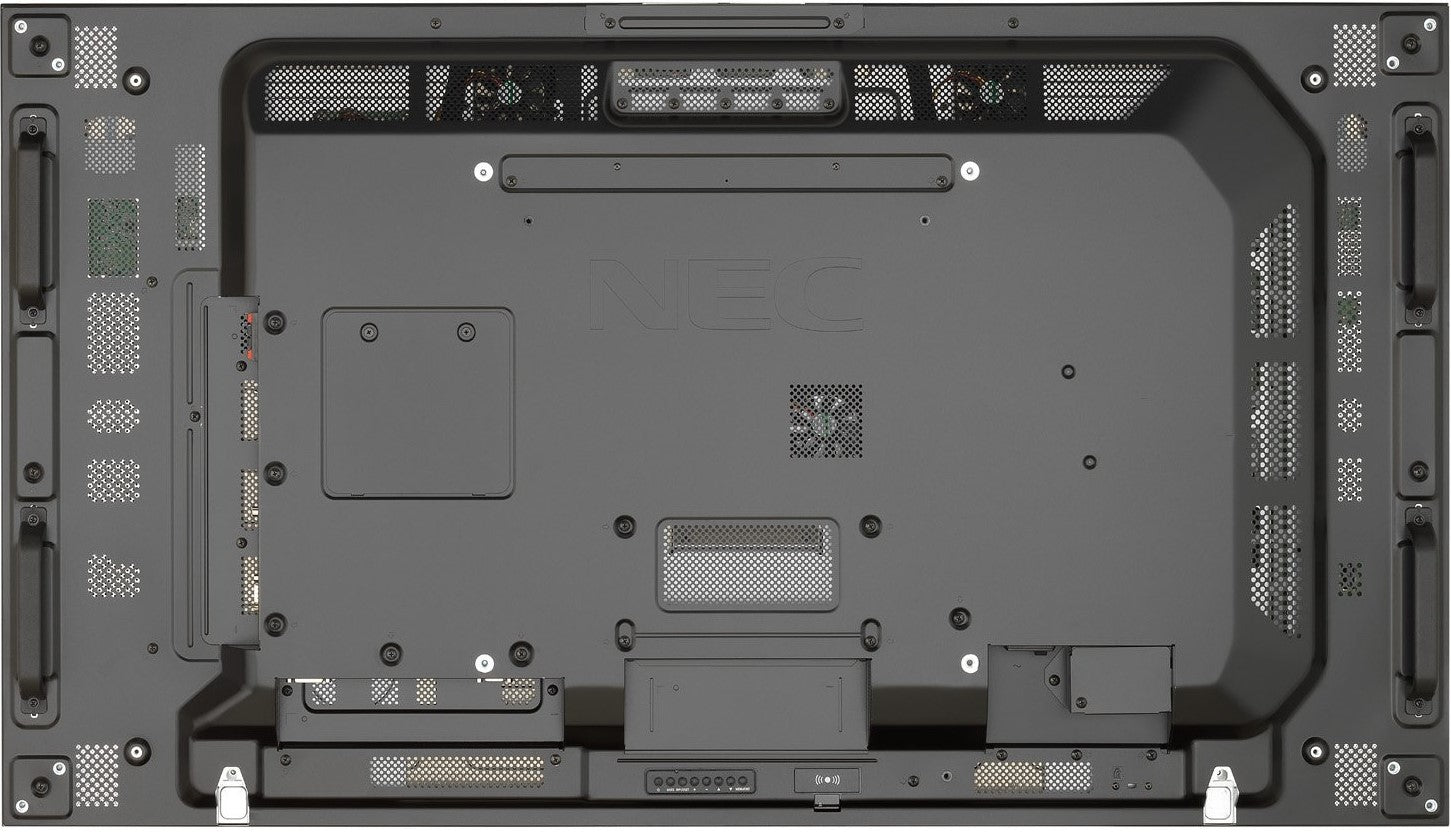

Secure Reliability and Longevity of Video Walls – unique NEC heat management system enables the user to monitor and control the heat inside the display.

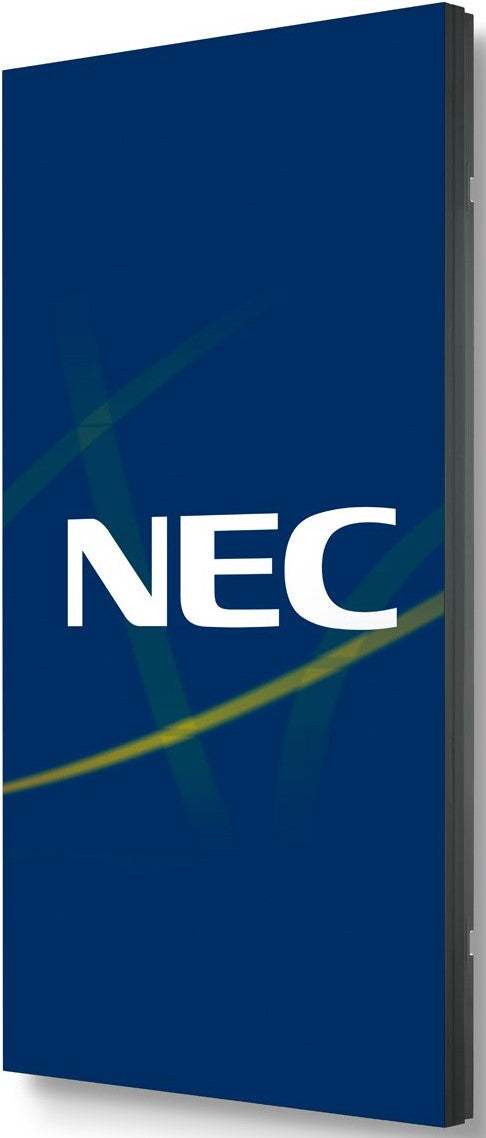

Lifelike and consistent colour – expect colour reproduction that feels true to life with IPS panel technology, the top choice when it comes to colour consistency. The S-IPS panel ensures that perfect visibility is maintained in landscape and portrait mode and at extreme viewing angles as viewers pass by.
Smart media integration – seamlessly integrate the media source of your choice into the video wall display. Use the wide range of NEC’s OPS Slot-in PCs, and Raspberry Pi compute modules, for content feed and computing. -

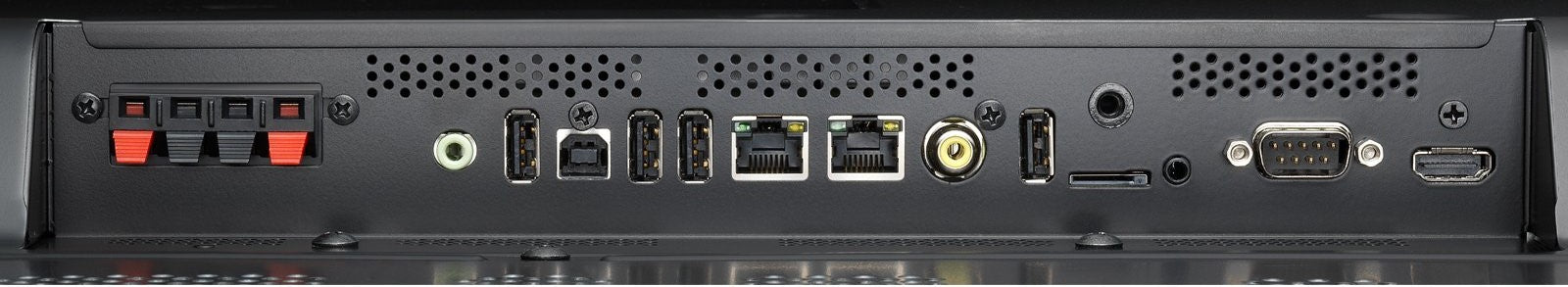

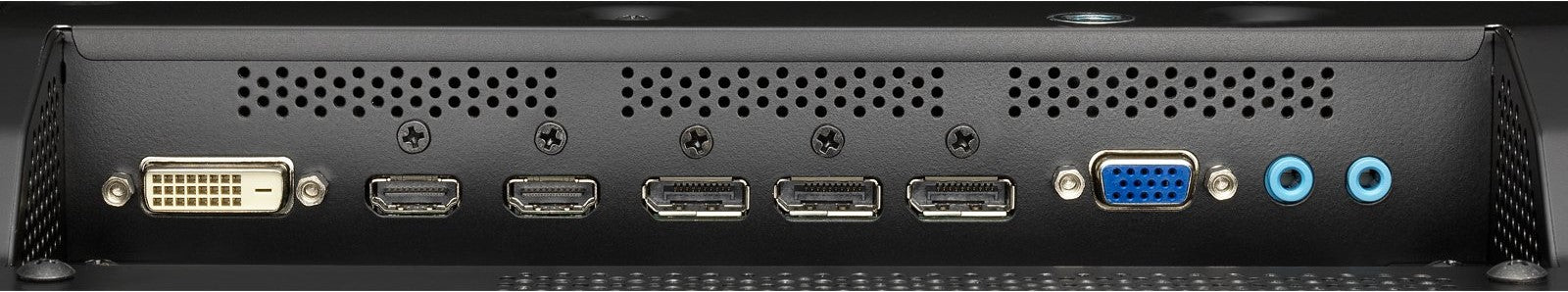

DISPLAY Specifications Panel Technology S-IPS with Direct LED backlights Active Screen Area (W x H) [mm] 1,209.63 x 680.34 Screen Size [inch/cm] 55 / 138.8 Aspect Ratio 16:9 Pixel Pitch [mm] 0.630 Brightness [cd/m²] 700 Contrast Ratio (default) > 1700:1 Viewing Angle [°] 178 horizontal / 178 vertical (typ. at contrast ratio 10:1) Colour Gamut 72% of NTSC Response Time (typ.) [ms] 8 Panel Refresh Rate [Hz] 60 Haze Level [%] Pro (28) Supported Orientation Landscape; Portrait RESOLUTION Native Resolution 1920 x 1080 Supported on DisplayPort and HDMI See detailed list Supported on HDMI only 1080i (50/60 Hz) SYNCHRONISATION RATE Horizontal Frequency [kHz] 26 - 134 Vertical Frequency [Hz] 23 - 86 CONNECTIVITY Input Video Analogue 1 x VGA; Composite (RCA) Input Video Digital 1 x DVI-D (with HDCP); 1 x OPS Slot; 2 x DisplayPort; 2 x HDMI Input Audio Analogue 2 x 3.5 mm jack Input Audio Digital 2 x DisplayPort; 2 x HDMI Input Control 1 x Remote Control; 1 x RS232; 2 x LAN 100Mbit Input Data See detailed list Output Video Digital 1 x DisplayPort; 1 x HDMI Output Audio Analogue 1 x 3.5 mm jack Output Control LAN 100Mbit CALIBRATION Factory Calibration Gamma; Intensity; RGB; Uniformity; White Point Sensor Calibration (through USB) PC-less Calibration with USB Sensor; White Copy Calibration with Software Corner Uniformity; Gamma; Intensity; RGB; Update Factory Calibration Calibration Software NEC Display Wall Calibrator OPEN MODULAR INTELLIGENCE OPS Slot Slot Technology: Open pluggable specification (NEC / Intel OPS standard) Compute Module Slot Slot Technology: Compute Module 3 Slot (NEC proprietary standard) SENSORS Human Sensor Optional, external, 4-5m range Temperature Sensor Integrated, 3 sensors NFC Sensor Integrated, 2cm range ELECTRICAL Power Consumption [W] 165 shipping; 420 (max.) Power Savings Mode [W] < 0.5; < 2 (Networked Standby) ENVIRONMENTAL CONDITIONS Operating Temperature [°C] +0 to +40 Operating Humidity [%] 20 to 80 Storage Humidity [%] 10 to 90 Storage Temperature [°C] -20 to 60 MECHANICAL Dimensions (W x H x D) [mm] Without stand: 1,210.5 x 681.2 x 98.6 Weight [kg] Without stand: 25.8 Bezel Width [mm] 0.44 bottom/right; 0.44 top/left; 0.88 VESA Mounting [mm] 4 holes; 400 x 400 (FDMI); M6 MEDIAPLAYER Supported Formats See detailed list AVAILABLE OPTIONS Accessories See detailed list Compute Module Slot Raspberry Pi Compute Module 1 and 3 OPS Slot Intel® Atom, Celeron and Core i3, i5, i7 Slot-in PCs GREEN FEATURES Energy Efficiency Carbon savings meter; Energy consumption: 209 kWh/1000 h ADDITIONAL FEATURES Special Characteristics Auto ID assignment; Auto tiling function; DICOM Simulation; USB Media Player; etc. Colour Versions Black Front Bezel, Black Back Cabinet Safety and Ergonomics Various certifications Audio Optional Speakers (15 W + 15 W) Plug and Play VESA DDC/CI Shipping Content Display; Cables; Power Cable Warranty 3 years warranty incl. backlight; additional services available Operating Hours 24/7 -
In Warranty Support
Warranty Period 36 Months
Contact: NEC Display Solutions
Tel. No. 01952 237003
Email uklcdservice@emea.nec.com
Manufacturers Website http://www.nec-display-solutions.co.ukNEC deal with all your AfterCare requirements for the product you have purchased, they can help with technical queries and offer advice.
Please contact them direct.
You will need the following information to hand:
* Customer Name
* Email Address
* Product Model Number
*Proof of Purchase
* Serial Number
* Details of the fault
* Any permanent security markings?
* Any physical damage?
* Any non-NEC repair or modi?caon?
Once provided NEC will be able to issue a return and provide a replacement if required.
If you have any questions or would like further advise, please feel free to contact our AfterCare Team (ACE) on 02081 919223 / who will be happy to assist
3 Year On-Site Warranty. Please contact NEC for full Ts & Cs (exclusions apply). -
