NEC P601Q Professional DLP 4K UHD Laser Projector - 6000 Lumens

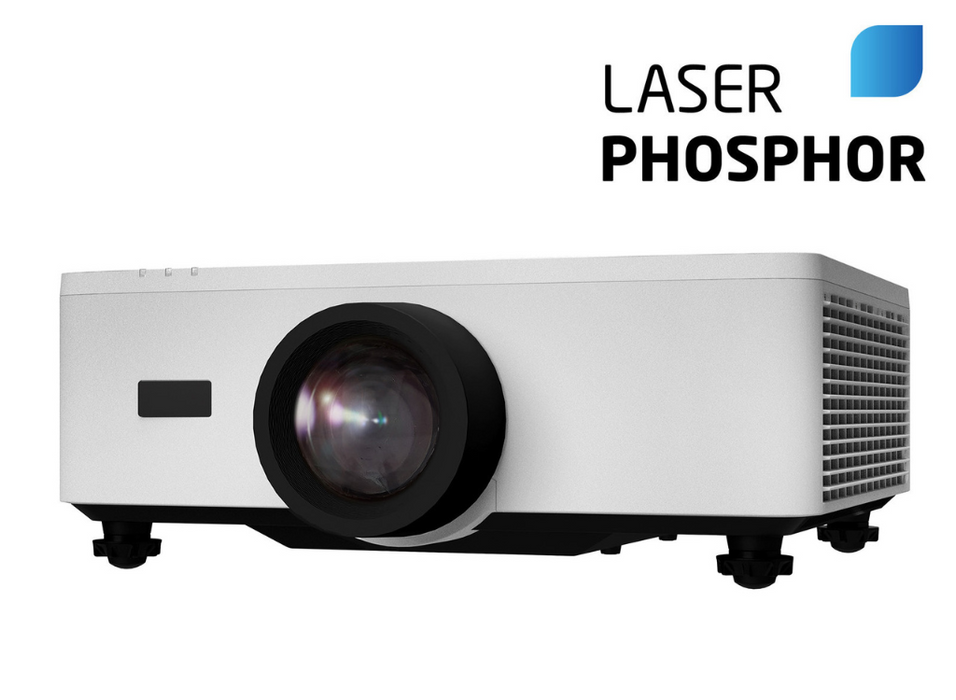

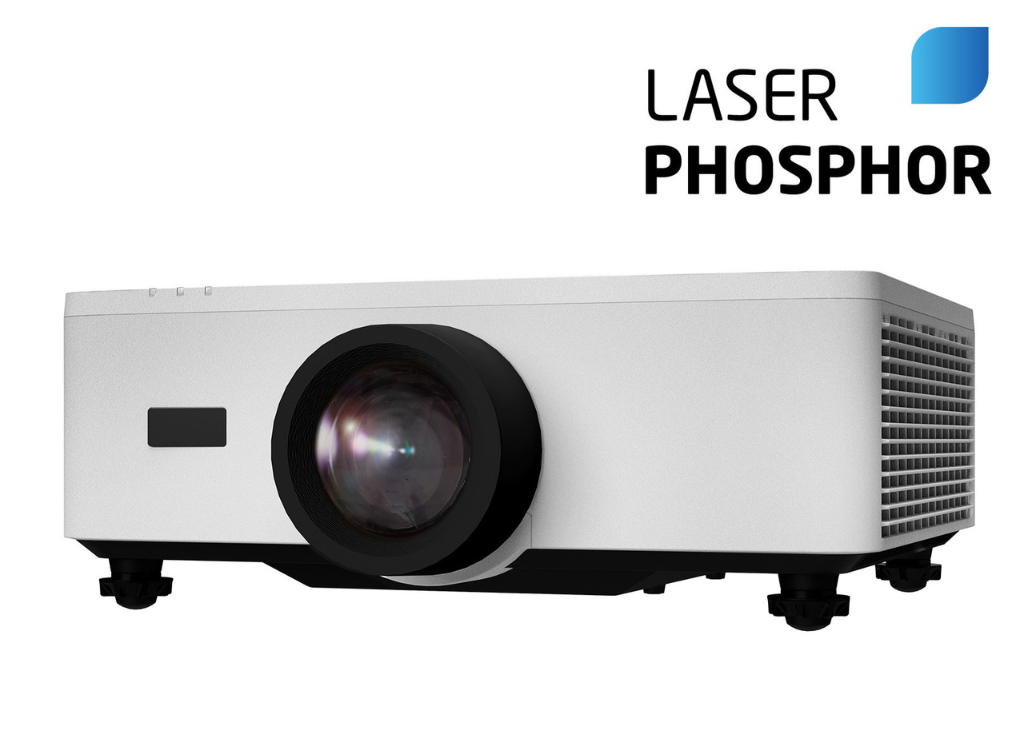

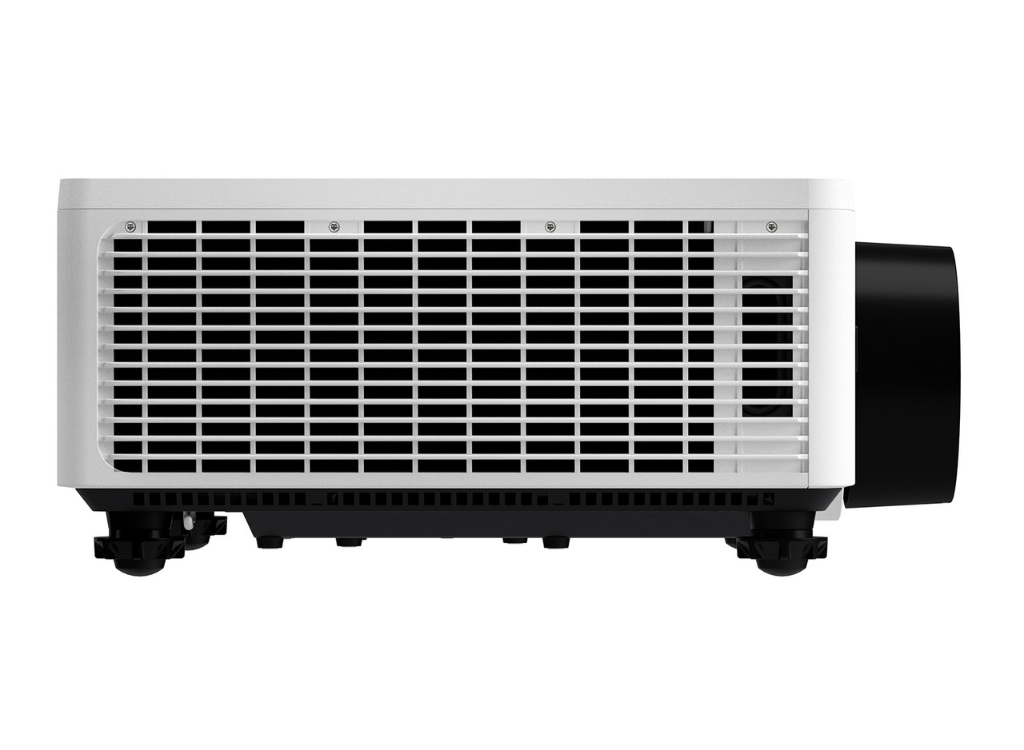

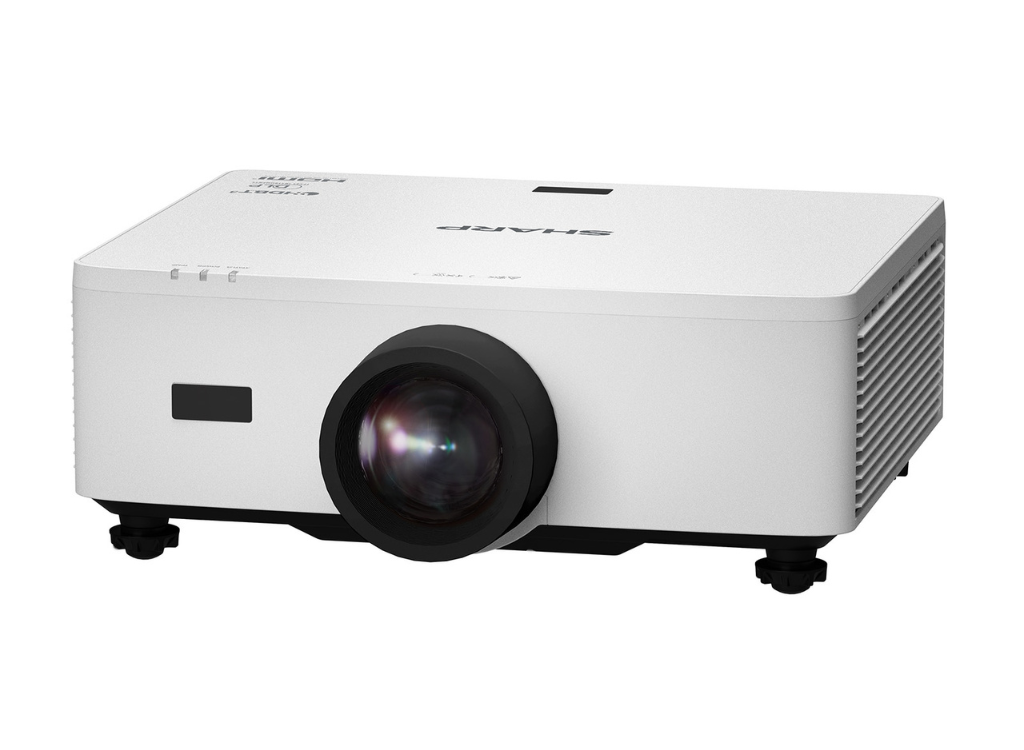

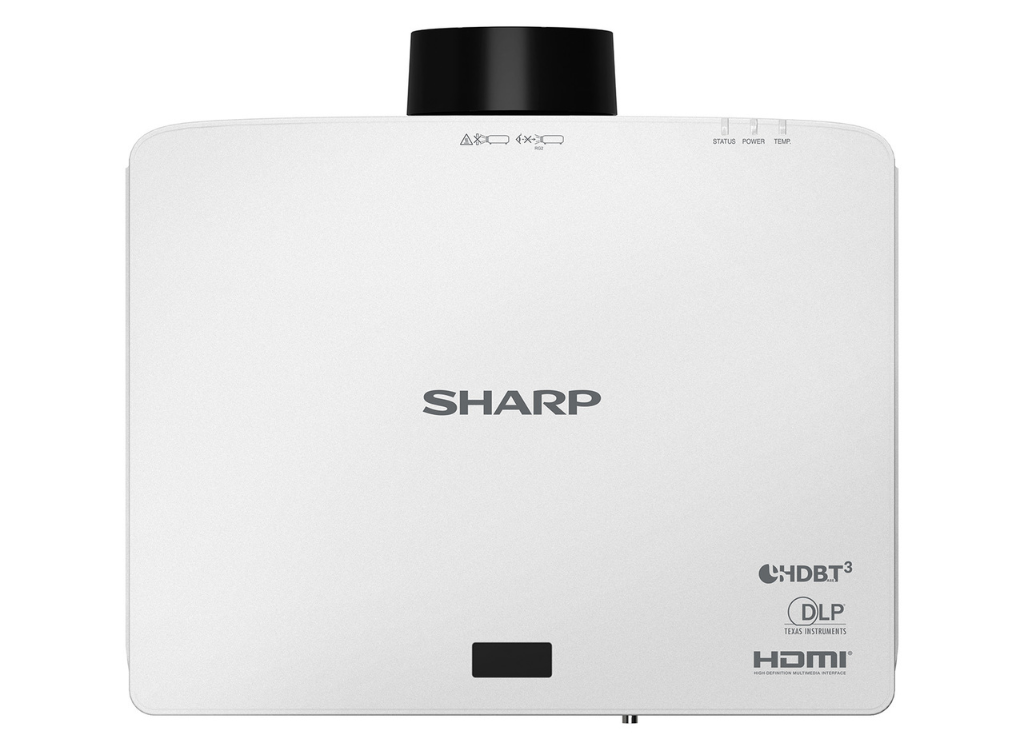

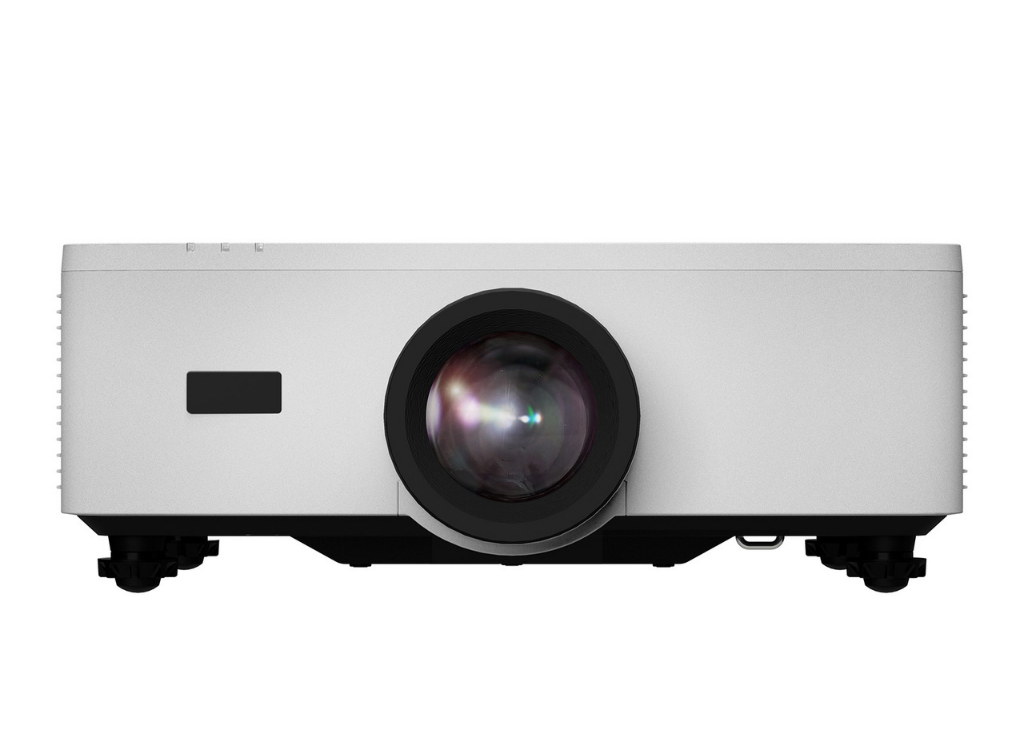

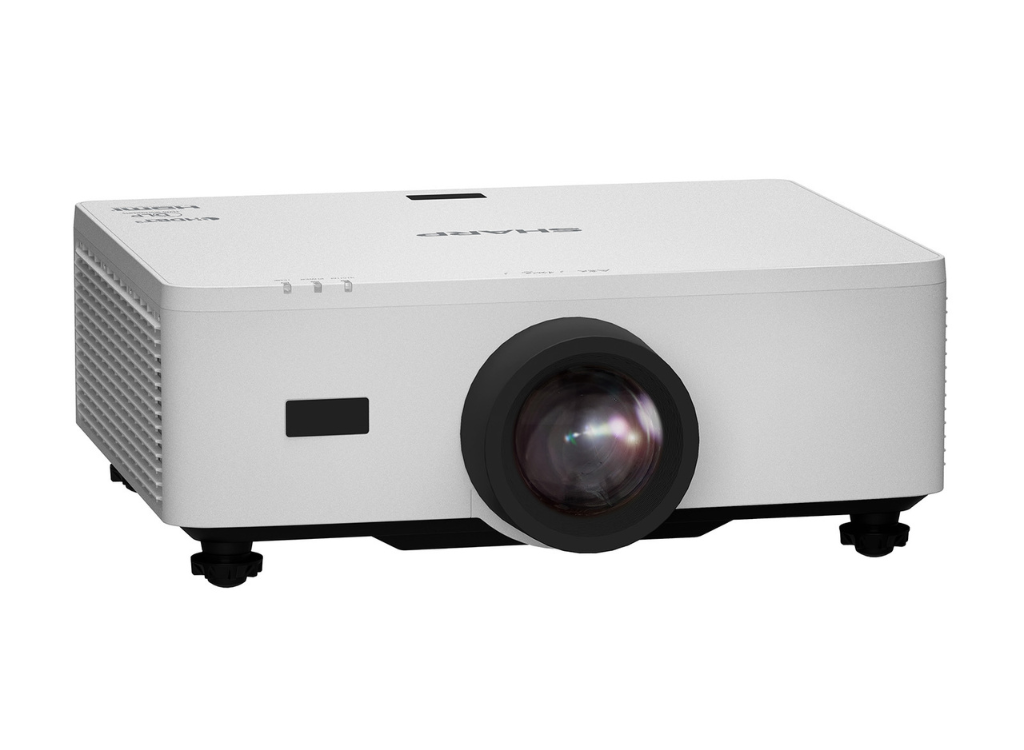

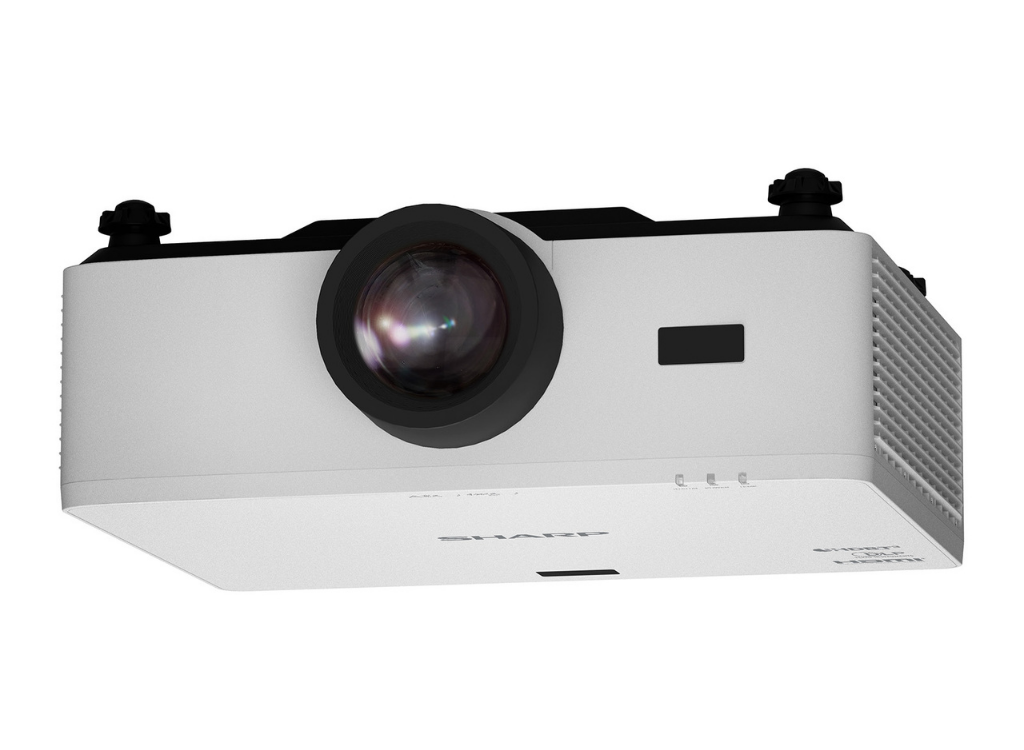

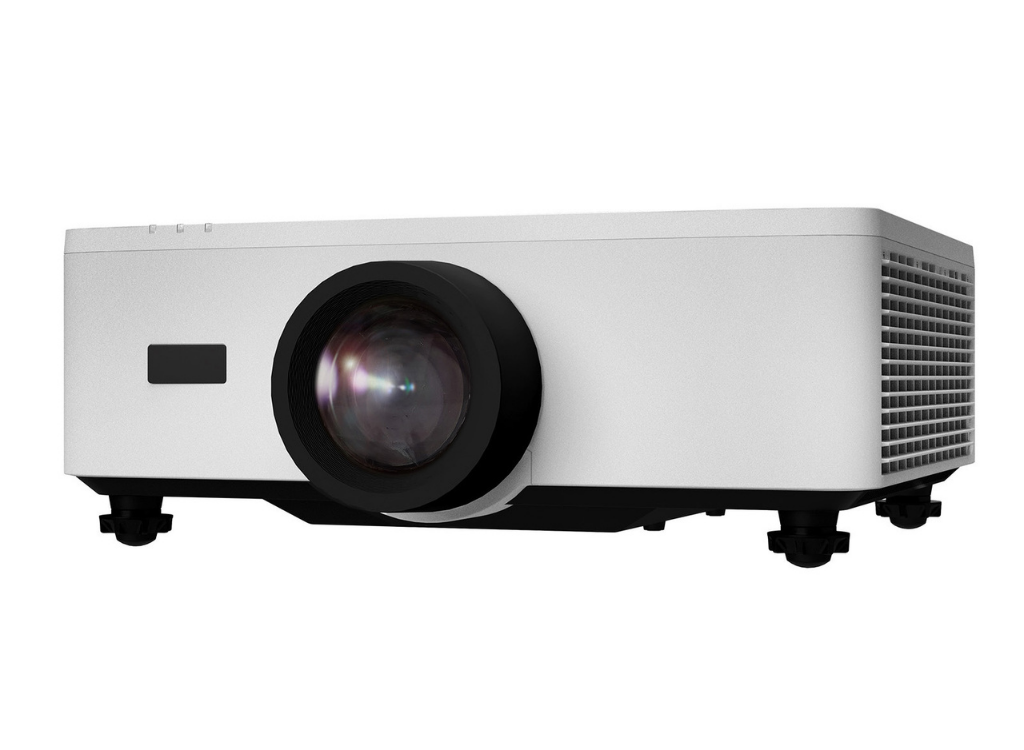

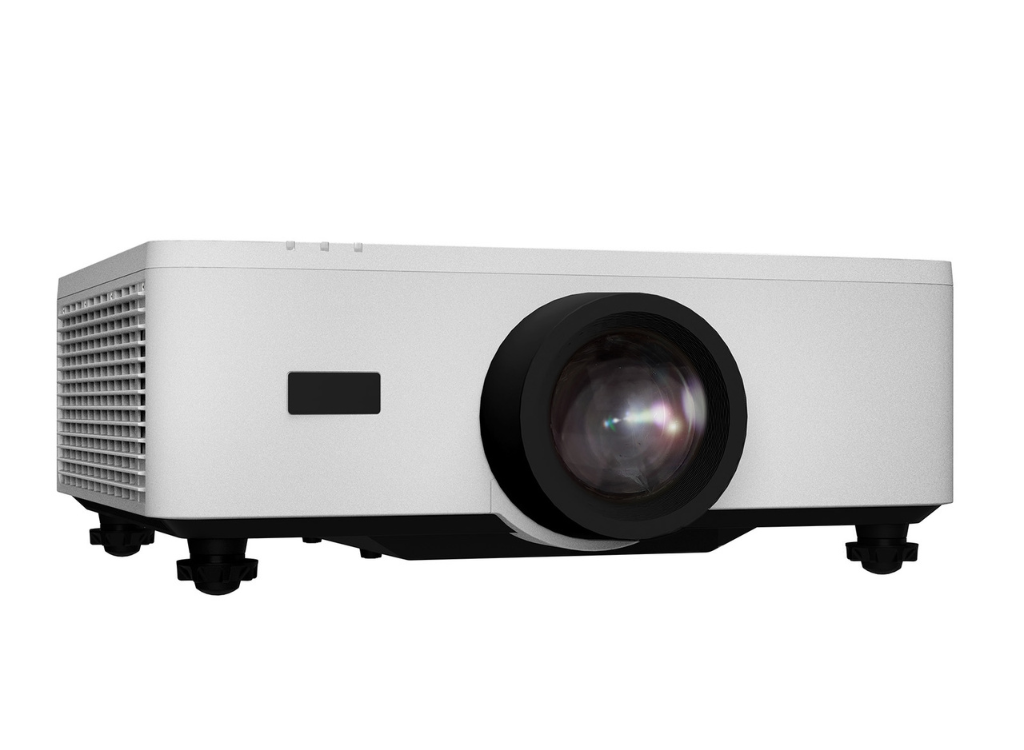

Sharp P601Q 4K UHD projector
Featuring crisp pixel-free 4K UHD image resolution and brightness of 6,000 ANSI lumen, the Sharp P601Q laser projector delivers exceptional image quality in perfect detail-rich clarity. Rooted in NEC’s legacy of quality and projection expertise, the new Sharp-branded DLP projection family is redefining large surface visual experiences in meeting rooms, museums, and higher education establishments.
Requiring zero maintenance over a long 20,000-hour lifespan, the sealed optical engine and laser light source means filter and lamp replacement is obsolete. Professional installation capabilities achieve the finest image alignment through motorized zoom and focus, complemented by a fully motorized lens shift for precision and clarity. Highly versatile, it’s easy to position the projector, simplifying installations and potentially reducing setup costs. With Risk Group 2 compliance, the new models eliminate the need for prescribed safety precautions, ensuring a safe and worry-free operating environment.
Benefits
Outstanding picture quality – a whole new visualization experience with up to 4K UHD pixel-free resolution for large surface detail-rich information
IP5X rated optical engine – protects against dust ingress for long lasting picture quality
Advanced Colour Sequence Management – eliminates the colour breaking phenomena
Professional and Flexible Installation – versatile projection characteristics allow for simple positioning of the projector, making installation easy and potentially saving set up costs.
No lamp replacement – up to 20,000 h maintenance free operation possible due to Laser Light Source.
-
| Feature |
Details |
| Projection Technology |
1-chip DLP™ Technology |
| Panel Resolution |
1920 x 1080 (FHD) |
| Resolution |
3840 x 2160 (4K UHD) |
| Aspect Ratio |
16:9 |
| Contrast Ratio |
3000000:1 |
| Brightness |
6000 Lumen (approx. 60% in Eco Mode) |
| Lamp |
Laser Light Source |
| Light Source Life [hrs] |
20000 hours |
| Lens |
F= 2–2.4, f= 18.72–29.59 mm |
| Lens Adjustment |
Motorized |
| Lens Shift |
H: ±25, V: +55, -55 |
| Keystone Correction |
+/- 40° manual horizontal/ +/- 40° manual vertical |
| Projection Factor |
1.25 – 2: 1 |
| Projection Distance [m] |
1.6 – 13.4 |
| Screen Size [cm/inch] |
Max: 1270 / 500"; Min: 101.6 / 40" |
| Zoom |
Motorized; x1.6 |
| Focus Adjustment |
Motorized |
| Supported Resolutions |
3840 x 2160 (Maximum resolution of digital input) |

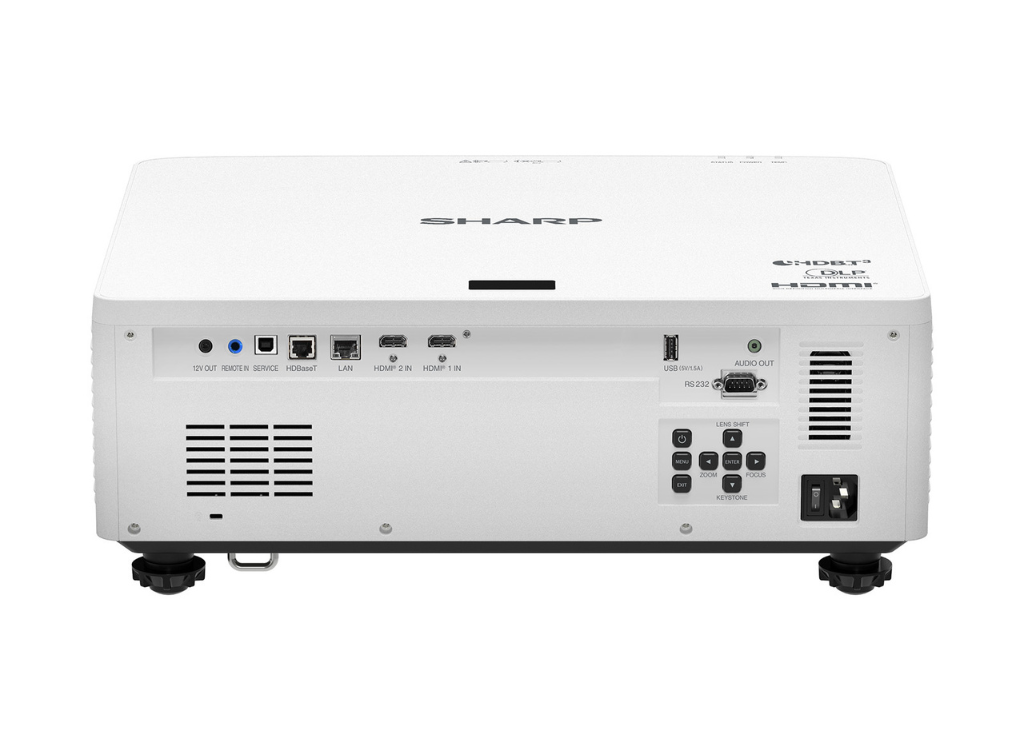

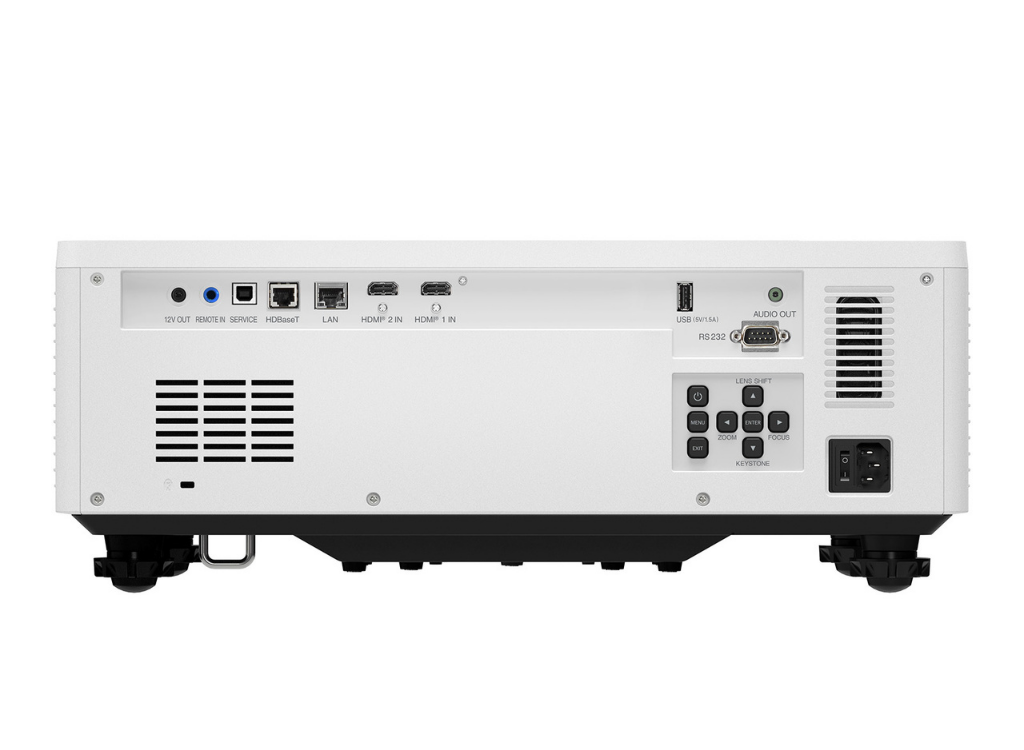

| LAN |
1 x RJ45 |
| USB |
1 x Type B (for Service); 1x Type A (USB 2.0 high speed) |
| Power Supply |
100-240 V AC; 50 - 60 Hz |
| Power Consumption [W] |
520 (Normal), 280 (Eco), 2 (Network Stand-by) |
| Dimensions [mm] |
486 x 176 x 432.5 (without lens and feet) |
| Weight [kg] |
14.7 |
| Fan Noise [dB (A)] |
34 / 36 (Eco / Normal) |
| Speakers [W] |
2 x 10 (mono) |
| Warranty |
3 years pan-European service, 3 years or 10000h for light source |
-
