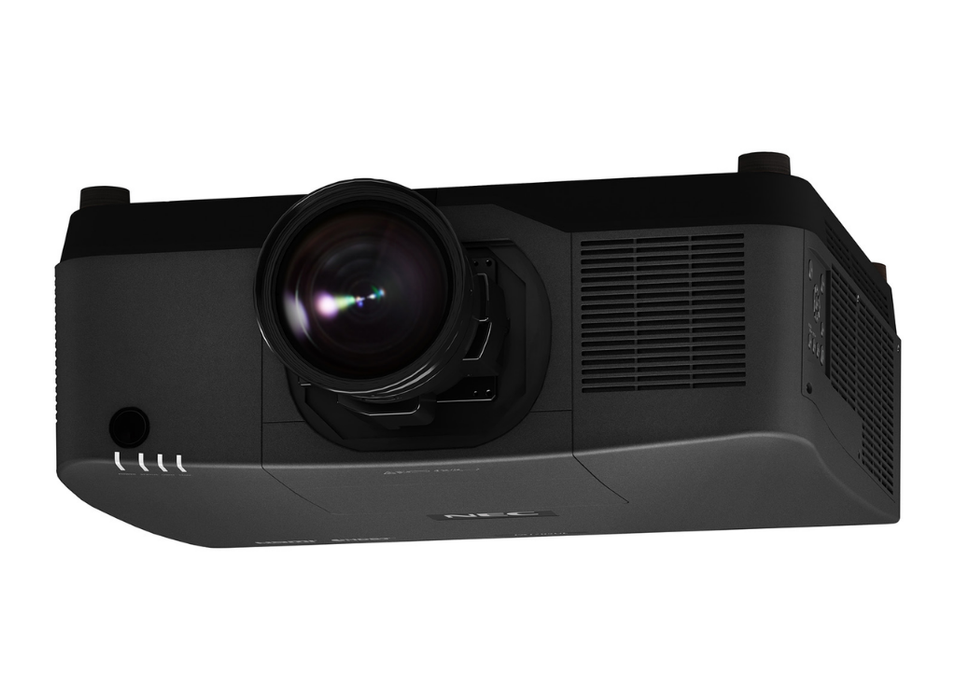

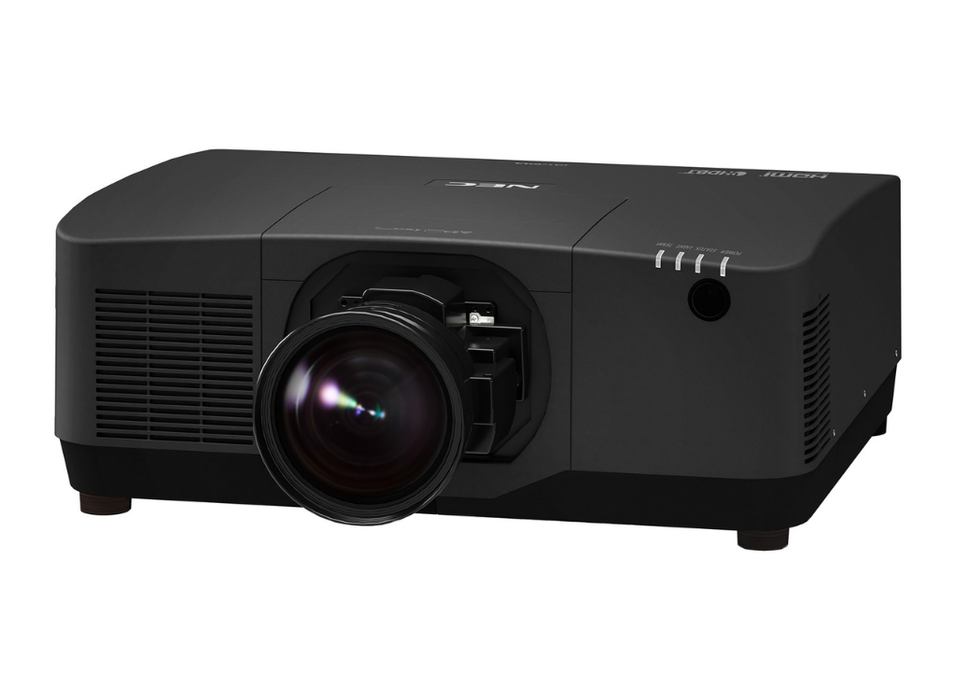

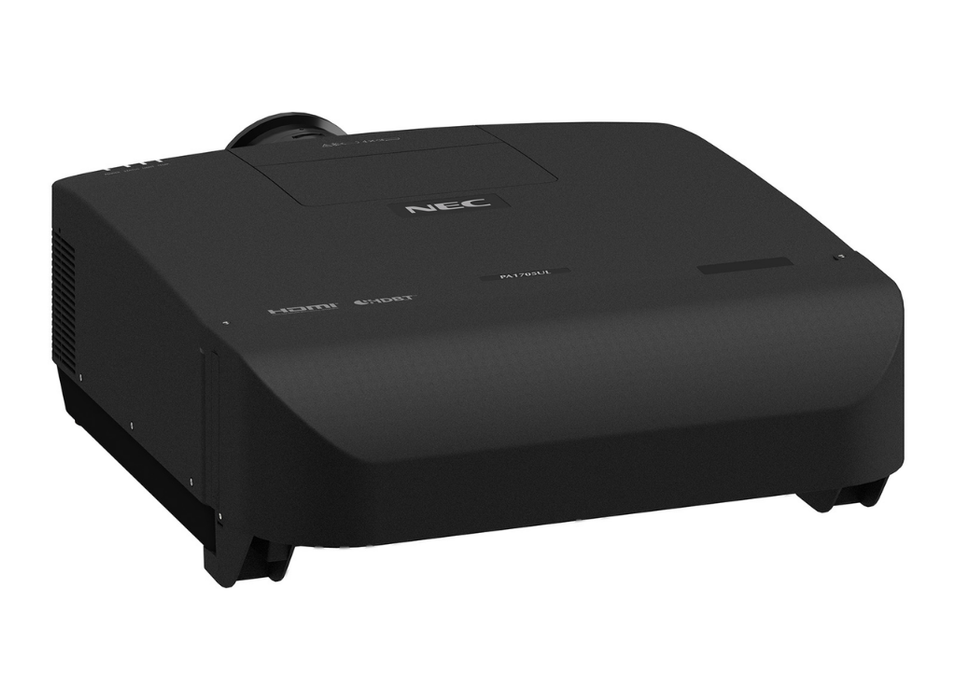

NEC PA1705UL Professional Advanced LCD Laser Installation Projector, Black | 16000 Lumens

SKU: 60005932
Part Number: 60005932
Condition: Brand New
Purchase Orders Accepted
Sold out

£11,435.00 (Excl. VAT)

Current price - £13,722.00 (Inc. VAT)
£11,435.00 - £11,435.00
Current price- - £13,722.00
Availability:
Out of stock

payment-icons

Bulk Price & Price Match Request

Contact our expert sales team on 020 8191 9223 for best price and dedicated assistance.

Educational & Public Sector Prices Available

For more details, please call us at 020 8191 9223 or email us at info@screenmoove.com

  • Description
  • Specifications
  • Downloads
  • NEC PA1705UL Professional Advanced LCD Laser Installation Projector, Black | 16000 Lumens

    A new class of bright projection

    Now even larger spaces can benefit from Sharp/NEC’s innovation in silent technology with the 17,000 center lumens PA1705UL laser projector, ensuring all attention is focused on the stunning image delivery.

    Featuring unprecedented White Point performance, factory pre-calibrated for the perfect white, 12-bit colour signal processing and wide colour space, the audience will experience extraordinarily vivid colour saturation and contrast levels.

    The enhanced sealed optical engine allows a filter-free design, IP5X rated against dust ingress - no possibility of dust contaminating the LCD panels for long-term picture stability and brilliant colour brightness. What’s more, with our filterless LCD projector design and no lamp replacement, service costs are dramatically reduced for a low cost of ownership and up to 20,000 hours life-time.

    Sharp/NEC customers can easily make the transition to benefit from the latest laser technology. The PA1705UL is a professional installation projector featuring advanced installation capabilities as demanded by higher education, leisure and museum applications.


    Benefits

    No lamp replacement – up to 20,000 h maintenance free operation possible due to Laser Light Source.

    No filter service required – the enhanced sealed optical laser LCD engine allows a filter-free design, IP5X rated against dust ingress. Brilliant colour brightness is maintained and servicing costs need no longer feature in your budget

    Compact design – a large venue projector with a comparatively small footprint and light weight design.

    Impress with vivid colour & contrast – brilliant white and wide colour space with high dynamic contrast supporting HDR10 standard via HDMI interface.

    Incredible visualisation capabilities – impressive free tilt and portrait installation capability, unique geometric adjustment, picture in picture, tiling and camera based blending.

  • Category Details
    Projection Technology 3LCD Technology
    Native Resolution 1920 x 1200 (WUXGA)
    Aspect Ratio 16:10
    Contrast Ratio 3000000:1
    Brightness 16000 Lm / 17000 Lm Center; compliant with ISO21118-2012
    Lamp Laser Light Source
    Light Source Life [hrs] 20000
    Lens 6 motorized lens options
    Lens Adjustment Motorized
    Lens Shift Up to H:±25, V:+65,-65
    Keystone Correction +/- 40° manual horizontal / +/- 30° manual vertical
    Projection Factor Depending on lens selection (std. option NP54ZL at 1.25-2.01:1)
    Projection Distance [m] 0.68 – 80.77
    Screen Size (diagonal) [cm]/[inch] Maximum: 1,270 / 500"; Minimum: 152 / 60"
    Zoom Motorized
    Focus Adjustment Motorized
    Supported Resolutions 1080i/50/60; 1080p/24/25/30/50/60; Various resolutions from VGA to 4k
    Frequency Horizontal: analog: 0-0 kHz, digital: 15/24-153 kHz; Vertical: 24 – 120 Hz

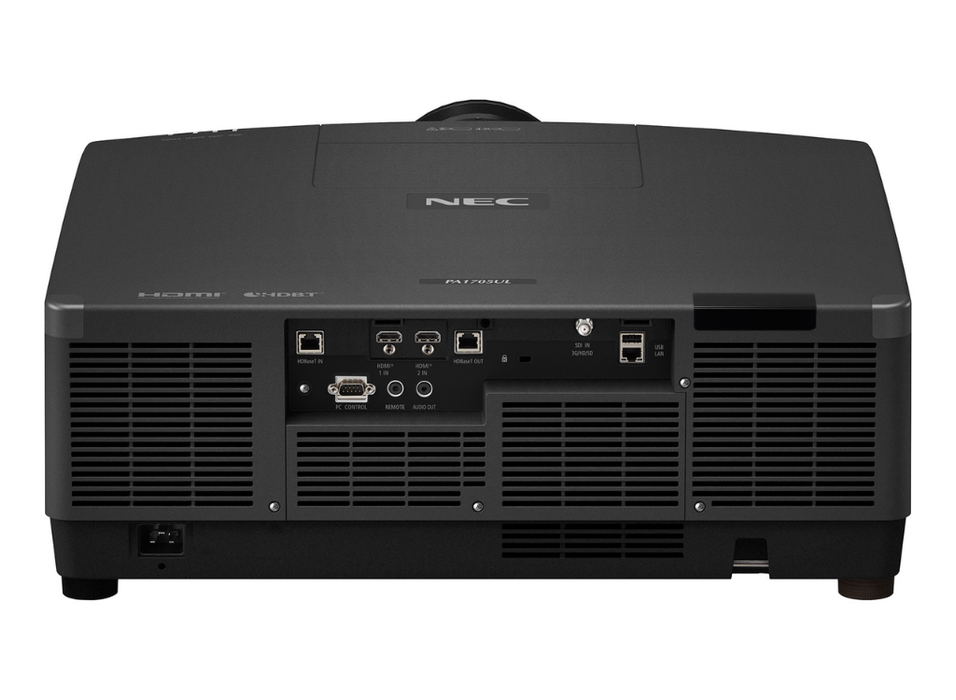

    Digital Connectivity Inputs: 1 x 3G-SDI, 1 x HDBaseT, 2 x HDMI™; Output: 1 x HDBaseT
    Audio Inputs: HDBaseT, HDMI; Output: 3.5 mm Stereo Mini Jack
    Control Inputs: 3.5 mm Jack, D-Sub 9 pin (RS-232), Ethernet
    LAN 1 x RJ45
    USB 1 x Type A (USB 2.0 high speed)
    Remote Control Functions Audio Control, Digital Zoom, Geometric Correction, etc.
    Power Supply 100-240 V AC; 50 - 60 Hz
    Power Consumption [W] 995 Normal / 825 Silent Mode / 0,5 Network Stand-by / 2,0 Stand-by
    Dimensions (W x H x D) [mm] 599 x 238 x 490 (without lens and feet)
    Weight [kg] 28.7
    Fan Noise [dB (A)] 43 / 37 (Normal / Silent)
    Colour Versions Black; White
    Operating Conditions Temperature: 0 to 40°C; Humidity: 20 to 80% non-condensing
    Storage Conditions Temperature: -10 to 50°C; Humidity: 20 to 80% non-condensing
    Safety and Ergonomics CE, EAC, ErP, RoHS, TUEV Approved
    Special Characteristics 4K/60Hz interfaces, Cinema Quality Picture processing, Crestron RoomView, etc.
    Energy Efficiency Features ECO scheduler, Intelligent power management, Less than 0.5W stand-by power, etc.
    Ecological Standards ErP compliant
    Warranty Projector: 3 years pan-European service; Light Source: 3 years or 10000h (whichever comes first)
    Shipping Contents IR Remote Control, Power Cord, Projector, Quick Setup Guide, Users Manual on CD-ROM
    Optional Accessories 6 optional bayonet lenses; Universal Ceiling Mounts
    Lenses - Motorized NP51ZL, NP52ZL, NP53ZL, NP54ZL, NP55ZL, NP56ZL
