Projection Technology |
3LCD Technology |
Native Resolution |
1920 x 1200 (WUXGA) |
Aspect Ratio |
16:10 (WUXGA) |
Contrast Ratio 1 |
8000:1 |
Brightness 1 |
6500 ANSI Lumen (approx. 80% in Eco Mode), with std. optional lens |
Lamp |
370 W UHP AC (280 W UHP AC Eco Mode) |
Light Source Life [hrs] |
4000 (5000 Eco Mode) |
Lens |
3 motorized lens options; 5 manual lens options |
Lense Adjustment |
Motorized and manual (depending on lens) |
Keystone correction |
+/- 40° manual horizontal / +/- 40° manual vertical |
Projection Factor |
depending on lens selection (std. option NP41ZL at 1.3-3.02:1) |
Projection Distance [m] |
0.7 – 50.9 |
Screen Size (diagonal) [cm] / [inch] |
(best performance range); Maximum: 1,270 / 500" |
Zoom |
Motorized and manual (depending on lens) |
Focus Adjustment |
Motorized and manual (depending on lens) |
Supported Resolutions |
Various (see list) |
Frequency |
Horizontal: analog: 15/24-100 kHz, digital: 15/24-153 kHz; Vertical: analog: 48-120 Hz, digital: 48-120 Hz |

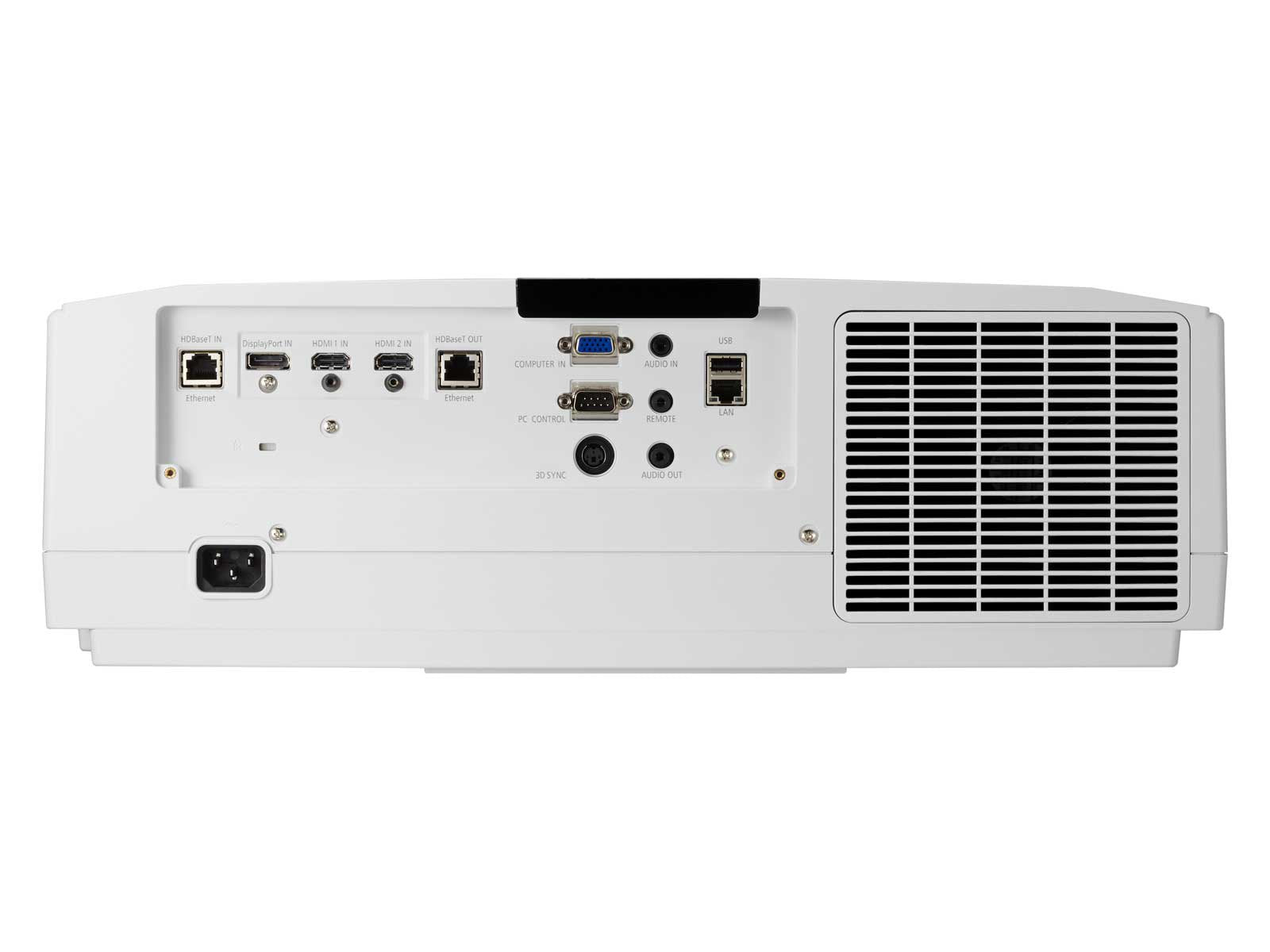

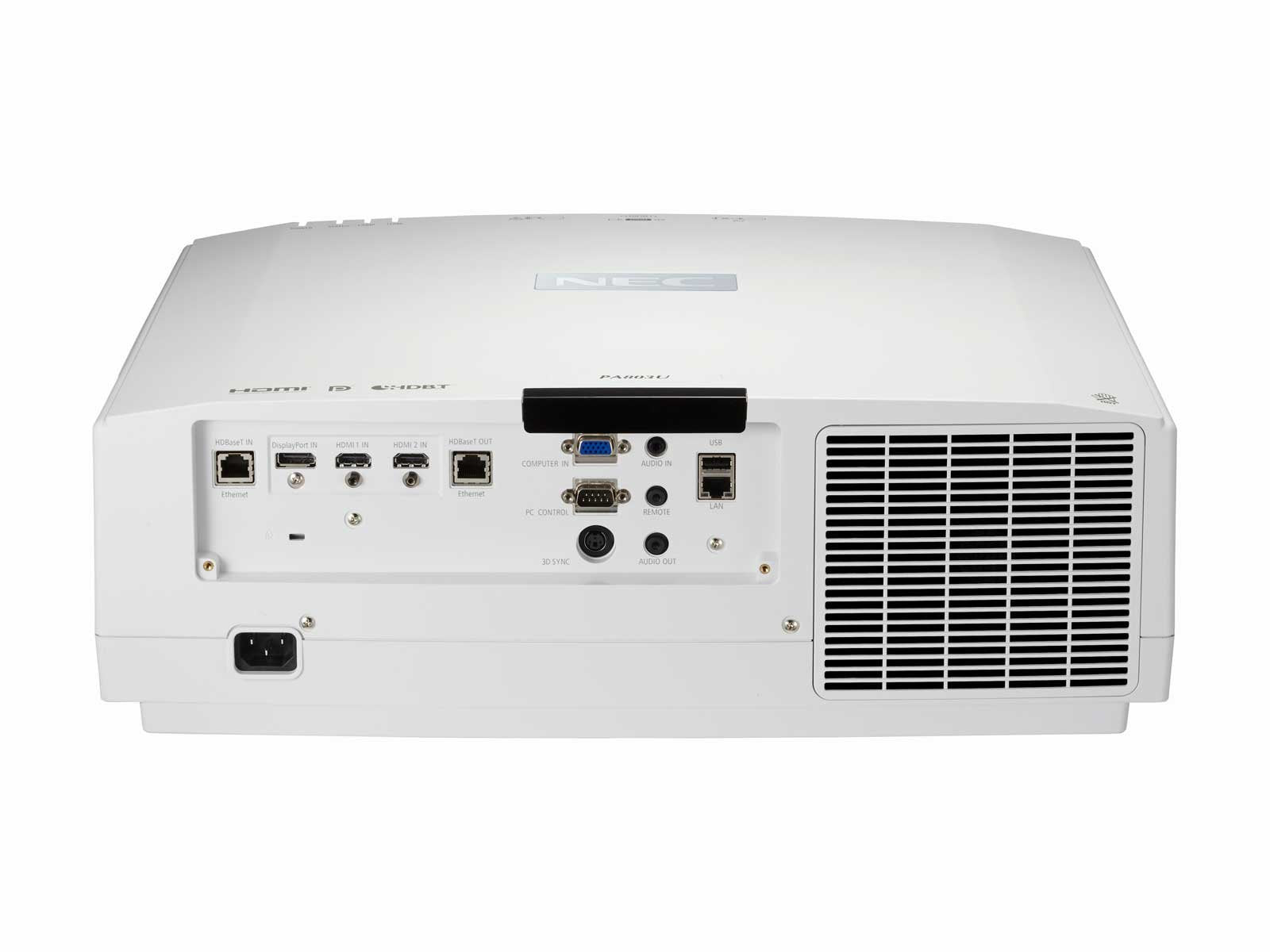

CONNECTIVITY |
|
RGB (analog) |
Input: 1 x Mini D-sub 15-pin, compatible to component (YPbPr) |
Digital |
Input: 1 x DisplayPort; 1 x HDBaseT; 2 x HDMI™ supporting HDCP 2.2; Output: 1 x HDBaseT supporting HDCP 2.2 |
Audio |
Input: 1 x DisplayPort Audio support; 1 x HDBaseT audio support; 2 x 3.5 mm Stereo Mini Jack for Computer analog; 2 x HDMI audio support; Output: 1 x 3.5 mm Stereo Mini Jack (variable) |
Control |
Input: 1 x 3.5 mm Stereo Mini Jack (Wired Remote); 1 x D-Sub 9 pin (RS-232), Ethernet; LAN: 1 x RJ45; USB: 1 x Type A (USB 2.0 high speed); 3D Sync: Output: 1 x Mini DIN 3pin |
REMOTE CONTROL |
|
Remote Control |
Various functions (see list) |
ELECTRICAL |
|
Power Supply |
100-240 V AC; 50 - 60 Hz |
Power Consumption [W] |
482 (Normal) / 376 (Eco) / 1 (Network Stand-by) / 0.26 (Stand-by) |
MECHANICAL |
|
Dimensions (W x H x D) [mm] |
499 x 163.7 x 406 (without lens and feet) |
Weight [kg] |
10.2 |
Fan Noise [dB (A)] |
33 / 39 (Eco / Normal) |
ENVIRONMENTAL CONDITIONS |
|
Operating Temperature [°C] |
5 to 40 |
Operating Humidity [%] |
20 to 80 non-condensing |
Storage Temperature [°C] |
-10 to 50 |
Storage Humidity [%] |
20 to 80 non-condensing |
ERGONOMICS |
|
Safety and Ergonomics |
Various standards (see list) |
ADDITIONAL FEATURES |
|
Special Characteristics |
Various (see list) |
GREEN FEATURES |
|
Energy Efficiency |
Various features (see list) |
Ecological Materials |
100% recyclable packaging; Downloadable manuals |
Ecological Standards |
ErP compliant |
WARRANTY |
|
Projectors |
3 years pan-European service |
Light Source |
6 months, max. 1000 hrs |
SHIPPING CONTENT |
|
Shipping Contents |
Various accessories (see list) |
OPTIONAL ACCESSORIES |
|
Optional Accessories |
Various accessories (see list) |
Lenses - motorized |
Various options (see list) |
Lenses - manual |
Various options (see list) |
