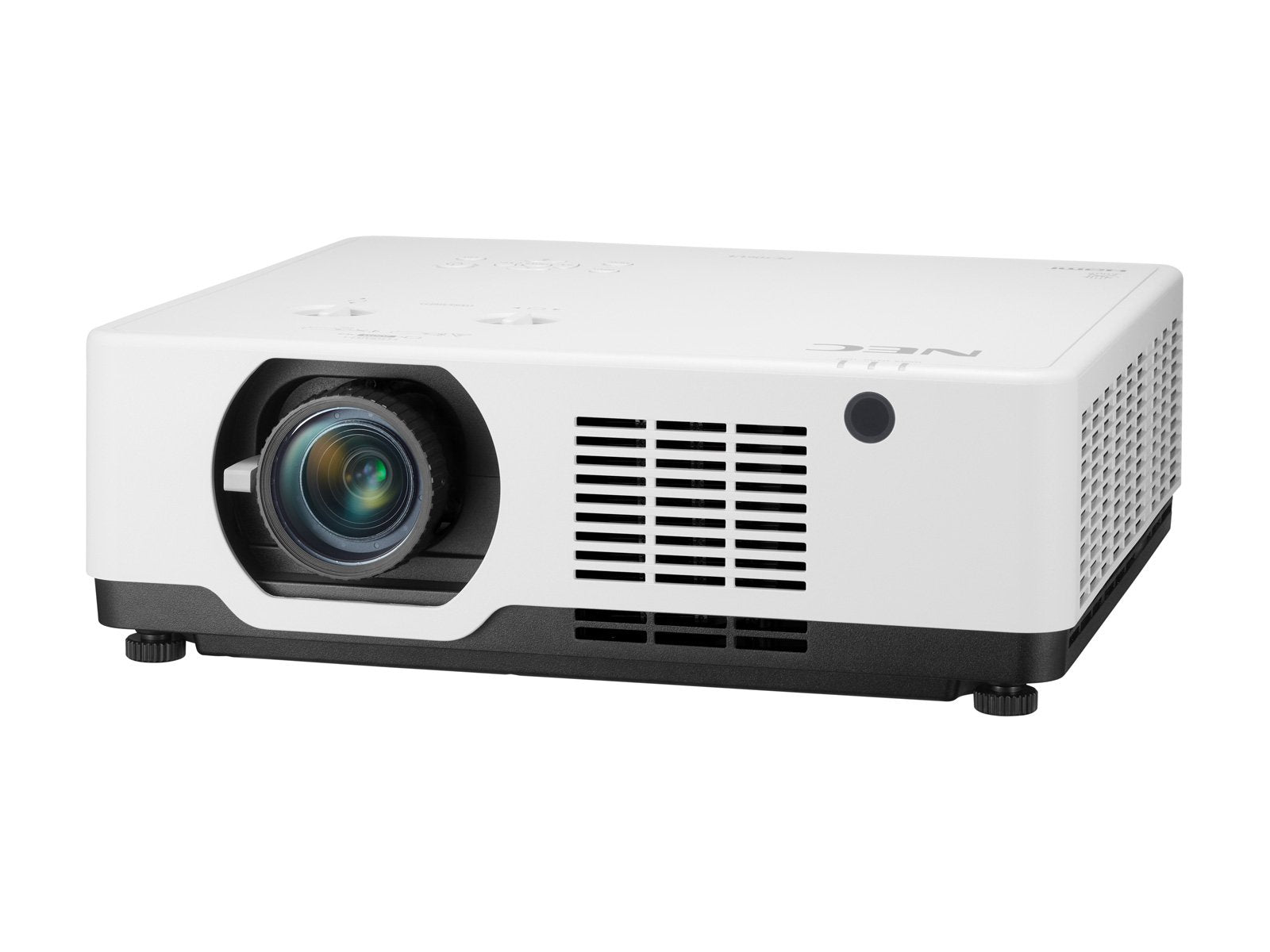

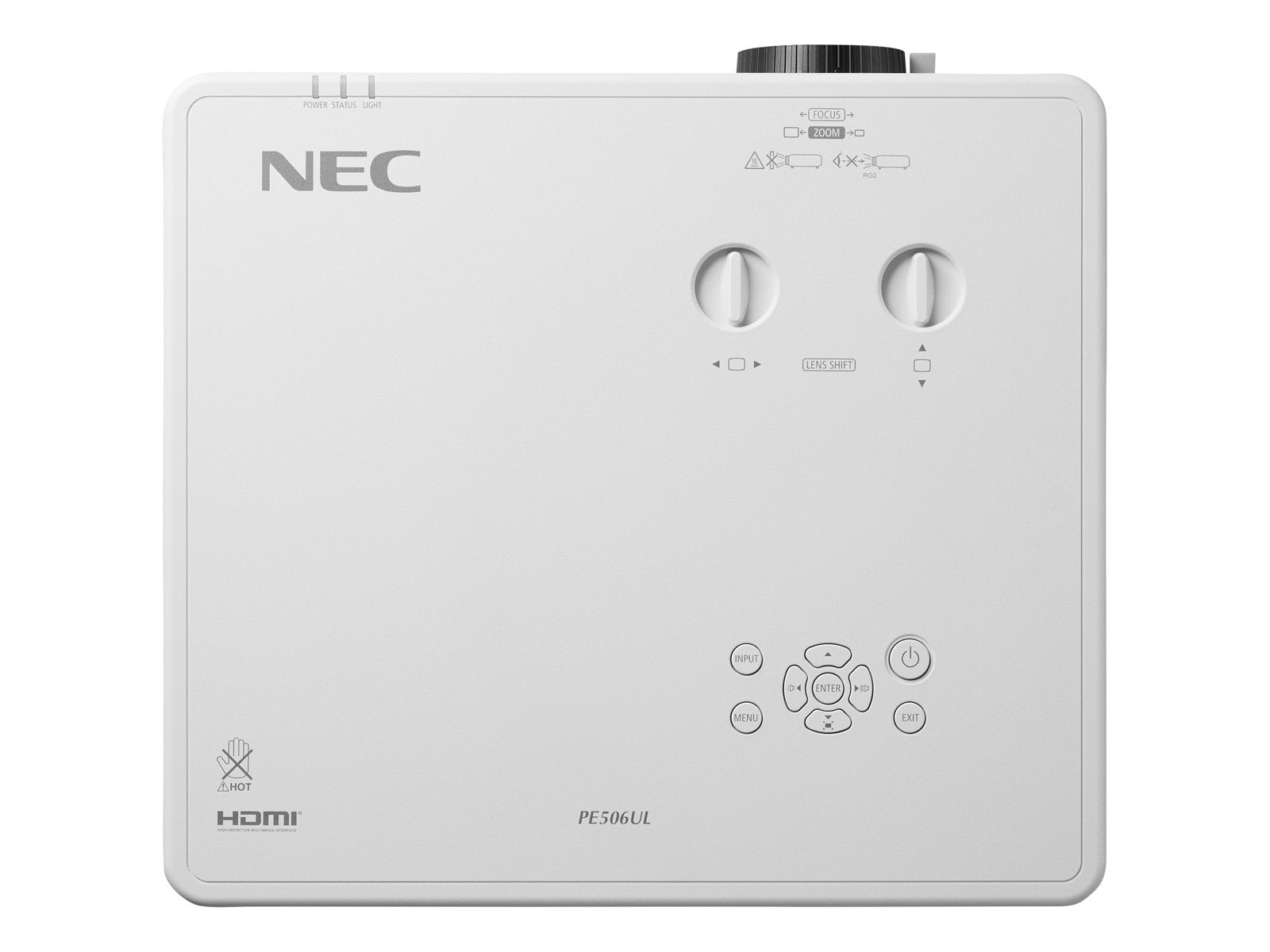

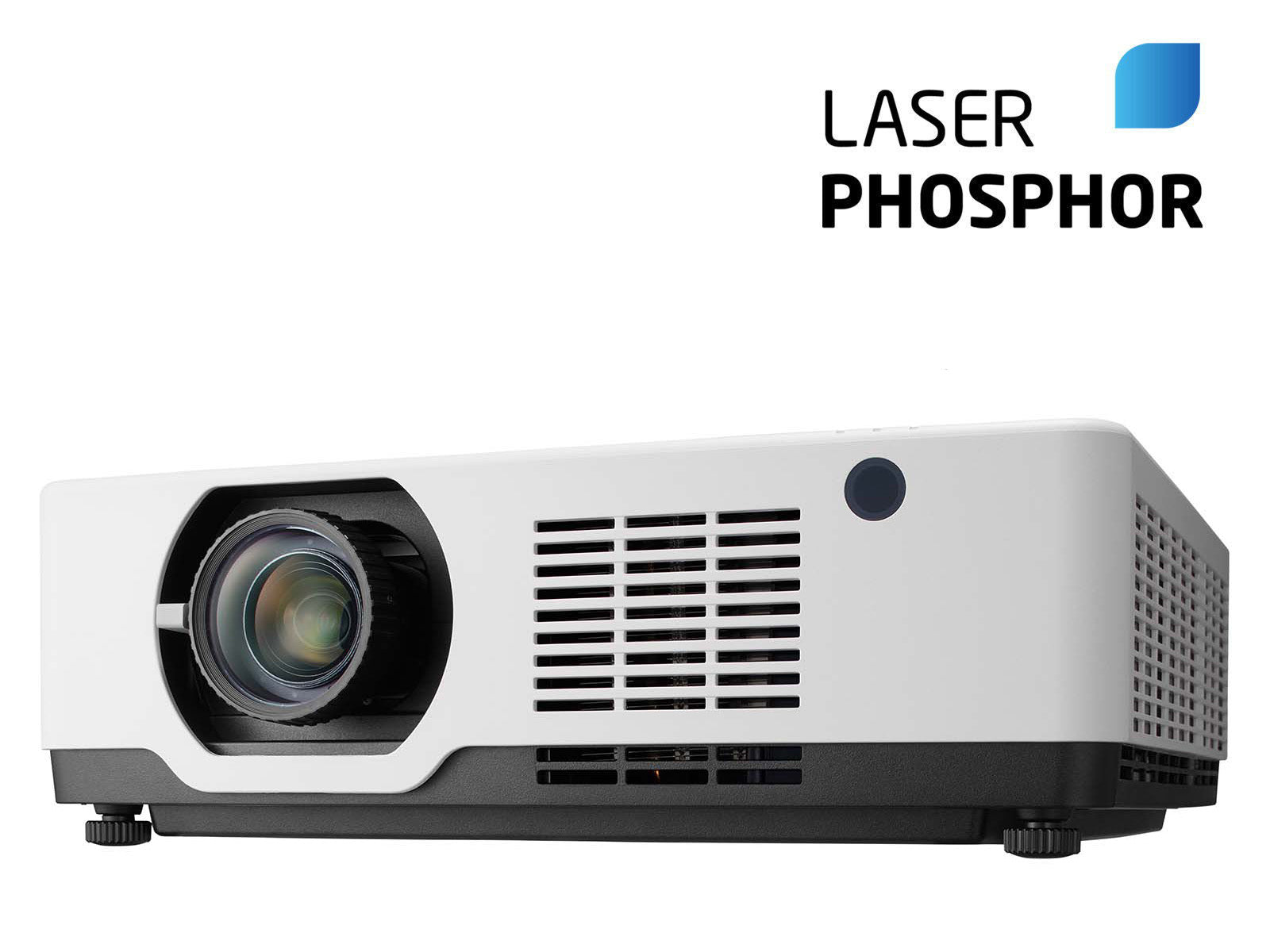

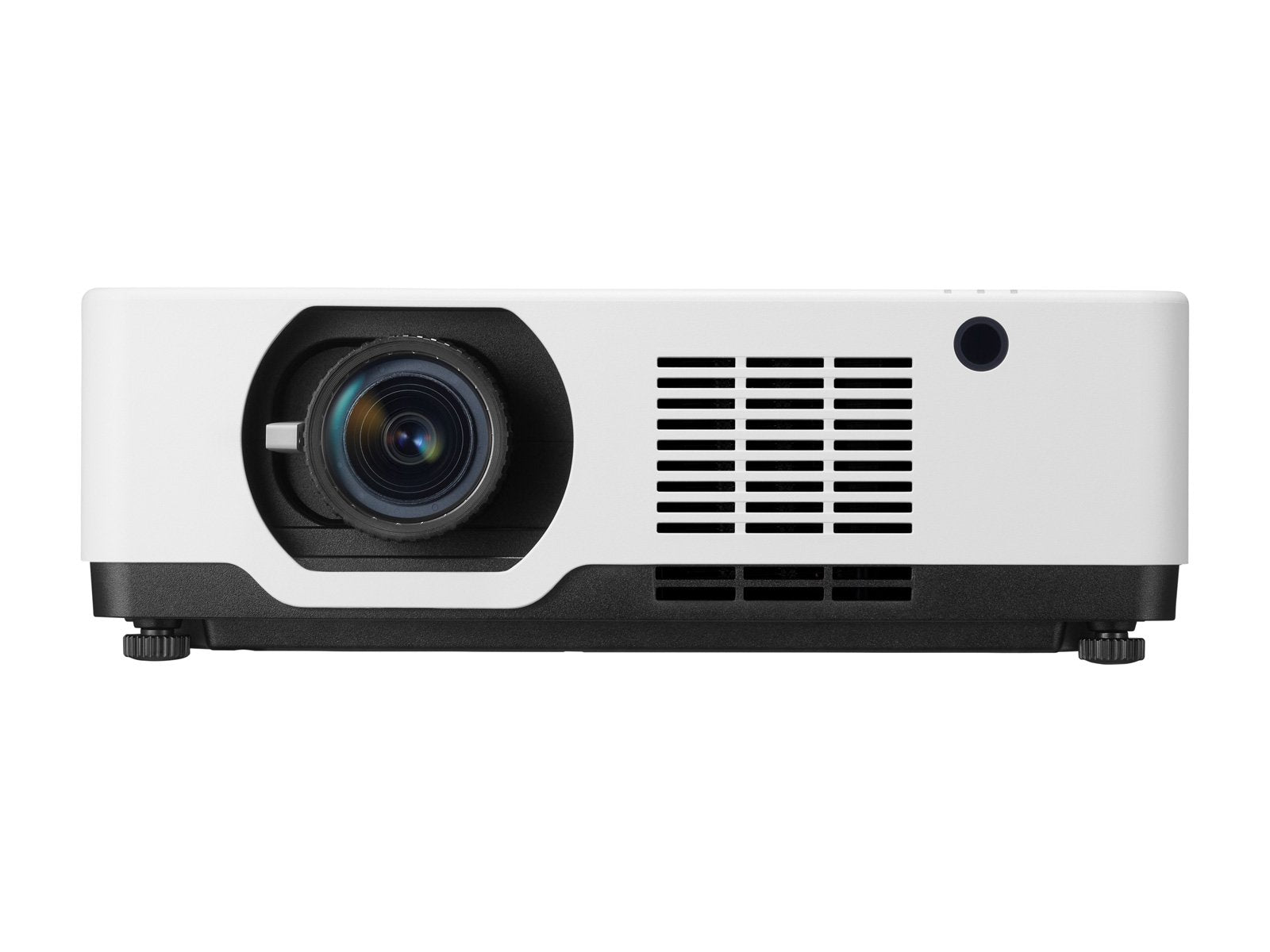

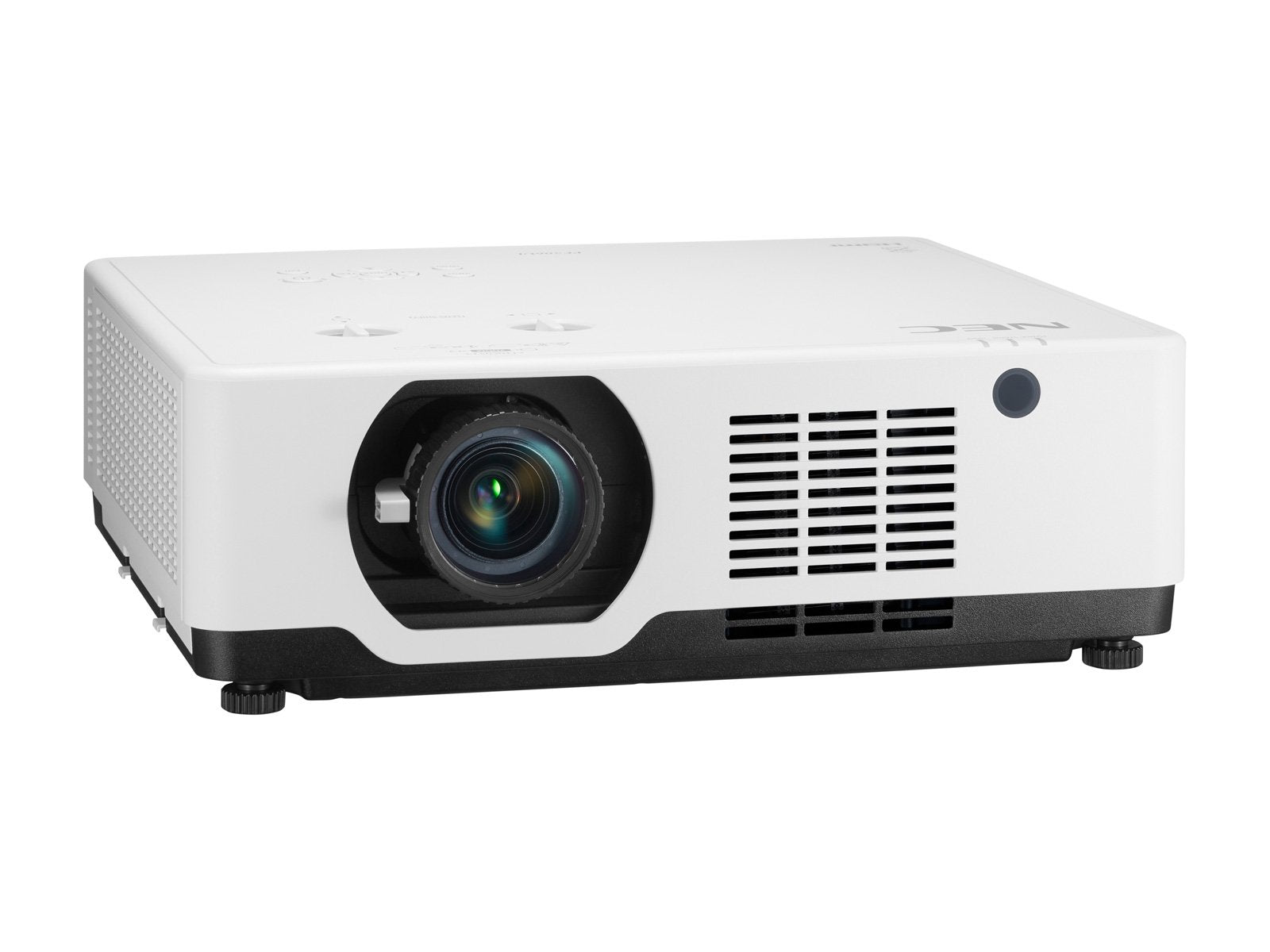

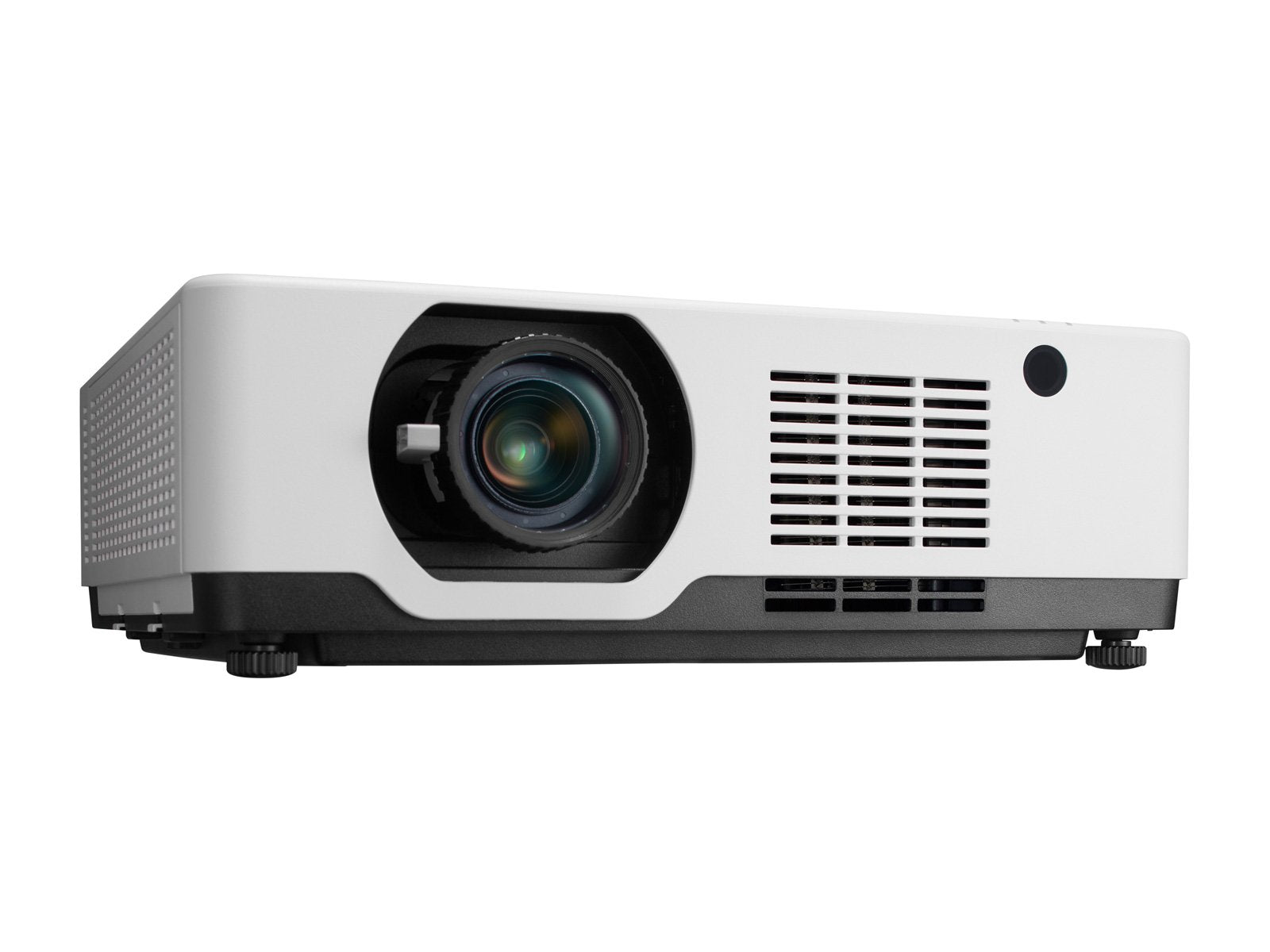

NEC PE506UL Professional LCD Laser Projector - 5200 Lumens
High brightness in compact format
With a long life cycle, the PE506UL brings an exceptionally low cost of ownership for cost-conscious users requiring professional and reliable projection performance. Lighter in weight and more compact compared to its predecessor, yet this powerful projector generates a higher brightness level at 5,200 ANSI lumen and the vivid brilliance of 3 LCD technology.
For seamless hand-over between presenters, the projector provides advanced wireless capabilities with an embedded MultiPresenter function, allowing multiple users to connect and share content without having to switch cables. The PE506UL is feature packed for classrooms, training rooms and meeting rooms.

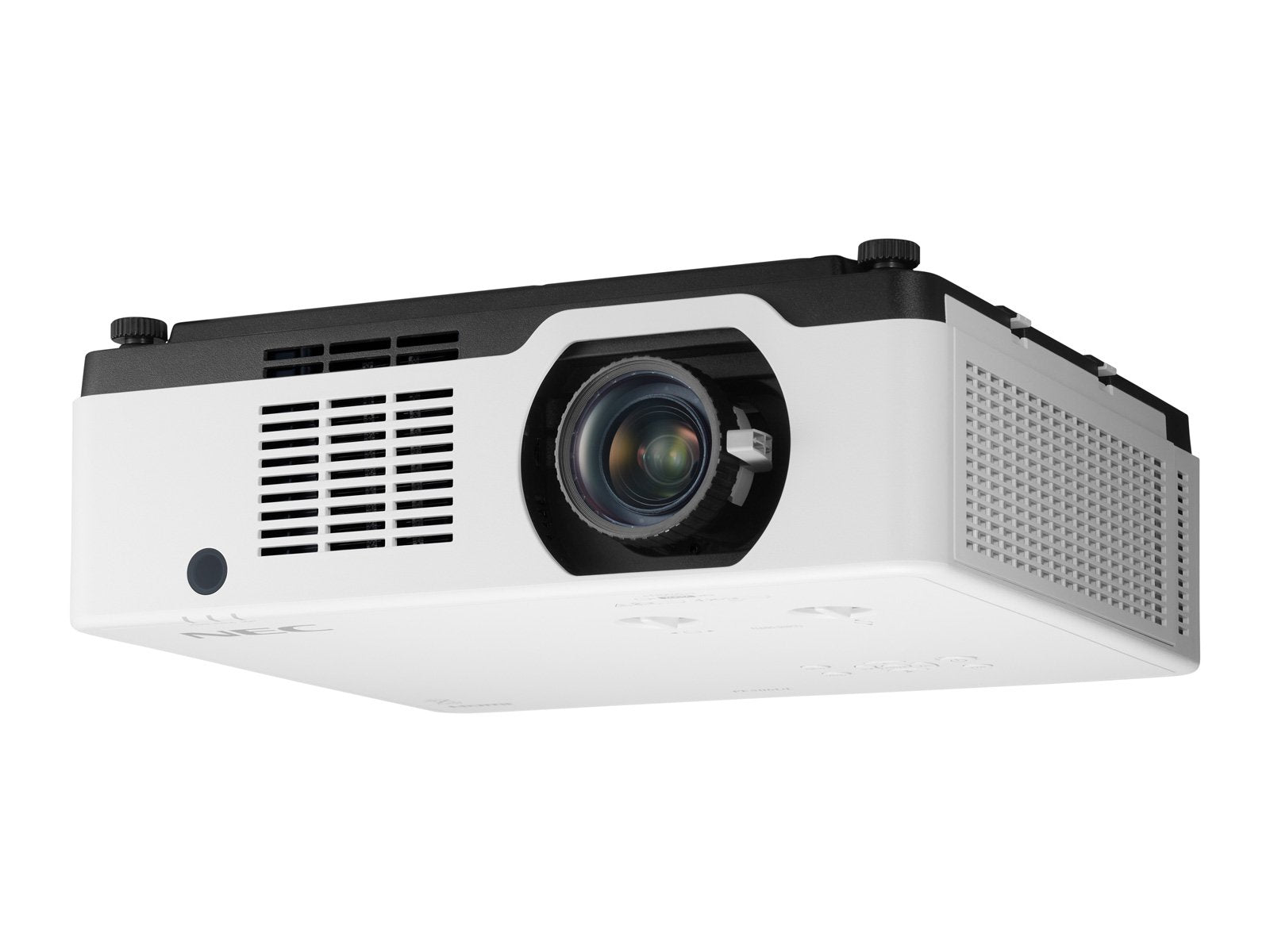

Professional and Flexible Installation – versatile projection characteristics allow for simple positioning of the projector, making installation easy and potentially saving set up costs.
Enjoy a Lower TCO – highest reliability, maintenance free operation, low power consumption and up to 20000 hours life; the Laser light source results in a significantly lower total cost of ownership.
Risk Group 2 – because of the Risk Group 2 compliance, no prescribed safety precautions are necessary.
Cost Saving Device Management – save effort whilst administrating all connected NEC devices from a centralised location by using the NaViSet Administrator 2 software tool.
| Category | Specification |
|---|---|
| IMAGE | |
| Projection Technology | 3LCD Technology |
| Native Resolution | 1920 x 1200 (WUXGA) |
| Aspect Ratio | 16:10 |
| Contrast Ratio | 3000000:1 |
| Brightness | 5200 ANSI Lumen |
| Lens shift | H:-29,+29, V:-0,+60 |
| Keystone correction | +/- 30° manual horizontal / +/- 30° manual vertical |
| Projection Factor | 1.2 – 2 : 1 |
| Projection Distance [m] | 0.75 – 13 |
| Screen Size (diagonal) | 76.2 / 30" - 762 / 300" |
| Zoom | x1.7 |
| Focus Adjustment | Manual |

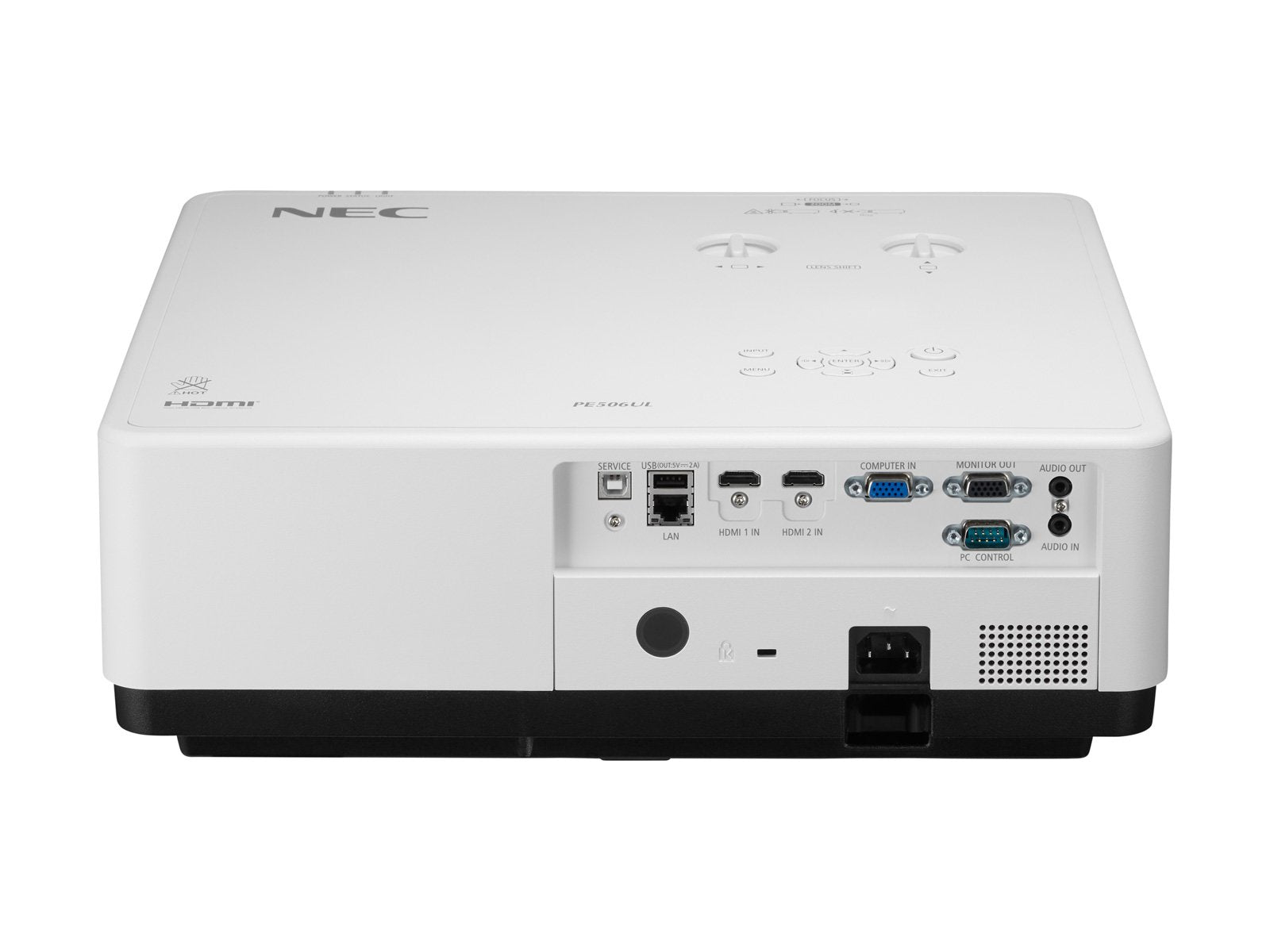

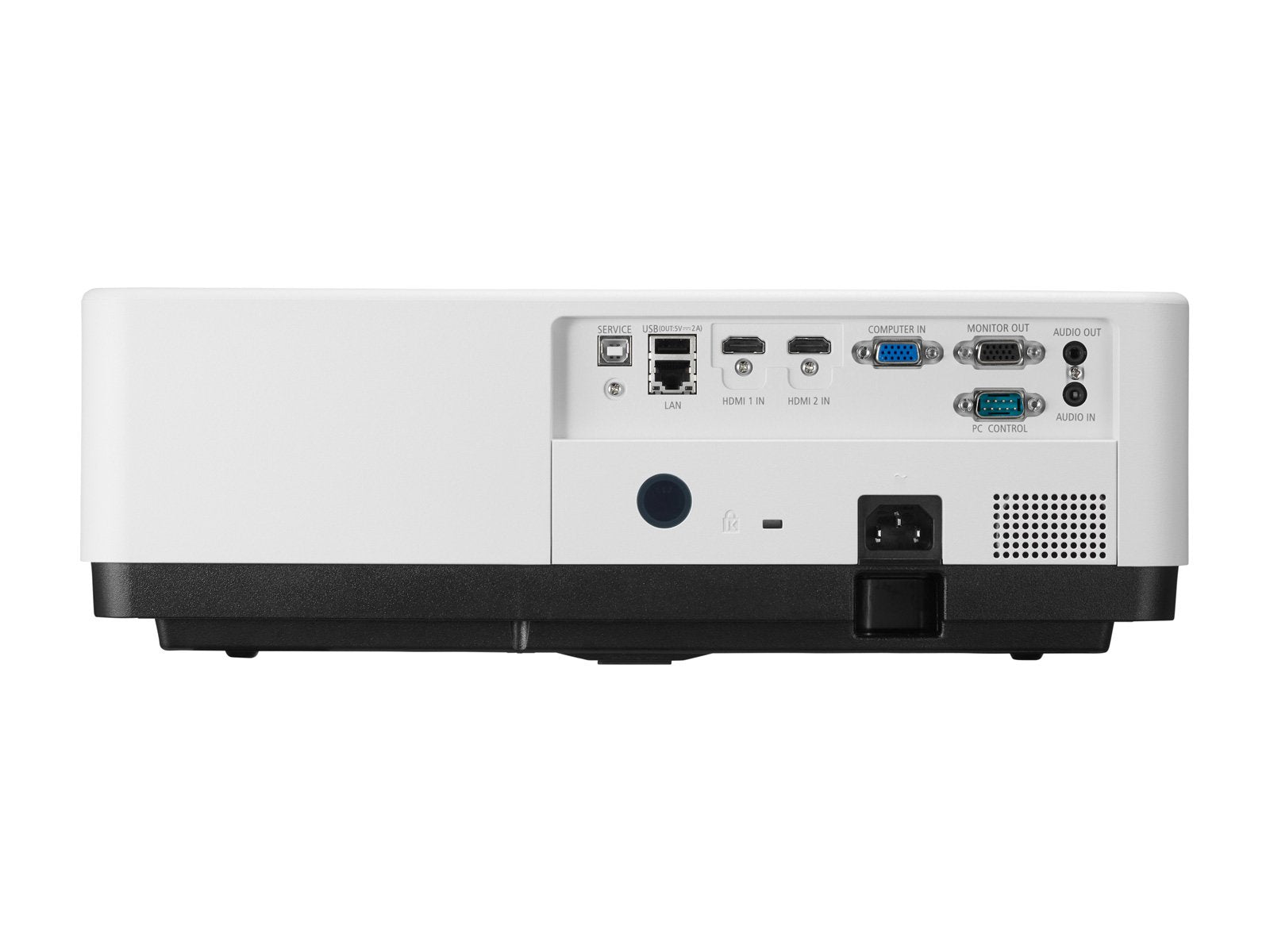

| CONNECTIVITY | |
| RGB (analog) | Input: 1 x Mini D-sub 15-pin, compatible to component (YPbPr) |
| Output: 1 x Mini D-sub 15 pin | |
| Digital | Input: 2 x HDMI™ (Deep Color, Lip sync) |
| Audio | Input: 1 x 3.5 mm Stereo Mini Jack; 1 x RCA Stereo |
| Output: 1 x 3.5 mm Stereo Mini Jack | |
| Control | Input: 1 x D-Sub 9 pin (RS-232) (male) |
| LAN | 1 x RJ45; Optional WLAN |
| USB | 1 x Type B; 1x Type A (USB 2 high speed) with 2 Power Supply |
| Video Signals | NTSC; PAL; PAL60; SECAM |
| REMOTE CONTROL | |
| Remote Control | Aspect Ratio; Auto Adjust; AV Mute; Digital Zoom; Freeze; ID set; Optional Presentation and Mouse Control |
| ELECTRICAL | |
| Power Supply | 120-240 V AC; 50 - 60 Hz |
| Power Consumption [W] | 335 (Normal) / 177 (Eco) / 2 (Network Stand-by) / 0.5 (Stand-by) |
| MECHANICAL | |
| Dimensions (W x H x D) | 405 x 137 x 358 (without lens and feet) |
| Weight [kg] | 7.95 |
| Fan Noise [dB (A)] | 27 / 37 (Eco / Normal) |
| Colour Versions | White |
| ENVIRONMENTAL CONDITIONS | |
| Operating Temperature | 0 to 40 |
| Operating Humidity | 20 to 88 |
| Storage Temperature | -10 to 50 |
| ERGONOMICS | |
| Speakers [W] | 1 x 16 (mono) |
| ADDITIONAL FEATURES | |
| Special Characteristics | AMX Beacon; Auto Eco Mode; Carbon Savings Meter; Colour Management; Content Transmission via Network; Crestron RoomView; PJ LINK |
| GREEN FEATURES | |
| Ecological Materials | 100% recyclable packaging; Downloadable manuals; ECO packaging |
| WARRANTY | |
| Projectors | 3 years pan-European service |
| Light Source | 3 years or 10000h (whatever comes first) |
| SHIPPING CONTENT | |
| Shipping Contents | 2x AAA Batteries; IR Remote Control (RD-477E); Mini D-SUB Signal Cable (1.8 m); Quick Setup Guide; Security Sticker; Users Manual on CD-ROM; Utility software |
| OPTIONAL ACCESSORIES | |
| Optional Accessories | Universal Ceiling Mounts (PJ01UCM); Wireless LAN module (NP05LM2; NP05LM4; NP05LM5) |
| Description | Downloads |
|---|---|
| Data sheet | Download |
