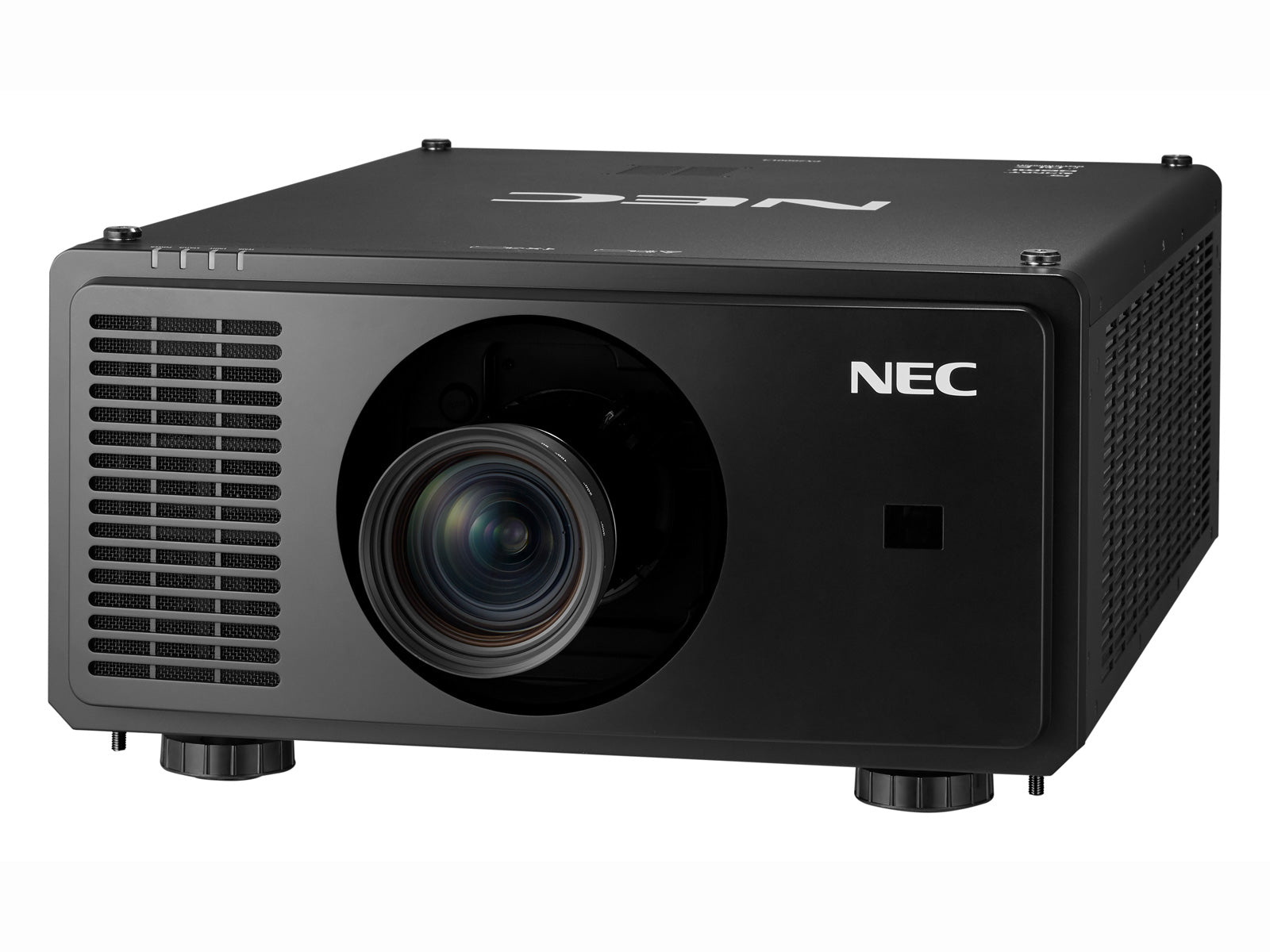

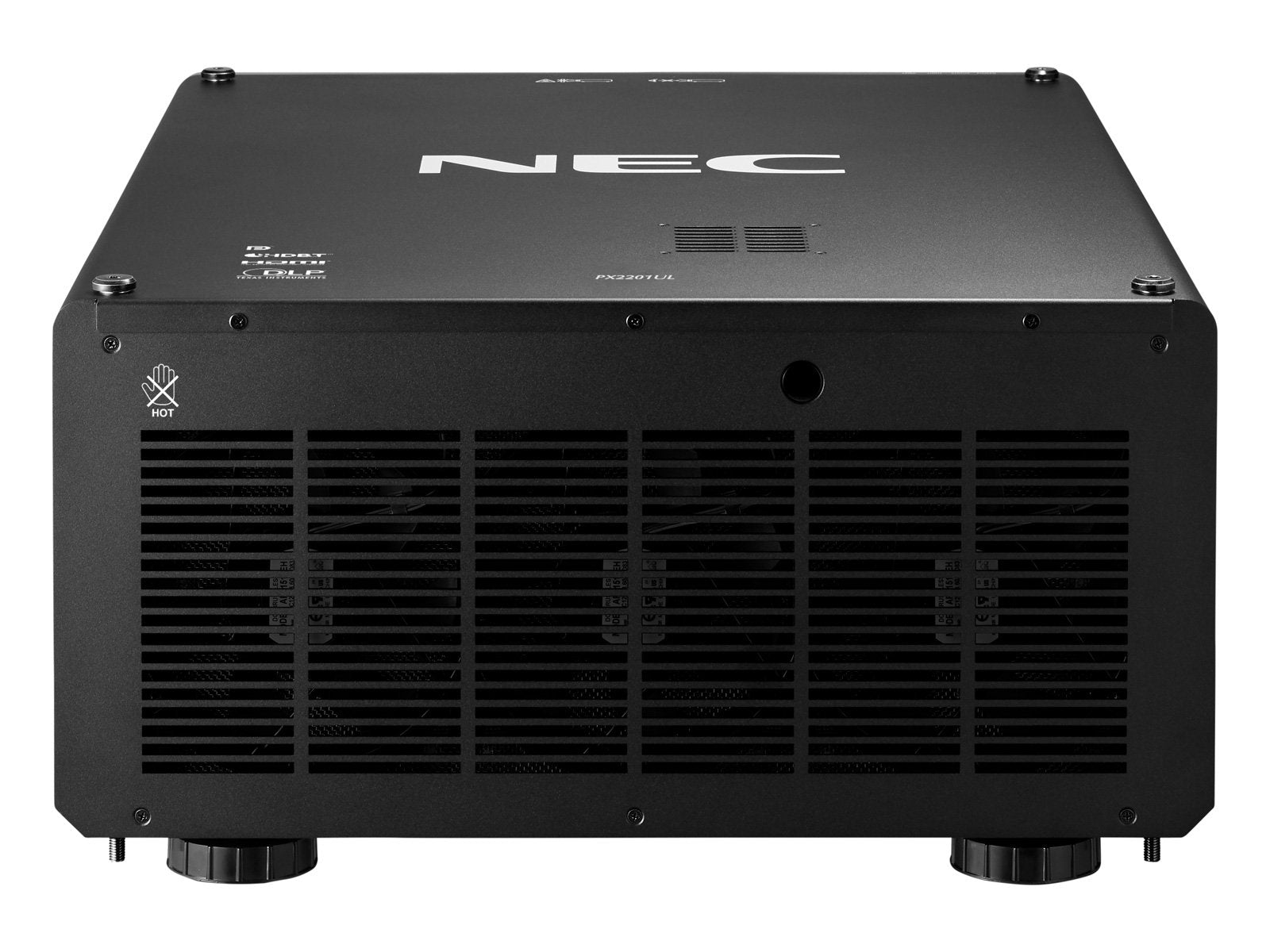

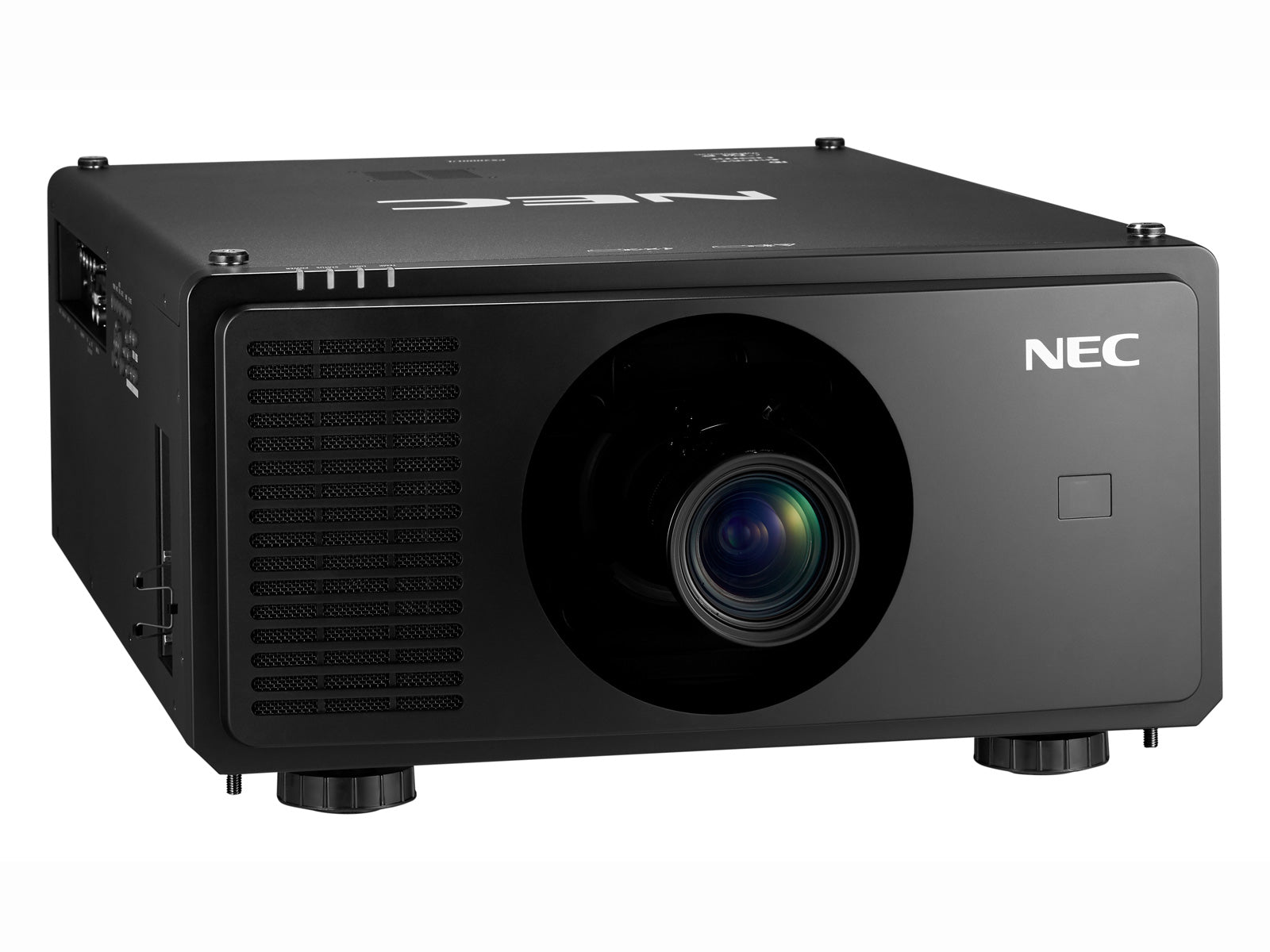

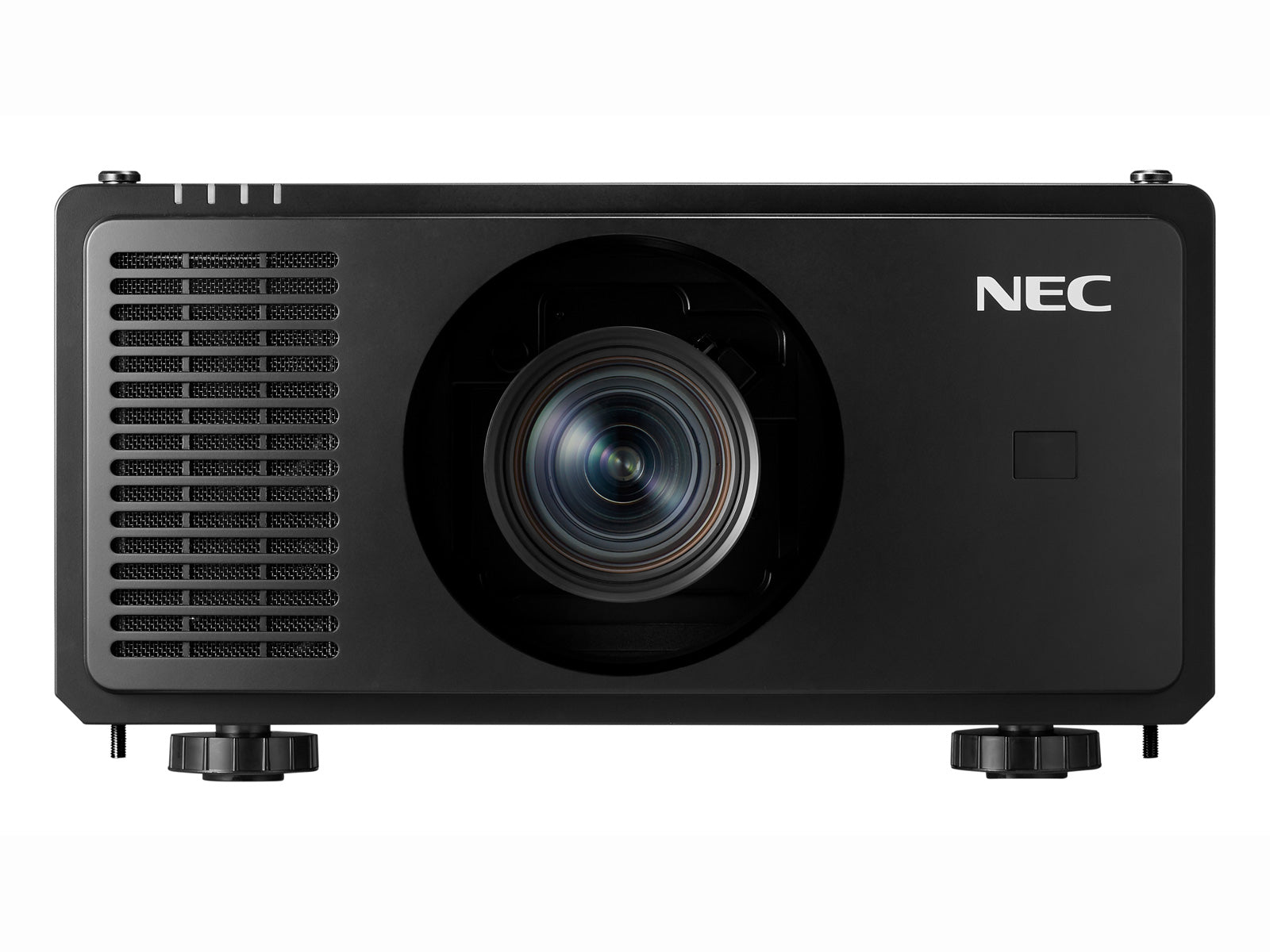

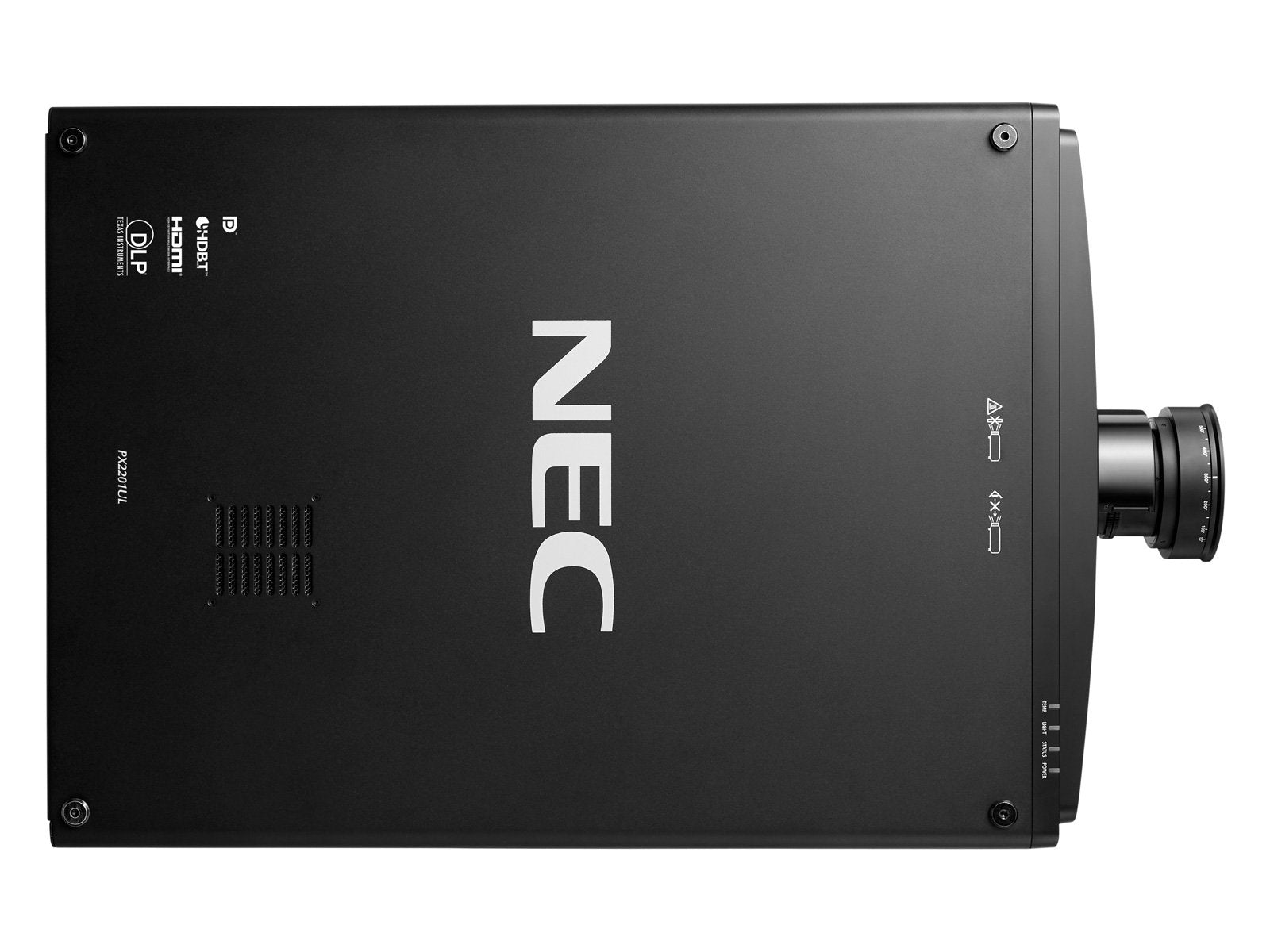

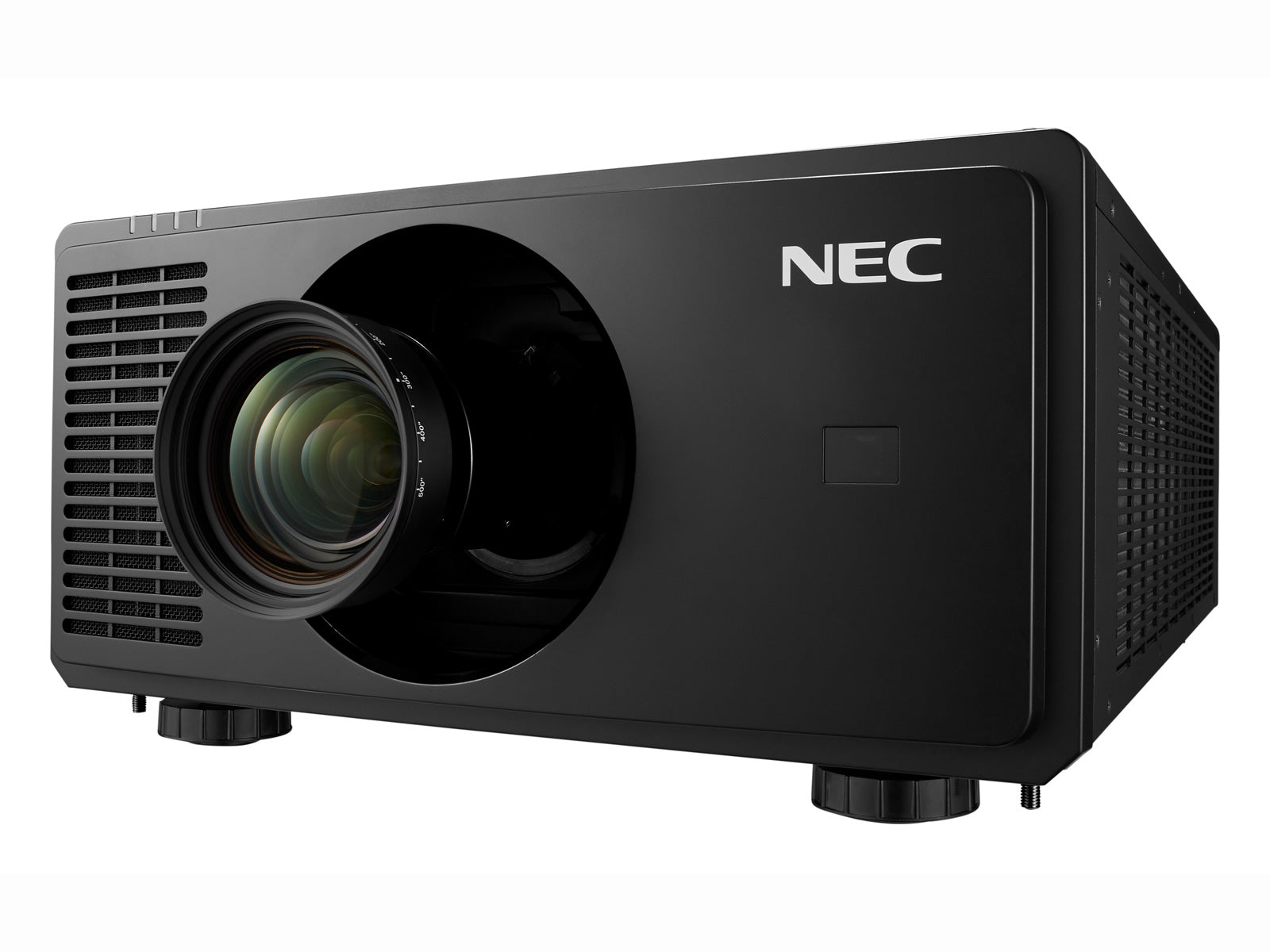

NEC PX2201UL Professional Advanced 1DLP Laser Installation Projector - 20500 Lumens
Advanced performance in compact form
Compact and easily transportable, and yet this large venue projector is packed with advanced technological features. The PX2201UL offers a truly impressive price/ performance ratio delivering superb, richly intense colour through RB laser technology, almost equal in performance to a 3DLP projector. The ultra-bright 20,500 lumen projection can be multiplied using wide interface selection and Edge Blending technology supporting two or more projectors for wider, larger, even brighter images, whilst geometric correction eliminates distortion.
The filter-free optical system protects against dust ingress for performance longevity and minimal maintenance, just as remote adjustment capability means there is no requirement to physically access the projector once its installed. With a low noise level, flexible installation features, SDI interface and 3D support, this innovative projector perfectly services the visualisation needs of higher education and the leisure industry, especially in museums and for mapping.
Superb imaging quality – the RB laser technology uses red lasers, increasing the colour gamut to produce more vivid images, unprecedented for single chip DLP projectors, with high light levels supported by a special Brightness Boost Mode.
Maintenance-free performance – the filter-free laser projector uses a special NEC phosphor wheel requiring minimal attention during its lifetime beyond its initial setup.
Hassle-free remote adjustment – motorized lens shift, focus and zoom allows easy and flexible setup without the need for cumbersome physical access to the projector.
Easy handling – its light weight construction (51kg) and robust design means this model is semi-portable making it suitable for flexible applications.
| IMAGE | |
|---|---|
| Projection Technology | 1-chip DLP™ Technology |
| Native Resolution | 1920 x 1200 (WUXGA) |
| Aspect Ratio | 16:10 |
| Contrast Ratio | 10000:1 with DynamicBlack™ |
| Brightness | 20500 Normal / 16400 Eco ANSI Lumen; 21500 Centre Lumen |
| Lamp | Laser Light Source |
| Light Source Life [hrs] | 20000 |
| Lens | 5 optional bayonet lenses |
| Lens shift | H:-15,+15, V:-50,+50 |
| Keystone correction | +/- 60° manual horizontal / +/- 40° manual vertical |
| Projection Factor | Depending on lens selection |
| Projection Distance [m] | 0.81 – 84 |
| Screen Size (diagonal) [cm] / [inch] | Maximum: 1,270 / 500"; Minimum: 100 / 40" |
| Zoom | Motorized |
| Focus Adjustment | Motorized |
| Supported Resolutions | See list |

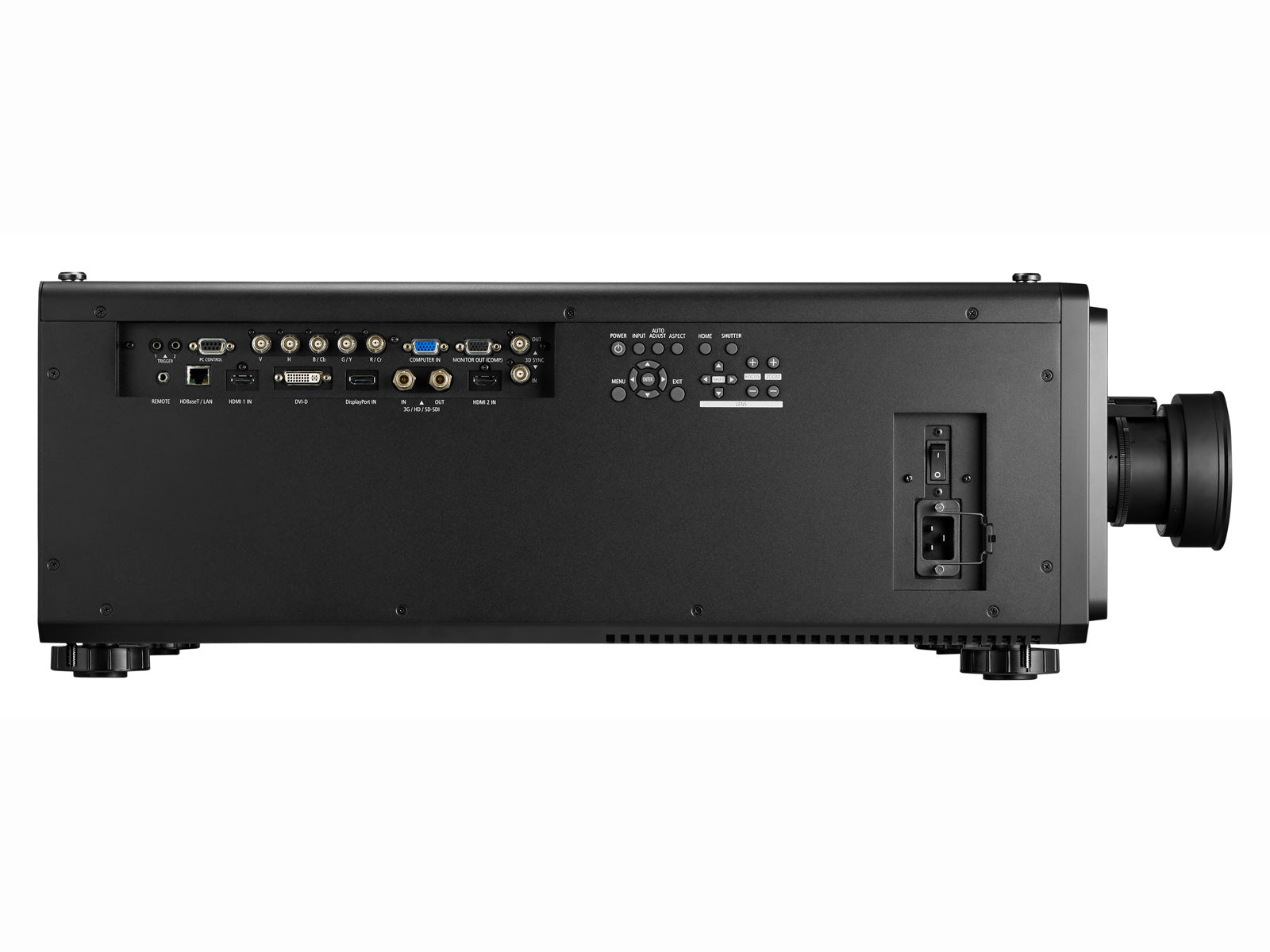

| CONNECTIVITY | |
| RGB (analog) | Input: 1 x 5BNC; 1 x Mini D-sub 15 pin<br>Output: 1 x Mini D-sub 15 pin |
| Digital | Input: 1 x 3G-SDI; 1 x DisplayPort; 1 x DVI-D; 1 x HDBaseT; 2 x HDMI™<br>Output: 1 x 3G-SDI |
| Control | Input: 1 x 3.5 mm Stereo Mini Jack (Wired Remote); 1 x D-Sub 9 pin (RS-232), Ethernet<br>LAN: 1 x RJ45 |
| 3D Sync | Output: 1 x BNC IN; 1 x BNC OUT |
| Video Signals | NTSC; PAL; SECAM |
| REMOTE CONTROL | |
| Remote Control | See list |
| ELECTRICAL | |
| Power Supply | 200-240 V AC; 50 - 60 Hz |
| Power Consumption [W] | 1775 Normal Mode |
| MECHANICAL | |
| Dimensions (W x H x D) [mm] | 530 x 248 x 745 (without lens and feet) |
| Weight [kg] | 51 |
| Fan Noise [dB (A)] | 46 / 48 (Eco / Normal) |
| Colour Versions | Black |
| ENVIRONMENTAL CONDITIONS | |
| Operating Temperature [°C] | 0 to 40 |
| Operating Humidity [%] | 0 to 80 |
| ERGONOMICS | |
| Safety and Ergonomics | CE; EAC; ErP; RoHS |
| ADDITIONAL FEATURES | |
| Special Characteristics | See list |
| GREEN FEATURES | |
| Energy Efficiency | Laser Light Source |
| Ecological Materials | 100% recyclable packaging; Downloadable manuals |
| Ecological Standards | ErP compliant |
| WARRANTY | |
| Projectors | 3 years pan-European service |
| Light Source | 3 years or 10000h (whatever comes first) |
| SHIPPING CONTENT | |
| Shipping Contents | IR Remote Control (RD - 480E); Power Cord; Projector; Quick Setup Guide; Users Manual on CD-ROM |
| OPTIONAL ACCESSORIES | |
| Optional Accessories | XpanD 3D Glasses (X105-RFX2); XpanD 3D RF Emitter (AD025-RF-X1)<br>Lenses: NP45ZL, NP46ZL, NP47ZL, NP48ZL, NP49ZL |
| Description | Downloads |
|---|---|
| Data sheet | Download |
| User Manual | Download |
