Description

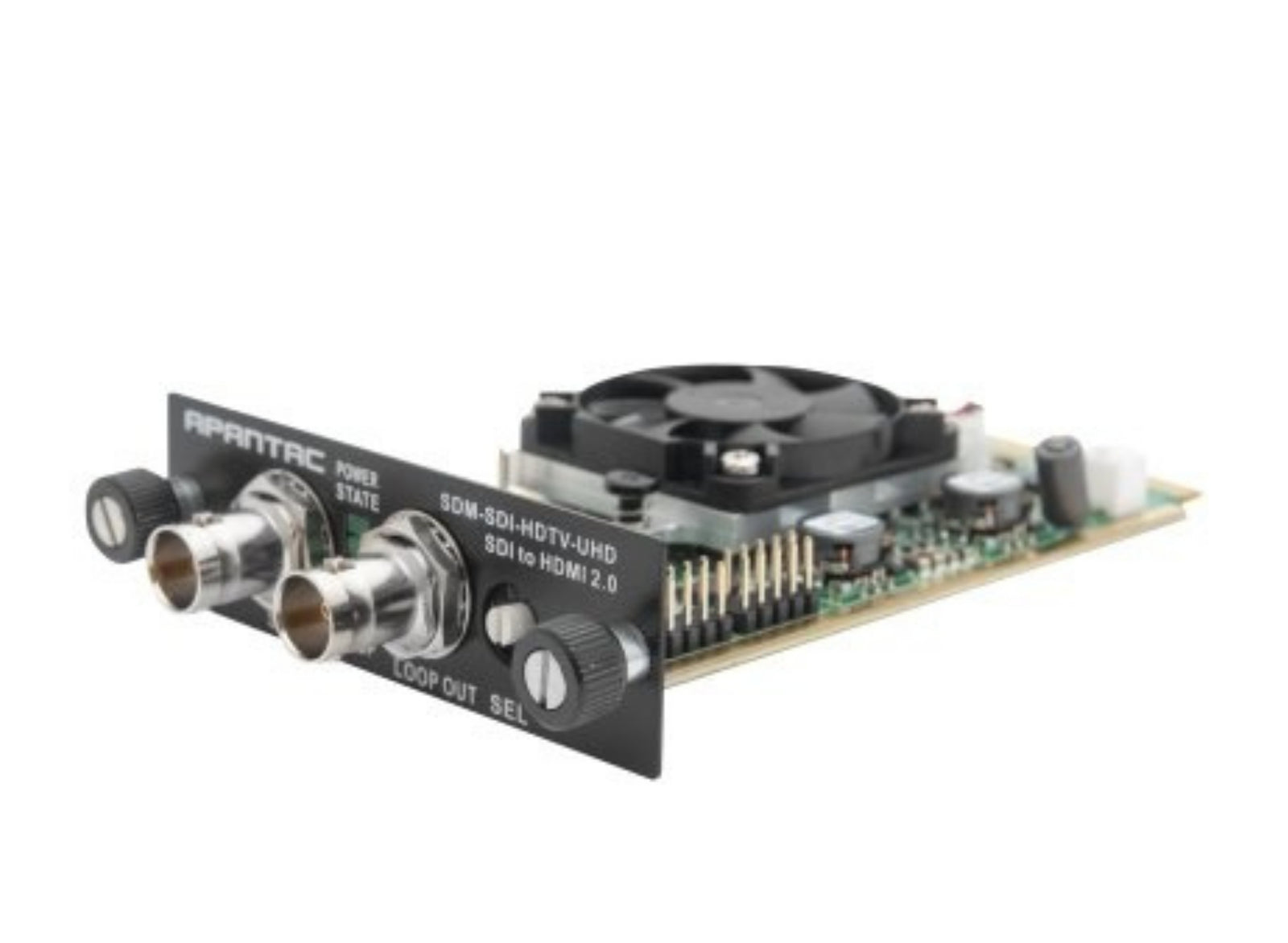

Transmission of uncompressed and unencrypted digital video signals in UHD resolution.
As a clean and modular solution the 12G SDI board can be fully integrated into any Sharp/NEC display that support the Intel® SDM slot.
This board is backwards compatible and can even daisychain video signals in large canvas installations.
Ideally suited for broadcast studios or any application that requires transmission of uncompressed and unencrypted video signals.
Benefits
Upgrade to latest professional video transmission - 12G SDI is the latest technical standard of the Serial Digital Interface (SDI) and is backwards compatible with HD-SDI, 3G and 6G versions.
High reliability - ideally suited for 24/7 operation due to the use of industrial grade components.
Seamless and fully embedded - the Intel® SDM form factor provides a compact and fully embedded solution ensuring that all connectors are integrated incl. power, video and audio signals.
Latency free - transmission of video signals with no delay from the camera to the display.
Enhanced feature set - 100% compatibility in combination with supported Sharp/NEC Large Format Displays.
| Category | Details |
|---|---|
| Device Type | Slot-in digital signage player |
| Width | 29 cm |
| Depth | 21 cm |
| Height | 7 cm |
| Weight | 230 g |
| Interfaces | HD-SDI |
| Key Features | Digital audio/video player, PCIe x8 internal slot, 24/7 operation |
| Processor | Intel |
| Resolution | 4K UHD (2160p) |
| Connections | HD-SDI input - BNC, HD-SDI output - BNC |
| Shipping Width | 29 cm |
| Shipping Depth | 21 cm |
| Shipping Weight | 270 g |
| Description | Downloads |
|---|---|
| NEC SDM-12G SDI 4K UHD Interface Board | 100015711 DataSheet | Downloads |
| NEC SDM-12G SDI 4K UHD Interface Board | 100015711 Product Overview | Downloads |
