Neomounts NMPRO-WMB3

32"-55"/65" Menu Board Wall Mount

• Description
• Specifications
• Warranty
• Download

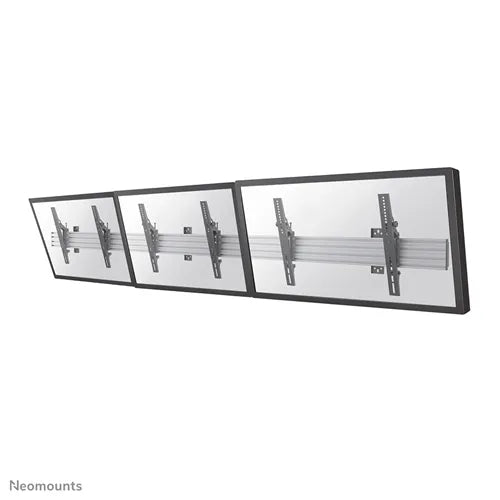

• The Neomounts Pro menu board wall mount, model NMPRO-WMB3, is a tiltable wall mount for three flat screens up to 55"/65". This mount is a great choice when you want the ultimate viewing flexibility with your flat screen. The Neomounts Pro tilt (0°/-6°/+15°) technology allows the mount to change to the best suitable viewing angle.

  Neomounts Pro NMPRO WMB-series is suitable for 1 to 4 screens. The weight capacity of this product is 30 kg for each screen. The wall mount is suitable for screens that meet VESA 100x100 to 400x400mm (65") or VESA 100x100 to 600x400mm (55"). The depth of this mount is 5,6 centimeters.

  * All installation material is included with the product.

• Category	Details
  General
  Min. Screen Size	32 inch
  Max. Screen Size	55 inch
  Min. Weight (Per Screen)	0 kg
  Max. Weight (Per Screen)	30 kg
  Number of Screens	3
  VESA Pattern	100x100, 100x150, 100x200, 200x100, 200x200, 200x300, 200x400, 300x100, 300x200, 300x300, 400x200, 400x300, 400x400, 400x600, 440x400, 500x400, 600x200, 600x300, 600x400 mm
  VESA Minimum	100x100 mm
  VESA Maximum	600x400 mm
  Functionality
  Type	Tilt, Fixed
  Height Adjustment	44 cm
  Width Adjustment	349 cm
  Depth Adjustment	6 cm
  Tilt (Degrees)	21°
  Adjustment Type	Micro Adjustment
  Information
  Article Number	NMPRO-WMB3
  EAN	8717371447557
  Color	Black
  Main Material	Aluminium
  Warranty	5 years

• On Neomounts mounting solutions is a warranty term applicable of 5 years


  Warranty Repair: If any Neomounts product becomes defective in material or workmanship during the warranty period, Neomounts will determine with you if the product defect is covered under warranty. Neomounts, at its discretion, may replace or repair the product determined to be under warranty at a designated Neomounts location or your location. The labor costs associated with the repair of the product may be the responsibility of Neomounts if determined to be under warranty.
  You must receive pre-approval from Neomounts for the labor costs before the repair or replacement of warranty products. You must contact Neomounts to obtain a Return Material Authorization (RMA) number. The RMA number must be obtained by filling in the RMA request form online. Performance of any repair or replacement on a product under warranty does not renew or extend the warranty period.



  Non-Warranty Repair: You may return a product for repair that is not covered by warranty only if you have received a preapproved RMA number from Neomounts. Labor costs and freight charges associated with non-warranty repair will be the sole responsibility of the customer, reseller, or installer. A repair fee, specific to the product, is charged for any product that is repaired outside of the warranty period. Repairs on products out of warranty also carry a 90-day warranty, effective the day that you receive the item after repair.

• Resource	Download Link
  Product Sheet	Download
  Manual	Download

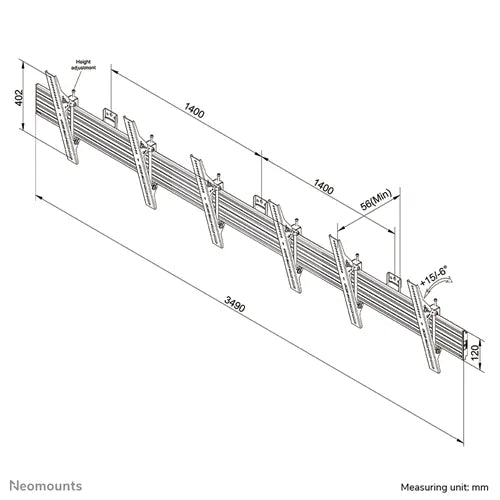

  Line Drawing	Download
