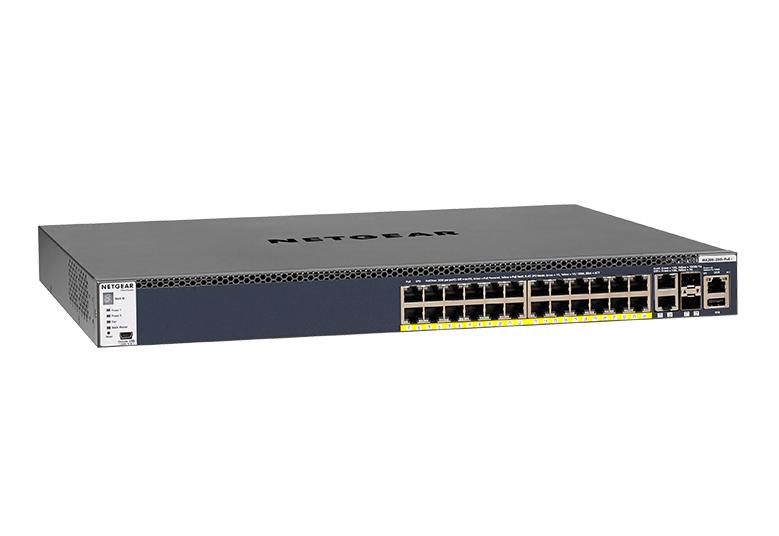

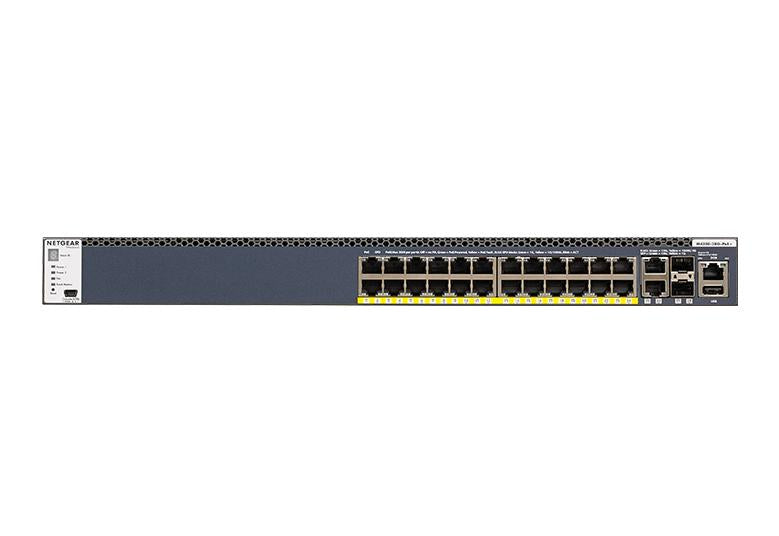

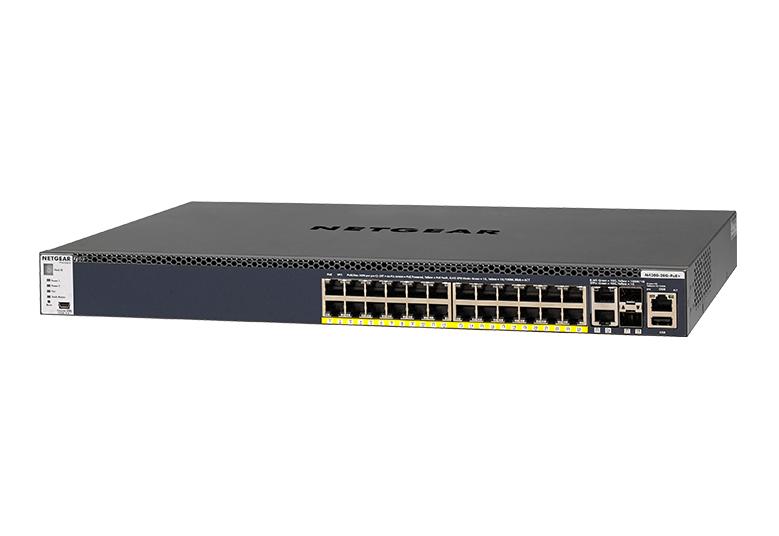

Netgear AV GSM4328PA-100NES 24x1G PoE+ 480W, 2x10G, 2xSFP+ Managed Switch
Business Continuity Management
Full-width switches offer dual redundant, modular power supplies (select m4300 models)
High Availability (HA)
Non-stop forwarding (NSF) virtual chassis architectures with hitless failover across the stack
Multi-Resiliency
Stacking and distributed link aggregation allow for zero downtime and load balancing capabilities
PVST+ Interoperability
Per VLAN Spanning Tree and Per VLAN Rapid Spanning Tree (PVSTP/PVRSTP)
Link Dependency
Enables or disables ports based on link state of different ports
Advanced IPv4/IPv6 security
Malicious code detection, DHCP Snooping, IP Source Guard protection and DoS attacks mitigation
Simple GUI
Full- functional Web console (GUI) for IT admins who prefer an intuitive graphical interface
Flexible & Efficient
Line-rate Spine and Leaf topologies offer many possibilities for server rooms, branch collapsed cores, or at the edge of growing networks.
Mix & Match Stacking
Stack between 10/40 Gigabit and 1 Gigabit models using any 10G/40G port, with any media type (RJ45, SFP+, DAC cables). Vertical, horizontal, manage as one unit
Room to Grow
With PoE+, plug and play ports, and hot swap, you're ready to grow whenever you need to.
Industry Standard
SNMP, RMON, MIB, LLDP, AAA, sFlow, RSPAN and PTPv2 1-step transparent clock implementation (select M4300 models)
Zero Touch AV-over-IP
Pre-configured for Out-of-Box L2 Multicast (SDVoE-ready)
No Delay
Non-Blocking Fabric for Near-Zero Switch Latency
NETGEAR IGMP Plus™
Prevent network flooding with effortless multicast implementation of Layer 2 Multicast
Dedicated Design
ProAV Engineering Services for AV Network Design and Install Support ProAVDesign@NETGEAR.com
![](https://cdn.shopify.com/s/files/1/0581/5556/5242/files/Carousel-Swimlane-Image-1_tcm158-105113.jpg?v=1704712670)
One Cord for All

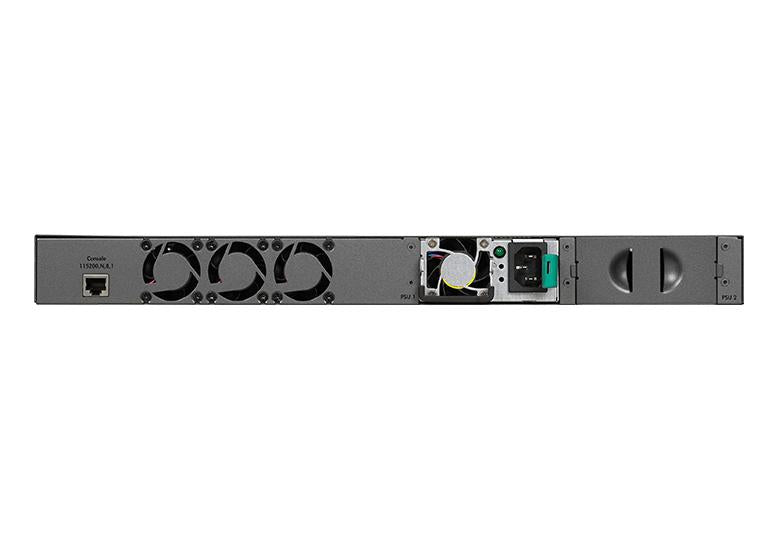

Hot swap APS550W PSUs deliver 480W redundant PoE+ budget across 24 ports, or 720W in share mode
![](https://cdn.shopify.com/s/files/1/0581/5556/5242/files/Carousel-Swimlane-Image-2_tcm158-105114.jpg?v=1704712690)
Industry-Standard
Management
Stay on top of operations with: CLI, local GUI,SNMP, sFlow, RSPAN, single pane of glass NMS300
![](https://cdn.shopify.com/s/files/1/0581/5556/5242/files/Carousel-Swimlane-Image-3_tcm158-105115.jpg?v=1704712703)
Secure Your Data
Defend with Access Control, DiffServ QoS policies,LACP Link Aggregation, Private VLANs, Denial of service protection
![](https://cdn.shopify.com/s/files/1/0581/5556/5242/files/Carousel-Swimlane-Image-4_tcm158-105116.jpg?v=1704712716)
Dependable Operations
Enjoy high availability across virtual servers through load balancing and nonstop forwarding failover.
-
Technical Specs |
Specifications |
Table Sizes |
128K MAC 8k ARP / NDP |
Throughput |
Up to 960 Gbps |
|
Throughput up to 714 Mpps |
Application Static Routing |
64v4 / 64v6 RIP: 512 OSPF: 512 |
Latency |
0.9µs 10G SFP+ |
|
1.25µs 10G RJ45 |
IP Multicast |
1,024 IPv4 / 512 IPv6 |
Multicast IGMP Membership |
2k IPv4 / IPv6 |
M4300 Series features |
License-free L2 and Layer 3, Layer 4 with Policy |
|
Based Routing, RIP, VRRP, OSPF and PIM |
VLANs |
4k with 2K DHCP Server Leases |
|
IPv4: 256 Pools / IPv6: 16 Pools |
Stackable Managed Switch Platform |
Mix-and-match Stackable Managed Switch Platform |
|
with nonstop forwarding and failover on all 1Gb to |
|
10Gb models |
Pre-configured for AV-over-IP |
Pre-configured for AV-over-IP L2 Multicast on all |
|
models 10G models (SDVoE Ready) |
-
