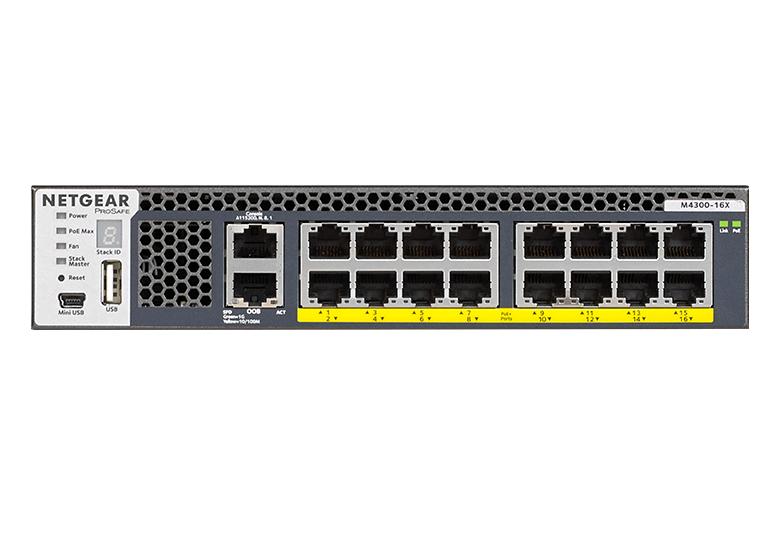

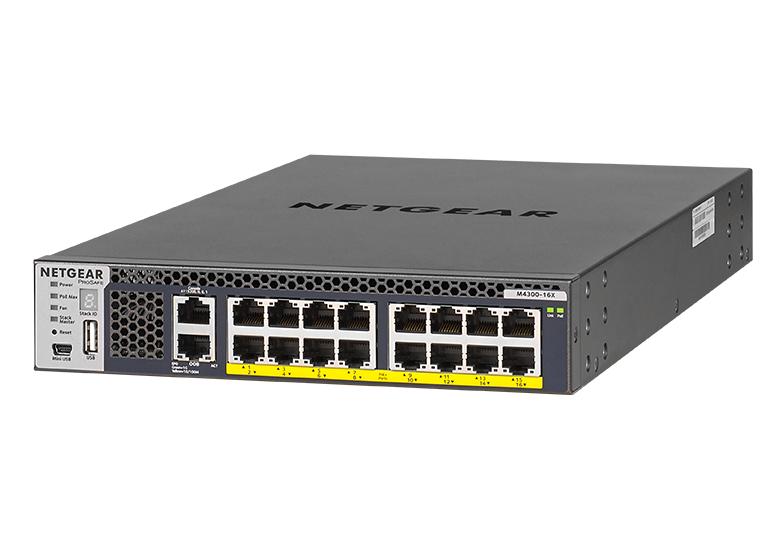

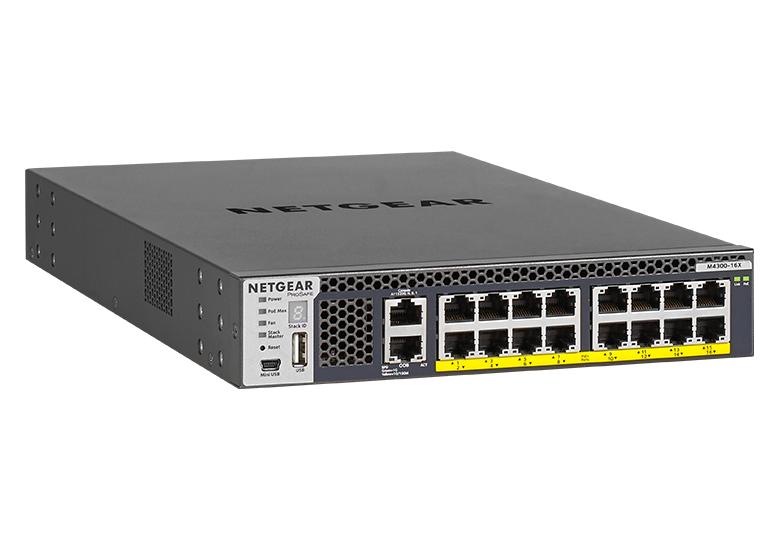

Netgear AV M4300-16X 16x Multi-Gig, PoE+ (299W) Managed Switch
SKU: XSM4316PA-100NES
£1,905.63 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Netgear AV M4300-16X Managed Switch | 16x Multi-Gig PoE+, 199W, 10G/5G/2.5G
High Availability (HA)
Non-stop forwarding (NSF) virtual chassis architectures with hitless failover across the stack
Multi-Resiliency
Stacking and distributed link aggregation allow for zero downtime and load balancing capabilities
PVST+ Interoperability
Per VLAN Spanning Tree and Per VLAN Rapid Spanning Tree (PVSTP/PVRSTP)
Link Dependency
Enables or disables ports based on link state of different ports
Advanced IPv4/IPv6 security
Malicious code detection, DHCP Snooping, IP Source Guard protection and DoS attacks mitigation

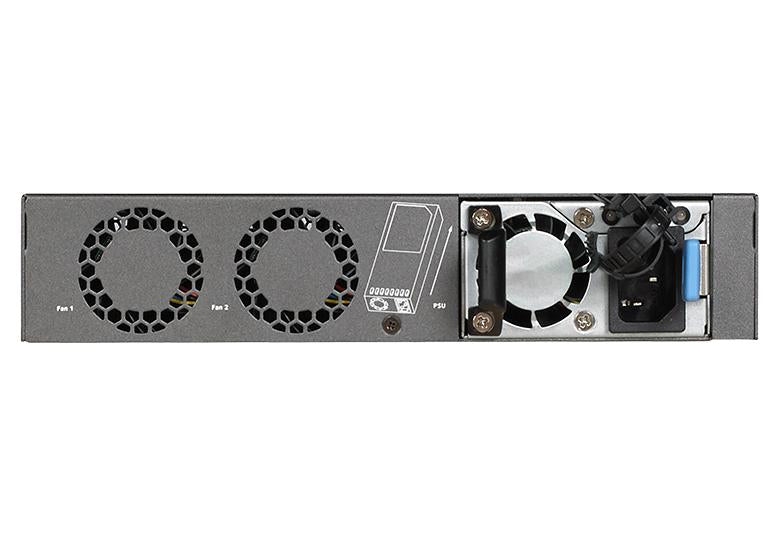

299W PSU
Ships with 299W PSU APS299W installed
Optional 600W PSU APS600W
Half-Width ToR
Combine 2 half-width models in a single rack space for redundant Top-of-Rack
Simple GUI
Full- functional Web console (GUI) for IT admins who prefer an intuitive graphical interface
Flexible & Efficient
Line-rate Spine and Leaf topologies offer many possibilities for server rooms, branch collapsed cores, or at the edge of growing networks.
Mix & Match Stacking
Stack between 10/40 Gigabit and 1 Gigabit models using any 10G/40G port, with any media type (RJ45, SFP+, DAC cables). Vertical, horizontal, manage as one unit
Room to Grow
With PoE+, upgradeable PSU plug and play ports, and hot swap, you're ready to grow whenever you need to.
Industry Standard
SNMP, RMON, MIB, LLDP, AAA, sFlow, RSPAN and PTPv2 1-step transparent clock implementation (select M4300 models)
Full PoE+ Provisioning
All (16) 10G/Multi-gig ports can provide 30W of PoE+ power (199W budget)
Zero Touch AV-over-IP
Pre-configured for Out-of-Box L2 Multicast (SDVoE-ready)
Pre-configured for Out-of-Box Multicast/IGMP
No Delay
Non-Blocking Fabric for Near-Zero Switch Latency
NETGEAR IGMP Plus™
Prevent network flooding with effortless multicast implementation of Layer 2 Multicast
Dedicated Design
ProAV Engineering Services for AV Network Design and Install Support ProAVDesign@NETGEAR.com
Power Your Business
The M4300 series switches provide full PoE+, with 30 watts per port.
Flex Your Multi-Gig
Muscle
This family of switches automatically selects the highest performance per port from 100M, 1Gb, 2.5Gb, 5Gb, and 10Gb.
The M4300 Family
Mix and match M4300 series switches to maximize your deployment opportunities.
ProAV out of the Box
Enjoy instant 1G/10G RX/TX end-point deployments with IGMP Snooping and NETGEAR exclusive IGMP Plus. -
Feature Description Number of PoE Ports 16x 10GBASE-T PoE+ PoE Power per Port Up to 30 Watts Total PoE Budget 199 Watts Ports 16 Ports RJ45 PoE+ Multi-Gigabit (100M/1G/2.5G/5G/10G) Modular Bay 1 Modular Bay with 299W Modular PSU (APS299W) included, optional APS600W for 500W Budget Rack Mount 1-unit 1U / 2-unit 1U Rack Mount (Included) Switching Fabric 320 Gbps Fan Fixed Fan, Front-to-Back airflow, 35 dB Ethernet Out-of-band 1G port (Back) Console (RJ45 RS232) RJ45 RS232 (Back) Console (Mini-USB) Mini-USB (Front) Storage (USB) USB (Front) Management Platform Single-pane-of-glass NMS300 platform with mass-configuration support Firmware & Configuration Updates Dual firmware image and configuration file for updates with minimal service interruption -
Description Downloads Netgear AV M4300-16X 16x Multi-Gig, PoE+ (299W) Managed Switch Datasheet Downloads
