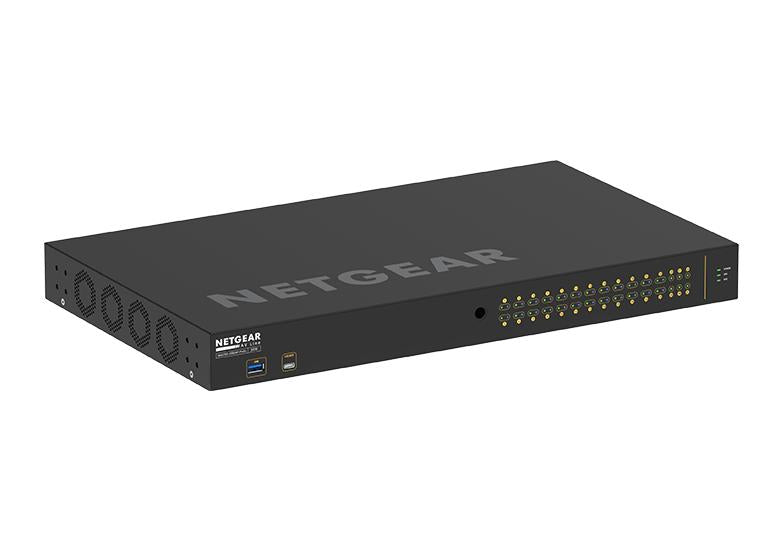

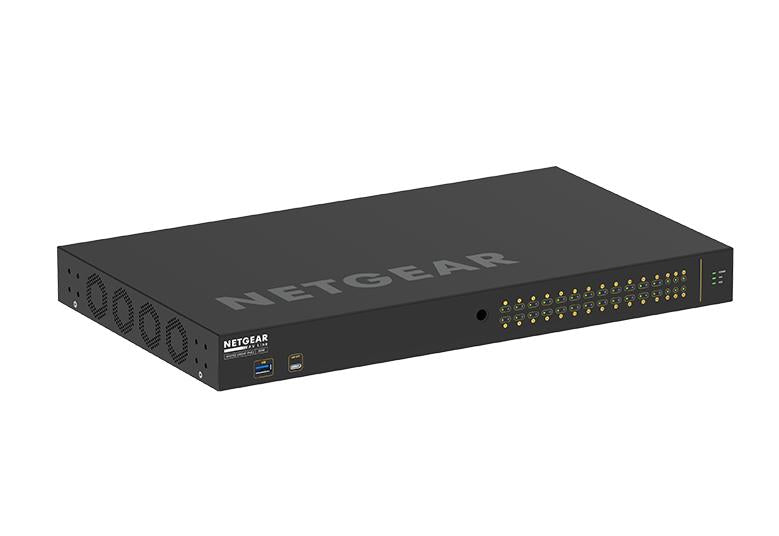

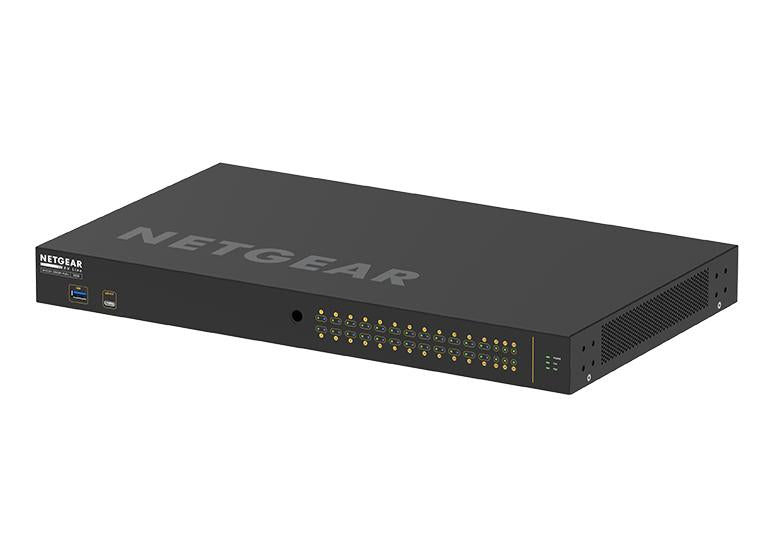

Netgear GSM4230P-100EUS 24-Port PoE+ AV Managed Switch
SKU: GSM4230P-100EUS
£980.99 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Netgear 24-Port PoE+ AV Managed Switch | 300W, 1G & 4x SFP, IGMP Plus
M4250-26G4F-PoE+ (GSM4230P)

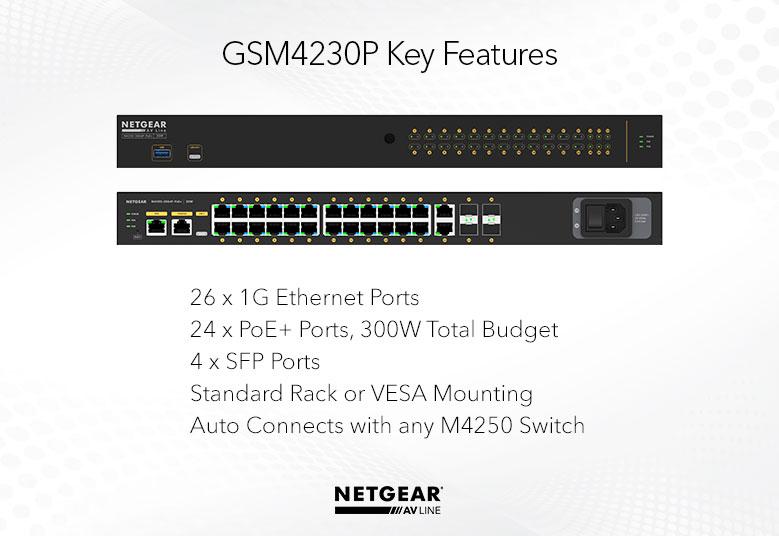

24x1G PoE+ 300W 2x1G and 4xSFP Managed Switch
Switching engineered for 1G AV over IP with rear-facing ports ensuring a clean integration in AV racks. Pre-configured for out of the box functionality!
POWERFUL AV SWITCHES
MADE SIMPLE
Pre-configured to get you up and running faster
Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.
Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.
Sleek, Quiet Design
Less fan noise, and mounting ears included for under-table or wall mounting.
Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4250 (and M4300) switches.
FAST, EASY
CONFIGURATION
FOR AV PROS
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.
FOCUS ON THE EVENT
NOT FAN NOISE
Most models have quiet mode which greatly reduces fan noise, and some models are even fanless.
DESIGNED FOR
AV OVER IP
RIGHT OUT OF
THE BOX
With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.
REFINED DESIGN
PROVIDES MOUNTING
FLEXIBILITY

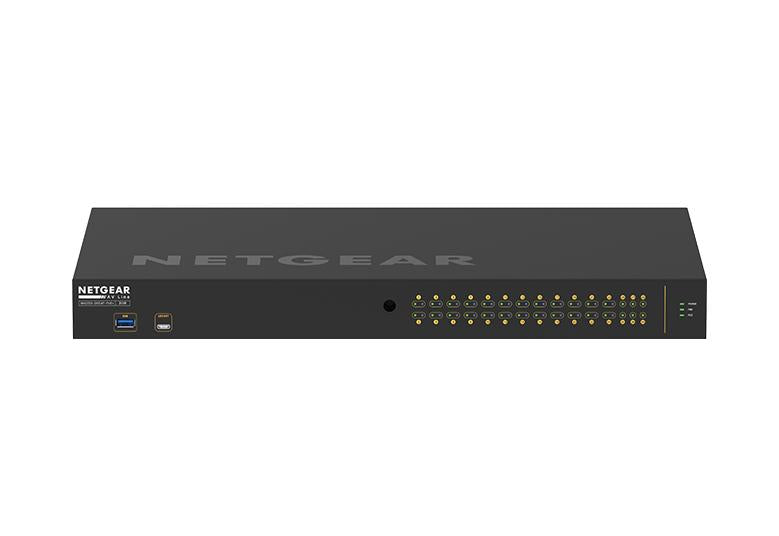

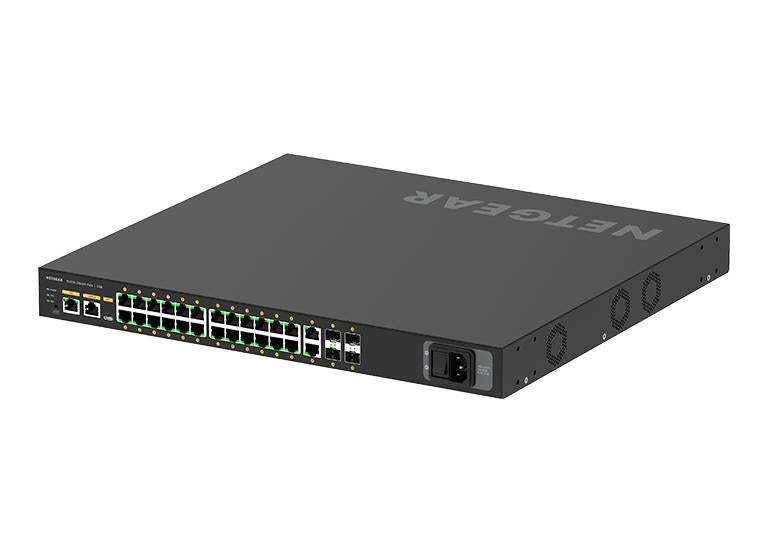

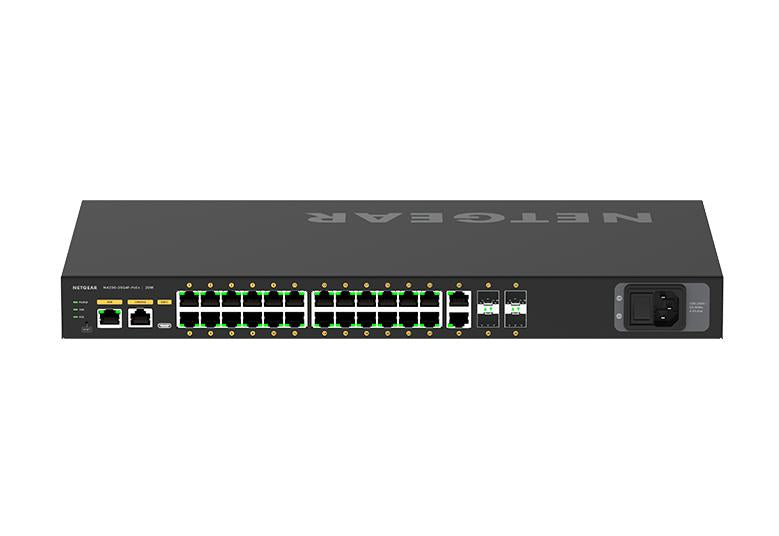

Clean lines and port activity status is featured in the front of the switch, while cabling is neatly in the back. Universal mounting options allow VESA mounting or in standard racks.
MAXIMISE
PERFORMANCE
WITH NETGEAR
ACCESS POINTS
Enable powerful, reliable WiFi at your location with WAX600 Series PoE access points.
PRO AV
RESOURCES
All the resources you need to learn about NETGEAR AV over IP solutions, including family brochures, product data sheets, tech tips and more.
-
Feature Description Dimensions (W x D x H) 440 x 257 x 43.2 mm Weight 4.3 kg (9.47 lb) Primary Port Speed 1 Gigabit Number of Ports 30 (24x 1G PoE+, 2x 1G, 4x SFP) PoE Ports / Budget 24 PoE+ (30W/port), 300W Budget IGMP Support Enhanced (NETGEAR IGMP Plus™) Jumbo Frame Support Yes, up to 12 kb AVB Support Yes. License required, activation key sent via email (AVB4230P-10000S) Acoustics Fanless or 34 dB @ 25ºC Power Consumption With PoE: 401W / 1369.01 Btu/hr
Without PoE: 35.8W / 122.22 Btu/hr
Standby (no ports): 23.4W / 79.89 Btu/hrThird-party Support Domotz Warranty NETGEAR ProSAFE® Limited Lifetime Hardware Warranty. Valid only if purchased from an authorized reseller. Covers unmodified hardware, fans, and internal power supplies. Requires registration within 90 days. Indoor use only. NETGEAR Warranty Details Support Phone and chat technical support provided for 90 days from purchase date. -
Description Downloads Netgear GSM4230P-100EUS 24-Port PoE+ AV Managed Switch Datasheet Downloads
