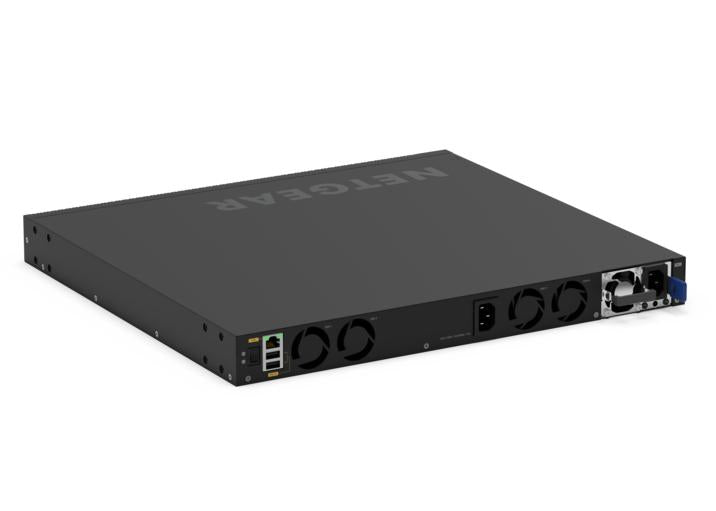

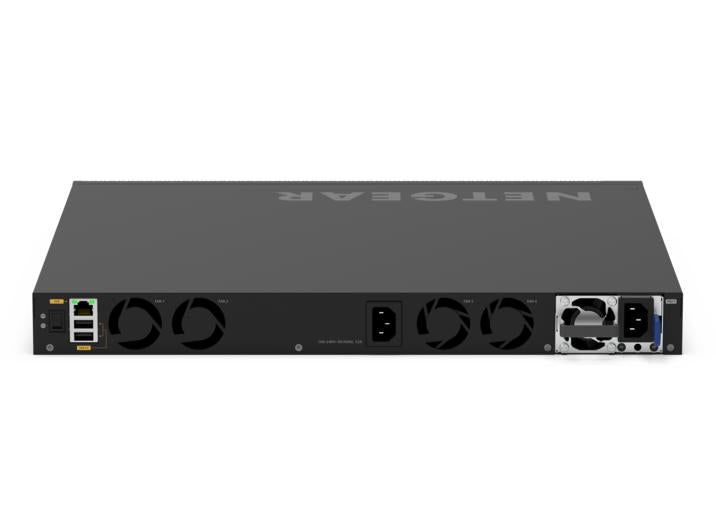

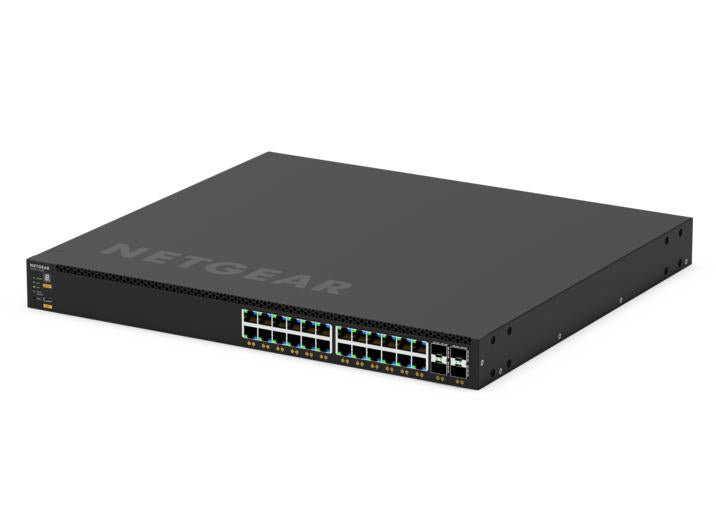

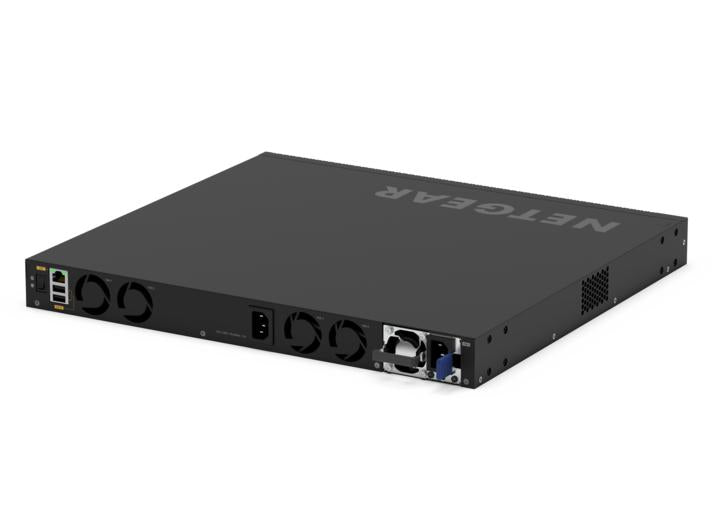

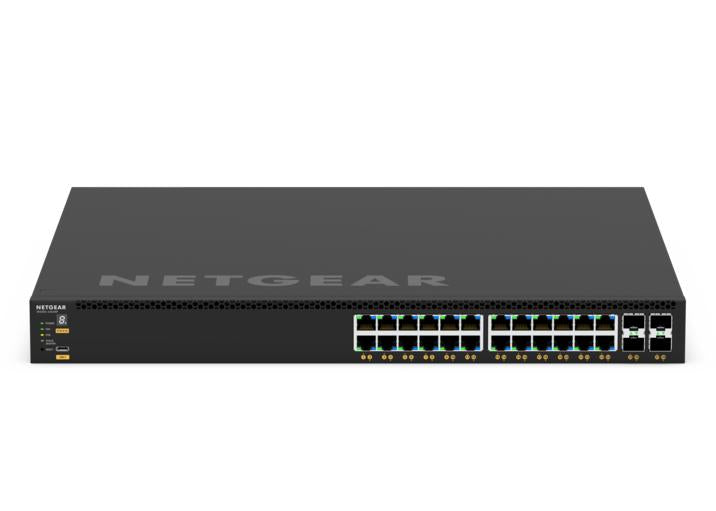

Netgear GSM4328-100NES 24x1G PoE+ (648W base, up to 720W) and 4xSFP+ Managed Switch

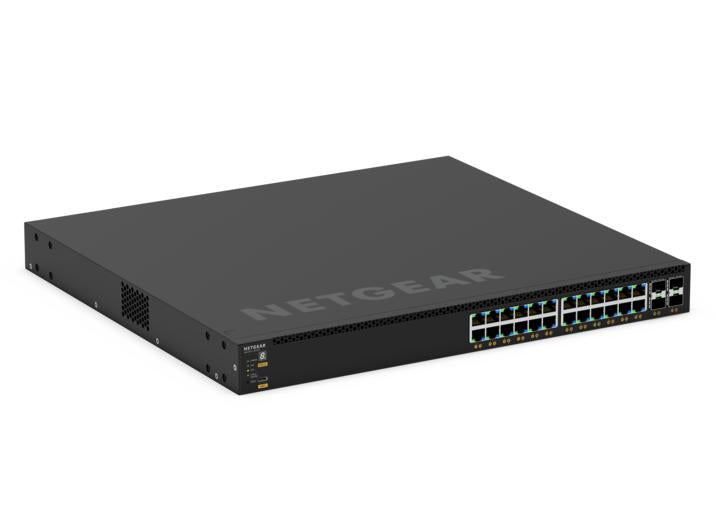

M4350-24G4XF Fully Managed Switch (GSM4328)

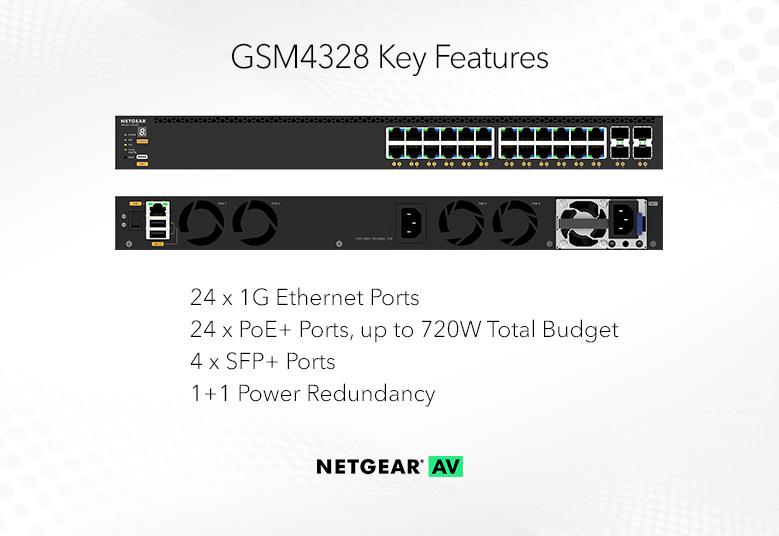

24x1G PoE+ (648W base, up to 720W) and 4xSFP+ Managed Switch
24 Gigabit PoE+ ports with 4 10GBASE-X SFP+ uplinks
880W internal power supply providing 648W of PoE budget
1 slot for modular power supply (1+1 redundancy and/or EPS share)
Any APS350Wv1, APS600Wv2, APS920Wv1, or APS2000Wv1 can be used
The PoE budget can reach 720W, when the redundant PoE budget remains 648W
Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
Layer 3 feature set includes static, policy-based, and dynamic routing
NETGEAR IGMP Plus™, AV User Interface, and Engage Controller speed up AV installations
NETGEAR ProSAFE® Limited Lifetime Hardware Warranty
Lifetime Next Business Day Hardware Replacement
POWER AND
THROUGHPUT
Edge to core stackable platform, from 1 Gigabit to 100 Gigabit, all within 15.75in (40cm) of depth.

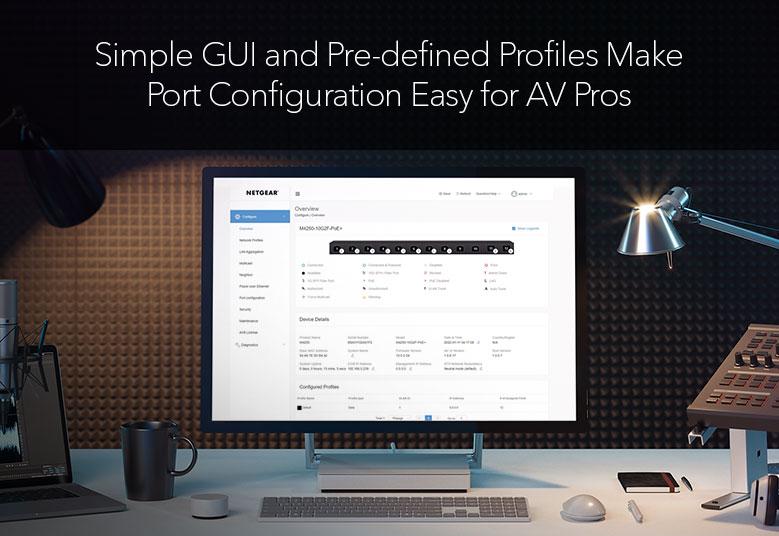

Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.
Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.
Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.
Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.
FAST, EASY
CONFIGURATION
FOR AV PROS
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.
FOCUS ON THE EVENT
NOT FAN NOISE
Most models have quiet mode which greatly reduces fan noise.
DESIGNED FOR
AV OVER IP
RIGHT OUT OF
THE BOX
With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.
MAXIMIZE
PERFORMANCE
WITH PRO WIFI
ACCESS POINTS
Enable powerful, reliable WiFi at your location with Pro WiFi access points, powered by PoE or an external power adapter.
PRO AV
RESOURCES
All the resources you need to learn about NETGEAR AV over IP solutions, including family brochures, product data sheets, tech tips and more.
-
| WHAT'S INCLUDED |
|
| M4350-24G4XF (GSM4328) |
1 |
| Power cord(s) |
1 |
| Console USB Type-C |
1 |
| Rack-mounting standard bracket set |
1 |
| Set of longer brackets for recessed mounting |
1 |
| Rubber footpads for tabletop installation |
4 |
| Installation guide |
1 |
| TECHNICAL DETAILS |
|
| Width |
440mm |
| Depth |
400mm |
| Height |
43.2mm |
| Weight |
6.41kg (14.13lb) |
| Primary Port Speed |
1 Gigabit |
| Number of Ports |
24 x 1G PoE+, 4 x 10G SFP+ |
| PoE Ports / Budget |
24 PoE+ (30W/port), 648W Base, up to 720W Budget |
| IGMP Support |
Enhanced (NETGEAR IGMP Plus™) |
| Jumbo Frame Support |
Yes, up to 12kb |
| AVB Support |
Yes, included |
| Acoustics |
Quiet Mode 33dB@25ºC |
| Power Consumption |
With PoE: 792.1W/2701.06Btu/hr |
|
Without PoE: 80W/251.2Btu/hr |
|
Standby without any port connection: 32W/100.48Btu/hr |
| PSU Compatible Models |
APS350Wv1 |
|
APS600Wv2 |
|
APS920Wv1 |
|
APS2000Wv1 |
| MANAGEMENT |
|
| NETGEAR Engage Controller |
Centralized application to configure all switches across your entire network. Lightweight and portable, you can run it from a USB thumb drive. |
| Learn More |
|
| WARRANTY |
|
| This product is backed by a NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty. Phone and chat technical support provided for 90 days from purchase date. This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller, and covers unmodified hardware, fans, and internal power supplies – not software or external power supplies, and requires product registration at NETGEAR Registration within 90 days of purchase; see NETGEAR Warranty for details. Intended for indoor use only. |
-
