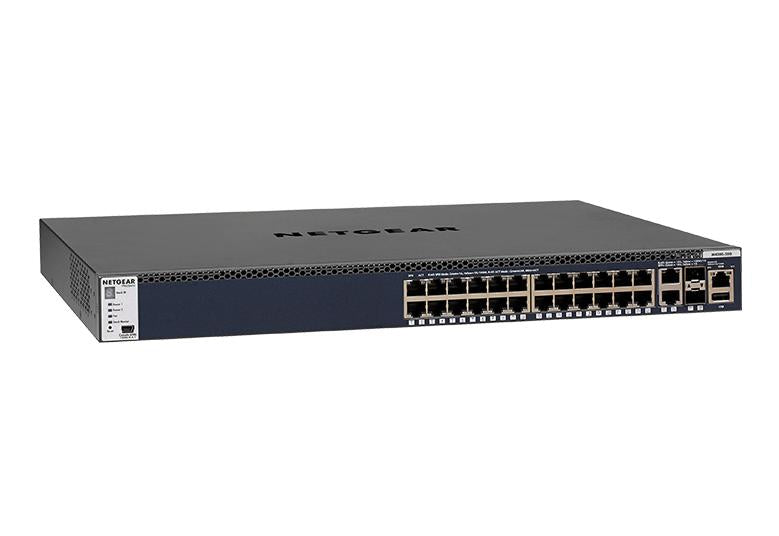

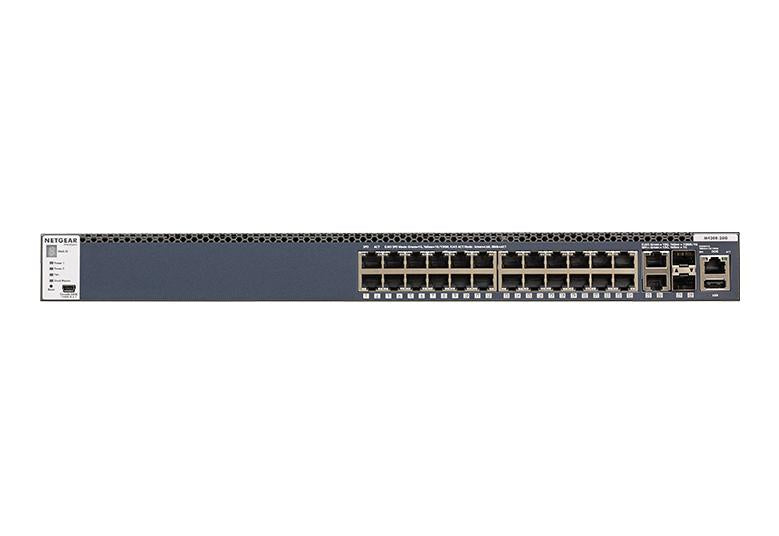

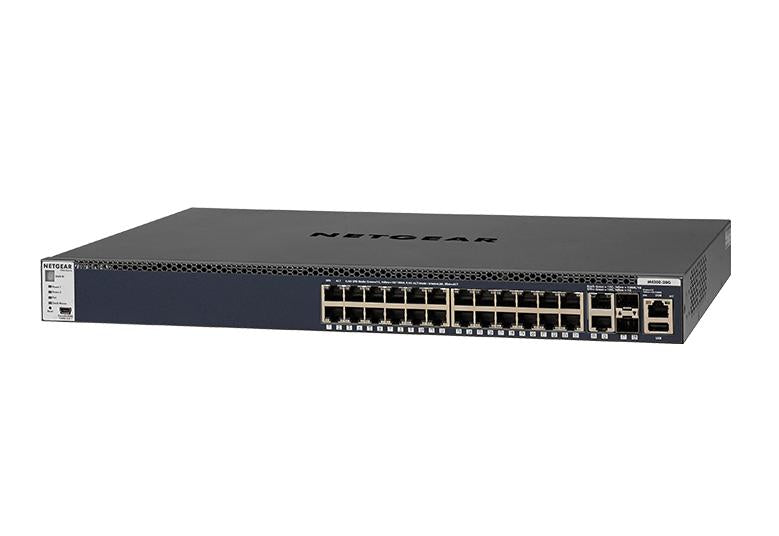

Netgear GSM4328S-100NES | 24-Port Gigabit Managed Switch with 2x10G and 2xSFP+
Business Continuity Management
Full-width switches offer dual redundant, modular power supplies (select m4300 models)
High Availability (HA)
Non-stop forwarding (NSF) virtual chassis architectures with hitless failover across the stack
Multi-Resiliency
Stacking and distributed link aggregation allow for zero downtime and load balancing capabilities
PVST+ Interoperability
Per VLAN Spanning Tree and Per VLAN Rapid Spanning Tree (PVSTP/PVRSTP)
Link Dependency
Enables or disables ports based on link state of different ports
Advanced IPv4/IPv6 security
Malicious code detection, DHCP Snooping, IP Source Guard protection and DoS attacks mitigation
Simple GUI
Full- functional Web console (GUI) for IT admins who prefer an intuitive graphical interface
Flexible & Efficient
Line-rate Spine and Leaf topologies offer many possibilities for server rooms, branch collapsed cores, or at the edge of growing networks.
Mix & Match Stacking
Stack between 10/40 Gigabit and 1 Gigabit models using any 10G/40G port, with any media type (RJ45, SFP+, DAC cables). Vertical, horizontal, manage as one unit
Room to Grow
With PoE+ (30 watts per port), plug and play ports, and hot swap, you're ready to grow whenever you need to.
Industry Standard
SNMP, RMON, MIB, LLDP, AAA, sFlow, RSPAN and PTPv2 1-step transparent clock implementation
Zero Touch AV-over-IP
Pre-configured for Out-of-Box L2 Multicast (SDVoE-ready)
No Delay
Non-Blocking Fabric for Near-Zero Switch Latency
NETGEAR IGMP Plus™
Prevent network flooding with effortless multicast implementation of Layer 2 Multicast
Dedicated Design
ProAV Engineering Services for AV Network Design and Install Support ProAVDesign@NETGEAR.com
No more Downtime
Or bottlenecks - Spine and Leaf topologies in the same stack with unrivaled ease of use
Industry-Standard
Management
Stay on top of operations with: CLI, local GUI, SNMP, sFlow, RSPAN, single pane of glass NMS300
Secure Your Data
Defend with Access Control, DiffServ QoS policies, LACP Link Aggregation, Private VLANs, Denial of service protection
Dependable Operations
Enjoy high availability across virtual servers through load balancing and nonstop forwarding failover.
-
| Feature |
Description |
| Model Number |
GSM4328S |
| Ports (Copper) |
24 Ports Copper 10M / 100M / 1G
2 Ports Copper 100M / 1G / 10G |
| Ports (SFP+) |
2 Ports SFP+ 1G / 10G |
| Modular Bay |

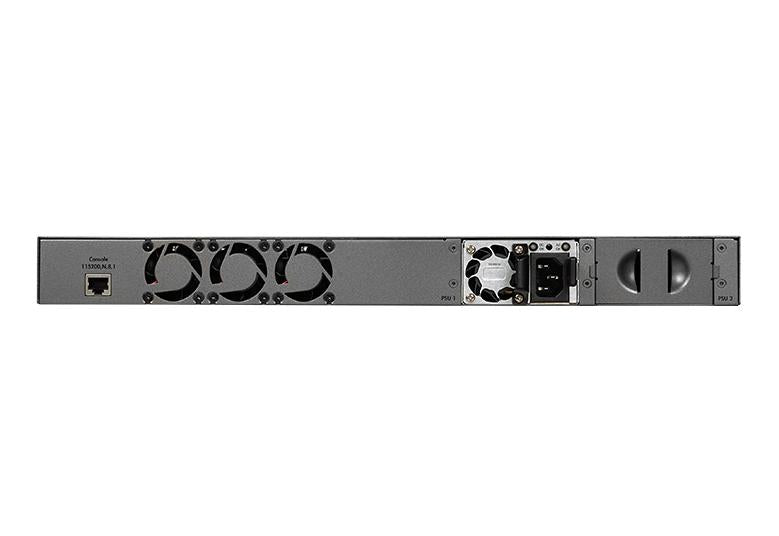

1 Modular Bay with One (1) 150W Modular PSU included APS150W |
| Switching Fabric |
128 Gbps |
| Fan |
Fixed Fan Front-to-Back 30.3dB |
| Ethernet |
Out-of-band 1G port (Front) |
| Console (RJ45 RS232) |
RJ45 RS232 (Back) |
| Console (Mini-USB) |
Mini-USB (Front) |
| Storage (USB) |
USB (Front) |
| Management Platform |
Single-pane-of-glass NMS300 management platform with mass-configuration support |
| Firmware and Configuration Updates |
Dual firmware image and configuration file for updates with minimum service interruption |
-
| Description |
Downloads |
| Netgear GSM4328S-100NES 24x1G, 2x10G, and 2xSFP+ Managed Switch Datasheet |
