Gigabit Unmanaged Switch Series (JGS524)

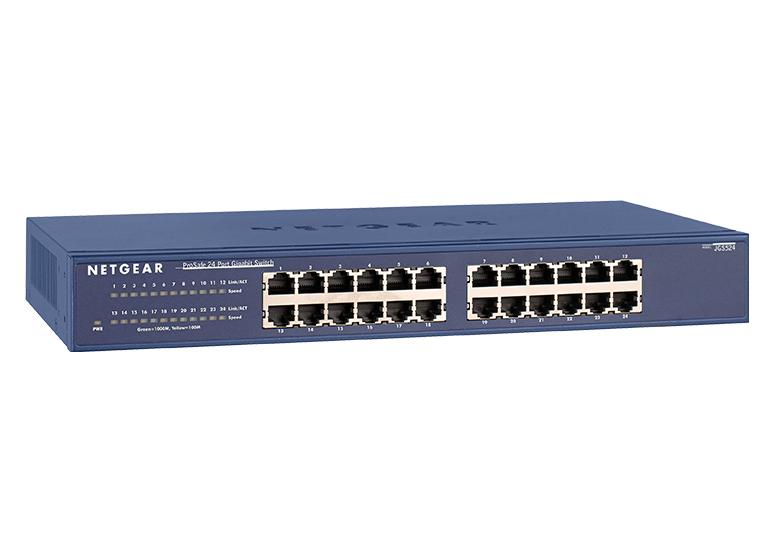

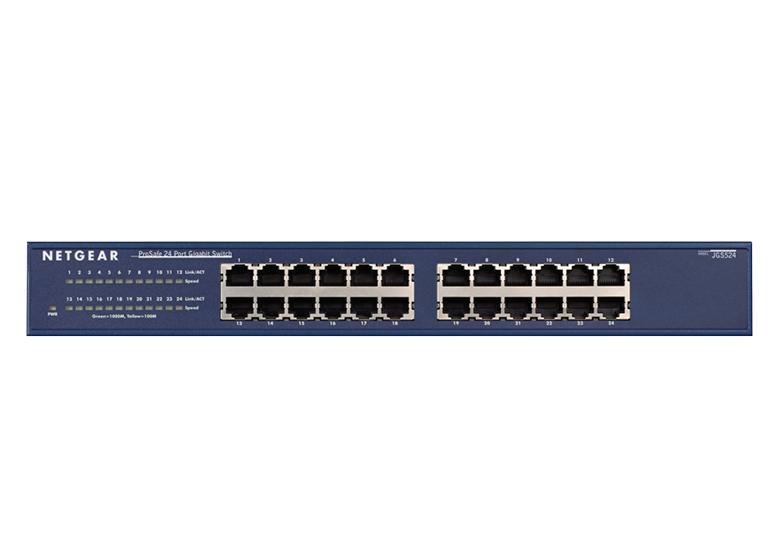

24-Port Gigabit Ethernet Unmanaged Switch
Easily combine new or existing 10-, 100- and 1000Mbps devices within
Each port delivers up to 2000Mbps of network speed (full duplex)
Fast, auto-switching and auto-sensing 10/100/1000Mbps Ethernet connection
24 switched ports provide bandwidth for PCs, servers or switches
Auto Uplink™ automatically adjusts for straight-through or crossover cables

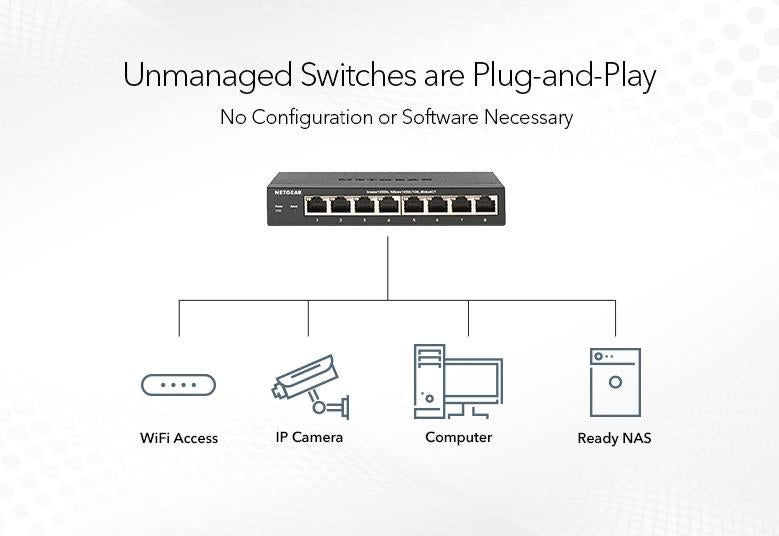

Plug and play—begins working as soon as it is powered on
Integrates 10-,100- and 1000Mbps devices into your network

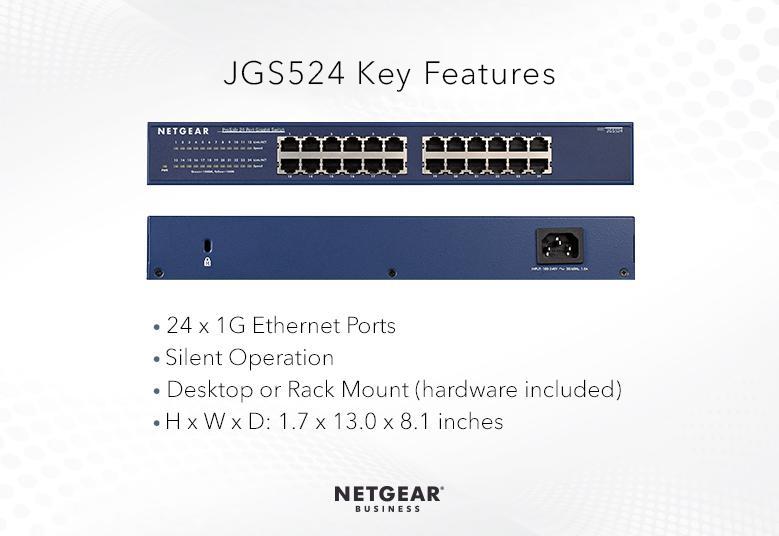

Compact size for desktop or for mounting in a standard 19-inch rack
The NETGEAR Gigabit Unmanaged Switch series helps businesses cost-effectively expand their network to Gigabit speeds and higher port counts
Unmanaged Gigabit switches come in a wide range of models including desktop, wall-mount and rackmount form factors and 5 to 24 port configurations
Energy efficient, built to last, and rigorously tested to provide the reliability businesses need
802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks
24 ports deliver up to 2000Mbps of dedicated, non-blocking bandwidth per port
Instant Plug-N-Play connectivity with Auto-negotiation and Auto MDI/MDI-X
Easily combine new or existing 10-, 100- and 1000Mbps devices within your network
802.1p QoS support for prioritizing voice and video in the network
Jumbo Frame Support up to 9KB
| Feature | Description |
|---|---|
| Dimensions (WxDxH) | 328 x 169 x 43 mm |
| Weight | 1.65 kg |
| Speed | 10/100/1000Mbps Gigabit Ethernet |
| Number of Ports | 24 |
| PoE Ports | n/a |
| Total PoE Budget | n/a |
| Loop Detection | n/a |
| Short Cable Power Saving | n/a |
| Energy Efficient Ethernet (IEEE 802.3az) | Yes |
| Jumbo Frame Support | 9KB |
| Queue WRR Ratio | 1:2:4:8 |
| MAC Table Size | 8K |
| Packet Buffer Size | 256KB |
| IEEE 802.1p QoS | Yes |
| Max Power Consumption | 17.9W |
| Operating Temperature | 0 to 50° C |
| MTBF (hours) | 238,872 |
| FCC Class | A |
| Warranty | NETGEAR ProSAFE® Limited Lifetime Hardware Warranty |
| Hardware Replacement | Lifetime Next Business Day Hardware Replacement |
| Warranty Details | Coverage, availability, and terms and conditions |
| Support | ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days. Coverage can be extended by purchasing one, three, or five-year contracts. ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat. |
| Description | Downloads |
|---|---|
| Netgear JGS524-200EUS 24-Port Gigabit Ethernet Unmanaged Switch Datasheet | Downloads |
