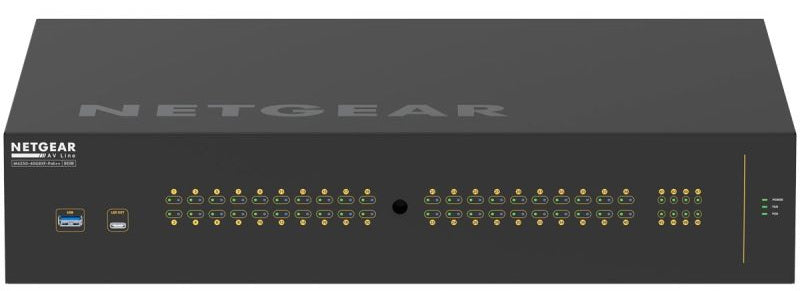

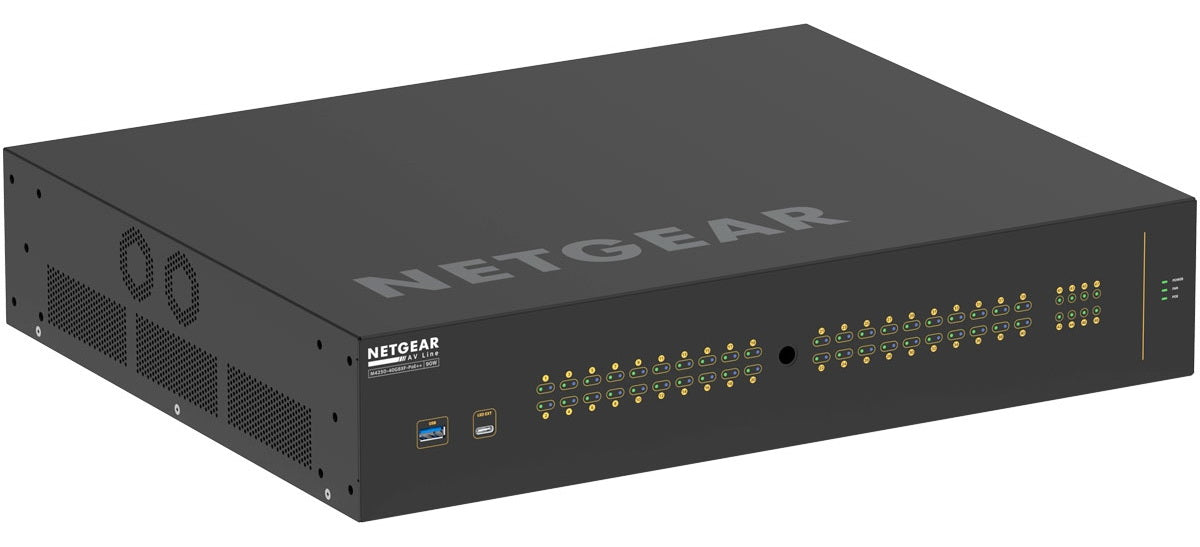

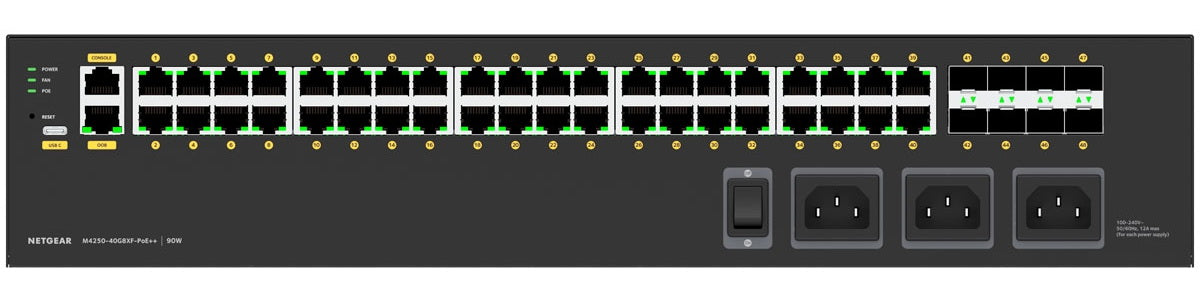

NETGEAR M4250-40G8XF-PoE++ 48-Port Managed Switch 40xPoE++ 2880W 8x10G SFP+
SKU: GSM4248UX-100EUS
£4,211.99 (Excl. VAT)
- Description
- Specifications
- Downloads
-
High-Power 48-Port AV Line Managed Switch with 40× PoE++ (2880W) & 8× 10G SFP+ for Pro AV Over IP
Pre-configured for out-of-the-box use
NETGEAR IGMP Plus enables instant multicast functionality for most AV over IP installationsDedicated AV web-based GUI interface
Unique interface designed for the AV professional with color-coded, port-based profilesProfiles for common audio protocols
Quickly assign profiles to ports for Dante, AES67, and AVB audio configurations. AVB Requires a separate licenseVideo profiles built-in
Special profiles for NVX, SVSI, Q-SYS and Dante video profiles can be easily assigned to ports as neededUnique Automatic Configuration
Auto-trunk and auto-lag functionality automatically configures other M4250 switches for use in star topology.Easier configuration with new AV GUI
The AV-oriented, web-based GUI permits factory or user-specified profiles to be assigned to individual ports as needed.Use in noise-sensitive environments
Adjustable fans can be turned off if certain conditions are met. Even the default Quiet mode is quieter than most other switches.Get up and running fast with little engineering time required
Our NETGEAR IGMP PlusTM feature is set from the factory to ensure out-of-the-box functionality for most AV over IP installations
Multiple mounting options provide ultimate flexibility
Threaded mounting holes sized to industry standards are built into the chassis for mounting behind a display or clamped to a truss.
M4250 AV Line Switches
An entirely new series of switches developed and engineered for the growing AV over IP market. -
Category Specification Product Info Part Number GSM4248UX-100EUS EAN 606449151763 Ports Total Ports 48 (40x 1G PoE++, 8x SFP+) PoE Ports 40 PoE++ (90W/port) PoE Budget 2,880 W RJ-45 Ports 40 x Gigabit Ethernet SFP+ Slots 8 USB Ports 1 x USB 2.0 Performance Switching Capacity 240 Gbit/s Throughput 178.56 Mpps MAC Address Table 16,000 entries Jumbo Frame Support Yes Latency (1 Gbps) 2.78 µs Latency (10 Gbps) 0.73 µs Management Switch Type Managed Layer Support Layer 2 / Layer 3 PoE Support PoE Type Active PoE, PoE++ PoE+ Ports Quantity 40 Total PoE Budget 2880 W Design Color Black Rack Mountable Yes Form Factor 2U Dimensions & Weight Width x Depth x Height 440 x 350 x 86.4 mm Weight 10.3 kg Power & Cooling Power Consumption 912 W (typical) Heat Dissipation 3113.57 BTU/h Fanless Yes Noise Level 60 dB Power Supply Included Yes Standards & Support Network Standards IEEE 802.3af/at/bt 10G Support Yes In the Box Cables Included RJ-45 LAN, USB Type-C Rack Mount Kit Yes User Guide Yes Rack Rails Yes Logistics HS Code 85176990 -
Description Downloads NETGEAR M4250-40G8XF-PoE++ L2/L3 Gigabit Ethernet (10/100/1000) 2U Managed Switch DataSheet Downloads NETGEAR M4250-40G8XF-PoE++ L2/L3 Gigabit Ethernet (10/100/1000) 2U Managed Switch User Manual Downloads NETGEAR M4250-40G8XF-PoE++ L2/L3 Gigabit Ethernet (10/100/1000) 2U Managed Switch Installation Guide Downloads
