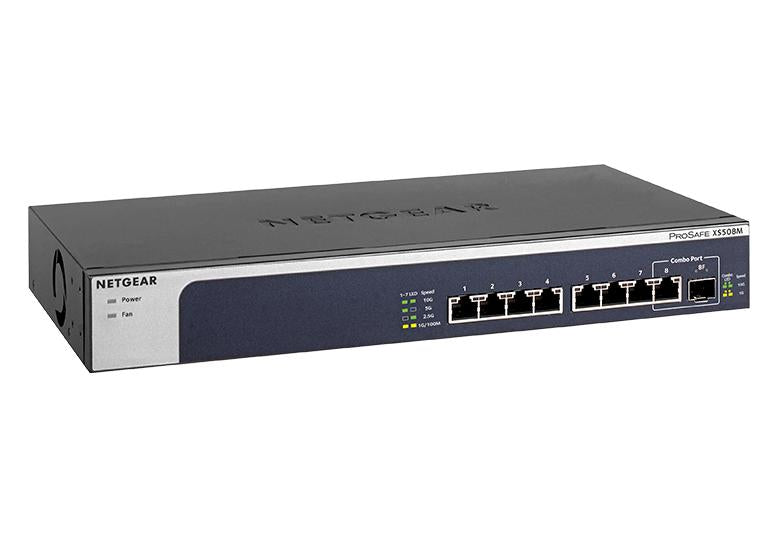

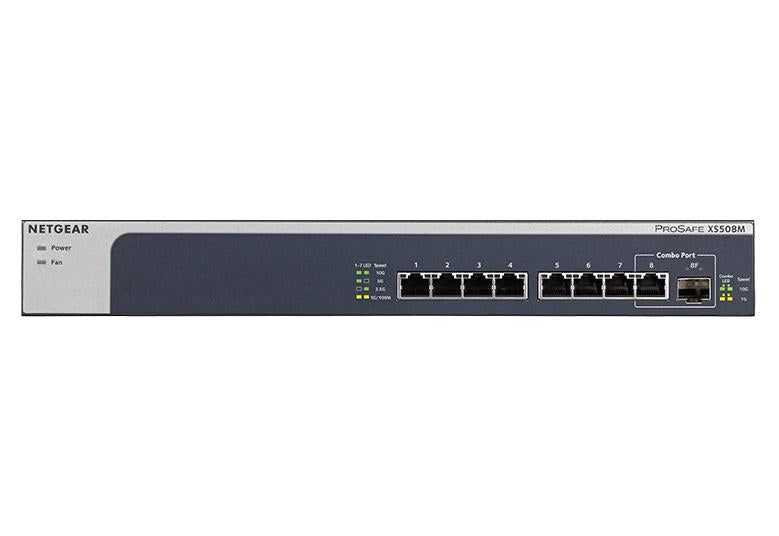

10-Gigabit/Multi-Gigabit (XS508M)
8-port, 5-speed Unmanaged Switch 10-Gigabit/Multi-Gigabit
The XS505M and XS508M come with copper Ethernet 5-speed ports that provide either FastEthernet, 1-Gigabit, 2.5-Gigabit, 5-Gigabit or 10-Gigabit connectivity, as well as 1 SFP+ Fiber port with 1-Gigabit or 10-Gigabit connectivity. Each port automatically detects which speed is needed.
Plug-and-play
Automatic connectivity to your router or modem of 4 or 7 additional wired connections. No need for an IT expert!
All speeds welcome
Expand your network instantly, and give your devices either 100Mb, 1, 2.5, 5 or 10-Gigabit, automatically
Mounting flexibility
Small and silent desktop or rackmount form factor for quiet operation – Adapts to your needs and configuration in any environment
Industry leading support
ProSAFE LIFETIME Warranty, Next Business Day replacement and 24/7 chat with a NETGEAR expert
Energy efficient
Switches automatically adjust power consumption according to the link status and cable length.
| Feature | Description |
|---|---|
| Dimensions (W x D x H) | 328 x 169 x 43.2 mm (12.91 x 6.65 x 1.7 in) |
| Weight | 1.49 kg (3.28 lb) |
| 100M/1G/2.5G/5G/10G RJ-45 Copper Ports | 7 |
| 10G SFP+ Ports | 1 x 10G/1G SFP+ and Copper (combo) |
| Form Factor | Desktop/Rackmount |
| Packet Buffer Memory | 128 KB |
| Bandwidth | 160 Gbps |
| MAC Address Database Size | 2K |
| Number of Priority Queues | 8 |
| Jumbo Frame Support | Up to 9K packet size |
| Fan(s) | 1 Low-Noise Active Fan |
| Energy Efficient Ethernet | Yes (IEEE 802.3az) |
| Max Power Consumption | 39W |
| LEDs | Power, Fan, Speed, Link/Activity |
| Acoustic Noise Level @ 25°C | 28 dB |
| Operating Temperature | 0° to 40°C |
| MTBF (@ 25°C) | 22.5 dBA |
| Electromagnetic Compliance | Class B |
| Warranty | 5-year Hardware Limited Warranty (Switch); 2-year warranty for external power adapters |
| Hardware Replacement | Next Business Day Hardware Replacement |
| Warranty Details | Coverage, availability, and terms and conditions |
| Support | ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (remote diagnostics). Extendable with 1, 3, or 5-year contracts. ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat. |
| Description | Downloads |
|---|---|
| Netgear XS508M-100EUS 8-port, 5-speed Unmanaged Switch 10-Gigabit/Multi-Gigabit Datasheet | Downloads |
