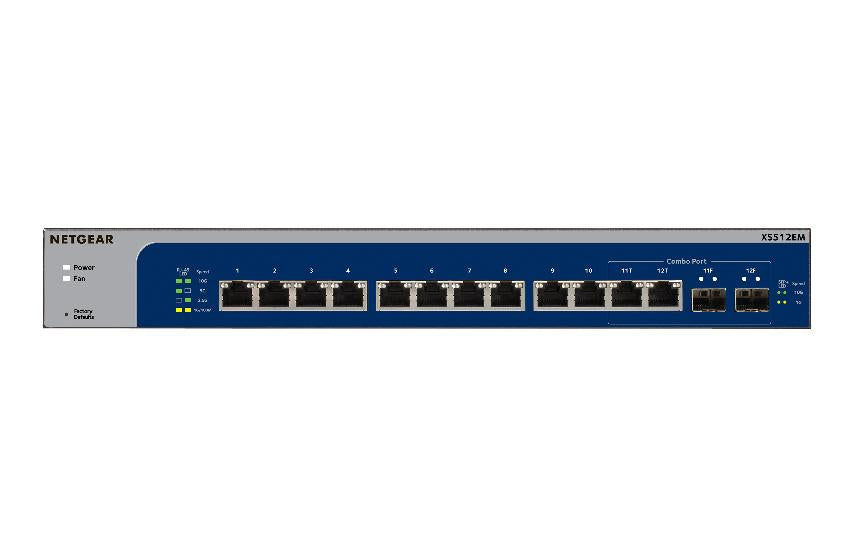

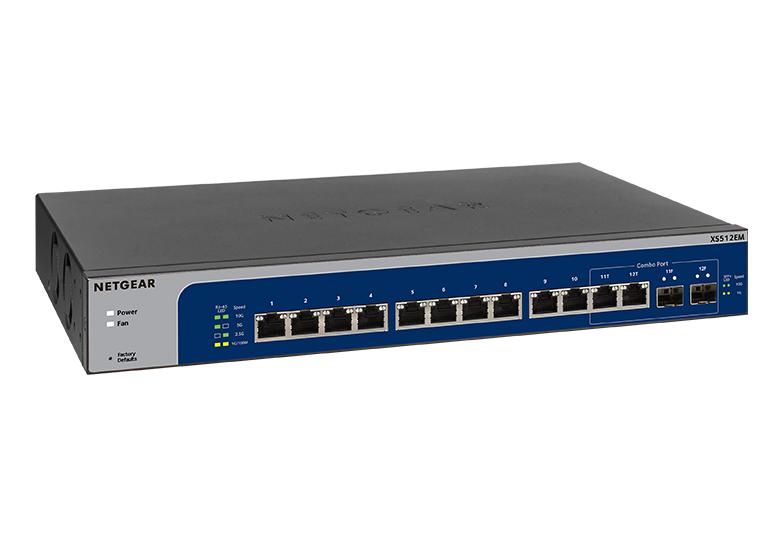

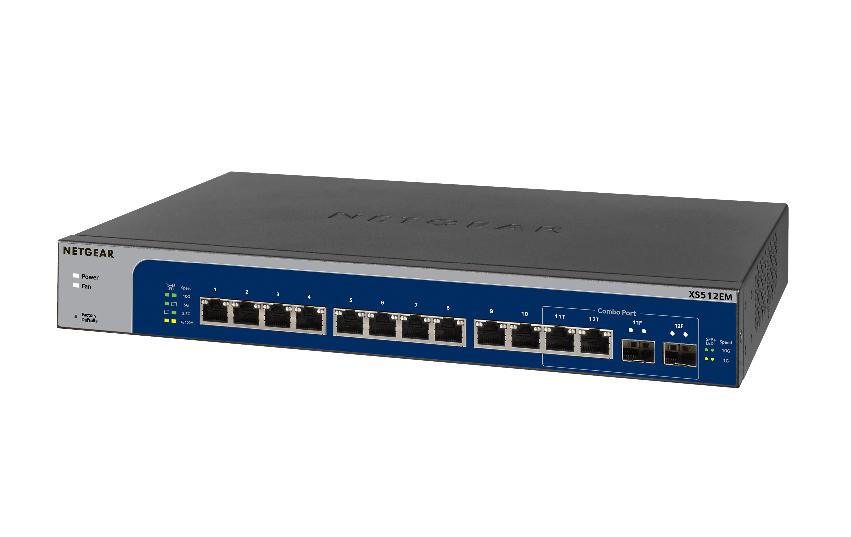

Netgear XS512EM-100EUS 12-Port 10G-Gigabit/Multi-Gigabit Ethernet Switch
SKU: XS512EM-100EUS
£927.47 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Netgear 12-Port 10G Multi-Gigabit Ethernet Switch, 2 SFP+, QoS, VLAN, IGMP Snooping
10GBASE-T Connections
Support low-latency, line-rate 10G Copper “BASE-T” technology with backward compatibility to Gigabit Ethernet and Fast Ethernet. Cost-effectively migrate current network to 10G capacity by utilizing the existing Cat 6 RJ45 short connections (up to 45m) and Cat 6a / Cat 7 connections up to 100m.
10GBASE-X SFP+ ports
Providing flexibility to uplink to 10G-capable core or aggregation switches that support fiber links. Backward compatible to Gigabit fiber. Support copper or fiber modules.

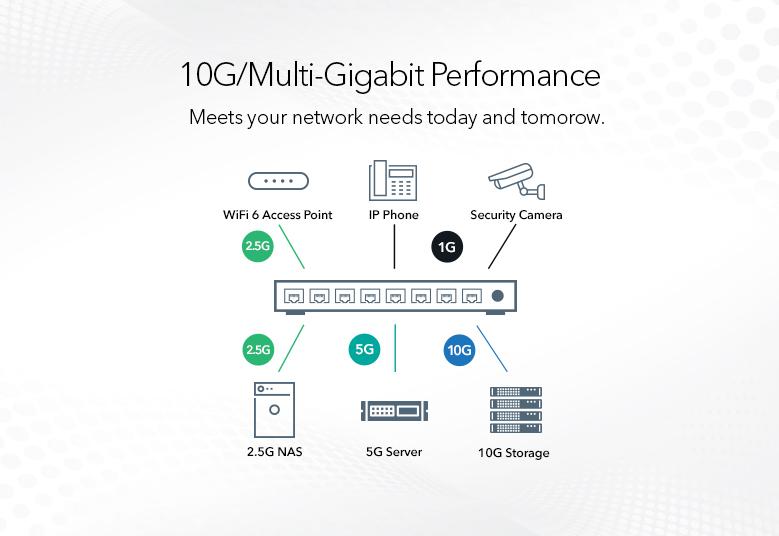

Multi-Gigabit Connections
Support line-rate 2.5G/5G "NBASE-T" technology with backward compatibility to Gigabit Ethernet and Fast Ethernet. Upgrade your current network without upgrading your existing cabling, thanks to Multi-Gigabit you will be able to run 5G and 2.5G over connections up to 100m.
Comprehensive QoS Features
Advanced controls for optimized network performance and better delivery of mission-critical traffic such as voice and video. Ingress and egress rate limiting allows for bandwidth shaping for mitigating network resources constraints or for optimizing guest access bandwidth on the network.
Port-based or 802.1p-based prioritization
Layer 3-based (DSCP) prioritization
Port-based ingress and egress rate limiting
IGMP Snooping
For improved network efficiency on delivering multicast traffic. Save cost and improve network efficiency by ensuring multicast traffic only reaches designated receivers without the need of an extra multicast router.
Loop Detection / Auto DoS Prevention
Detect accidental network loops and protect against DoS (Denial of Service) attacks.
Port-based & 802.1Q-based VLANs
Segment network into smaller groups for more secure and efficient use of network resources.
Port Trunking / Link Aggregation (LAG)
Build up bigger bandwidth to support aggregated uplink/downlink traffic.
Energy Effiecient Ethernet (IEEE 802.3az)
For maximum power savings and reduced energy costs.
Port Mirroring
For better and quicker network diagnostics and troubleshooting.
Cable Test
Easily identify bad Ethernet cables.
-

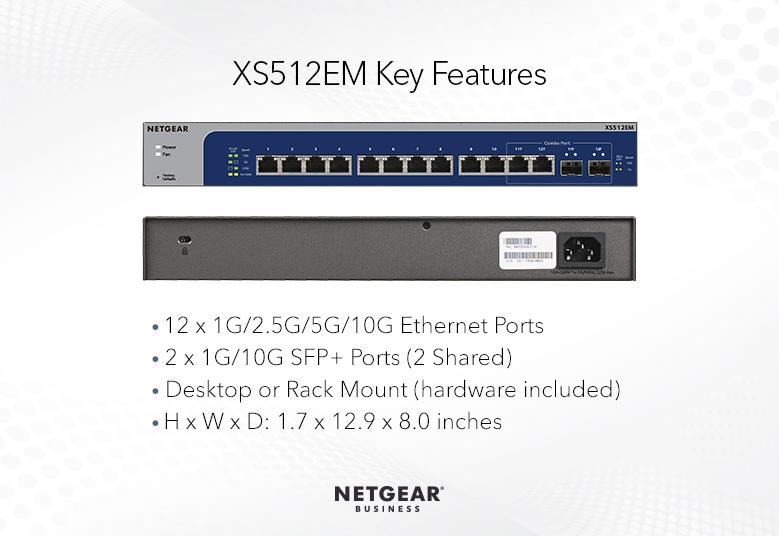

Feature Description Dimensions (W x D x H) 328 x 204 x 43 mm (12.9 x 8.0 x 1.7 in) Weight 2.51 kg (5.54 lb) 100M/1G/2.5G/5G/10G RJ-45 Copper Ports 12 SFP+ Ports 2 (shared) Form Factor Rackmount Packet Buffer Memory 3 MB Bandwidth 240 Gbps MAC Address Database Size 32K VLAN (# Supported) 64 Number of LAGs & Members 8 LAGs with max 8 members in each Supported Multicast Groups 128 Max Source Ports for Mirroring 11 (many to one) Fan(s) 2 (active fans) Energy Efficient Ethernet Yes (IEEE 802.3az) Max Power Consumption 76.56W LEDs Power, Speed, Fan, Link/Activity Acoustic Noise Level 29.3 dBA @ 25°C Operating Temperature 0° to 50° C Electromagnetic Compliance Class A Warranty NETGEAR ProSAFE® Limited Lifetime Hardware Warranty. Lifetime Next Business Day Hardware Replacement. Coverage, availability, and terms and conditions. Support ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (remote diagnostics). Extendable 1, 3, or 5 years. Lifetime 24x7 Advanced Technical Support via chat. -
Description Downloads Netgear XS512EM-100EUS 12-Port 10G-Gigabit/Multi-Gigabit Ethernet Switch Datasheet Downloads Netgear XS512EM-100EUS 12-Port 10G-Gigabit/Multi-Gigabit Ethernet Switch User Manual Downloads
