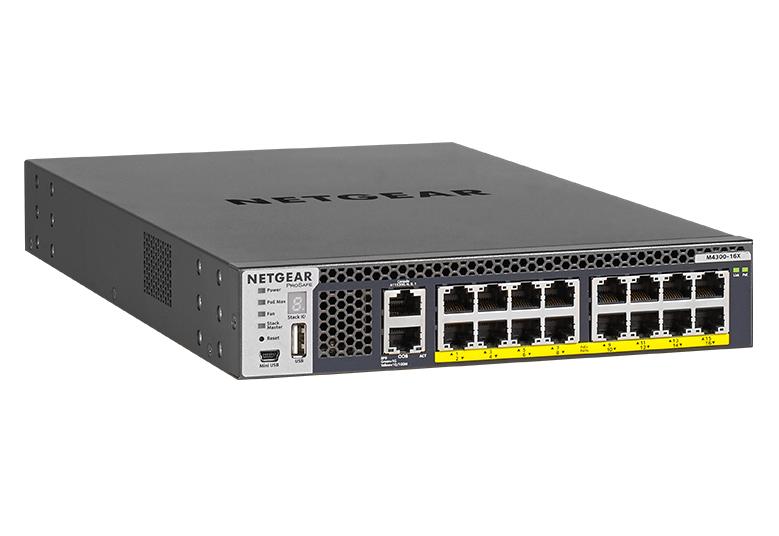

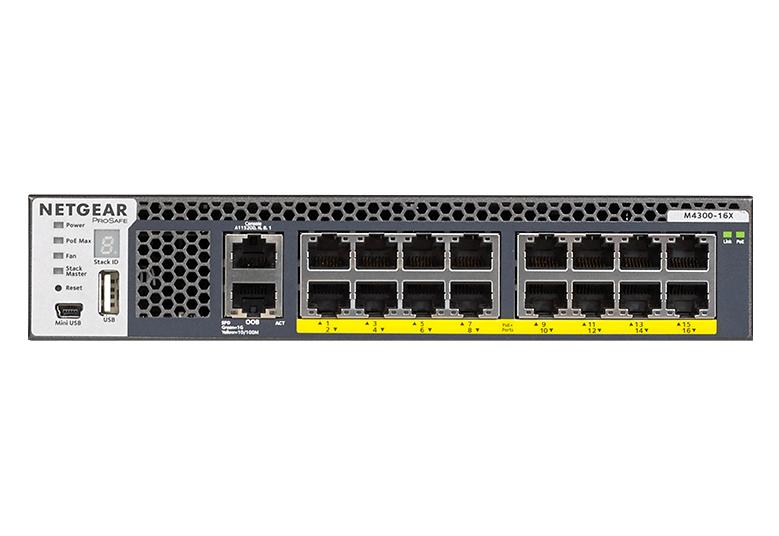

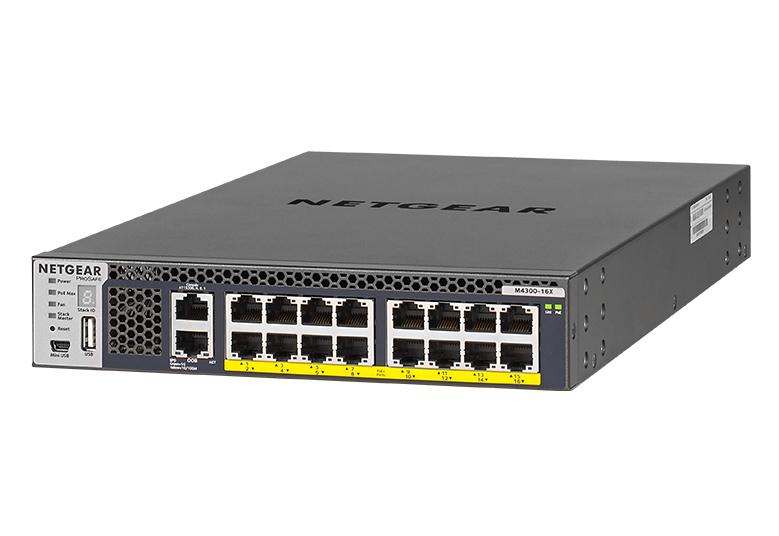

Netgear XSM4316PB-100NES 16x Multi-Gig, PoE+ (600W) Managed Switch
SKU: XSM4316PB-100NES
£2,083.77 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Netgear XSM4316PB Managed Switch – 16x Multi-Gig 10G PoE+ (600W) with Stackable Layer 3 Design, Pro AV & IT Core Ready
M4300-16X 600W PSU (XSM4316PB)
16x Multi-Gig, PoE+ (600W) Managed Switch
Half-Width Stackable Managed Switch with 16X 10G / MultiGig Ports and 600W PoE+ Budget - IT Core & AV-over-IP
High Availability (HA)
Non-stop forwarding (NSF) virtual chassis architectures with hitless failover across the stack
Multi-Resiliency
Stacking and distributed link aggregation allow for zero downtime and load balancing capabilities
PVST+ Interoperability
Per VLAN Spanning Tree and Per VLAN Rapid Spanning Tree (PVSTP/PVRSTP)
Link Dependency
Enables or disables ports based on link state of different ports
Advanced IPv4/IPv6 security
Malicious code detection, DHCP Snooping, IP Source Guard protection and DoS attacks mitigation

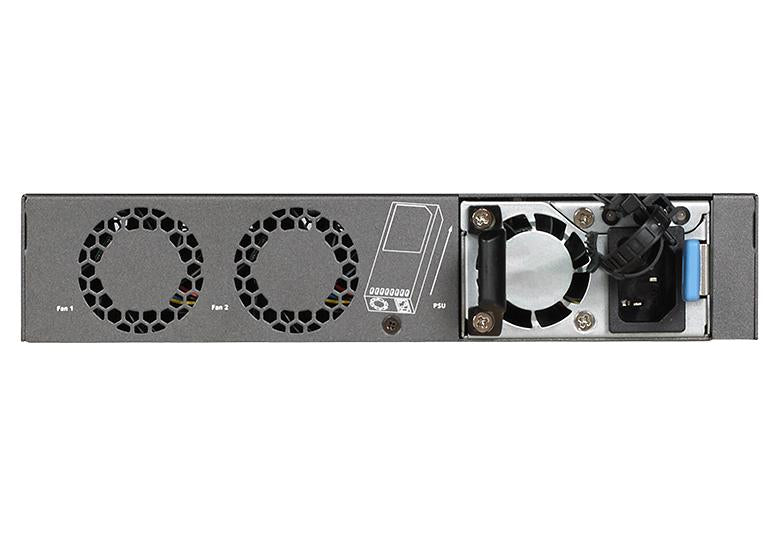

600W PSU
Ships with 600W PSU APS600W installed
All (16) 10G/Multi-gig ports can provide 30W of PoE+ power (500W budget)
Also available with smaller 299W PSU APS299W
Half-Width ToR
Combine 2 half-width models in a single rack space for redundant Top-of-Rack
Simple GUI
Full- functional Web console (GUI) for IT admins who prefer an intuitive graphical interface
Flexible & Efficient
Line-rate Spine and Leaf topologies offer many possibilities for server rooms, branch collapsed cores, or at the edge of growing networks.
Mix & Match Stacking
Stack between 10/40 Gigabit and 1 Gigabit models using any 10G/40G port, with any media type (RJ45, SFP+, DAC cables). Vertical, horizontal, manage as one unit
Room to Grow
With PoE+, upgradeable PSU plug and play ports, and hot swap, you're ready to grow whenever you need to.
Industry Standard
SNMP, RMON, MIB, LLDP, AAA, sFlow, RSPAN and PTPv2 1-step transparent clock implementation (select M4300 models)
Power Your Business
The M4300 series switches provide full PoE+, with 30 watts per port.
Flex Your Multi-Gig
Muscle
This family of switches automatically selects the highest performance per port from 100M, 1Gb, 2.5Gb, 5Gb, and 10Gb.
The M4300 Family
Mix and match M4300 series switches to maximize your deployment opportunities.
ProAV out of the Box
Enjoy instant 1G/10G RX/TX end-point deployments with IGMP Snooping and NETGEAR exclusive IGMP Plus. -
Feature Description Jumbo Frames 9000 Jumbo Frames Support Yes MAC Address Table 16,000 entries Number of Queues 8 Number of Static Routes 64 Store-and-Forward Yes Switching Capacity 320 Gbit/s Throughput 238 Mpps Airflow Direction Front-to-back airflow Form Factor 1U Product Colour Black Rack Mounting Yes Stackable Yes QoS Support Yes Switch Layer L3 Switch Type Managed Multicast Support Yes Multicast Groups Filtered 4000 10G Support Yes Auto-sensing Yes IP Routing Yes Link Aggregation Yes Networking Standards IEEE 802.1ab, 802.1D, 802.1p, 802.1Q, 802.1s, 802.1v, 802.1w, 802.3, 802.3ad, 802.3af, 802.3at, 802.3az, 802.3bz, 802.3u Number of VLANs 4093 Port Mirroring Yes Virtual LAN Features Private VLAN, Tagged VLAN, Voice VLAN VLAN Support Yes Heat Dissipation 2081.64 BTU/h Packaging Content Rack mount kit Packaging Data Rack mount kit Built-in Processor Yes Internal Memory 1024 MB MTBF 690,301 h Noise Level 35 dB Physical Stacking (Units) 8 Processor Frequency 800 MHz RJ-45 Ethernet Ports 16 x 10G Ethernet (100/1000/10000) Console Port RJ-45 / Mini-USB USB 2.0 Ports 1 Power Supply Units 1 Power Consumption (Max) 610 W Power Supply Included Yes PoE Support Yes PoE Power per Port 30 W PoE+ Ports Quantity 16 Total PoE Budget 500 W GVRP Yes Routing Protocols OSPF, OSPFv3, RIP, RIP-1, RIP-2 Access Control List (ACL) Yes Authentication Guest VLAN, MAC-based authentication BPDU Filtering/Protection Yes DHCP Features DHCP client, snooping, DHCPv6 client, relay, server, snooping IGMP Snooping Yes Brand Netgear Main Category Network Subcategory Wired Network / Network Switches Warranty 1 Year (Standard), NETGEAR ProSAFE® Limited Lifetime Hardware Warranty Hardware Replacement Lifetime Next Business Day Hardware Replacement Support ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (remote diagnostics). Extendable 1/3/5 years. ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat. -
