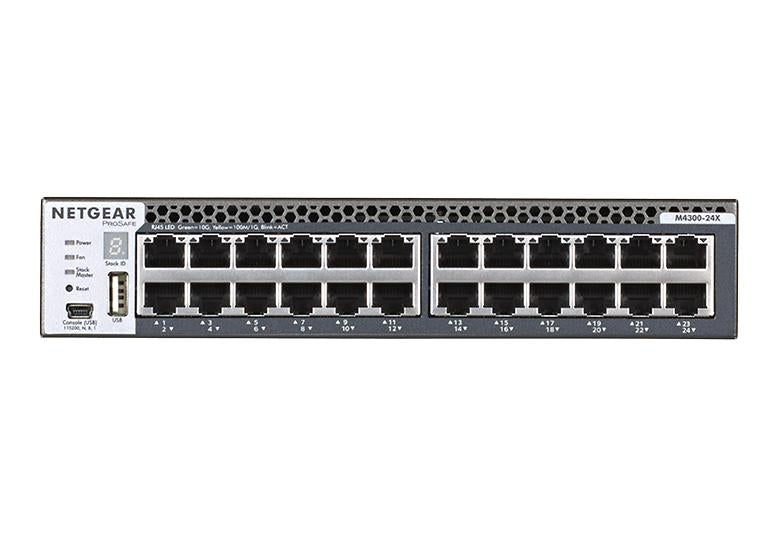

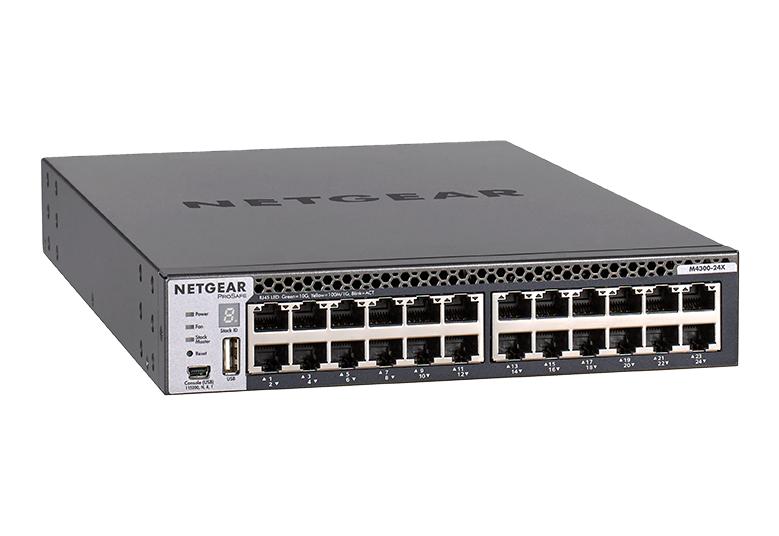

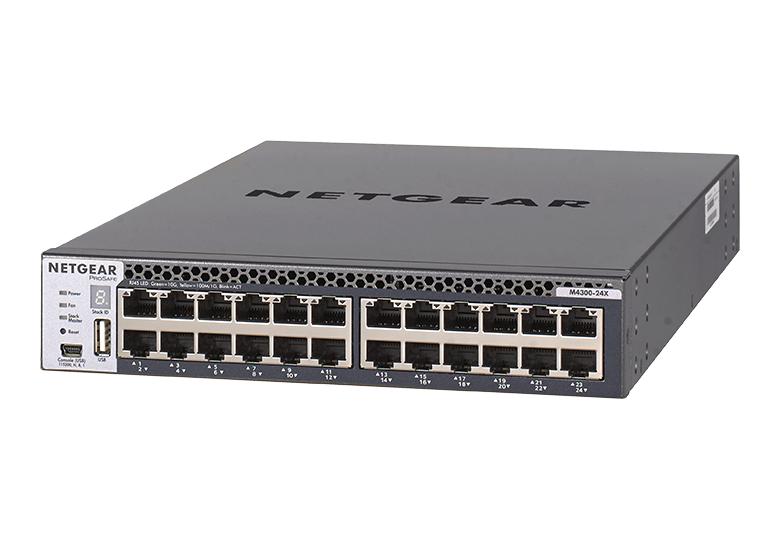

M4300-24X (XSM4324CS)
24x10G and 4xSFP+ (shared) Managed Switch
Half-Width 24x10G Stackable Managed Switch with 24x10GBASE-T
High Availability (HA)
Non-stop forwarding (NSF) virtual chassis architectures with hitless failover across the stack
Multi-Resiliency
Stacking and distributed link aggregation allow for zero downtime and load balancing capabilities
PVST+ Interoperability
Per VLAN Spanning Tree and Per VLAN Rapid Spanning Tree (PVSTP/PVRSTP)
Link Dependency
Enables or disables ports based on link state of different ports
Advanced IPv4/IPv6 security
Malicious code detection, DHCP Snooping, IP Source Guard protection and DoS attacks mitigation
Half-Width ToR
Combine 2 half-width models in a single rack space for redundant Top-of-Rack (select m4300 models)
Simple GUI
Full- functional Web console (GUI) for IT admins who prefer an intuitive graphical interface
Flexible & Efficient
Line-rate Spine and Leaf topologies offer many possibilities for server rooms, branch collapsed cores, or at the edge of growing networks.
Mix & Match Stacking
Stack between 10/40 Gigabit and 1 Gigabit models using any 10G/40G port, with any media type (RJ45, SFP+, DAC cables). Vertical, horizontal, manage as one unit
Room to Grow
With PoE+ (30 watts per port), plug and play ports, and hot swap, you're ready to grow whenever you need to.
Zero Touch AV-over-IP
Pre-configured for Out-of-Box L2 Multicast (SDVoE-ready)
No Delay
Non-Blocking Fabric for Near-Zero Switch Latency
NETGEAR IGMP Plus™
Prevent network flooding with effortless multicast implementation of Layer 2 Multicast
Dedicated Design
ProAV Engineering Services for AV Network Design and Install Support ProAVDesign@NETGEAR.com
| Feature | Description |
|---|---|
| Warranty | NETGEAR ProSAFE® Limited Lifetime Hardware Warranty |
| Hardware Replacement | Lifetime Next Business Day Hardware Replacement |
| Warranty Details | Coverage, availability, and terms and conditions |
| Support | ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (remote diagnostics). Coverage can be extended by purchasing one, three, or five-year contracts. ProSUPPORT Lifetime 24x7 Advanced Technical Support via chat. |
| Model Number | XSM4324CS |
| Ports | 24 Ports Copper 100M / 1G / 10G. 4 Ports SFP+ 1G / 10G (shared) |
| Modular Bay with PSU | One (1) 250W Modular PSU included APS250W |
| Switching Fabric | 480 Gbps |
| Fan | Fixed Fan Front-to-Back 37dB |

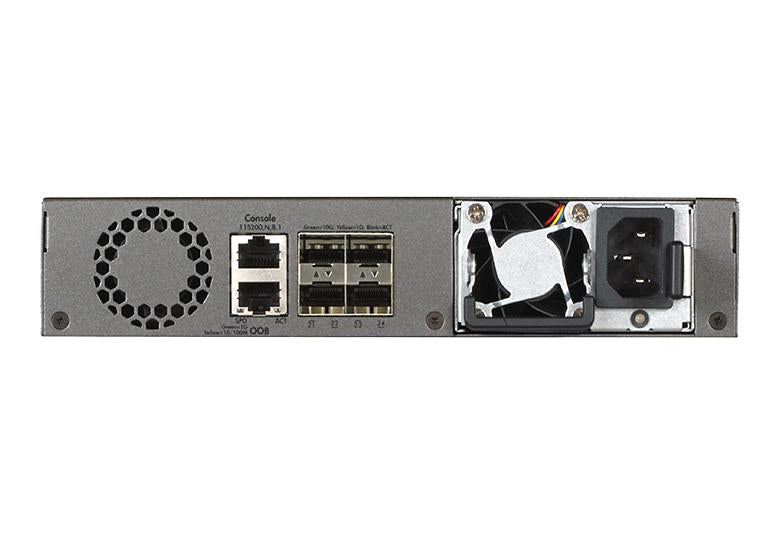

| Ethernet | Out-of-band 1G port (Back) |
| Console | RJ45 RS232 (Back), Mini-USB (Front) |
| Storage | USB (Front) |
| Management Platform | Single-pane-of-glass NMS300 management platform with mass-configuration support |
| Firmware and Configuration | Dual firmware image and configuration file for updates with minimum service interruption |
| Description | Downloads |
|---|---|
| Netgear XSM4324CS-100NES 24x10G and 4xSFP+ (shared) Managed Switch Datasheet | Downloads |
